Univariate analysis in mx

Univariate Analysis in Mx

Boulder, 2004


Group structure

Group Structure

  • Title

  • Type: Data/ Calculation/ Constraint

    • Reading Data

  • Matrices Declaration

    • Assigning Specifications/ Values

  • Matrix Algebra and/or

  • Means/ Covariances

    • Options

  • End


Additional commands

Additional Commands

  • ! Comments

  • #NGroups <number of groups>

  • #define <name> <number>

    e.g. #define nvar 1

  • #define <$name> <string>

  • #include filename


Reading data

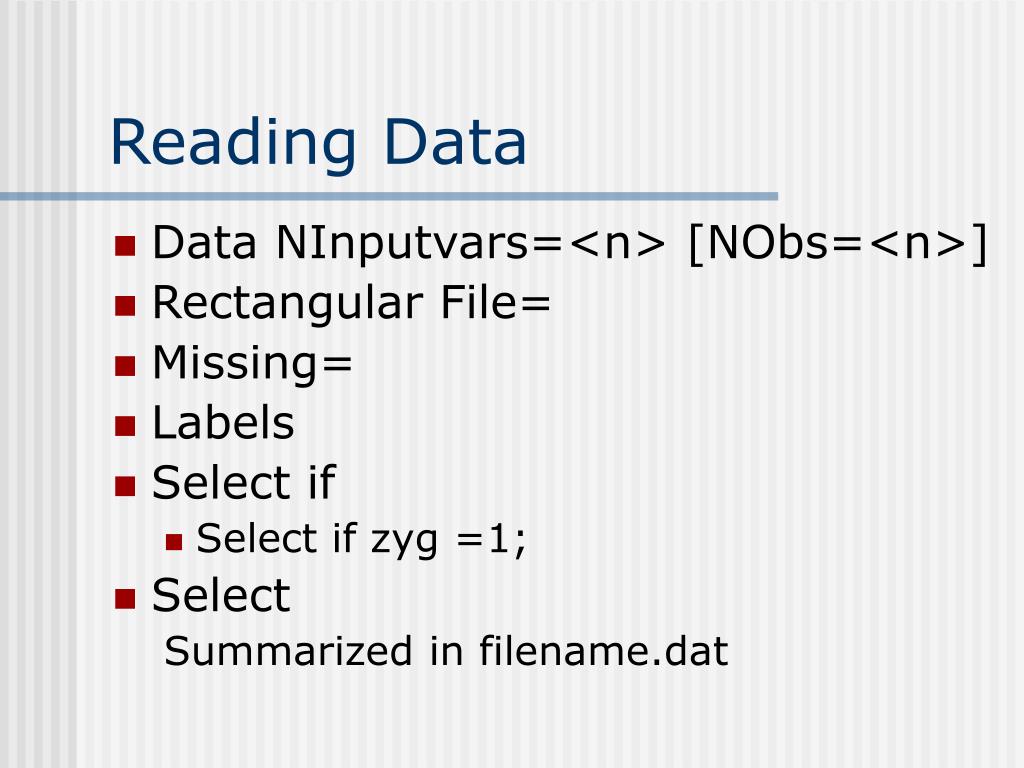

Reading Data

  • Data NInputvars=<n> [NObs=<n>]

  • Rectangular File=

  • Missing=

  • Labels

  • Select if

    • Select if zyg =1;

  • Select

    Summarized in filename.dat


Matrices declaration

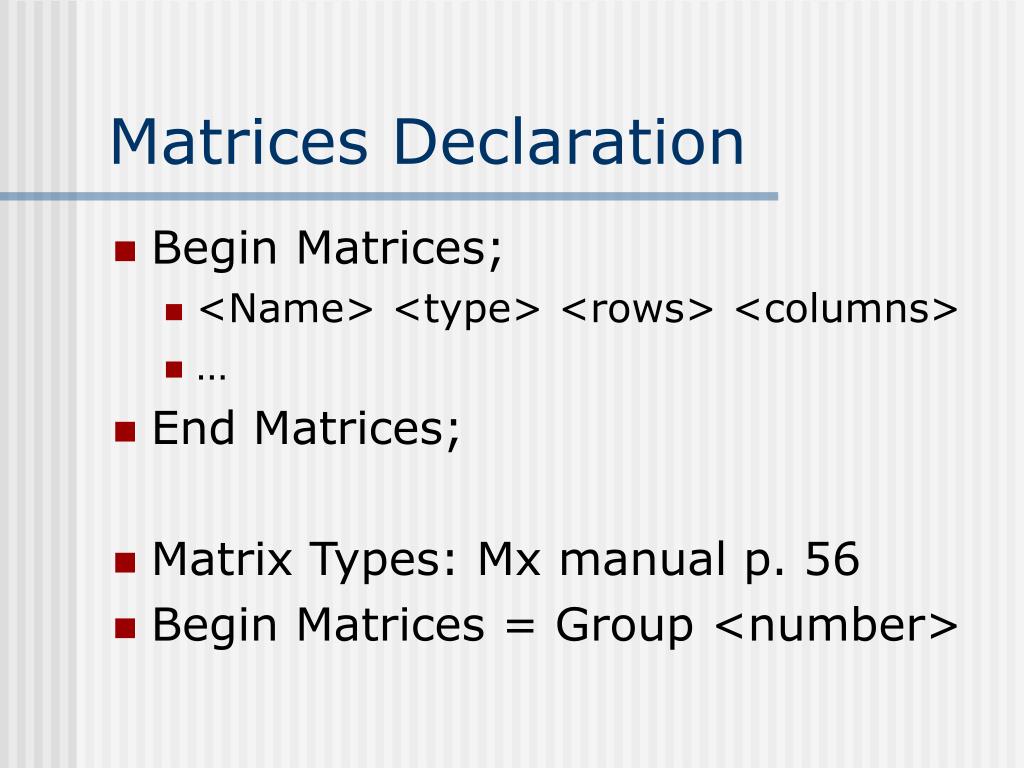

Matrices Declaration

  • Begin Matrices;

    • <Name> <type> <rows> <columns>

  • End Matrices;

  • Matrix Types: Mx manual p. 56

  • Begin Matrices = Group <number>


Matrix algebra

Matrix Algebra

  • Begin Algebra;

    • <matrix name> = <matrix formula>;

    • <matrix name> = <matrix formula>;

  • End Algebra;

  • Matrix Operations: Mx Manual p. 59

  • Matrix Functions: Mx Manual p. 64


Means covariances

Means/Covariances

  • Means <formula>;

    e.g. Means M;

    dimensions of expected matrix must equal dimensions of observed means

  • Covariances <formula>;

    dimensions of expected covariance matrix must equal the square of the number of variables


Mx script i

Mx Script I

#NGroups 2

#define nvar 1

#define nsib 2

G1: male MZ twin pairs

Data NInput_vars=5

Missing=-1.00

Rectangular File=Agg10.rec

Labels ZYG RB10A AGG10A RB10B AGG10B

Select if zyg =1 ; ! select MZM twins

Select AGG10A AGG10B ;

May be put in agg10.dat and included with #Include filename


Mx script ii

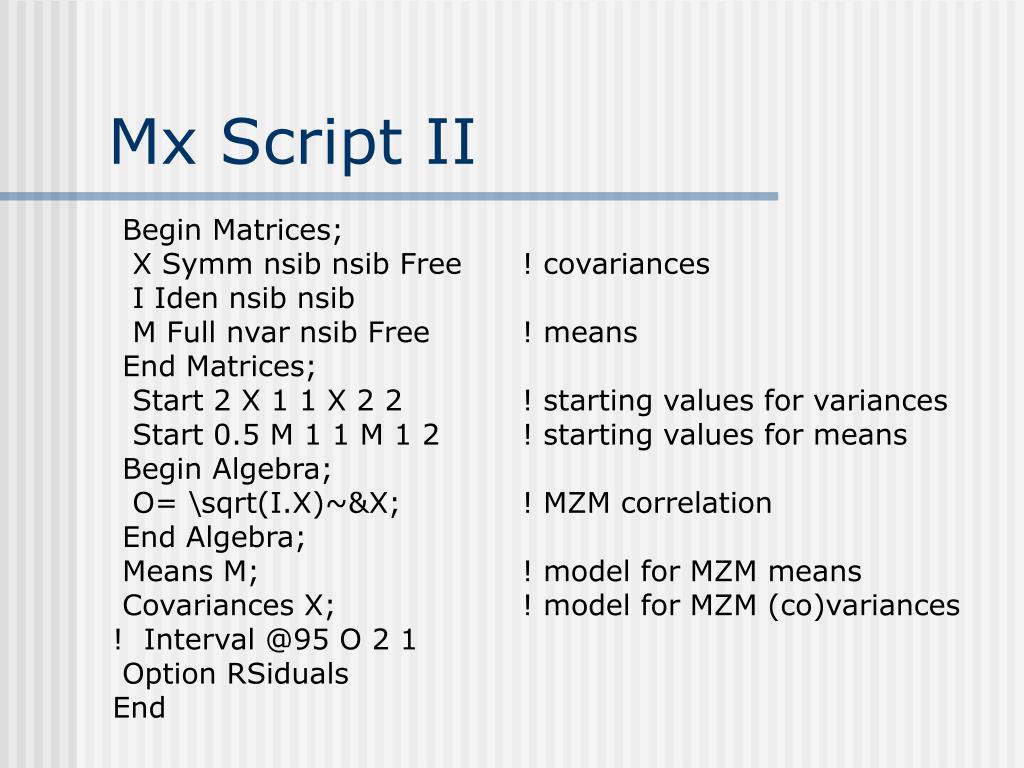

Mx Script II

Begin Matrices;

X Symm nsib nsib Free! covariances

I Iden nsib nsib

M Full nvar nsib Free! means

End Matrices;

Start 2 X 1 1 X 2 2! starting values for variances

Start 0.5 M 1 1 M 1 2! starting values for means

Begin Algebra;

O= \sqrt(I.X)~&X;! MZM correlation

End Algebra;

Means M;! model for MZM means

Covariances X;! model for MZM (co)variances

! Interval @95 O 2 1

Option RSiduals

End


Mx script iii

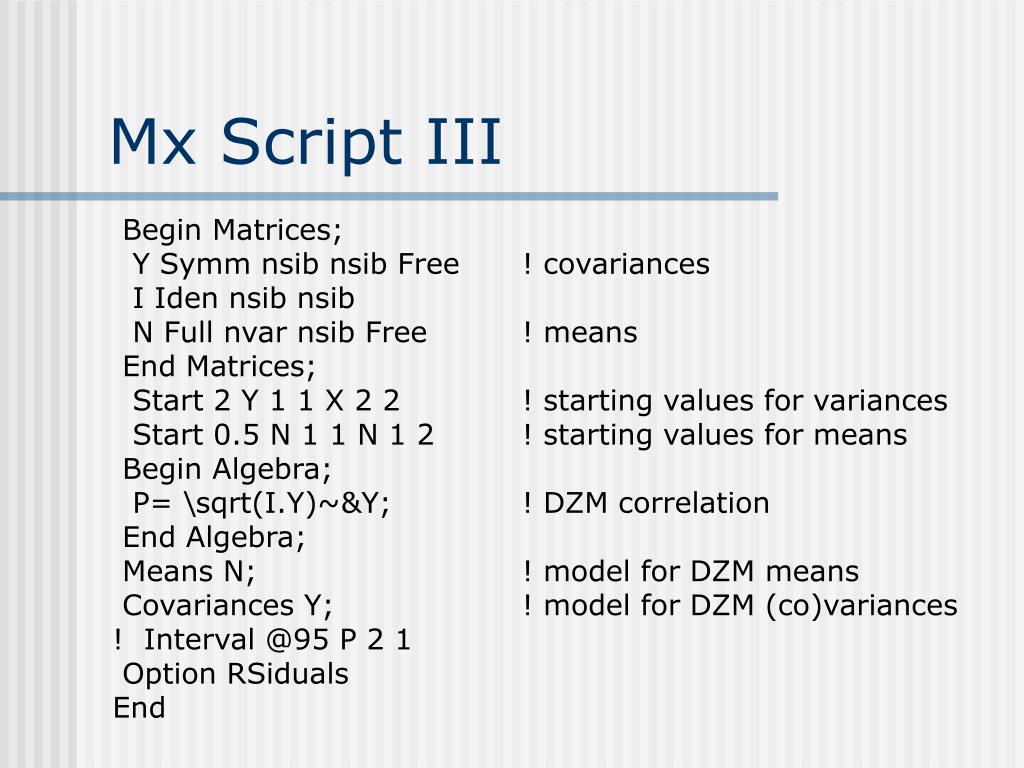

Mx Script III

Begin Matrices;

Y Symm nsib nsib Free! covariances

I Iden nsib nsib

N Full nvar nsib Free! means

End Matrices;

Start 2 Y 1 1 X 2 2! starting values for variances

Start 0.5 N 1 1 N 1 2! starting values for means

Begin Algebra;

P= \sqrt(I.Y)~&Y;! DZM correlation

End Algebra;

Means N;! model for DZM means

Covariances Y;! model for DZM (co)variances

! Interval @95 P 2 1

Option RSiduals

End


Mx script iv

Mx Script IV

! equate means

Equate M 1 1 1 M 1 1 2 N 2 1 1 N 2 1 2

End

! equate means and variances

Equate X 1 1 1 X 1 2 2 Y 2 1 1 Y 2 2 2

End


Path diagram for mz and dz twins

Path Diagram for MZ and DZ twins

1.00 / 0.50

1.00

1.00 / 0.25

1.00

1.00

1.00

1.00

1.00

1.00

1.00

1.00

A1

C1

E1

D1

A2

C2

E2

D2

a

c

e

d

a

c

e

d

P1

P2


Mz twins

MZ Twins


Dz twins

DZ Twins


Univariate mx script i

Univariate Mx Script I

#NGroups 3

#define nvar 1 ! define nvar as number of variables

#define nsib 2

Title G1: Model Parameters

Calculation

Begin Matrices;

X Lower nvar nvar Free! additive genetic structure

Y Lower nvar nvar Free! common environmental structure

Z Lower nvar nvar Free! unique environmental path struct.

W Lower nvar nvar Free! dominance structure

H Full 1 1! scalar fixed @ .5 for DZ cov of A

Q Full 1 1! scalar fixed @ .25 for DZ cov of D

End Matrices;


Declared matrices

Declared Matrices

1.00 / 0.50 [H]

1.00

1.00 / 0.25 [Q]

1.00

1.00

1.00

1.00

1.00

1.00

1.00

1.00

A1

C1

E1

D1

A2

C2

E2

D2

a [X]

c [Y]

e [Z]

d [W]

a [X]

c [Y]

e [Z]

d [W]

P1

P2


Univariate mx script ii

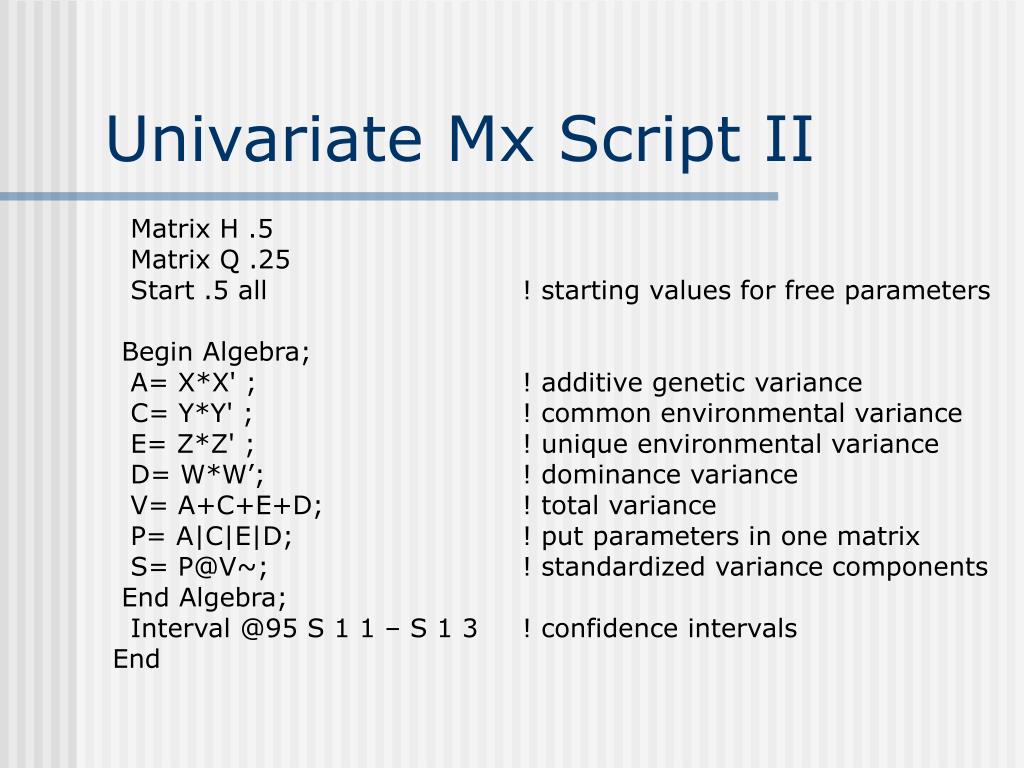

Univariate Mx Script II

Matrix H .5

Matrix Q .25

Start .5 all! starting values for free parameters

Begin Algebra;

A= X*X' ;! additive genetic variance

C= Y*Y' ; ! common environmental variance

E= Z*Z' ;! unique environmental variance

D= W*W’;! dominance variance

V= A+C+E+D;! total variance

P= A|C|E|D;! put parameters in one matrix

S= [email protected]~;! standardized variance components

End Algebra;

Interval @95 S 1 1 – S 1 3! confidence intervals

End


Univariate mx script iii

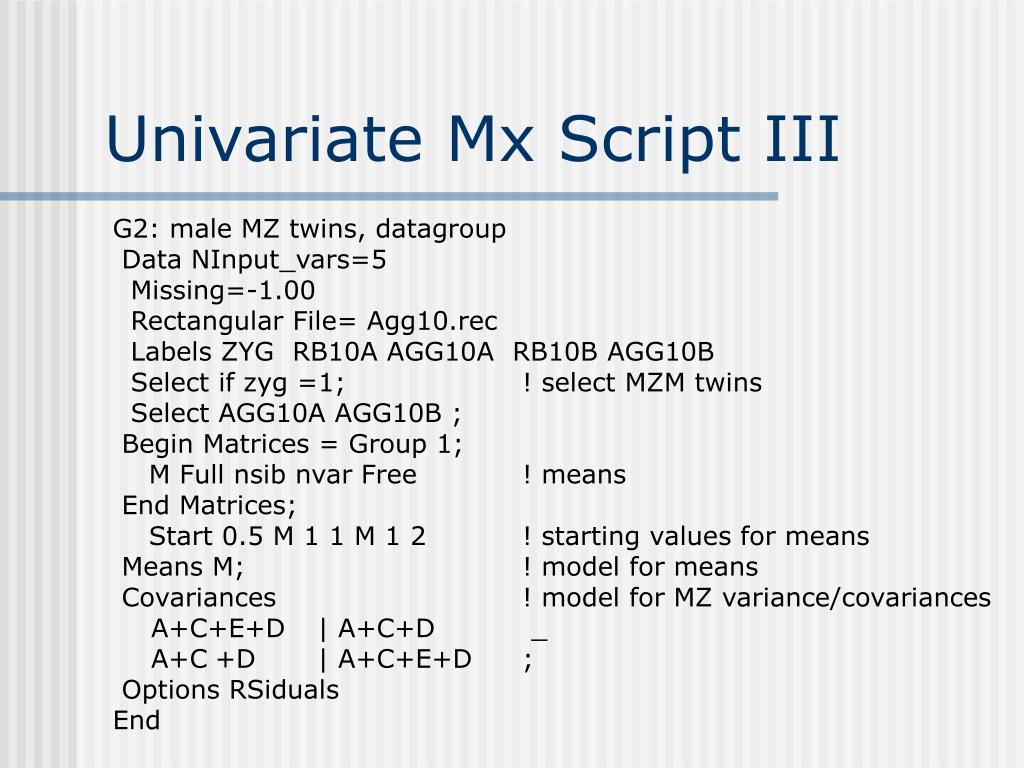

Univariate Mx Script III

G2: male MZ twins, datagroup

Data NInput_vars=5

Missing=-1.00

Rectangular File= Agg10.rec

Labels ZYG RB10A AGG10A RB10B AGG10B

Select if zyg =1;! select MZM twins

Select AGG10A AGG10B ;

Begin Matrices = Group 1;

M Full nsib nvar Free! means

End Matrices;

Start 0.5 M 1 1 M 1 2! starting values for means

Means M;! model for means

Covariances! model for MZ variance/covariances

A+C+E+D| A+C+D _

A+C+D| A+C+E+D;

Options RSiduals

End


Univariate mx script iv

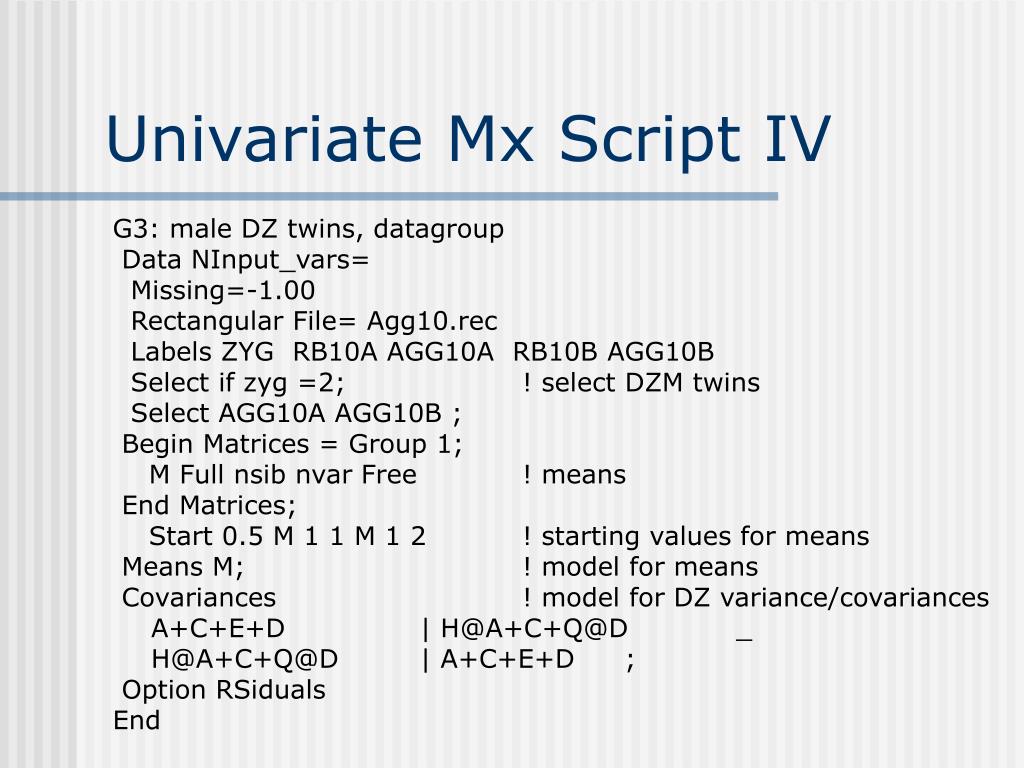

Univariate Mx Script IV

G3: male DZ twins, datagroup

Data NInput_vars=

Missing=-1.00

Rectangular File= Agg10.rec

Labels ZYG RB10A AGG10A RB10B AGG10B

Select if zyg =2;! select DZM twins

Select AGG10A AGG10B ;

Begin Matrices = Group 1;

M Full nsib nvar Free! means

End Matrices;

Start 0.5 M 1 1 M 1 2! starting values for means

Means M;! model for means

Covariances! model for DZ variance/covariances

A+C+E+D| [email protected][email protected] _

[email protected][email protected]| A+C+E+D;

Option RSiduals

End


Path diagram to matrices

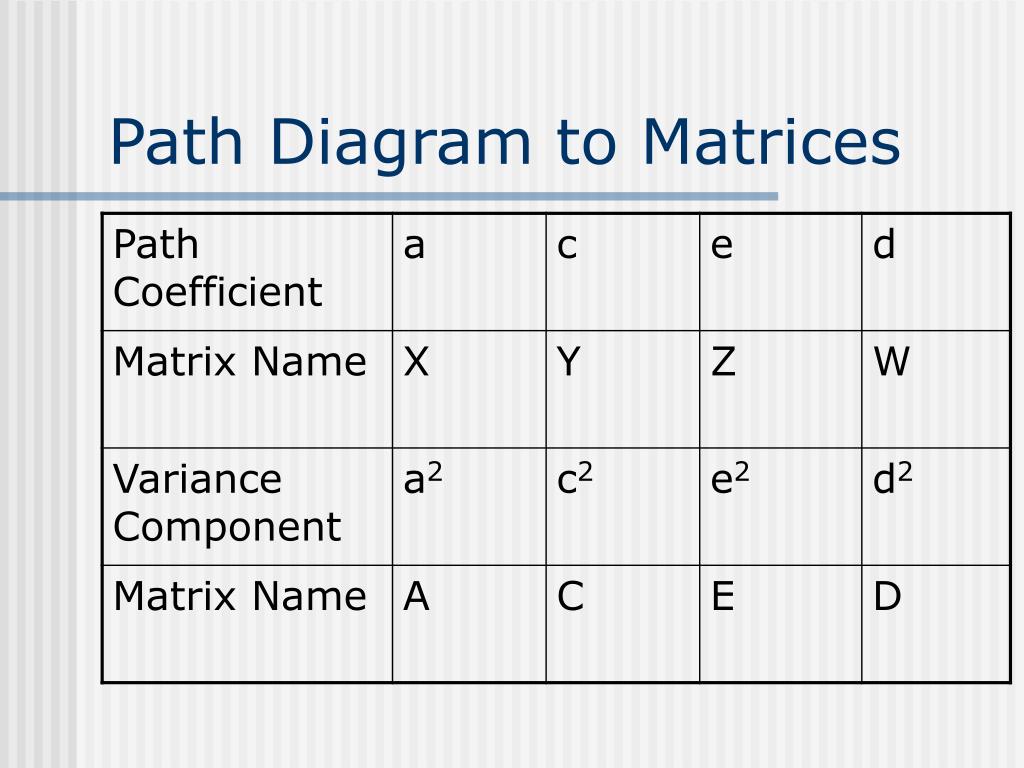

Path Diagram to Matrices


Mx script v

Mx Script V

Save satm.mxs

! equate means

Equate M 1 1 1 M 1 1 2 N 2 1 1 N 2 1 2

End

! equate means and variances

Equate X 1 1 1 X 1 2 2 Y 2 1 1 Y 2 2 2

End

Get satm.mxs

! equate variances only

Equate X 1 1 1 X 1 2 2 Y 2 1 1 Y 2 2 2

End
