  1. Reminding about Tagged Objects using Passive RFIDs Gaetano Borriello, Waylon Brunette, Matthew Hall, Carl Hartung, and Cameron Tangney

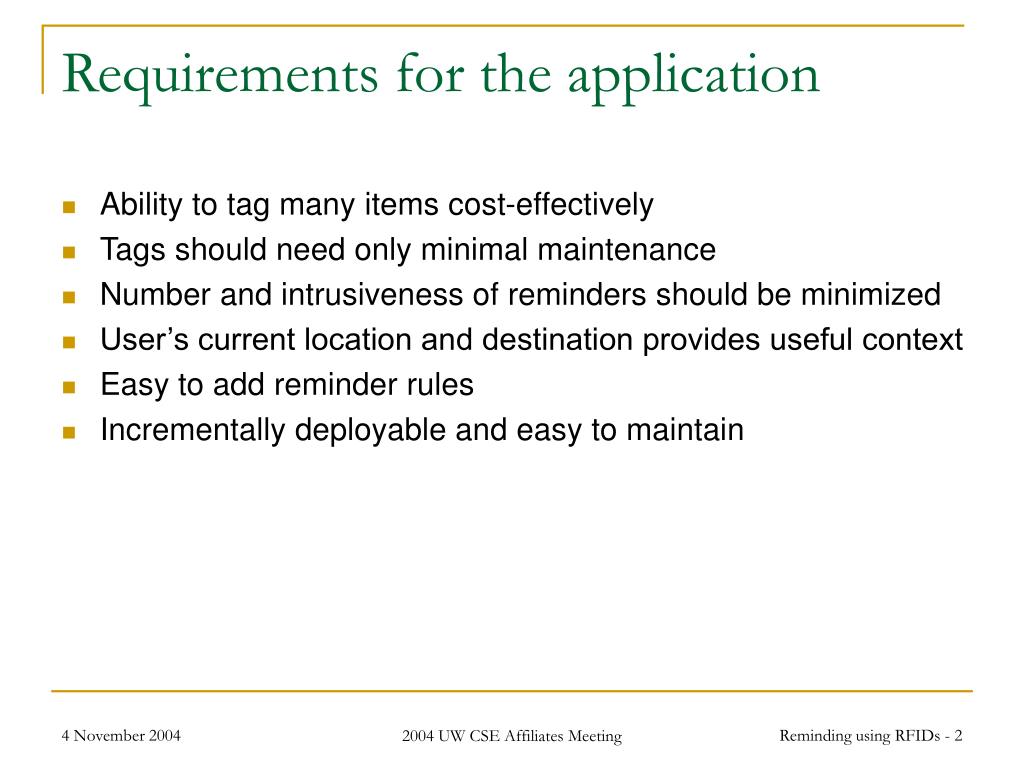

  2. Requirements for the application • Ability to tag many items cost-effectively • Tags should need only minimal maintenance • Number and intrusiveness of reminders should be minimized • User’s current location and destination provides useful context • Easy to add reminder rules • Incrementally deployable and easy to maintain 2004 UW CSE Affiliates Meeting

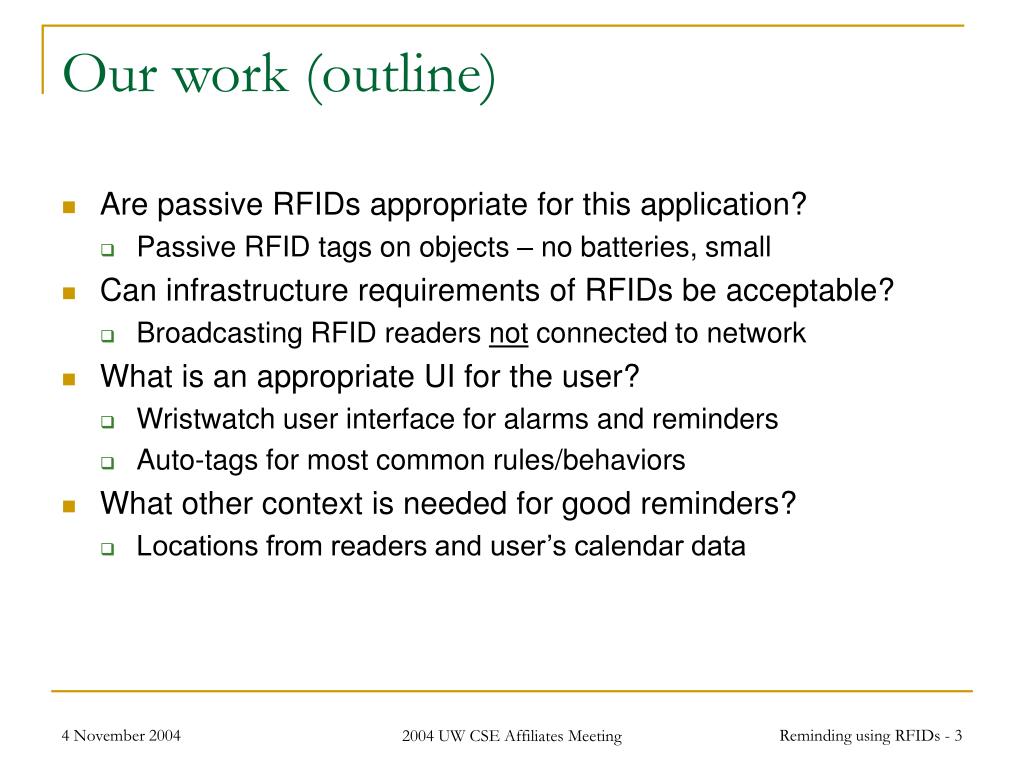

  3. Our work (outline) • Are passive RFIDs appropriate for this application? • Passive RFID tags on objects – no batteries, small • Can infrastructure requirements of RFIDs be acceptable? • Broadcasting RFID readers not connected to network • What is an appropriate UI for the user? • Wristwatch user interface for alarms and reminders • Auto-tags for most common rules/behaviors • What other context is needed for good reminders? • Locations from readers and user’s calendar data 2004 UW CSE Affiliates Meeting

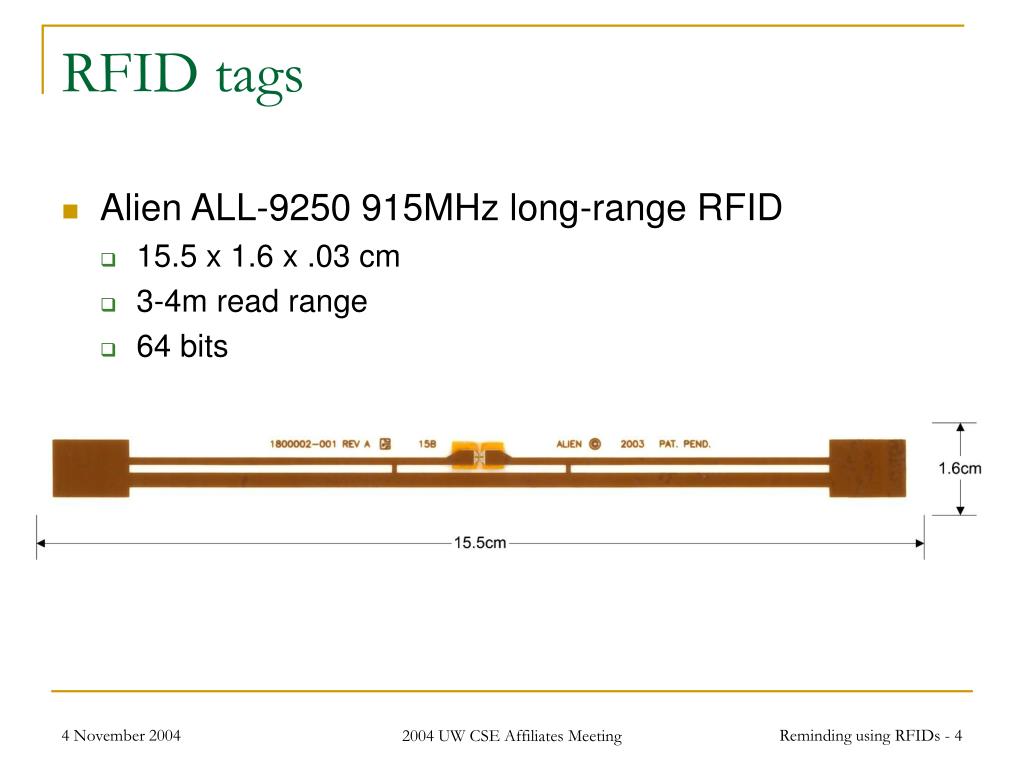

  4. RFID tags • Alien ALL-9250 915MHz long-range RFID • 15.5 x 1.6 x .03 cm • 3-4m read range • 64 bits 2004 UW CSE Affiliates Meeting

  5. RFID readers • Alien readers • Up to 4 antennas per reader (mux’ed) • Serial interface reports reads • Can set read rate • UCB Mica sensor mote • Broadcasts tag read data • 433MHz 38.4Kbps • 15m range • Also broadcast reader’s location • No connection to infrastructure + 2004 UW CSE Affiliates Meeting

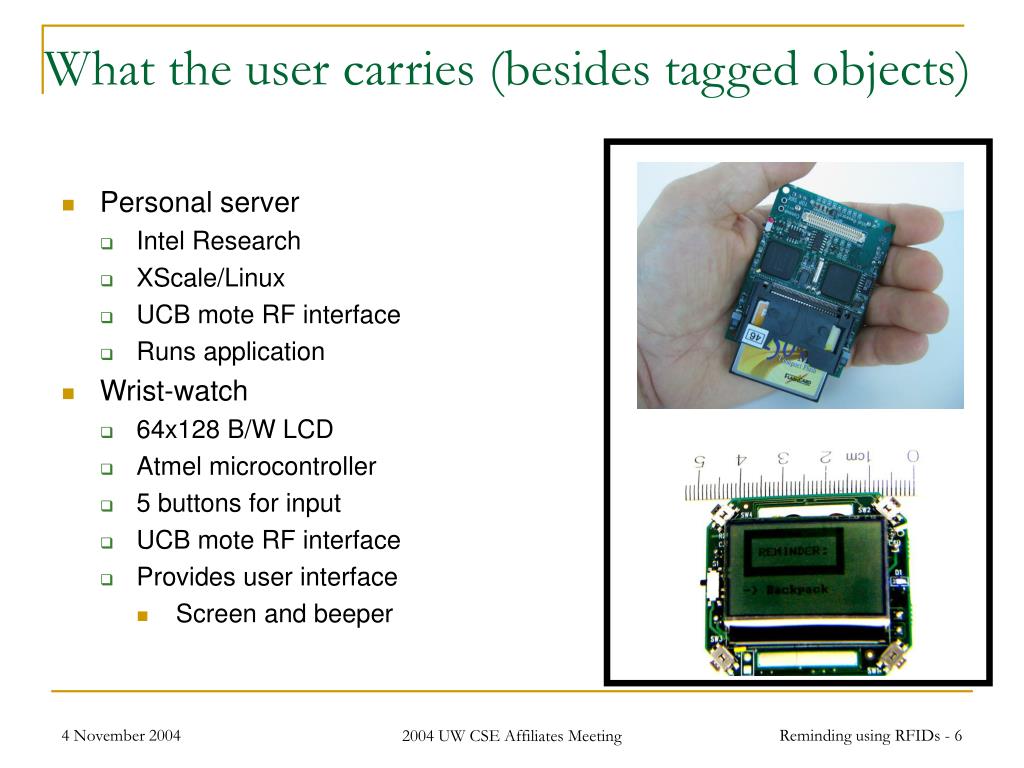

  6. What the user carries (besides tagged objects) • Personal server • Intel Research • XScale/Linux • UCB mote RF interface • Runs application • Wrist-watch • 64x128 B/W LCD • Atmel microcontroller • 5 buttons for input • UCB mote RF interface • Provides user interface • Screen and beeper 2004 UW CSE Affiliates Meeting

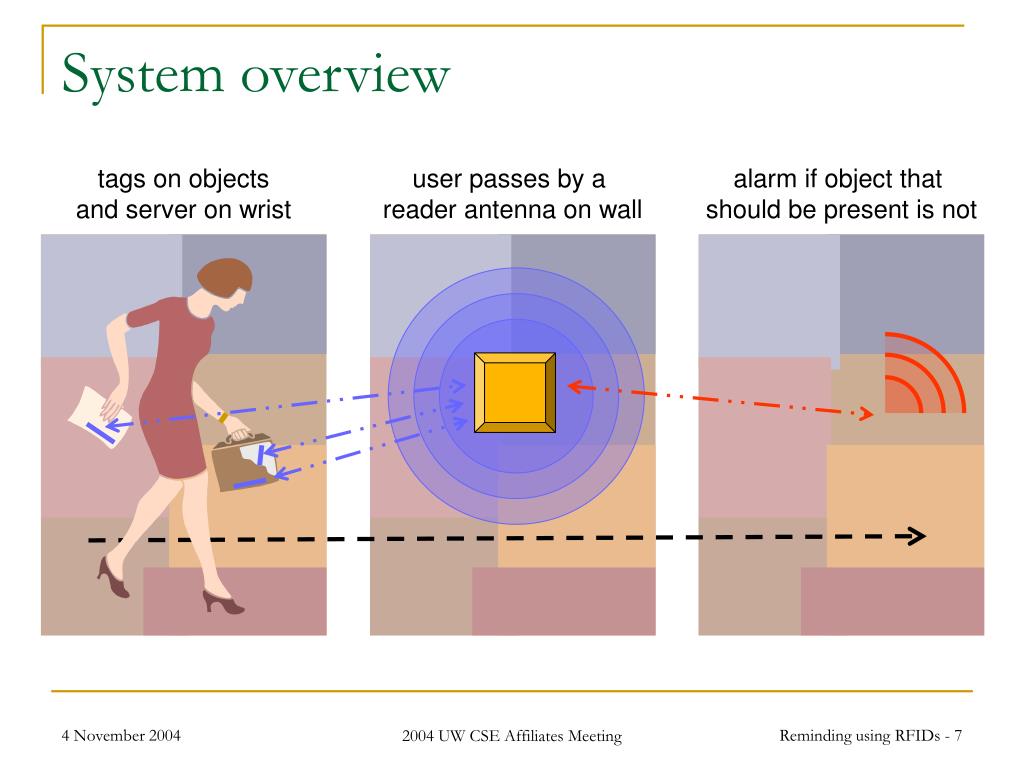

  7. user passes by a reader antenna on wall alarm if object that should be present is not System overview tags on objectsand server on wrist 2004 UW CSE Affiliates Meeting

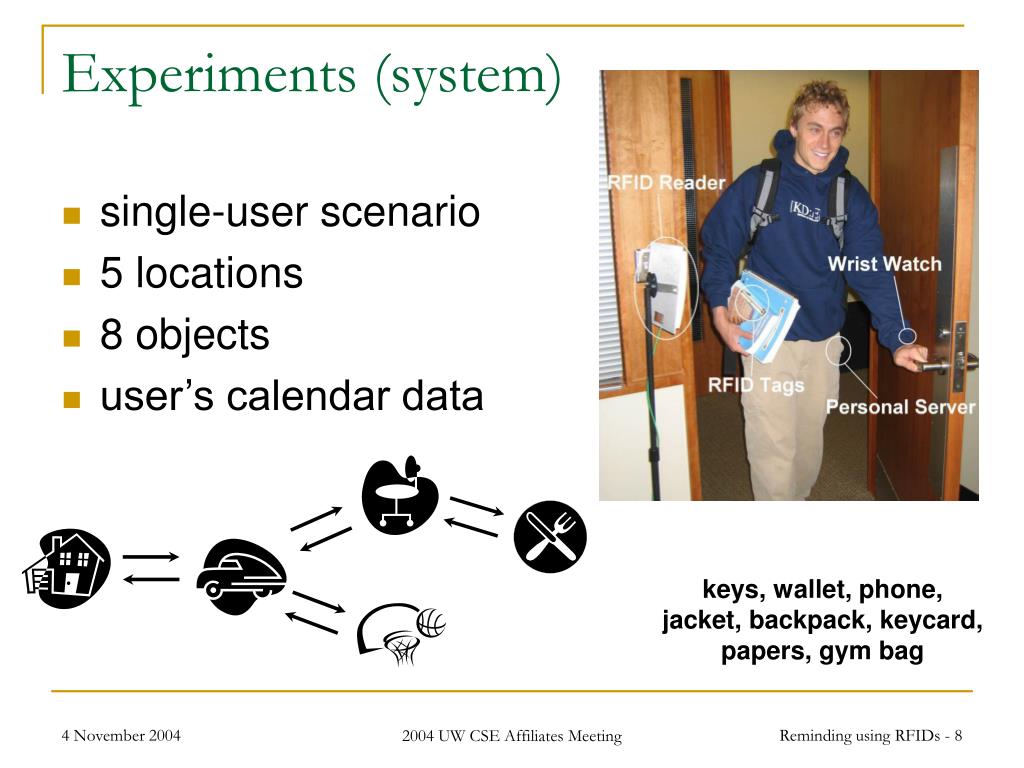

  8. Experiments (system) • single-user scenario • 5 locations • 8 objects • user’s calendar data keys, wallet, phone,jacket, backpack, keycard, papers, gym bag 2004 UW CSE Affiliates Meeting

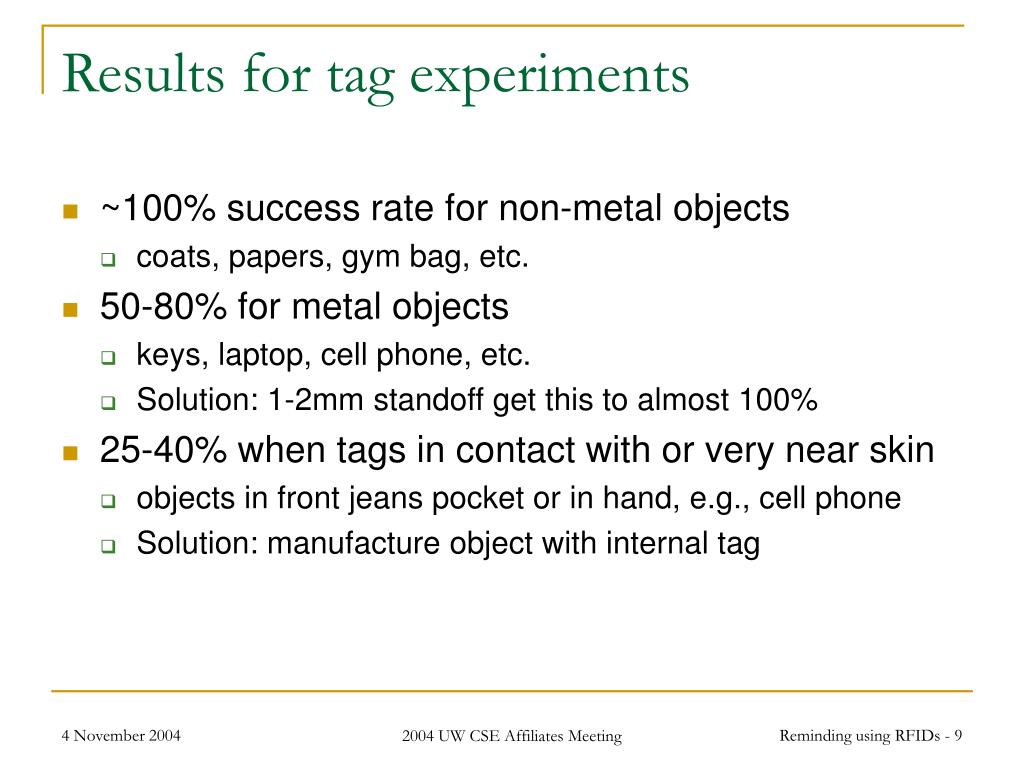

  9. Results for tag experiments • ~100% success rate for non-metal objects • coats, papers, gym bag, etc. • 50-80% for metal objects • keys, laptop, cell phone, etc. • Solution: 1-2mm standoff get this to almost 100% • 25-40% when tags in contact with or very near skin • objects in front jeans pocket or in hand, e.g., cell phone • Solution: manufacture object with internal tag 2004 UW CSE Affiliates Meeting

  10. 25 20 15 10 5 0 0% 5% 10% 15% 20% 25% 30% 35% 40% Robustness simulations – varying read misses randomly # of alarms miss rate 2004 UW CSE Affiliates Meeting

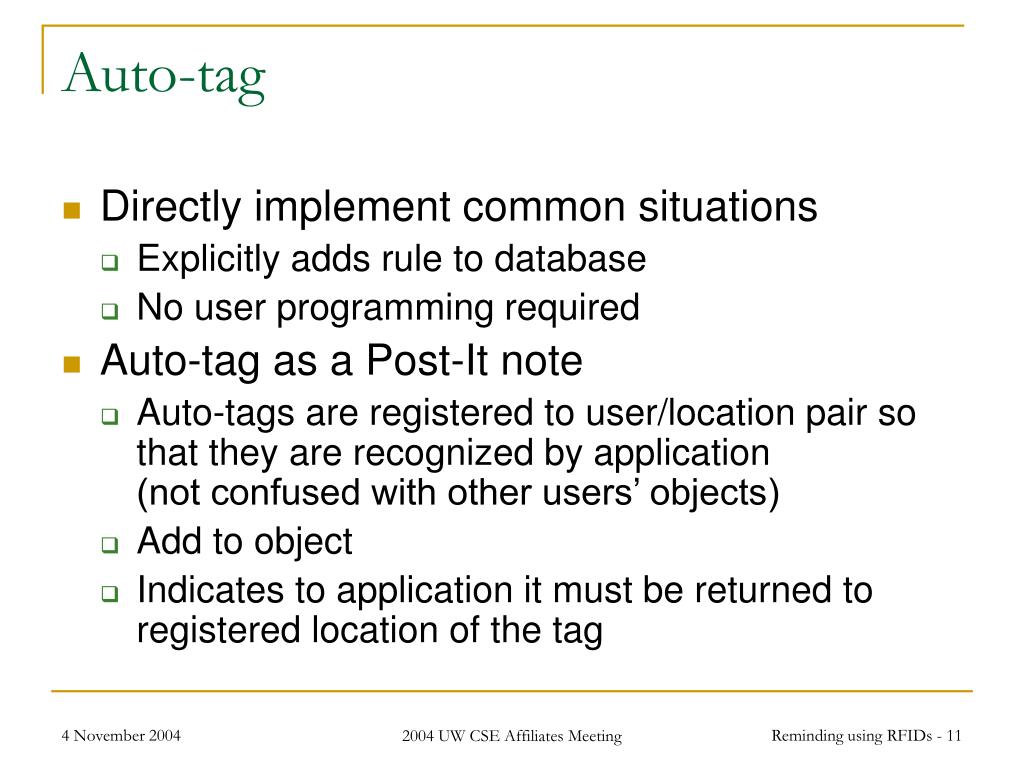

  11. Auto-tag • Directly implement common situations • Explicitly adds rule to database • No user programming required • Auto-tag as a Post-It note • Auto-tags are registered to user/location pair so that they are recognized by application (not confused with other users’ objects) • Add to object • Indicates to application it must be returned to registered location of the tag 2004 UW CSE Affiliates Meeting

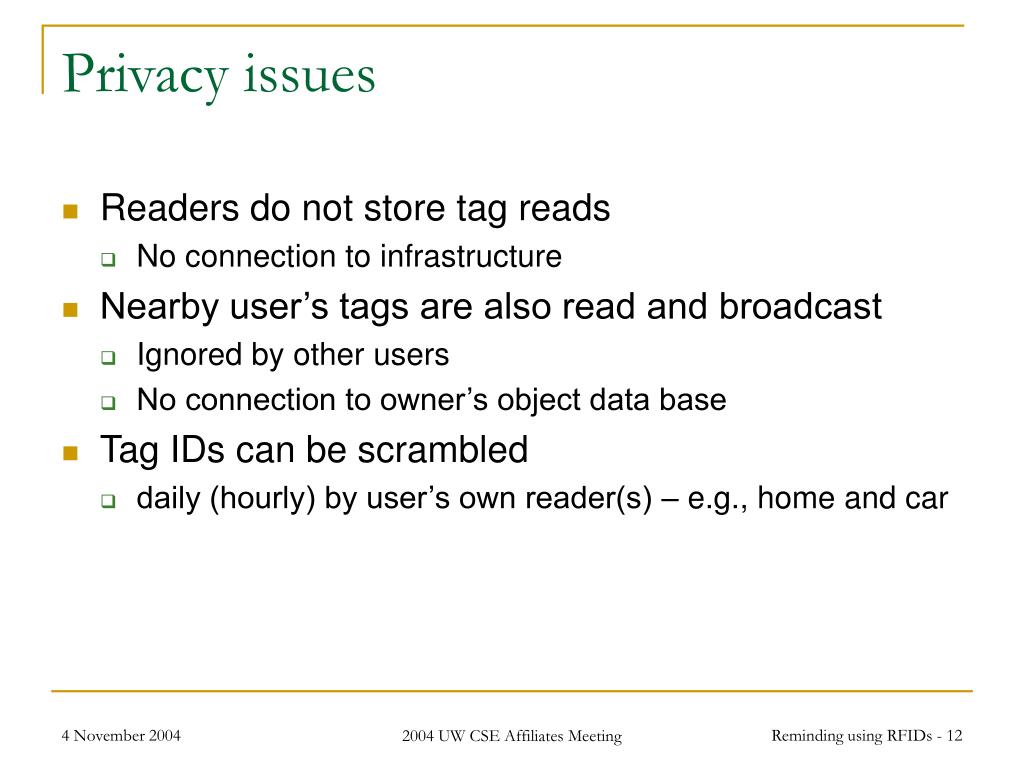

  12. Privacy issues • Readers do not store tag reads • No connection to infrastructure • Nearby user’s tags are also read and broadcast • Ignored by other users • No connection to owner’s object data base • Tag IDs can be scrambled • daily (hourly) by user’s own reader(s) – e.g., home and car 2004 UW CSE Affiliates Meeting

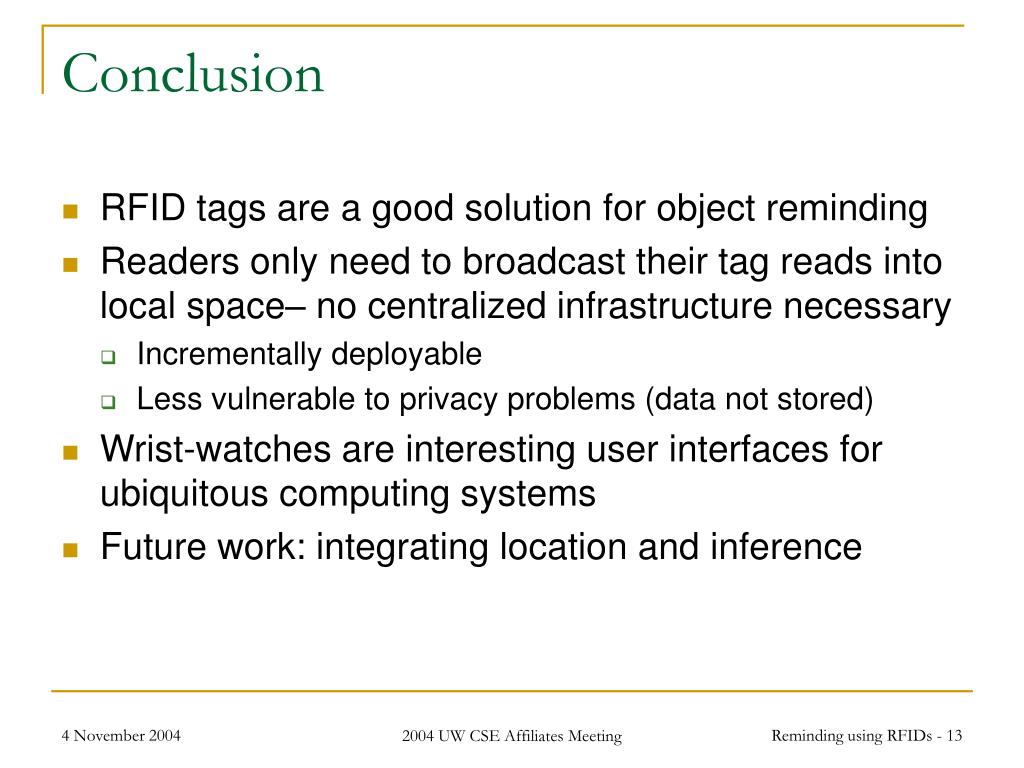

  13. Conclusion • RFID tags are a good solution for object reminding • Readers only need to broadcast their tag reads into local space– no centralized infrastructure necessary • Incrementally deployable • Less vulnerable to privacy problems (data not stored) • Wrist-watches are interesting user interfaces for ubiquitous computing systems • Future work: integrating location and inference 2004 UW CSE Affiliates Meeting
