Presentation Transcript
Confined space permit required

Confined Space(Permit-required)

Entry Supervisor


Entry permits components
Entry permits - components

  • Space to be entered

  • Purpose of the entry

  • Date and authorized duration of the permit

1a

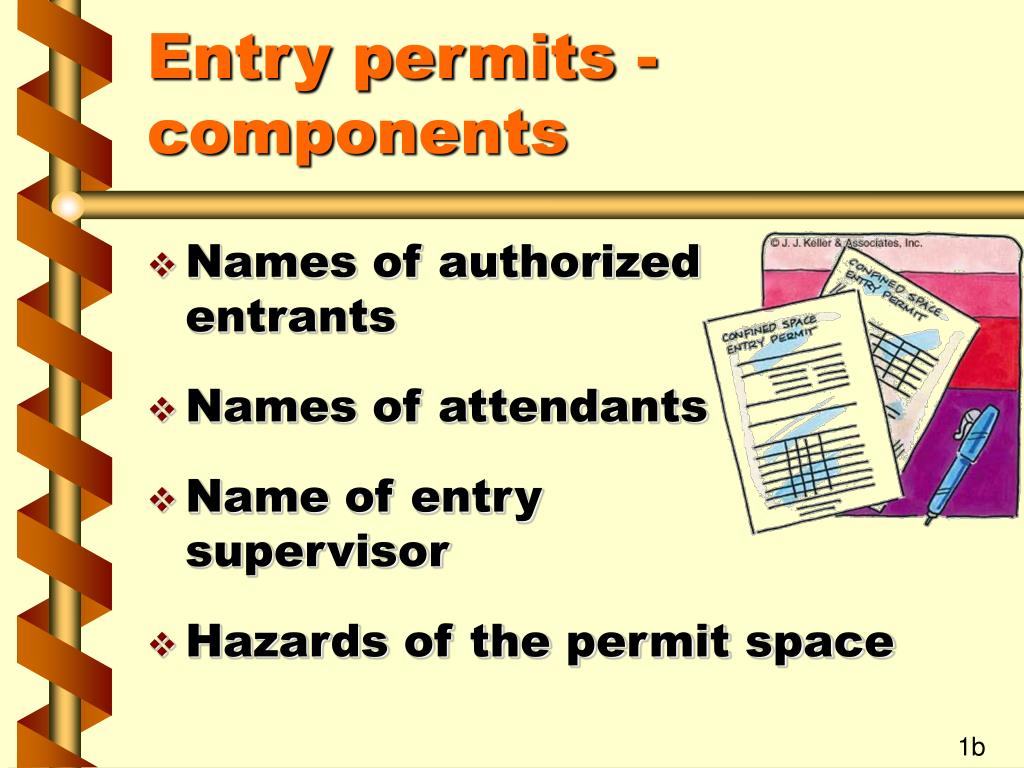

Entry permits components1
Entry permits - components

  • Names of authorized entrants

  • Names of attendants

  • Name of entry supervisor

  • Hazards of the permit space

1b


Entry permits components2
Entry permits - components

  • Measures used to isolate the permit space

  • Measures used to eliminate or control permit space hazards before entry

  • Acceptable entry conditions

1c


Entry permits components3
Entry permits - components

  • Results of initial and periodic testing performed

  • Rescue and emergency services

  • Communication procedures

1d


Entry permits components4
Entry permits - components

  • Equipment required

  • Other pertinent safety information

  • Any other work permits

1e


Methods of permit verification
Methods of permit verification

  • Check for appropriate entries on the permit

  • Complete all tests prior to entry

  • Verify that all required procedures are in place

2a

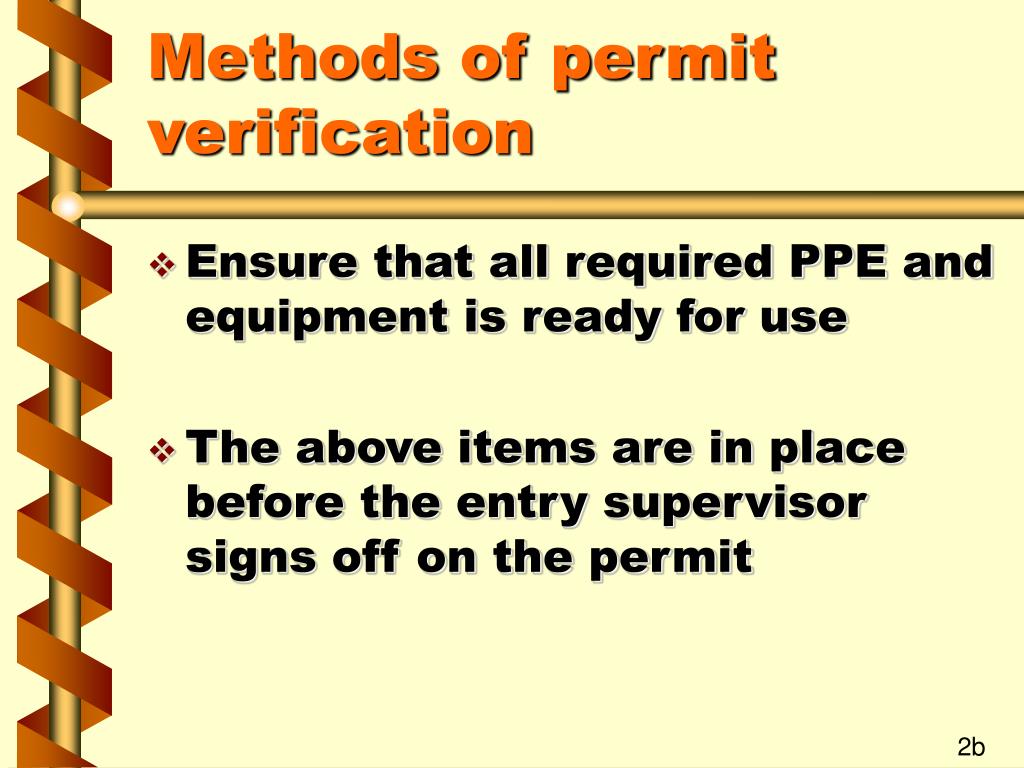

Methods of permit verification1
Methods of permit verification

  • Ensure that all required PPE and equipment is ready for use

  • The above items are in place before the entry supervisor signs off on the permit

2b


Entry permit system
Entry permit system

  • Know how to obtain a permit

  • Entry supervisors are responsible for endorsing the permit and allowing entry to begin

3a


Entry permit system1
Entry permit system

  • Verify that all required information has been filled in

  • Verify that all necessary equipment is in place

  • Ensure that entry procedures are understood

3b


Entry permit system2
Entry permit system

  • Do not endorse a permit until everything is ready

  • Post the permit prior to entry

  • The entry supervisor can cancel the permit at any time

3c


Requirements for using alternate entry procedures
Requirements for using alternate entry procedures

  • Alternate entry procedures are allowed when the only hazard is a hazardous atmosphere controlled by forced air ventilation

  • Employers must provide documentation of monitoring/inspection/supporting data

4a


Requirements for using alternate entry procedures1
Requirements for using alternate entry procedures

  • Certification must contain the:

    • date

    • location

    • signature of the person providing the certification

4b


Requirements for using alternate entry procedures2
Requirements for using alternate entry procedures

  • Make the certification available to the entrants

  • Authorized entrants must be able to observe air monitoring

4c


Reclassification of spaces
Reclassification of spaces

  • Permit-required confined space can be reclassified as a non-permit confined space

  • The permit space must not have atmospheric hazards

  • All hazards eliminated without entry

5a


Reclassification of spaces1
Reclassification of spaces

  • Certification must contain the:

    • date

    • location

    • signature of the person providing the certification

  • Certification must be made available to the entrant

5b


Hazards of confined spaces
Hazards of confined spaces

  • Engulfment

  • Hazardous atmospheres

    • oxygen deficient

    • oxygen enrichment

    • toxic contaminants

    • flammable contaminants

6a


Hazards of confined spaces1
Hazards of confined spaces

  • Safety and health hazards

  • Signs, symptoms, consequences of exposure

6b


Behavioral effects of hazards
Behavioral effects of hazards

  • Effects of oxygen deficient atmospheres

  • Signs that a person is breathing too much oxygen

7a


Behavioral effects of hazards1
Behavioral effects of hazards

  • Effects of other hazard exposure

  • Signs of fatigue

7b

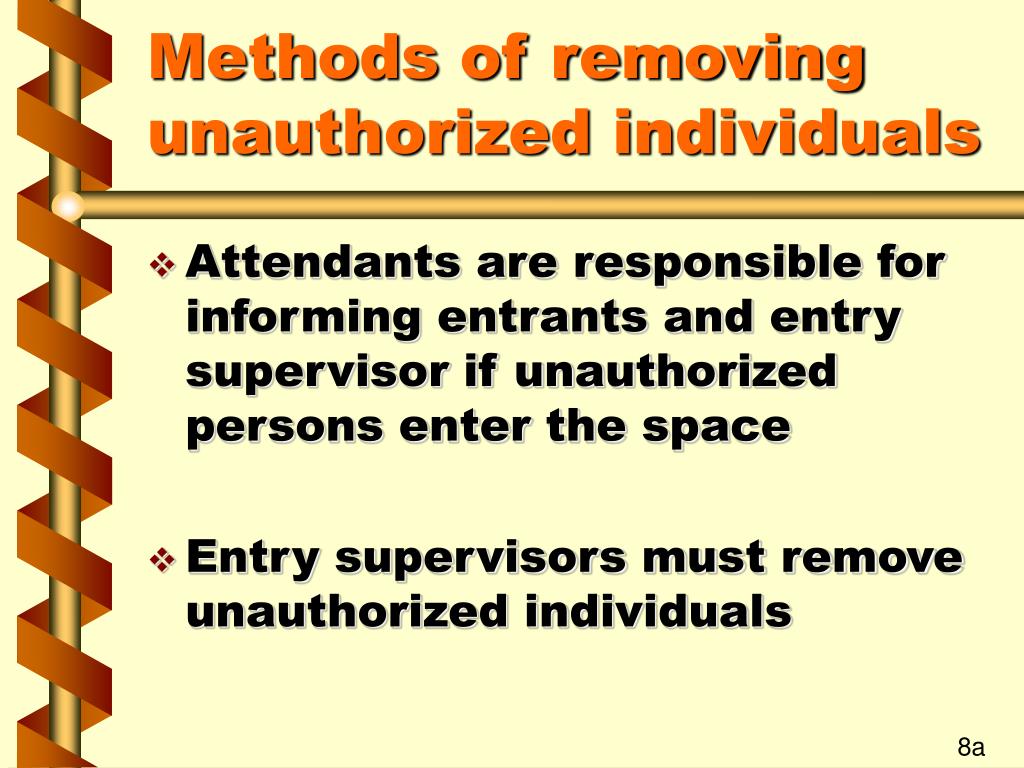

Methods of removing unauthorized individuals
Methods of removing unauthorized individuals

  • Attendants are responsible for informing entrants and entry supervisor if unauthorized persons enter the space

  • Entry supervisors must remove unauthorized individuals

8a


Methods of removing unauthorized individuals1
Methods of removing unauthorized individuals

  • Follow your facility’s policies for removing unauthorized persons

8b


Determining if entry conditions are being maintained
Determining if entry conditions are being maintained

  • Have hazards changed?

  • Are procedures being performed according to the permit?

9a


Determining if entry conditions are being maintained1
Determining if entry conditions are being maintained

  • Are procedures not listed on the permit being performed?

  • Are entry conditions acceptable?

9b


When to terminate entry
When to terminate entry

  • Prohibited conditions

  • Completions of entry operations

10a


When to terminate entry1
When to terminate entry

  • Situations outside the space require evacuation

  • Prohibited conditions inside the space

  • Attendants unable to perform duties

  • Entry operation have been completed

10b

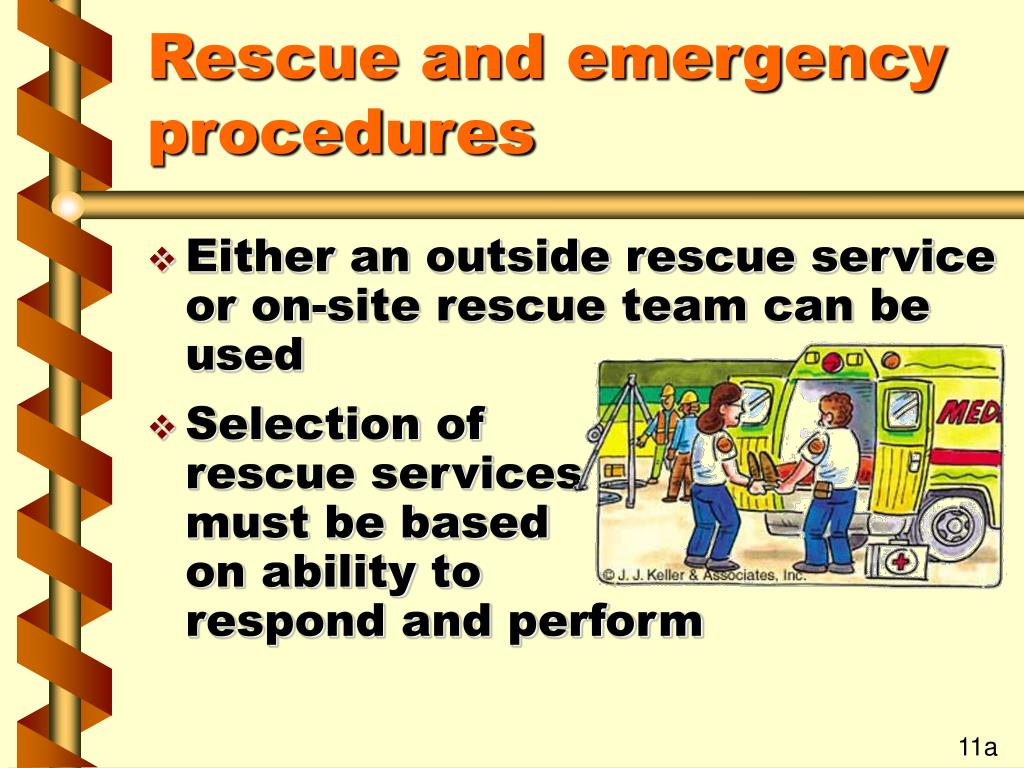

Rescue and emergency procedures
Rescue and emergency procedures

  • Either an outside rescue service or on-site rescue team can be used

  • Selection of rescue services must be based on ability to respond and perform

11a


Rescue and emergency procedures1
Rescue and emergency procedures

  • Rescue teams must be informed of permit space hazards

  • Rescue teams must have access to permit spaces for training

11b


Rescue and emergency procedures2
Rescue and emergency procedures

  • Summoning the rescue and emergency services

  • Verifying that rescue services are available

11c

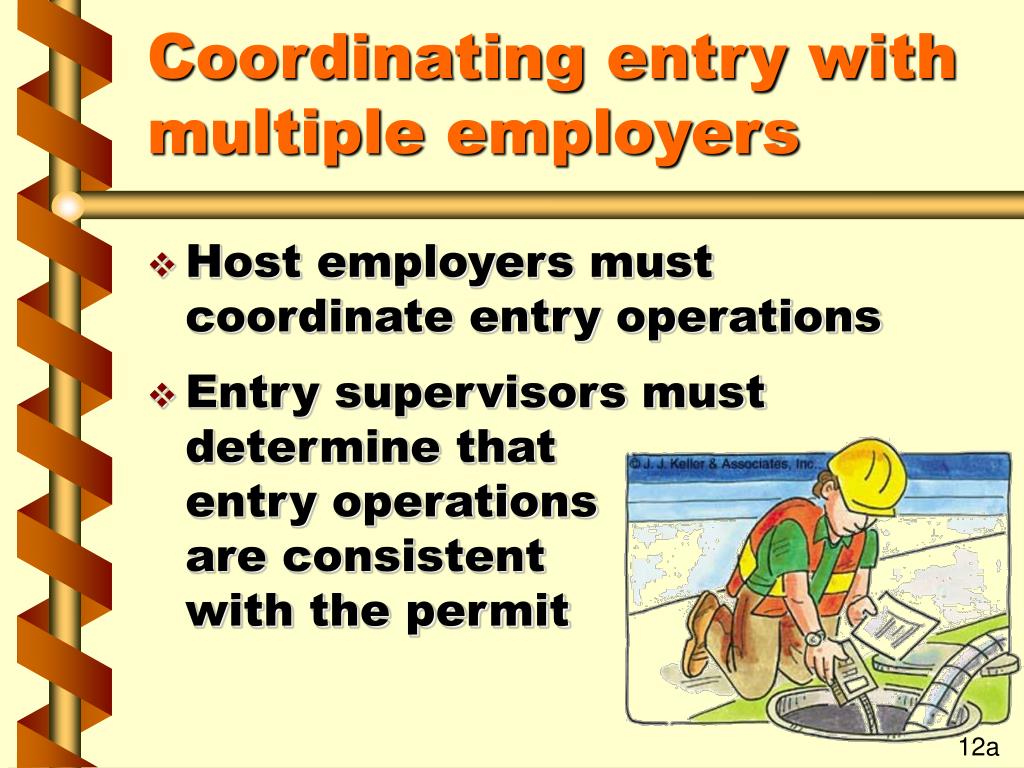

Coordinating entry with multiple employers
Coordinating entry with multiple employers

  • Host employers must coordinate entry operations

  • Entry supervisors must determine that entry operations are consistent with the permit

12a


Coordinating entry with multiple employers1
Coordinating entry with multiple employers

  • Acceptable entry conditions must be maintained

12b


Summary of key points
Summary of key points

  • Entry permits

  • Entry procedures

  • Prohibited conditions

13a


Summary of key points1
Summary of key points

  • Communication procedures

  • Permit cancellation

  • Conditions that cause evacuation

13b


Summary of key points2
Summary of key points

  • Equipment

  • PPE

  • Rescue/emergency procedures

13c
