  1. Megapixel Solutions by HD-SDI Digital Korea to Your Business & Security • DK SOLUTONS provides an extensive selection of network and analog camera solutions ideal for any application and can help you meet the many changes you face with video solutions designed to protect all aspects of your business. • It is crucial to provide advanced product and services as well as to establish a closer and stronger relationship with partners to continue to survive and success in the market. • - Great images whatever the conditions • Meeting all your application needs • Comprehensive Choice HD-SDI : High Definition Serial Data Interface

  2. Why HD-SDI Video Solution? Display Supplies Visual Information to Human Eyes Information Network Display Why HD-SDI? TFT-LCD LED … • Customer want better video • HD lets you see the details you need • Customers want megapixel resolution • You can get HD without headaches of IP • HD-SDI products are easy to sell • Reuse your existing infrastructure Image TC/IP Text COAX Sound Wireless

  3. What is Full HD? Full HD 720P VGA 720 x 480 1280 x 720 1920 x 1080

  4. Advantage of Mega Pixel Camera 1. Reducing the number of cameras deployed • Improved coverage • Allows digital PTZ with little loss of details 2. Increasing the quality of the video • Improved detection • Increased evidentiary acceptance

  5. What is HD-SDI Video Solution? 1. Full HD(High Definition) Video 2. Digital Signal 3. Transmission over coaxial cable

  6. SD(Analog) vs. HD-SDI Video All CCTV systems should be capable of recording subjects which move rapidly. - SD (Standard Definition) use “Interlaced Scan” type and it cause a jagged appearance. - HD (High Definition) use “Progressive Scan” and it ensure definitely less blur in motion HD-SDI Video solution provides several times larger detailed Identification on subjects comparing with existing conventional CCTV standard analogue systems

  7. Comparison of HD-SDI Video and IP Megapixel EASY OF INSTALLATION - There are no additional training needed and no networking SIMPLE Source : A&S

  8. Advantage of HD-SDI Video Solution • Video is not broken up into packets and then transmitted via an occasionally congested network. 1. Surveillance-Grade Reliability • Transition from CCTV to HDcctv is very easy; just upgrade the DVR and selected cameras. 2. Plug-and-Play Resolution Upgrade • For the installer/operator, the only difference between HDcctv and CCTV is that the DVR recording configuration screens show higher values (1280 x 720 and/or 1920 x 1080) in the pull-downs for record resolution in addition to the conventional CCTV values. 3. Familiar and Reliable User Interface • HDcctv video signals are not compressed or packetized before transmission, so no compression image artifacts or frame interruptions are observed 4. True HDTV Live View • HDcctv is compression-free, with none of the signal delays associated with compression. Therefore an HDcctv system operator experiences no delay between a joystick command and the corresponding speed dome (pan/tilt/zoom dome) response. 5. Real-Time Speed Dome Control • HDcctv systems digitally deliver crisp, unadulterated video from cameras to DVR for the clearest possible analytics input. 6. Best Possible Input Format for Analytics

  9. Target Market • Security: Casino, Bank, Face Recognition • ITS: Transportation, LPR, Parking • Machine Vision: Vision Inspection • Medical : Dental, Eyes, Skin • Industrial: Video Presenter, Bio Matrix

  10. Benefits

  11. Basic Configuration(I) BNC Coaxial Cable (100~150M) HD-SDI Output HDMI BNC Coaxial Cable (3M) (100~150M)

  12. A New Opportunity in Security…The most and easy way to reach Mega-Pixel

  13. The first step to HD-SDI Camera • 1/3” Panasonic Progressive Scan CMOS Imager • 1280x720(60p)/1920x1080(30p) with 1.3M/2M effective pixel • 16:9 Video format • Auto TDN without focus shift by dual filter switcher • Smart IR & Smart 3DNR • 1.5G HD-SDI Video transmission • Second Video Output • Flickerless Mode 38x38 x2 boards

  14. SPM-M222M Mega Pixel Full HD Board Camera(42 x 42) • Panasonic 2M CMOS Image Sensor • 1920 X 1080 30fps, 1280 X 720 60fps • Composite Video Output (750TVL) • BT 1120 Digital Output • Digital Zoom Max 32x • Wide Dynamic Range • Privacy Mask Function • Intelligent Motion Detection • Multi Protocol Support

  15. HD-SDI, Entry Level, Easy to SelectionWide Coverage Detection • 1/3” Panasonic 2.2M Progressive Scan CMOS • HD-SDI : 1080@30p/25p, 720@60p/50p • True Day & Night with ICR Mechanism • f=2.8~11mm ICR Vari-foacl Lens • NTSC, PAL CVBS without WDR • On Screen Display key • Wide Dynamic Range compensation • Adaptive Contrast Enhancer • Digital Noise Reducer (2D/3D) • Motion detection / Privacy mask • RS485 communication • High Light Masking • Digital Slow Shutter • Digital Zoom

  16. VCS2-E510DM2.2 Megapixel HD-SDI Camera • 1/3” Panasonic 2.2M Progressive Scan CMOS • HD-SDI : 1080@30p/25p, 720@60p/50p • True Day & Night with ICR Mechanism • NTSC, PAL CVBS without WDR • On Screen Display key • Wide Dynamic Range compensation • Adaptive Contrast Enhancer • Digital Noise Reducer (2D/3D) • Motion detection / Privacy mask • RS485 communication • High Light Masking • Digital Slow Shutter • Digital Zoom

  17. VCD6-V510DM-IR 2.2 Megapixel HD-SDI Camera • 1/3” Panasonic 2.2M Progressive Scan CMOS • HD-SDI : 1080@30p/25p, 720@60p/50p • True Day & Night with ICR Mechanism • f=2.8~11mm ICR Vari-foacl Lens • NTSC, PAL CVBS without WDR • 30 IREDs • On Screen Display key • Wide Dynamic Range compensation • Adaptive Contrast Enhancer • Digital Noise Reducer (2D/3D) • Motion detection / Privacy mask • RS485 communication • High Light Masking • Digital Slow Shutter • Digital Zoom (1X~40X)

  18. VCV5-V510DM-IR2.2 Megapixel HD-SDI Camera • 1/3” Panasonic 2.2M Progressive Scan CMOS • HD-SDI : 1080@30p/25p, 720@60p/50p • True Day & Night with ICR Mechanism • f=2.8~11mm ICR Vari-foacl Lens • NTSC, PAL CVBS without WDR • 30 IREDs • On Screen Display key • Wide Dynamic Range compensation • Adaptive Contrast Enhancer • Digital Noise Reducer (2D/3D) • Motion detection / Privacy mask • RS485 communication • High Light Masking • Digital Slow Shutter • Digital Zoom (1X ~ 40X)

  19. VCN-V510DM-IR2.2 Megapixel HD-SDI Camera • 1/3” Panasonic 2.2M Progressive Scan CMOS • HD-SDI : 1080@30p/25p, 720@60p/50p • True Day & Night with ICR Mechanism • f=2.8~11mm ICR Vari-foacl Lens • NTSC, PAL CVBS without WDR • 44 IREDs • On Screen Display key • Wide Dynamic Range compensation • Adaptive Contrast Enhancer • Digital Noise Reducer (2D/3D) • Motion detection / Privacy mask • RS485 communication • High Light Masking • Digital Slow Shutter • Digital Zoom (1X~40X)

  20. Flexible, high performance solutions for the most challenging location • 1/3” Panasonic Progressive Scan CMOS Imager • 1280x720(60p)/1920x1080(30p) with 1.3M/2M effective pixel • 16:9 Video format • Auto TDN without focus shift by dual filter switcher • Smart IR & Smart 3DNR • 1.5G HD-SDI Video transmission • Second Video Output • Flickerless Mode EASY OF INSTALLATION There are no additional training needed and no networking

  21. RSC-M13DS · RSC-M20DS 720P/1080p HD-SDI Box Camera with 1/3" Panasonic, True Day & Night • 1/3" Panasonic Progressive Scan CMOS imager • 1280x720(60/50p)/1920x1080(30/25p) with 1.3MP/2MP Sensor • 16:9 Video formats for most popular commercial HDTV monitors • Switchable HDTV standard for EU and US in menu • Auto TDN without focus shift by dual filter switcher • Patented Exact FOCUS setting aid • Smart 3DNR • 1.5G HD-SDI Video transmission though single coaxial cable • Max. 100~140M transmission distance through 5C2V or RG-59 • RS-485 remote control supporting Pelco-D • NTSC/PAL auxiliary video output for installation & maintenance • Flicker less mode for 50(60)Hz area at US(EU) HDTV standard

  22. RSV-M13DSnn-IR · RSV-M20DSnn-IR 720p/1080p HD-SDI Vandal Dome Camera with 1/3" Panasonic, True Day & Night • 1/3" Panasonic Progressive Scan CMOS imager • 1280x720(60/50p) / 1920x1080(30/25p) with 1.3MP/2MP Sensor • 16:9 Video formats for most popular commercial HDTV monitors • Switchable HDTV standard for EU and US in menu • Auto TDN without focus shift by dual filter switcher • Patented Exact FOCUS setting aid • Smart IR support • Smart 3DNR • Remote control for ZOOM and FOCUS (option) • 1.5G HD-SDI Video transmission though single coaxial cable • Max. 100~140M transmission distance through 5C2V or RG-59 • RS-485 remote control supporting Pelco-D • NTSC/PAL auxiliary video output for installation & maintenance • Flicker less mode for 50(60) Hz area at US (EU) HDTV standard • External Focus & Zoom Adjustment • One Touch 3 Axis Bracket

  23. RWT-M13DSnn-IR · RWT-M20DSnn-IR 720p/1080p HD-SDI IR Bullet Camera with 1/3" Panasonic, True Day & Night • 1/3" Panasonic Progressive Scan CMOS imager • 1280x720(60/50p) / 1920x1080(30/25p) with 1.3MP/2MP Sensor • 16:9 Video formats for most popular commercial HDTV monitors • Switchable HDTV standard for EU and US in menu • Auto TDN without focus shift by dual filter switcher • Patented Exact FOCUS setting aid • Smart IR support • Smart 3DNR • Remote control for ZOOM and FOCUS (option) • 1.5G HD-SDI Video transmission though single coaxial cable • Max. 100~140M transmission distance through 5C2V or RG-59 • RS-485 remote control supporting Pelco-D • NTSC/PAL auxiliary video output for installation & maintenance • Flicker less mode for 50(60) Hz area at US (EU) HDTV standard • External Focus & Zoom Adjustment • One Touch 3 Axis Bracket

  24. CCTV21-MP2301 1080p HD-SDI Box Camera with 1/3" Sony, True Day & Night and WDR • Sony 1/3" CMOS Sensor • Highest Resolution (2M Pixels) • Easy Driven Top / Down OSD Menu • Reliable TDN5 Mechanism • SDI Output (1920 x 1080) • Analogue Video Output • WDR (Double Shutter) • 3D-DNR (Digital Noise Reduction) • Privacy Zone Masking • Mirror • D-Zoom • Shading • DSS (Digital Slow Shutter) • RS485

  25. NK2-MPR2301 1080p HD-SDI Indoor Dome Camera with 1/3" SONY, True Day & Night and WDR • Sony 1/3" CMOS Sensor • Highest Resolution (2.0M Pixels) • Easy Driven Top/Down OSD Menu • Reliable TDN5 Mechanism • Auto Focus 3.6 ~ 16mm Lens • 1920 x 1080p SDI Output • Analogue Video Output • WDR (Dual Shutter) • 3D-DNR (Digital Noise Reduction) • Privacy Zone Masking • Mirror • D-Zoom • Shading • DSS (Digital Slow Shutter) • RS485

  26. NK4-MPR2301 1080p HD-SDI Vandal Dome Camera with 1/3" Sony, True Day & Night and WDR • Sony 1/3" CMOS Sensor • Highest Resolution (2.0M Pixels) • Easy Driven Top/Down OSD Menu • Auto Focus 3.6 ~ 16mm Lens • SDI Output (1920 x 1080p) • Analogue Video Output • WDR (Double Shutter) • 3D-DNR (Digital Noise Reduction) • Privacy Zone Masking • Mirror • D-Zoom • Shading • DSS (Digital Slow Shutter) • RS485 • IP68 Certified

  27. PI68-MP2301 1080p HD-SDI IR Bullet Camera with 1/3" Sony, True Day & Night and WDR • SONY 1/3" CMOS Sensor • Highest Resolution (2.0M Pixels) • Easy Driven Top/Down OSD Menu • Reliable TDN5 Mechanism • 3.6 ~ 16mm/5-50mm Auto Focus Lens • SDI Output (1920 x 1080p) • Analogue Video Output • WDR (Double Shutter) • 3D-DNR (Digital Noise Reduction) • Privacy Zone Masking • Mirror • D-Zoom • Shading • DSS (Digital Slow Shutter) • RS485

  28. HSB-E122WFull HD-SDI HD CCTV Cameraa • 3D-Digital Noise Reduction • Digital Slow Shutter • Digital Zoom • Removable IR Cut Filter for Day & Night • ACE (D-WDR) • Privacy Zone Masking • Video Motion Detection • Defog • SMPTE-292M / 75 Ohm BNC

  29. HSG-E122FFull HD-SDI HD CCTV Camera • 3D-Digital Noise Reduction • Digital Slow Shutter • Digital Zoom • Removable IR Cut Filter for Day & Night • ACE (D-WDR) • Privacy Zone Masking • Video Motion Detection • Defog • Smart IR (30 IR LED) • SMPTE-292M / 75 Ohm BNC • IP66

  30. HSUI-H75DxE3U8 FULL HD : HDCCTV IR Bullet Camera • 3D-Digital Noise Reduction • Digital Slow Shutter • Digital Zoom • Removable IR Cut Filter for Day & Night • ACE • Privacy Zone Masking • Video Motion Detection • Defog • Smart IR (72 IR LED) • 3.5 ~ 16mm Motorized Lens • SMPTE-292M / 75 Ohm BNC • IP66

  31. HSG-G122 1080p HD-SDI Vandal Dome Camera with WDR, DIS and True Day & Night • Full HD (1920x1080P) Real Time (30fps) • WDR • 3D-DNR • DIS (Digital image Stabilization) • DSS (Digital Slow Shutter) • X20 Digital Zoom • HSBLC (Highlight Suppression BLC) • BLC • Privacy Zone Masking • Removable IR Cut filter for Day & Night • Auto Exposure (AE) • Auto White Balance (AWB) • Single 75ohm coaxial bi-directional RS-485 interface • MPTE-292M / 75Ohm BNC • IP66

  32. HSB-G122 1080p HD-SDI Box Camera with WDR, DIS and True Day & Night • Full HD (1920 x 1080p) Real Time (30fps) • WDR (Wide Dynamic Range) • 3D-DNR (Digital Noise Reduction) • DIS (Digital Image Stabilization) • DSS (Digital Slow Shutter) • x20 Digital Zoom • BLC (Back Light Compensation) • HSBLC (Highlight Suppression BLC) • Privacy Zone Masking • Removable IR Cut Filter for Day & Night • Auto Exposure (AE) • Auto White Balance (AWB) • Single 75Ω coaxial bi-directional RS 485 interface • SMPTE-292M / 75 Ohm BNC

  33. VCS2-E130SD 1/3" SONY 1.3M Progressive Scan Image Sensor HD-SDI Camera • 1/3” Sony 1.3M Progressive Scan CCD Image Sensor • 1.3M Pixels (650TV Lines) • Megapixel C/CS Lens Required • ICR Mechanism Filter Mountable • DSS (Digital Slow shutter) Supported • HD-SDI Video Out Supporting standard SMPTE protocol • Excellent Video Quality of 720p Video Resolution at 30fps • 1 CH. Audio In/Out (Mic-In / Audio-Out) • Service Analog Composite Video Output

  34. HSF3S20D2N(P)A2 20x Full HD : HDCCTV Speed Dome Camera • 20x Auto Focus Zoom Lens • 2.0 MP Resolution Supported (1920 x 1080) • WDR Supported • DNR (Digital Noise Reduction) • Day & Night (IR Cut Filter) • BLC (Back Light Compensation) • Auto Explosure • Auto White Balance • Motion Detection • 360° Continuous Rotation • 180° Digital Flip • 240 Preset position (Individual AE & AF) • 1 Auto pan and 16 Auto Scan (Endless Panning) • 8 Tours, 8 Patterns to 500 Seconds • 12 Privacy Masking • 16 Area Title • Auto Calibration (0.1° ~ 6°) • 4 Alarm input, 2 Alarm output • 1 HD-SDI and 1 Composite output • Single cable Solution (video & control)

  35. HD-SDI, high speed PTZ cameras for surveillance in all conditions • Built-in HD-SDI driver(SMPTE274M, SMPTE296M Compatible) • 240x Power Zoom(Optical 20x, digital 12x) • 1920x1080P Resolution with 1/2.8” Exmor Sensor • 420 ˚ /sec High speed • 0.005lux Minimum Illumination • 248Preset/ 8Tours/ 16 Auto Scan / 8 Patterns / 24 Area Titles • On-site firmware upgrade / Upload & download of programmed data • Built-in power line surge protection & lightning protection • Tilt limit control

  36. PSD-2020MHD Full HD, HD-SDI, Built-in 20x optical lens high speed PTZ Dome Camera • Built-in HD SDI driver (SMPTE 274M, SMPTE 296M compatible. 720p/1080i) • Built-in 20x Optical Power Zoom Camera • Auto Wide Dynamic • Auto ICR • Digital Noise Reduction • 248 Presets programmed with view direction, zoom, focus and AE • 8Tours consist of Preset, Pattern, Auto-Scan and other Tours can be programmed with over 377 functions and Preset location • While moving, each Preset scan can be watched in smooth Diagonal Scan mode • 16 Auto Scans supports diagonal move with zoom and the endless Auto-Pan with 8 speed steps • 8 Patterns (up to 480 second) • 24 Area Titles • Variable speed from 0.1°/sec to 420°/sec. Turbo speed is Max 420°/sec when the TURBO key is pressed • Optional 8 Alarm inputs with 0~8 priority / 2 Auxiliary outputs programmable • 8 Privacy Zones: Video off, up to 8 masked blocks or 4 Polygonal mask zones • Addressable up to 999 camera IDs (Extendable up to 3999 in special mode) • Built-in RS-485 receiver driver • On-site firmware upgrade and upload/download of programmed data into the KBD or base on the PTZ Dome camera (Full function version only) • Built-in power-line surge protection and lightning protection • Optional Tinted Bubble, Indoor & Outdoor pendant housing with heater & blower, Indoor Flush Mount, Parapet mount & Roof Top mount • Adaptive tilt limit control according to the zoom ratio provides more useful picture • Temperature sensing heater control • Block mode alarm preset provides a useful scanning method • On screen popup menu provides a easy way to control the dome system using simple keyboard • Adaptive tilt limit control according to the zoom ratio provides more useful picture • Graphical on screen display

  37. WTK-M202 Full HD, HD-SDI, Built-in 20x optical lens Rugged PTZ Camera with IR • 1.3" 2M Pixel CMOS image sensor that support FULL HD • Using progressive scan and Auto WDR • 20x optical zoom and F1.6 aperture • Good at low light environments using the Noise Reduction function • Video signals can be output as digital and analog Y/Pb/Pr outputs • A variety of digital output methods • Auto ICR • Up to 63 preset positions • Variable speed control for all motorized functions • 360 unobstructed rotation using the heavy duty long life slip ring • All weather, lightweight, high impact aluminum die-cast enclosure (IP66) • Built-in wiper system for constant load reduced noise • Built-in Super IR LED 30pcs (Light distance 200m / manual focusing) • Smart IR response by Auto Light Control (100steps) • Auto position calibration by encoding data

  38. 16Ch HD-SDI DVR, RAID 0/1/5, Max. 9 HDD Built-in ㆍH.264 Advanced ㆍFull HD Frame rate(720p-240fps/1080p-120fps) ㆍ16CH HD-SDI Video Input(SMPTE292M) Video input ㆍMax. 16ch Audio Input , 64Kbps PCM ㆍSupports Various Resolution Output ㆍSupports Huge storage (Max. 10Tbyte SATA-IIX10/*Option-eSATAX2) ㆍSuper high Network(RJ45X2-10/100/1000 Mbps) ㆍSupports Web based Remote S/W(SMS) ㆍGraphical User Interface(GUI) ㆍDigital zoom in Playback. ㆍSupport POS. ㆍAuto firmware upgrade. ㆍViewer software for Smart phone(I-Phone, Android). HT-1600

  39. Server Management Software for HT-1600 • ㆍDifferent recording speeds and quality setting for each channel • ㆍ16 Channel Playback, Smart/Panorama/ Session Repeat • ㆍAudio Recording up to 16 Channel • ㆍEasy and Fast Search by Channel, Time, Date, Motion detection, Sensor events • ㆍE-mail Notification and Video image transfer triggered by Motion Detection or Sensor • ㆍPowerful Network Solution (DHCP, DDNS, Static IP, PPP (PSTN)) • ㆍVarious User Interface: Keypad, Remote Controller • ㆍVarious Backup Supports: CD R/W, DVD R/W, USB Memory Stick, Remote Backup (SMS)

  40. Repeater and Distributor • 1In/1Out HD-SDI Repeater(HSR1110) • 4In/4Out HD-SDI(HSR1440) • HD-SDI SMPTE 292M support • (1080p, 1080i or 720p) • 150m transmission Distance extension per each box • Vertical frequency auto-track (60, 60/1.001) • Free Voltage 12VDC, 1A • Input / Output Return Loss :> -15dB at 1.5GBPS • Input / Output Impedance : 75ohms +/- 1% • Convert HDMI to HD-SDI(HSC1100) • Convert HD-SDI to HDMI(HSC1200) • Full HDMI support including embedded audio • Equalized HDMI Input supports long HDMI cables up to 30m, 24guage • HDMI v1.3standard • HD-SDI SMPTE292M support • (1080p, 1080i or 720p) • Free voltage 12VDC, 1A • Convert HDMI to HD-SDI(HCS1100) • Convert HD-SDI to HDMI(HSG1200) • Full HDMI support including embedded audio • Equalized HDMI Input supports long HDMI cables up to 30m, 24guage • HDMI v1.3standard • HD-SDI SMPTE292M support • (1080p, 1080i or 720p) • Free voltage 12VDC, 1A • HD-SDI Converter • HDMI 2input(Selectable) • HD-SDI 2 Output(Distributer) • Video FRC & Scalar • HD-SDI to HDMI 1.2 • HD-SDI Converter • HD-SDI 1 input • HDMI 1 output • Video FRC & Scalar • HD-SDI to Fiber Opticconverter • Fiber optic 1 input • HD-SDI 1 output • Up to 30kms at 3Gbps • HD-SDI Repeater • HD-SDI 1 to 2 distributer • Approx. 150m@RG59

  41. EZ-SHC-OSDHD SDI to HDMI Converter with OSD Generator • Converts HD-SDI to HDMI signal (SMPTE 292M, SMPTE 274M, SMPTE 296M compatible. 720p/1080i) • HDMI transmitter is fully compatible with HDMI 1.3, compatible with HDMI 1.4a 3D and HDCP 1.4 compliance and also backward compatible to DVI 1.0 specifications • Support remote Dome Control via the same SDI cable • Built in OSD Generator • Built in Coaxitron (Only HD-SDI Model) • Support Multilingual (English, Chinese, Korean, …etc) • OSD Setup Program supports Screen Editor, Font Generator • Variable Font Size and Color are selectable • OSD Alpha Blending is available • Variable Display Functions are selectable (Scrolling Vertical/Horizontal direction, Blinking, Timer) • Support Video Masking

  42. HD-SDI Video Signal Convert • Convert HD-SDI to HDMI in real time • One(1) HD-SDI In / One(1) HD-SDI Loop trough Output • SDI Receiver & Transmitter • Supported HD Formats : 720p, 1080i, 1080p • HDMI without embedded audio • Compact Size • Low Cost

  43. HD-SDI to HDMI Convert • Convert HD-SDI to HDMI in real time • High definition HD-SDI digital video at 720p50/60, 1080i50/60, 1080p25/30 formats at all frame rates • HD-SDI standard SMPTE292M, 296M at 1.485Gb/s data rate • HDMI1.2 • RS-485 Control over single 75Ohm Coaxial cable • 1xBNC : HD-SDI Looping through OUT

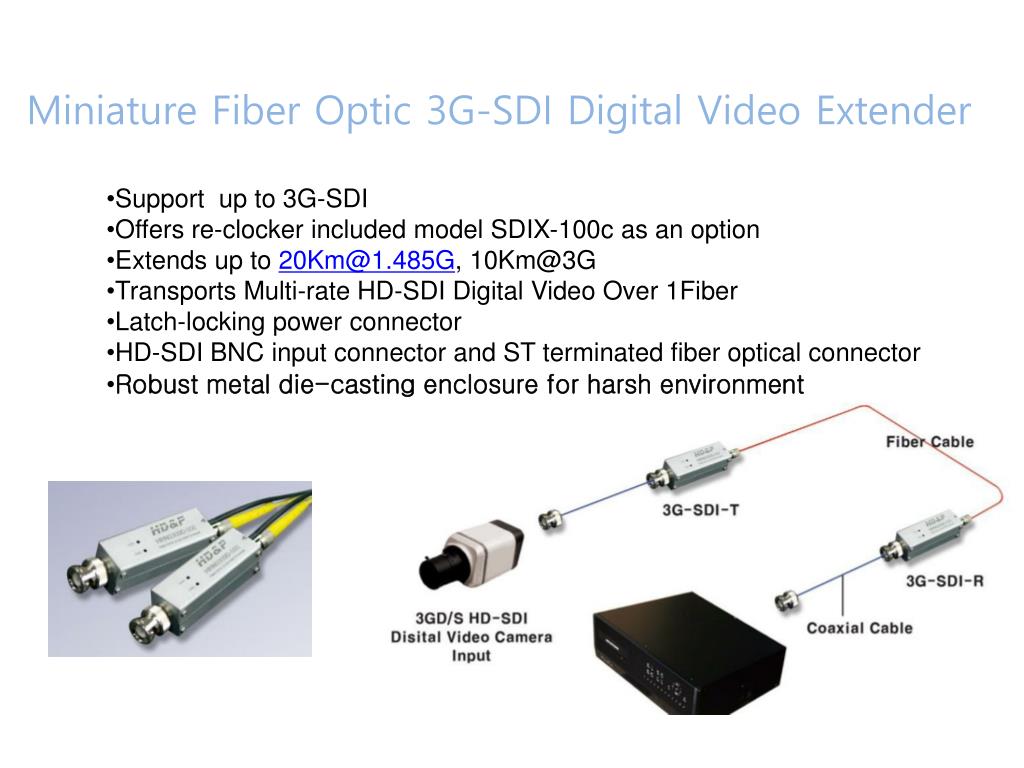

  44. Miniature Fiber Optic 3G-SDI Digital Video Extender • Support up to 3G-SDI • Offers re-clocker included model SDIX-100c as an option • Extends up to 20Km@1.485G, 10Km@3G • Transports Multi-rate HD-SDI Digital Video Over 1Fiber • Latch-locking power connector • HD-SDI BNC input connector and ST terminated fiber optical connector • Robust metal die-casting enclosure for harsh environment

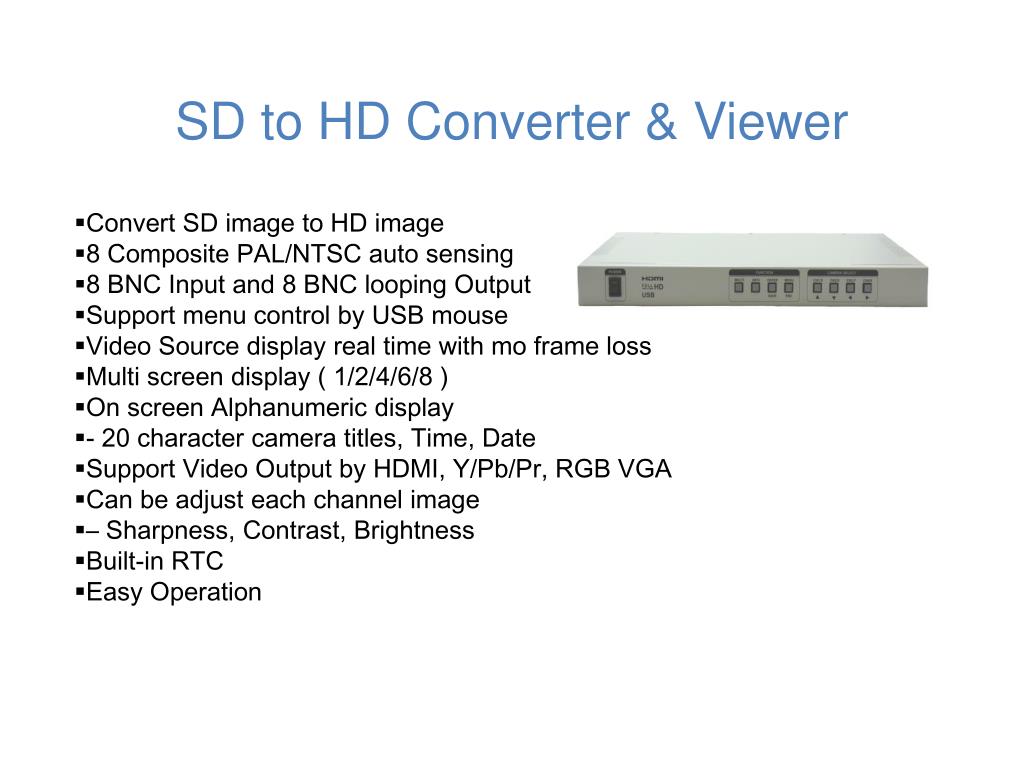

  45. SD to HD Converter & Viewer • Convert SD image to HD image • 8 Composite PAL/NTSC auto sensing • 8 BNC Input and 8 BNC looping Output • Support menu control by USB mouse • Video Source display real time with mo frame loss • Multi screen display ( 1/2/4/6/8 ) • On screen Alphanumeric display • - 20 character camera titles, Time, Date • Support Video Output by HDMI, Y/Pb/Pr, RGB VGA • Can be adjust each channel image • – Sharpness, Contrast, Brightness • Built-in RTC • Easy Operation
