Presentation Transcript
creating and consuming restful web services with wcf

Creating and Consuming RESTful Web Services with WCF

Ron Jacobs

Sr. Technical Evangelist

Platform Evangelism

Microsoft Corporation

agenda
Agenda
  • What is REST?
  • Is REST SOA?
  • Key REST principles
  • Adventure Works REST API WCF Example
  • Summary

71 Slides

5 Demos

I must be insane!

resources
Resources
  • Leonard Richardson
  • Sam Ruby
  • www.ronjacobs.com
    • Code
    • Slides
what is rest
“Representational state transfer (REST) is a style of software architecture for distributed hypermedia systems such as the World Wide Web.”

http://en.wikipedia.org/wiki/Representational_State_Transfer

What is rest?
what is rest1
What is REST?
  • Application state and functionality are resources
  • Every resource has a URI
  • All resources share a uniform interface

HTTP

is rest soa1
IS REST SOA?
  • REST is an architectural style that allows you to implement services with broad reach
  • SOA is about services
    • SOA is not about protocol, transport, format etc.

5 HTTP Messages

18,604 bytes

“You entered: 1”

key rest principles
“The promise is that if you adhere to REST principles while designing your application, you will end up with a system that exploits the Web’s architecture to your benefit.”

-Stefan Tilkov

http://www.infoq.com/articles/rest-introduction

Key rest principles
key rest principles1
Key REST Principles
  • Give every “thing” an ID
  • Link things together
  • Use standard methods
  • Resources with multiple representations
  • Communicate statelessly
give every thing an id
Give every “thing” an ID
  • Expose thing or collection things with a scheme that is ubiquitous
  • Embrace the URI
    • How to get it (http:// or net.tcp:// or net.msmq:// etc.)
    • Where to get it (example.com)
    • What to get (customer 1234)
give every thing an id1
Give every “thing” an ID

An API like this

Customer C = GetCustomer(1234);

Can be represented like this

http://example.com/customers/1234

link things together
Link Things Together
  • Hypermedia as the engine of application state
    • Just means that you should link things together
    • People or apps can transition state by following links
    • Links can be to the same app or to some other app
link things together1
Link Things Together

<CustomerData>

<Self>http://adventure-works.com/customer/1</Self>

<CompanyName>A Bike Store</CompanyName>

<CustomerID>1</CustomerID>

<EmailAddress>[email protected]</EmailAddress>

<FirstName>Orlando</FirstName>

<LastName>Gee</LastName>

<Orders>http://adventure-works.com/customer/1/orders</Orders>

<RowID>3f5ae95e-b87d-4aed-95b4-c3797afcb74f</RowID>

</CustomerData>

http://search.live.com/results.aspx?q=Ron+Jacobs&first=11...

use standard methods
Use Standard Methods

public class Resource

{

Resource(Uri u);

Response Get();

Response Post(Request r);

Response Put(Request r);

Response Delete();

Response Head();

}

shift to resource thinking
Shift to Resource Thinking

SQL

INSERT INTO CUSTOMERS (...) VALUES (...)

REST

(POST) http://example.com/customers

<Customer>...</Customer>

shift to resource thinking1
Shift to Resource Thinking

SQL

SELECT FROM CUSTOMERS WHERE ID=567

REST

(GET) http://example.com/customers/567

resources as operations
Resources as operations
  • The result of an operation can be considered a resource

API

var result = CalculateShipping(“Redmond”, “NYC”);

REST

http://example.com/calculateShipping?from=“Redmond”&to=“NYC”

content negotiation
Content Negotiation
  • Allow the client to ask for what they want
  • “I want XML”
  • “I want JSON”
  • “I want …” (HTML, CSV, etc.)

GET /customers/1234 HTTP/1.1

Host: example.com

Accept: text/xml

JSR 311 features the idea

of extensions as a way

to do content negotiation

without the headers as in

/customers.xml

/customers.json

GET /customers/1234 HTTP/1.1

Host: example.com

Accept: text/json

communicate statelessly
Communicate Statelessly
  • Stateless means that every request stands alone
    • Session is not required
    • Can be bookmarked
  • Application State lives on the Client
    • Everything that is needed to complete the request must be included in the request
  • Resource State lives on the server(s)
    • Stored in durable storage (typically)
    • May be cached
http get
“Remember that GET is supposed to be a “safe” operation, i.e. the client does not accept any obligations (such as paying you for your services) or assume any responsibility, when all it does is follow a link by issuing a GET.”

-Stefan Tilkov

http://www.infoq.com/articles/tilkov-rest-doubts

HTTP GET
get customer demo
WebGet Attribute

UriTemplate

Query String Parameters

GET CUSTOMER DeMO

http://rojacobsxps/AdventureWorksDev/api/customer/1

webget attribute
WebGet Attribute
  • WebGet Indicates you want to use an HTTP GET for this method
  • Method name is resource name
  • Arguments are query string parameters

// GET a customer

[OperationContract]

[WebGet]

CustomerDataGetCustomer(string customerId);

http://localhost/service.svc/GetCustomer?customerId=1

webget uritemplate
WebGetUriTemplate
  • UriTemplate maps the URI to parameters in your method
  • Using parameters in the Uri makes them mandatory, query string parameters are optional.

// GET a customer

[OperationContract]

[WebGet(UriTemplate = "customer/{customerId}")]

CustomerDataGetCustomer(string customerId);

http://localhost/service.svc/Customer/1

making your first restful service
Making your first RESTful Service
  • Create a WCF Service Library
  • Add a reference / using

System.ServiceModel.Web

  • Decorate your method with WebGet
  • Modify configuration
    • Change the binding from wsHttpBinding to webHttpBinding
    • Add the webHttp endpoint behavior to the endpoint
      • Note: WCF will start up without this behavior though it is not very useful configuration
get customers
Get Customers
  • Returns a collection of customers from the database
  • Issues
    • Security – you can only see orders you are allowed to see
    • Paging – stateless requests decide where to start
  • REST API
  • SOAP API

http://adventure-works.com/customer

Customer[] GetCustomers()

paging
Paging
  • Allows clients to request a subset of the collection
  • Use Query String parameters to specify start index and count

http://adventure-works.com/customer?start=200&count=25

gotcha
Gotcha!

// GET customers

[OperationContract] [WebGet(UriTemplate="customer?start={start}&count={count}")]

CustomerGroupingDataGetCustomers(int start, int count);

// POST to customers

[OperationContract]

[WebInvoke(UriTemplate = "customer")]

CustomerDataAppendCustomer(CustomerData customer);

http://adventure-works.com/customer

405 Method not allowed

slide30
Why?
  • The template matching engine tries to find the best match
  • The more specific a match is, the better
  • When the URL contains just the resource “customer”
  • The match for “customer” is a POST method
    • Return 405 Method not allowed
slide31
Why?
  • Solution
    • Don’t include the query string parameters in the UriTemplate
    • Get them instead from the WebOperationContext.Current
    • UriTemplate is now just “customer” for both GET and POST
solution
Solution

// GET customers

[OperationContract] [WebGet(UriTemplate = "customer")]

CustomerGroupingDataGetCustomers(int start, int count);

// POST to customers

[OperationContract]

[WebInvoke(UriTemplate = "customer")]

CustomerDataAppendCustomer(CustomerData customer);

http://localhost/AdventureWorksDev/api/customer

200 Ok

query string parameters
Query String Parameters

private string GetQueryString(string argName)

{

UriTemplateMatch match = WebOperationContext.Current.IncomingRequest.UriTemplateMatch;

try

{

return match.QueryParameters[argName];

}

catch (KeyNotFoundException)

{

return null;

}

}

Query String Parametersare found in here

caching
Caching
  • Use HttpRuntime.Cache to cache items on the server if it makes sense to do so

// Check the cache

CustomerDatacustomerData = (CustomerData)HttpRuntime.Cache[requestUri.ToString()];

// Not found in the cache

if (customerData == null)

{

// Try to get the customer data

customerData = CustomersCollection.GetCustomer(custId);

// Still not found

if (customerData == null)

{

outResponse.SetStatusAsNotFound(string.Format("Customer Id {0} not found", customerId));

}

else // found

{

// Set the headers

outResponse.LastModified = customerData.LastModified;

outResponse.ETag = customerData.ETag.ToString();

CacheCustomer(requestUri, customerData);

}

}

client caching
Client Caching
  • Add Expires or Cache-Control headers to provide clients with hints on caching
  • WCF Default: Cache-Control: private
    • No caching of private results

// Allow client to cache for 5 minutes

outResponse.Headers.Add("Cache-Control", "300");

conditional get
Conditional GET
  • Headers used by clients to save bandwidth if they hold cached data
  • If-Modified-Since: (Date)
    • Return the data only if it has been modified since (Date)
conditional get1
Conditional GET
  • If-None-Matches: (Etag)
    • Return the data only if there are no records matching this tag
  • If the data exists but has not been modified return 304 “Not Modified”
    • The server still has to verify that the resource exists and that it has not changed
supporting if modified since
Supporting If-Modified-Since
  • Your data should have a LastModified value
  • Update it whenever the data is written

// Set the headers

outResponse.LastModified = customerData.LastModified;

supporting if none matches

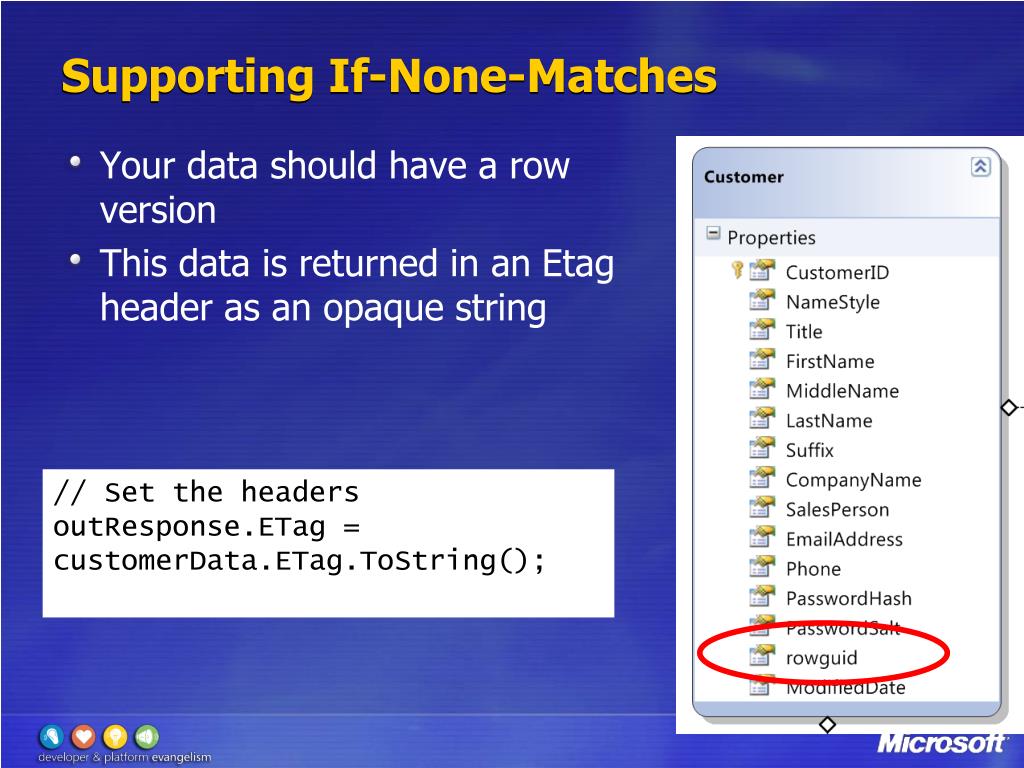

Supporting If-None-Matches
  • Your data should have a row version
  • This data is returned in an Etag header as an opaque string

// Set the headers

outResponse.ETag = customerData.ETag.ToString();

conditional get check
Conditional GET Check

private static void CheckModifiedSince(

IncomingWebRequestContextinRequest,

OutgoingWebResponseContextoutResponse,

CustomerDatacustomerData)

{

// Get the If-Modified-Since header

DateTime? modifiedSince = GetIfModifiedSince(inRequest);

// Check for conditional get If-Modified-Since

if (modifiedSince != null)

{

if (customerData.LastModified <= modifiedSince)

{

outResponse.SuppressEntityBody = true;

outResponse.StatusCode = HttpStatusCode.NotModified;

}

}

}

Not Modified?

Suppress body

Return 304 “Not Modified”

get response
GET Response
  • 200 OK
    • GET successful
  • 304 Not Modified
    • Conditional GET did not find new data
  • 400 Bad Request
    • Problem with the request of some kind
  • 404 Not Found
    • Resource was not found
  • 500 Internal Server Error
    • Everything else
http post
“You can use it to create resources underneath a parent resource and you can use it to append extra data onto the current state of a resource.”

- RESTful Web Services

http post
http post1
HTTP POST
  • POST is ambiguously defined in the HTTP spec
  • POST is the second most used RESTful verb
  • Often referred to as POST(a) for “Append”
    • Posting to a collection means to append to that collection
    • Allows the server to determine the ultimate URI
http post2
HTTP POST
  • Problem
    • How to detect duplicate POST requests?
  • Solutions
    • Use PUT (it’s Idempotent by nature)
    • Schemes involving handshaking of some kind between the client and server
    • Client generated identifier for POST
post to customers
POST to Customers
  • Appends a new customer to the collection
  • Issues
    • Security – Are you allowed to create a customer?
    • Idempotency – is this a duplicate POST request?
  • REST API
  • SOAP API

(POST) http://adventure-works.com/customers

CustomerDataAppendCustomer(CustomerData customer);

post example
POST Example

public CustomerDataAppendCustomer(CustomerData customer)

{

OutgoingWebResponseContextoutResponse = WebOperationContext.Current.OutgoingResponse;

try

{

CustomerDatanewCustomer = CustomersCollection.AppendCustomer(customer);

if (newCustomer.CustomerID != 0)

{

outResponse.SetStatusAsCreated(

BuildResourceUri("customer", newCustomer.CustomerID.ToString()));

}

return newCustomer;

}

catch (CustomerRowIDExistsException)

{

outResponse.StatusCode = HttpStatusCode.Conflict;

outResponse.StatusDescription = "RowID exists, it must be unique";

return null;

}

catch (Exception ex)

{

Log.Write(ex);

throw;

}

}

post a response
POST(a) Response
  • 200 OK
    • POST successful
  • 400 Bad Request
    • Problem with the request of some kind
  • 409 Conflict
    • Resource already exists
  • 500 Internal Server Error
    • Everything else
testing post methods
Testing POST Methods
  • Fiddler – http://www.fiddler2.com HTTP proxy
  • Use machine name instead of localhost in URI
    • IIS hosting helps with this
  • Build a request
    • Drag a GET request to the Request Builder
    • Open a GET in Visual Studio for easy formatting of XML
  • Set the Request type to POST
  • Set the request body to valid XML
  • Set the Content-Type: text/xml
http put1
HTTP PUT
  • Creates or Updates the resource
    • Completely replaces whatever was there before with the new content
    • Update the cache with new resource
  • Idempotent by design
    • Creating or Updating record 123 multiple times should result in the same value
    • Do NOT do some kind of relative calculation
put and ids
PUT and IDs
  • If you can allow the client to define an ID within a context that is unique, PUT can insert, otherwise PUT is used to update resources
  • REST API
  • SOAP API
  • Note: the first arg comes from the URI, the customer data comes from the request body

(PUT) http://adventure-works.com/customers/123

CustomerDataPutCustomer(string customerId,

CustomerData customer);

put response
PUT Response
  • 200 OK
    • Update successful
  • 201 Created
    • Insert Successful
  • 400 Bad Request
    • Problem with the request of some kind
  • 404 Not Found
    • Resource to update was not found
  • 500 Internal Server Error
    • Everything else
delete
DELETE
  • Used to delete a resource
  • Issues
    • Security – can you delete a resource
    • Cache – need to remove it from the server cache
delete response
DELETE Response
  • 200 OK
    • Delete successful
  • 400 Bad Request
    • Problem with the request of some kind
  • 404 Not Found
    • Resource to delete was not found
  • 500 Internal Server Error
    • Everything else
urimapper http module
UriMapper HTTP Module
  • RESTful people do not like ugly URIs
  • ScottGu has Many ways to rewrite URIs
  • HttpModules can rewrite the URIs as they come in
  • Jon Flanders blog
    • Using WCF WebHttpBinding and WebGet with nicer Urls
    • Modified it a bit to support my scenario

http://adventure-works.com/service.svc/customer/1

gotchca
Gotchca!
  • I installed my HttpModule in web.config under <system.web><httpModules>
  • Not working
  • Searched blogs to find out that for IIS 7 you must install under <system.webServer><modules>
  • If your HttpModule does not rewrite the URL correctly you will get 404 errors and have a hard time understanding why
content negotiation1
Content Negotiation
  • Trend is toward an extension syntax
  • Unfortunately you must specify the response format in the WebGet, WebInvoke attribute
  • You can dynamically choose your format by making your service return a stream and then serializing your content directly to the stream

http://adventure-works.com/customers.xhtml

http://adventure-works.com/customers.xml

http://adventure-works.com/customers.json

two services
Two Services
  • apixml.svc for XML
  • apijson.svc for JSON
  • UriMapper code looks for an extension on the resource and maps it to the appropriate service
    • default is XML
  • 2 .SVC files means two classes that implement 2 different contracts
content negotiation demo
Content Negotiation Demo

http://rojacobsxps/AdventureWorksDev

consuming a restful service
Consuming a RESTful Service
  • Use WCF or HttpWebRequest
  • Need a ServiceContract interface
    • Copy from service
    • Build from scratch
      • Build UriTemplates that will match up to the service
data contract schema
Data Contract Schema
  • Export Schema from Assembly
    • svcutil foo.dll /dconly
  • Generate data contracts from xsd files
    • svcutil *.xsd /dconly
using wcf on the client
Using WCF on the Client

public CustomerDataGetCustomer(string customerId,

Guid? eTag,

DateTime? modifiedSince)

{

using (var factory = new

WebChannelFactory<IAdventureWorksServiceXml>("AdventureWorks"))

{

IAdventureWorksServiceXml service =

factory.CreateChannel();

using (OperationContextScope scope =

new OperationContextScope( (IContextChannel)service))

{

OutgoingWebRequestContext request =

WebOperationContext.Current.OutgoingRequest;

if (eTag != null)

request.IfNoneMatch = eTag.ToString();

if (modifiedSince != null)

{

DateTimeFormatInfoformatInfo =

CultureInfo.InvariantCulture.DateTimeFormat;

// RFC1123Pattern

request.IfModifiedSince =

modifiedSince.Value.ToString("r", formatInfo);

}

return service.GetCustomer(customerId);

}

}

}

You must create

a scope to access the context

summary
Summary
  • RESTful services extend the reach of HTTP to your SOA
  • RESTful design is harder than you might think
  • Implementation has some tricky issues to overcome
ad
