Point-to-Point Protocol


Point to point protocol

Point-to-Point Protocol


Point to point protocol1

Point-to-Point Protocol

  • successor to SLIP

  • router-to-router

  • host-to-network

  • synchronous or asynchronous

  • developed in the 80’s


Layering ppp elements

Layering PPP Elements


Ppp operation

PPP Operation


Ppp physical interfaces

PPP Physical Interfaces

PPP runs on the following types of WAN physical interfaces:

  • Asynchronous serial

  • ISDN

  • Synchronous serial


Ppp datagram transmission

PPP Datagram Transmission

Encapsulation - supports HDLC protocol to provide encapsulation.

Link Control Protocol (LCP) - used to establish, configure, and test the data link.

Network Control Protocols (NCPs) - used to establish and configure different network layer protocols.


Ppp frame example

PPP Frame Example


Ppp link negotiation

PPP Link Negotiation


Ppp stages

PPP stages

  • LCP frames configure and test the data link

  • The link is established, and facilities are negotiated.


Ppp stages1

PPP stages

  • NCP frames are sent to choose and configure network layer protocols.

  • The chosen network layer protocols (IP, IPX, etc.) are configured, and packets from each network layer protocol are sent.


Chabot college

LCP Options


Ppp lcp configuration options

PPP LCP Configuration Options


Ppp lcp configuration options1

PPP LCP Configuration Options

  • PPP options:

    • Authentication

    • Compression

    • Error Detection

    • Callback

    • Multilink

  • Only Authentication is covered on the CCNA exam.


Ppp compression

PPP Compression

  • Compression should only be used on low speed WAN interfaces (typically 56 Kbps and less).

  • When compression is performed in software, it might substantially degrade system performance.

    • Disable compression if the router CPU load exceeds 40 percent.


Compression algorithms

Compression Algorithms

  • Predictor - Determines whether the data is already compressed. If so, the data is just sent-no time is wasted trying to compress already compressed data.

  • Stacker - A Lempel-Ziv (LZ)-based compression algorithm looks at the data, and sends each data type only once with information about where the type occurs within the data stream. The receiving side uses this information to reassemble the data stream.


Compression algorithms1

Compression Algorithms

  • MPPC - This protocol (RFC 2118) allows Cisco routers to exchange compressed data with Microsoft clients. MPPC uses an LZ-based compression algorithm.

  • TCP header compression - This type of compression is used to compress the TCP headers. (Good for Telnet)


Ppp multilink

PPP Multilink


Chabot college

PPP Authentication


Ppp authentication overview

PPP Authentication Overview


Authentication phase optional

Authentication Phase (optional)

Takes place before entering the network-layer protocol phase.

PPP supports two authentication protocols:

  • PAP (RFC 1334)

  • CHAP (RFC 1334 and 1994)


Chabot college

PAP

  • simple

  • two-way handshake

  • done only upon initial link establishment

  • passwords are sent across the link in cleartext

  • remote node is in control of the frequency and timing of the login attempts


Chabot college

PAP


Chabot college

CHAP

  • used at the startup of a link, and periodically

  • three-way handshake

  • the local router sends a “challenge” message to the remote node

  • local router (or a third-party authentication server such as TACACS) is in control of the frequency and timing of the challenges


Chabot college

CHAP

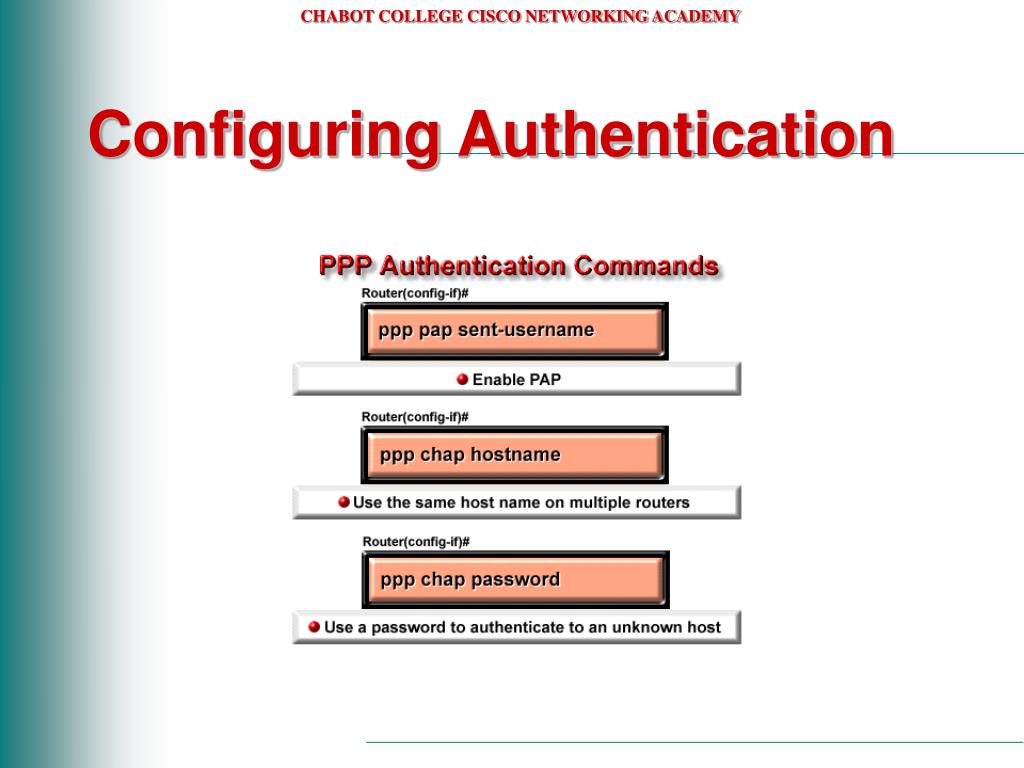

Configuring authentication

Configuring Authentication


Configuring authentication1

Configuring Authentication


Verifying ppp

Verifying PPP


  • Login
