  1. ADAM-4570 2-port Ethernet to RS-232/422/485 Data Gateway Reported by Alex Hsueh IAG Web & Comm. PM email: alex_hsueh@advantech.com.tw

  2. Remote PC DATA Ethernet Ethernet Overview Local PC ADAM-4570 upgrades your data from RS-232/422/485 to Ethernet interfaces. It brings the advantage of data accessibility and remote management to devices that can’t connect to network. RS-485 RS-422 RS-232 Bar Code Reader PLC Semiconductor

  3. Features (1) 2 independent RS-232/422/485 ports 10/100 Base-T Ethernet 5 LEDs: Easy to Diagnostic Real Time O.S. Surge Protection: 15KVESD Speed up to 230 Kbps

  4. Features (2) Auto-searching configuration utility Transfer data,command, files remotely Self-diagnostic port mapping Utility Din rail, panel or piggback Mounting

  5. Benefits • FUpgrade your system to Ethernet without • changing existing H/W or S/W • FControl, monitor on-site devices or transfer files • to devices via Ethernet • FEasy to maintain and diagnose via Ethernet • FFlexible to set RS-232/422/485 ports for different • applications

  6. Specification • Protocol: TCP/IP, UDP • Interface: • Network: 10/100 BASE-T standard • Serial: 2 Independent RS-232/422/485 ports • Transmission speed: 300 bps to 230 Kbps • Parity bit: odd, even, none, space, mark • Data bit: 5, 6, 7, 8 • Stop bit: 1, 1.5, 2 • Signals: Full Modem control signals • Diagnostic LEDs: Tx/Rx, Link , Speed (10/100 Mbps ),Power, Status • Utility Software: Configuration & Port mapping utility • Driver Supported :Windows NT 4.0 & Windows 2000 driver

  7. Network Architecture PC The PC extends 6 ports when using 3 ADAM-4570s Ethernet RS-422 RS-232 RS-232 RS-485 RS-422 RS-485 PLC

  8. Connection RJ-45 DB9 (female) RJ45 to DB9 (male) +10~30Vdc

  9. Installation Configuration utility Driver /Port Mapping utility

  10. Configuration(1) Configure ADAM-4570/4572

  11. Configuration(2) Define Access Right for Specified PC

  12. Configuration(3) Map COMport to specific ADAM-4570

  13. Configuration(4) Self-diagnostic your ADAM-4570

  14. Configuration(5) Domain 2 Domain 1 PC PC Configure No.1 & No.2 ADAM-4570 Configure No.3 & No.4 ADAM-4570 Ethernet No.4 Router No.3 No.1 Router Router No.2 Utility configures ADAM-4570 within the domain

  15. Configuration(6) PC 2 PC 1 Ethernet Data Router Router Router Port2 Port1 Extension ports can be allocated to any PCbeyond domain

  16. Target Market Factory Transportation Telecommunication Laboratory Building Security

  17. Application FPharmaceutical drug test system FMobile blood test system FCable TV management system FEntrance security system FBuilding automation system FDNC management system FSemiconductor CIM System

  18. Application- Pharmaceutical Drug Test System

  19. Application- Mobile Blood Test System

  20. Application- Cable TV management system

  21. Application-Entrance Security System

  22. Application- Building Automation System

  23. Application- DNC management system

  24. Application- DNC management system

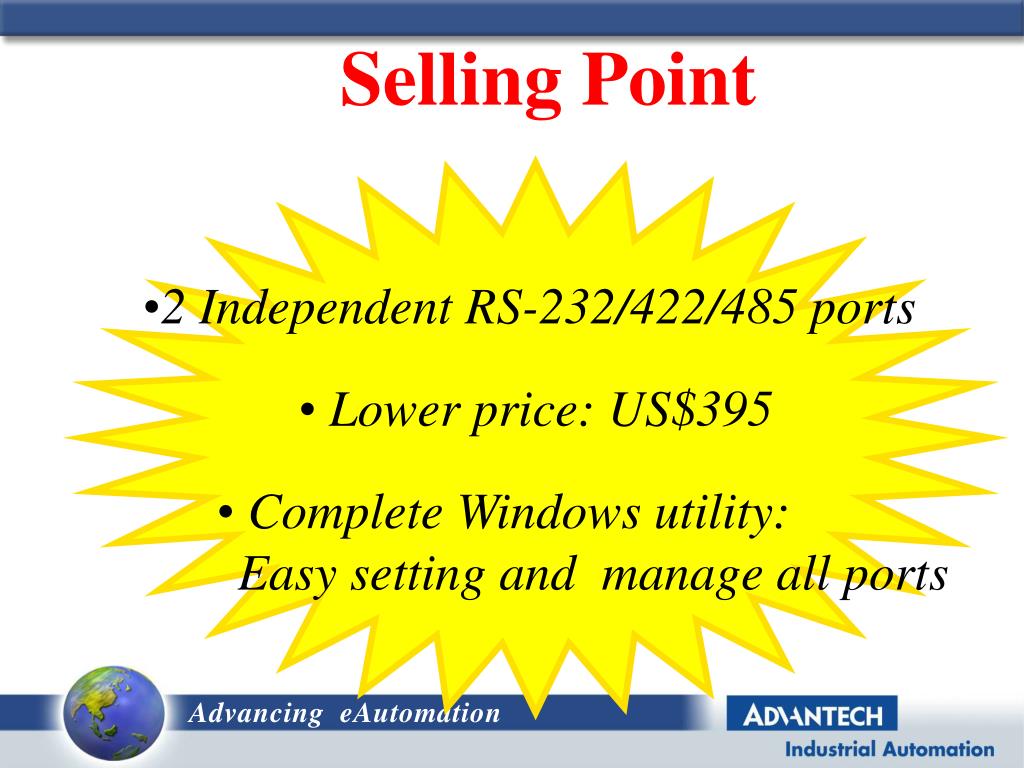

  25. Selling Point • 2 Independent RS-232/422/485 ports • Lower price: US$395 • Complete Windows utility: • Easy setting and manage all ports

  26. Release Schedule • Pilot run sample: 2000/11/15 • Ready to Ship: 2000/11/30
