  1. Natural Disasters Unit 2 Extraterrestrial Threats Impacts and Extinctions Chapter 13

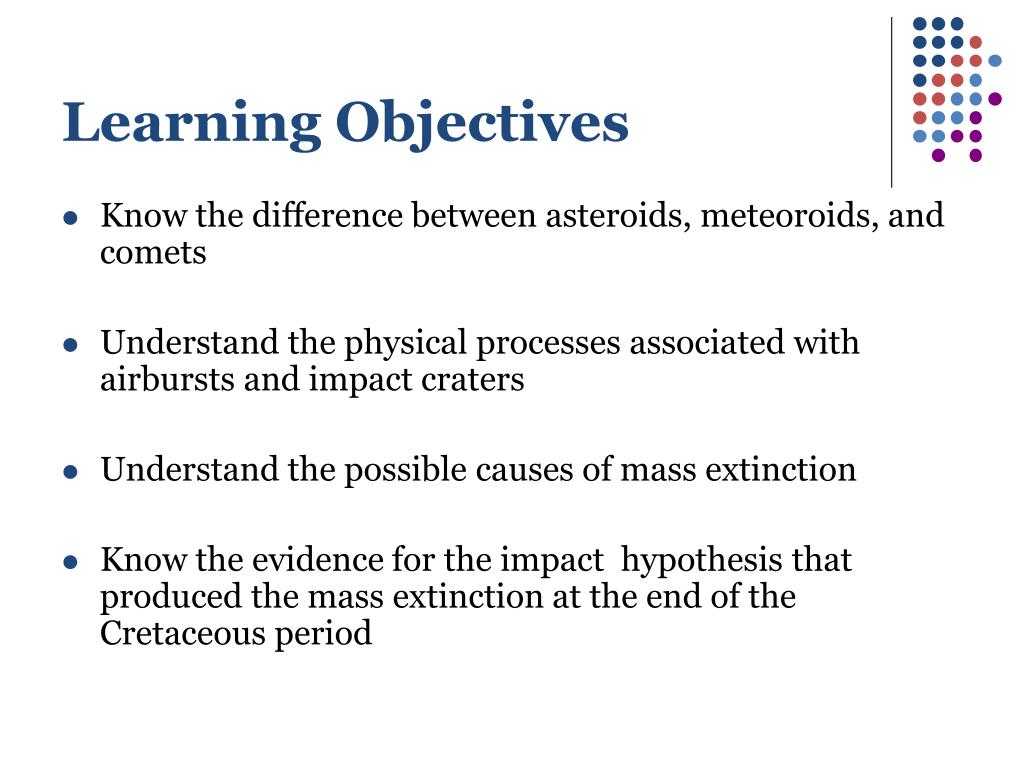

  2. Learning Objectives • Know the difference between asteroids, meteoroids, and comets • Understand the physical processes associated with airbursts and impact craters • Understand the possible causes of mass extinction • Know the evidence for the impact hypothesis that produced the mass extinction at the end of the Cretaceous period

  3. Learning Objectives, cont. • Know the likely physical, chemical, and biological consequences of impact from a large asteroid or comet • Understand the risk of impact or airburst of extraterrestrial objects and how that risk might be minimized

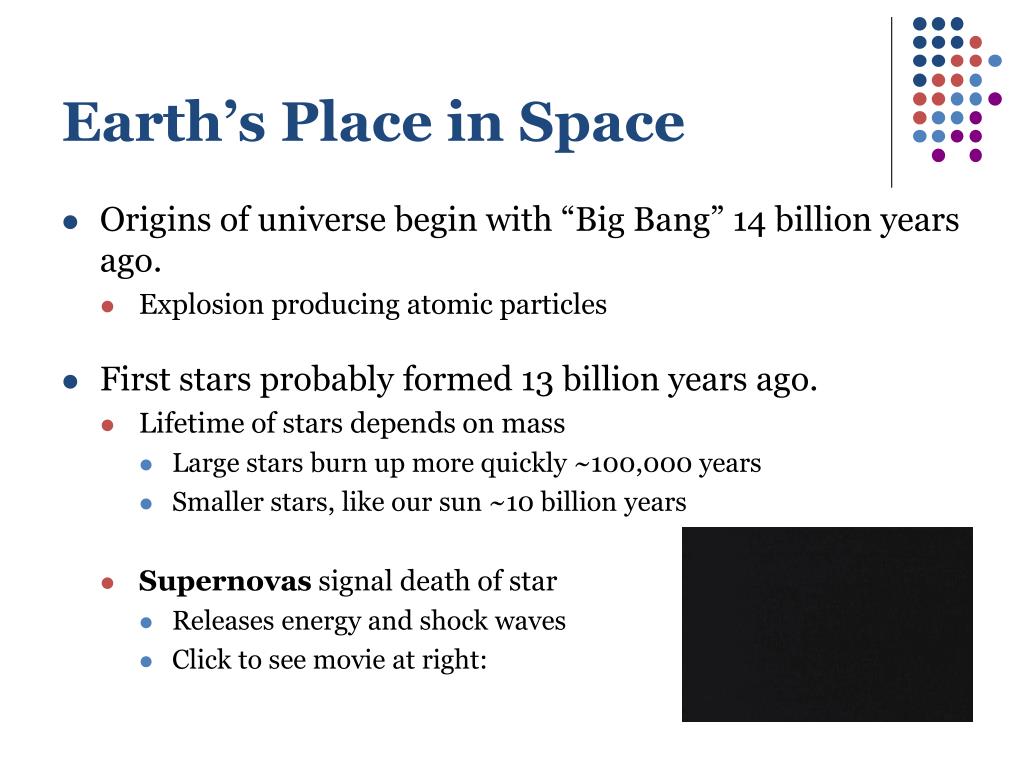

  4. Earth’s Place in Space • Origins of universe begin with “Big Bang” 14 billion years ago. • Explosion producing atomic particles • First stars probably formed 13 billion years ago. • Lifetime of stars depends on mass • Large stars burn up more quickly ~100,000 years • Smaller stars, like our sun ~10 billion years • Supernovas signal death of star • Releases energy and shock waves • Click to see movie at right:

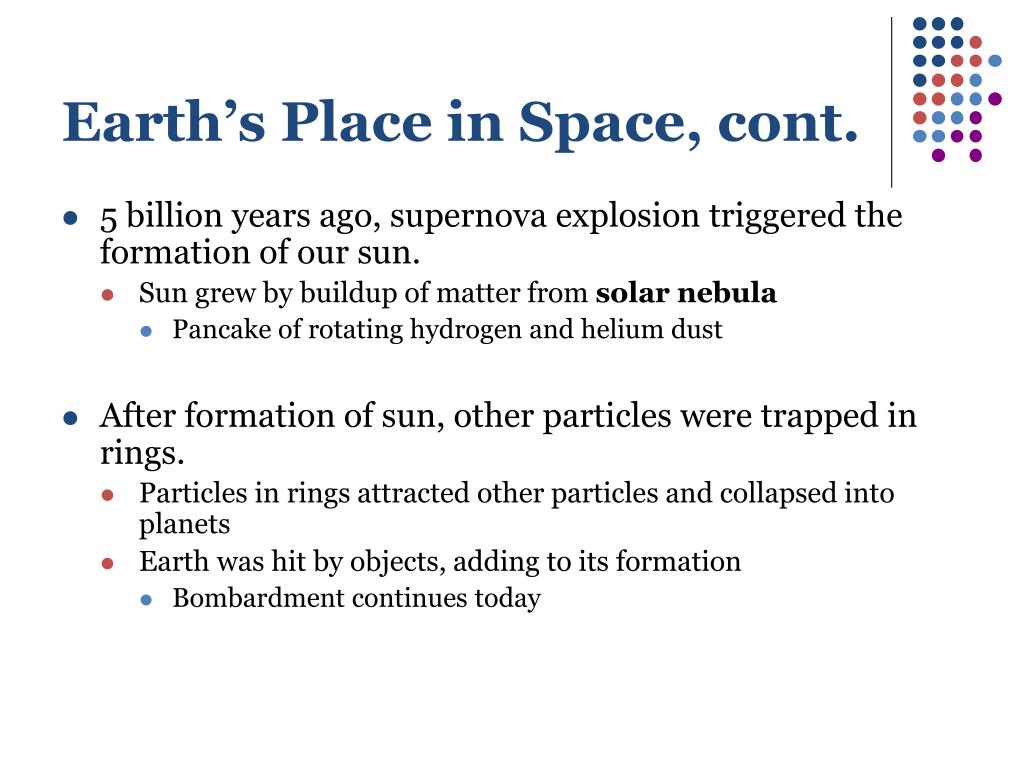

  5. Earth’s Place in Space, cont. • 5 billion years ago, supernova explosion triggered the formation of our sun. • Sun grew by buildup of matter from solar nebula • Pancake of rotating hydrogen and helium dust • After formation of sun, other particles were trapped in rings. • Particles in rings attracted other particles and collapsed into planets • Earth was hit by objects, adding to its formation • Bombardment continues today

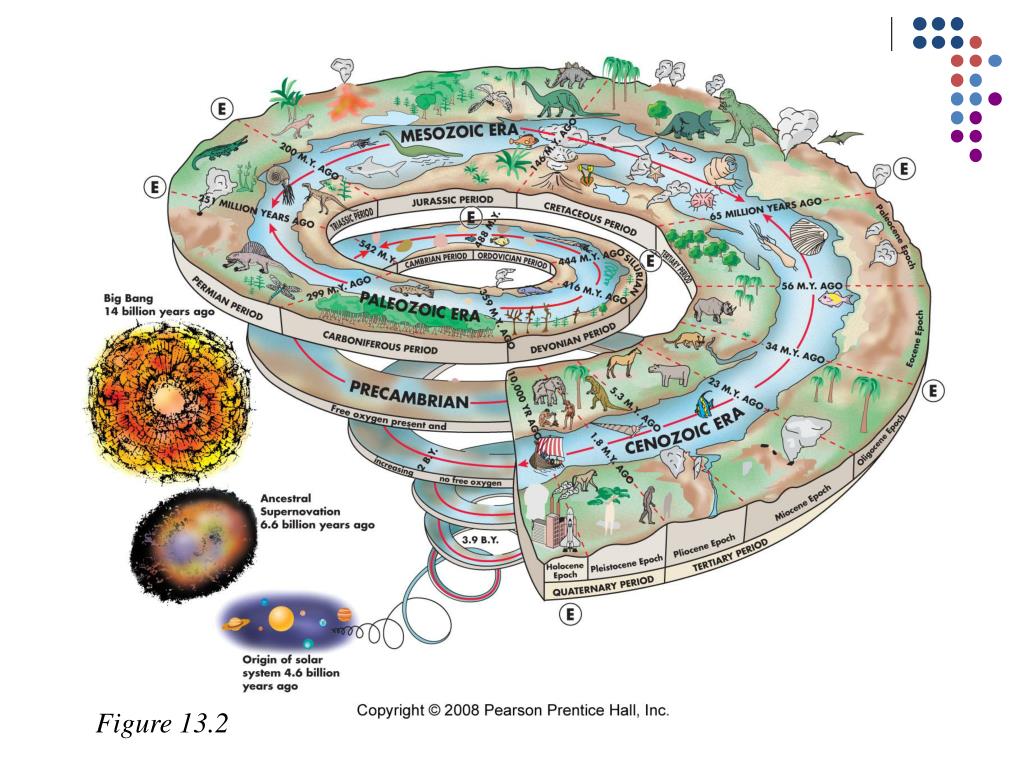

  6. Figure 13.2

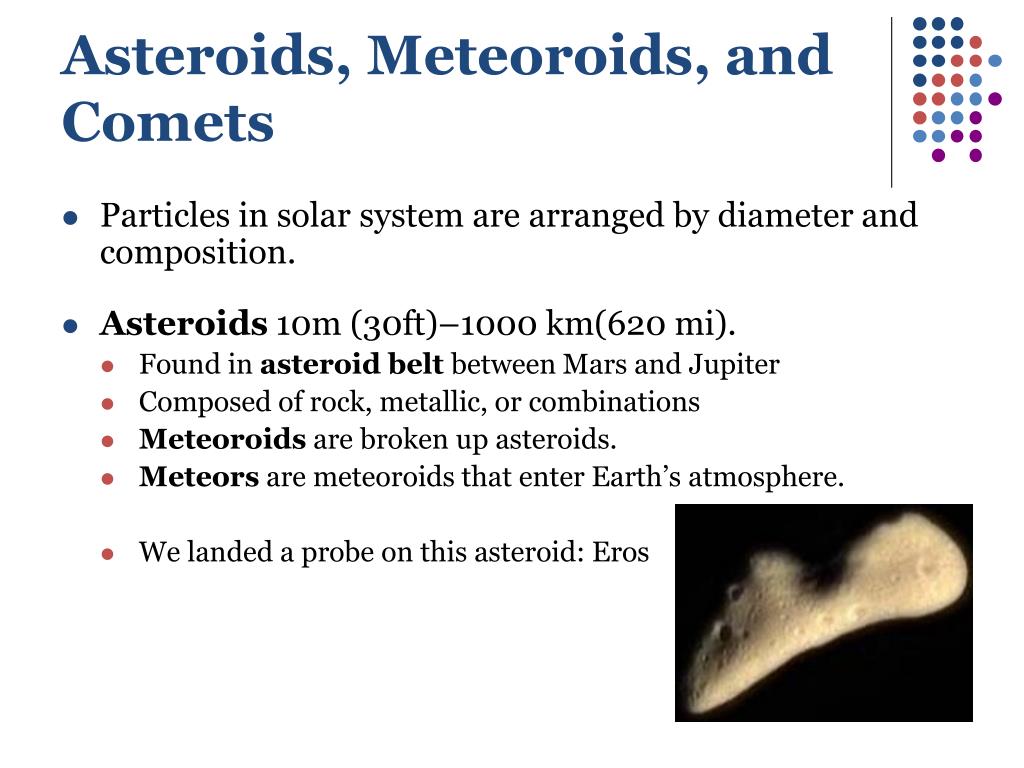

  7. Asteroids, Meteoroids, and Comets • Particles in solar system are arranged by diameter and composition. • Asteroids 10m (30ft)–1000 km(620 mi). • Found in asteroid belt between Mars and Jupiter • Composed of rock, metallic, or combinations • Meteoroids are broken up asteroids. • Meteors are meteoroids that enter Earth’s atmosphere. • We landed a probe on this asteroid: Eros

  8. Comets • have glowing tails • composed of frozen water or carbon dioxide • Originated in Oort cloud

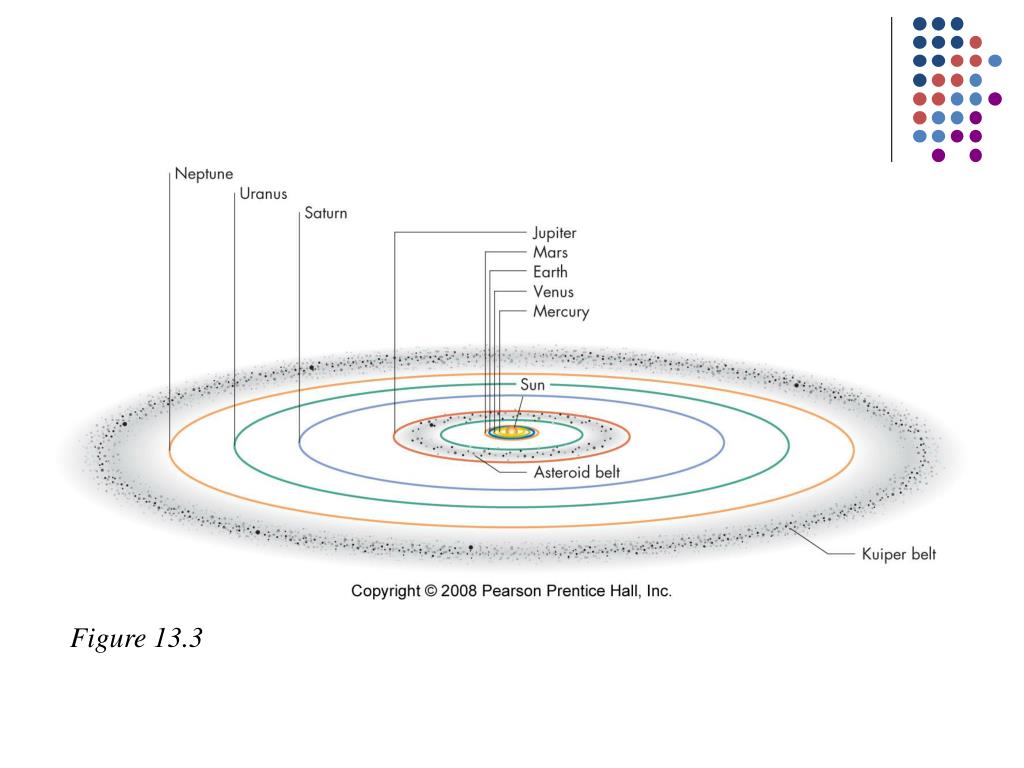

  9. Figure 13.3

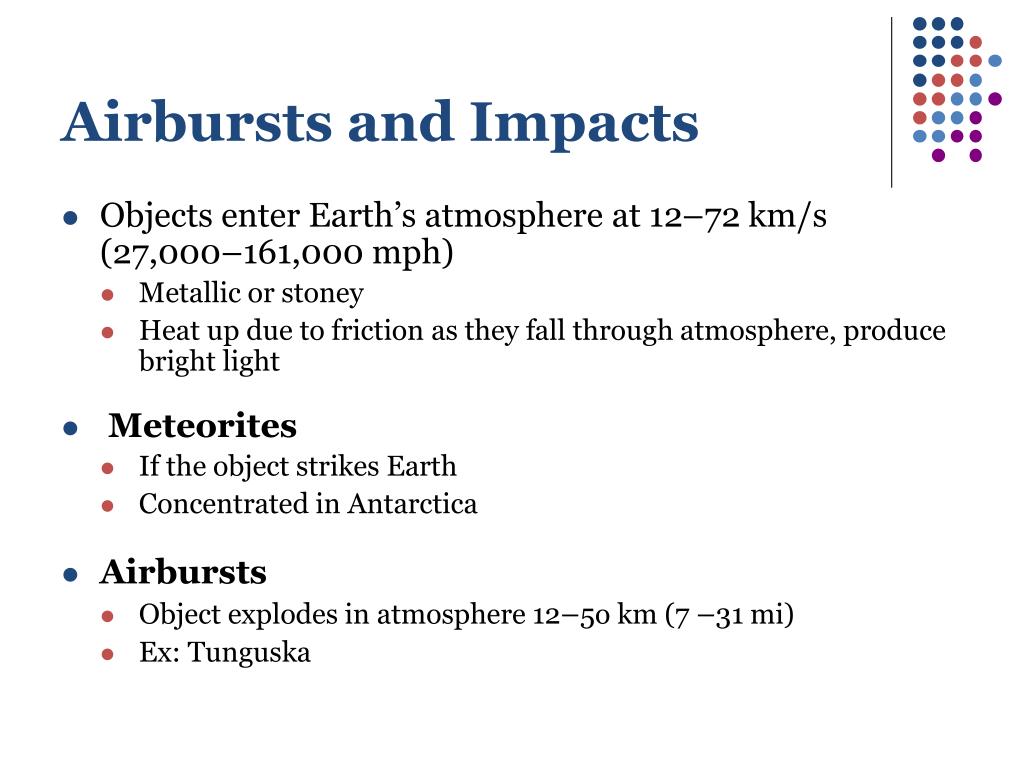

  10. Airbursts and Impacts • Objects enter Earth’s atmosphere at 12–72 km/s (27,000–161,000 mph) • Metallic or stoney • Heat up due to friction as they fall through atmosphere, produce bright light • Meteorites • If the object strikes Earth • Concentrated in Antarctica • Airbursts • Object explodes in atmosphere 12–5o km (7 –31 mi) • Ex: Tunguska

  11. Figure 13.5

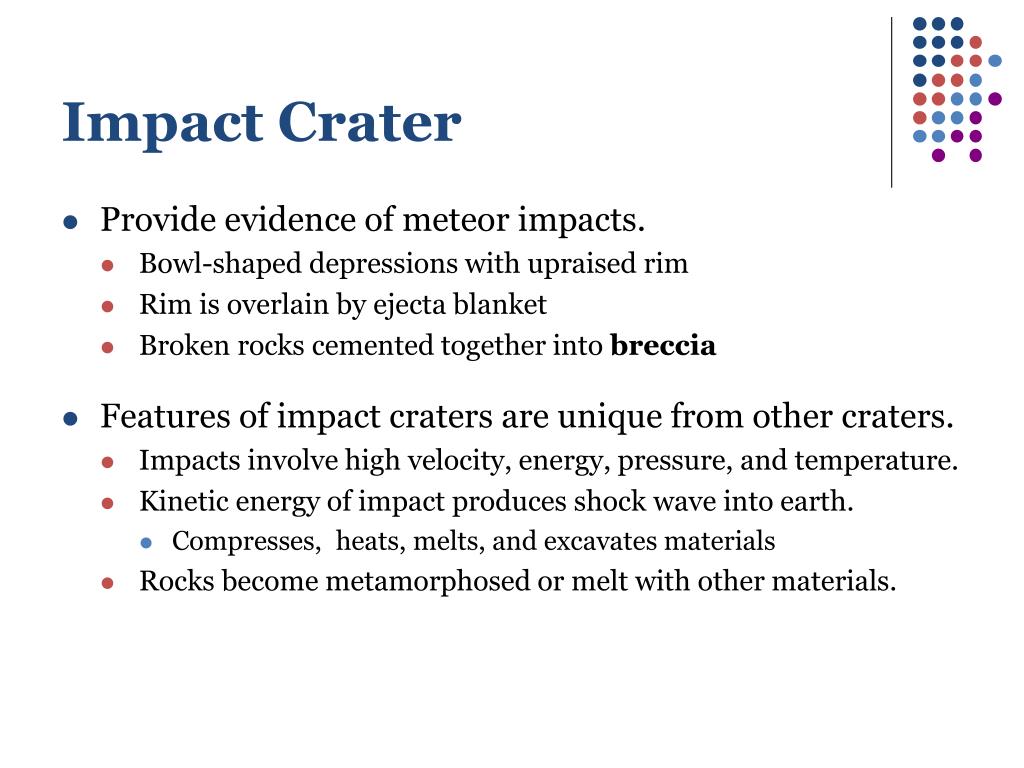

  12. Impact Crater • Provide evidence of meteor impacts. • Bowl-shaped depressions with upraised rim • Rim is overlain by ejecta blanket • Broken rocks cemented together into breccia • Features of impact craters are unique from other craters. • Impacts involve high velocity, energy, pressure, and temperature. • Kinetic energy of impact produces shock wave into earth. • Compresses, heats, melts, and excavates materials • Rocks become metamorphosed or melt with other materials.

  13. Figure 13.6

  14. Simple Impact Craters • Typically small < 6 km (4 mi) • Ex. Barringer Crater Figure 13.7

  15. Complex Impact Craters • Larger in diameter > 6 km (4 mi) • Rim collapses more completely • Center uplifts following impact Figure 13.9

  16. Impact Crater, cont. • Craters are much more common on Moon. • Most impacts are in ocean, buried, or destroyed. • Impacts on land have been eroded or buried by debris. • Smaller objects burn up in Earth’s atmosphere before impact.

  17. Mass Extinctions • Sudden loss of large numbers of plants and animals relative to number of new species being added • Defines the boundaries of geologic periods or epochs • Usually involve rapid climate change, triggered by • Plate tectonics • Moves habitats to different locations • Volcanic activity • Large eruptions release CO2, warming Earth • Volcanic ash reflects radiation, Cooling Earth • Extraterrestrial impact

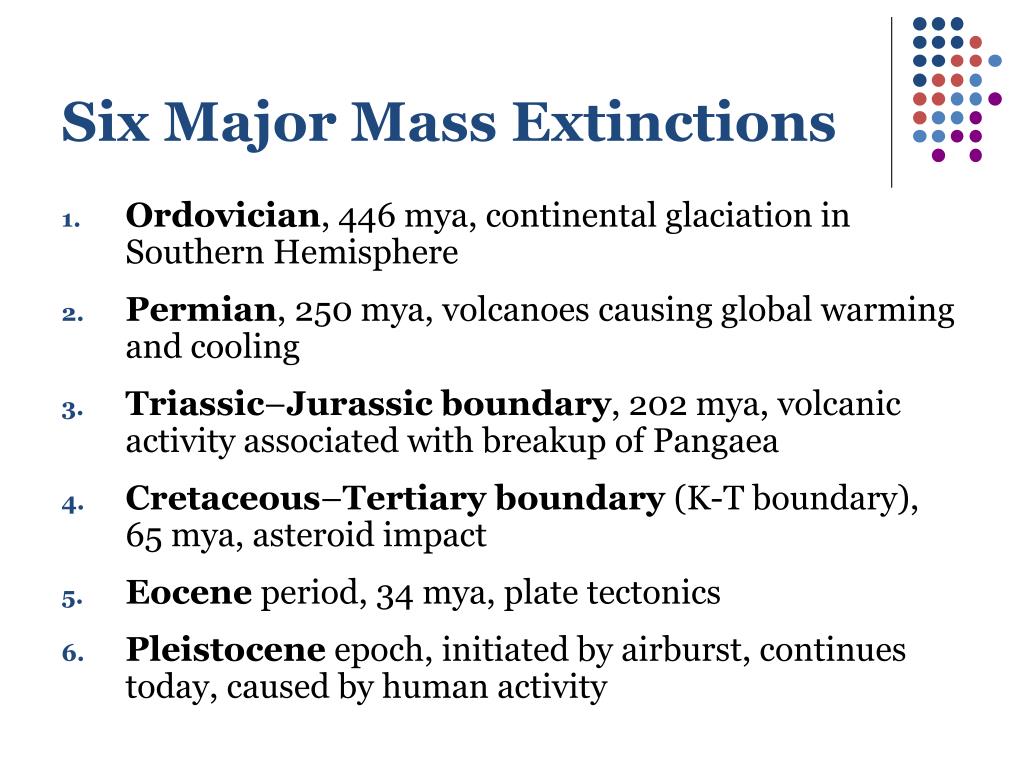

  18. Six Major Mass Extinctions • Ordovician, 446 mya, continental glaciation in Southern Hemisphere • Permian, 250 mya, volcanoes causing global warming and cooling • Triassic–Jurassic boundary, 202 mya, volcanic activity associated with breakup of Pangaea • Cretaceous–Tertiary boundary (K-T boundary), 65 mya, asteroid impact • Eocene period, 34 mya, plate tectonics • Pleistocene epoch, initiated by airburst, continues today, caused by human activity

  19. K-T Boundary Mass Extinction • Dinosaurs disappeared with many plants and animals. • 70% of all genera died • Set the stage for evolution of mammals • First question: What does geologic history tell us about K-T Boundary? • Walter and Luis Alvarez decided to measure concentration of Iridium in clay layer at K-T boundary in Italy. • Fossils found below layer were not found above. • How long did it take to form the clay layer? • Iridium deposits say that layer formed quickly. • Probably extinction caused by single asteroid impact.

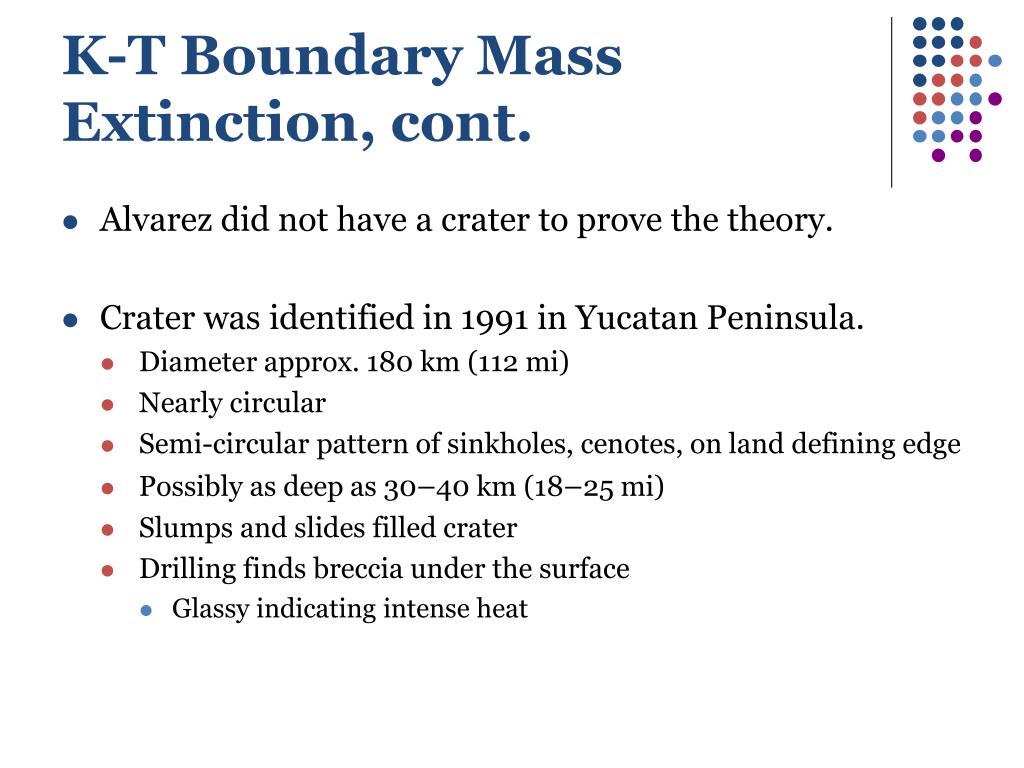

  20. K-T Boundary Mass Extinction, cont. • Alvarez did not have a crater to prove the theory. • Crater was identified in 1991 in Yucatan Peninsula. • Diameter approx. 180 km (112 mi) • Nearly circular • Semi-circular pattern of sinkholes, cenotes, on land defining edge • Possibly as deep as 30–40 km (18–25 mi) • Slumps and slides filled crater • Drilling finds breccia under the surface • Glassy indicating intense heat

  21. Figure 13.12

  22. Sequence of Events • Asteroid moving at 30 km (19 mi) per second • Asteroid impacts Earth, produces crater 200 km (125 mi) diameter, 40 km (25 mi) deep • Shock waves crush, melt rocks, vaporized rocks on outer fringe Figure 13.13a Figure 13.13b

  23. Sequence of Events, cont. • Seconds after impact: • Ejecta blanket forms • Mushroom cloud of dust and debris • Fireball sets off wildfires around the globe • Sulfuric acid enters atmosphere • Dust blocks sunlight • Tsunamis from impact reach over 300 m (1000 ft) Figure 13.13c

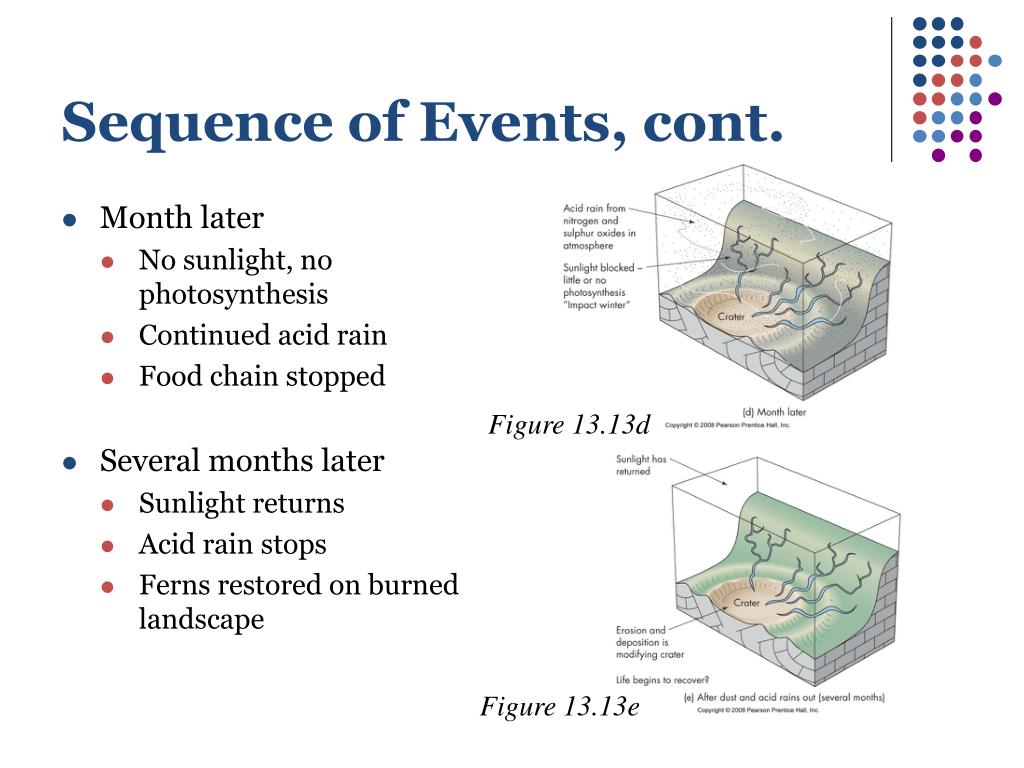

  24. Sequence of Events, cont. • Month later • No sunlight, no photosynthesis • Continued acid rain • Food chain stopped • Several months later • Sunlight returns • Acid rain stops • Ferns restored on burned landscape Figure 13.13d Figure 13.13e

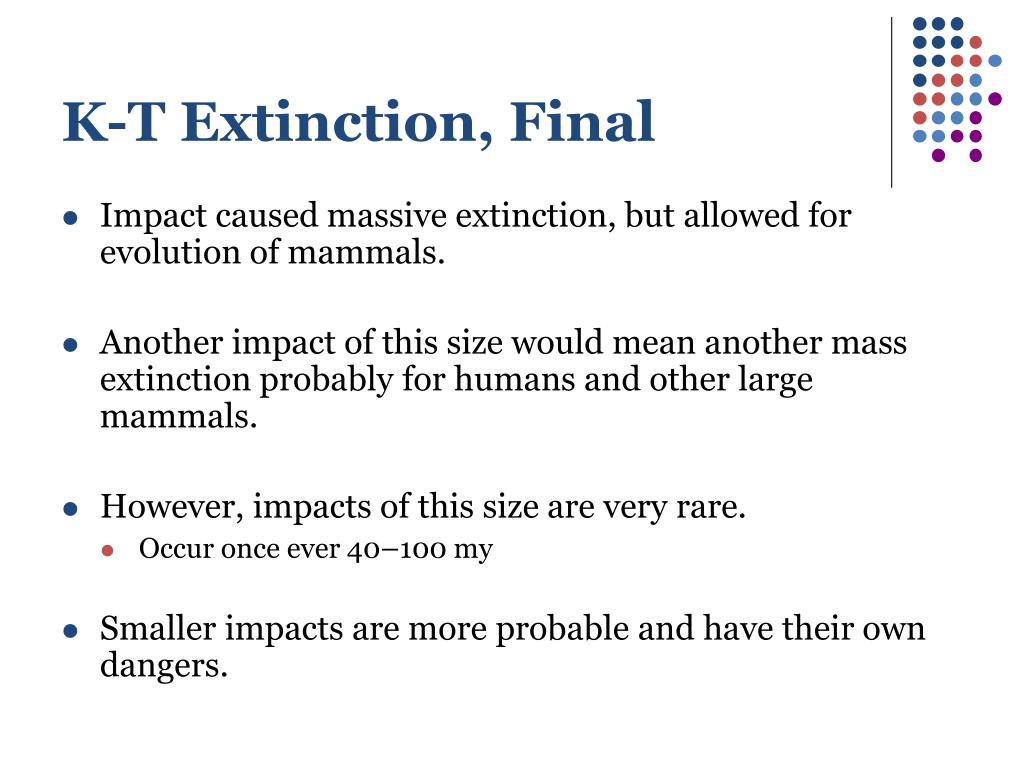

  25. K-T Extinction, Final • Impact caused massive extinction, but allowed for evolution of mammals. • Another impact of this size would mean another mass extinction probably for humans and other large mammals. • However, impacts of this size are very rare. • Occur once ever 40–100 my • Smaller impacts are more probable and have their own dangers.

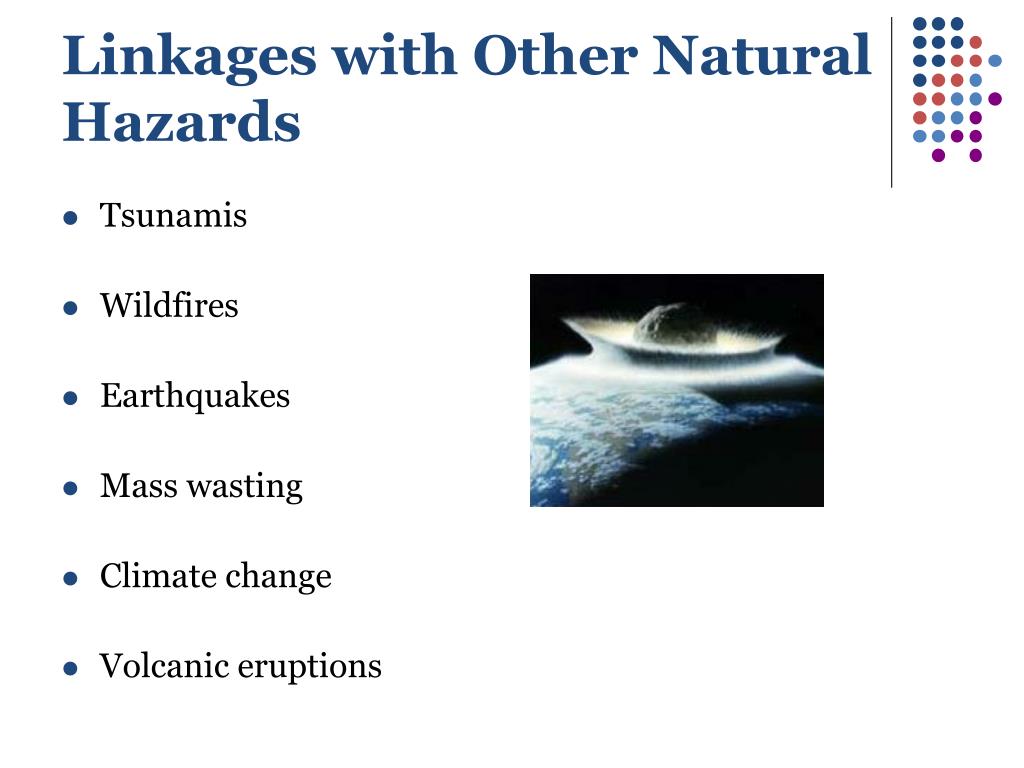

  26. Linkages with Other Natural Hazards • Tsunamis • Wildfires • Earthquakes • Mass wasting • Climate change • Volcanic eruptions

  27. Risk Related to Impacts • Risk related to probability and consequences • Large events have consequences, will be catastrophic • Worldwide effects • Potential for mass extinction • Return period of 10’s–100’s millions of years • Smaller events have regional catastrophe • Effects depends on site of event • Return period of 1000 years • Likelihood of an urban area hit every few 10,000 years

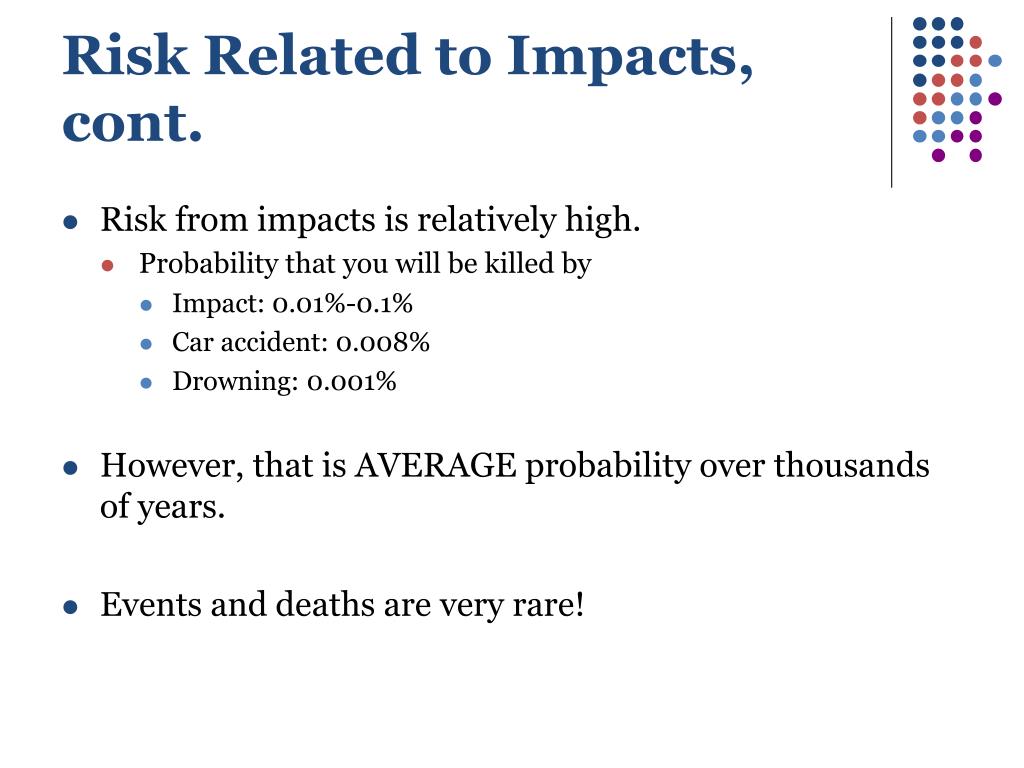

  28. Risk Related to Impacts, cont. • Risk from impacts is relatively high. • Probability that you will be killed by • Impact: 0.01%-0.1% • Car accident: 0.008% • Drowning: 0.001% • However, that is AVERAGE probability over thousands of years. • Events and deaths are very rare!

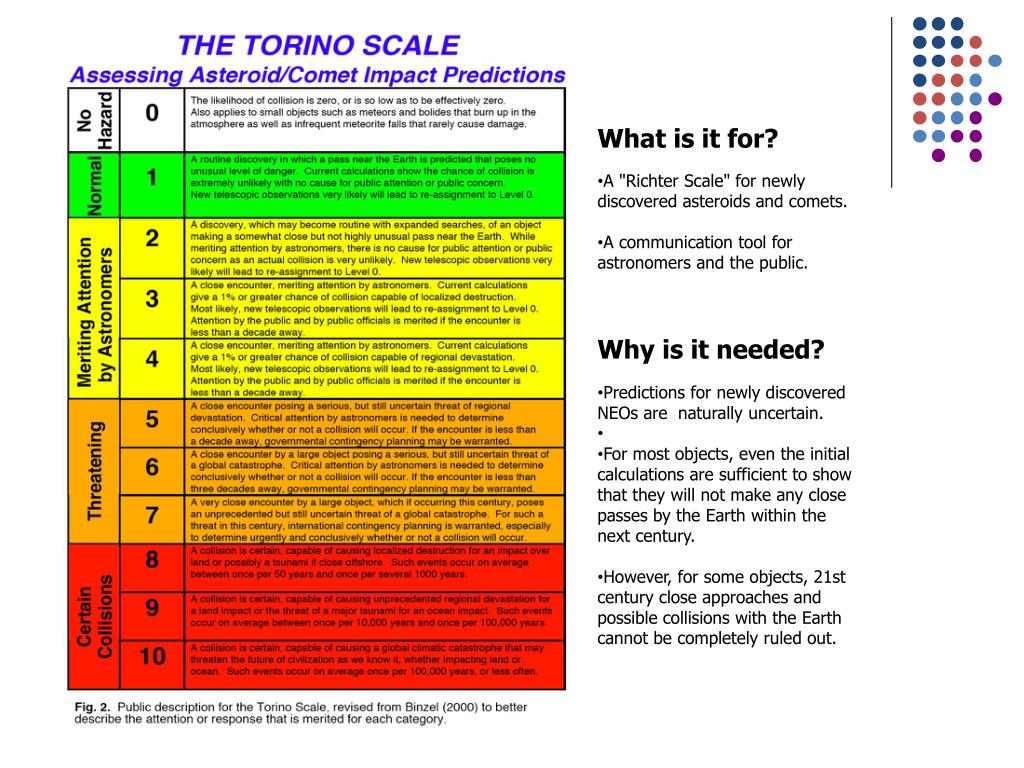

  29. The Torino Impact Scale

  30. What is it for? • A "Richter Scale" for newly discovered asteroids and comets. • A communication tool for astronomers and the public. • Why is it needed? • Predictions for newly discovered NEOs are naturally uncertain. • For most objects, even the initial calculations are sufficient to show that they will not make any close passes by the Earth within the next century. • However, for some objects, 21st century close approaches and possible collisions with the Earth cannot be completely ruled out.

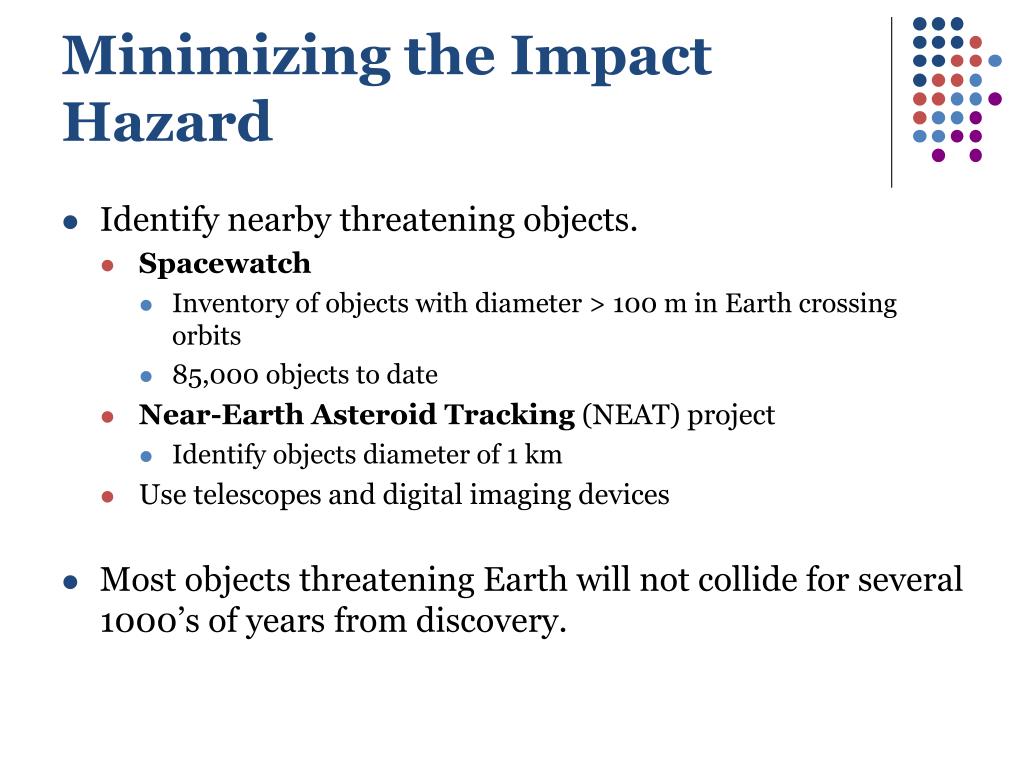

  31. Minimizing the Impact Hazard • Identify nearby threatening objects. • Spacewatch • Inventory of objects with diameter > 100 m in Earth crossing orbits • 85,000 objects to date • Near-Earth Asteroid Tracking (NEAT) project • Identify objects diameter of 1 km • Use telescopes and digital imaging devices • Most objects threatening Earth will not collide for several 1000’s of years from discovery.

  32. Minimizing the Impact Hazard, cont. • Options once a hazard is detected • Blowing it up in space • Small pieces could become radioactive and rain down on earth • Nudging it out of Earth’s orbit • Much more likely since we will have time to study object • Technology can change orbit of asteroid • Costly and need coordination of world military and space agencies • Evacuation • Possible if we can predict impact point • Could be impossible depending on how large an area would need to be evacuated

  33. EndNatural Disasters Unit 2 Extraterrestrial Threats Impacts and Extinctions Chapter 13
