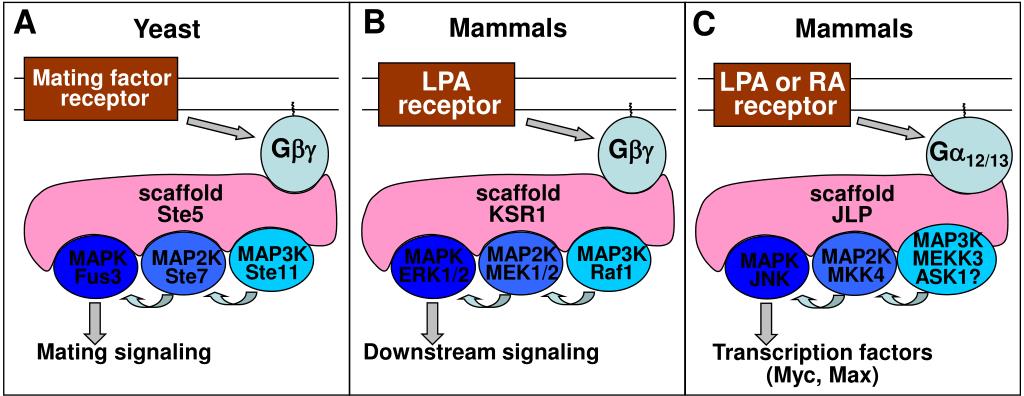

B. A. C. Mammals. Mammals. Yeast. Mating factor receptor. LPA receptor. LPA or RA receptor. G bg. G bg. G a 12/13. scaffold Ste5. scaffold KSR1. scaffold JLP. MAP3K MEKK3 ASK1?. MAP3K Ste11. MAP3K Raf1. MAP2K MEK1/2. MAPK ERK1/2. MAP2K MKK4. MAP2K Ste7. MAPK

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about ' G bg' - monita


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

B

A

C

Mammals

Mammals

Yeast

Mating factor

receptor

LPA

receptor

LPA or RA

receptor

Gbg

Gbg

Ga12/13

scaffold

Ste5

scaffold

KSR1

scaffold

JLP

MAP3K

MEKK3

ASK1?

MAP3K

Ste11

MAP3K

Raf1

MAP2K

MEK1/2

MAPK

ERK1/2

MAP2K

MKK4

MAP2K

Ste7

MAPK

Fus3

MAPK

JNK

Mating signaling

Downstream signaling

Transcription factors

(Myc, Max)
