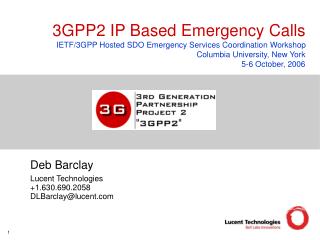

3GPP2 IP Based Emergency CallsIETF/3GPP Hosted SDO Emergency Services Coordination WorkshopColumbia University, New York 5-6 October, 2006

Deb Barclay

Lucent [email protected]

Presentation overview l.jpg

Presentation Overview

  • 3GPP2 Background

    • Structure

    • Partners

    • Other collaborative efforts

  • 3GPP2 IP Emergency Call Activities

    • S.R0115 requirements

    • Future considerations

    • Challenges

Introduction l.jpg


The Third Generation Partnership Project 2 (3GPP2) is:

  • A collaborative third generation (3G) telecommunications specifications-setting project

  • Comprised of interests from the Americas and Asia developing global specifications for MAP “Wireless Radiotelecommunication Intersystem Operations” network evolution to 3G

  • Focused on global specifications for the radio transmission technologies (RTTs) supported by MAP and the wireless IP core networks, together known as the cdma2000 ® family of standards.

Background l.jpg


  • 3GPP2's specifications are developed within in the Project's four Technical Specification Groups (TSGs) comprised of representatives from the Project's Individual Member companies. The TSGs are:

    • TSG-A (Access Network Interfaces)

    • TSG-C (cdma2000® Air Interface)

    • TSG-S (Services and Systems Aspects)

    • TSG-X (Core Networks)

  • All TSGs report to the Project's Steering Committee, which manages the overall work process and adopts the technical specifications forwarded by the TSGs.

  • website:

Organizational partners ops l.jpg

Organizational Partners (OPs)

ARIBAssociation of Radio Industries and Businesses (Japan)

CCSAChina Communications Standard Association (China)

TIATelecommunications Industry Association (NAFTA countries: USA, Canada, Mexico)

TTATelecommunications Technology Association (Korea)

TTCTelecommunication Technology Committee (Japan)

Other 3gpp2 partners l.jpg

Other 3GPP2 Partners

  • Market Representation Partners (MRPs)

    • CDMA Development Group

    • IPv6 Forum

    • IA450 Association

    • MobileIGNITE

  • Observers

    • ETSI

    • TSACC

    • ITU

  • Individual Members: More than 80 companies

Other collaborative efforts l.jpg

Other Collaborative Efforts

  • 3GPP - 3GPP2 IMS Core Network specifications based on 3GPP

  • IETF - base specifications on RFCs. When additions are needed, prefer to work with IETF rather than define solution/extensions unique to 3GPP2

  • OMA - coordination with OMA regarding location and other services

  • TIA - offered to support 3GPP2 if needed, or if any USA/regional specific requirements need to be specified outside 3GPP2

  • Liaison letters regarding Next Generation Emergency Services recently received from NENA i3, NENA location and ATIS-ESIF-NGES.

Ip based emergency services l.jpg

IP Based Emergency Services

  • Requirements: Stage 1

    • S.R0115 “All IP-Network Emergency Call Support” - Stage 1 requirements, produced by TSG-S; recommended for publication on Sept. 14, 2006

      • Will be available on the 3GPP2 website, under the “Specifications” tab.

  • Architecture/Protocol: Stage 2/Stage 3

    • Core network impacts will be developed in TSG-X (e.g., MMD)

    • Access network impacts will be developed TSG-A and TSG-C (e.g., cdma2000 air interface)

S r0115 requirements l.jpg

S.R0115 Requirements

  • Supports Voice over packet (WLAN or cdma2000) emergency call originations to legacy emergency centers (e.g., PSTN capable emergency call centers).

  • 3GPP2 can not have country specific requirements, but does have optional functionality to meet the needs of local regulation.

  • The All-IP Network will indicate to endpoint if emergency calls are supported

  • Endpoint should indicate emergency call. If not, the All-IP Network will detect local emergency numbers.

  • Support for local emergency numbers and addresses (TEL URI, SIP URI)

  • Endpoint will include positioning information in the emergency call request, which may be cell/sector, geoposition, or civic location.

  • Knowledge of emergency call is end to end when necessary, including intermediate points.

S r0115 requirements10 l.jpg

S.R0115 Requirements

  • Routing to a emergency call center based on the caller’s location and the required type of emergency call center (e.g. fire, police, ambulance etc.)

    • Routing may be based on rough initial location or accurate location

  • Emergency call supported in home and roaming scenarios.

    • Roaming scenarios may be routed from visited network

  • Only authorized endpoints are supported (implies home network subscription and roaming agreements)

  • Updated position requests from emergency call center will be supported

  • Callback of authorized emergency callers supported

  • Call will be maintained even after handoffs between access technologies

  • Accurate updated caller location following a handoff provided when requested by the emergency call center

  • Service interactions that put call on hold are not allowed

  • Call Detail Records supported

S r0115 future considerations l.jpg

S.R0115 Future Considerations

  • Emergency Calls to IP emergency call centers

  • Support for emergency calls with other media types: e.g., text messaging, pictures, video

  • Calls from unauthorized endpoints (e.g., no UIM)

Stage 2 expectations l.jpg

Stage 2 Expectations

  • Will build on existing All-IP architecture and 3GPP2 protocols – MMD (IMS), cdma2000 air interface, WLAN, Location Service

  • Impact to MMD, cdma2000 air interface, WLAN, Location Services can be expected

  • New servers likely to be added to the serving network – e.g. specialized SIP server (CSCF or AS) for emergency calls, separate location and routing server(s)

  • Reference to or inclusion of IETF and NENA capabilities (e.g. Geopriv pidf-lo, NENA i2)

Challenges l.jpg


  • All IP-Network architecture and signaling protocols are different than traditional wireless voice network so geopositioning for IP emergency calls can not be assumed

  • IP Access

    • Which combinations should be supported for emergency calls?

      • Fixed IP versus Mobile IP (MIP)

      • For MIP, Home Agent in the home network or allowed in the visited network

      • IPv4 versus IPv6

    • When roamers with an established IP connection to home network originate an emergency call, can current configuration be used or re-establish packet connection to visited network?

Challenges14 l.jpg


  • Call establishment exclusively via the visited network versus via the home network (and visited network)

  • Handoff of emergency calls

  • Location updates after a handoff

Summary l.jpg


  • 3GPP2 faces many of the same challenges as identified by other organizations and this workshop

  • 3GPP2 would like to work cooperatively with other groups to achieve global solutions.

  • Thank you!
