The behavior of gases

The Behavior of Gases

Chapter 14


Chapter 14 terms to know

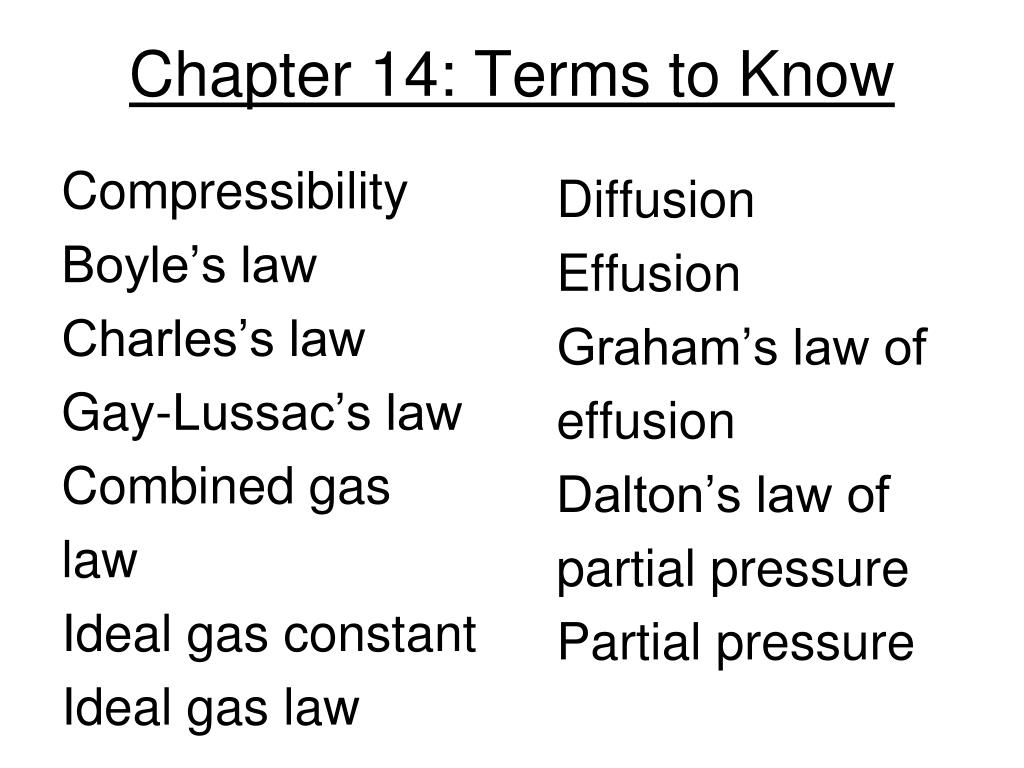

Chapter 14: Terms to Know

Compressibility

Boyle’s law

Charles’s law

Gay-Lussac’s law

Combined gas

law

Ideal gas constant

Ideal gas law

Diffusion

Effusion

Graham’s law of

effusion

Dalton’s law of

partial pressure

Partial pressure


Introduction
Introduction

  • Gases are a state of matter that are highly compressible.

  • There are numerous factors that affect gas pressure.

  • There are four gas laws that help to explain gas behavior.

  • Ideal gases do not behave like real gases.

  • Mixtures of gases exert pressures that are different from individual gases.

  • Different gases spread out at different rates.


Gases

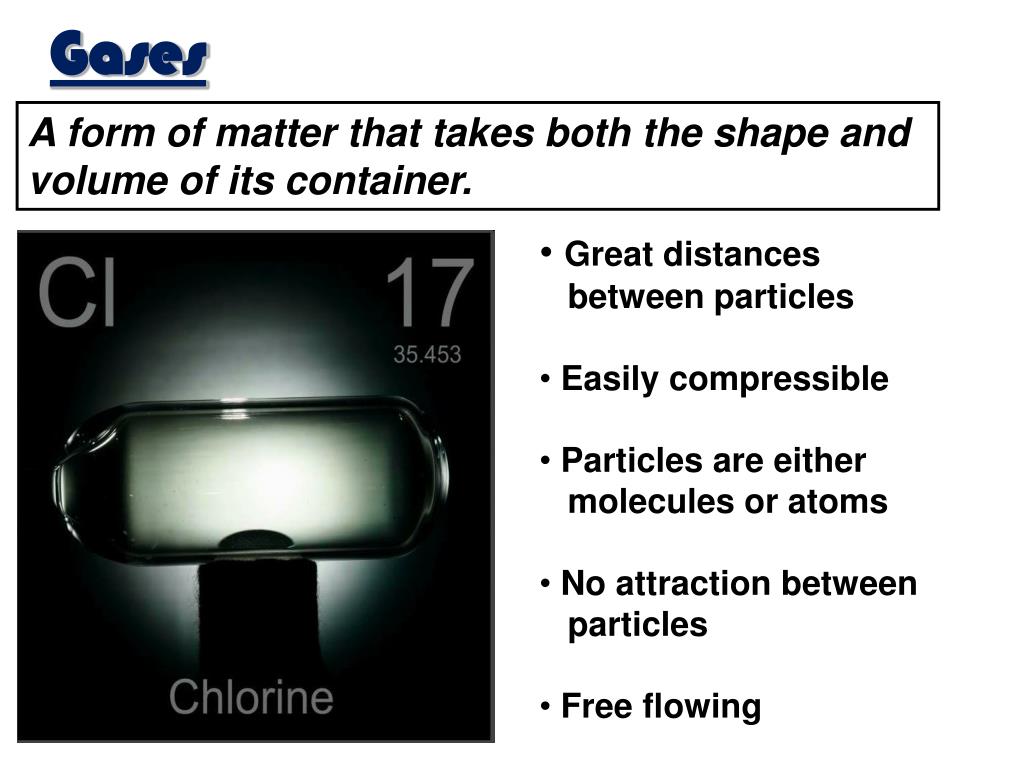

Gases

A form of matter that takes both the shape and volume of its container.

  • Great distances

  • between particles

  • Easily compressible

  • Particles are either

  • molecules or atoms

  • No attraction between

  • particles

  • Free flowing


More gas properties

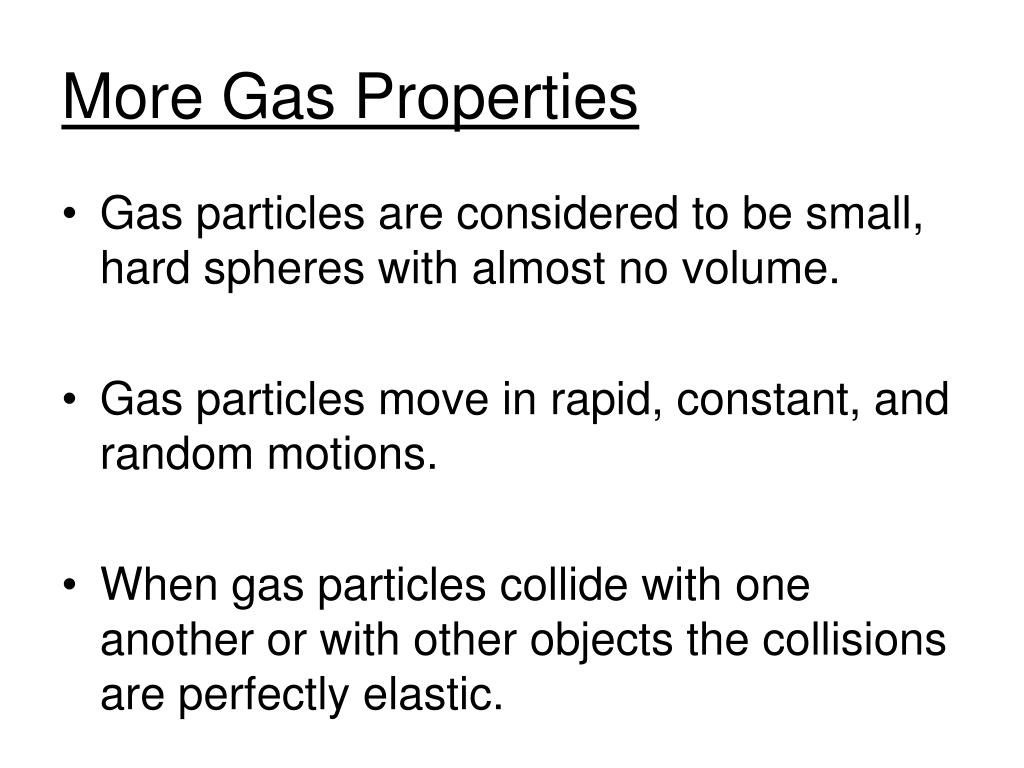

More Gas Properties

  • Gas particles are considered to be small, hard spheres with almost no volume.

  • Gas particles move in rapid, constant, and random motions.

  • When gas particles collide with one another or with other objects the collisions are perfectly elastic.


Properties of gases section 14 1

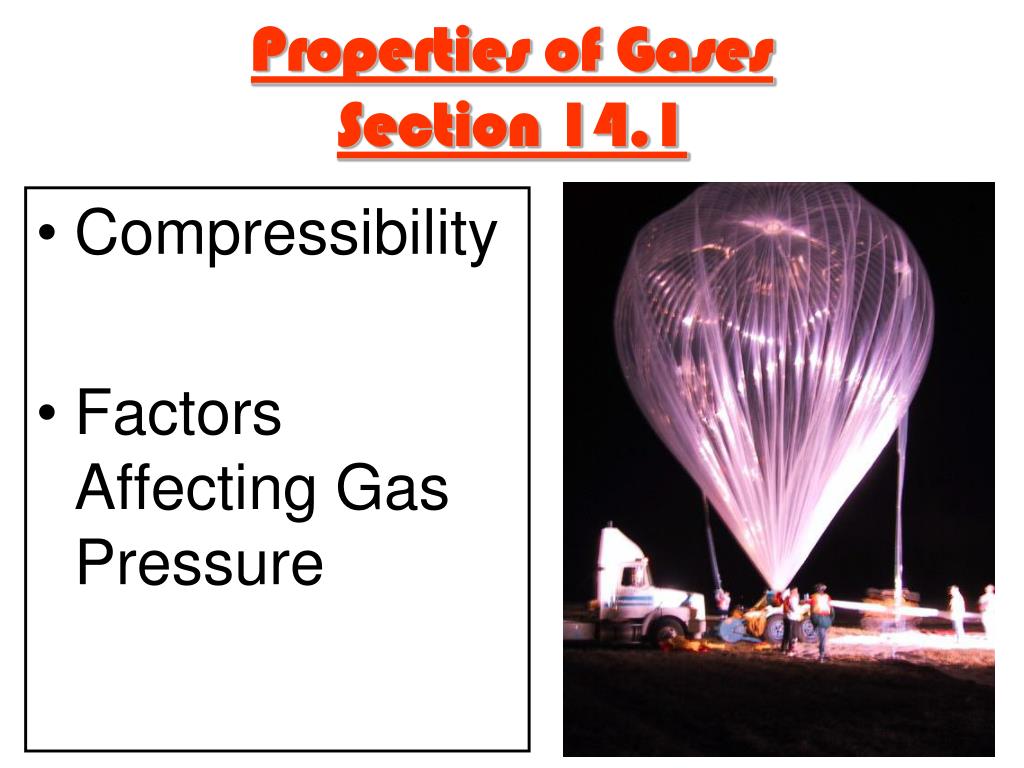

Properties of GasesSection 14.1

  • Compressibility

  • Factors Affecting Gas Pressure


I compressibility of gases
I.) Compressibility of Gases

  • Gases have a lot of space between each particle.

  • Gases have no volume and shape.

  • Gases can easily be squeezed together.


Compressibility
Compressibility

A measure of how much the volume

of matter decreases under pressure.

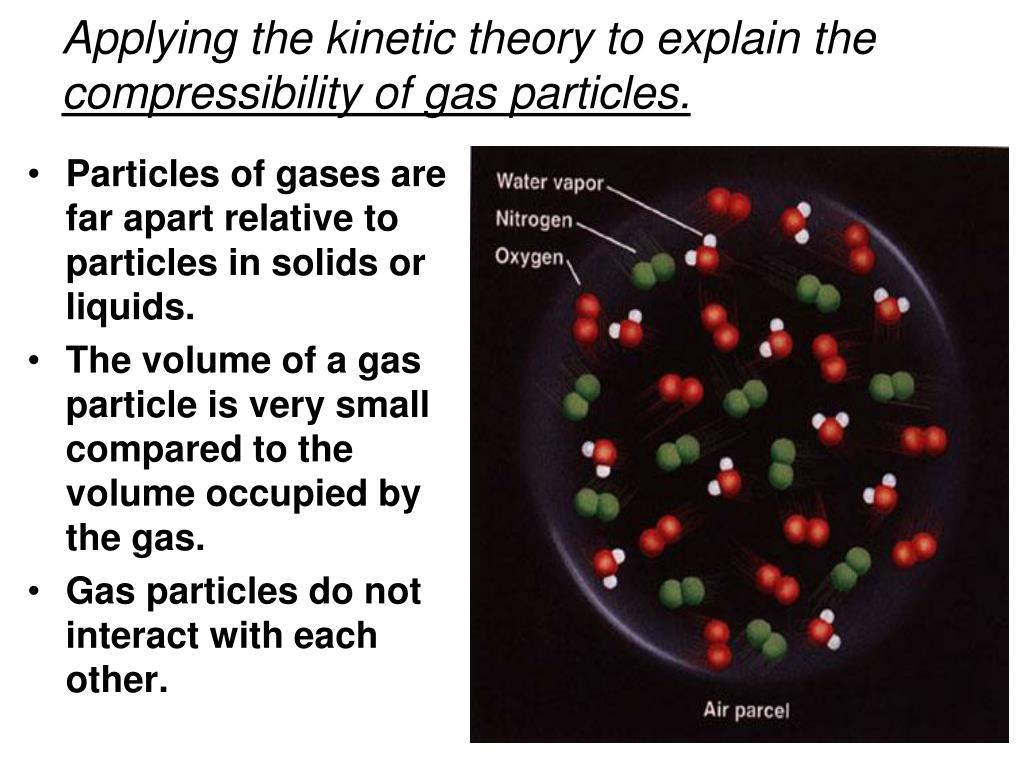

Applying the kinetic theory to explain the compressibility of gas particles
Applying the kinetic theory to explain the compressibility of gas particles.

  • Particles of gases are far apart relative to particles in solids or liquids.

  • The volume of a gas particle is very small compared to the volume occupied by the gas.

  • Gas particles do not interact with each other.

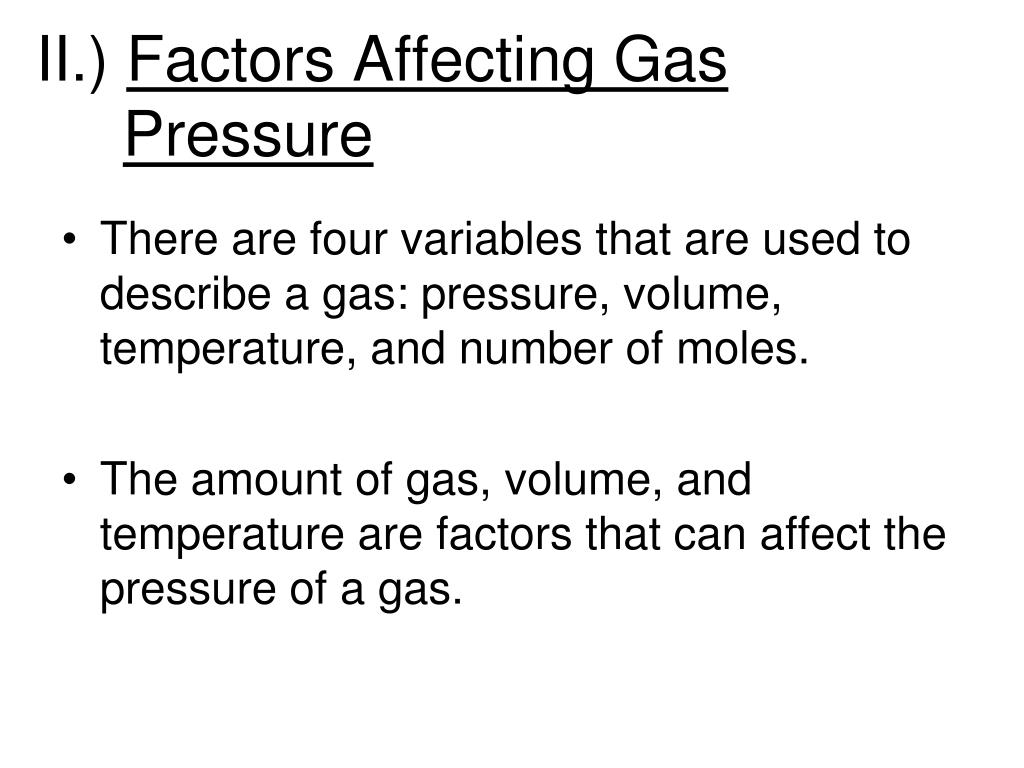

Ii factors affecting gas pressure
II.) Factors Affecting Gas Pressure

  • There are four variables that are used to describe a gas: pressure, volume, temperature, and number of moles.

  • The amount of gas, volume, and temperature are factors that can affect the pressure of a gas.


Collisions between gas particles are perfectly elastic
Collisions between gas particles are perfectly elastic.

  • During an elastic collision, KE is transferred without loss from one particle to another.

  • The total KE remains constant

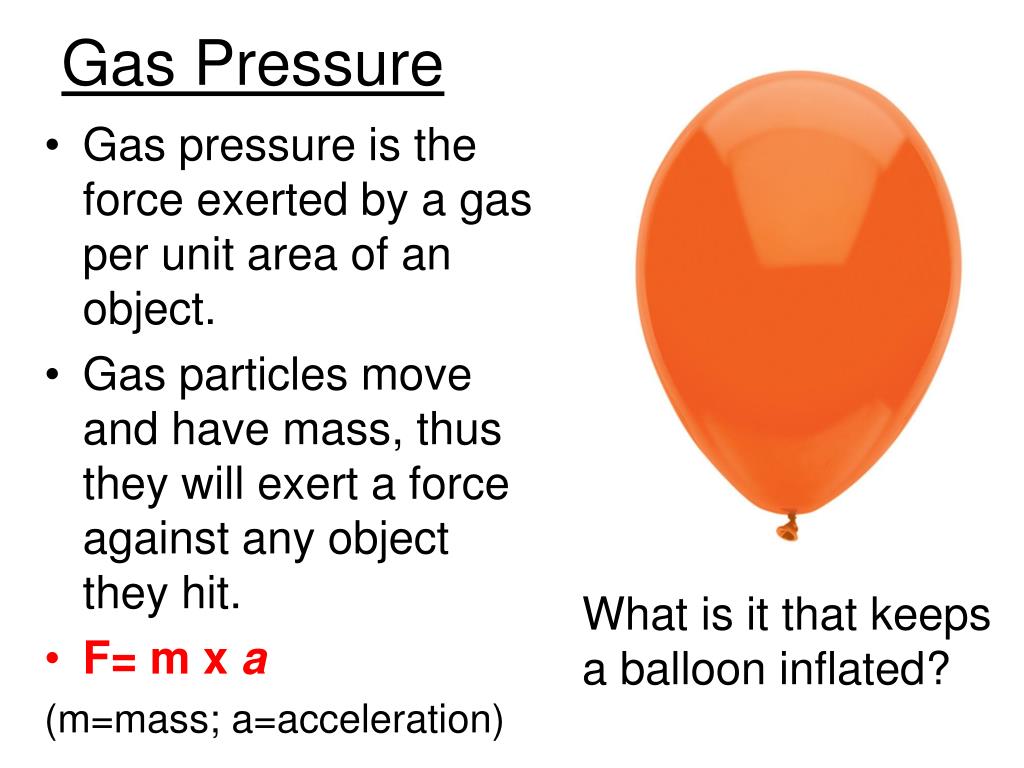

Gas pressure
Gas Pressure

  • Gas pressure is the force exerted by a gas per unit area of an object.

  • Gas particles move and have mass, thus they will exert a force against any object they hit.

  • F= m x a

    (m=mass; a=acceleration)

What is it that keeps

a balloon inflated?


Gas movement and pressure
Gas movement and pressure.

  • Moving bodies will exert a force when they collide with another body.

    • More collisions = More force

  • Force of a single gas particle is small; of many very large.

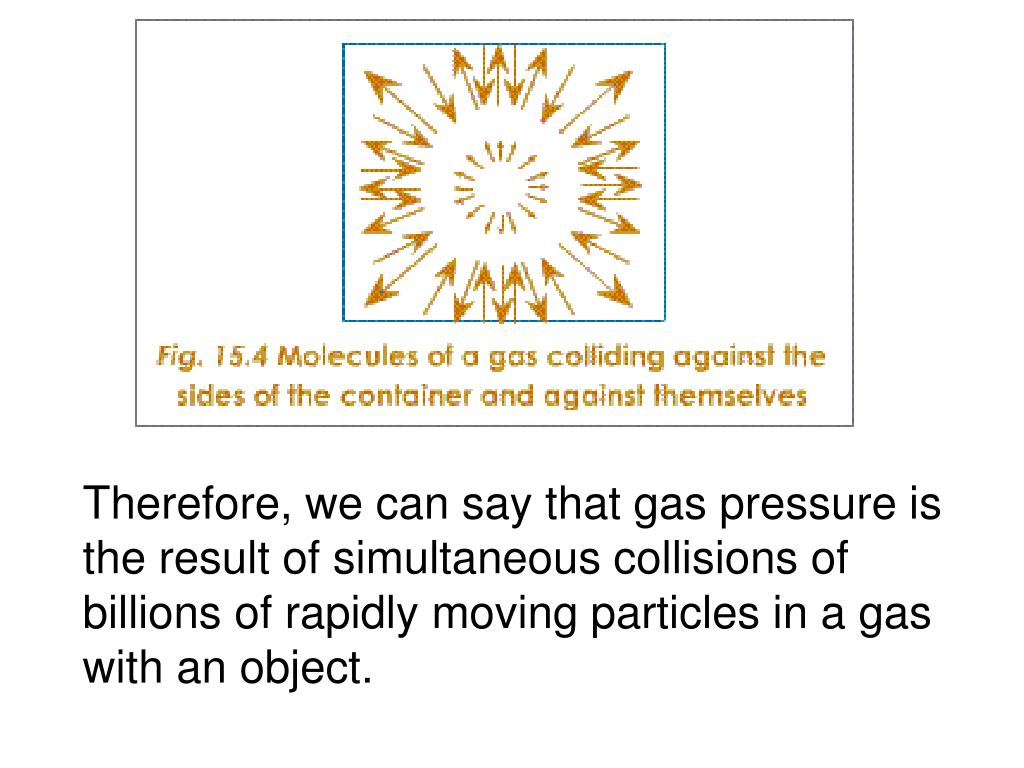

Therefore, we can say that gas pressure is the result of simultaneous collisions of billions of rapidly moving particles in a gas with an object.


Converting between the three pressure units

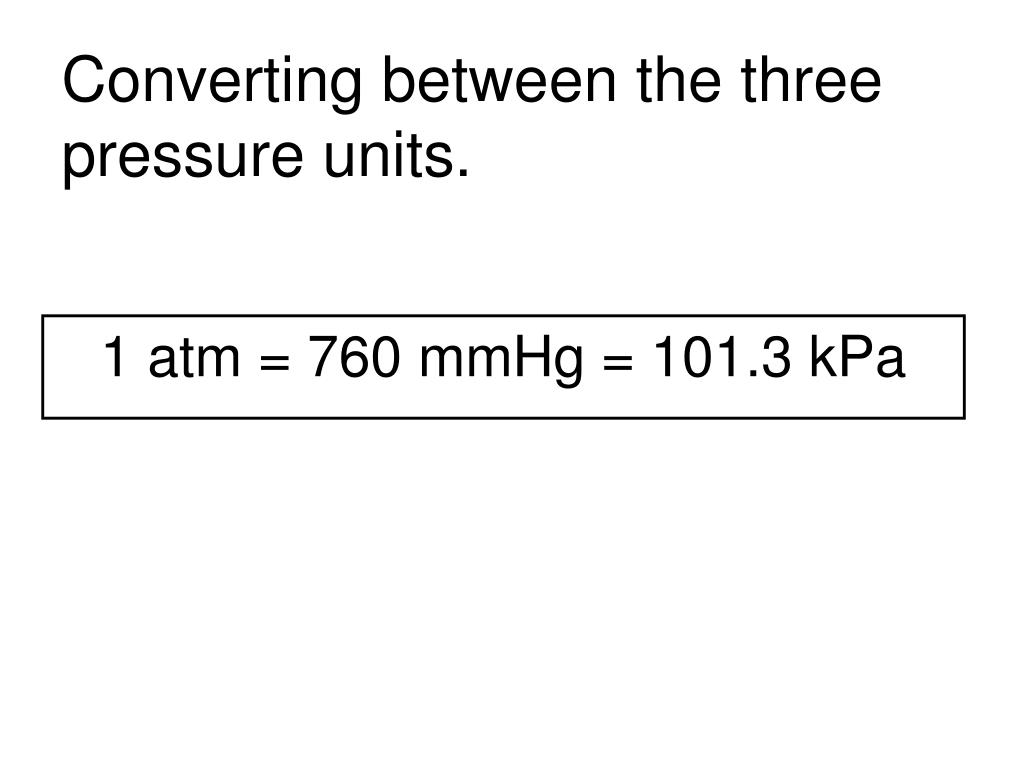

Converting between the three pressure units. simultaneous collisions of billions of rapidly moving particles in a gas with an object.

1 atm = 760 mmHg = 101.3 kPa


Gas pressure varies with the amount of a gas

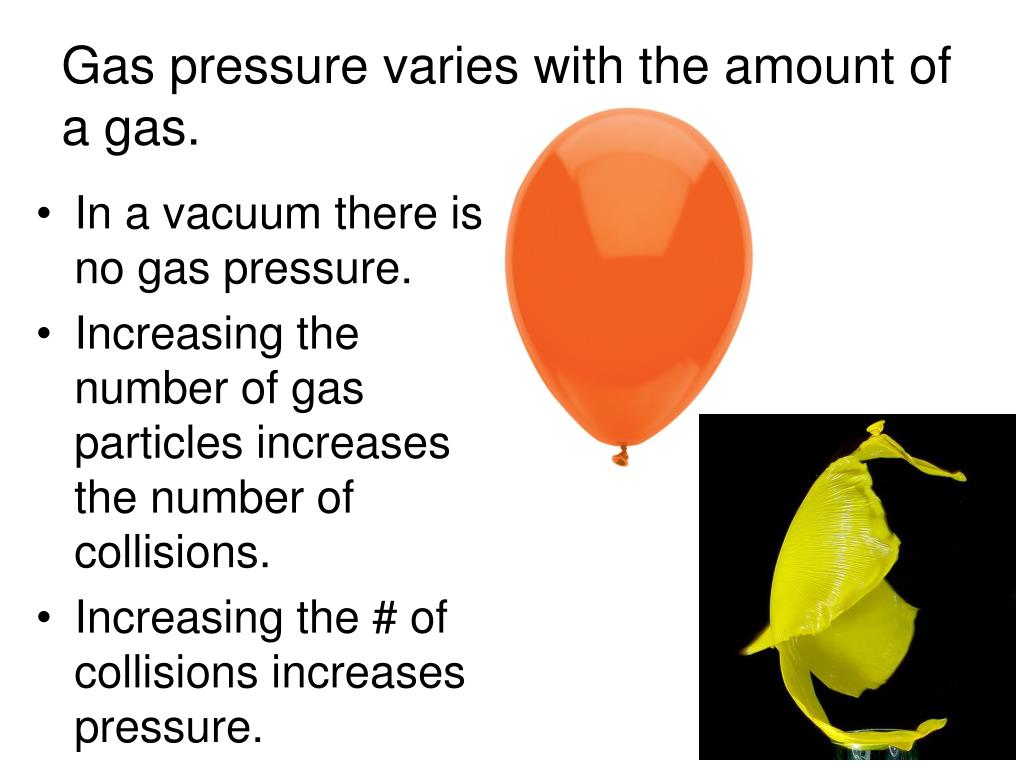

Gas pressure varies with the amount of a gas. simultaneous collisions of billions of rapidly moving particles in a gas with an object.

  • In a vacuum there is no gas pressure.

  • Increasing the number of gas particles increases the number of collisions.

  • Increasing the # of collisions increases pressure.

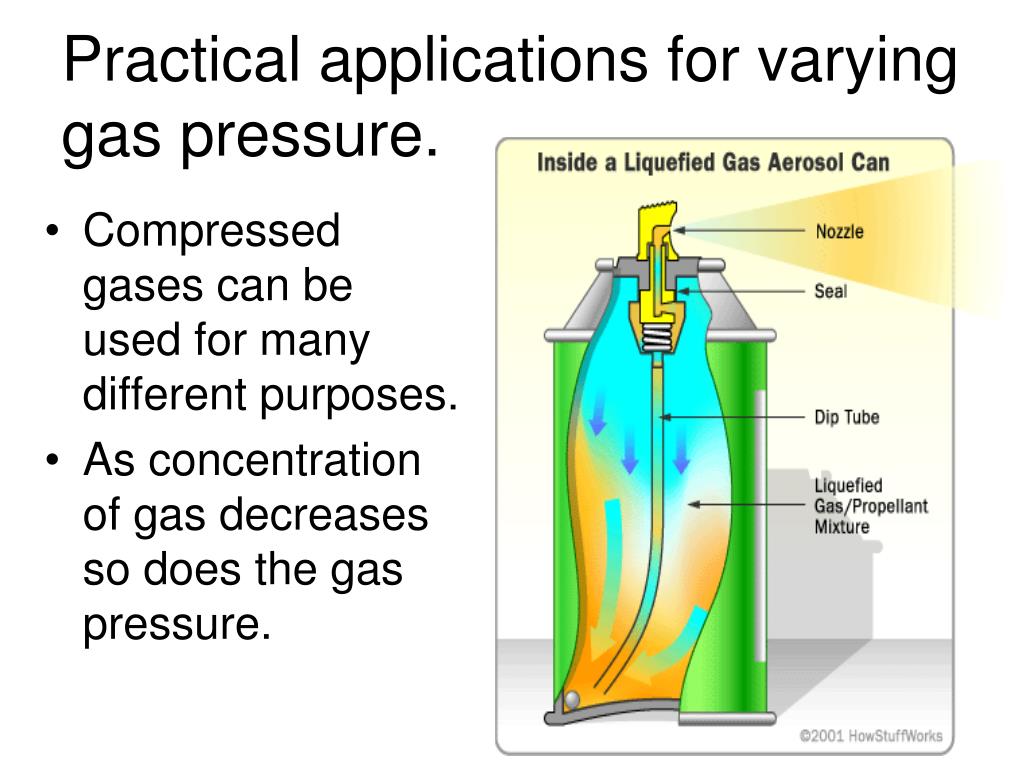

Practical applications for varying gas pressure
Practical applications for varying gas pressure. simultaneous collisions of billions of rapidly moving particles in a gas with an object.

  • Compressed gases can be used for many different purposes.

  • As concentration of gas decreases so does the gas pressure.


Gas pressure varies with the volume of the gas
Gas pressure varies with the volume of the gas. simultaneous collisions of billions of rapidly moving particles in a gas with an object.

  • Changing the volume of a gas will change the pressure the gas exerts.

  • This is due to the change in the number of collisions the gas particles undergo.


Gas pressure varies with the temperature of the gas

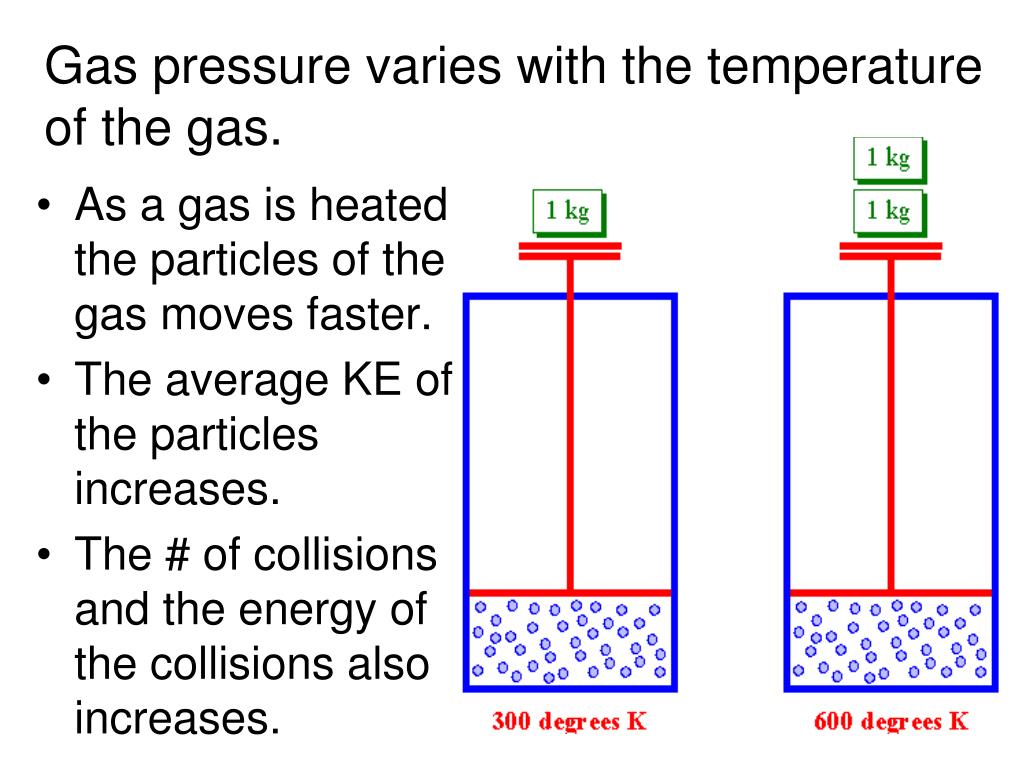

Gas pressure varies with the temperature of the gas. simultaneous collisions of billions of rapidly moving particles in a gas with an object.

  • As a gas is heated the particles of the gas moves faster.

  • The average KE of the particles increases.

  • The # of collisions and the energy of the collisions also increases.


The gas laws section 14 2
The Gas Laws simultaneous collisions of billions of rapidly moving particles in a gas with an object.(Section 14.2)

  • Boyle’s Law: Pressure & Volume

  • Charles’s Law: Temperature & Volume

  • Gay-Lussac’s Law: Pressure & Temperature

  • The Combined Gas Law

Charles

Boyle

Gay-Lussac

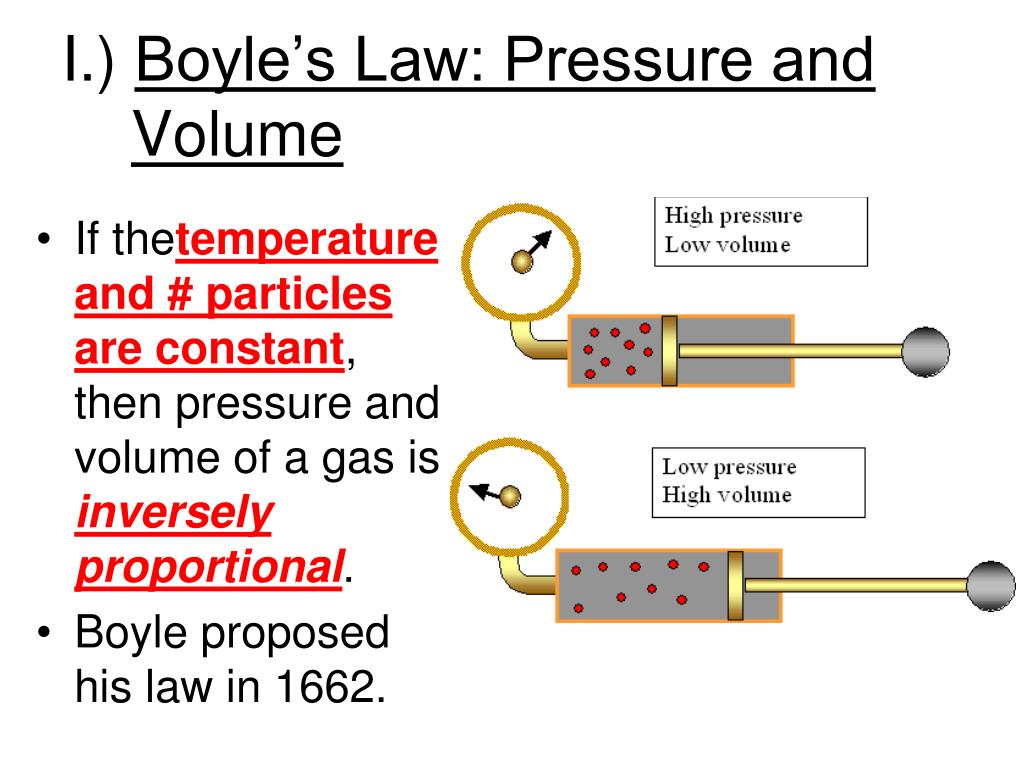

I boyle s law pressure and volume
I.) simultaneous collisions of billions of rapidly moving particles in a gas with an object.Boyle’s Law: Pressure and Volume

  • If thetemperature and # particles are constant, then pressure and volume of a gas is inversely proportional.

  • Boyle proposed his law in 1662.


Interpreting graphs boyles law
Interpreting graphs: Boyles Law simultaneous collisions of billions of rapidly moving particles in a gas with an object.

2.) What would the pressure be

if the volume is increased to

3 L?

1.) When the volume is 2L what

is the pressure of the gas?


Mathematical expression of boyle s law

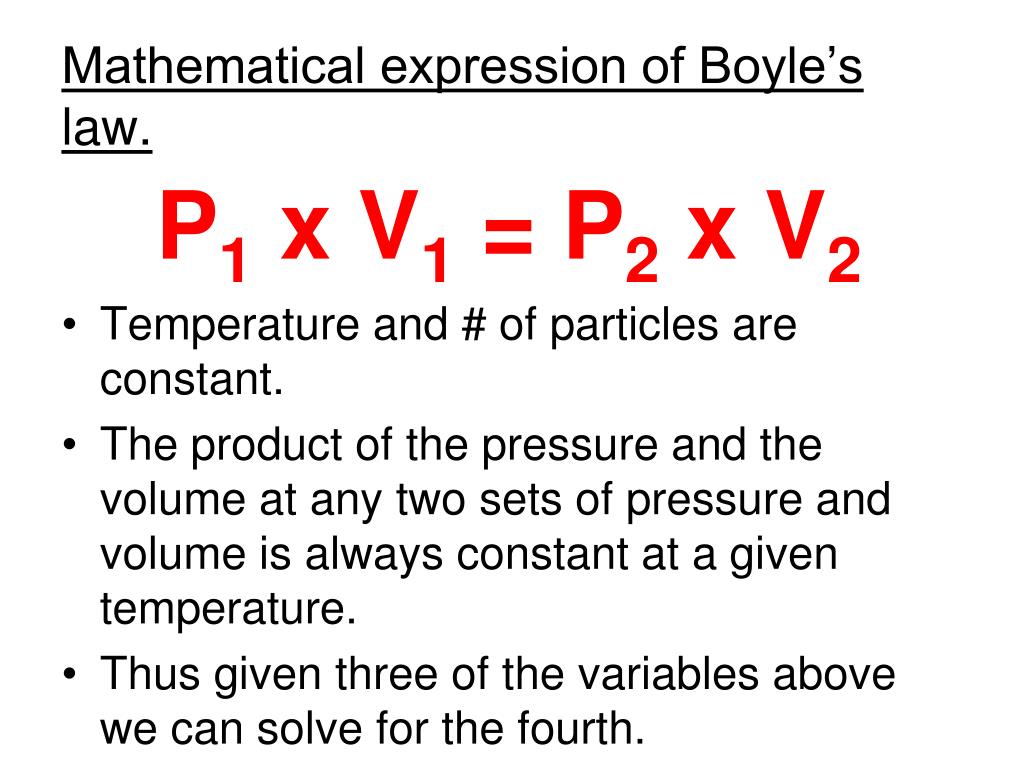

Mathematical expression of Boyle’s law. simultaneous collisions of billions of rapidly moving particles in a gas with an object.

P1 x V1 = P2 x V2

  • Temperature and # of particles are constant.

  • The product of the pressure and the volume at any two sets of pressure and volume is always constant at a given temperature.

  • Thus given three of the variables above we can solve for the fourth.


Sample problem

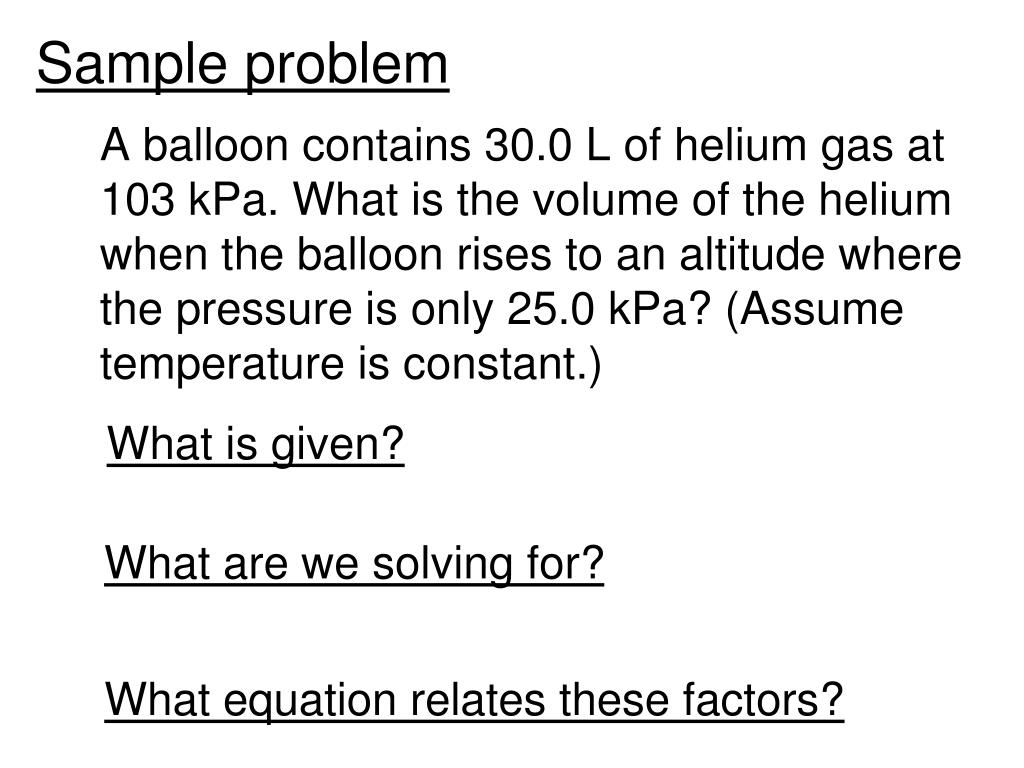

Sample problem simultaneous collisions of billions of rapidly moving particles in a gas with an object.

A balloon contains 30.0 L of helium gas at 103 kPa. What is the volume of the helium when the balloon rises to an altitude where the pressure is only 25.0 kPa? (Assume temperature is constant.)

What is given?

What are we solving for?

What equation relates these factors?


Ii charles s law temperature and volume
II.) simultaneous collisions of billions of rapidly moving particles in a gas with an object.Charles’s Law: Temperature and Volume

  • If the pressure and # particles are constant, then temperature and volume are directly proportional.

  • Charles proposed his law in 1787.

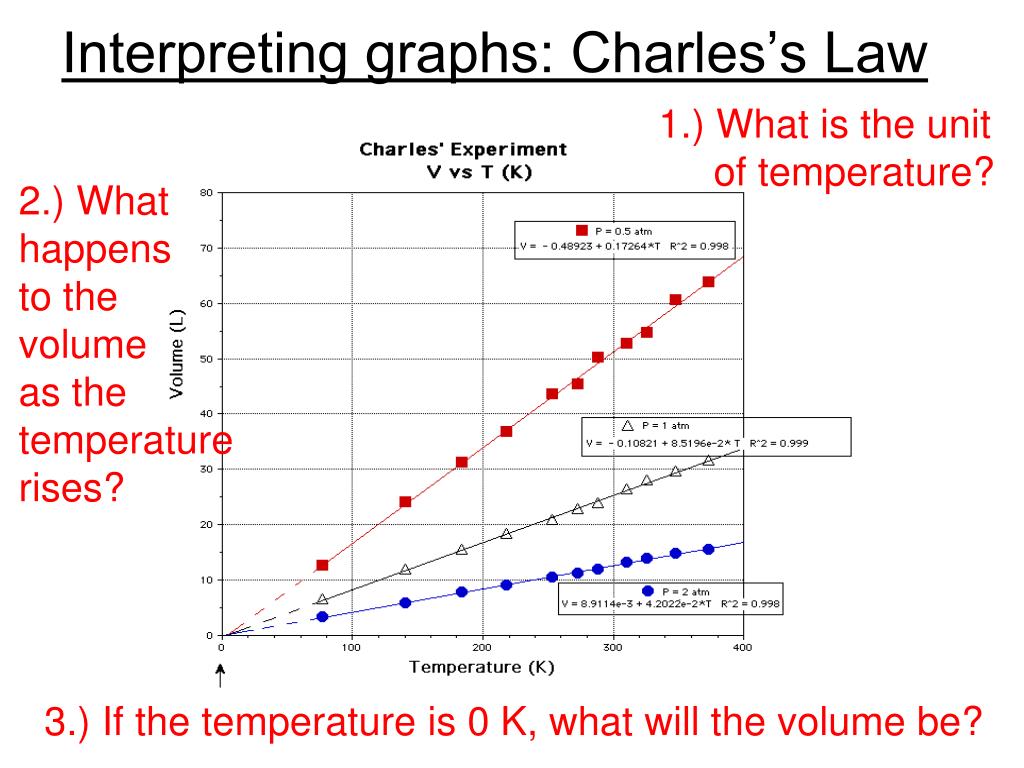

Interpreting graphs charles s law
Interpreting graphs: Charles’s Law simultaneous collisions of billions of rapidly moving particles in a gas with an object.

1.) What is the unit

of temperature?

2.) What happens

to the volume

as the

temperature

rises?

3.) If the temperature is 0 K, what will the volume be?


Mathematical expression of charles s law
Mathematical expression of Charles’s law. simultaneous collisions of billions of rapidly moving particles in a gas with an object.

V1

T1

V2

T2

  • Pressure and # of particles are constant.

  • This ratio of volume and temperature is constant at all temperatures and volumes

    * The temperature units must always be in Kelvin when working with the gas laws.

=


Sample problem1

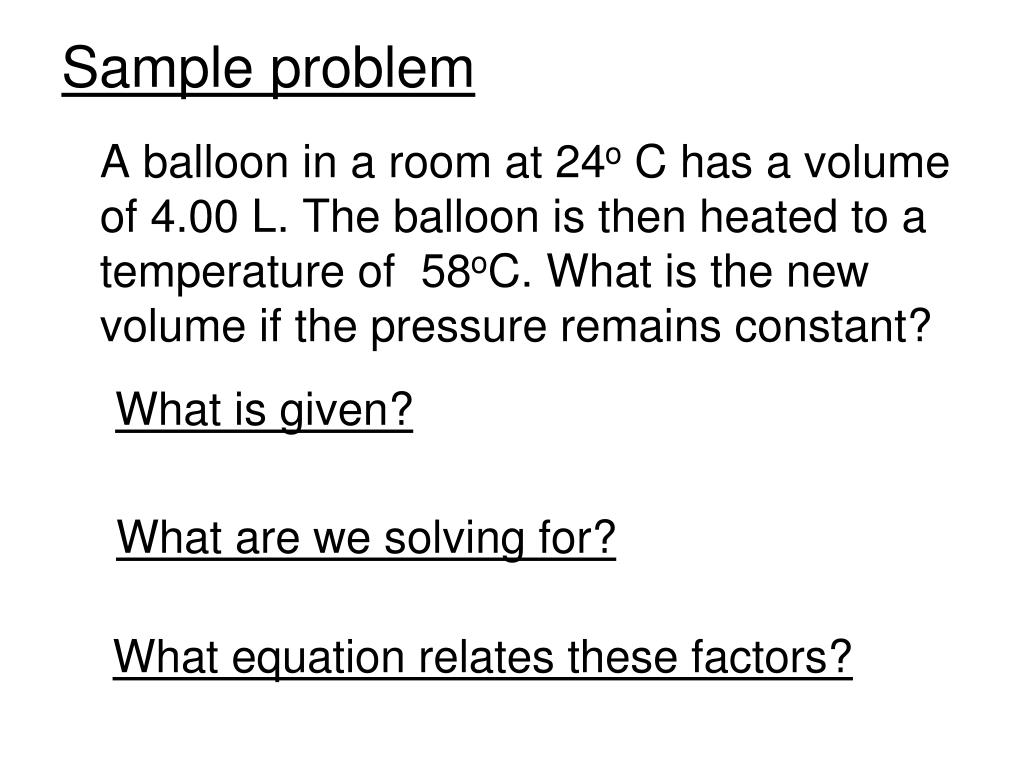

Sample problem simultaneous collisions of billions of rapidly moving particles in a gas with an object.

A balloon in a room at 24o C has a volume of 4.00 L. The balloon is then heated to a temperature of 58oC. What is the new volume if the pressure remains constant?

What is given?

What are we solving for?

What equation relates these factors?

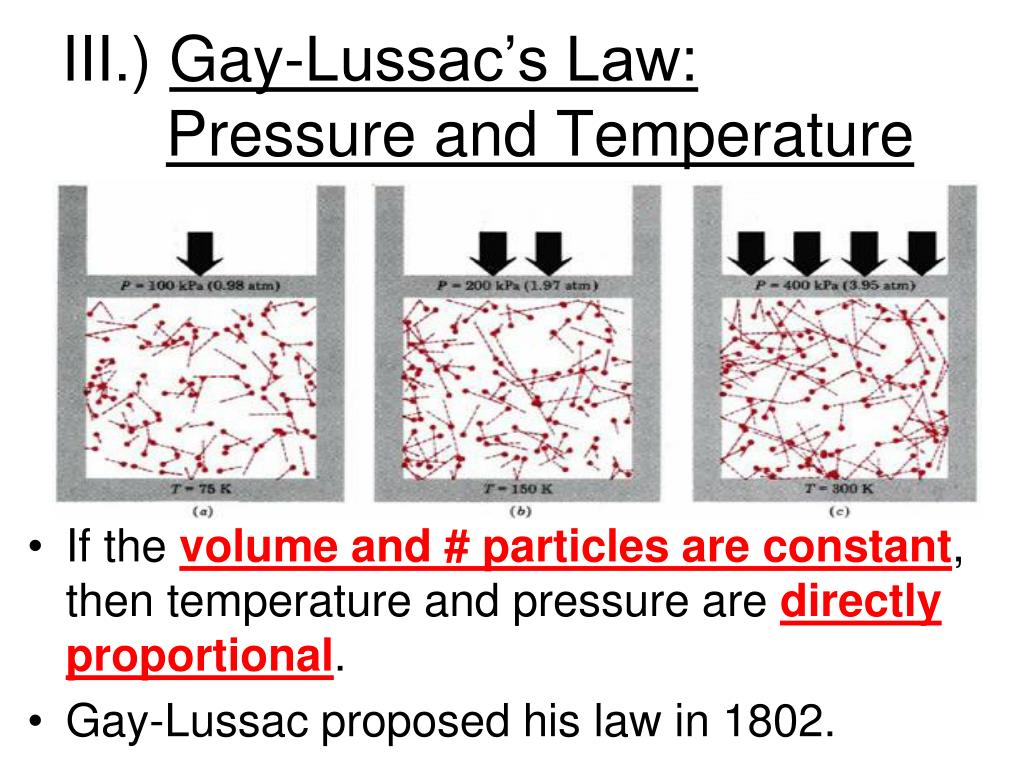

Iii gay lussac s law pressure and temperature
III.) simultaneous collisions of billions of rapidly moving particles in a gas with an object.Gay-Lussac’s Law: Pressure and Temperature

  • If the volume and # particles are constant, then temperature and pressure are directly proportional.

  • Gay-Lussac proposed his law in 1802.

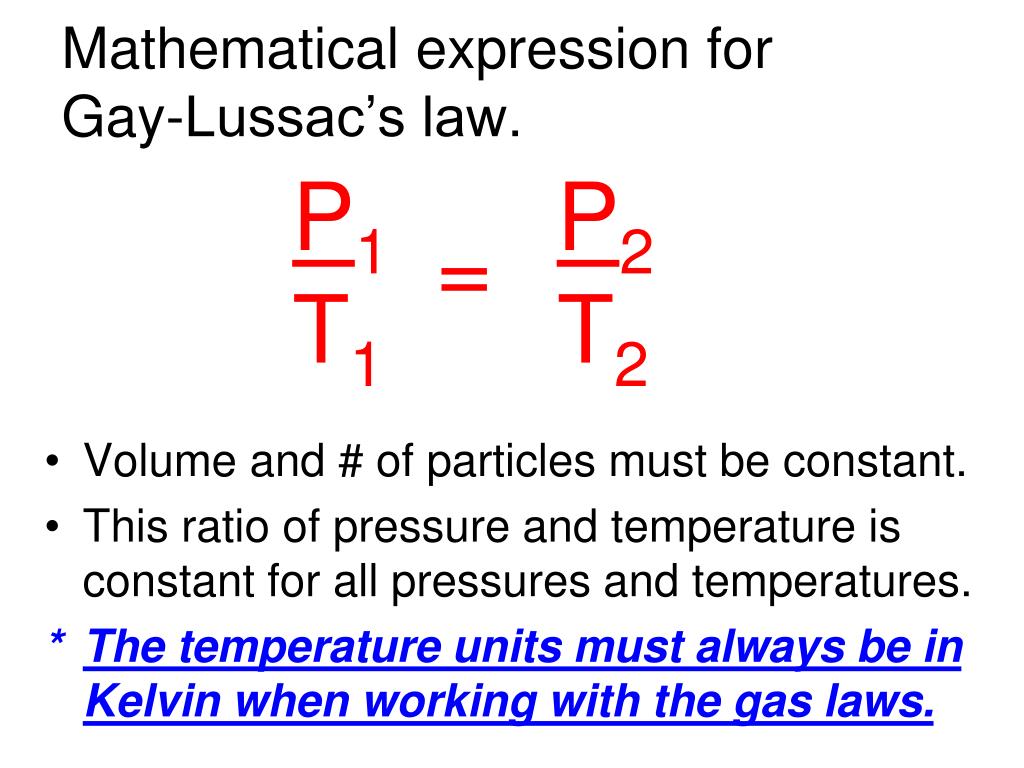

Mathematical expression for gay lussac s law
Mathematical expression for simultaneous collisions of billions of rapidly moving particles in a gas with an object.Gay-Lussac’s law.

P1

T1

P2

T2

  • Volume and # of particles must be constant.

  • This ratio of pressure and temperature is constant for all pressures and temperatures.

    * The temperature units must always be in Kelvin when working with the gas laws.

=


Sample problem2
Sample problem simultaneous collisions of billions of rapidly moving particles in a gas with an object.

The gas used in an aerosol can is at a pressure of 103 kPa at 25oC. If the can is thrown onto a fire, what will the pressure be when the temperature reaches 928oC?

What is given?

What are we solving for?

What equation relates these factors?

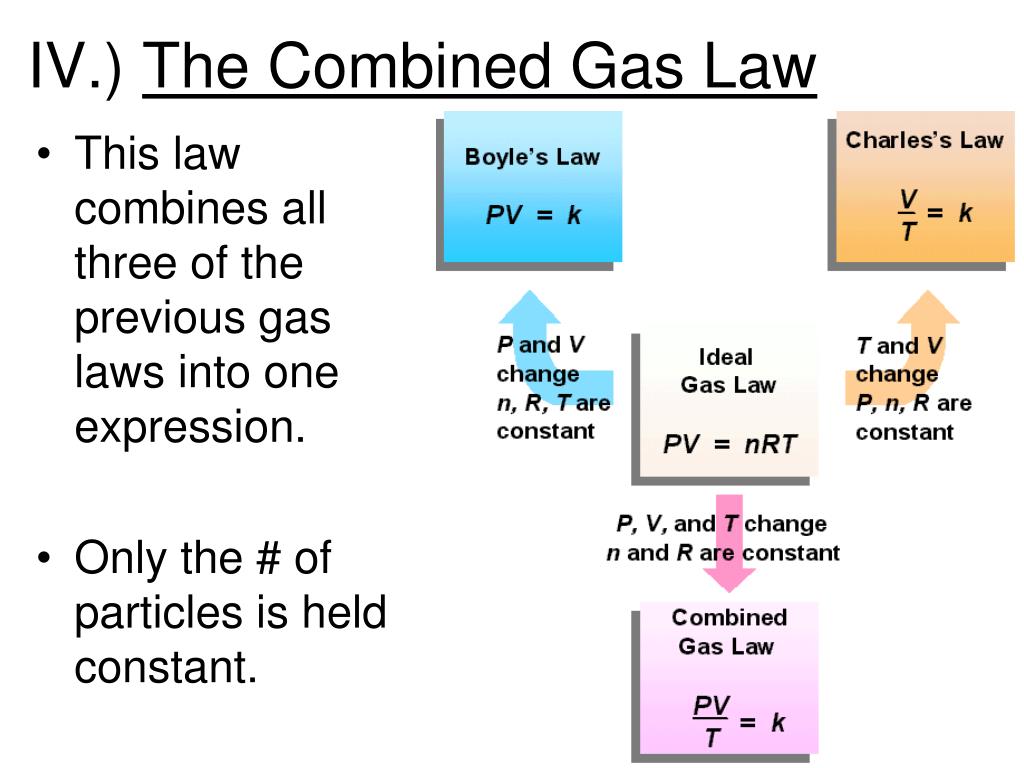

Iv the combined gas law
IV.) simultaneous collisions of billions of rapidly moving particles in a gas with an object.The Combined Gas Law

  • This law combines all three of the previous gas laws into one expression.

  • Only the # of particles is held constant.


Mathematical expression for the combined gas law

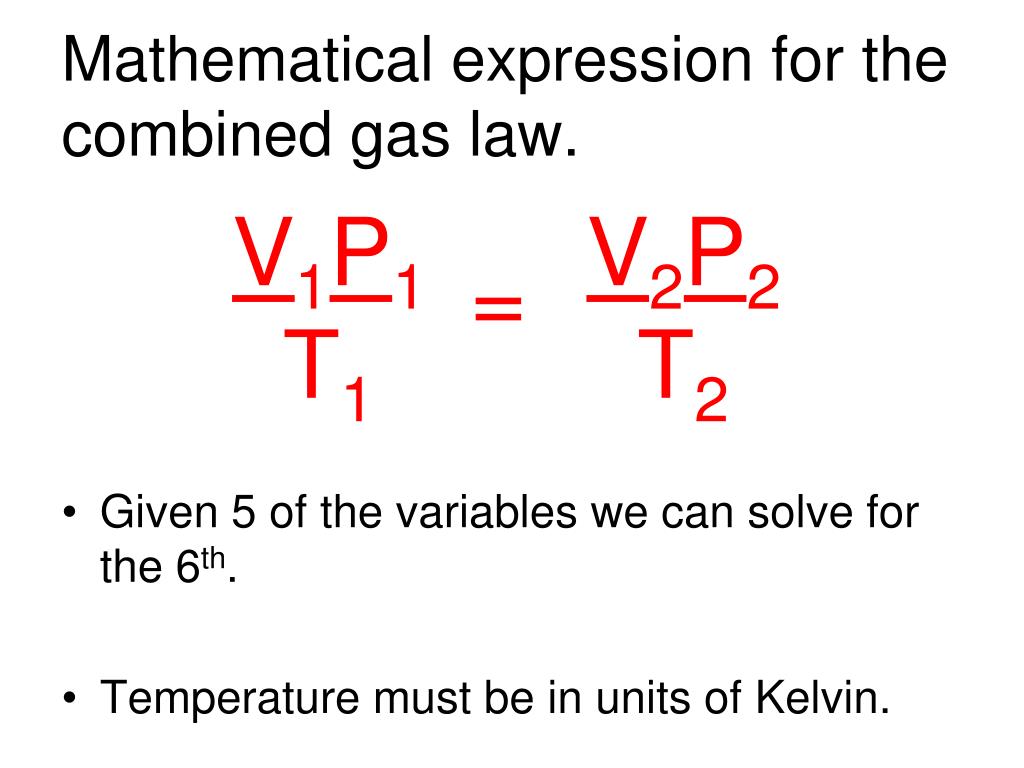

Mathematical expression for the combined gas law. simultaneous collisions of billions of rapidly moving particles in a gas with an object.

  • Given 5 of the variables we can solve for the 6th.

  • Temperature must be in units of Kelvin.

V1P1

T1

V2P2

T2

=


Sample problem3
Sample problem simultaneous collisions of billions of rapidly moving particles in a gas with an object.

The volume of a gas-filled balloon is 30.0 L at 313 K and 153 kPa. What would the volume be at STP?

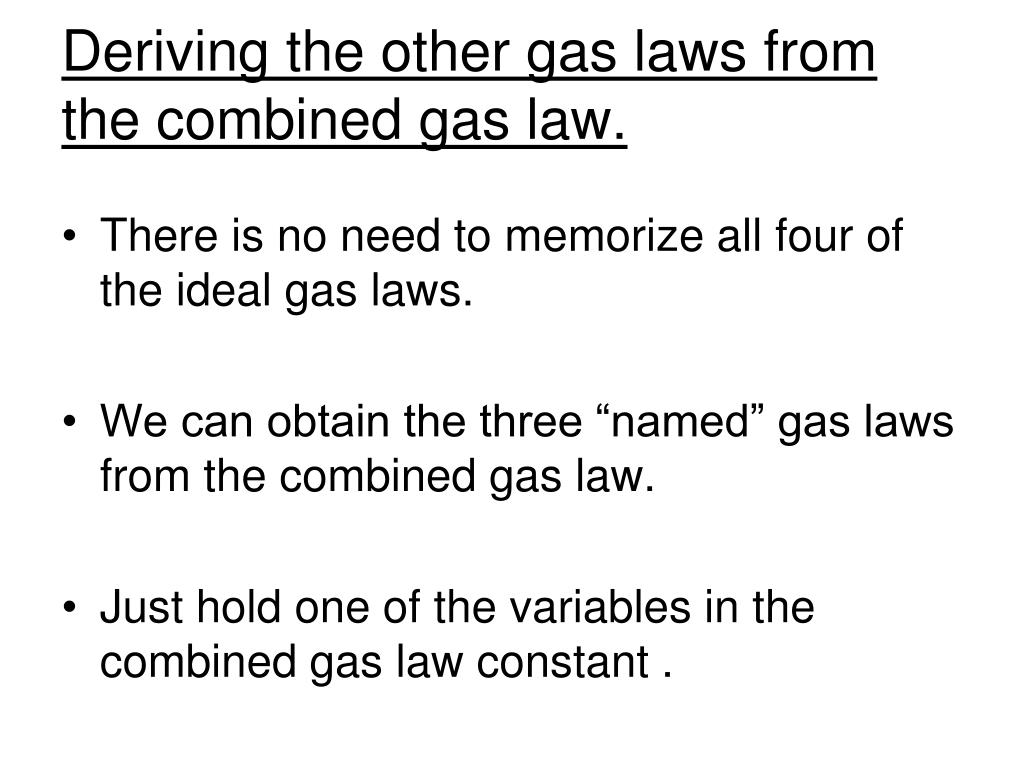

Deriving the other gas laws from the combined gas law
Deriving the other gas laws from the combined gas law. simultaneous collisions of billions of rapidly moving particles in a gas with an object.

  • There is no need to memorize all four of the ideal gas laws.

  • We can obtain the three “named” gas laws from the combined gas law.

  • Just hold one of the variables in the combined gas law constant .

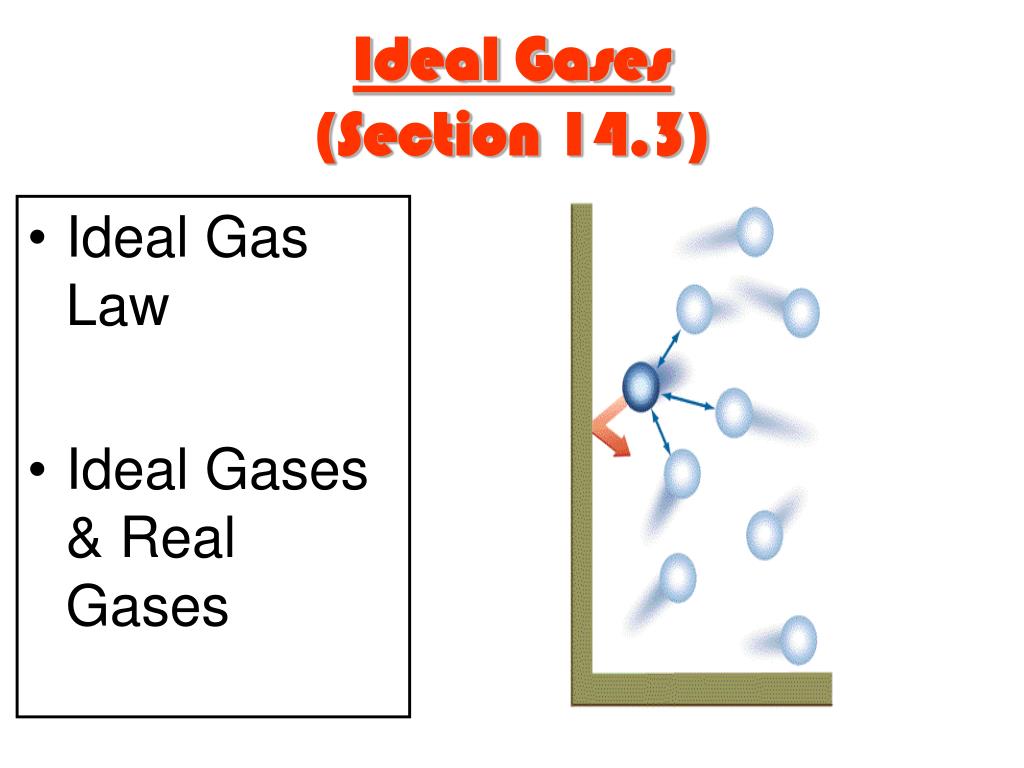

Ideal gases section 14 3
Ideal Gases simultaneous collisions of billions of rapidly moving particles in a gas with an object.(Section 14.3)

  • Ideal Gas Law

  • Ideal Gases & Real Gases

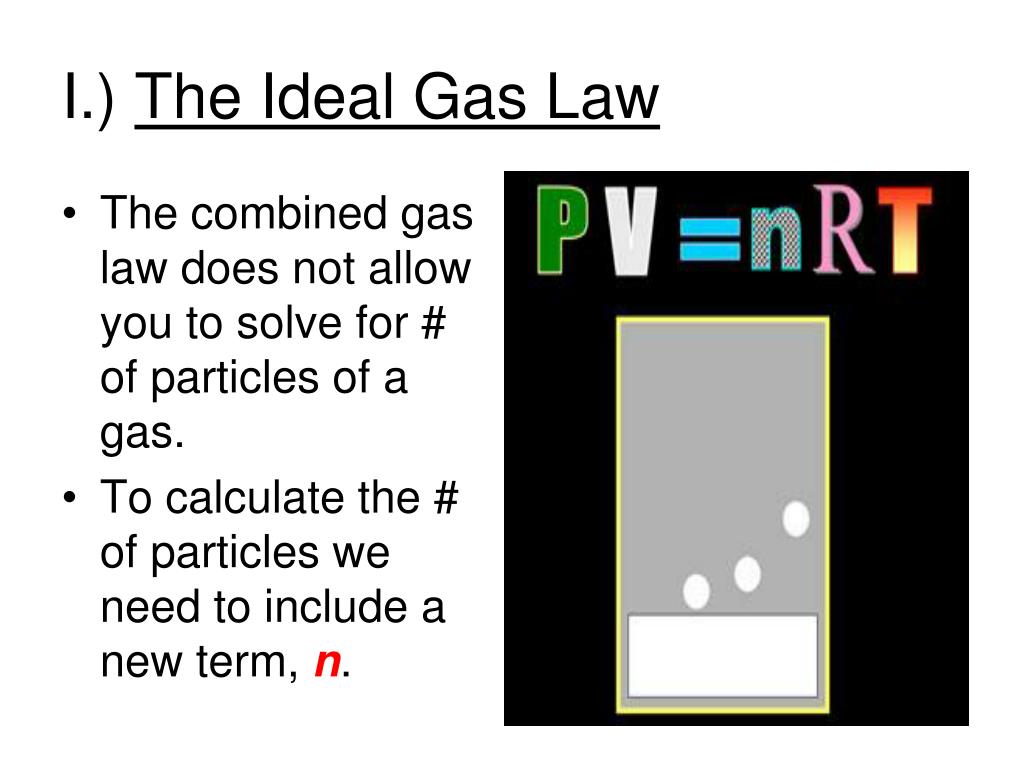

I the ideal gas law
I.) simultaneous collisions of billions of rapidly moving particles in a gas with an object.The Ideal Gas Law

  • The combined gas law does not allow you to solve for # of particles of a gas.

  • To calculate the # of particles we need to include a new term, n.


Mathematical expression for the ideal gas law

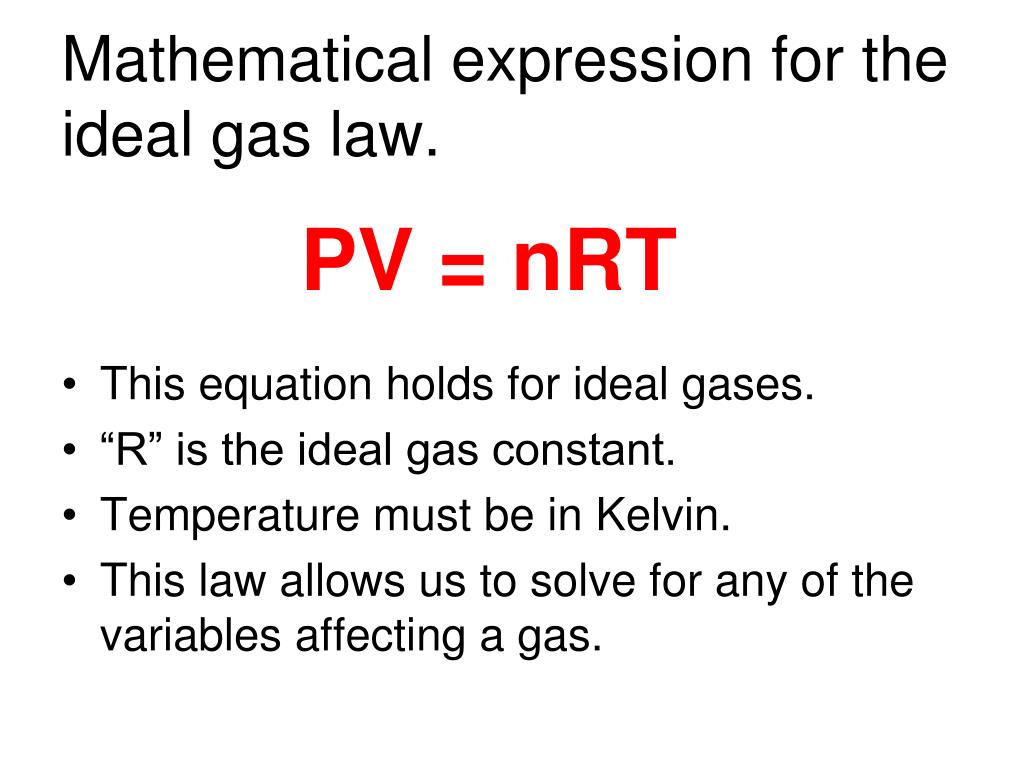

Mathematical expression for the ideal gas law. simultaneous collisions of billions of rapidly moving particles in a gas with an object.

  • This equation holds for ideal gases.

  • “R” is the ideal gas constant.

  • Temperature must be in Kelvin.

  • This law allows us to solve for any of the variables affecting a gas.

PV = nRT


The ideal gas constant
The ideal gas constant simultaneous collisions of billions of rapidly moving particles in a gas with an object.

R = 8.31 L kPa/K mol

  • Allows us to cancel units that are given.

  • Is different depending on the units used to calculate it.

  • 0.0821 L atm/ K mol

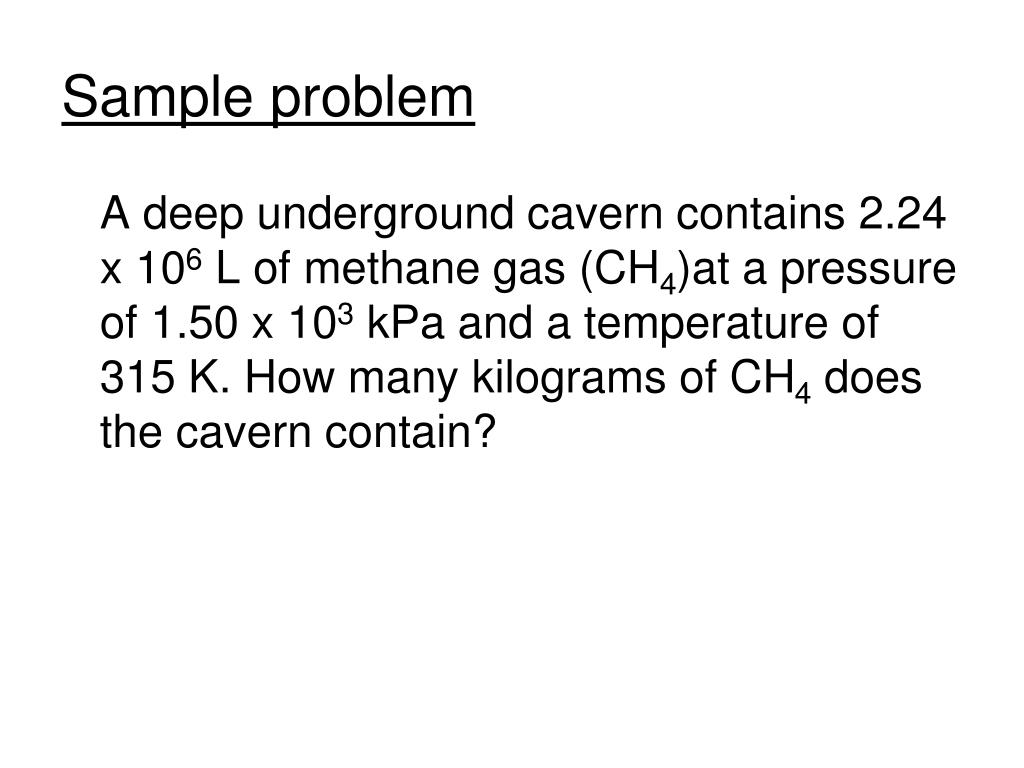

Sample problem4
Sample problem simultaneous collisions of billions of rapidly moving particles in a gas with an object.

A deep underground cavern contains 2.24 x 106 L of methane gas (CH4)at a pressure of 1.50 x 103 kPa and a temperature of 315 K. How many kilograms of CH4 does the cavern contain?


Ii ideal real gases
II.) simultaneous collisions of billions of rapidly moving particles in a gas with an object.Ideal & Real Gases

  • Real gases do not behave the way ideal gases behave at certain temperatures and pressures.

  • Real gases have different properties than ideal gases.

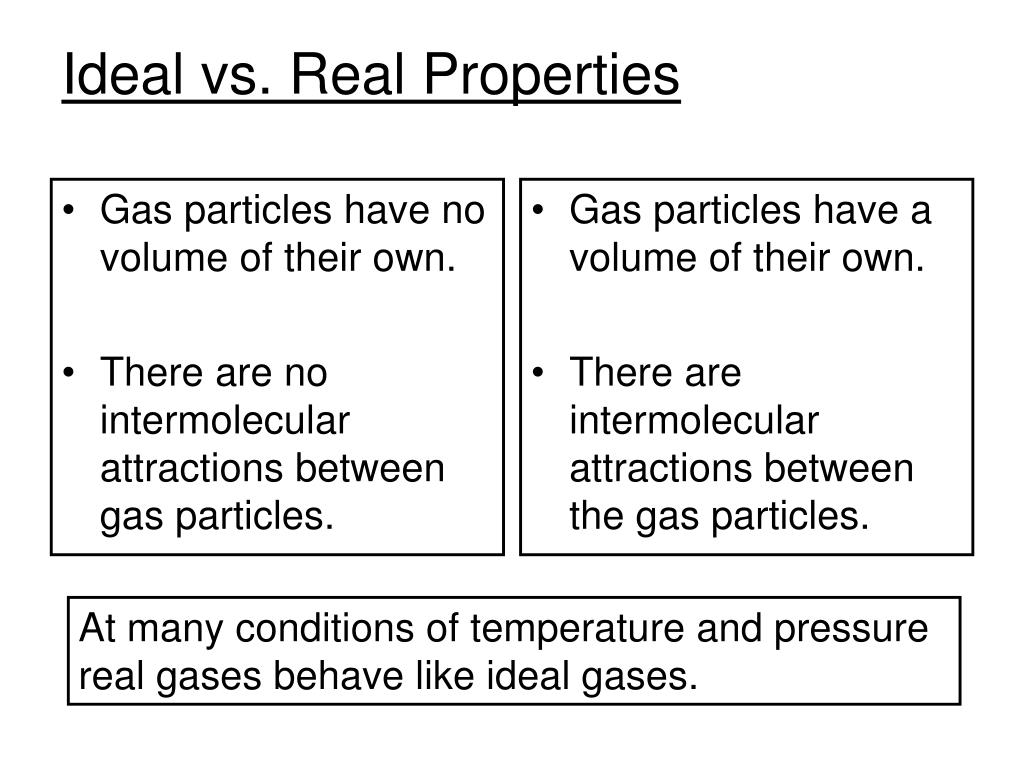

Ideal vs real properties
Ideal vs. Real Properties simultaneous collisions of billions of rapidly moving particles in a gas with an object.

  • Gas particles have no volume of their own.

  • There are no intermolecular attractions between gas particles.

  • Gas particles have a volume of their own.

  • There are intermolecular attractions between the gas particles.

At many conditions of temperature and pressure

real gases behave like ideal gases.


If real gases behaved like ideal gases all the time gases would never condense or solidify

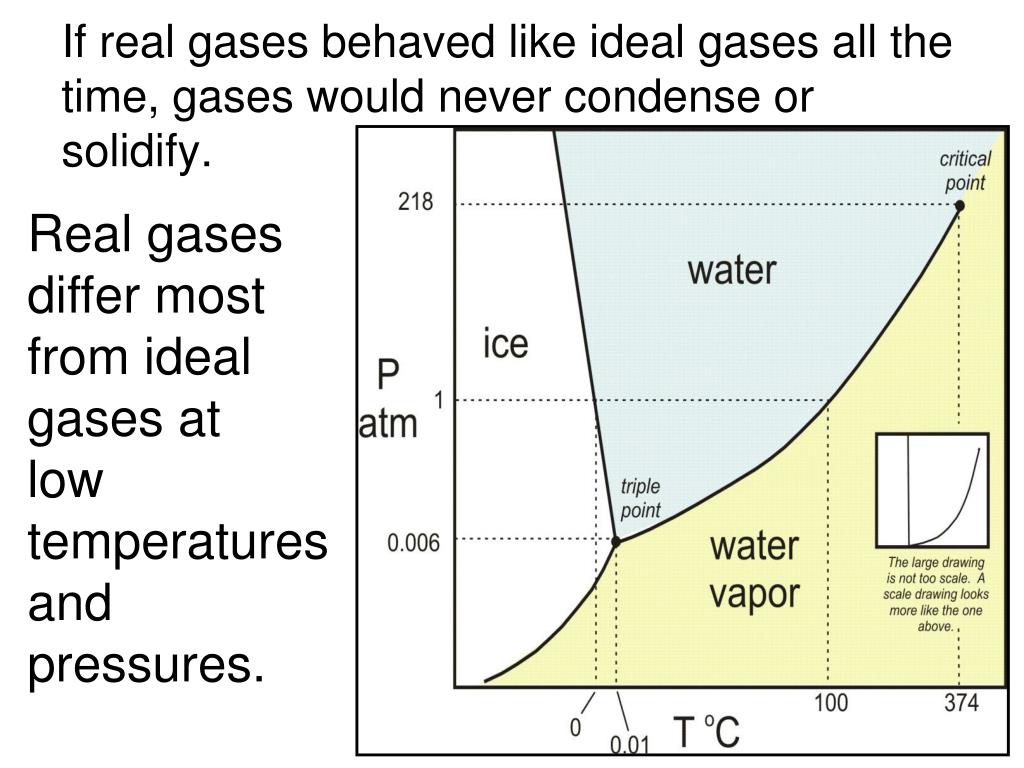

If real gases behaved like ideal gases all the time, gases would never condense or solidify.

Real gases

differ most

from ideal

gases at

low

temperatures

and

pressures.

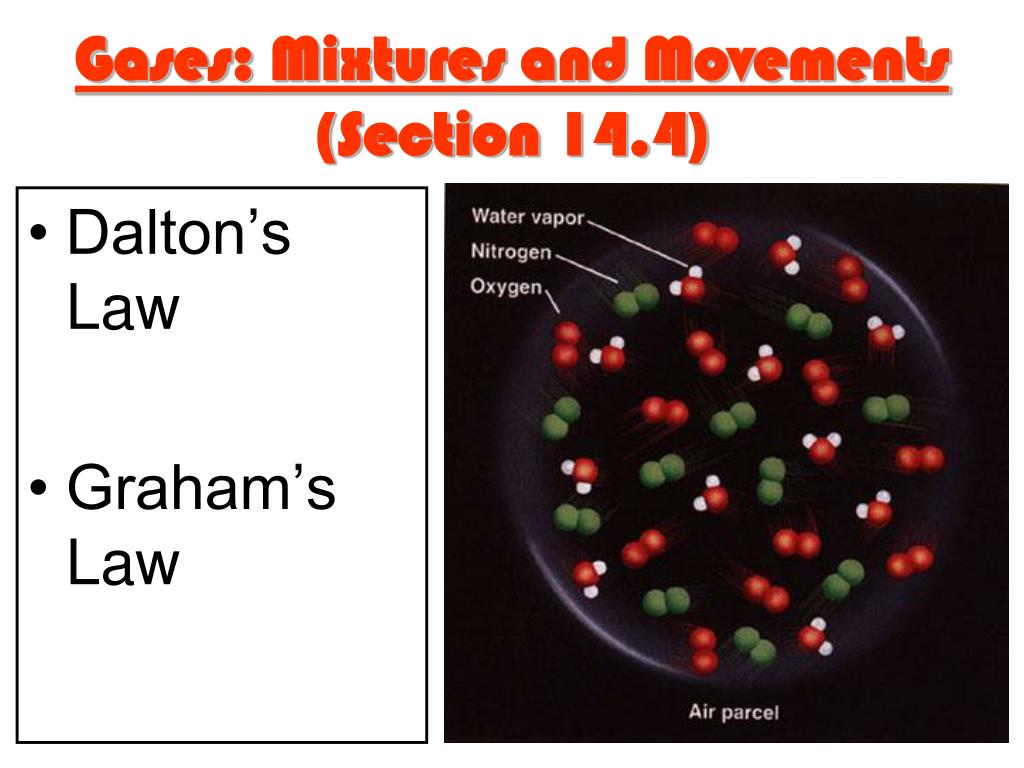

Gases mixtures and movements section 14 4
Gases: Mixtures and Movements would never condense or solidify.(Section 14.4)

  • Dalton’s Law

  • Graham’s Law

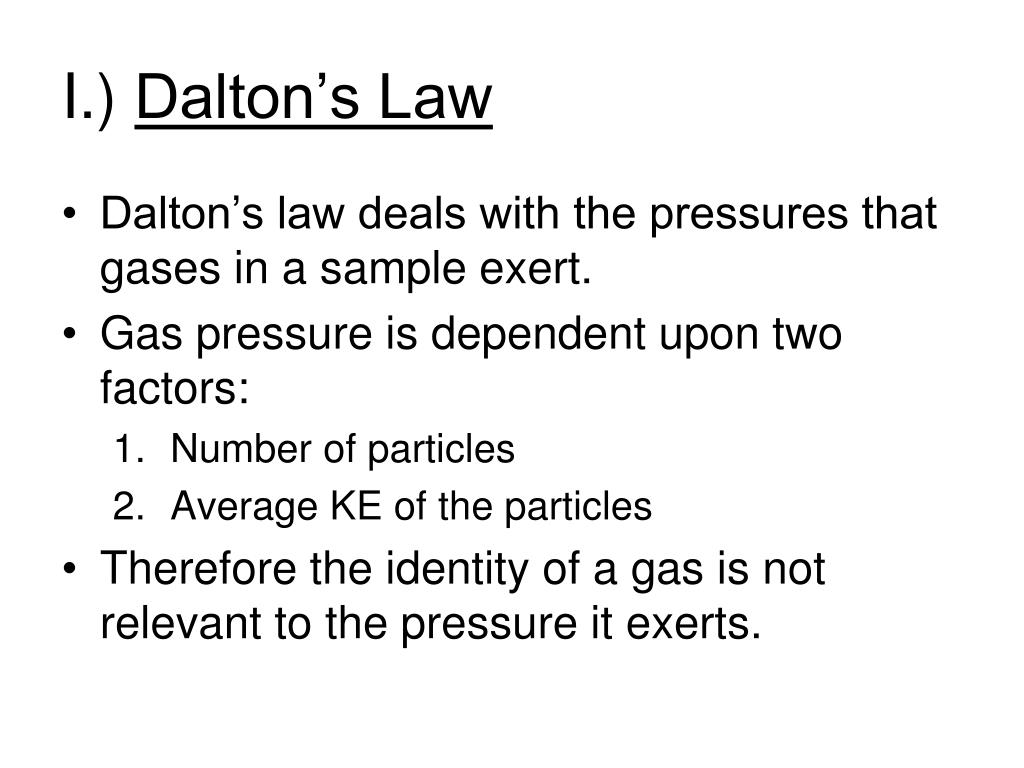

I dalton s law
I.) would never condense or solidify.Dalton’s Law

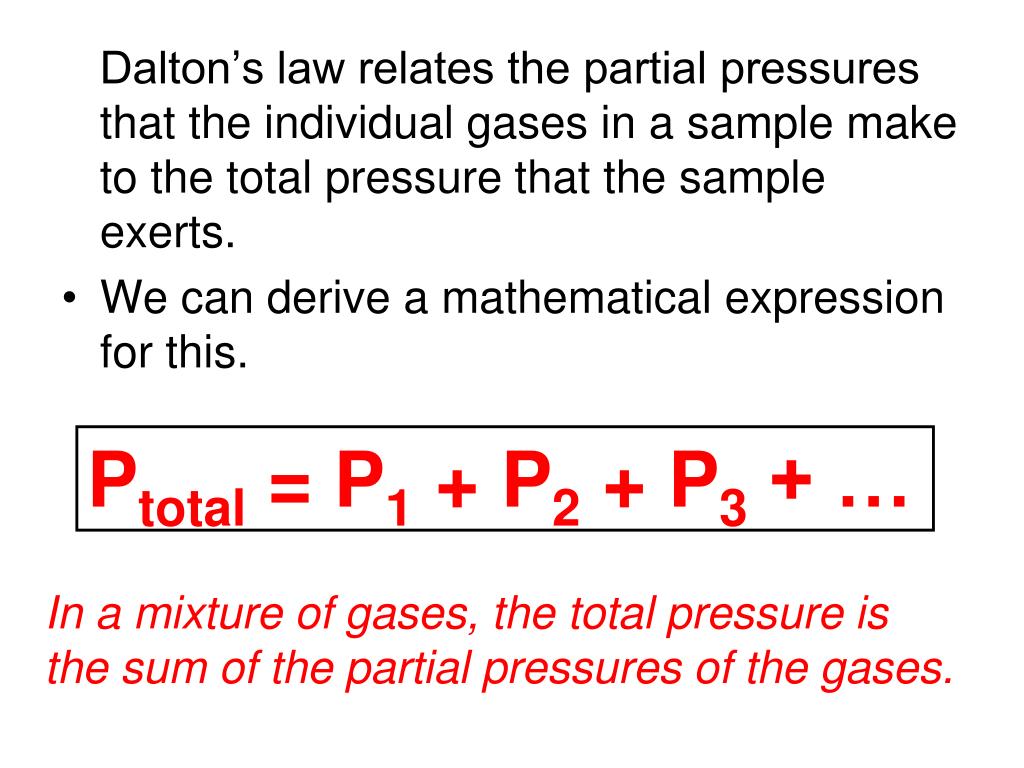

  • Dalton’s law deals with the pressures that gases in a sample exert.

  • Gas pressure is dependent upon two factors:

    • Number of particles

    • Average KE of the particles

  • Therefore the identity of a gas is not relevant to the pressure it exerts.

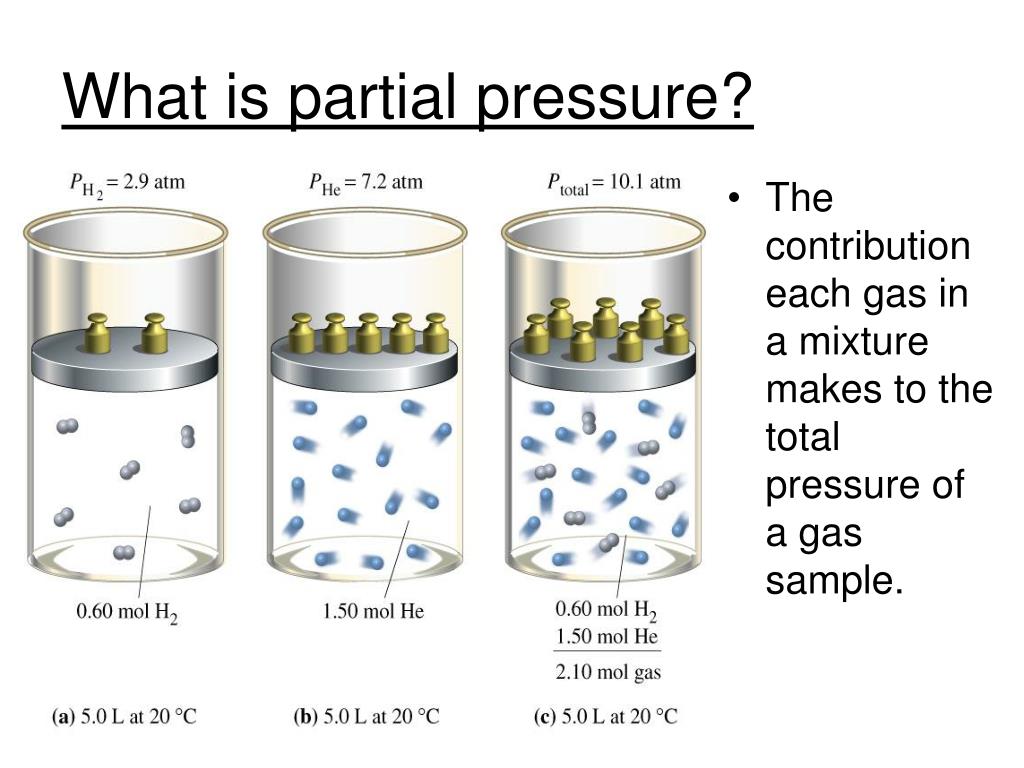

What is partial pressure
What is partial pressure? would never condense or solidify.

  • The contribution each gas in a mixture makes to the total pressure of a gas sample.

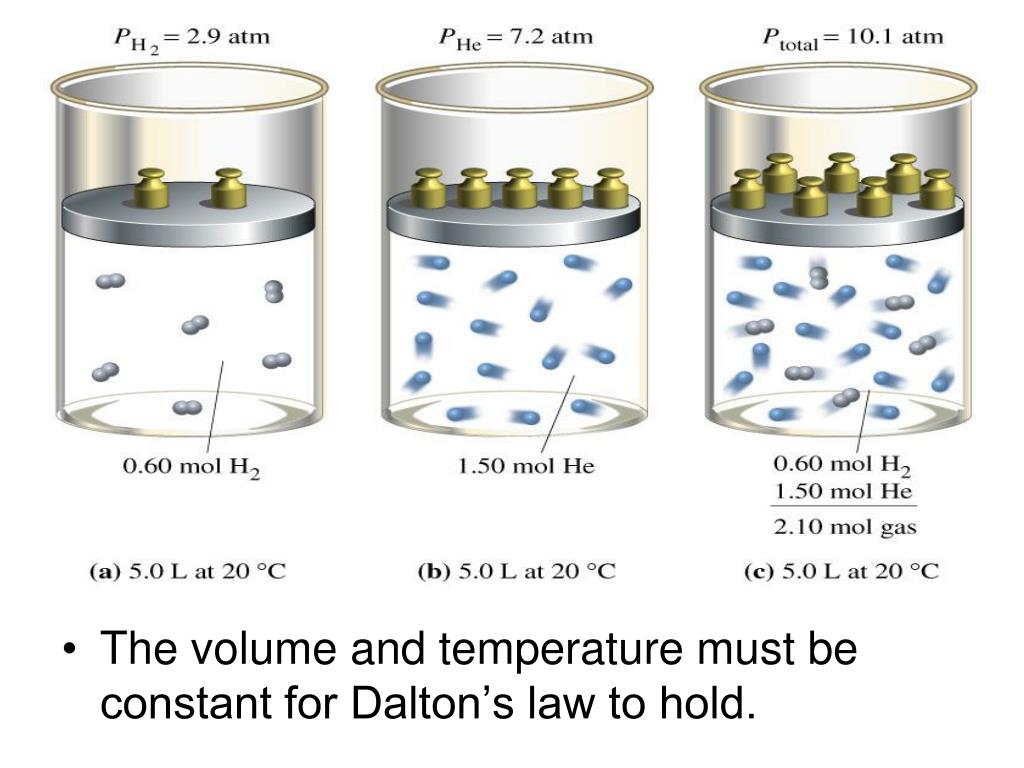

Dalton’s law relates the partial pressures that the individual gases in a sample make to the total pressure that the sample exerts.

  • We can derive a mathematical expression for this.

Ptotal = P1 + P2 + P3 + …

In a mixture of gases, the total pressure is

the sum of the partial pressures of the gases.

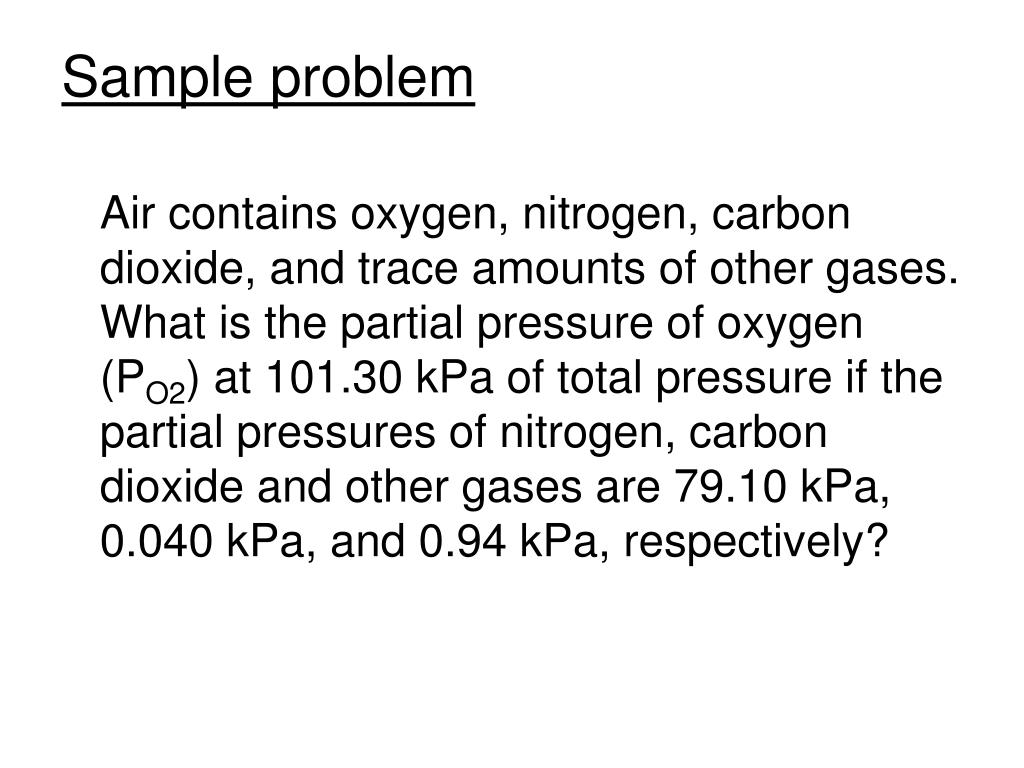

Sample problem5
Sample problem law to hold.

Air contains oxygen, nitrogen, carbon dioxide, and trace amounts of other gases. What is the partial pressure of oxygen (PO2) at 101.30 kPa of total pressure if the partial pressures of nitrogen, carbon dioxide and other gases are 79.10 kPa, 0.040 kPa, and 0.94 kPa, respectively?


Ii graham s law
II.) law to hold.Graham’s Law

  • Graham’s law deals with the movement of gas particles.

  • Diffusion and effusion are slightly different ways of describing gas movement.


Diffusion defined
Diffusion defined. law to hold.

  • The tendency of molecules to move toward areas of lower concentration until the concentration is uniform throughout.


Effusion defined
Effusion defined. law to hold.

  • The movement of a gas through a small hole in a container.

  • Graham’s law deals with effusion.


Rates of diffusion and effusion are dependent upon the molar masses of the gas particles
Rates of diffusion and effusion are dependent upon the molar masses of the gas particles.

  • Gases of lower molar mass will diffuse and effuse faster than gases of higher molar masses.

  • Thomas Graham, a Scottish chemist, discovered the relationship between molar mass and movement in the 1840’s.

  • The law he proposed is known as Graham’s law of effusion.


Relationship between rate of effusion diffusion and molar mass
Relationship between rate of effusion/diffusion and molar mass.

  • The rate of effusion of a gas is inversely related to the square root of its molar mass.

  • In the equation for KE there is an inverse relationship between mass and velocity.

1 ____

√Molar massA

Rate A

=


Using graham s law of effusion to compare effusion rates
Using Graham’s Law of Effusion to compare effusion rates. mass.

  • We can use this mathematical expression to compare diffusion rates as well.

  • Make sure you keep in mind that the rate and molar mass of a gas switches place in the above expression.

√Molar mass B

√Molar mass A

Rate A

RateB

=


Sample problem6
Sample problem mass.

About how much faster does helium effuses (or diffuses) than nitrogen at a constant temperature.


The behavior of gases1

The Behavior mass.of Gases

Chapter 14

The End


ad
