The Formation and Structure of Stars

1. 0 Chapter 9 The Formation and Structure of Stars

2. 0 The space between the stars is not completely empty, but filled with very dilute gas and dust, producing some of the most beautiful objects in the sky. The Interstellar Medium (ISM) We are interested in the interstellar medium because a) dense interstellar clouds are the birth place of stars b) dark clouds alter and absorb the light from stars behind them

3. The Various Appearances of the ISM 0

4. 0 Three kinds of nebulae 1) Emission Nebulae (HII Regions) Hot star illuminates a gas cloud; excites and/or ionizes the gas (electrons kicked into higher energy states); electrons recombining, falling back to ground state produce emission lines. The Fox Fur Nebula NGC 2246 The Trifid Nebula

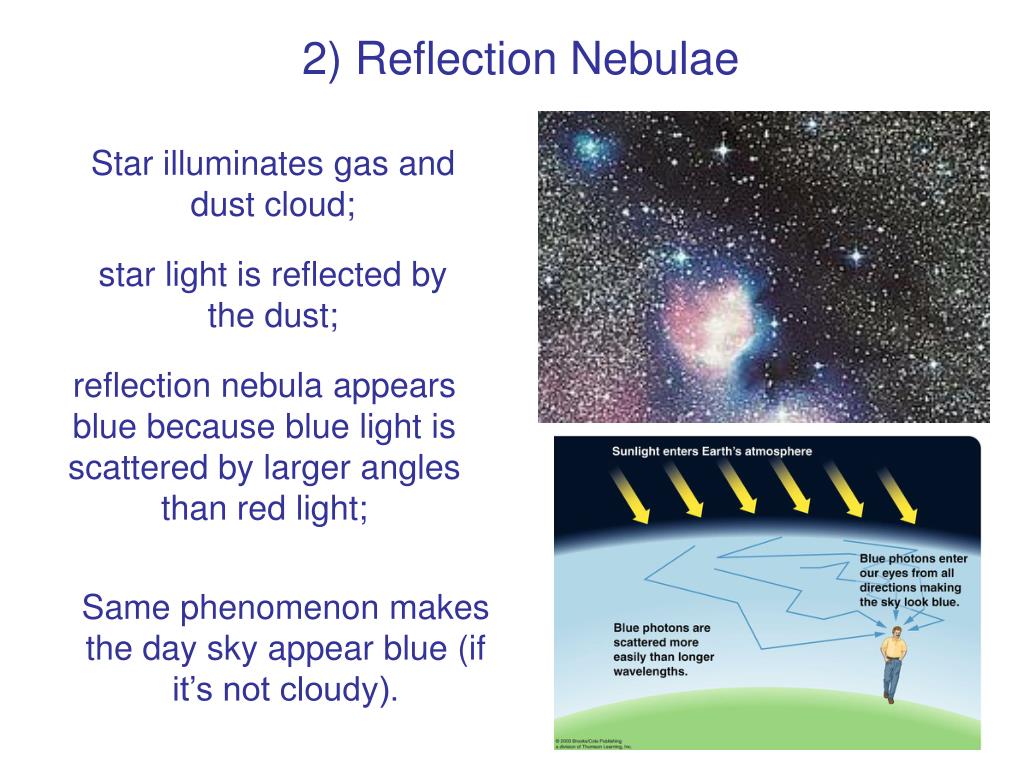

5. 0 2) Reflection Nebulae Star illuminates gas and dust cloud; star light is reflected by the dust; reflection nebula appears blue because blue light is scattered by larger angles than red light; Same phenomenon makes the day sky appear blue (if it’s not cloudy).

6. 0 Emission and Reflection Nebulae

7. 0 3) Dark Nebulae Dense clouds of gas and dust absorb the light from the stars behind; appear dark in front of the brighter background; Barnard 86 Horsehead Nebula

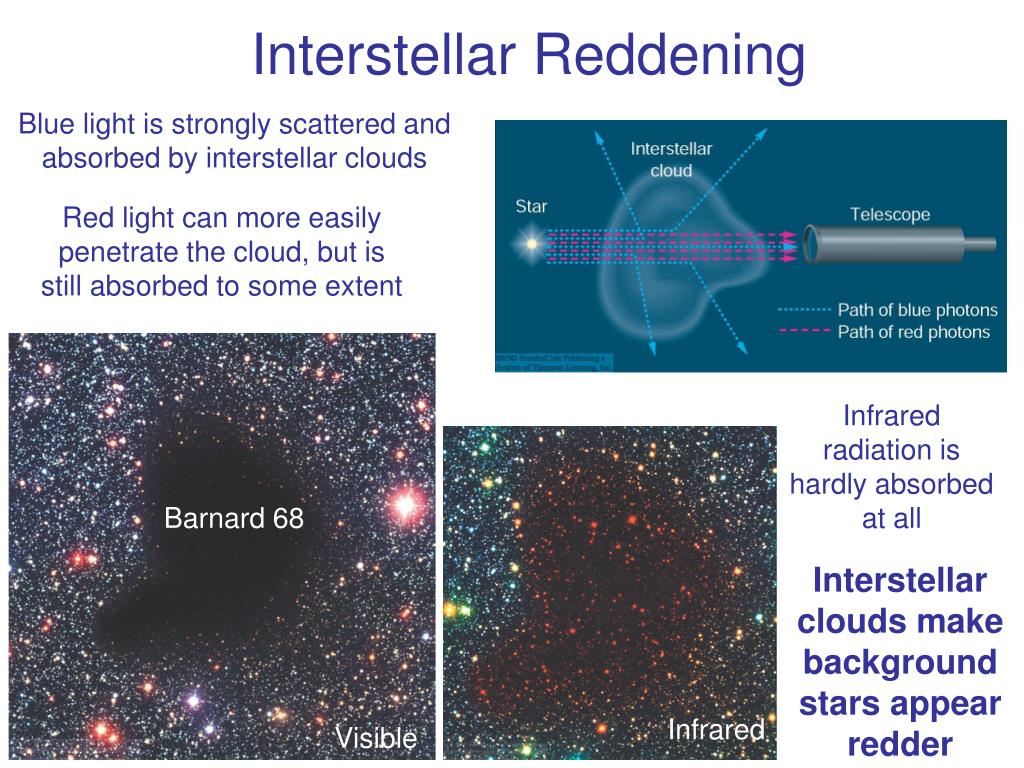

8. 0 Interstellar Reddening Blue light is strongly scattered and absorbed by interstellar clouds Red light can more easily penetrate the cloud, but is still absorbed to some extent Infrared radiation is hardly absorbed at all Barnard 68 Interstellar clouds make background stars appear redder Infrared Visible

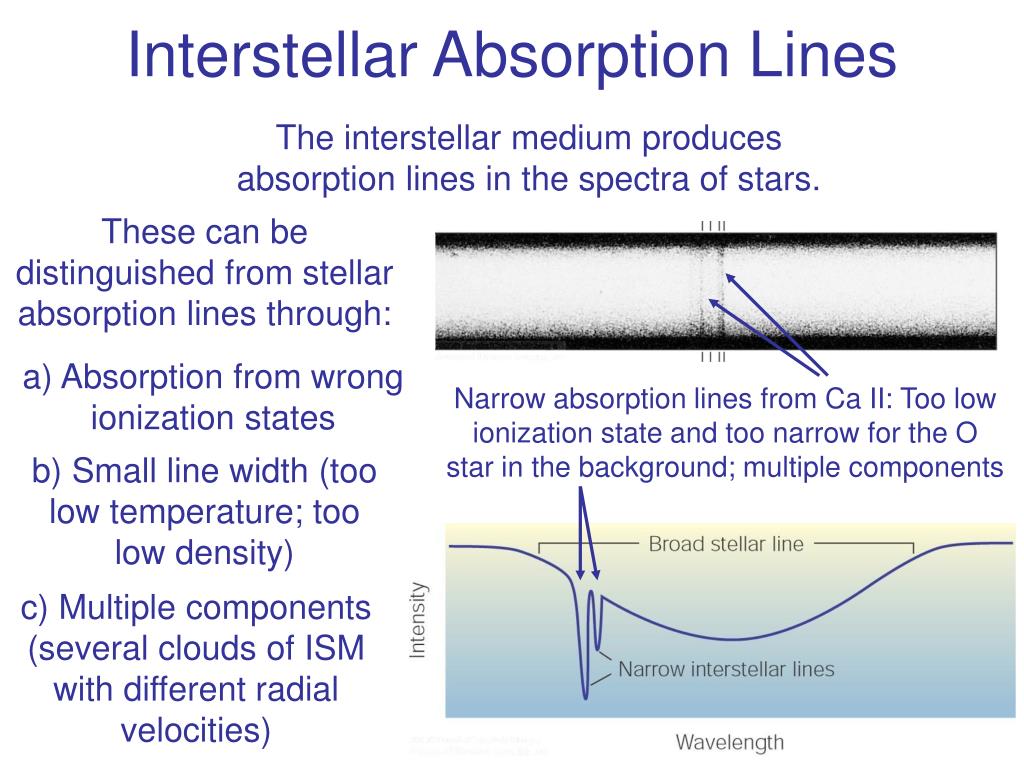

9. 0 Interstellar Absorption Lines The interstellar medium produces absorption lines in the spectra of stars. These can be distinguished from stellar absorption lines through: a) Absorption from wrong ionization states Narrow absorption lines from Ca II: Too low ionization state and too narrow for the O star in the background; multiple components b) Small line width (too low temperature; too low density) c) Multiple components (several clouds of ISM with different radial velocities)

10. 0 Structure of the ISM The ISM occurs in two main types of clouds: • HI clouds: Cold (T ~ 100 K) clouds of neutral hydrogen (HI); moderate density (n ~ 10 – a few hundred atoms/cm3); size: ~ 100 pc • Hot intercloud medium: Hot (T ~ a few 1000 K), ionized hydrogen (HII); low density (n ~ 0.1 atom/cm3); gas can remain ionized because of very low density.

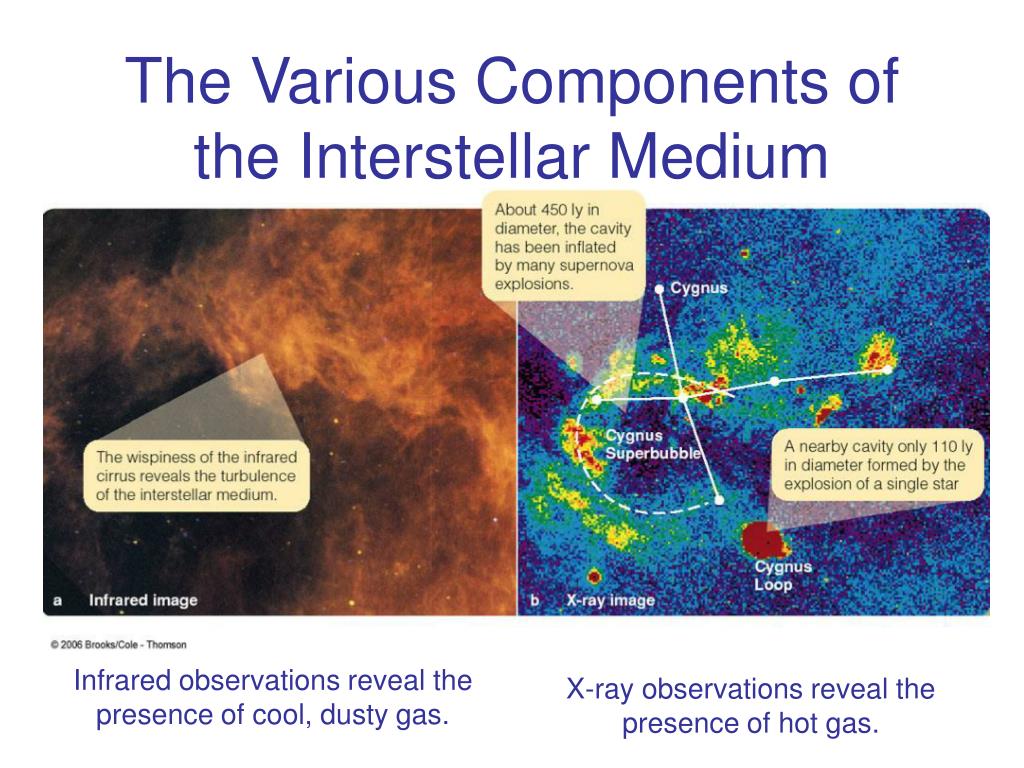

11. 0 The Various Components of the Interstellar Medium Infrared observations reveal the presence of cool, dusty gas. X-ray observations reveal the presence of hot gas.

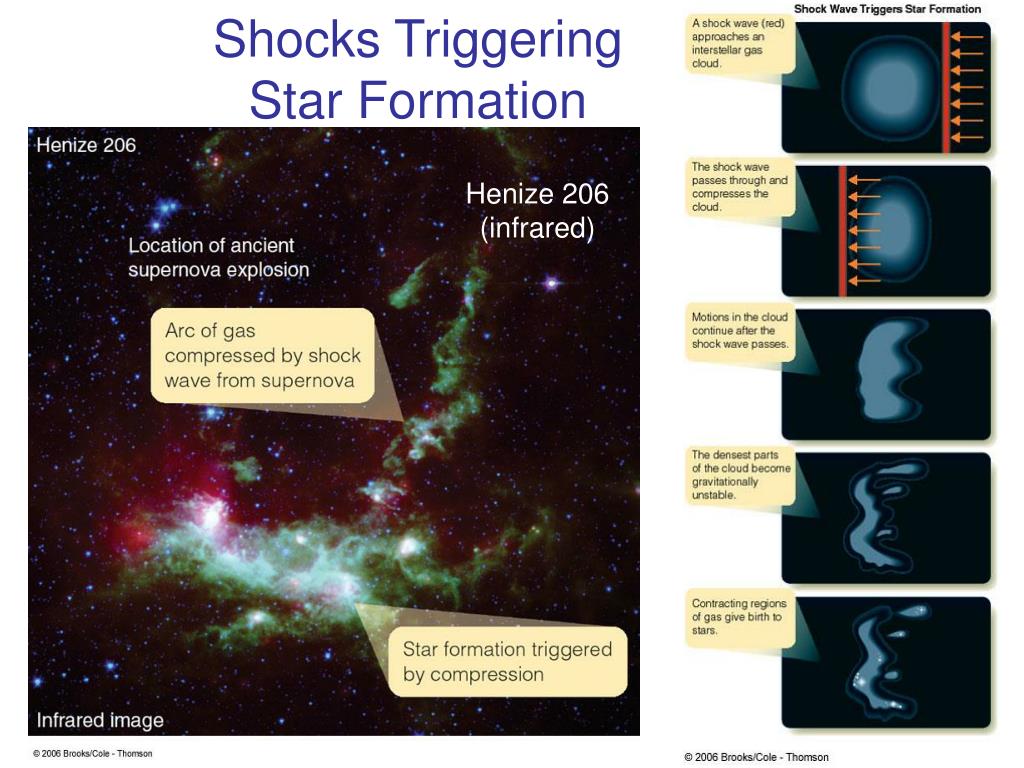

12. 0 Shocks Triggering Star Formation Henize 206 (infrared)

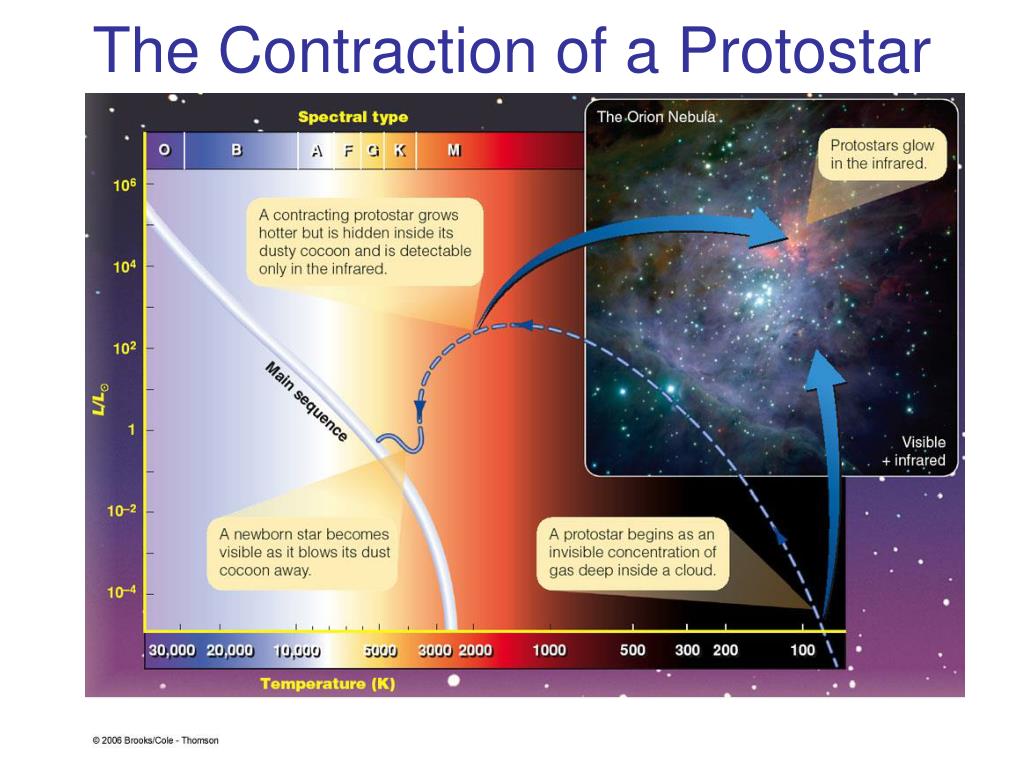

13. 0 The Contraction of a Protostar

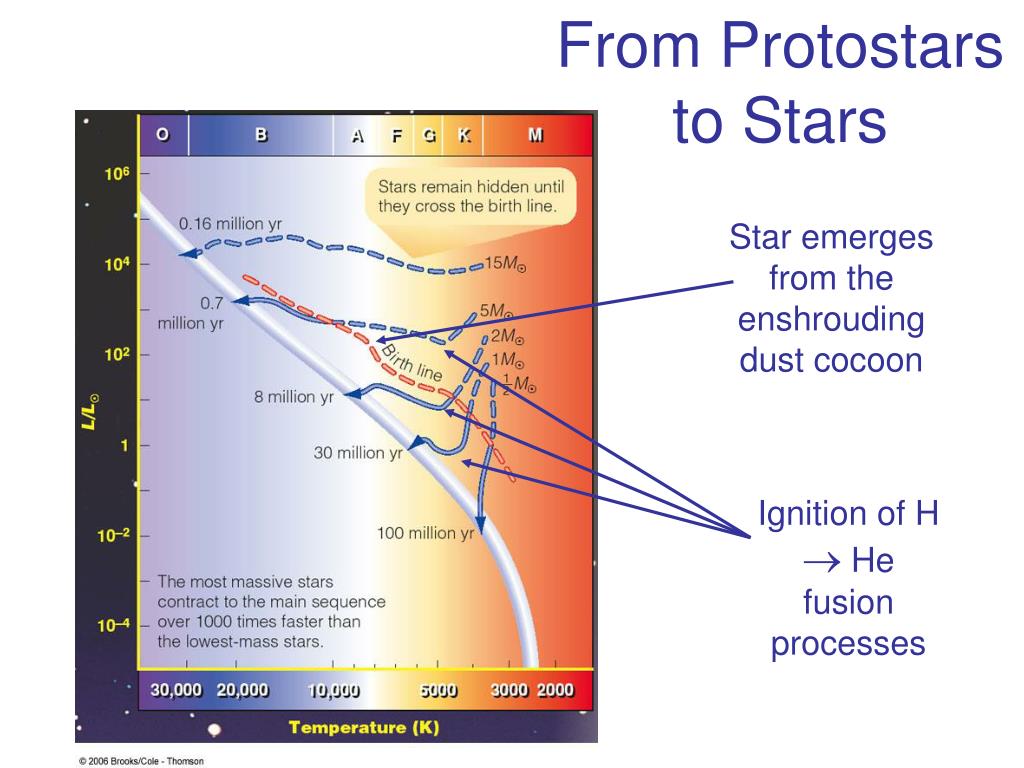

14. From Protostars to Stars 0 Star emerges from the enshrouding dust cocoon Ignition of H  He fusion processes

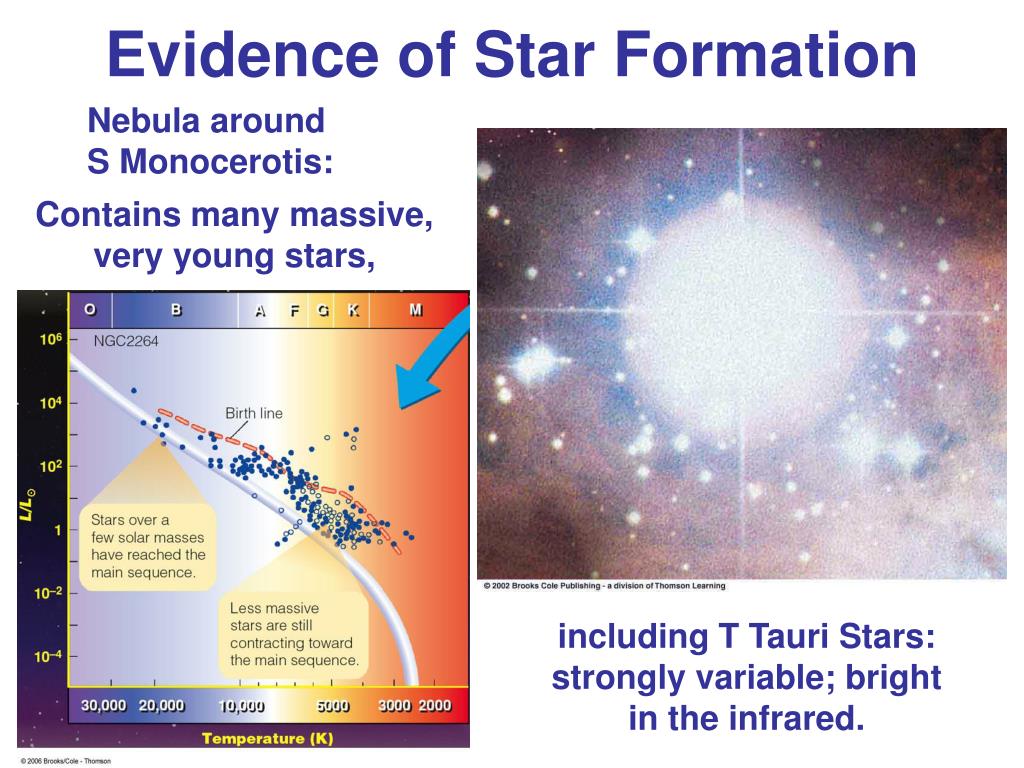

15. 0 Evidence of Star Formation Nebula around S Monocerotis: Contains many massive, very young stars, including T Tauri Stars: strongly variable; bright in the infrared.

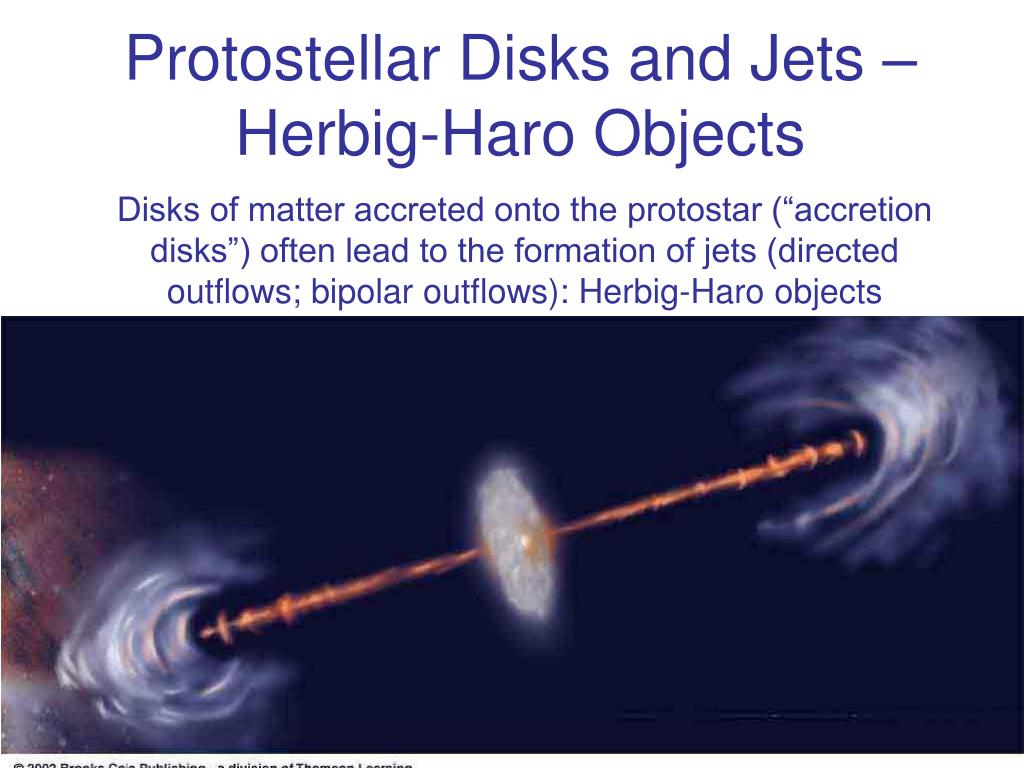

16. 0 Protostellar Disks and Jets – Herbig-Haro Objects Disks of matter accreted onto the protostar (“accretion disks”) often lead to the formation of jets (directed outflows; bipolar outflows): Herbig-Haro objects

17. 0 Protostellar Disks and Jets – Herbig-Haro Objects (II) Herbig-Haro Object HH34

18. 0 Globules Bok globules: ~ 10 – 1000 solar masses; Contracting to form protostars

19. 0 Globules Evaporating gaseous globules (“EGGs”): Newly forming stars exposed by the ionizing radiation from nearby massive stars

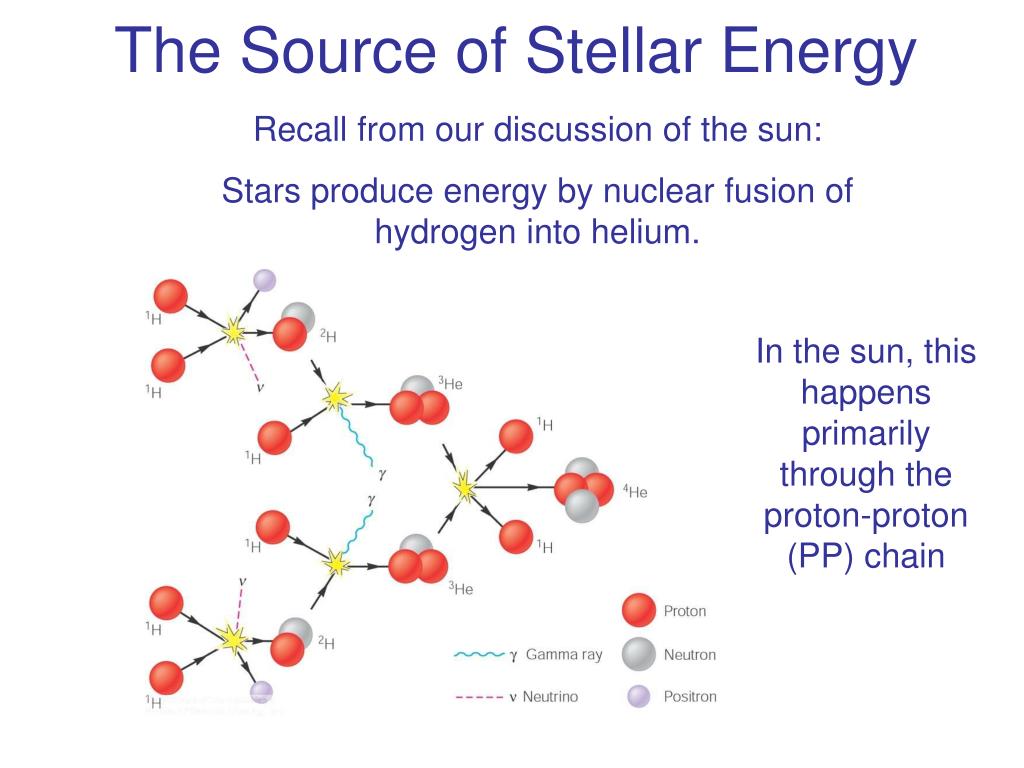

20. 0 The Source of Stellar Energy Recall from our discussion of the sun: Stars produce energy by nuclear fusion of hydrogen into helium. In the sun, this happens primarily through the proton-proton (PP) chain

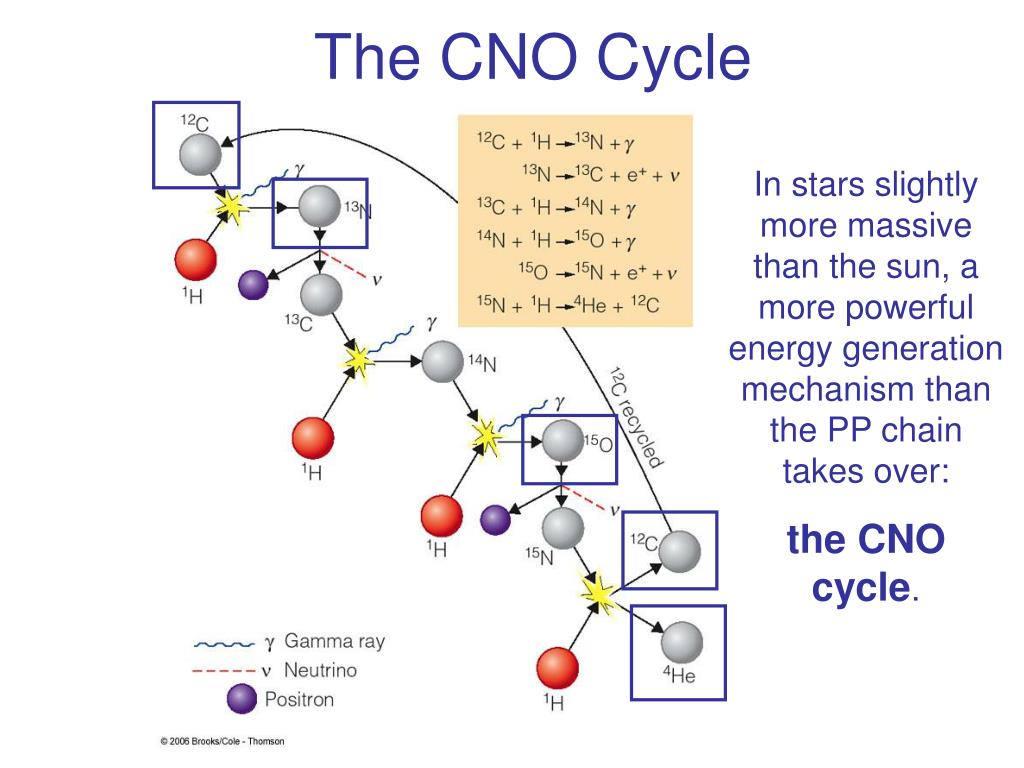

21. 0 The CNO Cycle In stars slightly more massive than the sun, a more powerful energy generation mechanism than the PP chain takes over: the CNO cycle.

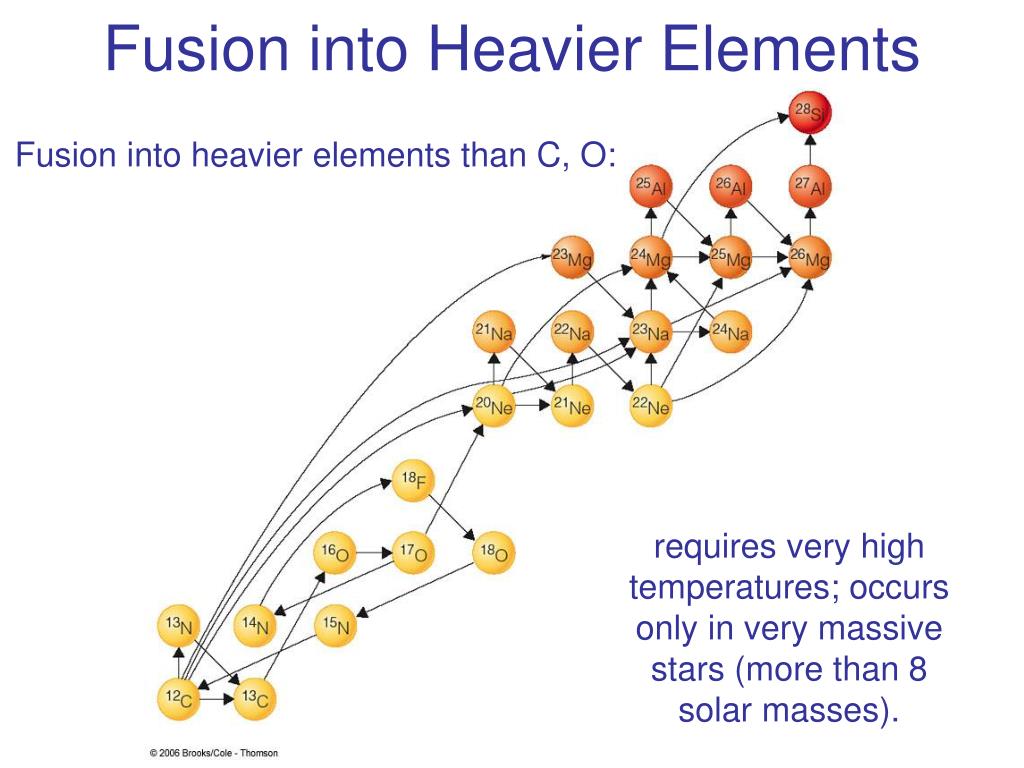

22. 0 Fusion into Heavier Elements Fusion into heavier elements than C, O: requires very high temperatures; occurs only in very massive stars (more than 8 solar masses).

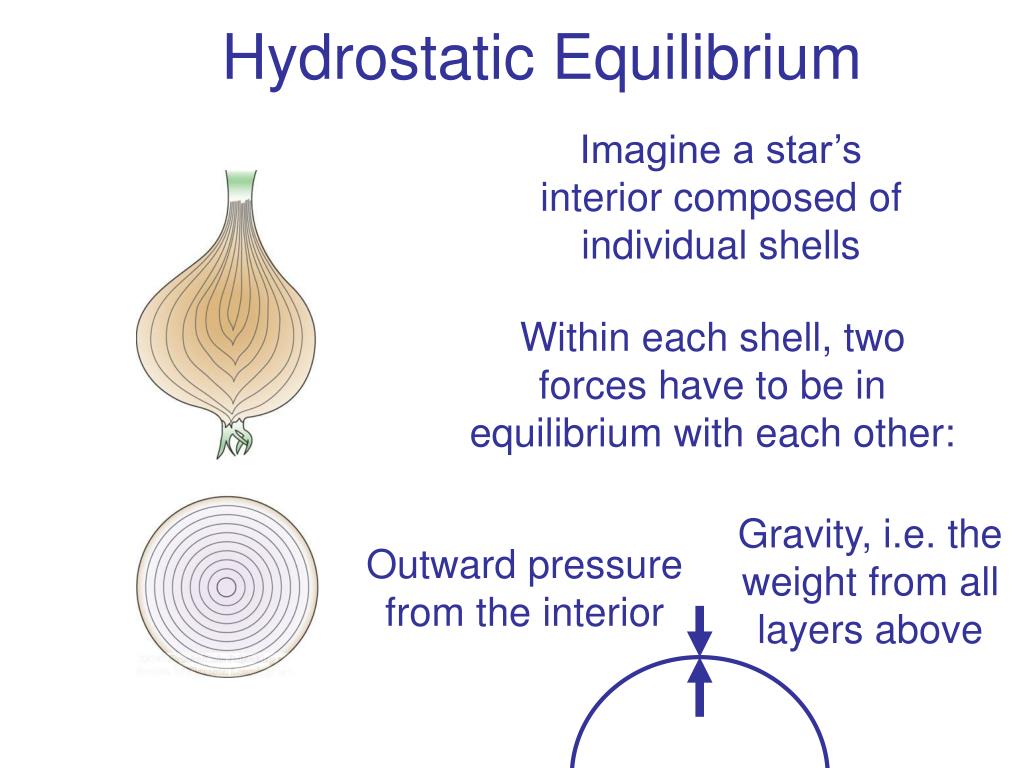

23. 0 Hydrostatic Equilibrium Imagine a star’s interior composed of individual shells Within each shell, two forces have to be in equilibrium with each other: Gravity, i.e. the weight from all layers above Outward pressure from the interior

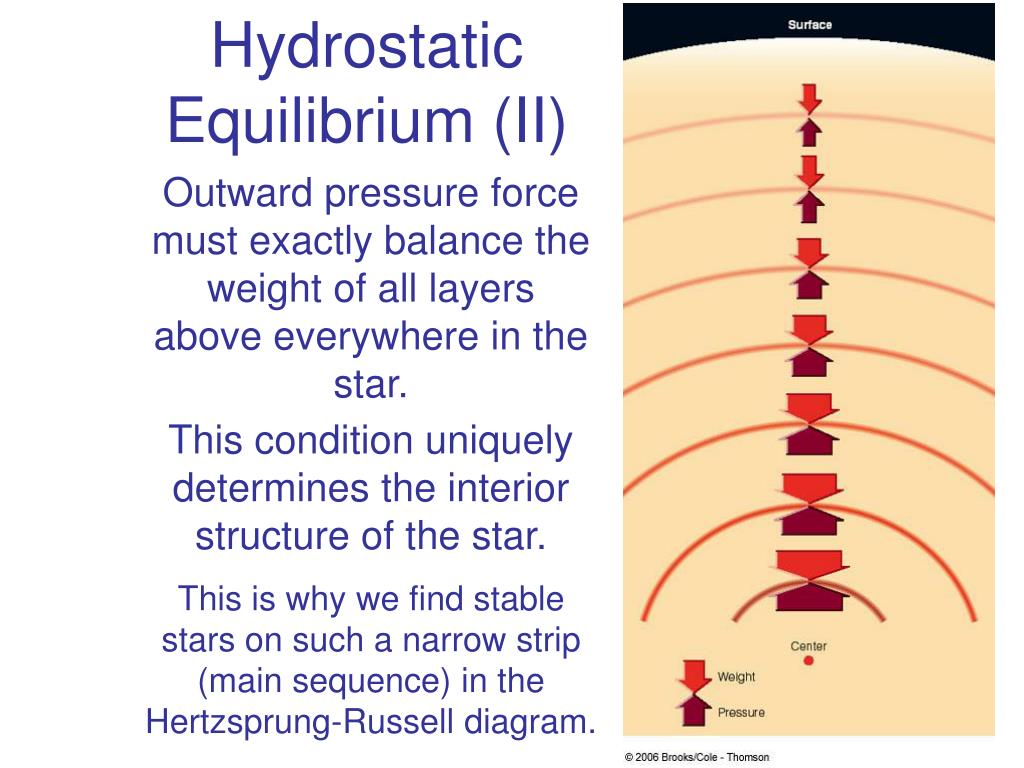

24. 0 Hydrostatic Equilibrium (II) Outward pressure force must exactly balance the weight of all layers above everywhere in the star. This condition uniquely determines the interior structure of the star. This is why we find stable stars on such a narrow strip (main sequence) in the Hertzsprung-Russell diagram.

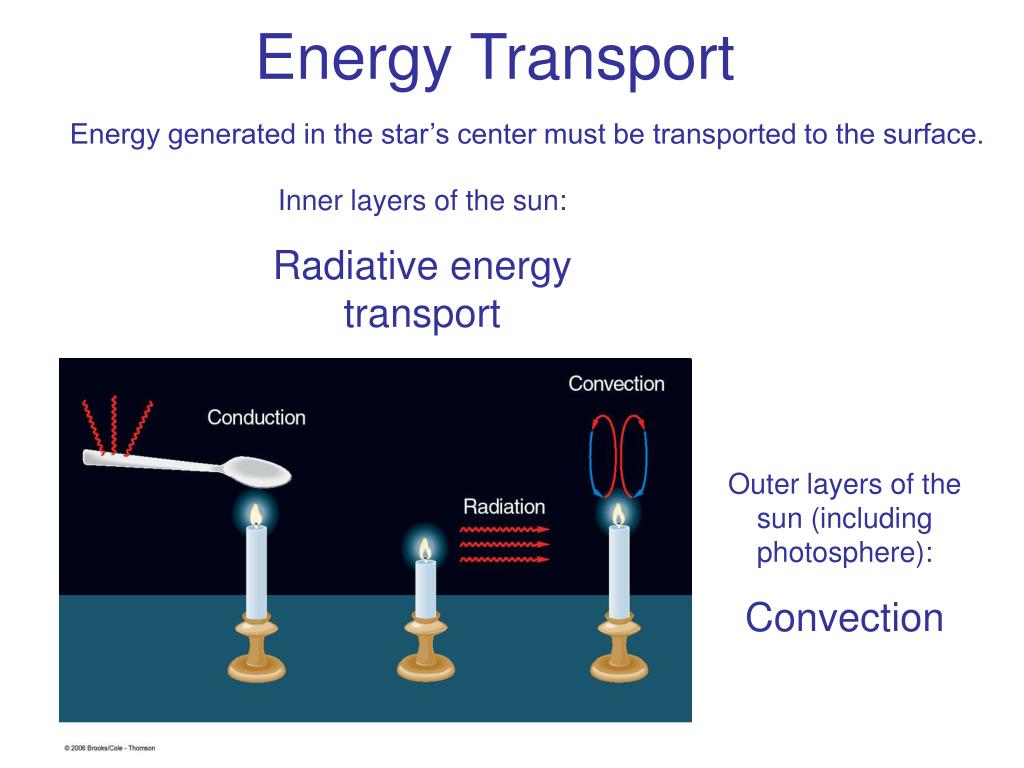

25. 0 Energy Transport Energy generated in the star’s center must be transported to the surface. Inner layers of the sun: Radiative energy transport Outer layers of the sun (including photosphere): Convection

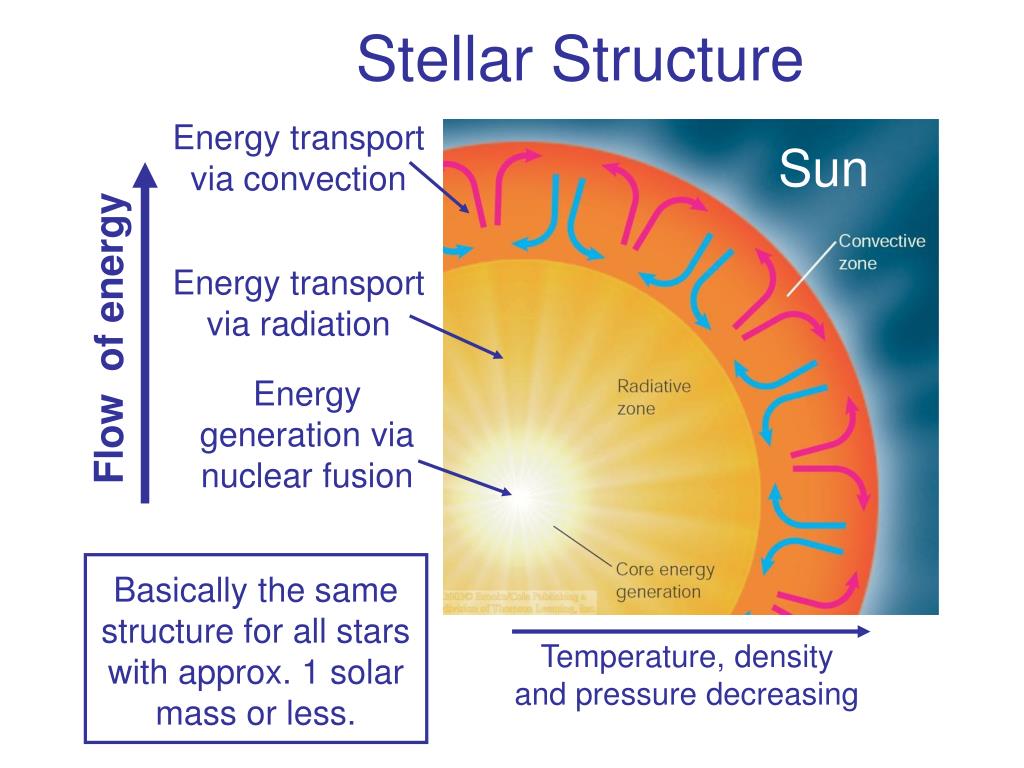

26. 0 Stellar Structure Energy transport via convection Sun Energy transport via radiation Flow of energy Energy generation via nuclear fusion Basically the same structure for all stars with approx. 1 solar mass or less. Temperature, density and pressure decreasing

27. 0 Stellar Models The structure and evolution of a star is determined by the laws of • Hydrostatic equilibrium • Energy transport • Conservation of mass • Conservation of energy A star’s mass (and chemical composition) completely determines its properties. That’s why stars initially all line up along the main sequence.

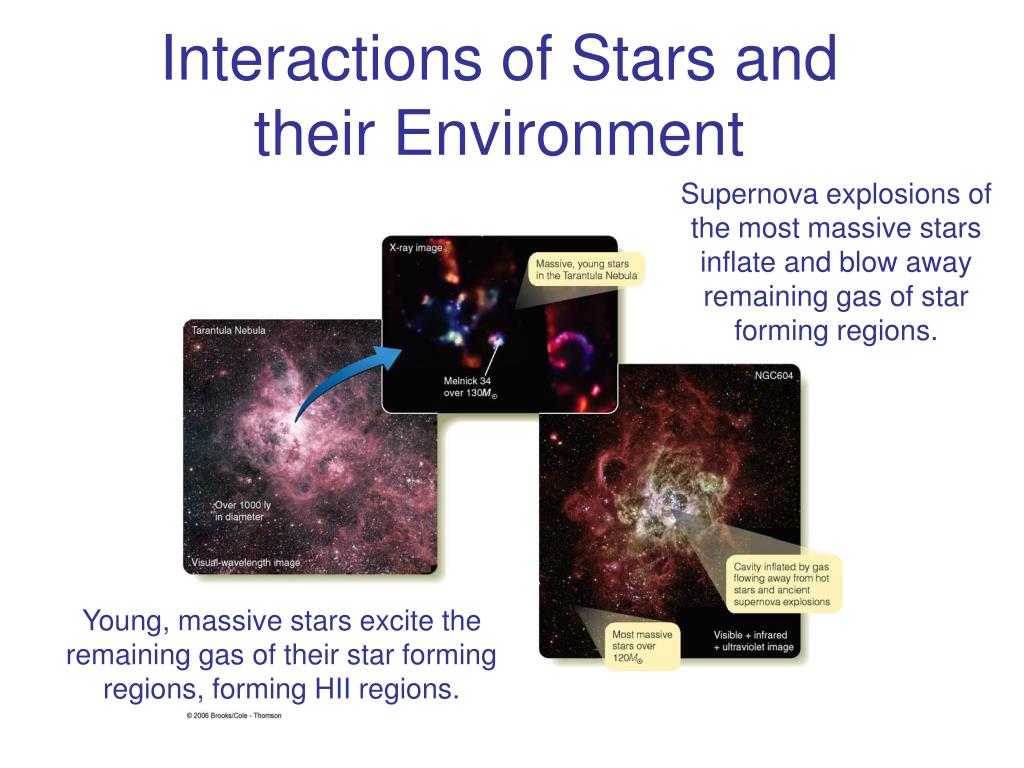

28. 0 Interactions of Stars and their Environment Supernova explosions of the most massive stars inflate and blow away remaining gas of star forming regions. Young, massive stars excite the remaining gas of their star forming regions, forming HII regions.

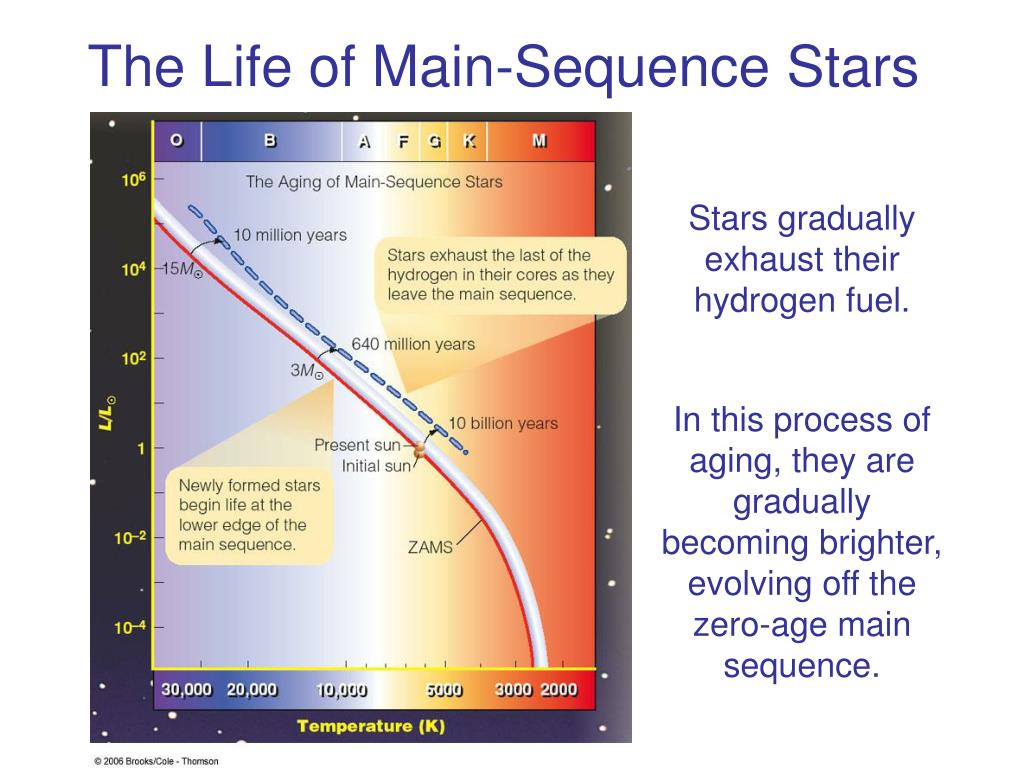

29. The Life of Main-Sequence Stars 0 Stars gradually exhaust their hydrogen fuel. In this process of aging, they are gradually becoming brighter, evolving off the zero-age main sequence.

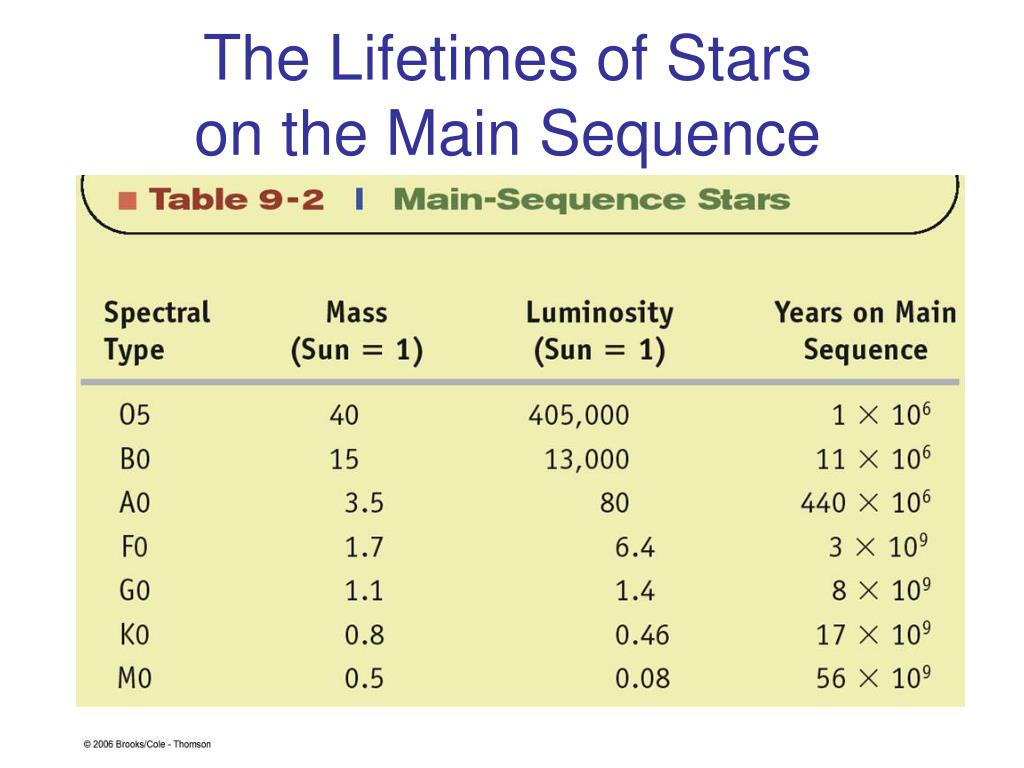

30. 0 The Lifetimes of Stars on the Main Sequence

31. 0 The Orion Nebula: An Active Star-Forming Region

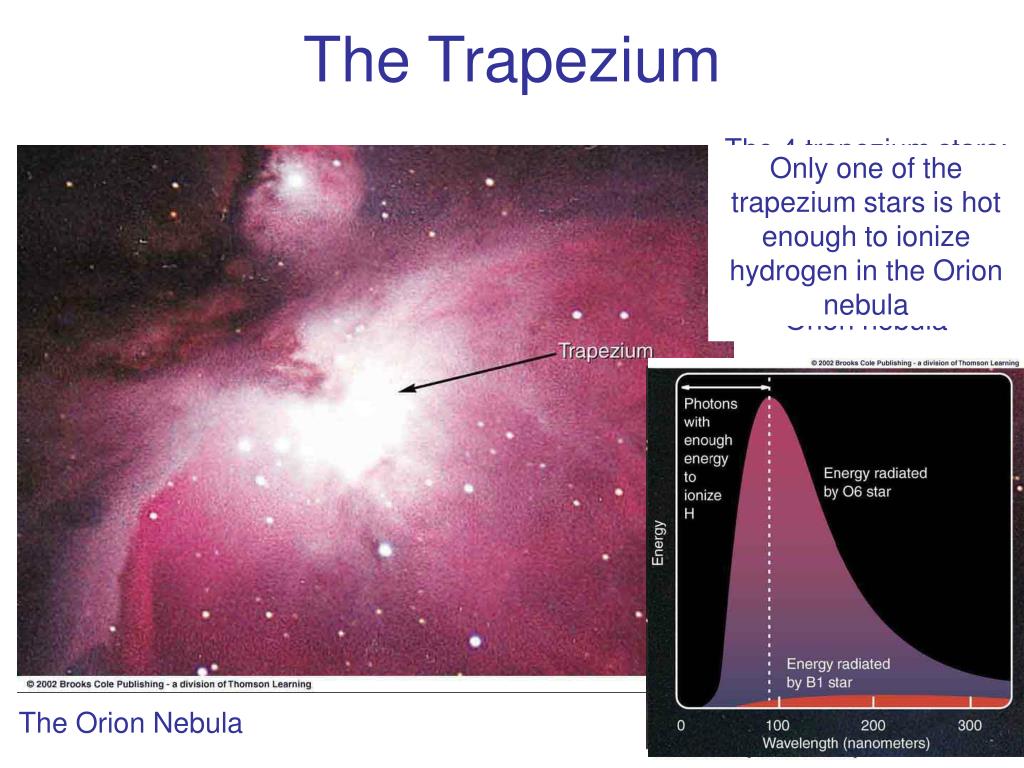

32. 0 The Trapezium The 4 trapezium stars: Brightest, very young (less than 2 million years old) stars in the central region of the Orion nebula Only one of the trapezium stars is hot enough to ionize hydrogen in the Orion nebula Infrared image: ~ 50 very young, cool, low-mass stars X-ray image: ~ 1000 very young, hot stars The Orion Nebula

33. 0 Kleinmann-Low nebula (KL): Cluster of cool, young protostars detectable only in the infrared The Becklin-Neugebauer object (BN): Hot star, just reaching the main sequence Spectral types of the trapezium stars B3 B1 B1 O6 Protostars with protoplanetary disks Visual image of the Orion Nebula
