1 / 2

vWx 0.3

vWx 0.3. Wind direction (CTRL=0) Solar radiance (CTRL=1). orange. DACA. 2.5VDC (CTRL=0) Temperature (CTRL=1). brown/white. DACB. RC2/CCP1. brown. Humidity square wave. orange/white. RE2. External CTRL signal. blue. RB0. Wind speed closure (CTRL=0). blue/white. RB1.

mohawk
Download Presentation

vWx 0.3

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

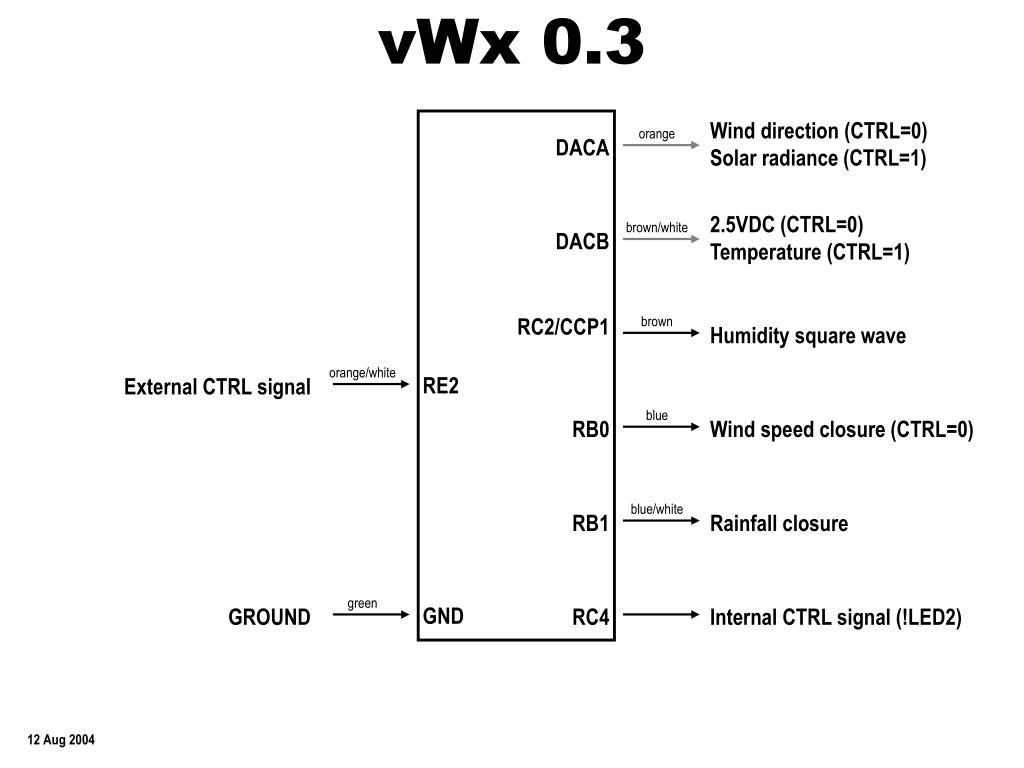

  1. vWx 0.3 Wind direction (CTRL=0) Solar radiance (CTRL=1) orange DACA 2.5VDC (CTRL=0) Temperature (CTRL=1) brown/white DACB RC2/CCP1 brown Humidity square wave orange/white RE2 External CTRL signal blue RB0 Wind speed closure (CTRL=0) blue/white RB1 Rainfall closure green GND GROUND RC4 Internal CTRL signal (!LED2) 12 Aug 2004

  2. vWx 0.6 Wind direction (CTRL=0) Solar radiance (CTRL=1) orange DACA 2.5VDC (CTRL=0) Temperature (CTRL=1) brown/white DACB RC2/CCP1 brown Humidity square wave orange/white RE2 External CTRL signal (LED2) blue RB0 Wind speed closure (CTRL=0) blue/white RB1 Rainfall closure green GND GROUND RC1 Internal CTRL signal 20 Sept 2005
