Seismic energy radiation from dynamic faulting. Laboratoire de Géologie. Ra ú l Madariaga Ecole Normale Supérieure. (from Aochi and Madariaga, BSSA 2003). Some inferred properties of seismic ruptures. 1. Slip distributions and ruptures are complex at all scales.

Download Presentation

Seismic energy radiation from dynamic faulting

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Seismic energy radiation from dynamic faulting

Seismic energy radiation from dynamic faulting

Laboratoire de Géologie

Raúl Madariaga

Ecole Normale Supérieure

(from Aochi and Madariaga, BSSA 2003)


Seismic energy radiation from dynamic faulting

Some inferred properties of seismic ruptures

1. Slip distributions and ruptures are complex at all scales.

2. Very large variations of stress change.

3. Slip weakening is a substantial fraction of static slip

4. Self-healing rupture (Heaton pulses) is the rule.

5. Energy release rate (Gc) is of the same order as

strain energy density DU

6. Local control of rupture

7. How about Energy and High frequencies?


Seismic energy radiation from dynamic faulting

Earthquake energy balance

D U


Seismic energy radiation from dynamic faulting

Slip weakening model with healing

All the terms scale with

earthquake size (Aki, 1967)

Eventdependent

This is an average

global model

not a local model

(Rivera and Kanamori, 2004)


Seismic energy radiation from dynamic faulting

Es= Gc(qs) – Gc(dyn)


Seismic energy radiation from dynamic faulting

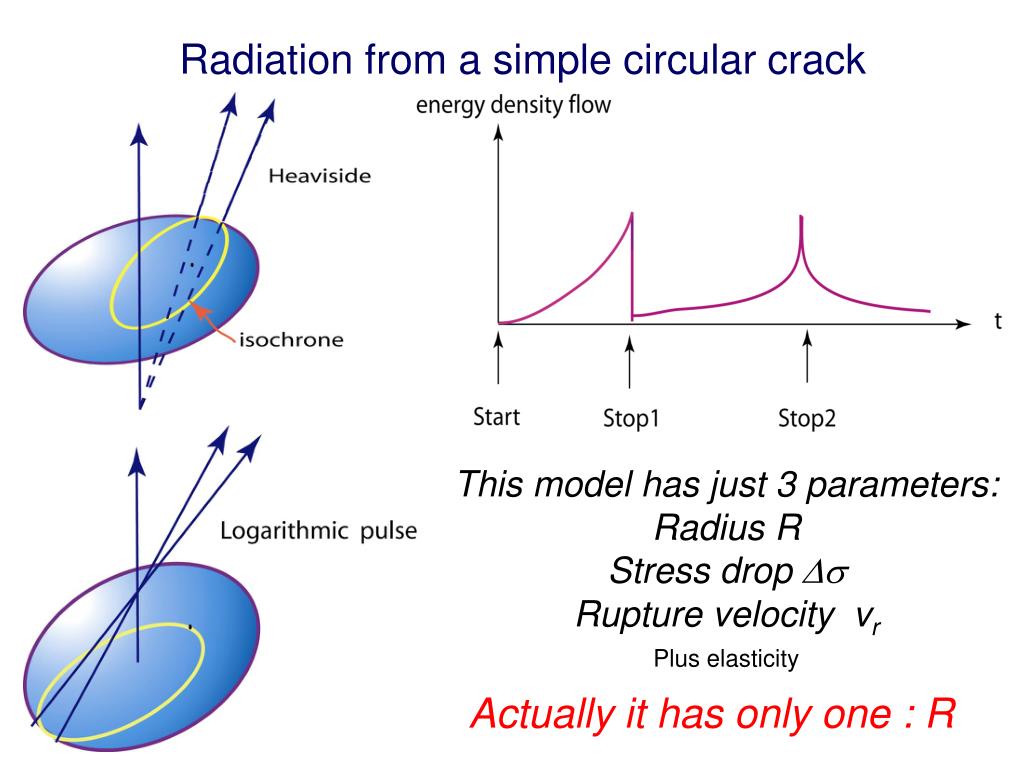

Radiation from a simple circular crack

This model has just 3 parameters:

Radius R

Stress dropDs

Rupture velocity vr

Plus elasticity

This

Actually it has only one : R


Seismic energy radiation from dynamic faulting

w-2

w

Radiated Energy

Gc, vr

Er ~ R3

Gc ~ R

Displacement field

Mo ~ R3

Etc.


Seismic energy radiation from dynamic faulting

Possible rupture scenarios for the Izmit Earthquake

Possible models

A seismic (Bouchon)

B GPS (Wright)

C Spot Images

D FDM Harris

E Aochi Madariaga


Seismic energy radiation from dynamic faulting

Modelling complex fault geometries

Fault model

BIE

Rupture propagation model

FD

SEM/BIEM

Wave propagation model


Seismic energy radiation from dynamic faulting

Two reasonable models of the Izmit earthquake

Bouchon like « smooth » model

Harris-like « rough» model

After Aochi and Madariaga (2003)


Seismic energy radiation from dynamic faulting

Model B

Model E

The « smooth » fault model

develops supershear shocks

Why?

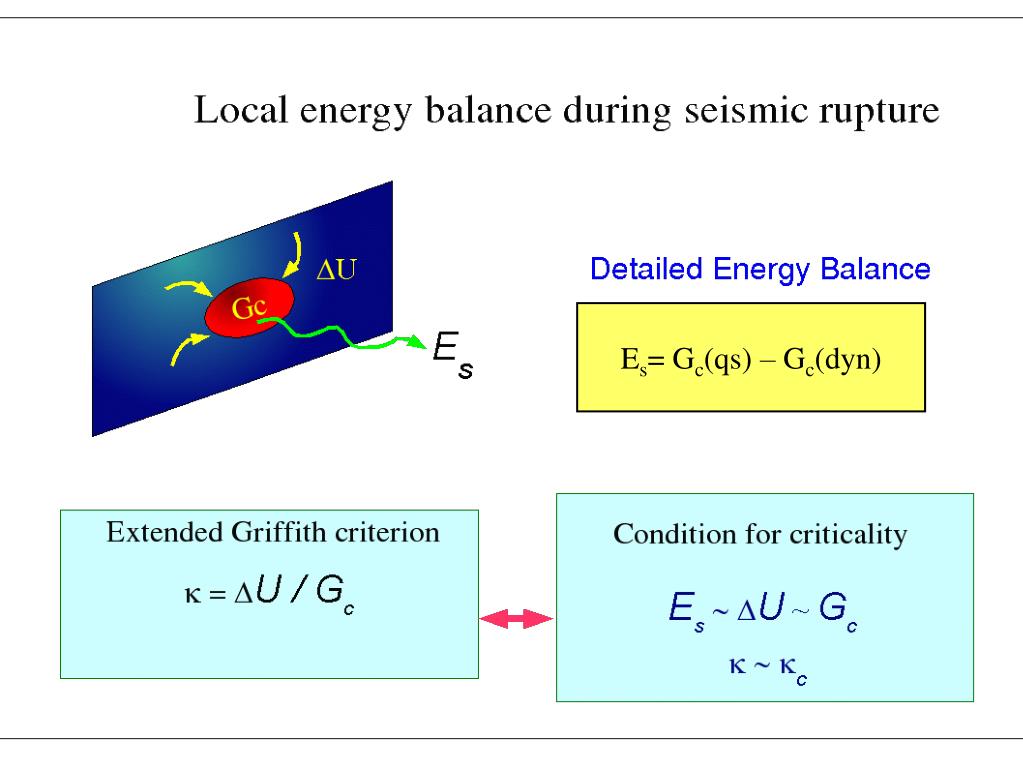

Detailed energy balance

The « rough » fault models produces subshear ruptures


Seismic energy radiation from dynamic faulting

There is an apparent paradox:

Little high frequency

radiation along the

way

Supershear

Es

A lot of high frequency radiation

Subshear

The higher the speed, the less energy is absorved, the less is radiated


Seismic energy radiation from dynamic faulting

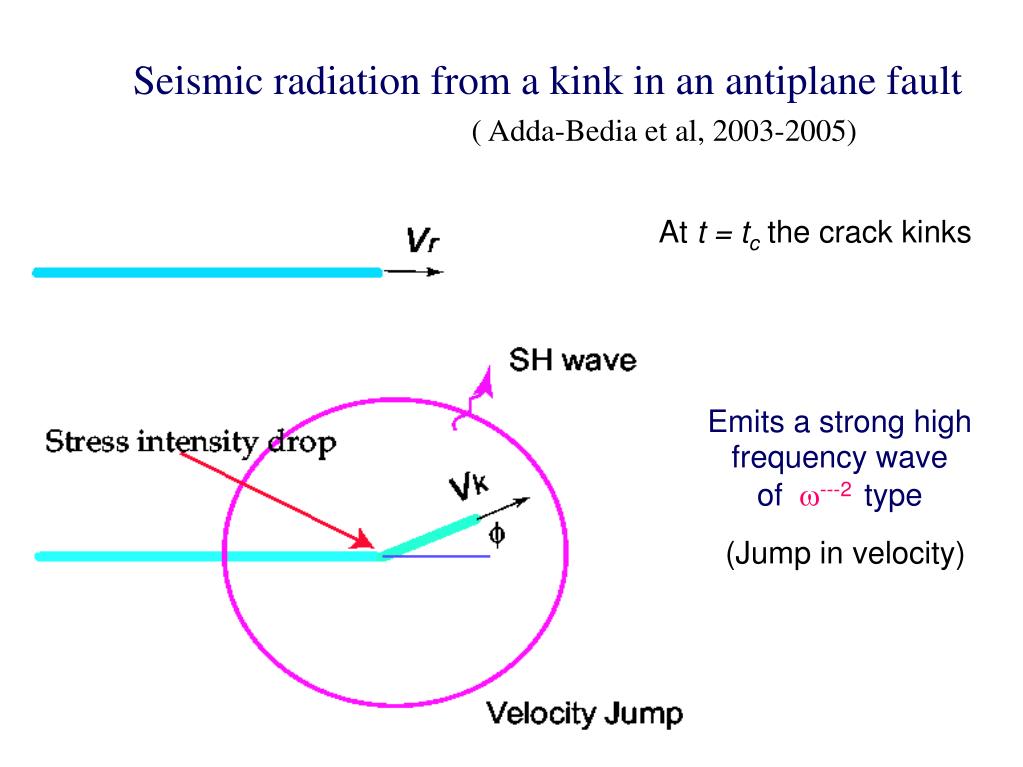

Seismic radiation from a kink in an antiplane fault

( Adda-Bedia et al, 2003-2005)

At t = tc the crack kinks

Emits a strong high

frequency wave

of---2 type

(Jump in velocity)


Seismic energy radiation from dynamic faulting

Displacement

Shear stress

Radiation from an antiplane crack moving along a kink

Analytical solution from Adda-Bedia et al (2003-2005)


Seismic energy radiation from dynamic faulting

Radiation from an antiplane crack moving along a kink

Particle velocity

Shear stress


Seismic energy radiation from dynamic faulting

Energy balance

(Kostrov, Husseini, Freund, etc )

If rupture propagates very slowly there is no seismic radiation

If rupture does not absorb available strain energy,

Rupture accelerates and radiates. Neglecting Kostrov’s term

dynamic

quasistatic

Is this localizable ?


Seismic energy radiation from dynamic faulting

How are High Frequencies generated ?

Constant radiation

Constant radiation

Local strain energy

High frequency S wave front

Radiation density

Es =Gc(qs)-Gc(Dyn)

Along the fault


Seismic energy radiation from dynamic faulting

The in-plane kink

Solution by spectral elements

Typical grid

Propagation solved

by SEM

(Vilotte, Ampuero,

Festa and Komatisch)

Fracture solved

by BIEM-like

boundary conditions

(Cochard,Fukuyama, Aochi, Tada, Kame,Yamashita)


Seismic energy radiation from dynamic faulting

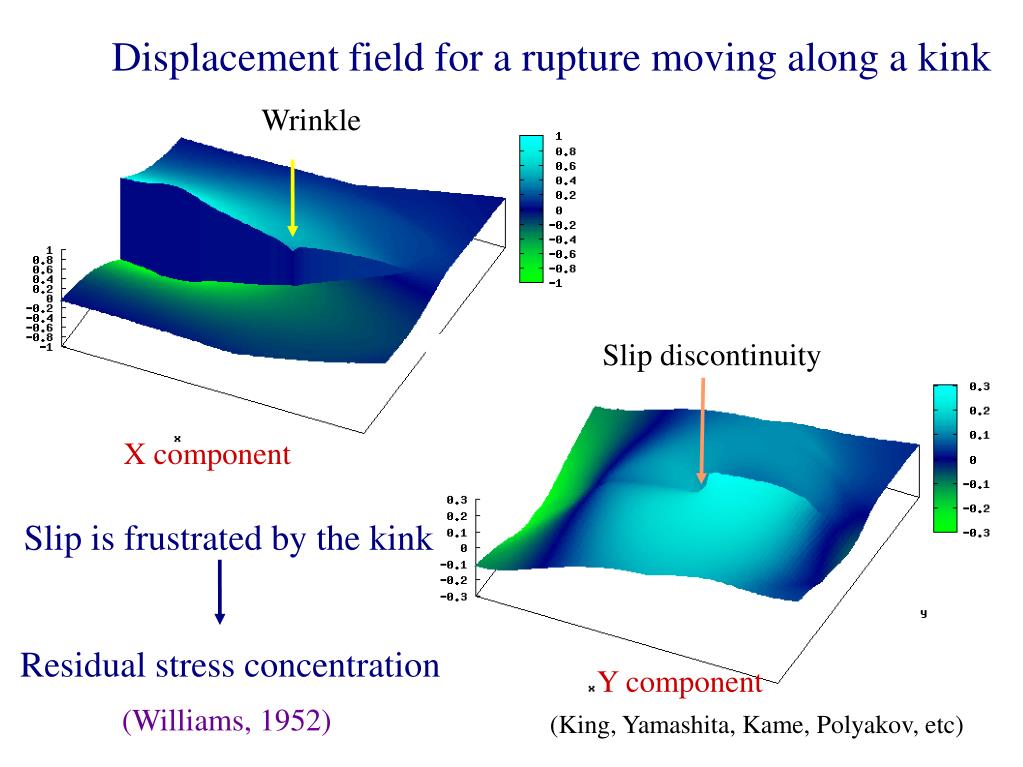

Displacement field for a rupture moving along a kink

Wrinkle

Slip discontinuity

X component

Slip is frustrated by the kink

Residual stress concentration

Y component

(Williams, 1952)

(King, Yamashita, Kame, Polyakov, etc)


Seismic energy radiation from dynamic faulting

Vorticity of the particle velocity field

Computed by Festa and Vilotte April 2005


Seismic energy radiation from dynamic faulting

Rupture moves along the kink

Velocity along y

Velocity along x


Seismic energy radiation from dynamic faulting

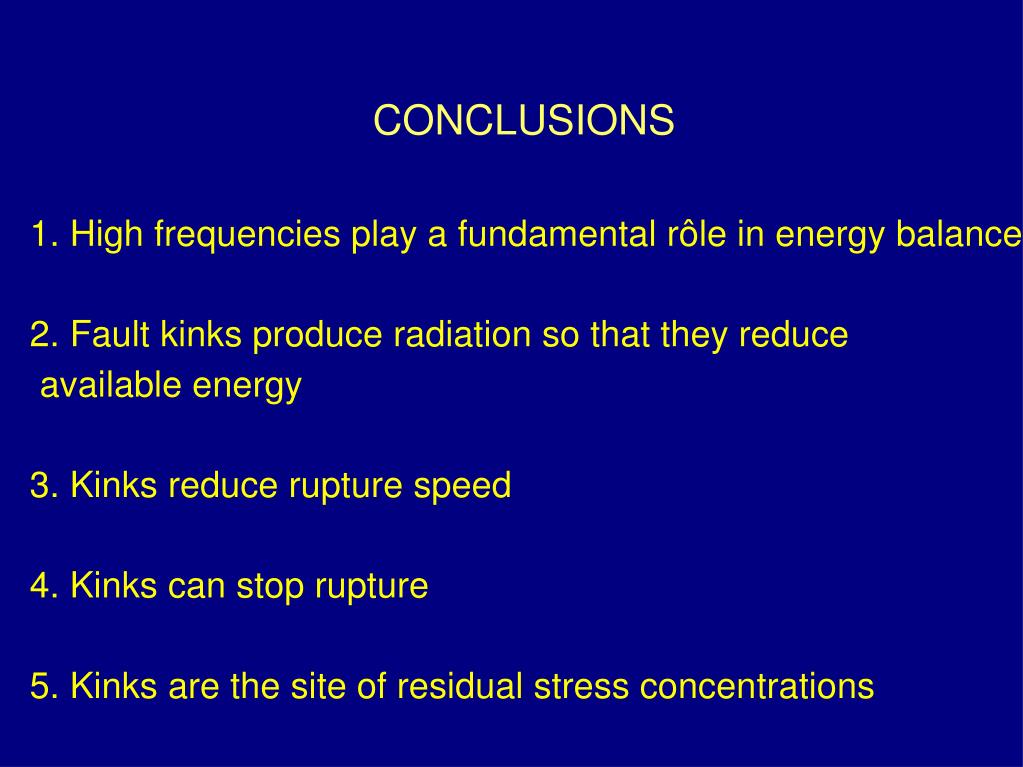

CONCLUSIONS

1. High frequencies play a fundamental rôle in energy balance

2. Fault kinks produce radiation so that they reduce

available energy

3. Kinks reduce rupture speed

4. Kinks can stop rupture

5. Kinks are the site of residual stress concentrations


Seismic energy radiation from dynamic faulting

Rupture stops rapidly after the kink

Along x

Along y

Figures show particle

velocity at three

succesive instants

of time

P

S

R


Seismic energy radiation from dynamic faulting

Velocity

Stress

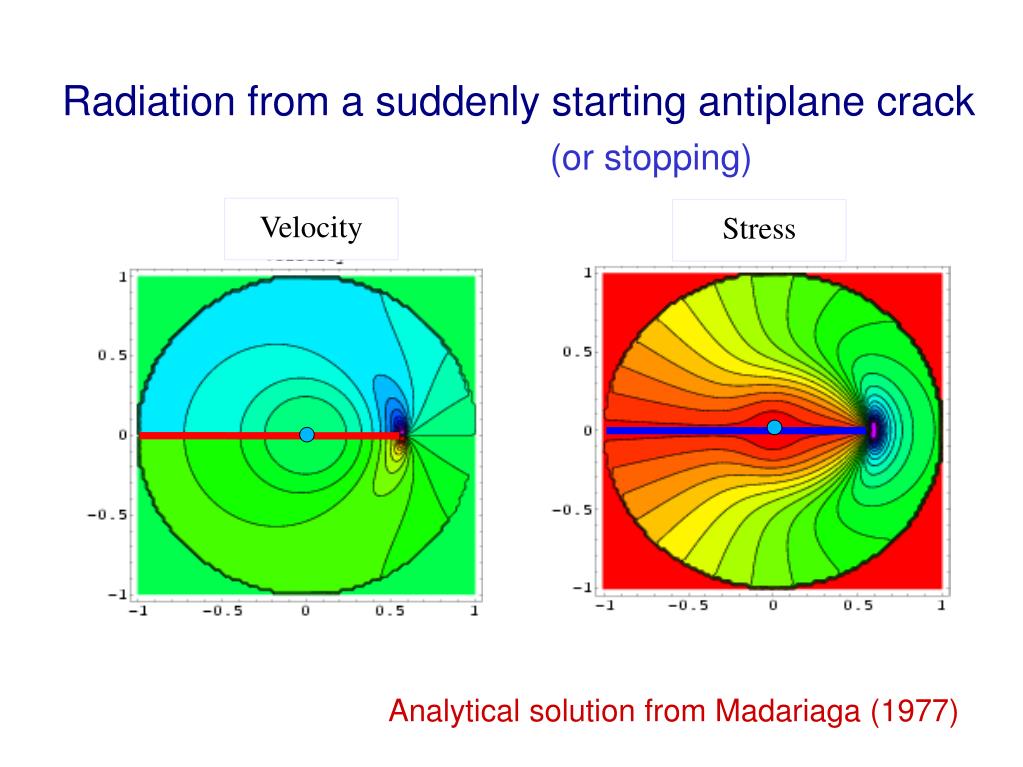

Radiation from a suddenly starting antiplane crack

(or stopping)

Analytical solution from Madariaga (1977)

(Madariaga, 1977)


Seismic energy radiation from dynamic faulting

Energy Partition into radiation, fracture and Kostrov energies

Simple mode II fault kink model

by Aochi et al, 2004

Why ?

rupture onset


Seismic energy radiation from dynamic faulting

Normal displacement.

Parallel displacement

Stopping phase

Supershear

After Aochi et al (2004)


Seismic energy radiation from dynamic faulting

Rupture stops rapidly after the kink

Horizontal displacement

Vertical displacement


Seismic energy radiation from dynamic faulting

Rupture moves along the kink

Vertical displacement

Horizontal displacement


Seismic energy radiation from dynamic faulting

Seismic energy radiated by an earthquake

Kostrov Term

any value

Rupture energy

>0

T stress change

T stress change rate

u displacement

Gcenergy release rate

.

Strain energy release

>0
