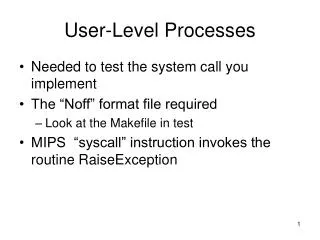

  1. User-Level Processes • Needed to test the system call you implement • The “Noff” format file required • Look at the Makefile in test • MIPS “syscall” instruction invokes the routine RaiseException

  2. How does it work?

  3. How does it work? (cont.)

  4. Related Nachos Codes • test/start.s • Startup assembly code for every user program of Nachos. • syscall.h • Definitions of the system call prototypes • exception.cc • The handler for system calls and other exceptions is here.

  5. Directories of Nachos • Main directories • filesys • machine • network • threads • userprog • Test programs • test

  6. Related Files • Major • test/start.s • The code that starts the program execution • userprog/syscall.h • Defines the system call constants • userprog/execption.cc • The system call handler • Minor • machine/machine.h • Register definitions • test/halt.c • Test user program • filesys/filesys.h • File system definitions • filesys/filesys.cc • Stub implementation • filesys/openfile.h • filesys/openfile.cc

  7. Some Public Variables for the Kernel • register: an array of 40 registers • Declared in machine/machine.h • mainMemory: memory is byte-addressable and organized into 128-byte pages • Declared in machine/machine.h

  8. Starting of a User Program • test/start.s • Define what is needed for a user program. • starting point • system call • startup assembly code of every user program of Nachos • Initialize and run a C program by jumping to location 0.

  9. Exception Types • Execution errors • System calls • …

  10. The Progress of a System Call in a User Program • The user program is responsible for • storing of the system codes in Register 2 • storing of the arguments in Register 4 ,5, 6, and 7. • ExceptionHandler fetches the number for the system call in Register 2. • Execute the corresponding codes for the system call. • Increase the PC. • See the register definitions in machine.h

  11. Declaring of System Call • userprog/syscall.h • system call codes • Ex: #define SC_Exit 1 • Interface for Nachos system calls • Ex: void Exit(int status);

  12. The Entry Point into the Nachos Kernel • ExceptionHandler • userprog/execption.cc • Entry point into the Nachos kernel from user programs. • syscall • exceptions

  13. The Entry Point into the Nachos Kernel (cont.) • The code for the system call is placed in Register 2. • arg • arg1 is in Register 4. • arg2 is in Register 5. • arg3 is in Register 6. • arg4 is inRegister 7. • The return value is in Register 2. • Note • If you are handling a system call, don't forget to increment the pc before return to the user program.

  14. Getting or Setting of the Data in a Register • The function body is in machine/machine.cc. • Kernel  machine  ReadRegister(x) • x is the register number. • The return type is the integer type. • Kernel  machine WriteRegister(x,y) • x is the register number. • y is the value.

  15. Example: system call add(arg1,arg2) • Retrieve the two arguments by • op1=(int)kernelmachineReadRegister(4) • op2=(int)kernelmachineReadRegister(5) • Set the return value by • KernelmachineWriteRegister(2, (int)result)

  16. Example: system call add(arg1,arg2) (cont.) • Modify the return point by • Setting the previous PC (for debugging) • kernel  machine  WriteRegister( PrevPCReg, kernel  machine  ReadRegister(PCReg)); • Setting the PC to the next instruction (all instructions are 4 byte wide) • kernel  machine  WriteRegister( PCReg, kernel  machine  ReadRegister(PCReg) + 4); • Setting the next PC for a branch execution • kernel->machine->WriteRegister( NextPCReg, kernel->machine->ReadRegister(PCReg)+4);

  17. How If an Argument is an Char Array? • Retrieve the logical address with • kernel->machine->ReadRegister(?) • Retrieve the data with • kernel->machine->ReadMem(int x, int y, int *z) • It is declared in ~/code/machine/machine.h and implemented in ~/code/machine/translate.cc. • x is the virtual address to read from. • y is the number of bytes to read (1, 2, or 4). • z is the place to write the result.

  18. kernel->machine->ReadMem • Translate a virtual address into a physical address by • Translate(int virtAddr, int* physAddr, int size, bool writing) • virtAddr: the virtual address to translate • physAddr: the place to store the physical address • size: the amount of memory being read or written • writing: if TRUE, check the "read-only" bit in the TLB

  19. Run Your Program • Normal mode: • ”./nachos –x ../test/XXX” • Debugger mode: • ”./nachos –d ../test/XXX”

  20. Example Exit() void ExceptionHandler(ExceptionType which) { int type = machine->ReadRegister(2); if ((which == SyscallException) && (type == SC_Halt)) { DEBUG('a', "Shutdown, initiated by user program.\n"); interrupt->Halt(); }if ((which == SyscallException) && (type == SC_Exit)) { /* newly added system call EXIT */ //get the first argument int a4 = machine->ReadRegister(4); printf("\n\n\tNEW SYSCALL: you are in EXIT.\n\n\tThe return value you passed is --> %d\n\n\t The current thread will terminate ...\n\n\n", a4); currentThread->Finish(); } else { printf("Unexpected user mode exception %d %d\n", which, type); ASSERT(FALSE); } }
