Module 5 server management automation with windows server 2012 r2

Module 5: Server Management & Automation with Windows Server 2012 R2

Rick Claus

Microsoft Sr. Technical Evangelist

Corey Hynes

Lead Technical Architect, holSystems


Jump start target agenda

Jump Start Target Agenda

Server Management & Automation with Windows Server 2012 R2


Module 5 server management automation with windows server 2012 r2

Talk with our Experts in Chat tool.

#WS2012JS

Hands-On Labs

DOWNLOAD Windows Server 2012 R2 Preview

DOWNLOAD System Center 2012 R2 Preview

http://technet.microsoft.com/evalcenter


Module 5 server management automation with windows server 2012 r2

Agenda

  • Windows Server 2012 R2 Preview is a great operating system for many servers and the devices that connect them—whether physical or virtual, on-premises or off-premises.

  • Windows Server 2012 R2 Preview is a cloud-optimized operating system that provides customers with a standards-based, simplify your routine task platform.

  • This platform enables efficient and productive multiserver manageability and automation capabilities.

    • Introduction

    • Standards-based management

    • Simplify your routine tasks

    • Deployment

    • Multiserver management

    • Ecosystem and extensibility


    Scenario summary

    Scenario summary

    Ecosystem and extensibility

    Simplify your routine tasks

    Multiserver management

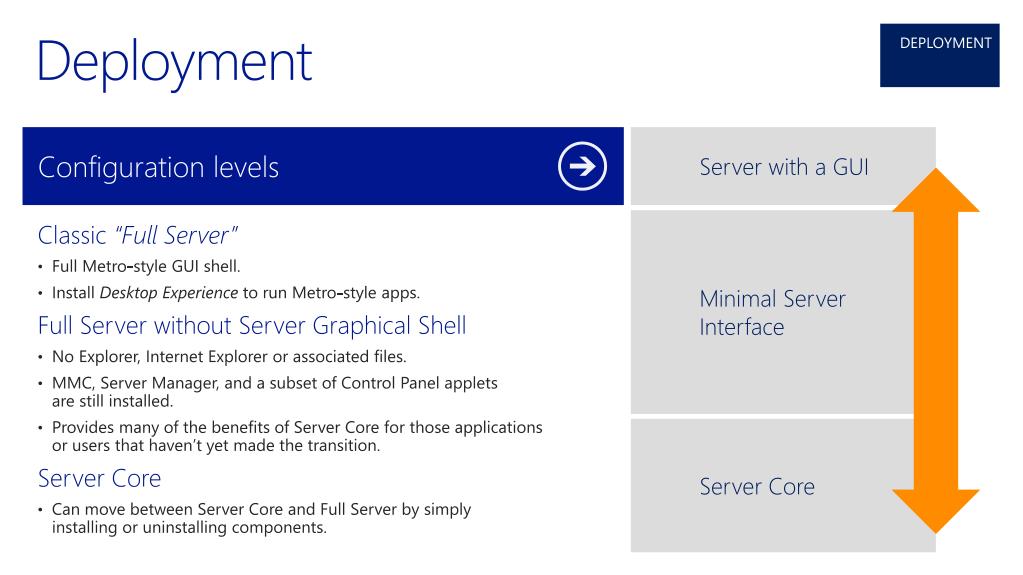

    Deployment options

    Standards-based management


    Standards based management

    Standards-based management

    Simplifies the management of a diverse ecosystem

    Standard APIs

    Windows Management Framework

    Standard protocols

    Standard models

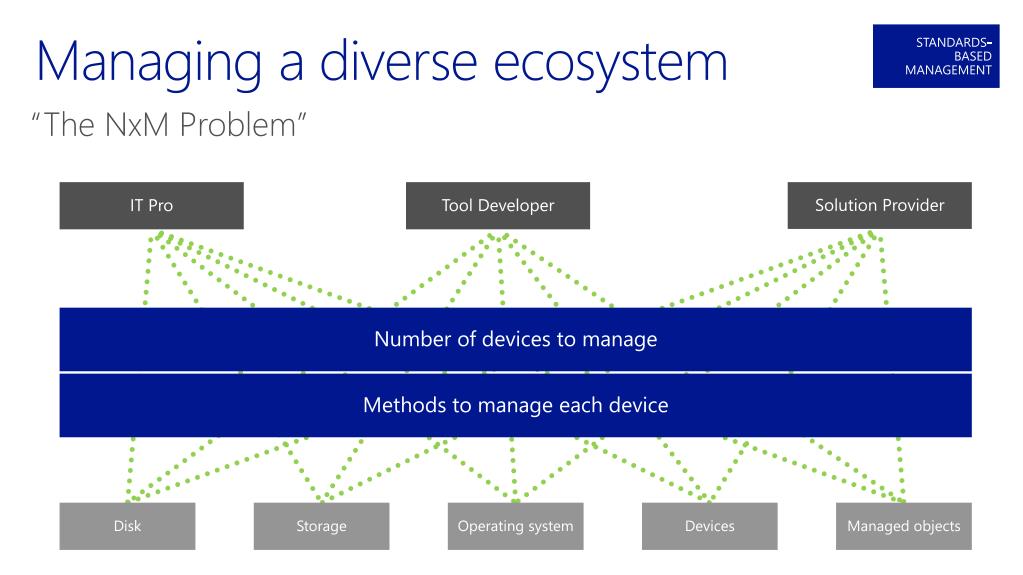

    Managing a diverse ecosystem

    Managing a diverse ecosystem

    STANDARDS-BASED MANAGEMENT

    “The NxM Problem”

    IT Pro

    Tool Developer

    Solution Provider

    Number of devices to manage

    Methods to manage each device

    Disk

    Storage

    Operating system

    Devices

    Managed objects


    Windows management framework

    Windows Management Framework

    STANDARDS-BASED MANAGEMENT

    Maximize the value of using the Windows Management Framework

    IT Pro

    Tool Developer

    Solution Provider

    Windows Management Framework

    Disk

    Storage

    Operating system

    Devices

    Managed objects


    Standard models protocols and apis

    Standard models, protocols, and APIs

    STANDARDS-BASED MANAGEMENT

    Maximize the value of using the Windows Management Framework

    IT Pro

    ToolDeveloper

    Solution Provider

    Standard APIs: MI Client, Windows PowerShell, Open Data Protocol (OData)

    Windows Management Framework

    Standard protocols: WS-Management, REST, HTTP, PSRP

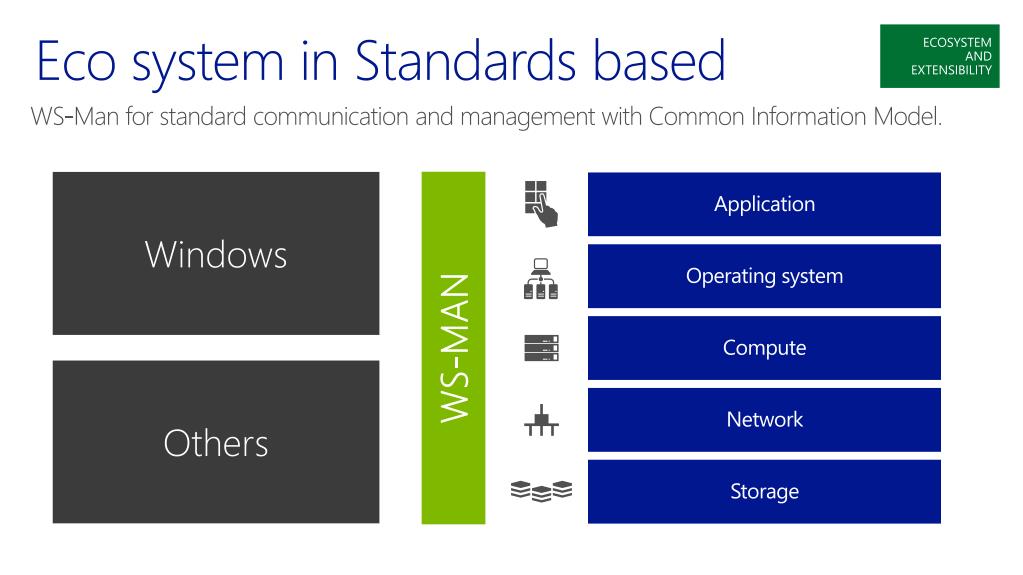

    Standard models: Common Information Model (CIM) schema, Storage Management Initiative Specification (SMI-S)

    Disk

    Storage

    Operating system

    Devices

    Managed objects

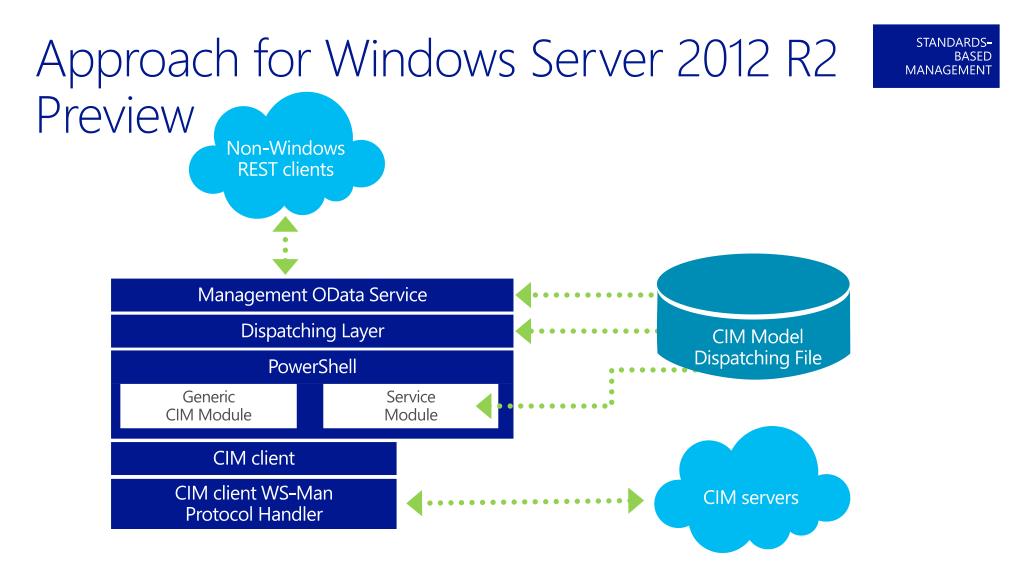

    Approach for windows server 2012 r2 preview

    Approach for Windows Server 2012 R2 Preview

    STANDARDS-BASED MANAGEMENT

    Non-Windows

    REST clients

    Management OData Service

    Dispatching Layer

    CIM Model

    Dispatching File

    PowerShell

    Generic

    CIM Module

    Service

    Module

    CIM client

    CIM servers

    CIM client WS-Man

    Protocol Handler


    O pen m anagment i nfrastructure

    OpenManagment Infrastructure

    STANDARDS-BASED MANAGEMENT

    • New WMI provider API (MI) with extended Windows PowerShell semantics.

    • Open Management Infrastructure (OMI) for Linux and UNIX with the same MI provider API.

    • Full implementation of WS-Man on Windows and Linux/UNIX.

    • New MI client with integrated Windows PowerShell layer.

    Windows

    Linux/UNIX

    Windows PowerShell

    MI provider

    Classic

    provider

    MI provider

    MI client API

    Microsoft .NET MI API

    Native MI API

    Windows Management Infrastructure

    Open Management Infrastructure

    Any device

    WS-Man

    protocolhandler

    WS-Man

    protocol handler

    WS-Man

    protocol handler

    WS-Man

    protocol handler

    WS-Management


    O ne management i nfrastructure

    One Management Infrastructure

    STANDARDS-BASED MANAGEMENT

    Open source Windows Management Infrastructure server implemented by Microsoft.

    • Includes Windows Server Management protocol stack.

      • Interacts with MI client and Windows PowerShell outofthebox.

    Portable

    • Uses the same MI provider interface as Windows Management Infrastructure.

      • Can share provider development tools with Windows Management Infrastructure.

    Scalable

    Small footprint


    Approach for windows server 2012 r2 preview1

    Approach for Windows Server 2012 R2 Preview

    STANDARDS-BASED MANAGEMENT

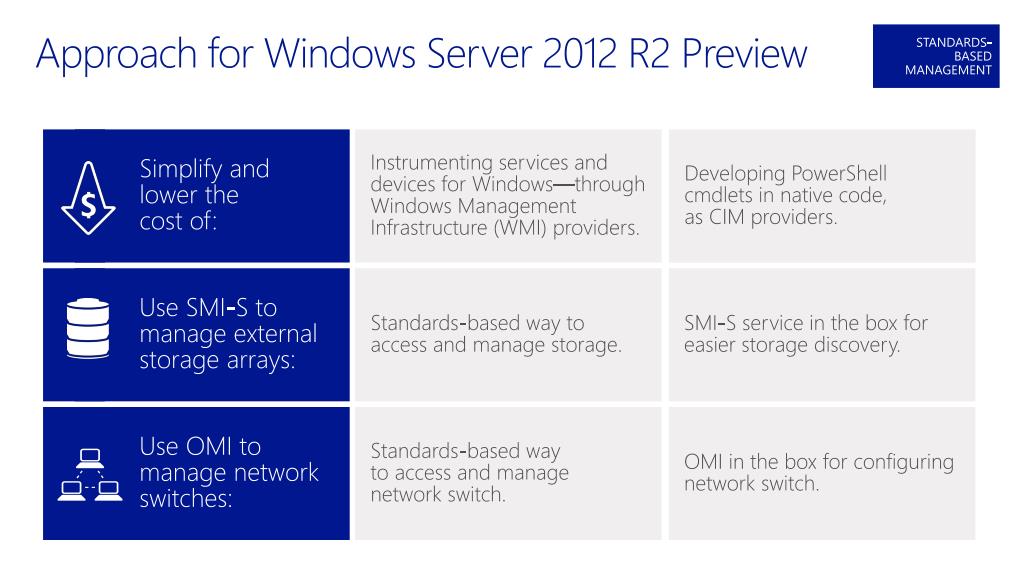

    Simplify and lower the cost of:

    • Instrumenting services and devices for Windows—through Windows Management Infrastructure (WMI) providers.

    • Developing PowerShell cmdlets in native code, as CIM providers.

    • Standards-based way to access and manage storage.

    • SMI-S service in the box for easier storage discovery.

    Use SMI-S to manage external storage arrays:

    Use OMI to manage network switches:

    • Standards-based way to access and manage network switch.

    • OMI in the box for configuring network switch.


    Switch management standards based automation

    Switch managementStandards based automation

    Easily deploy and operate network switches in standards approach

    Switch x

    CIM

    • PowerShell scripts for common switch management tasks.

      • SCVMM imports and validates port configuration from switch.

    • Logo Program: Server Certification for switch endors implementing CIM Schema.

    • Define mechanisms to auto generate PowerShell cmdlets for vendor extensions.

    Windows

    (PowerShell)

    Switch y

    CIM

    WS-Man

    SCVMM

    Non-Windows

    Switch z

    CIM


    Out of band h ardware m anagement standards based automation

    Out-of-band hardware managementStandards based automation

    Manage hardware in standards approach

    BMC x

    SMA

    S

    H

    • Support multiple industry standards, schemas and protocols.

    • PowerShell Cmdlets and WMI provider shipping in box to provide a common abstraction layer.

    • Test scripts for validating hardware implementation.

    SMASH (WS-Man)

    BMC y

    I

    P

    M

    I

    PCSV

    IPMI (RMCP+)

    Windows

    (PowerShell)

    PCSV (WS-Man)

    BMC z

    PCSV


    Simplify your routine task

    Simplify your routine task

    • Ease of use

    Windows PowerShell

    Real world scenario

    More intuitive

    Provides greater flexibility, reducing the cost and complexity of management in a diverse datacenter ecosystem.

    Greater resiliency


    Windows powershell 4 0

    SIMPLIFY YOUR ROUTINE TASK

    Windows PowerShell 4.0

    Key features

    • Ease of use

    • Integrated Scripting Environment: IntelliSense, Code Snippets.

    • PowerShell web access.

    • Real world scenario

    • Domain join.

    • System Center integration.

    • Extensive coverage

    • Rich management through more than 3000+ cmdlets.

    • Greater resiliency

    • Robust session connectivity.

    • Job scheduling.

    • Windows PowerShell workflow.


    Ease of use

    SIMPLIFY YOUR ROUTINE TASK

    Ease of use

    IntelliSense

    • Run Windows PowerShell ISE to execute commands and write, test, and debug scripts in a single Windows-based graphic user interface with multiline editing, tab completion, syntax coloring, and selective execution.

    • Context-sensitive command completion for cmdlet and script names, parameter names and enumerated values, and property and method names.

    • Show-Command pane for finding and running cmdlets in a dialog box.


    Ease of use1

    SIMPLIFY YOUR ROUTINE TASK

    Ease of use

    Simplified Scripting

    • Syntax simplification: Windows PowerShell 4.0 includes simplified, consistent syntax across all cmdlets.

    • Simplified scripting through Windows PowerShell ISE:

    • Built-in code snippets include templates for functions, parameters, and statements.

    • Users do not need to remember the syntax.

    Snippets add reusable text to scripts and commands.


    Extensive coverage

    SIMPLIFY YOUR ROUTINE TASK

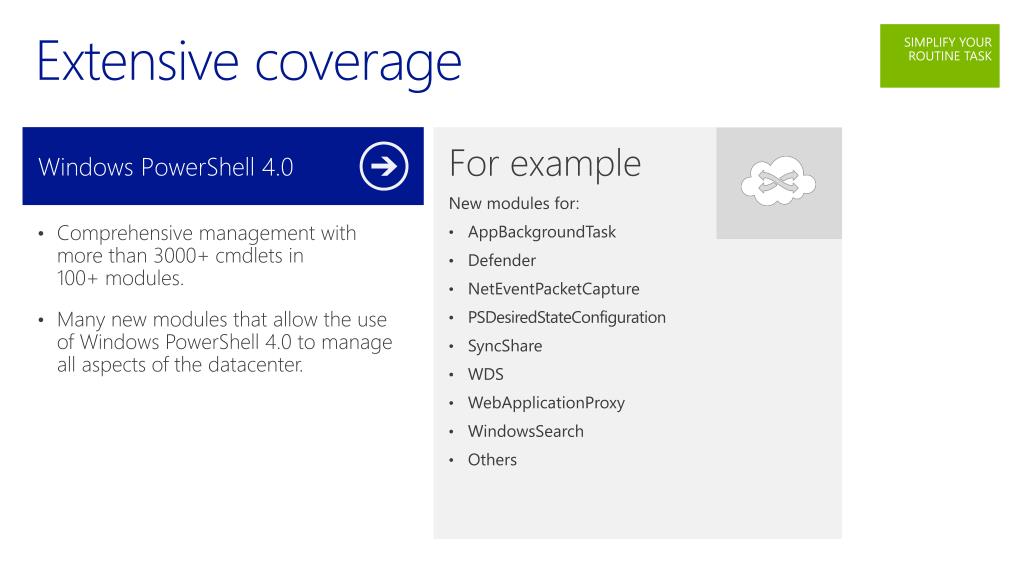

    Extensive coverage

    Windows PowerShell 4.0

    • For example

    • New modules for:

    • AppBackgroundTask

    • Defender

    • NetEventPacketCapture

    • PSDesiredStateConfiguration

    • SyncShare

    • WDS

    • WebApplicationProxy

    • WindowsSearch

    • Others

    • Comprehensive management with more than 3000+ cmdlets in 100+ modules.

    • Many new modules that allow the use of Windows PowerShell 4.0 to manage all aspects of the datacenter.


    Greater resiliency

    Internet

    SIMPLIFY YOUR ROUTINE TASK

    Greater resiliency

    Windows PowerShellWeb Access

    • Manage computers running Windows by using Windows PowerShell within a browser.

    • Broad support for popular browsers.

    • Built for tablets and mobile devices.

    Server 1

    Server 2

    Windows PowerShell

    Web Access Gateway

    DMZ

    Web-based Console User

    Server 3

    Corporate

    Network


    Greater resiliency1

    Internet

    SIMPLIFY YOUR ROUTINE TASK

    Greater resiliency

    03

    Robust session connectivity

    Server 1

    • User connects via the browser through the PowerShell Web Access Gateway to run a script on Server 1.

    • User loses connection to the internet.

    • User reconnects to internet at a later point in time and reconnects to the Windows PowerShell session which is still in a connected state and still running.

    Script

    Windows PowerShell

    Web Access Gateway

    Corporate

    Resource

    DMZ

    Web-based Console User


    Greater resiliency2

    SIMPLIFY YOUR ROUTINE TASK

    Greater resiliency

    03

    Job scheduling

    Improve management automation.

    Schedule jobs for executionat a later time, according to a particular schedule.


    Greater resiliency3

    SIMPLIFY YOUR ROUTINE TASK

    Greater resiliency

    03

    Jobs execute based on triggers

    Job scheduling

    Improve management automation.

    • Weekly

    • Once

    • Daily

    Schedule jobs for executionat a later time, according to a particular schedule.

    • At startup

    • At logon


    Greater resiliency4

    SIMPLIFY YOUR ROUTINE TASK

    Greater resiliency

    03

    Jobs example

    Jobs execute based on triggers

    # Create a job trigger based on the desired schedule and register the job

    $trigger = New-JobTrigger -Daily -At 4am

    Register-ScheduledJob -Name MyScheduledJob -ScriptBlock { Get-Process } -Trigger $trigger

    Get-ScheduledJob

    # Once the trigger has fired and the job has run, you can work with it the same way you do regular background jobs

    Import-Module PSScheduledJob

    $j = Get-Job -Name MyScheduledJob

    Receive-Job $j

    • Weekly

    • Once

    • Daily

    • At startup

    • At logon


    Greater resiliency5

    SIMPLIFY YOUR ROUTINE TASK

    Greater resiliency

    03

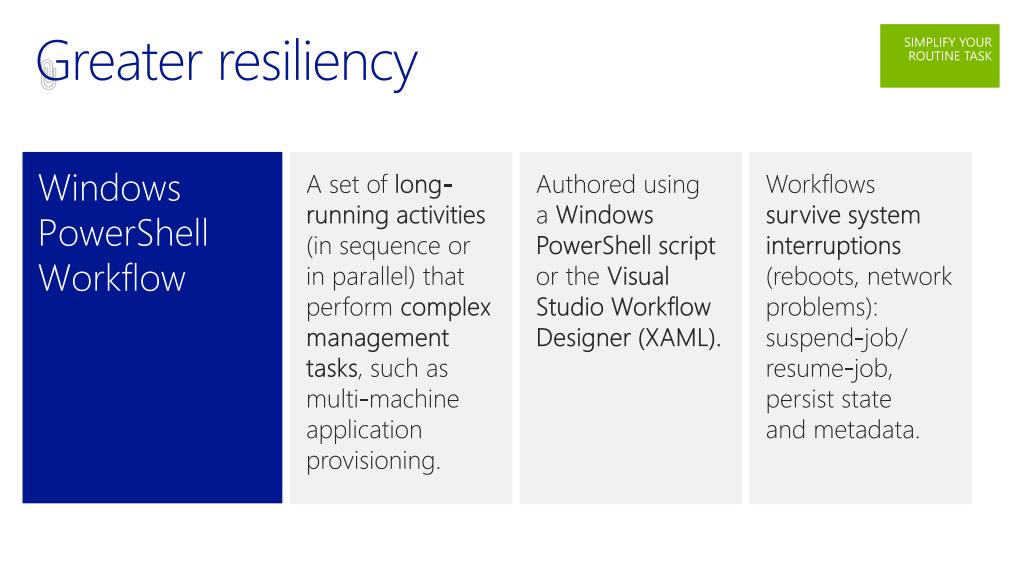

    Windows PowerShell Workflow

    A set of long-running activities (in sequence or in parallel) that perform complex management tasks, such as multi-machine application provisioning.

    Authored using a Windows PowerShell script or the Visual Studio Workflow Designer (XAML).

    Workflows survive system interruptions (reboots, network problems): suspend-job/ resume-job, persist state and metadata.


    Real world scenarios

    SIMPLIFY YOUR ROUTINE TASK

    Real world scenarios

    • Join-Domain through Workflow

    workflow Join-Domain

    {

        param(

            [Parameter(Mandatory)]

            [string]$DomainName,

            [Parameter(Mandatory)]

            [PSCredential]$DomainCredential

            )

        Get-CimInstance -ClassName win32_computersystem

        Add-Computer -Credential $DomainCredential -DomainName $DomainName -LocalCredential $PSCredential

        Restart-Computer -Force -Wait

        Get-CimInstance -ClassName win32_computersystem

    }

    # Usage

    Join-Domain -PSComputerName <list of machines> -PSCredential <local admin credential> -DomainName <domain name> -DomainCredential <credential that can join machine to domain>


    New modules in windows server 2012 r2 preview 16 new

    New Modules in Windows Server 2012 R2 Preview16 new

    AppBackgroundTask

    Defender

    DFSR

    NetEventPacketCapture

    NetNat

    PcsvDevice

    PSDesiredStateConfiguration

    SoftwareInventoryLogging

    StartScreen

    SyncShare

    TLS

    WDS

    WebApplicationProxy

    WindowsSearch

    WssCmdlets

    WssSetupCmdlets


    New cmdlets in windows server 2012 r2 preview 652 new

    New Cmdlets in Windows Server 2012 R2 Preview652 new

    223 WssCmdlets

    60 ADFS

    58 IpamServer

    42 DFSR

    36 RemoteAccess

    33 WDS

    26 NetEventPacketCapture

    18 DhcpServer

    18 Storage

    14 SyncShare

    14 Hyper-V

    13 PSDesiredStateConfiguration

    13 NetNat

    13 VpnClient

    10 WebApplicationProxy

    10 SoftwareInventoryLogging

    8 Dism

    7 SmbShare

    5 PcsvDevice

    5 WssSetupCmdlets

    4 TLS

    3 StartScreen

    3 NetTCPIP

    3 IscsiTarget

    2 WindowsSearch

    2 TrustedPlatformModule

    2 PrintManagement

    1 SmbWitness

    1 NetWNV

    1 AdcsAdministration

    1 Deduplication

    1 NetSecurity

    1 FailoverClusters

    1 DnsServer


    New parameters in windows server 2012 r2 preview 3 603 new

    New Parameters in Windows Server 2012 R2 Preview3,603 new

    619 IpamServer

    384 WssCmdlets

    351 RemoteAccess

    315 ADFS

    285 WDS

    190 DFSR

    170 NetEventPacketCapture

    166 Hyper-V

    157 Storage

    124 DhcpServer

    117 VpnClient

    99 SyncShare

    82 NetNat

    79 Dism

    74 PcsvDevice

    67 WebApplicationProxy

    42 SoftwareInventoryLogging

    40 NetTcpIP

    39 SmbShare

    37 PSDesiredStateConfiguration

    19 NetWNV

    19 IscsiTarget

    15 DnsServer

    14 WssSetupCmdlets

    13 PrintManagement

    12 NetSecurity

    11 FailoverClusters

    11 Deduplication

    10 TLS

    8 StartScreen

    6 PSScheduledJob

    5 AppX

    4 WindowsSearch

    3 ClusterAwareUpdating

    2 PowerShellWebAccess

    2 AdcsAdministration

    2 BitsTransfer

    2 TrustedPlatformModule

    2 Microsoft.PowerShell.Management

    2 SmbWitness

    1 SMISConfig

    1 Microsoft.PowerShell.Utility

    1 NetQos

    1 FileServerResourceManager


    Deployment

    Deployment

    Server Core

    Minishell

    Full GUI

    Real world scenario

    • Deployment options

    Deployment method

    Windows Deployment Services

    Server Manager

    Desired state configuration


    Deployment1

    DEPLOYMENT

    Deployment

    Deployment options

    • Server Core

    • The default deployment option.

    • RSAT for remote GUI management.

    • PowerShell support achieves critical mass with 3000+ cmdlets.

    • More roles and features available.

    • Server with a GUI

    • Equivalent of full Server in Windows Server 2008 R2.

    • Provided for backwards compatibility.


    Deployment2

    DEPLOYMENT

    Deployment

    Configuration levels

    Server with a GUI

    • Classic “Full Server”

    • Full Metro-style GUI shell.

    • Install Desktop Experience to run Metro-style apps.

    • Full Server without Server Graphical Shell

    • No Explorer, Internet Explorer or associated files.

    • MMC, Server Manager, and a subset of Control Panel applets are still installed.

    • Provides many of the benefits of Server Core for those applications or users that haven’t yet made the transition.

    • Server Core

    • Can move between Server Core and Full Server by simply installing or uninstalling components.

    Minimal Server

    Interface

    Server Core


    Local shell capabilities

    Local Shell Capabilities

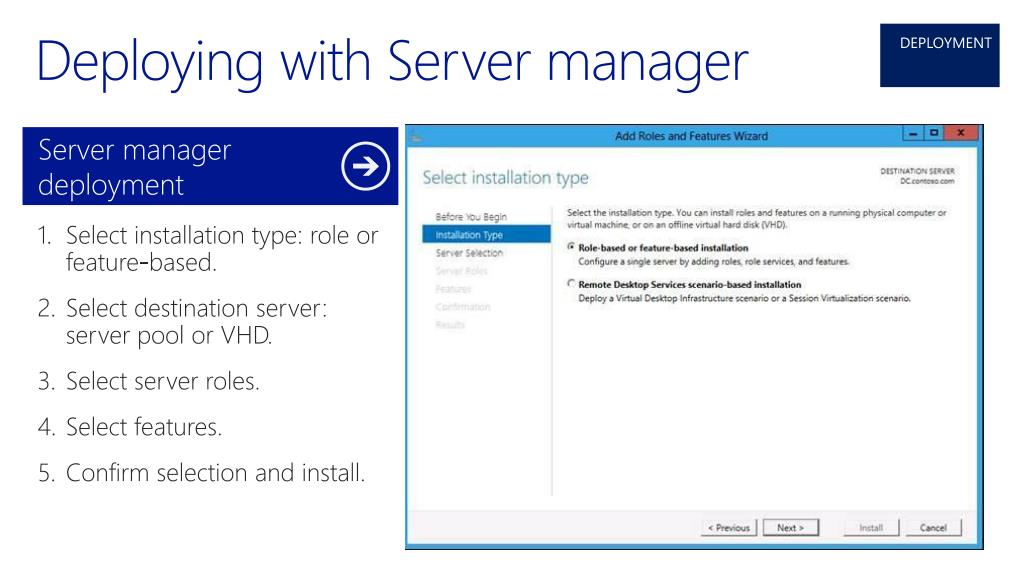

    Deploying with server manager

    DEPLOYMENT

    Deploying with Server manager

    Server manager deployment

    • Select installation type: role or feature-based.

    • Select destination server: server pool or VHD.

    • Select server roles.

    • Select features.

    • Confirm selection and install.


    Deploying with wds

    DEPLOYMENT

    Deploying with WDS

    Server manager deployment

    Plan,

    manage,

    diagnose

    Boot with

    PXE

    Get into

    WinPE

    • Powershell cmdlet.

    • Update images.

    • Monitor status.

    • Remotely manage WDS.

    First boot

    and OOBE

    Inject

    drivers

    Apply full OS image


    Desired state configuration

    DEPLOYMENT

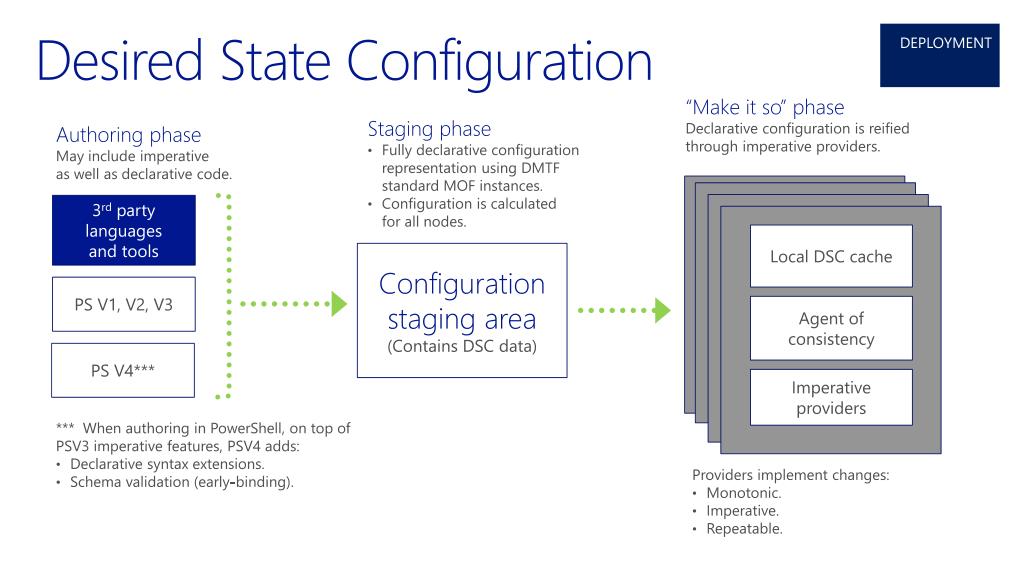

    Desired State Configuration

    DSC

    • Components of your data center have the correct configuration.

    • PowerShell language extensions and providers which enable declarative, repeatable deployment.

    • Define the exact configuration of target nodes (computers or devices) and prevent “configuration drift.”


    Desired state configuration1

    DEPLOYMENT

    Desired State Configuration

    “Make it so” phase

    Declarative configuration is reified through imperative providers.

    • Staging phase

    • Fully declarative configuration representation using DMTF standard MOF instances.

    • Configuration is calculated for all nodes.

    Authoring phase

    May include imperative as well as declarative code.

    3rd party languages and tools

    Local DSC cache

    Configuration staging area

    (Contains DSC data)

    PS V1, V2, V3

    Agent of consistency

    PS V4***

    Imperative providers

    • *** When authoring in PowerShell, on top of PSV3 imperative features, PSV4 adds:

      • Declarative syntax extensions.

      • Schema validation (early-binding).

    • Providers implement changes:

    • Monotonic.

    • Imperative.

    • Repeatable.


    Managing multiple s ervice

    Managing multiple service

    • Dashboard with overall view of server environment.

    • Easily and quickly see which servers have issues.

    Glance-able

    Actionable

    • Fix issues from Server Manager, no need to open other tools.

    • Works over multiple servers.

    • Start and stop services.

    • Add roles.

    Relevant

    • Server Manager dashboard customizable.

    • Create custom groups based on your needs.


    Server manager

    MULTI

    SERVER MANAGEMENT

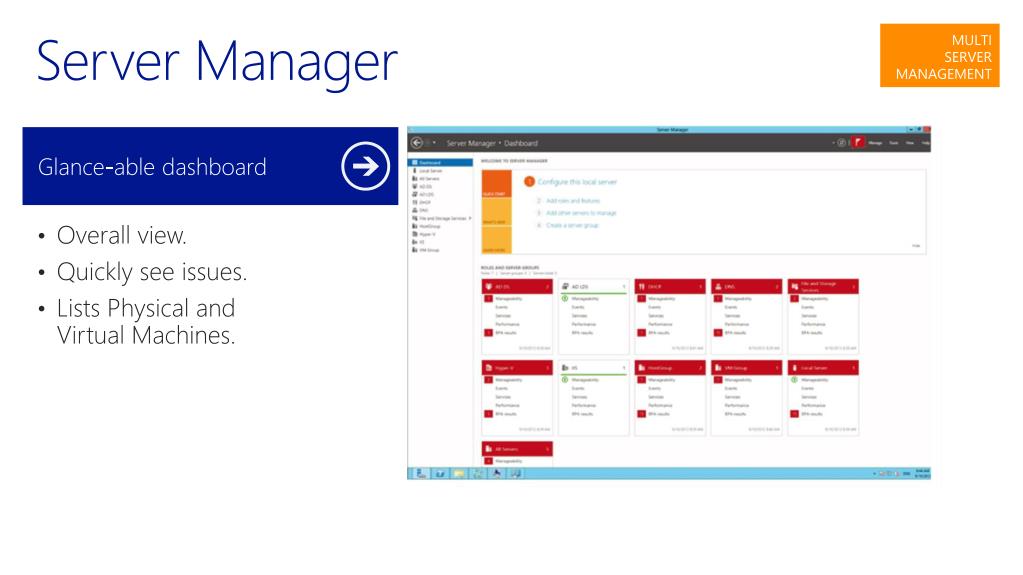

    Server Manager

    Glance-able dashboard

    • Overall view.

    • Quickly see issues.

    • Lists Physical and Virtual Machines.


    Server manager1

    MULTI

    SERVER MANAGEMENT

    Server Manager

    Actionable functions

    • Contextual menu of Server Management functions.

    • Fix issues from within Server Manager.

    • Ability to stop and start services on one or multiple machines.

    • Add roles remotely.

    • Add roles to offline VHDs.


    Server manager2

    MULTI

    SERVER MANAGEMENT

    Server Manager

    Relevant functions

    • Provides access to all the relevant functions and roles on server with one click, in one tool.

    • Applicable on menus at all levels within Server Manager.


    Server m anager

    MULTI

    SERVER MANAGEMENT

    Server Manager

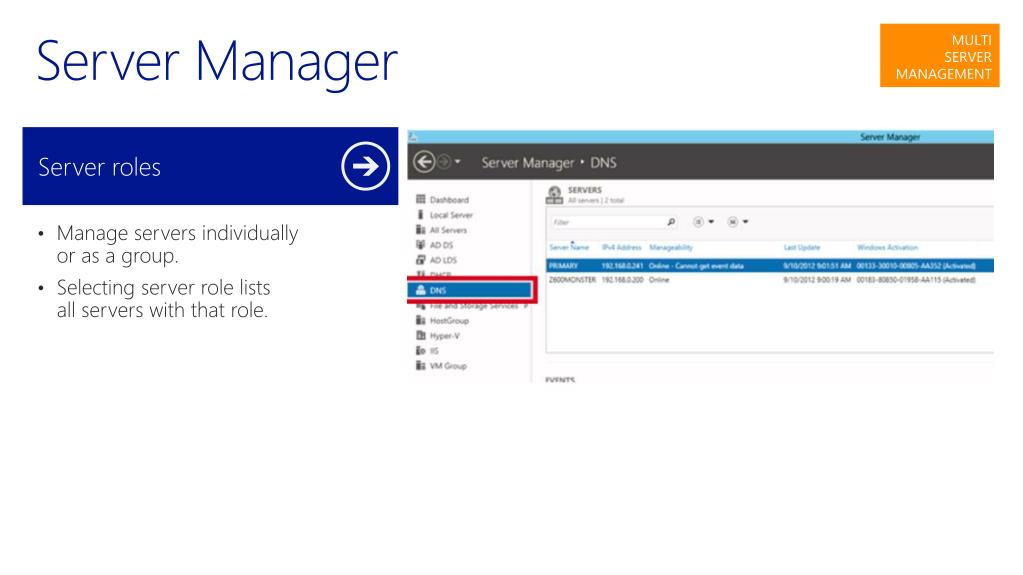

    Server roles

    • Manage servers individually or as a group.

    • Selecting server role lists all servers with that role.


    Server manager3

    MULTI

    SERVER MANAGEMENT

    Server Manager

    Server groups

    • Group servers based on role, location, or other criteria.

    • Easy to monitor and manage groups of servers.

    • Servers can be in added to multiple groups.


    Server manager4

    MULTI

    SERVER MANAGEMENT

    Server Manager

    Host groups

    • BPA—Best Practice Analyzer.

    • Filters available:

      • Severity

      • Category

      • Server


    Server manager5

    MULTI

    SERVER MANAGEMENT

    Server Manager

    Single server

    • When single server selected displays only events, services, and BPA entries relevant to that server.


    Ecosystem and extensibility

    Ecosystem and extensibility

    • Provides a standard set of tools to deploy and administer servers across the datacenter.

    Standardized automation across the datacenter.

    • Interoperates with environments that are not based on Windows.

    Extension of the development and

    operations story.

    • Enables developers and operations to use the same interfaces.


    Automation across the datacenter

    Automation across the datacenter

    ECOSYSTEM AND EXTENSIBILITY

    There is no management interoperability without a standard interface and protocol.

    • Lack of standards results in proprietary agents, protocols, and clients.

    • Complicates deployment and maintenance.

    • Consumes additional resources.

    • Increases the security exposure.


    Managing heterogeneous environment

    Managing heterogeneous environment

    ECOSYSTEM AND EXTENSIBILITY

    Multiple industry standards makes admins hard to manage and automate.

    Application

    • Application management: .NET, Java, 3rd party management tool.

    • Operating System management: WMI, vendor-specific management tool.

    • Compute management: DCMI/IPMI, SMASH/CIM, vendor-specific management tool.

    • Network management: SNMP, vendor-specific management tool.

    • Storage management: SMI-S, vendor-specific management tool.

    Operating system

    Compute

    Network

    Storage


    Eco system in standards based

    Eco system in Standards based

    ECOSYSTEM AND EXTENSIBILITY

    WS-Man for standard communication and management with Common Information Model.

    Windows

    Application

    Operating system

    Compute

    WS-MAN

    Others

    Network

    Storage


    Benefits for t wo c ommunities

    Benefits for two communities

    ECOSYSTEM AND EXTENSIBILITY

    • IT Pros

  • Windows PowerShell: Manage Windows and Linux/UNIX.

  • OData: manage Windows from Linux/UNIX.

    • Developers

    • Simplified management interface definition and implementation for managed services and devices.

  • IT Pros

    Developers of managed services and devices


    Reducing time cost and risk

    Reducing time, cost, and risk

    ECOSYSTEM AND EXTENSIBILITY

    Build

    Combine

    Run

    Standard operating procedures

    $

    Time


    Reducing time cost and risk1

    Reducing time, cost, and risk

    ECOSYSTEM AND EXTENSIBILITY

    Build

    Combine

    Run

    Standard operating procedures

    $

    Time


    What s new in server management and automation

    What’s new in Server Management and Automation

    Standards-based

    PowerShell 4.0

    Server Manager

    • Open Management Infrastructure:

      • Network Switch management.

      • Physical Server management.

    • Broader WS-Man adoption:

      • WMI.

    • Desired State Configuration:

    • Declarative, repeatable deployment.

    • Defining exact configuration of target nodes.

    • Declarative syntax extensions.

    • Schema validation.

    • 16 new modules.652 new cmdlets.3603 new parameters.

    • IPAM with virtual network management.

    • Web application proxy.

    • File and storage services:

    • Work folders.

    • Essentials experience.


    Module 5 server management automation with windows server 2012 r2

    Talk with our Experts in Chat tool.

    #WS2012R2JS

    Hands-On Labs

    DOWNLOAD Windows Server 2012 R2 Preview

    aka.ms/ws2012r2

    DOWNLOAD System Center 2012 R2 Preview

    aka.ms/sc2012r2

    http://www.microsoftvirtualacademy.com

    System Center 2012 R2 Jumpstart

    July 15th - http://aka.ms/SCR2JS


  • Login
