  1. UKQCD Achievements and Future Priorities QCDgrid Who and what Achievements QCDgrid middleware Future priorities Demo of meta-data catalogue browser Alan IrvingUniversity of LiverpoolUKQCD

  2. UKQCD and the Grid:QCDgrid architecture • Phase 1: data grid  • Phase 2: distributed processing • Roll out to all UKQCD • ILDG: International Lattice Data Grid • (ILDG meeting in Edinburgh: Dec 19/20)

  3. QCDgrid people • The main players…… • James Perry – EPCC • jamesp@epcc.ed.ac.uk • Globus, EDG and QCDgrid middleware, browser (OGSA) • Chris Maynard – Edinburgh • cmaynard@ph.ed.ac.uk • XML schema, QCDgrid administrator • Craig McNeile – Liverpool • mcneile@amtp.liv.ac.uk • UKQCD Software Manager, QCDgrid user interface

  4. QCDgrid Achievements • We have a working data grid (J Perry, EPCC) • We have used it for routine work (C McNeile, Liverpool) • We can build our own 0.6 Tbyte RAID disk arrays for < £2000 (S Downing, Liverpool) • We have explicitly tested RAID systems by reformatting one drive (C Allton , Swansea) • We have a draft XML schema for lattice QCD data (C Maynard, Edinburgh) • We have started an International Lattice Data Grid project (R Kenway, Edinburgh)

  5. QCDgrid middleware (Globus 2.0, Linux 7.x) • Grid administration • control-thread.sh • add-qcdgrid-node • disable-qcdgrid-node • enable-qcdgrid-node • remove-qcdgrid-node • retire-qcdgrid-node • unretire-qcdgrid-node • get-disk-space • qcdgrid-checksum • qcdgrid-filetime • rebuild-qcdgrid-rc • create-qcdgrid-rc • delete-qcdgrid-rc • verify-qcdgrid-rc • Configuration • qcdgrid.conf • nodes.conf • nodeprefs.conf • User commands • qcdgrid-list • put-file-on-qcdgrid • get-file-from-qcdgrid • i-like-this-file • qcdgrid-delete

  6. QCDgrid: the future

  7. UKQCD is a distributed physics organisation Distributed computing  Grid Local disk farms and clusters QCDOC : source of configs Primary data from QCDOC QCDOC not directly on the grid Output -> binary + XML Front end feeds data to QCDgrid Data storage on RAID RAIDs as QCDgrid nodes Analyses on clusters Phase I: analysis on specified nodes pulling/pushing data from QCDgrid Phase II: cluster processing via grid middleware? QCDOC and the grid … QCDOC FE Grid Node

  8. QCDgrid: future plans Short term • Decide on database: native XML (Xindice) or relational + XML interface tools • Complete meta-data catalogue browser • Expand no of sites in Grid to 4 UKQCD + RAL • Decide on data-binding or other strategy for QCDOC I/O • Construct more RAID arrays. Longer term • Agree ILDG standard XML schema • Agree ILDG middleware functionality at web-services level • Monitor EDG M/W • Investigate EDG M/W for remote job processing • Test interoperability with other ILDG sites • Develop M/W to implement any new IDLG strategy

  9. QCDgrid and HPC resources requested Hardware • ‘Tier 1’: QCDOC + FE [JIF] • ‘Tier 2’: [PPARC, ‘son-of-SRIF’] • 6x100 node PC clusters • 6x20 Tbyte disk farms (could be integrated with LHC Tier 2 facilities?) Staff • Grid specific: [PPARC/GridPP, Esci] • 2 FTEx3years for QCDgrid and ILDG development • 1 FTEx3 years for maintenance, dissemination (shared with other theory groups) • Core SW development: [PPARC/HPC] • 4 phys. progs. across all UKQCD • Subdetector specific: • N.A.

  10. QCDgrid logical name browser

  11. QCDgrid metadata catalogue browser

  12. Output from Metadata Catalogue search trumpton.ph.ed.ac.uk:aci|aci> Query returned 427 results Grid filename: NF2/BETA526/CLOVER195/V16X32/KAPPA3450/GAUGE/D526C195K3450U017500.tar Grid filename: NF2/BETA526/CLOVER195/V16X32/KAPPA3450/GAUGE/D526C195K3450U017600.tar Grid filename: NF2/BETA526/CLOVER195/V16X32/KAPPA3450/GAUGE/D526C195K3450U017700.tar Grid filename: NF2/BETA526/CLOVER195/V16X32/KAPPA3450/GAUGE/D526C195K3450U017800.tar Grid filename: NF2/BETA526/CLOVER195...

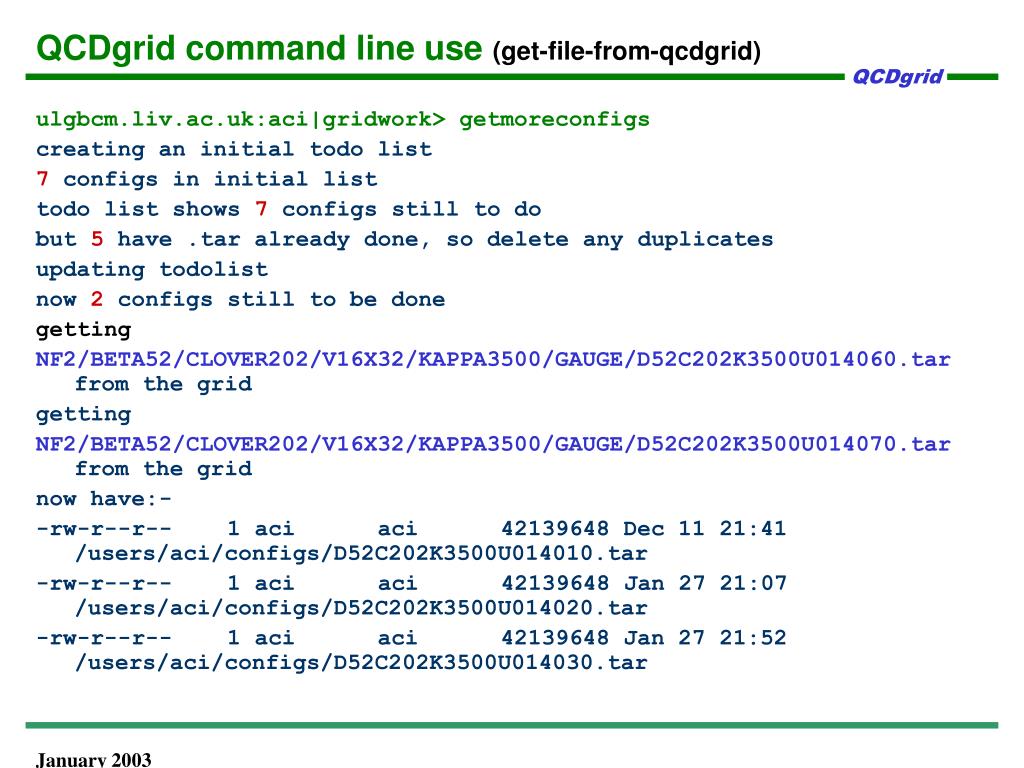

  13. QCDgrid command line use (get-file-from-qcdgrid) ulgbcm.liv.ac.uk:aci|gridwork> getmoreconfigs creating an initial todo list 7 configs in initial list todo list shows 7 configs still to do but 5 have .tar already done, so delete any duplicates updating todolist now 2 configs still to be done getting NF2/BETA52/CLOVER202/V16X32/KAPPA3500/GAUGE/D52C202K3500U014060.tar from the grid getting NF2/BETA52/CLOVER202/V16X32/KAPPA3500/GAUGE/D52C202K3500U014070.tar from the grid now have:- -rw-r--r-- 1 aci aci 42139648 Dec 11 21:41 /users/aci/configs/D52C202K3500U014010.tar -rw-r--r-- 1 aci aci 42139648 Jan 27 21:07 /users/aci/configs/D52C202K3500U014020.tar -rw-r--r-- 1 aci aci 42139648 Jan 27 21:52 /users/aci/configs/D52C202K3500U014030.tar
