  1. Mars Orbit Lab Chatfield Senior High Physics Department

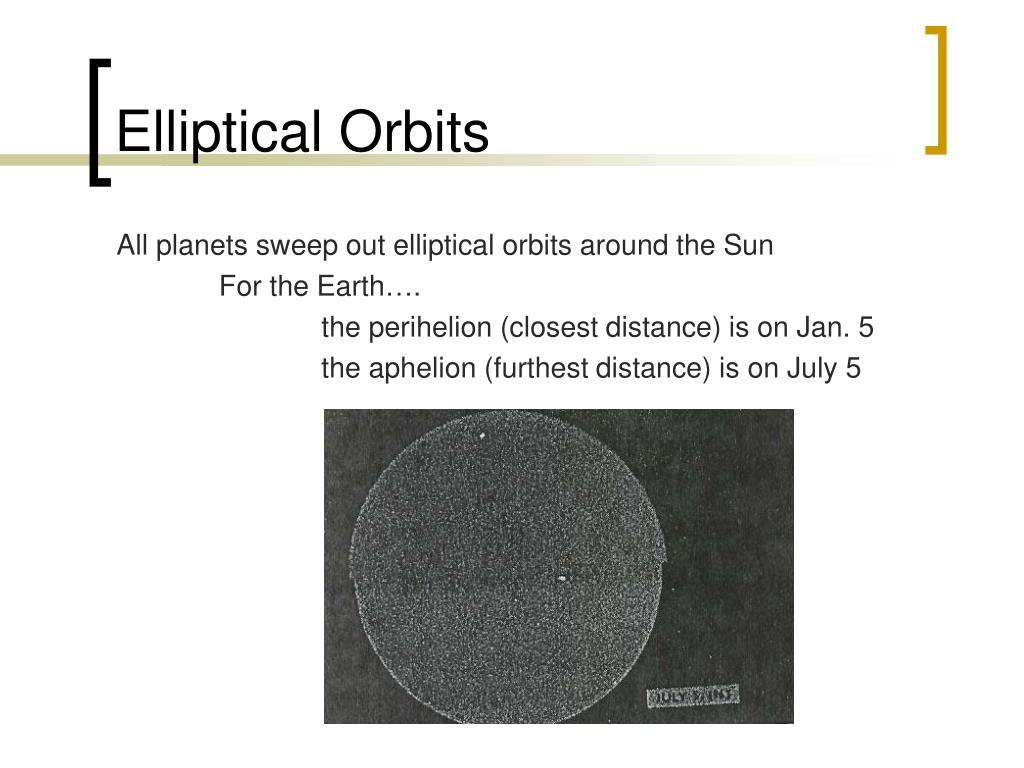

  2. Elliptical Orbits All planets sweep out elliptical orbits around the Sun For the Earth…. the perihelion (closest distance) is on Jan. 5 the aphelion (furthest distance) is on July 5

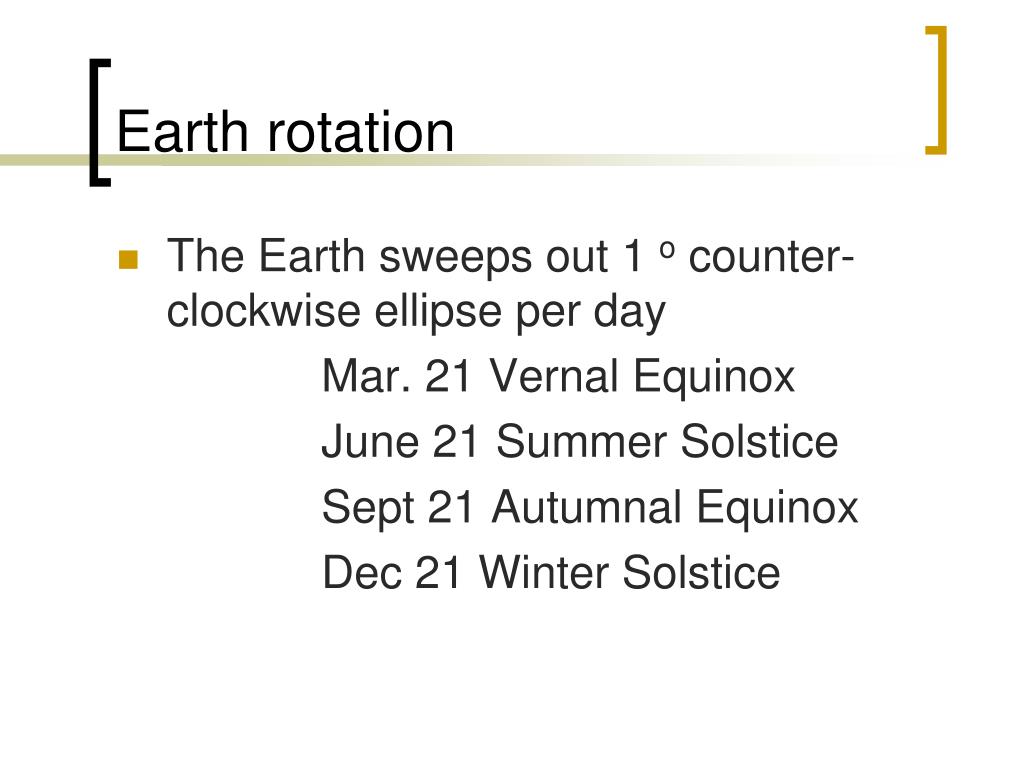

  3. Earth rotation • The Earth sweeps out 1 o counter-clockwise ellipse per day Mar. 21 Vernal Equinox June 21 Summer Solstice Sept 21 Autumnal Equinox Dec 21 Winter Solstice

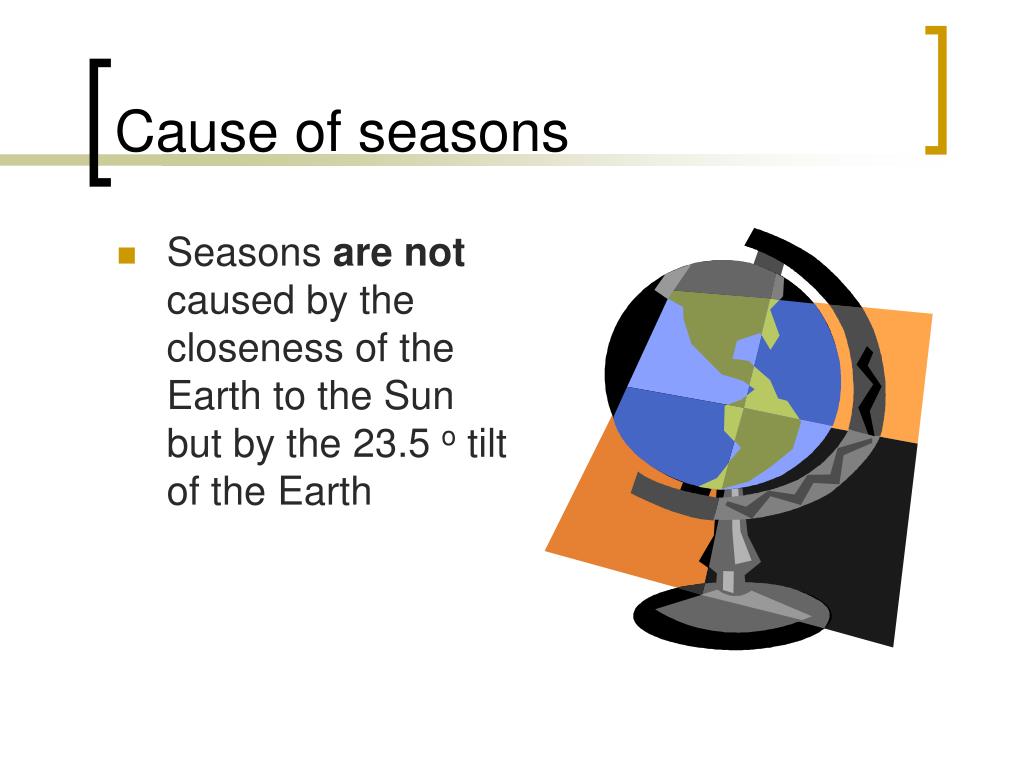

  4. Cause of seasons • Seasons are not caused by the closeness of the Earth to the Sun but by the 23.5 o tilt of the Earth

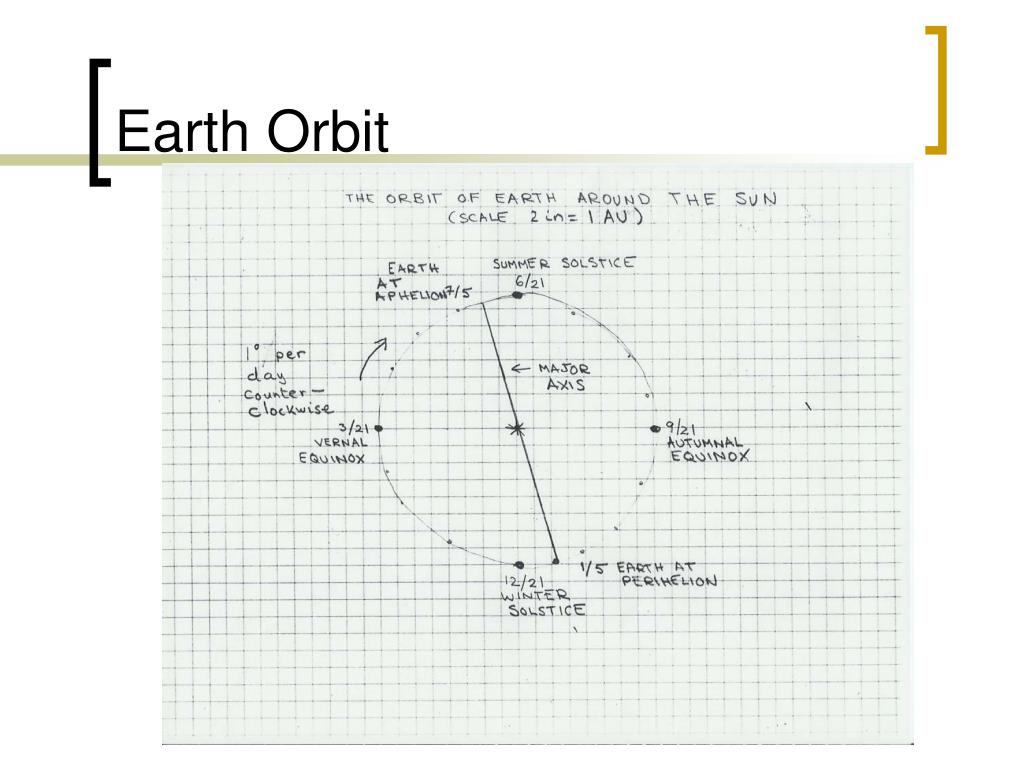

  5. Earth Orbit

  6. Mars Orbit Lab Stellar Template

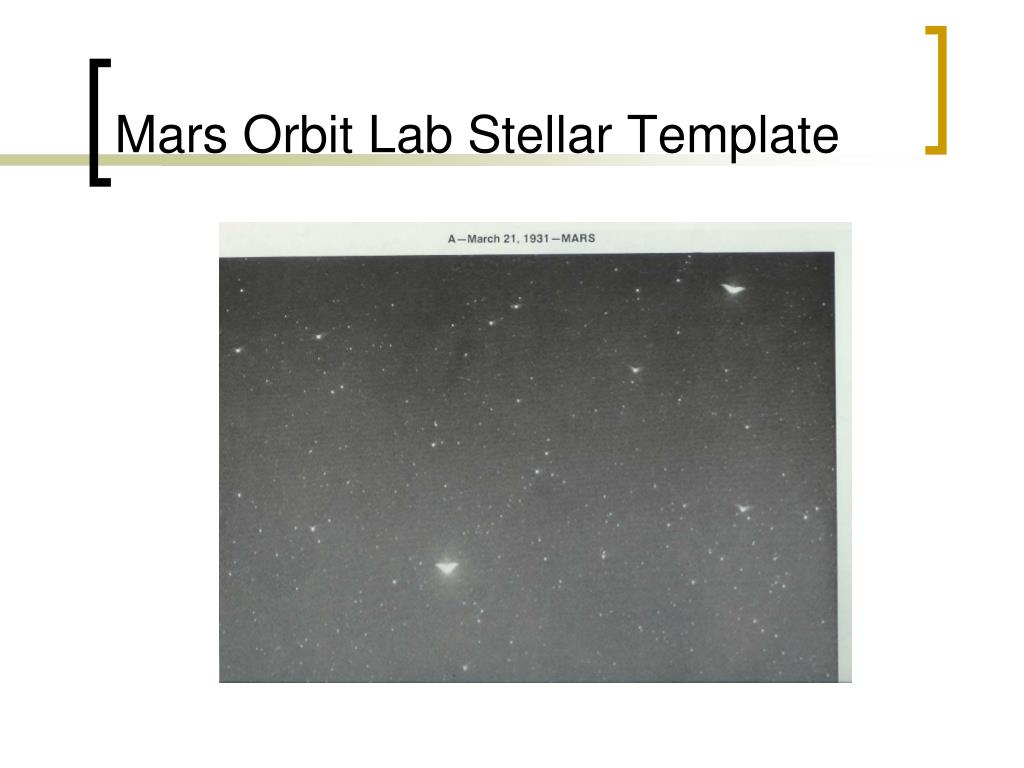

  7. Mars Orbit Stellar Template • Overlay template over stellar map

  8. Determining Longitude of Mars from Earth • Using a stellar map for 8 pairs of points that are exactly one Martian year apart (687 days) you can create the following data table

  9. Earth position at each point

  10. To plot Earth points • 3/21 A directly left 10/11 J 14+11=25o • 4/4 O 10+4=14o 11/22 I 20+22=42o • 4/12 F 8o 12/9 L 8+9- 17o • 4/20 C 8o 1/21 K 22+21 =43o • 5/26 E 10+26=36o 2/3 N 10+ 3 = 13o • 8/4 H 5+30+31+4=70o 2/5 B 2o • 9/16 G 27+16=43o 2/21 P 16o 3/8 D 7+8 = 15o

  11. Plot each pair of Mars longitudes

  12. Finished Mars points

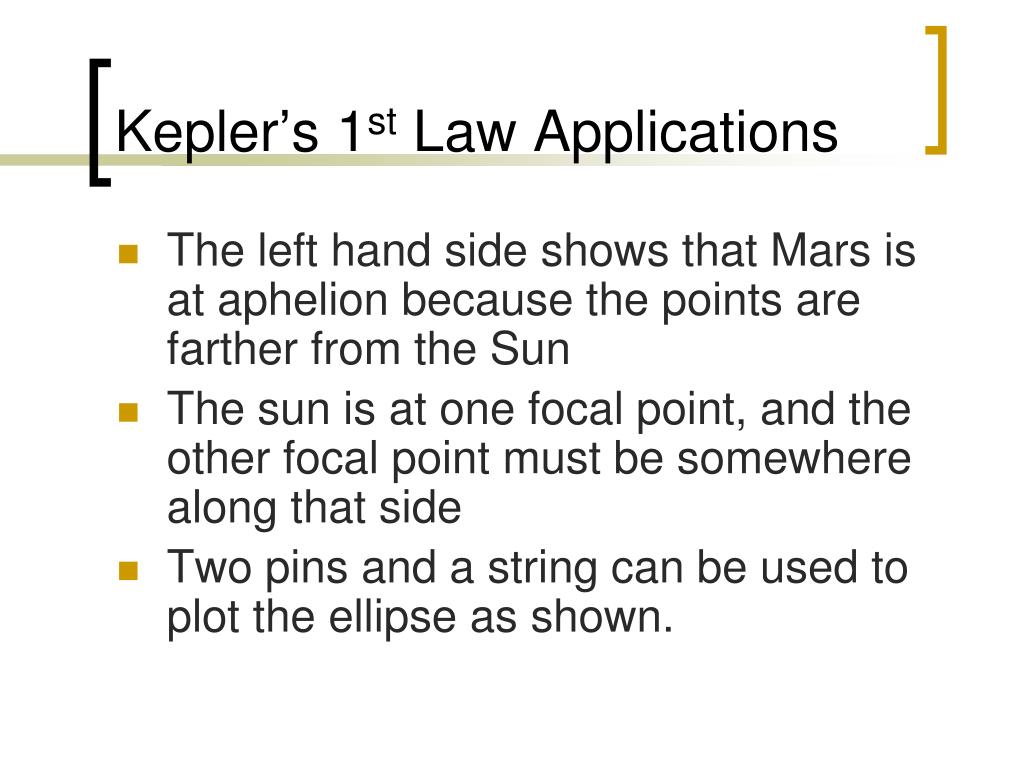

  13. Kepler’s 1st Law Applications • The left hand side shows that Mars is at aphelion because the points are farther from the Sun • The sun is at one focal point, and the other focal point must be somewhere along that side • Two pins and a string can be used to plot the ellipse as shown.

  14. Mars Orbit best-fit curve

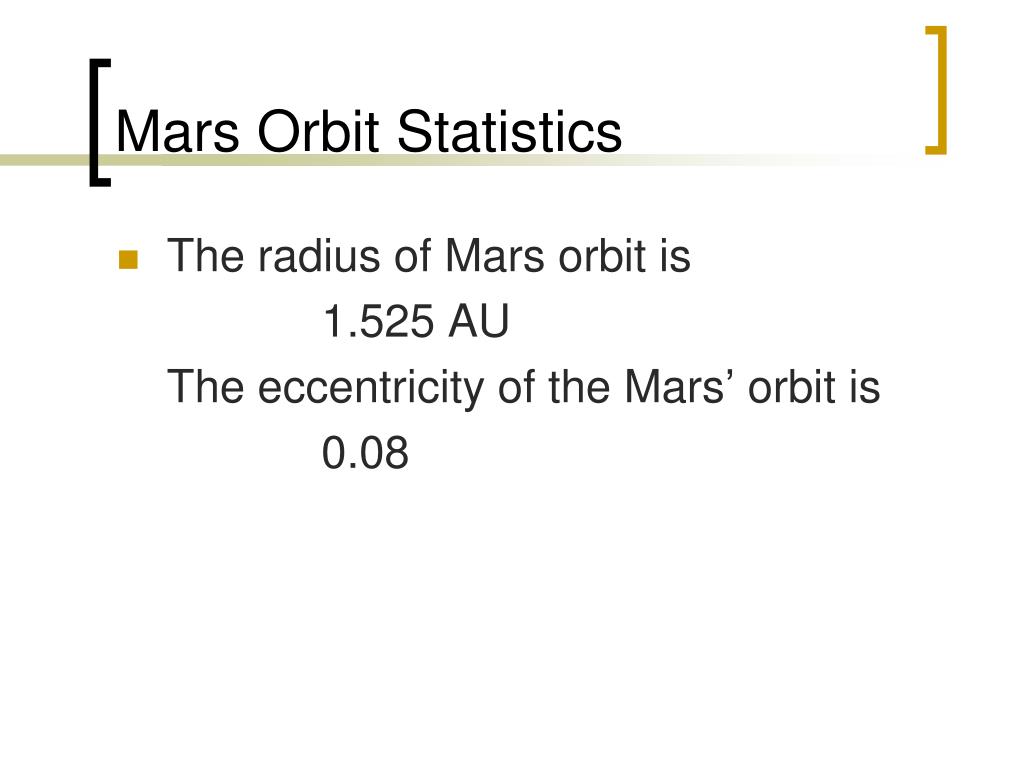

  15. Mars Orbit Statistics • The radius of Mars orbit is 1.525 AU The eccentricity of the Mars’ orbit is 0.08

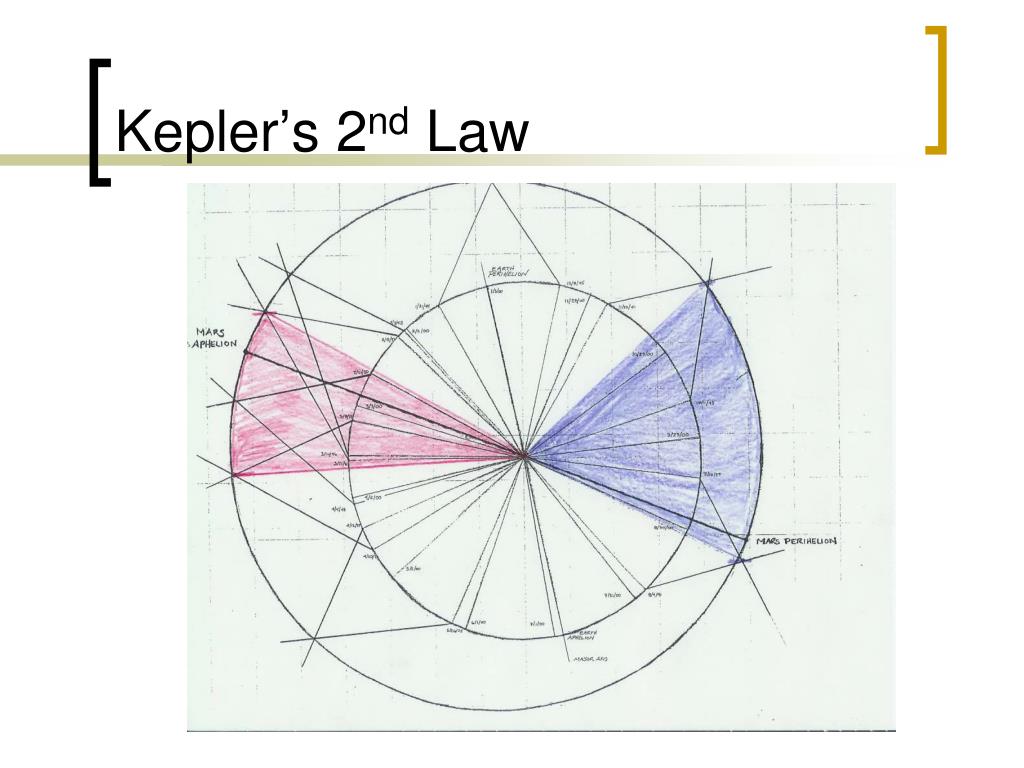

  16. Kepler’s 2nd Law • A line can be drawn from Mars to the Sun to sweep out the following areas… Area 1 (2/5/33-4/20/33) 74 days Area 2 (8/4/41-11/22/41) 110 days

  17. Kepler’s 2nd Law

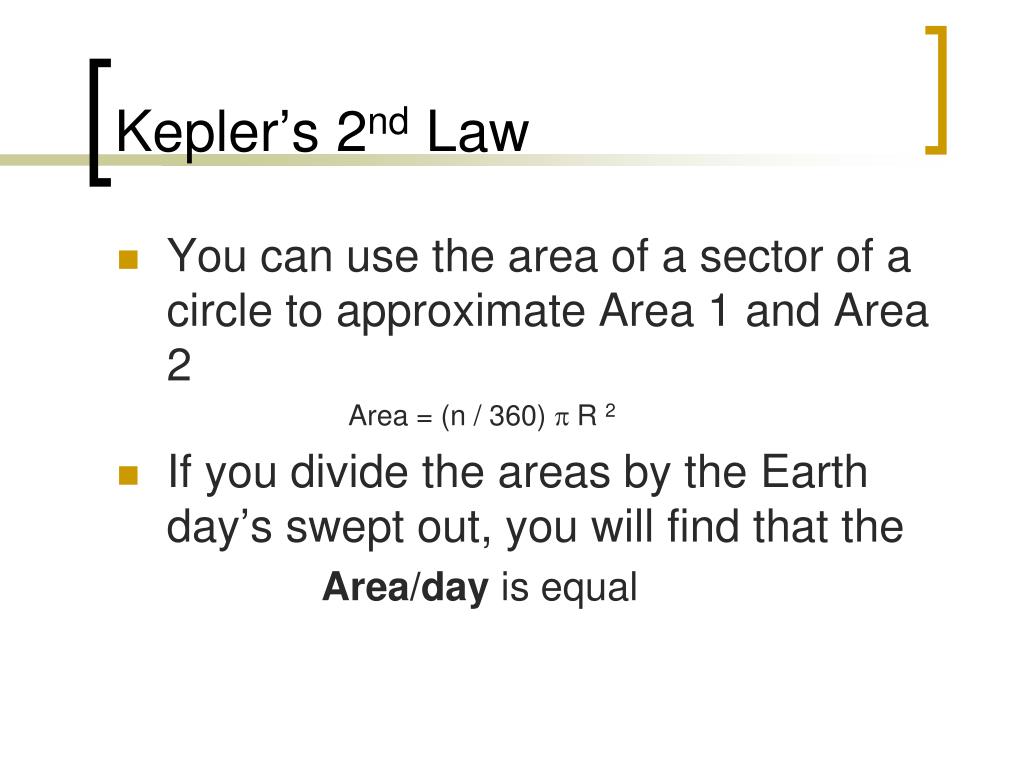

  18. Kepler’s 2nd Law • You can use the area of a sector of a circle to approximate Area 1 and Area 2 Area = (n / 360) p R 2 • If you divide the areas by the Earth day’s swept out, you will find that the Area/day is equal

  19. Kepler’s 3rd Law • You can use the fact that Mars has a period of 687 Earth days (1.88 yrs) • Mars R av is 1.525 AU • K (or Kepler’s constant) can be found by…. k = (1.88)2= 1 yr 2 / AU 3 (1.525)3

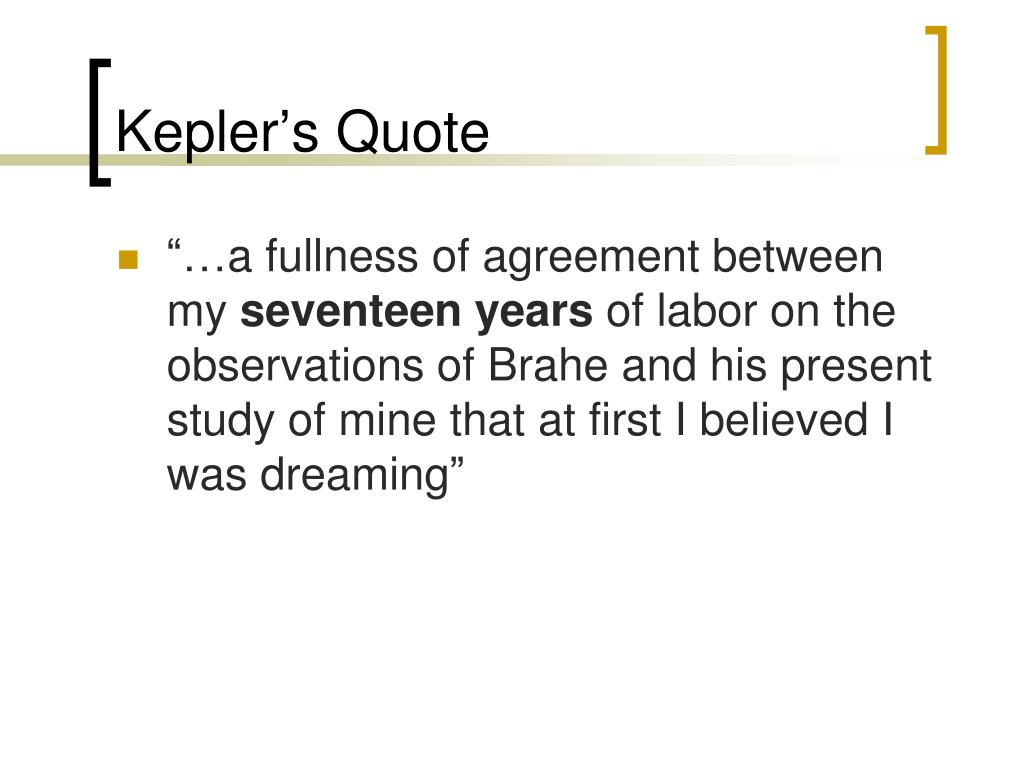

  20. Kepler’s Quote • “…a fullness of agreement between my seventeen years of labor on the observations of Brahe and his present study of mine that at first I believed I was dreaming”
