  1. LSC-Virgo Meeting 2007 July 23-26, MIT, Boston Recent Timing Diagnostic Results Rubab Khan1, Luca Matone1, Szabi Marka1, Daniel Sigg2 1Columbia University, GECo 2LIGO Hanford Observatory LIGO-G070551-00-D R.Khan, L. Matone, Sz. Marka, D. Sigg - Recent Timing Diagnostic Results - LIGO-G070551-00-D - Wednesday, July 25, 2007

  2. LSC Timing Diagnostic Results R.Khan, L. Matone, Sz. Marka, D. Sigg - Recent Timing Diagnostic Results - LIGO-G070551-00-D - Wednesday, July 25, 2007

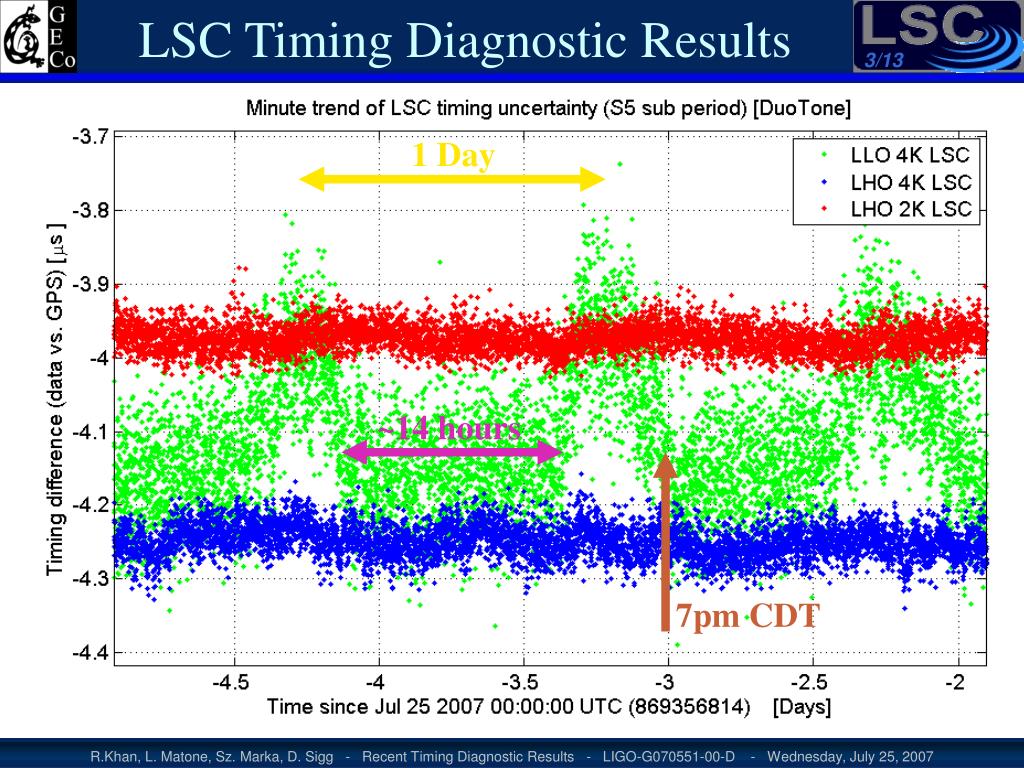

  3. LSC Timing Diagnostic Results 1 Day ~14 hours 7pm CDT R.Khan, L. Matone, Sz. Marka, D. Sigg - Recent Timing Diagnostic Results - LIGO-G070551-00-D - Wednesday, July 25, 2007

  4. Auxilary Timing Channels Detailed results are available from: http://www.gravitationalwaves.org/Detector/Timing/LIGO/TESTS/S5TIMEMON/ Per Science segments results are available for H1, H2, L1 at http://www.gravitationalwaves.org/Detector/Timing/LIGO/TESTS/S5TIMEMON/segment_timing/ first 20 months of S5 R.Khan, L. Matone, Sz. Marka, D. Sigg - Recent Timing Diagnostic Results - LIGO-G070551-00-D - Wednesday, July 25, 2007

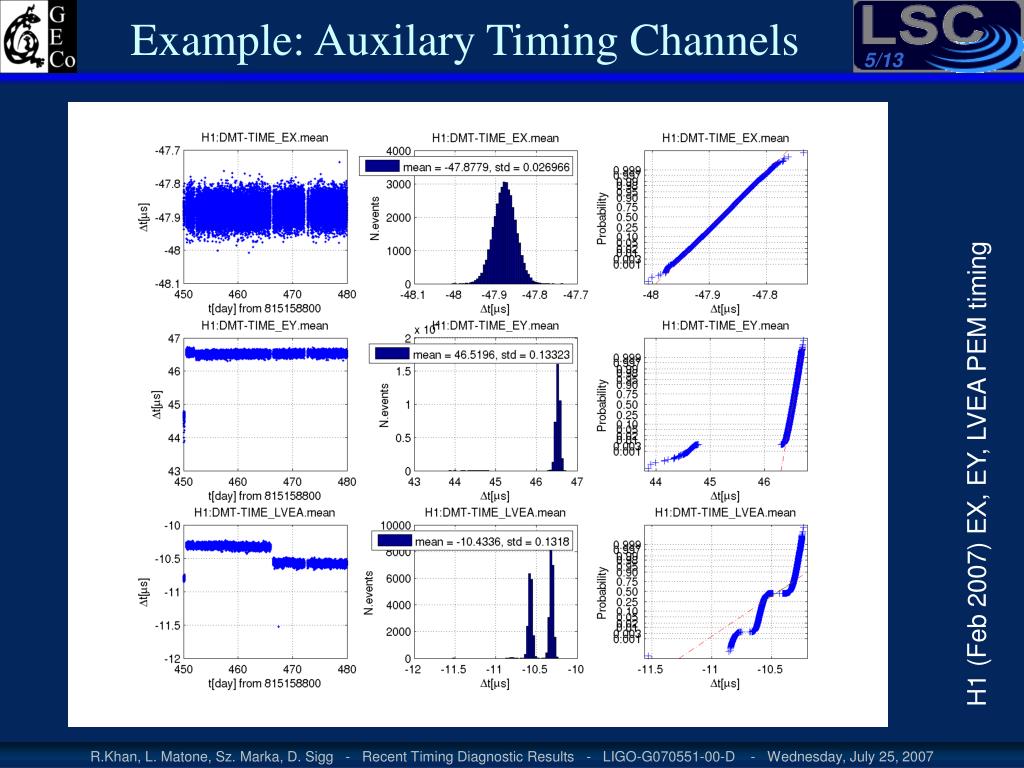

  5. Example: Auxilary Timing Channels H1 (Feb 2007) EX, EY, LVEA PEM timing R.Khan, L. Matone, Sz. Marka, D. Sigg - Recent Timing Diagnostic Results - LIGO-G070551-00-D - Wednesday, July 25, 2007

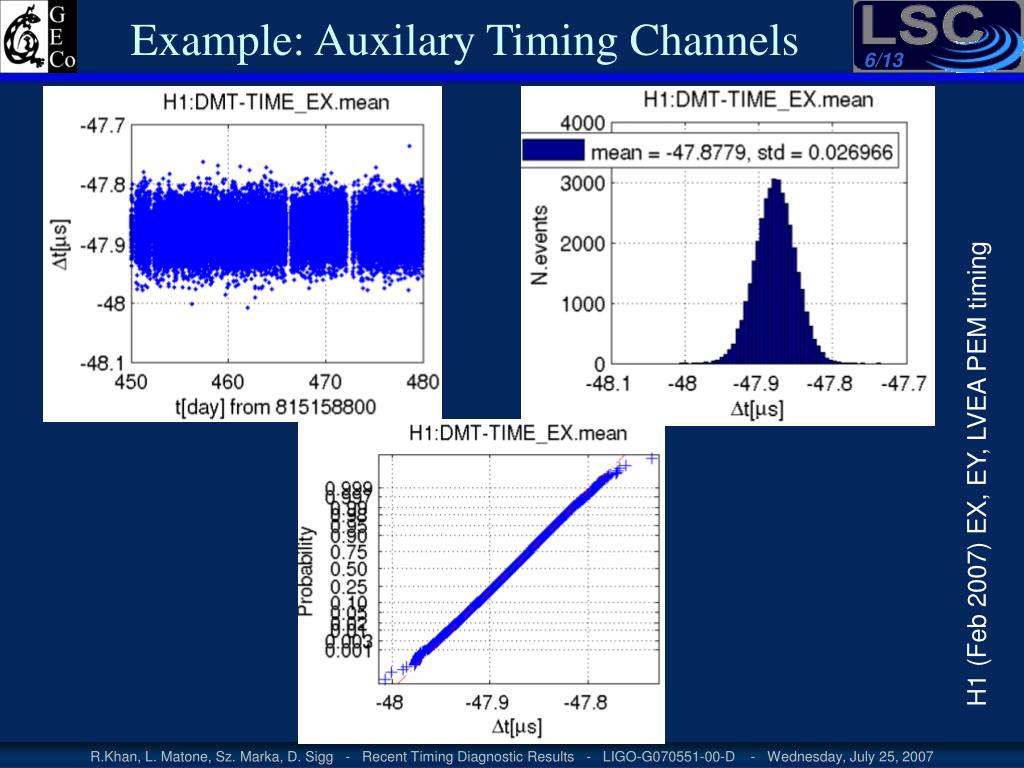

  6. Example: Auxilary Timing Channels H1 (Feb 2007) EX, EY, LVEA PEM timing R.Khan, L. Matone, Sz. Marka, D. Sigg - Recent Timing Diagnostic Results - LIGO-G070551-00-D - Wednesday, July 25, 2007

  7. Example: Auxilary Timing Channels H1 (Feb 2007) EX, EY, LVEA PEM timing R.Khan, L. Matone, Sz. Marka, D. Sigg - Recent Timing Diagnostic Results - LIGO-G070551-00-D - Wednesday, July 25, 2007

  8. Cross Verification to Atomic Clock Detailed results are available from: http://www.gravitationalwaves.org/Detector/Timing/LIGO/TESTS/S5ATOMIC/Atomic.html first 18 months of S5 R.Khan, L. Matone, Sz. Marka, D. Sigg - Recent Timing Diagnostic Results - LIGO-G070551-00-D - Wednesday, July 25, 2007

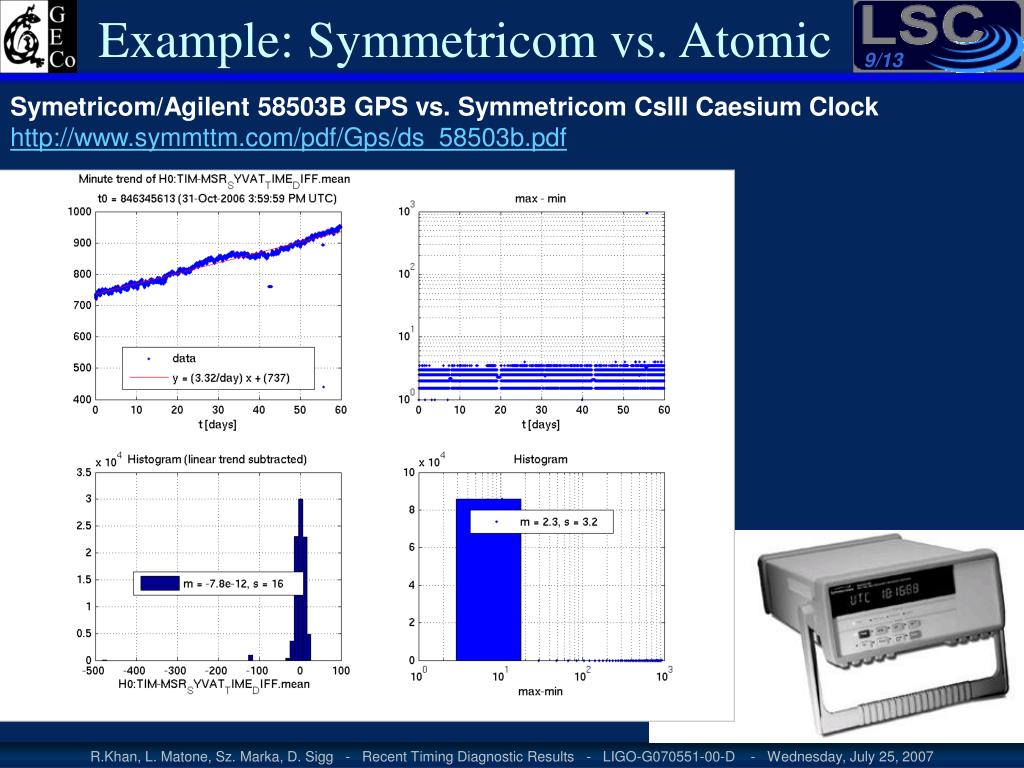

  9. Example: Symmetricom vs. Atomic Symetricom/Agilent 58503B GPS vs. Symmetricom CsIII Caesium Clock http://www.symmttm.com/pdf/Gps/ds_58503b.pdf R.Khan, L. Matone, Sz. Marka, D. Sigg - Recent Timing Diagnostic Results - LIGO-G070551-00-D - Wednesday, July 25, 2007

  10. Example: Symmetricom vs. Atomic Symetricom/Agilent 58503B GPS vs. Symmetricom CsIII Caesium Clock R.Khan, L. Matone, Sz. Marka, D. Sigg - Recent Timing Diagnostic Results - LIGO-G070551-00-D - Wednesday, July 25, 2007

  11. Example: Symmetricom vs. Atomic Symetricom/Agilent 58503B GPS vs. Symmetricom CsIII Caesium Clock R.Khan, L. Matone, Sz. Marka, D. Sigg - Recent Timing Diagnostic Results - LIGO-G070551-00-D - Wednesday, July 25, 2007

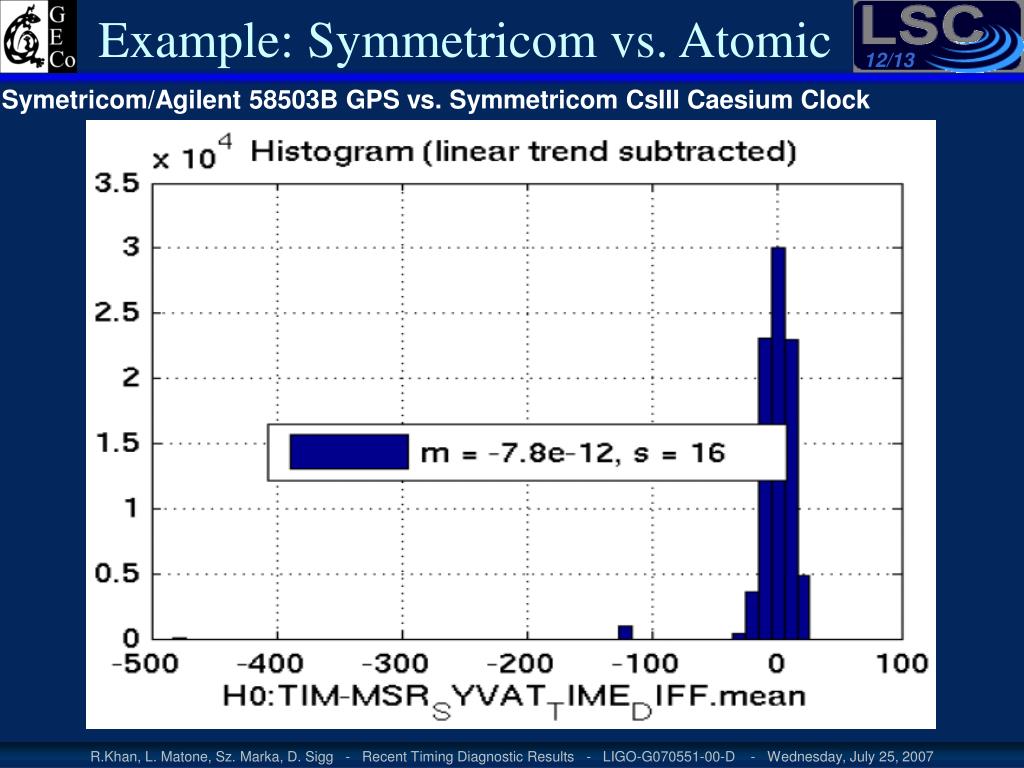

  12. Example: Symmetricom vs. Atomic Symetricom/Agilent 58503B GPS vs. Symmetricom CsIII Caesium Clock R.Khan, L. Matone, Sz. Marka, D. Sigg - Recent Timing Diagnostic Results - LIGO-G070551-00-D - Wednesday, July 25, 2007

  13. Summary • LSC (DuoTone) results indicate stable timing performance • ToDo: cumulative database for S5 LSC timing • Summary of timing information on auxilary channels is available on the web • Summary of long term timing hardware comparison information is available on the web • Hardware parts presently studied for Advanced LIGO are promising R.Khan, L. Matone, Sz. Marka, D. Sigg - Recent Timing Diagnostic Results - LIGO-G070551-00-D - Wednesday, July 25, 2007
