CS1022Computer Programming & Principles

Lecture 5.1

Functions (1)


Plan of lecture

Plan of lecture

  • Why functions?

  • Inverse relations and composition of relations (background to functions)

  • Functions

  • Terminology

  • Digraphs and graphs of functions

  • Properties of functions

CS1022


Why functions

Why functions?

  • Functions capture transformations

    • Input arguments used to compute output results

  • Input/output is key to computing

  • Advantages:

    • No commitments to computers/architectures

    • Abstract, clean, compact, focussed

  • Functions represent computations

    • Underpinned by -calculus (a kind of “interpreter”)

    • Programming paradigm: functional languages

  • What is x's age? Given a value for x, output the result: What is x's age?(Bill) => 34

CS1022


Procedural vs functional programs

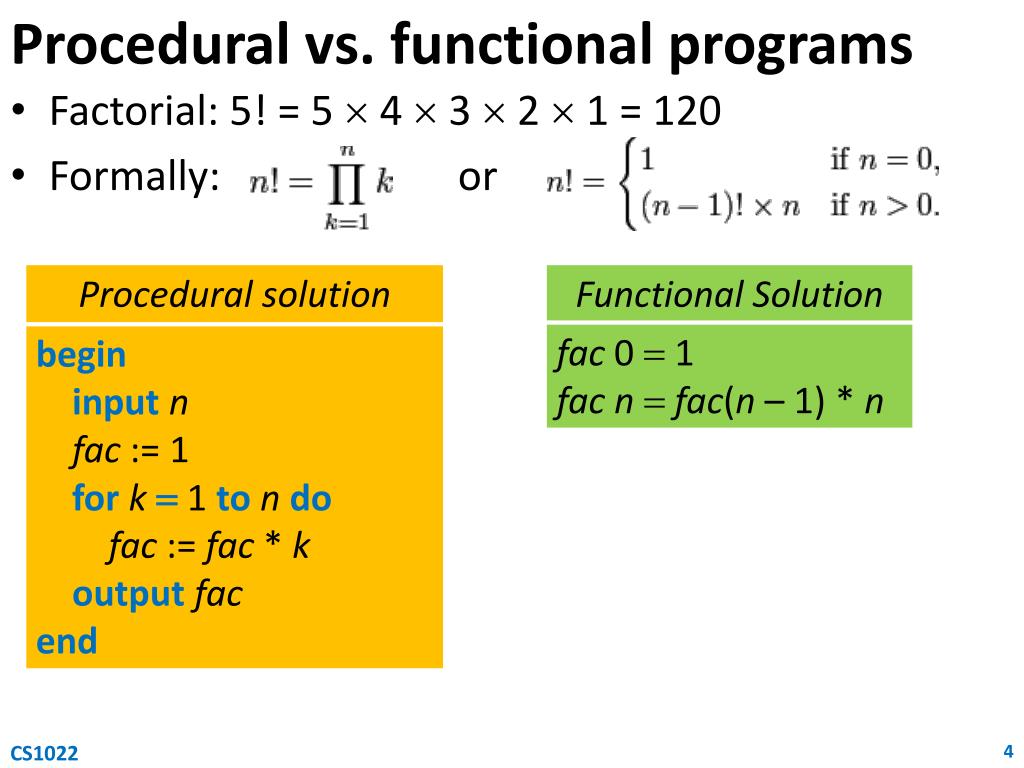

Procedural vs. functional programs

  • Factorial: 5! = 5  4  3 2 1 = 120

  • Formally: or

CS1022


Inverse relations

Inverse relations

  • Given a binary relation R between sets A and B

  • The inverse relation R–1 between A and B is

    R–1 (b, a) : (a, b)  R

  • For instance, the inverse of relation is a parent of on the set of People is the relation is a child of

    • Graphically, the inverse of a binary relation is obtained by reversing all arrows in the digraph of original relation

R (p,1), (p,2), (q,2)

R–1 (1, p), (2, p), (2, q)

R

R–1

1

1

2

2

p

p

q

q

CS1022


Composition of relations 1

Composition of relations (1)

  • Let R be a binary relation between sets A and B

  • Let S be a binary relation between sets B and C

  • The composition of R and S, represented as SR, is a binary relation between A and C given by

    SR(a,c) : aA, cC, aR b, bS c for some bB

  • The new relation relates elements of A and C using elements of B as “intermediaries”

CS1022


Composition of relations 2

Composition of relations (2)

  • If R is a relation “is a sister of” on a set of people

  • If S is a relation “is the mother of” on the same set

  • The compositionSR is

    SR(a,c) : ais a sister of b, bis mother of c

    SR(a,c) : ais a sister of themother of c

    SR(a,c) : ais an aunt of c

  • What about SS?

    SS(a,c) : ais mother ofb, bis mother of c

    SS(a,c) : ais mother ofthe mother of c

    SS(a,c) : ais a grandmother of c

CS1022


Composition of relations 3

Composition of relations (3)

  • Let R and S be binary relations defined as

    Then

    aR 1 and 1 Sy implies (a,y)  SR

    aR 2 and 2 Sx implies (a,x)  SR

    aR 3 and 3 Sx implies (a,x)  SR

    bR 2 and 2 Sx implies (b,x)  SR

R(a,1), (a,2), (a,3), (b,2)

2

1

2

3

S(1,y), (2,x), (3,x)

R

SR

S

1

x

x

y

y

3

a

a

b

b

CS1022


Composition of relations w matrix

Composition of relations w/ matrix

  • Relations represented as a matrices for

    • It easy to see relationship properties by inspecting the matrix, e.g. relationship is reflexive where it is 1 on the middle diagonal.

    • Computers view relations as a two dimensional array

  • How to compute compositions using matrices?

  • Problem:

    • Given the logical matrices of two relations R and S

    • Compute the logical matrix of their composition SR

  • Result is logical (or Boolean) matrix product

CS1022


Composition with matrix 2

Composition with matrix (2)

  • Let

    Aa1,a2,,an Bb1,b2,,bm Cc1,c2,,cp

  • Relations

    R relates A and B S relates B and C

  • The logical matrix M representing R is given by

    • M(i, j)  T (true) if (ai, bj)  R

    • M(i, j)  F (false) if (ai, bj)  R

  • The logical matrix N representing S is given by

    • N(i, j)  T (true) if (bi, cj)  S

    • N(i, j)  F (false) if (bi, cj)  S

CS1022


Composition with matrix 3

Composition with matrix (3)

  • Logical matrix P represents SR

    • If there is bk B with aiRbkandbkScj then

      M(i, k) = T andN(k, j)  T

      Since ai (SR)cj then P(i, j) is also T

    • Otherwise

      M(i, k) = F orN(k, j)  F, for all k,

      and P(i, j)  F

  • Logical matrix P representing SR is given by

    • P(i, j)  T (true) if M(i, k)  T andN(k, j)  T, for some k

    • P(i, j)  F (false) otherwise

bk is the bridge between the relations that allows the product relation.

CS1022


Matrix boolean product

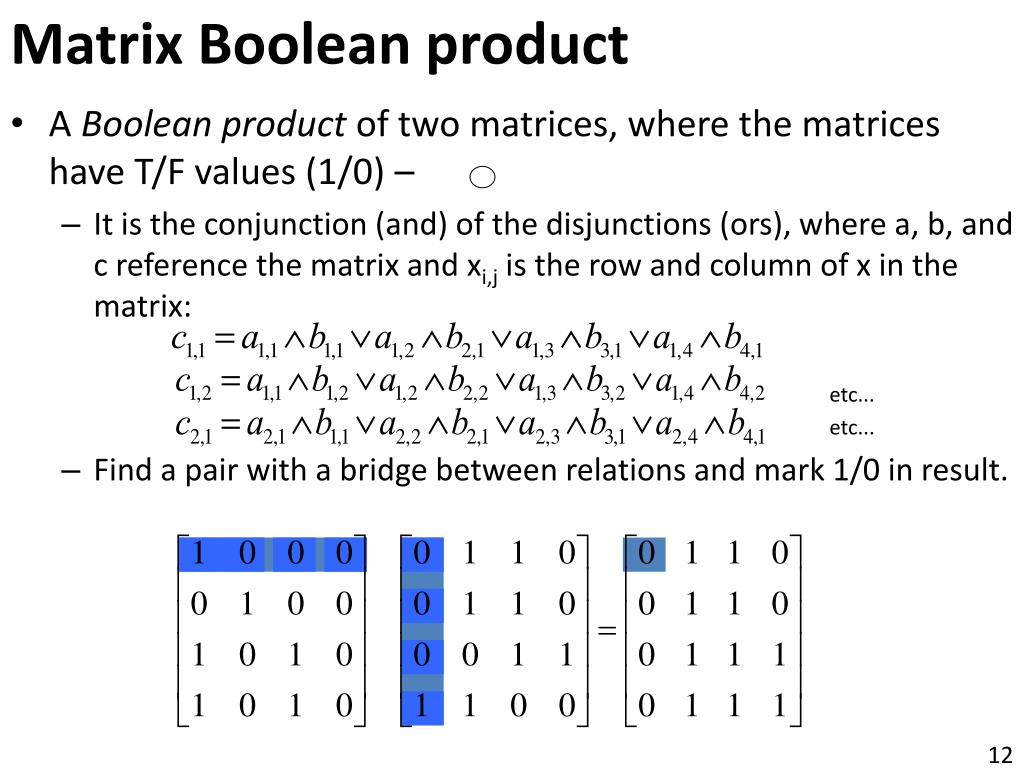

Matrix Boolean product

A Boolean product of two matrices, where the matrices have T/F values (1/0) –

It is the conjunction (and) of the disjunctions (ors), where a, b, and c reference the matrix and xi,jis the row and column of x in the matrix:

etc...

etc...

Find a pair with a bridge between relations and mark 1/0 in result.


Matrix boolean product1

Matrix Boolean product

Rbilljillphilmary

bill1000

jill0100

phil1010

mary1010

Sbilljillphilmary

bill0110

jill0110

phil0011

mary1100

R S R S

c1,2 is the same row in R, but the next column in S.


Composition with matrix 4

Composition with matrix (4)

  • Alternatively,

    P(i, j)  (M(i, 1) andN(1, j))

    or (M(i, 2) andN(2, j))

    ...

    or (M(i, n) andN(n, j))

  • We write

    PMN

    For this Boolean matrix product

CS1022


Functions 1

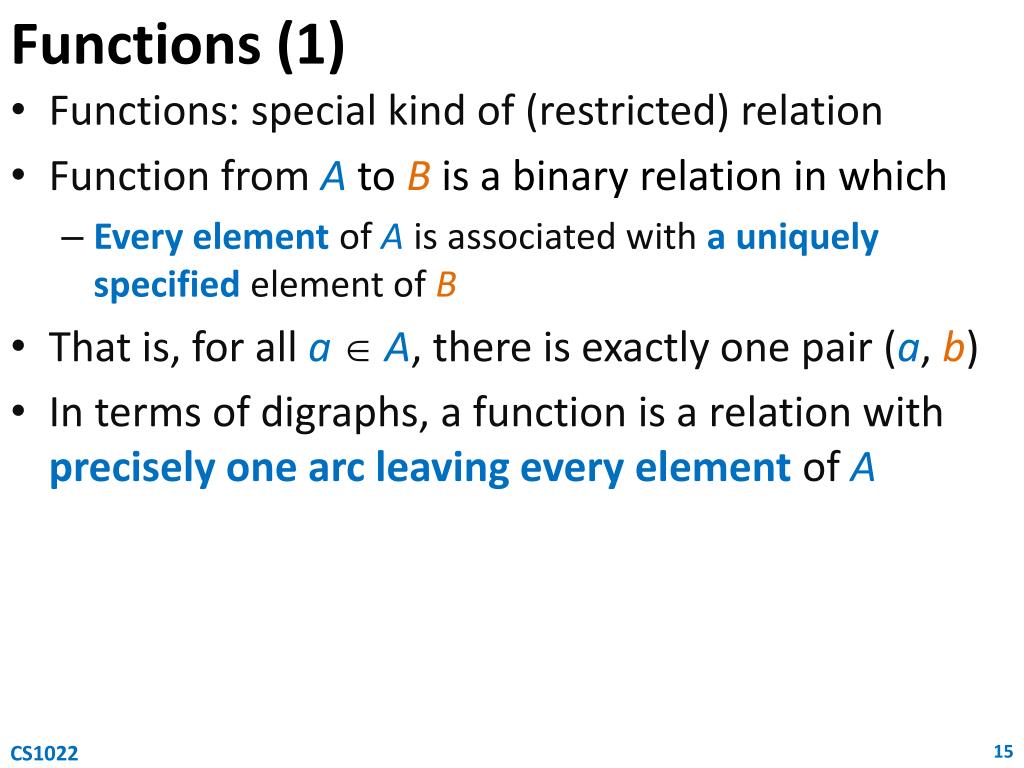

Functions (1)

  • Functions: special kind of (restricted) relation

  • Function from A to Bis a binary relation in which

    • Every element of A is associated with a uniquely specified element of B

  • That is, for all a A, there is exactly one pair (a, b)

  • In terms of digraphs, a function is a relation with precisely one arc leaving every element of A

CS1022


Functions 2

Functions (2)

Are these relations functions? Justify.

  • Relation x is a sibling of y on the set of People

    • No, since a person x may have several siblings (or none)

  • R = (x, x2) : x  Z (defined on Z)

    • Yes, since for any integer x, the value x2 is unique

  • S = (x, y) : x  y2 (defined on R)

    • No, because (2, 2) and (2, 2) belong to S

CS1022


Terminology of functions 1

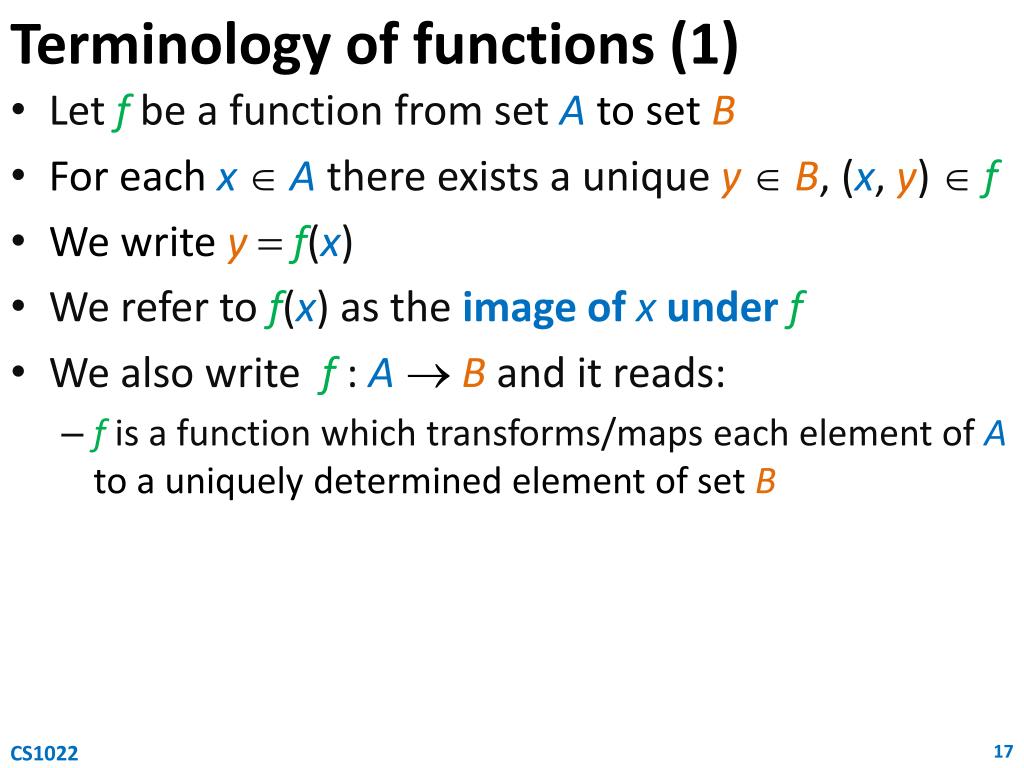

Terminology of functions (1)

  • Let f be a function from set A to set B

  • For each x A there exists a unique y B,(x, y)  f

  • We write y f(x)

  • We refer to f(x) as the image of x under f

  • We also write f : A B and it reads:

    • f is a function which transforms/maps each element of A to a uniquely determined element of set B

CS1022


Terminology of functions 2

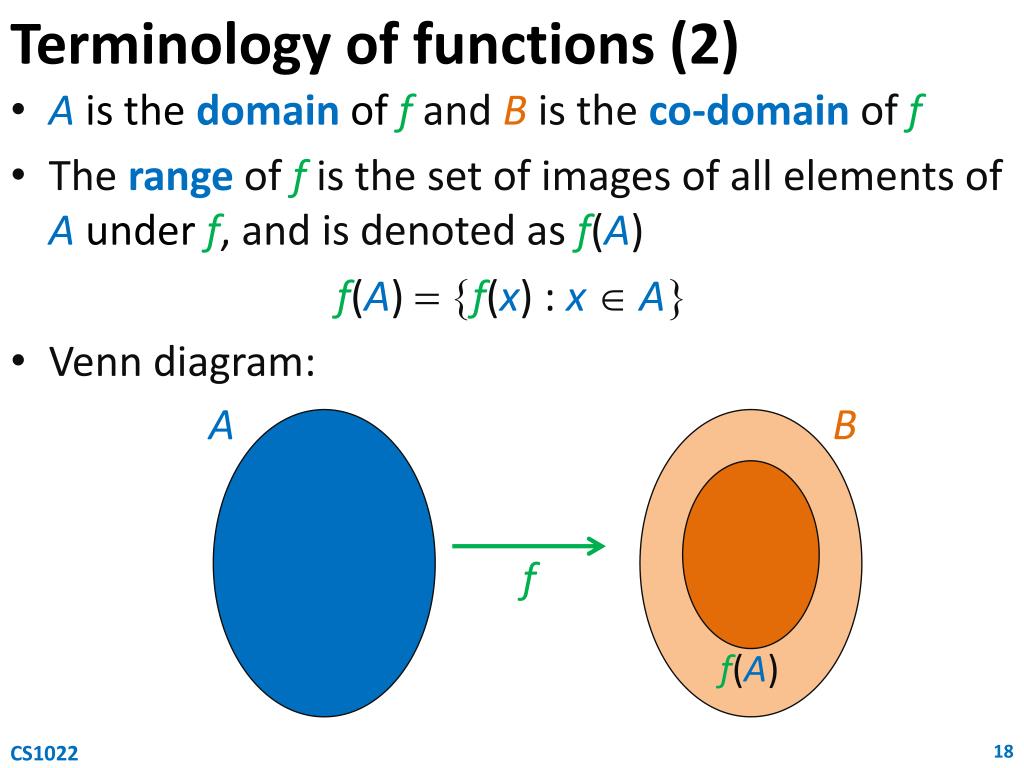

Terminology of functions (2)

  • A is the domain of f and B is the co-domain of f

  • The range of f is the set of images of all elements of A under f, and is denoted as f(A)

    f(A) f(x) : x A

  • Venn diagram:

A

B

f

f(A)

CS1022


Digraphs of functions on infinite sets

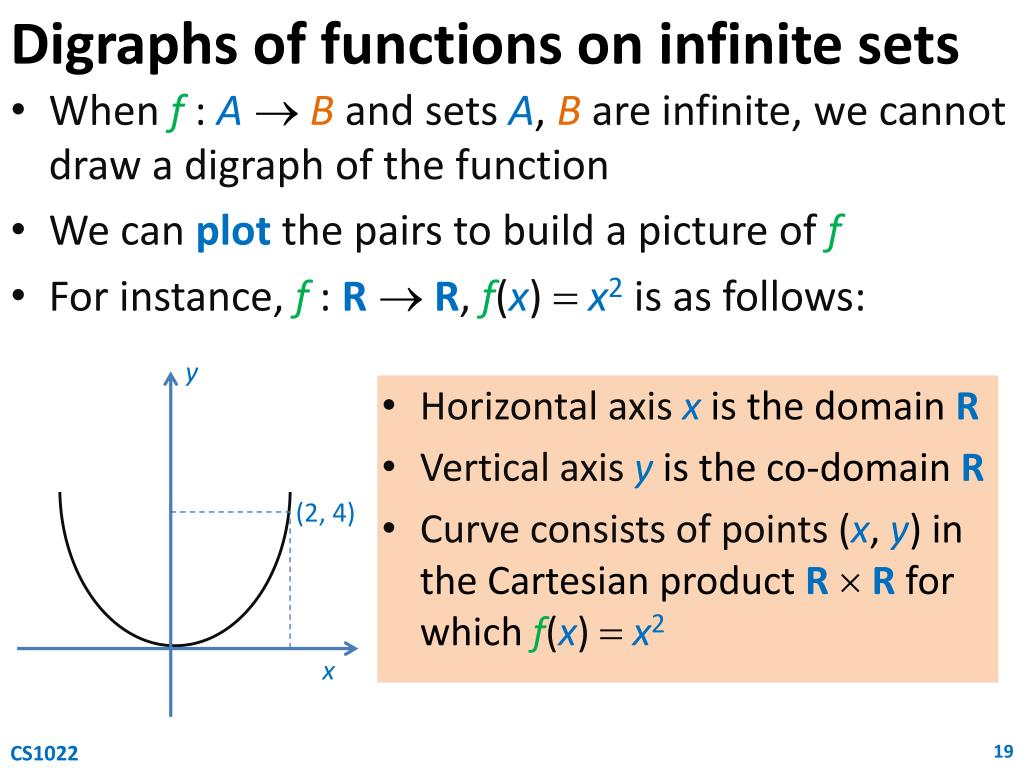

Digraphs of functions on infinite sets

  • When f : A B and sets A, B are infinite, we cannot draw a digraph of the function

  • We can plot the pairs to build a picture of f

  • For instance, f : R R, f(x)  x2 is as follows:

y

  • Horizontal axis xis the domain R

  • Vertical axis yis the co-domain R

  • Curve consists of points (x, y) in the Cartesian product R R for which f(x)  x2

(2, 4)

x

CS1022


Properties of functions 1

Properties of functions (1)

  • Let f : A B be a function

  • We say f is injective (or one-to-one) function if

    a1a2 ((a1, a2 A) and f(a1)  f(a2))  a1  a2

  • That is,

    If output is the same then input must be the same

  • An injective function never repeats values

  • Different inputs give different outputs:

    a1a2 ((a1, a2 A and a1  a2)  f(a1)  f(a2))

CS1022


Properties of functions 2

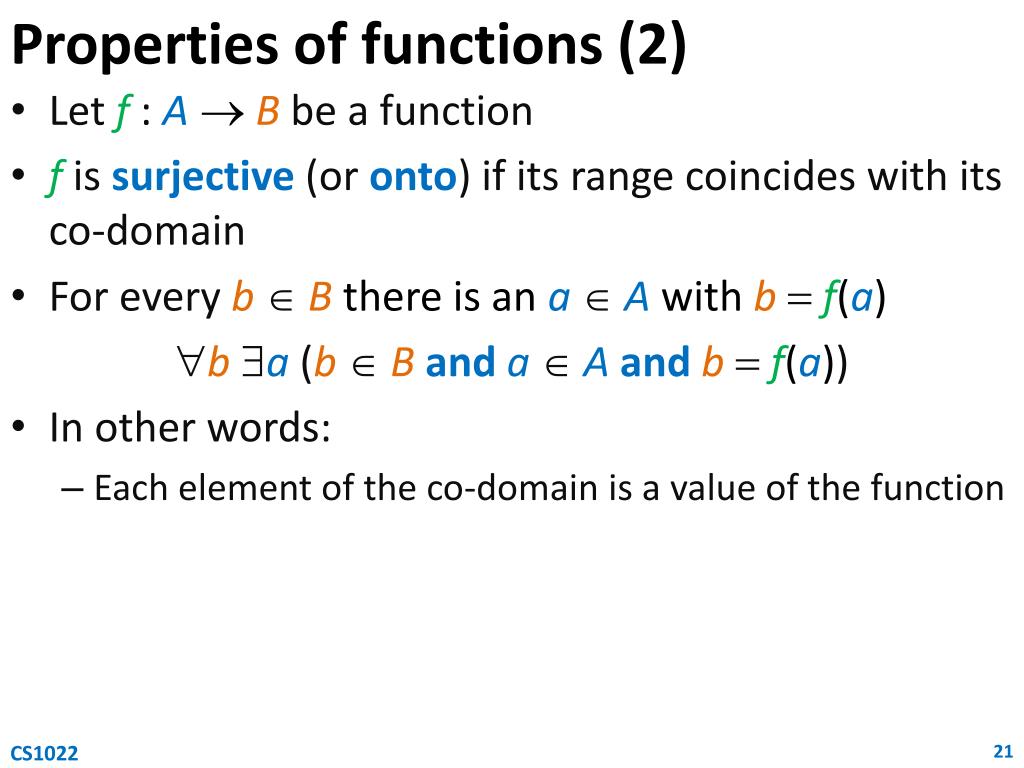

Properties of functions (2)

  • Let f : A B be a function

  • f is surjective (or onto) if its range coincides with its co-domain

  • For every bBthere is an a A with b  f(a)

    b a (bB and a A and b  f(a))

  • In other words:

    • Each element of the co-domain is a value of the function

CS1022


Properties of functions 3

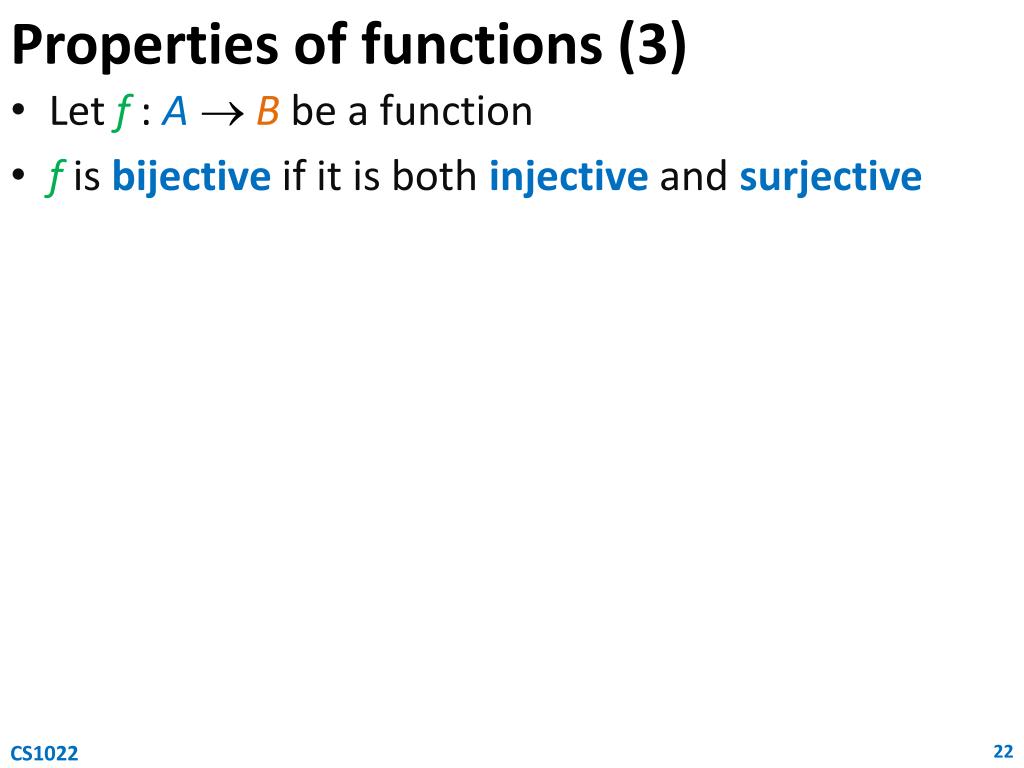

Properties of functions (3)

  • Let f : A B be a function

  • f is bijective if it is both injective and surjective

CS1022


Properties of functions 31

Properties of functions (3)

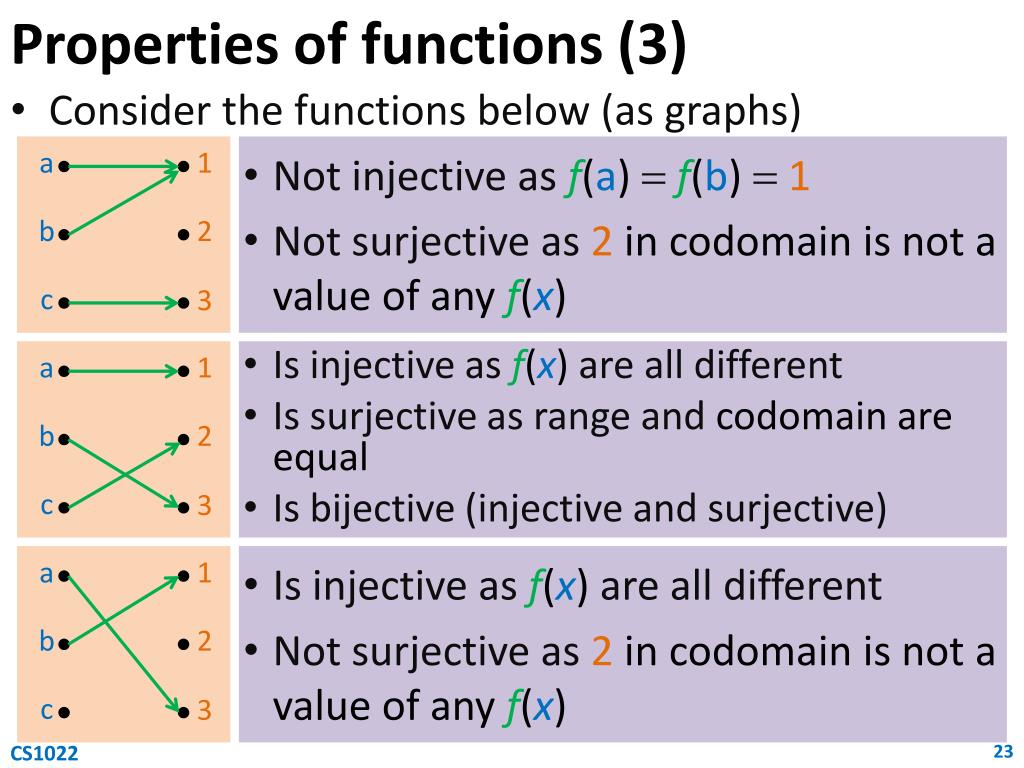

  • Consider the functions below (as graphs)

  • Not injective as f(a)  f(b)  1

  • Not surjective as 2 in codomain is not a value of anyf(x)

a

a

a

1

1

1

b

b

b

2

2

2

c

c

c

3

3

3

  • Is injective as f(x) are all different

  • Is surjective as range and codomain are equal

  • Is bijective (injective and surjective)

  • Is injective as f(x) are all different

  • Not surjective as 2 in codomain is not a value of anyf(x)
