  1. 2G/3G ROUTERS GWR series Sergej Stolić, M.Sc. Geneko

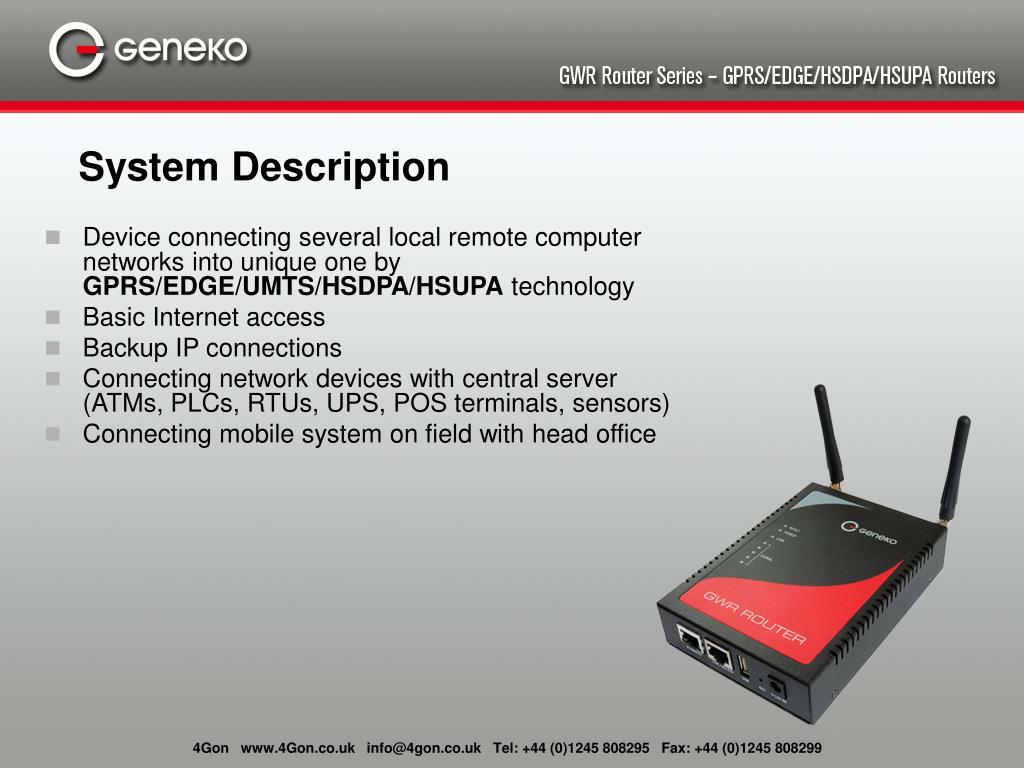

  2. Device connecting several local remote computer networks into unique one by GPRS/EDGE/UMTS/HSDPA/HSUPA technology Basic Internet access Backup IP connections Connecting network devices with central server (ATMs, PLCs, RTUs, UPS, POS terminals, sensors) Connecting mobile system on field with head office System Description

  3. Direct access to Internet Backup connection Connection with remote devices - Banking Sector (ATMs)     - Water management systems     - Energetic and heating industry     - Gas and Oil distribution     - Transport Services Remote equipment control Ethernet Network Routing between LAN and joint network or Internet Applications

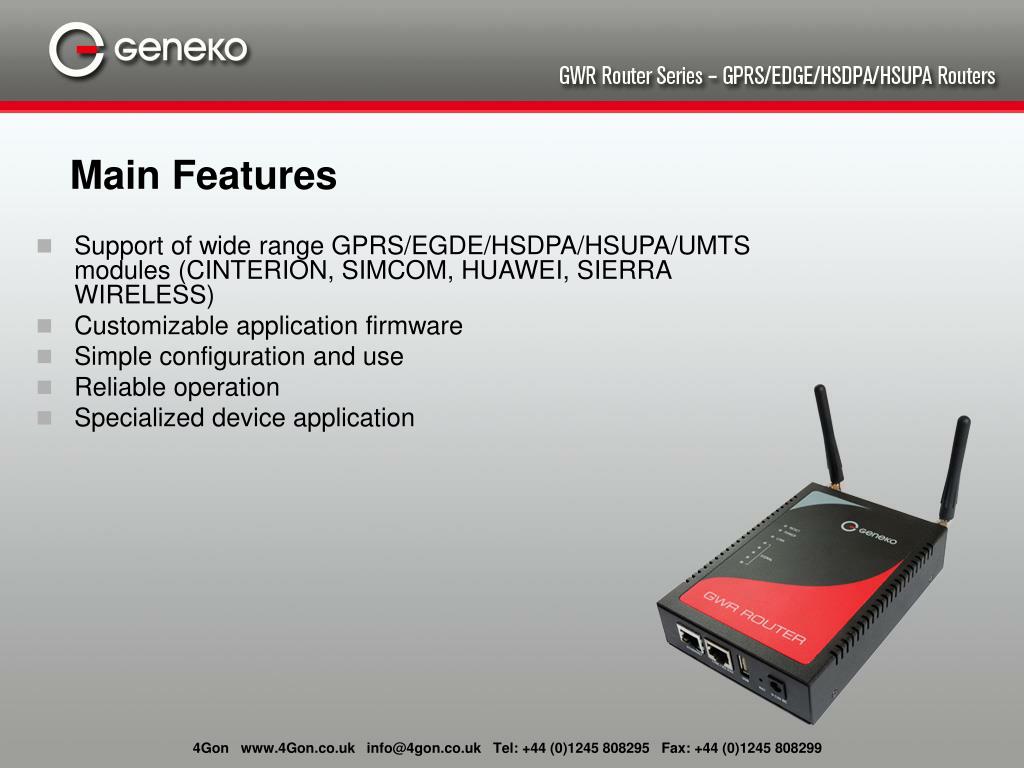

  4. Support of wide range GPRS/EGDE/HSDPA/HSUPA/UMTS modules (CINTERION, SIMCOM, HUAWEI, SIERRA WIRELESS) Customizable application firmware Simple configuration and use Reliable operation Specialized device application Main Features

  5. Reliable 32-bit processor RISC ARM9 Processor Core Connection to mobile network via integrated GPRS/EDGE/HSDPA/HSUPA module Integrated ADSL modem Ethernet, RS232 connection and USB port Linux operating system Support for 2 SIM card Dynamic routing, DHCP server, IP filtering, GRE and IPSEC tunnels Device Description

  6. GWR20X Series – GPRS Router GWR25X Series – EDGE Router GWR30X Series – HSDPA Router GWR35X Series – HSUPA Router GAWR Series – ADSL/HSUPARouter GWR Series Routers

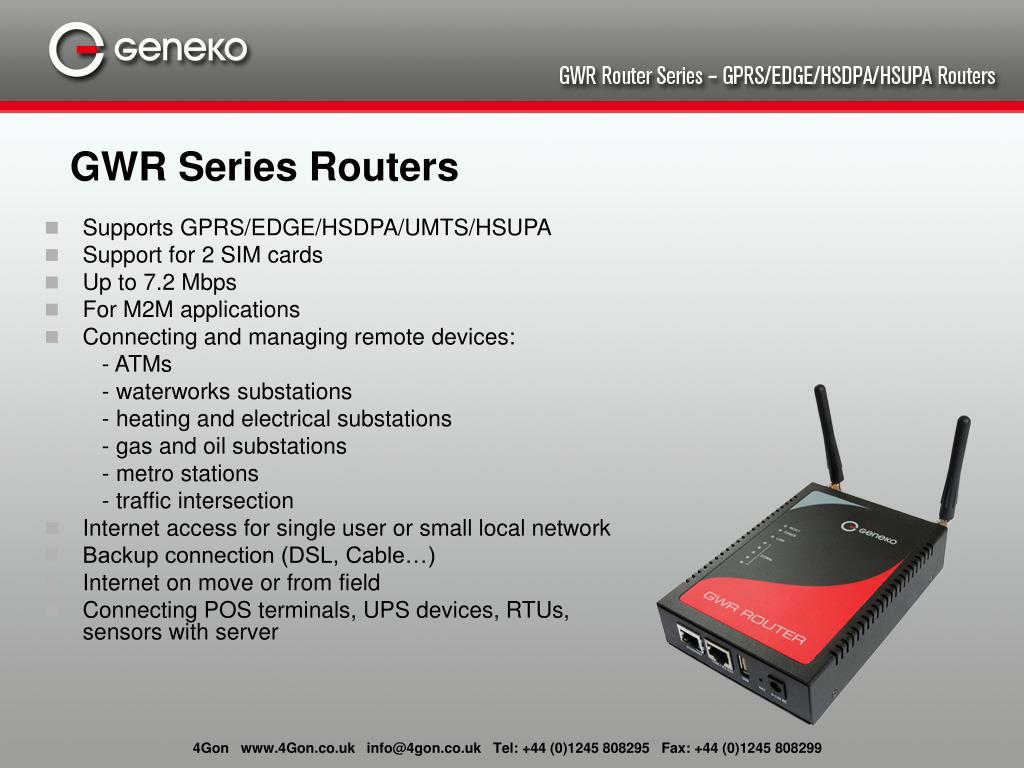

  7. SupportsGPRS/EDGE/HSDPA/UMTS/HSUPA Support for 2 SIM cards Up to 7.2 Mbps For M2M applications Connecting and managing remote devices: - ATMs     - waterworks substations     - heating and electrical substations     - gas and oil substations     - metro stations - traffic intersection Internet access for single user or small local network Backup connection (DSL, Cable…) Internet on move or from field Connecting POS terminals, UPS devices, RTUs, sensors with server GWR Series Routers

  8. Integrated ADSL modem AND GSM/UMTS modul SupportsGPRS/EDGE/HSDPA/UMTS/HSUPA Support for 2 SIM cards Up to 7.2 Mbpson GSM/UMTS network, 8 Mbpson ADSL ADSL is primary connection –wireless connection is backup Automatic failover from ADSL connection to GSM Auto-failback optionenables ADSL connection to revert as primary GAWR Series Routers

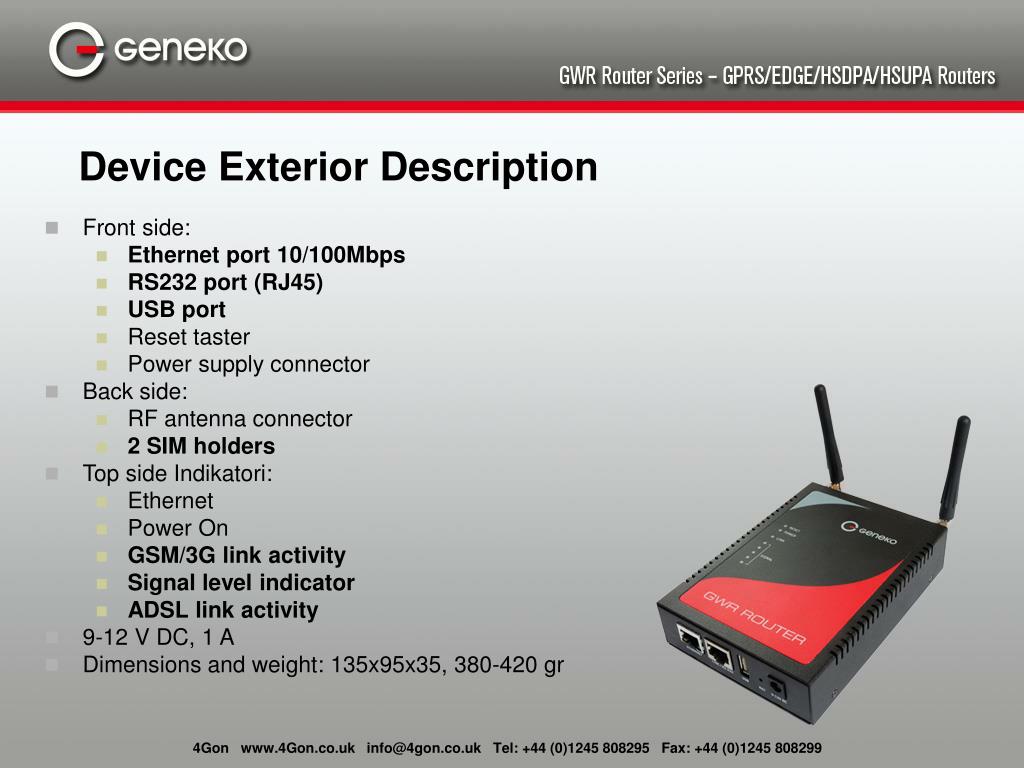

  9. Front side: Ethernet port 10/100Mbps RS232 port (RJ45) USB port Reset taster Power supply connector Back side: RF antenna connector 2 SIM holders Top side Indikatori: Ethernet Power On GSM/3G link activity Signal level indicator ADSL link activity 9-12 V DC, 1 A Dimensions and weight: 135x95x35, 380-420 gr Device Exterior Description

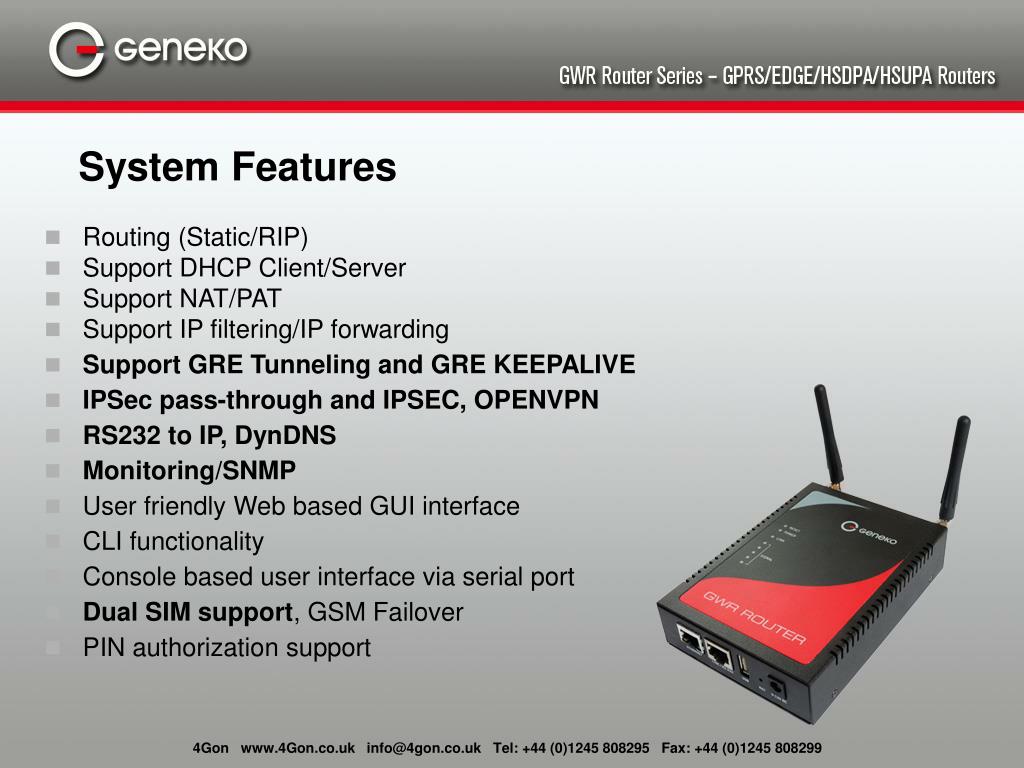

  10. Routing (Static/RIP) Support DHCP Client/Server Support NAT/PAT Support IP filtering/IP forwarding Support GRE Tunneling and GRE KEEPALIVE IPSec pass-throughand IPSEC, OPENVPN RS232 to IP,DynDNS Monitoring/SNMP User friendly Web based GUI interface CLI functionality Console based user interface via serial port Dual SIM support, GSM Failover PIN authorization support System Features

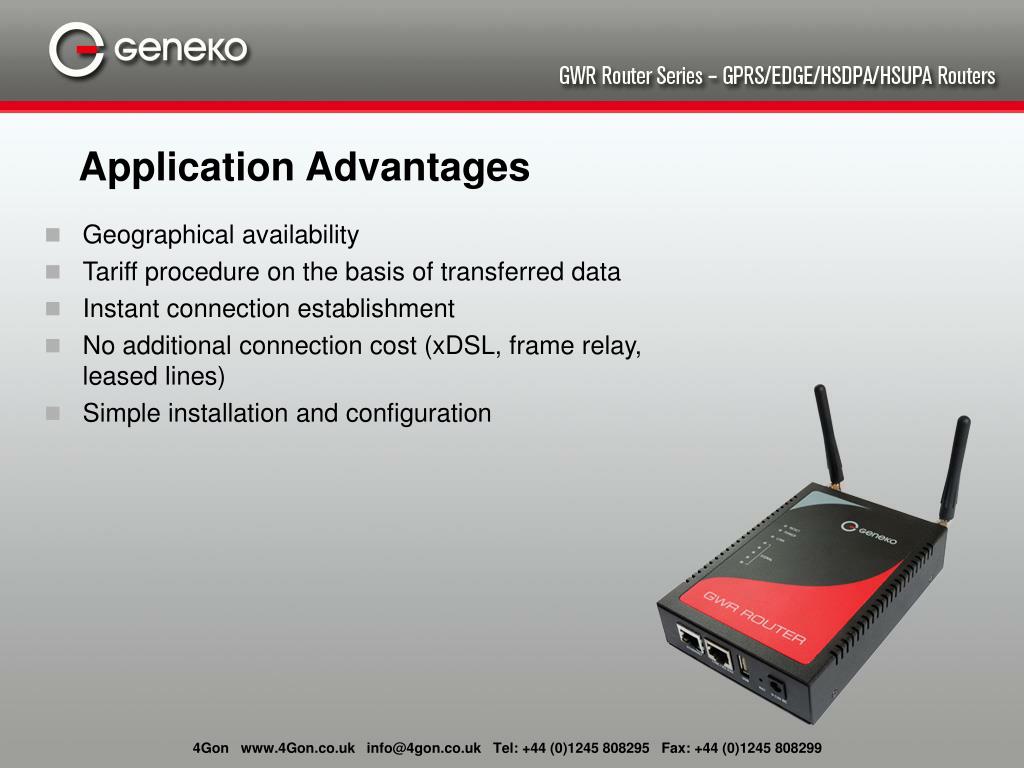

  11. Geographical availability Tariff procedure on the basis of transferred data Instant connection establishment No additional connection cost (xDSL, frame relay, leased lines) Simple installation and configuration Application Advantages

  12. Business application: Connection of remote computer networks Communication with remote computers or specialized devices Personal use Connection to Internet Main and backup connection Typical Applications

  13. GWR router application UPS ATM SENSORS SCADA

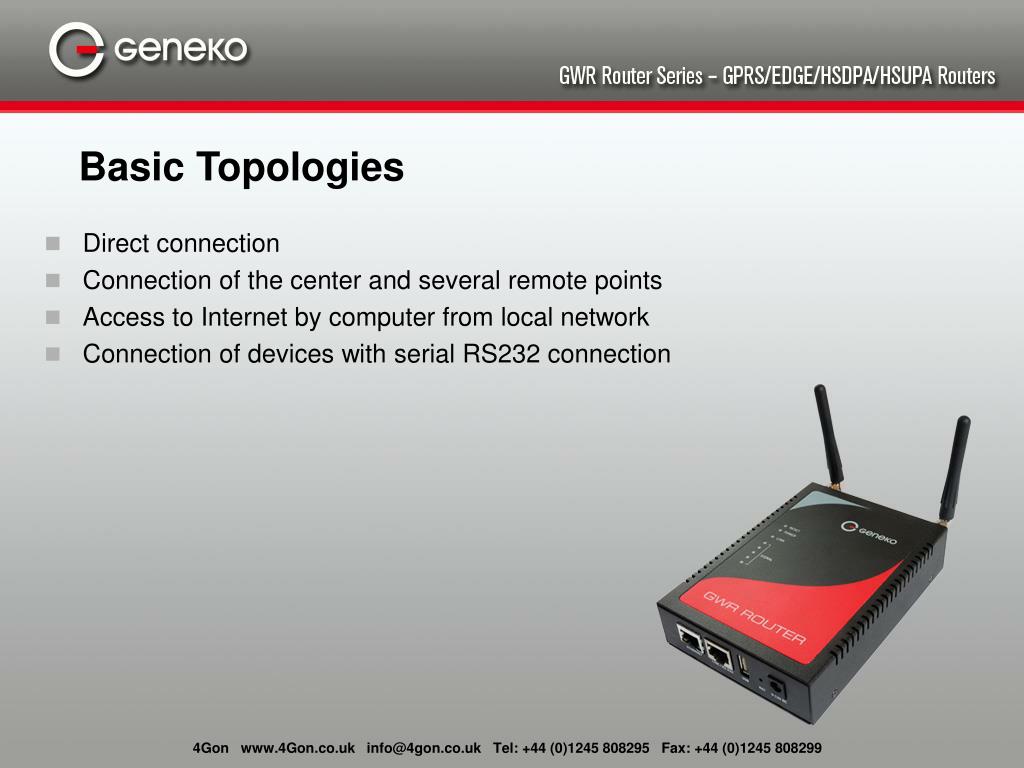

  14. Direct connection Connection of the center and several remote points Access to Internet by computer from local network Connection of devices with serial RS232 connection Basic Topologies

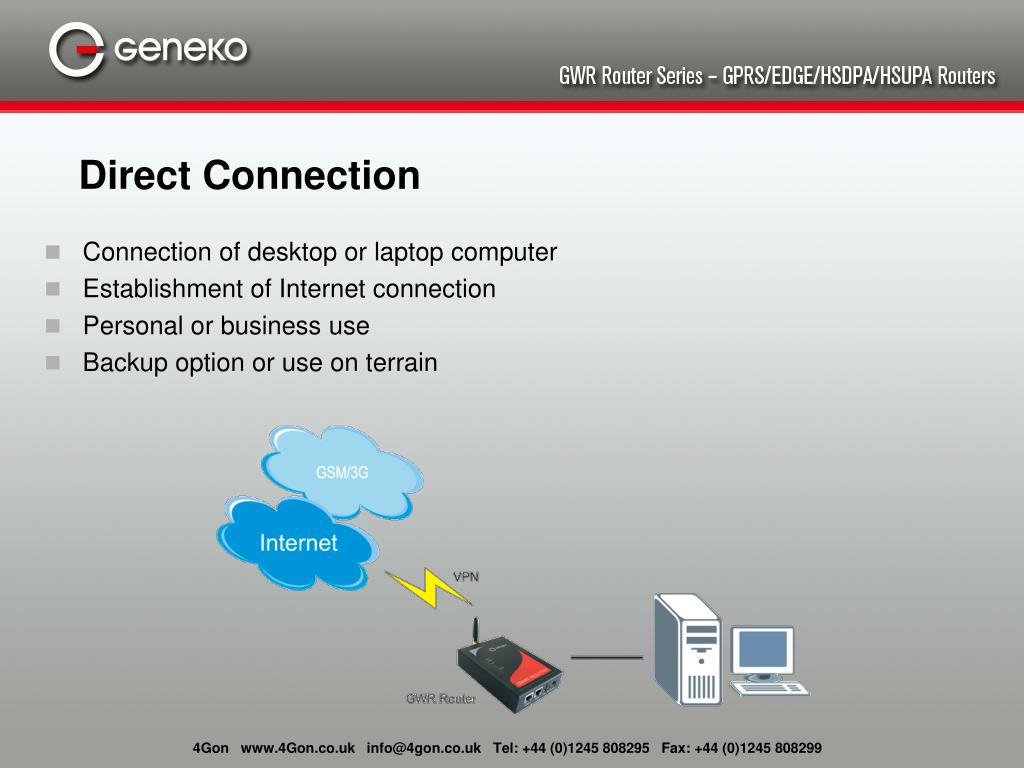

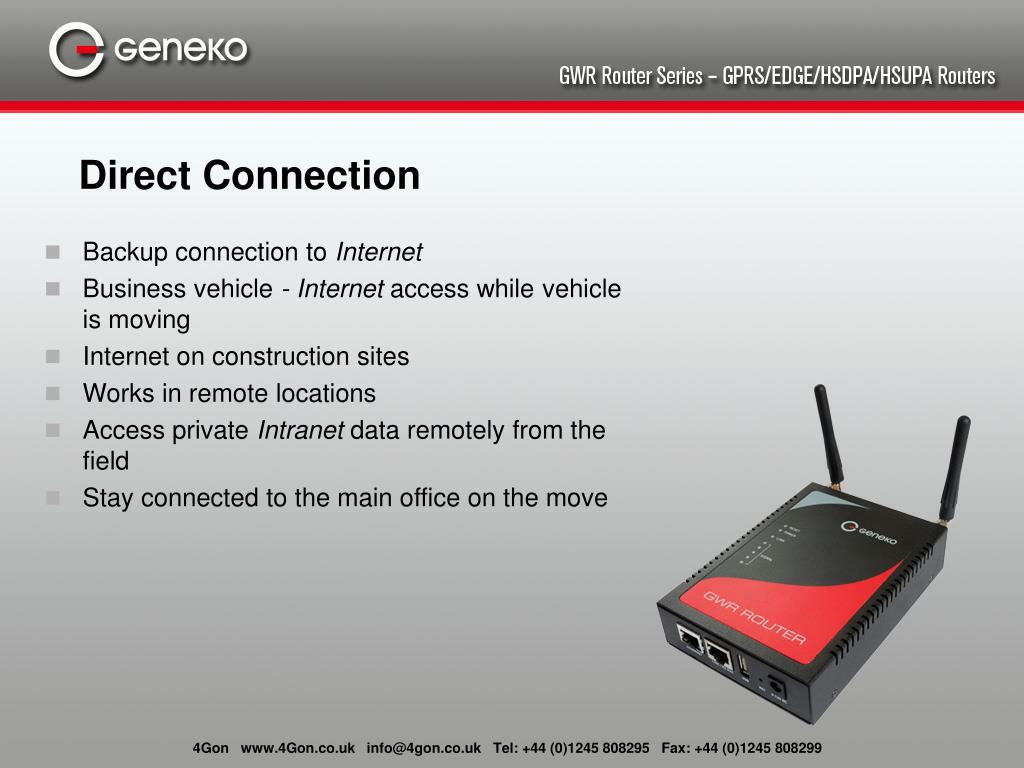

  15. Connection of desktop or laptop computer Establishment of Internet connection Personal or business use Backup option or use on terrain Direct Connection

  16. Backup connection to Internet Business vehicle - Internet access while vehicle is moving Internet on construction sites Works in remote locations Access private Intranet data remotely from the field Stay connected to the main office on the move Direct Connection

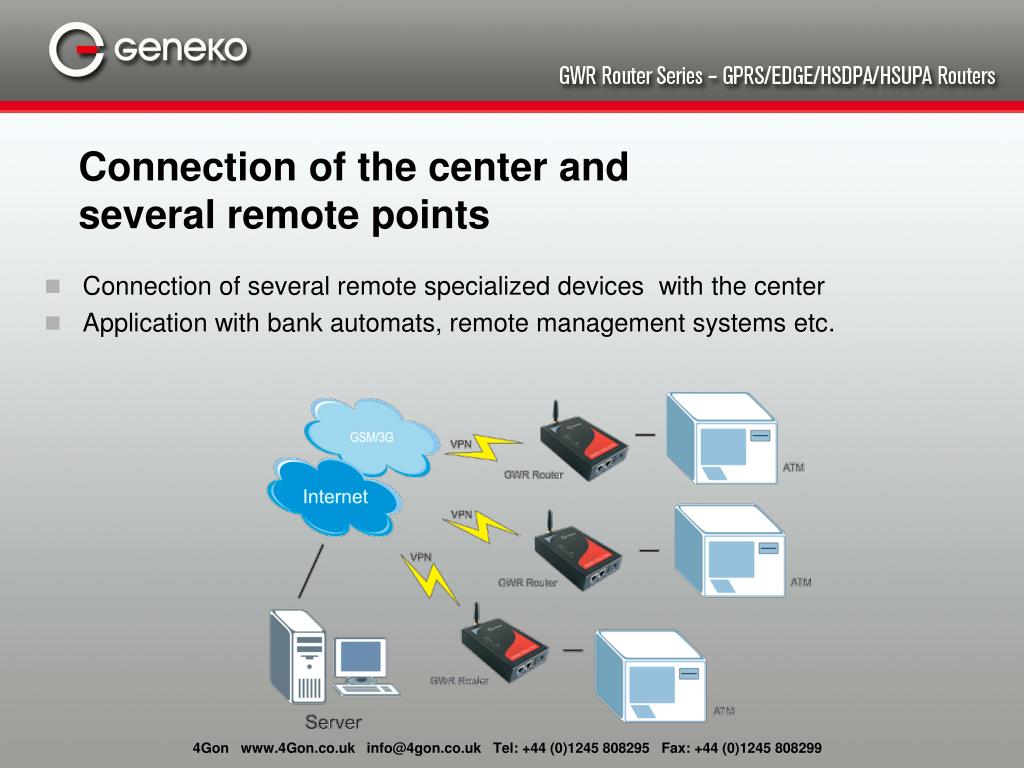

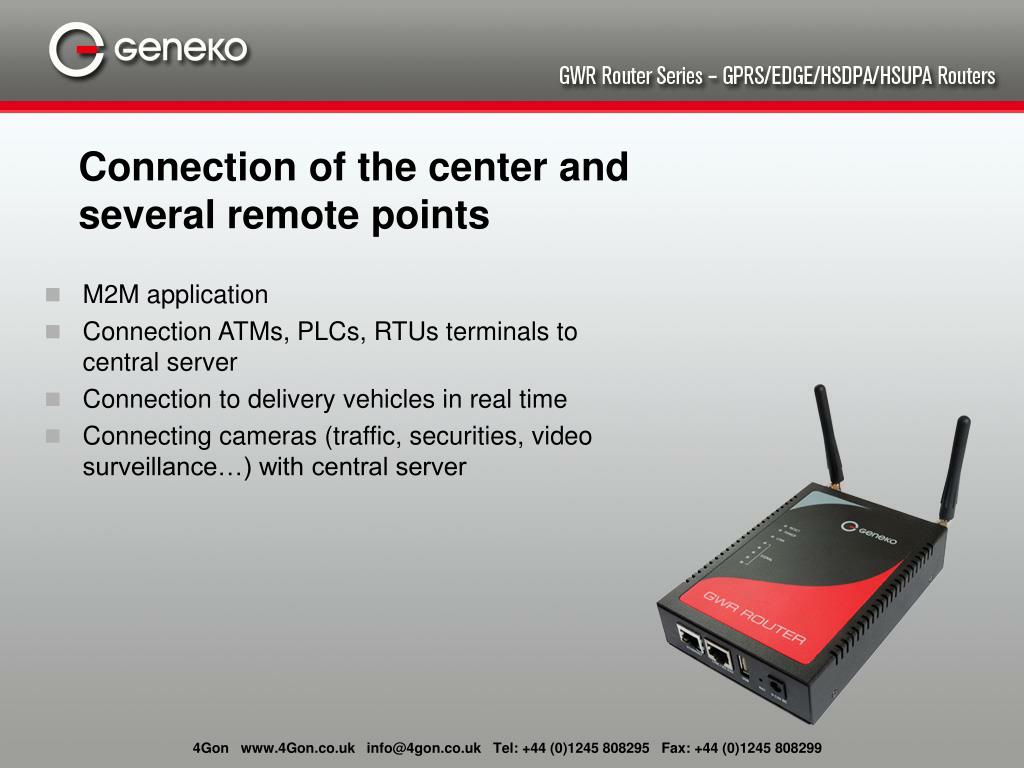

  17. Connection of several remote specialized devices with the center Application with bank automats, remote management systems etc. Connection of the center and several remote points

  18. M2M application Connection ATMs, PLCs, RTUs terminals to central server Connection to delivery vehicles in real time Connecting cameras (traffic, securities, video surveillance…) with central server Connection of the center and several remote points

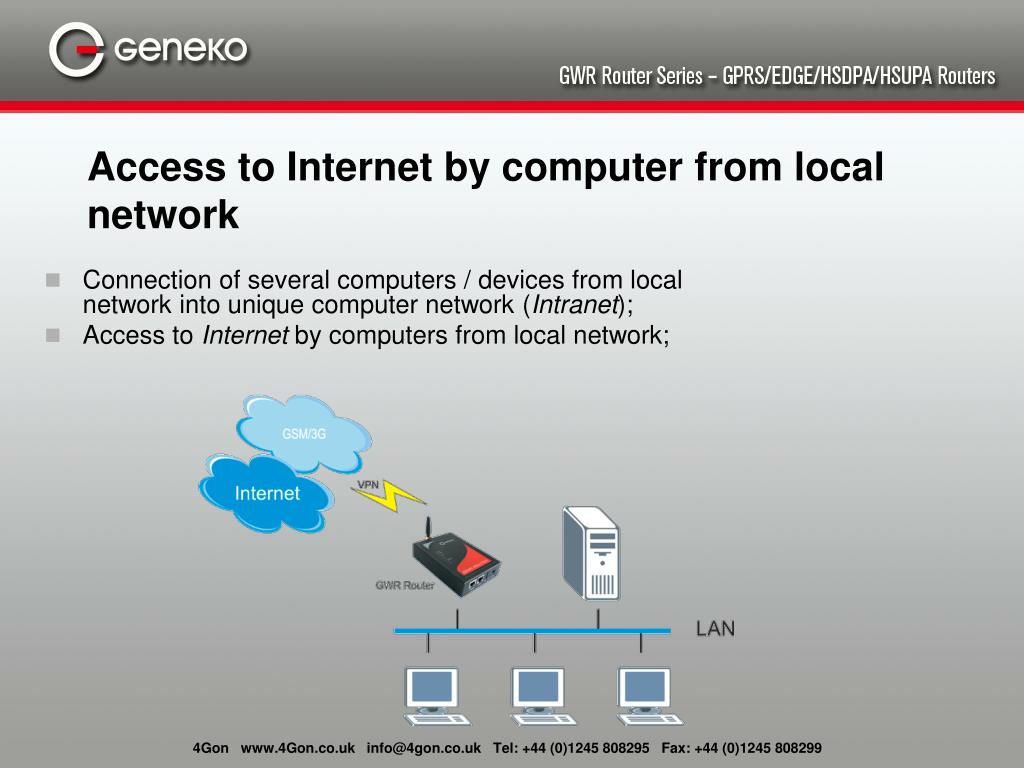

  19. Connection of several computers/devices from local network into unique computer network (Intranet); Access to Internet by computers from local network; Access to Internet by computer from local network

  20. Media-converter function Conversion of RS232 traffic into TCP/IP packages Connection of devices with serial RS232connection

  21. Device for business and personal use The only condition for its use – GSM/3G network Connection of remote computers, computer networks and specialized devices For main and backup connection Conclusion

  22. Geneko routers in bank payment system Geneko Case Study

  23. Functionality Routing between GSM and LAN network Dual SIM – > failover VPN

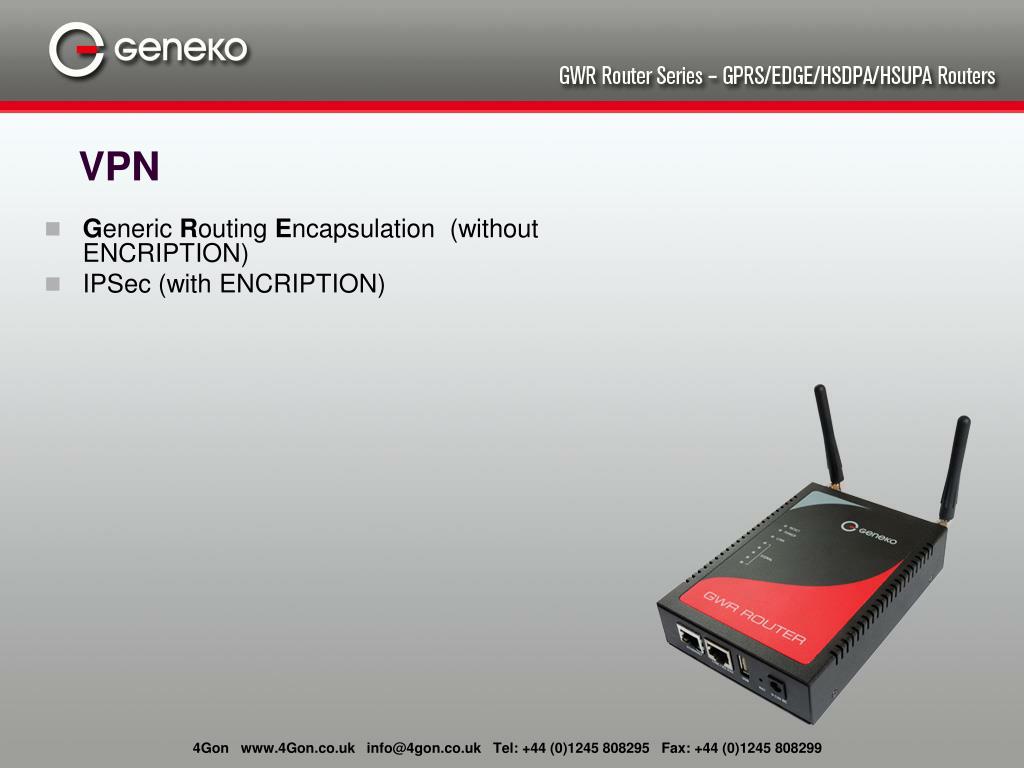

  24. VPN Generic Routing Encapsulation (without ENCRIPTION) IPSec (with ENCRIPTION)

  25. Diagram

  26. IPSec commands Custom peer ID Failover Defining local peer

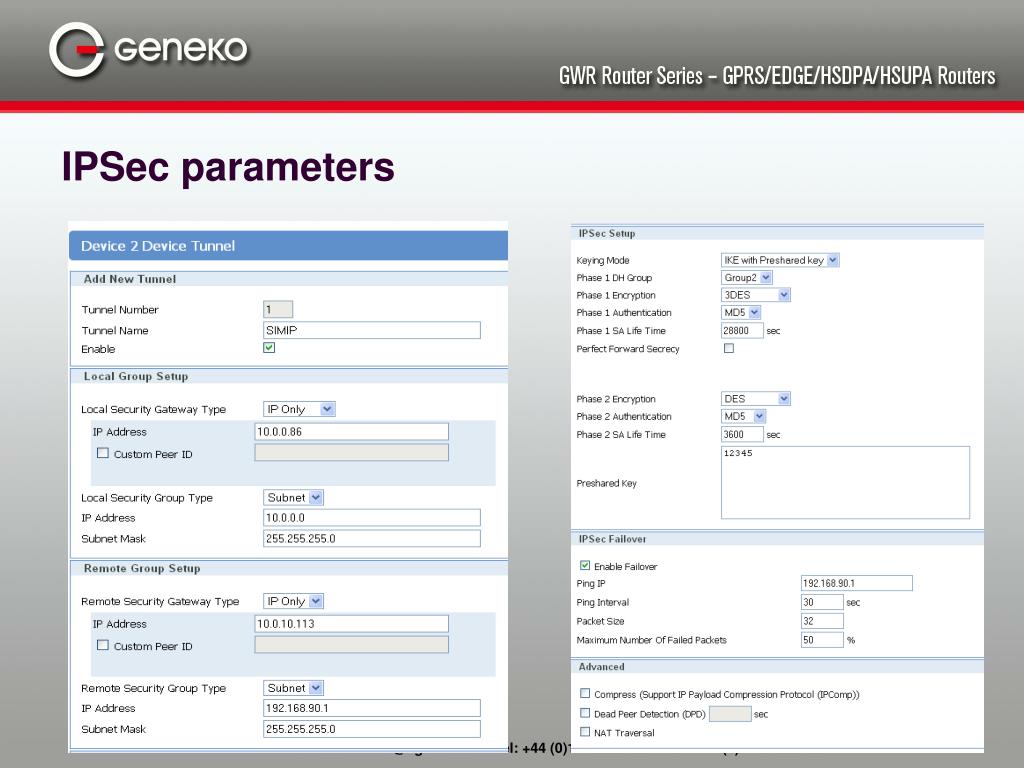

  27. IPSec parameters
