Computer architecture

Computer Architecture

Lecture 8: Memory hierarchy. Cache memory

Piotr Bilski


Characteristics of the memory systems

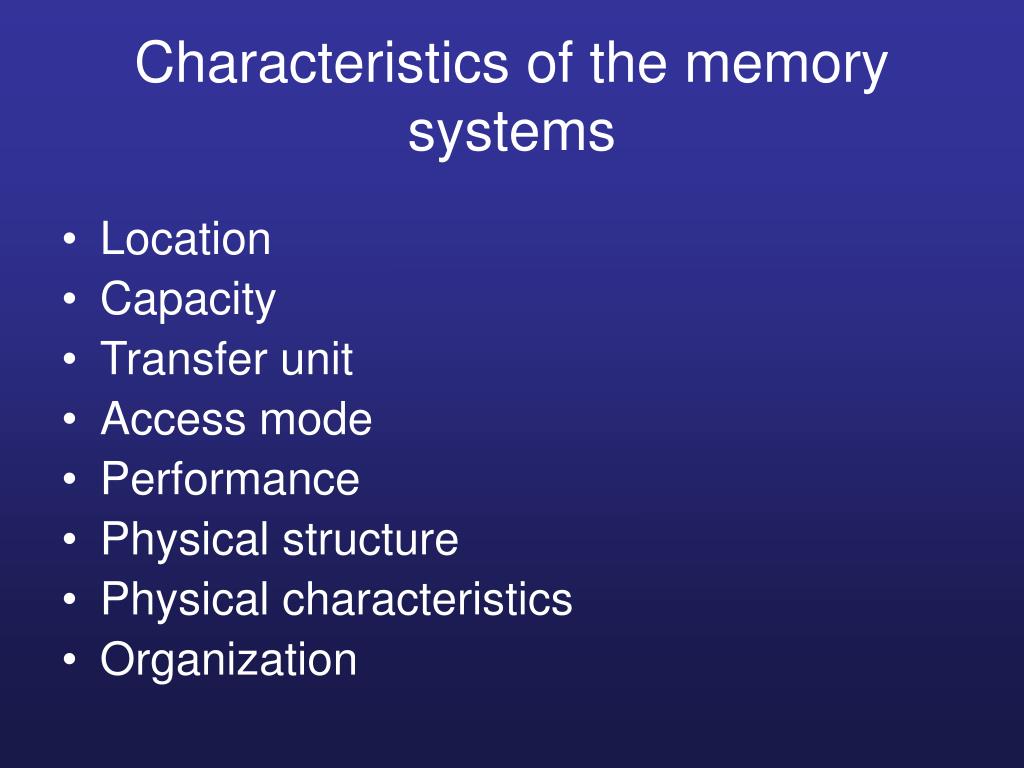

Characteristics of the memory systems

  • Location

  • Capacity

  • Transfer unit

  • Access mode

  • Performance

  • Physical structure

  • Physical characteristics

  • Organization

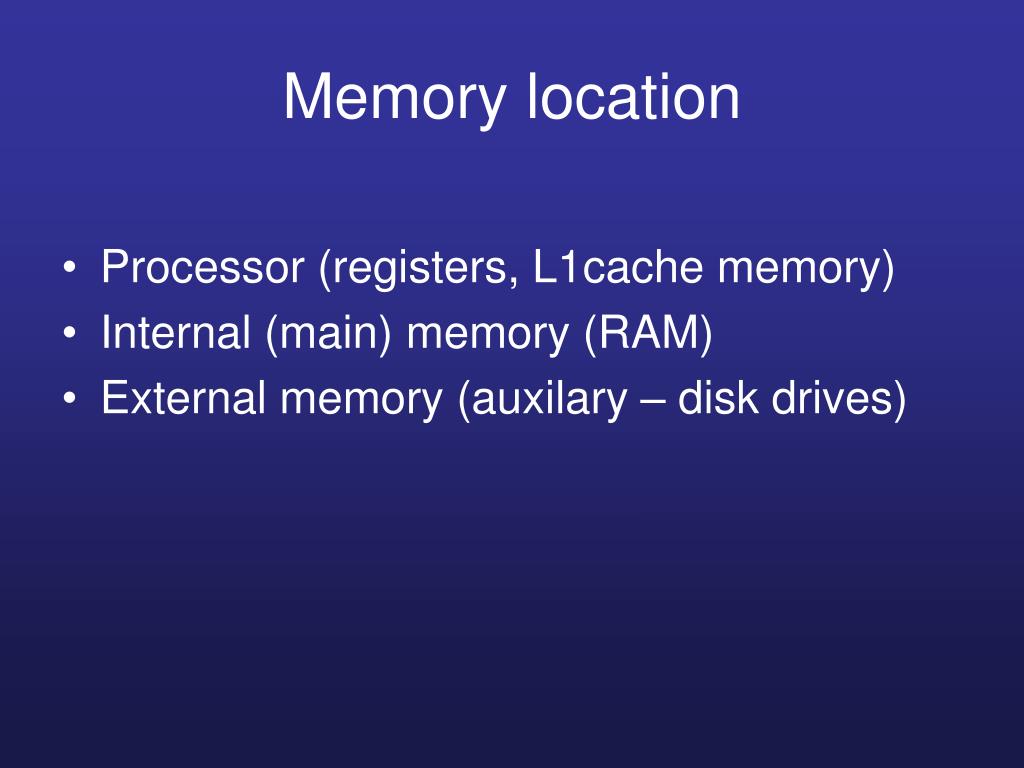

Memory location

Memory location

  • Processor (registers, L1cache memory)

  • Internal (main) memory (RAM)

  • External memory (auxilary – disk drives)


Memory capacity

Memory capacity

  • Word size

  • Number of words

  • Memory capacity is expressed in bytes and their multiplications, so:

    1 B = 8 b

    1 KB = 1024 B, 1 MB = 1024 KB etc.

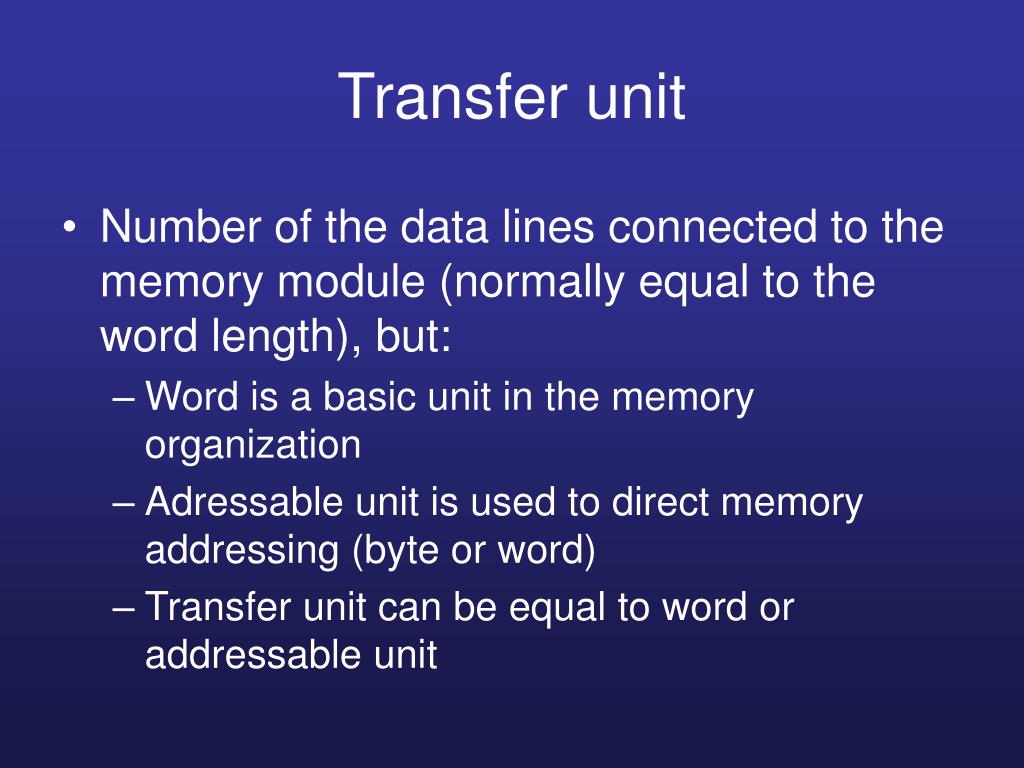

Transfer unit

Transfer unit

  • Number of the data lines connected to the memory module (normally equal to the word length), but:

    • Word is a basic unit in the memory organization

    • Adressable unit is used to direct memory addressing (byte or word)

    • Transfer unit can be equal to word or addressable unit

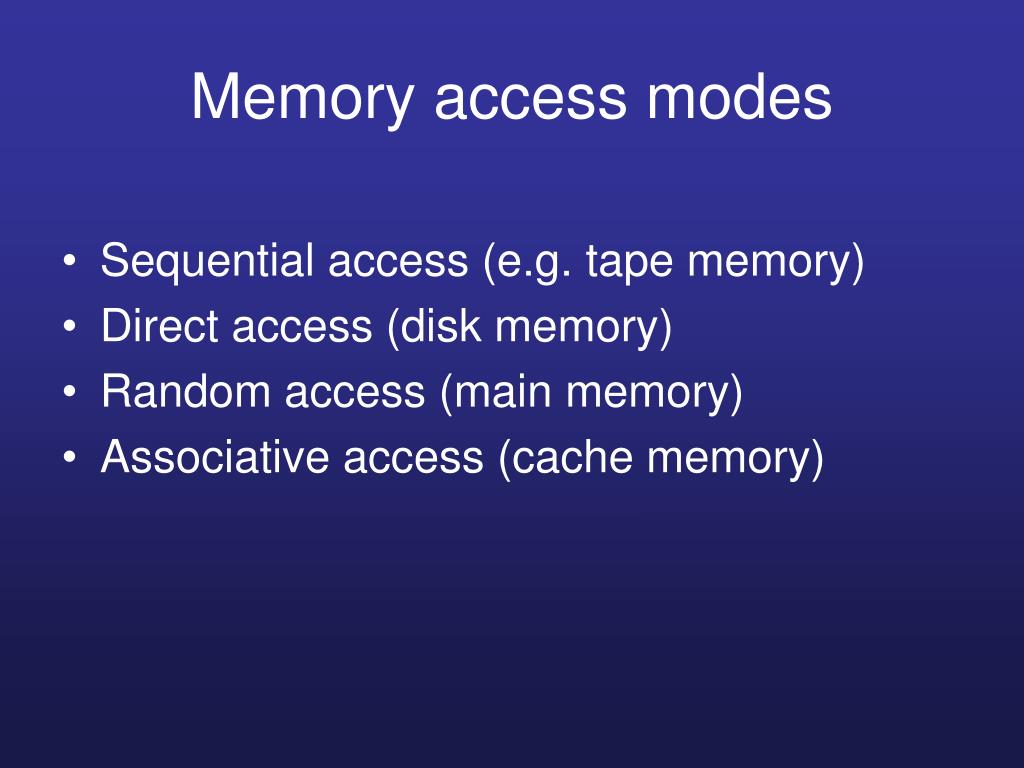

Memory access modes

Memory access modes

  • Sequential access (e.g. tape memory)

  • Direct access (disk memory)

  • Random access (main memory)

  • Associative access (cache memory)

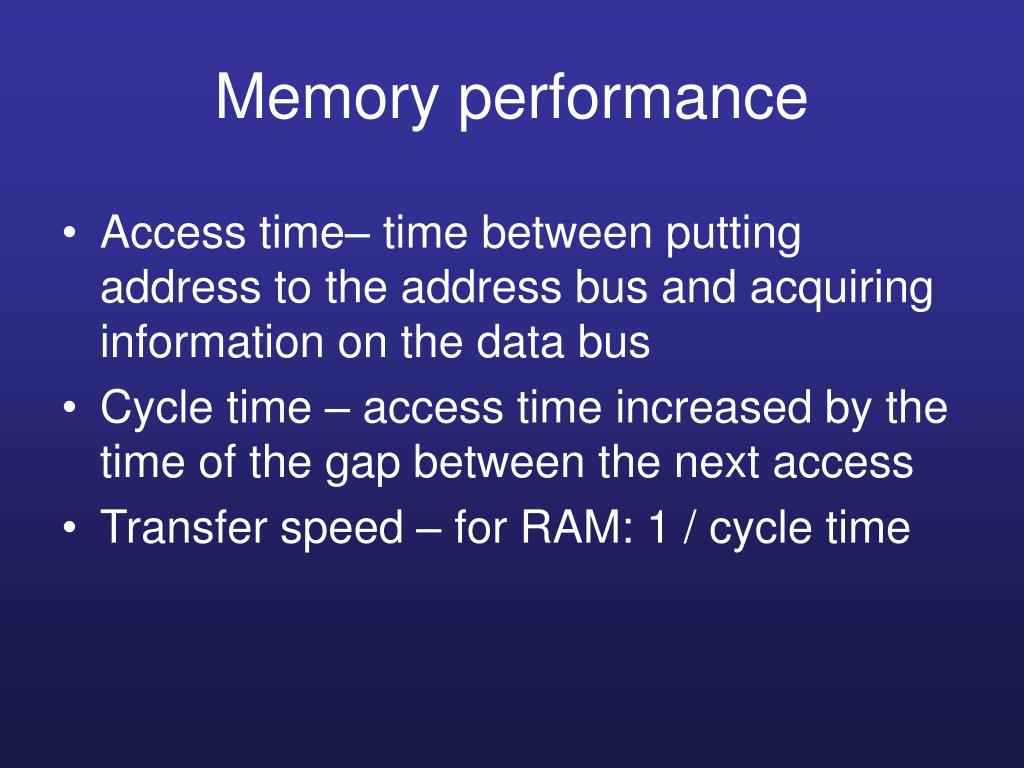

Memory performance

Memory performance

  • Access time– time between putting address to the address bus and acquiring information on the data bus

  • Cycle time – access time increased by the time of the gap between the next access

  • Transfer speed – for RAM: 1 / cycle time


Physical memory structure

Physical memory structure

  • Semiconductor (RAM, ROM)

  • Magnetic (hard disks, floppy disks, streamers)

  • Optical (CD-ROM, DVD-ROM)

  • Magnetooptical (WORM)


Physical characteristics

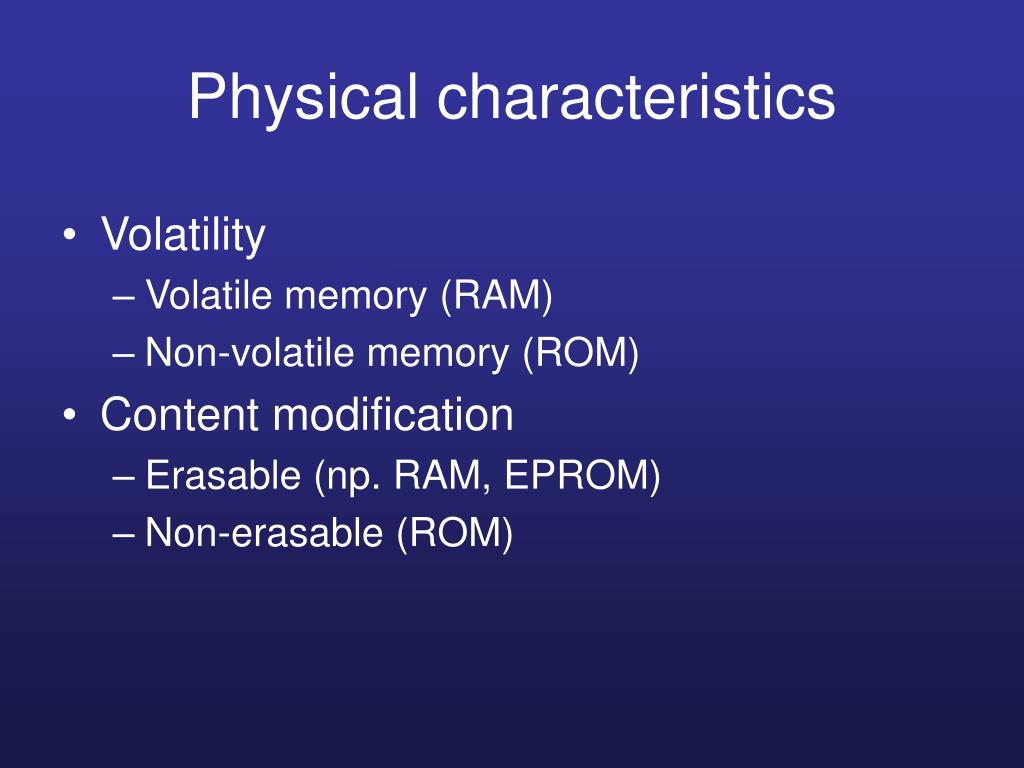

Physical characteristics

  • Volatility

    • Volatile memory (RAM)

    • Non-volatile memory (ROM)

  • Content modification

    • Erasable (np. RAM, EPROM)

    • Non-erasable (ROM)

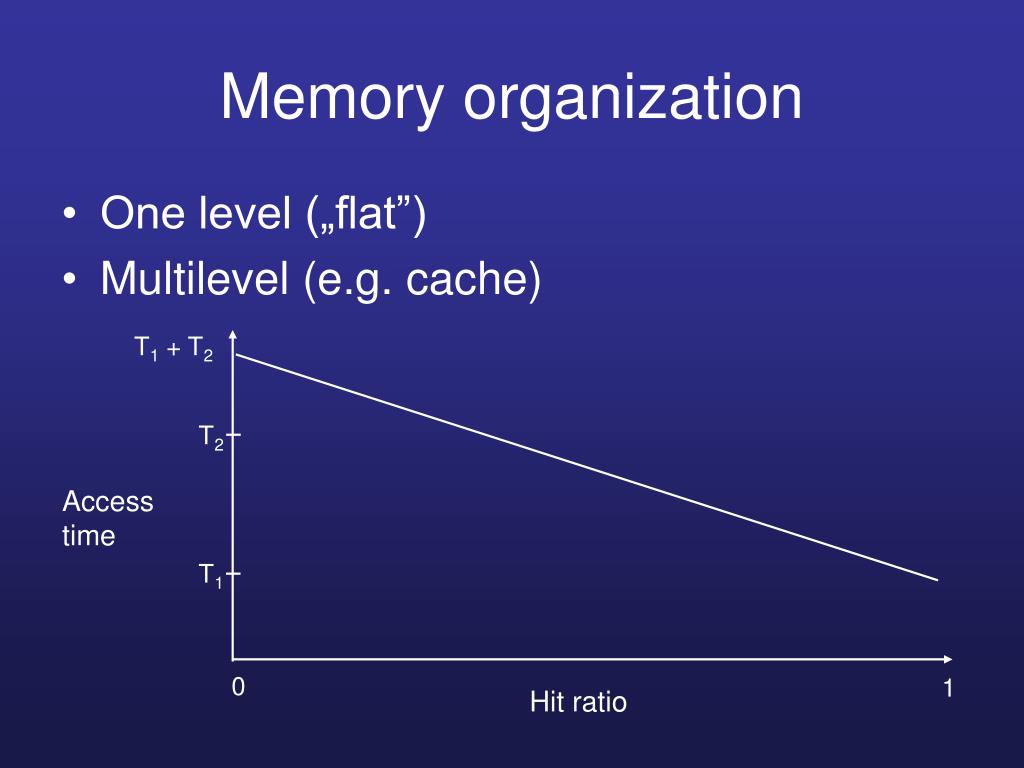

Memory organization

Memory organization

  • One level („flat”)

  • Multilevel (e.g. cache)

T1 + T2

T2

T1

Access time

0

1

Hit ratio


Memory hierarchy

Memory hierarchy

Speed

  • access time –  cost / bit

  • capacity –  cost / bit

  • capacity –  access time

Processor registers

Cache memory

Main (operational) memory

Access time

External memory

Capacity

cost

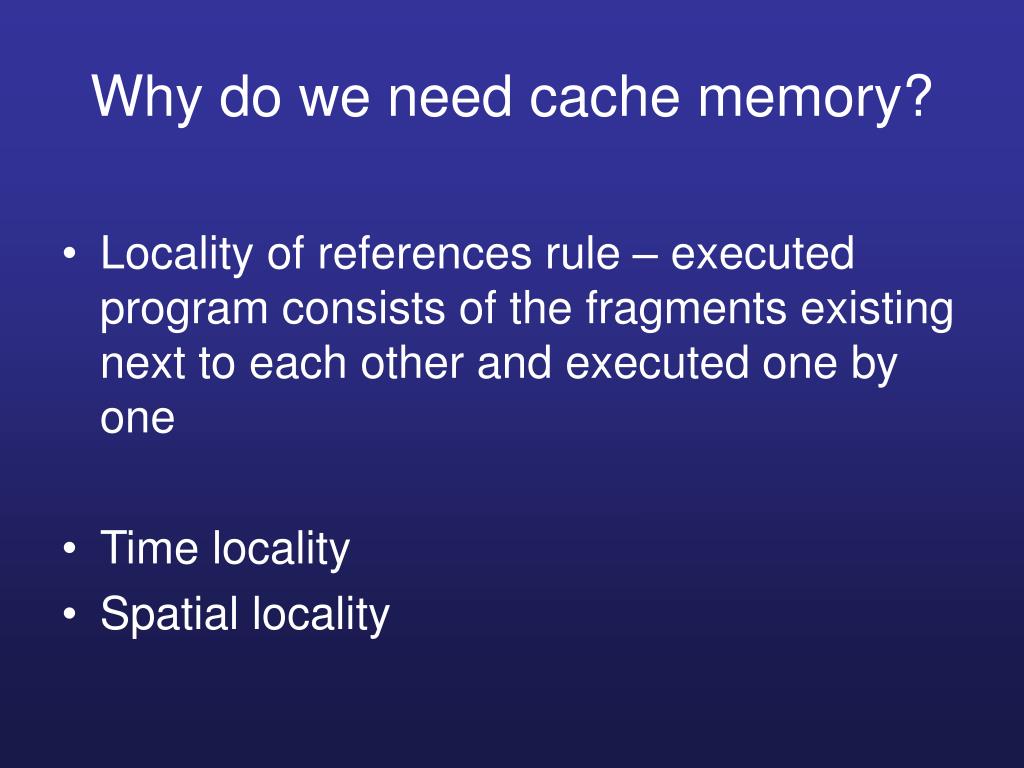

Why do we need cache memory

Why do we need cache memory?

  • Locality of references rule – executed program consists of the fragments existing next to each other and executed one by one

  • Time locality

  • Spatial locality

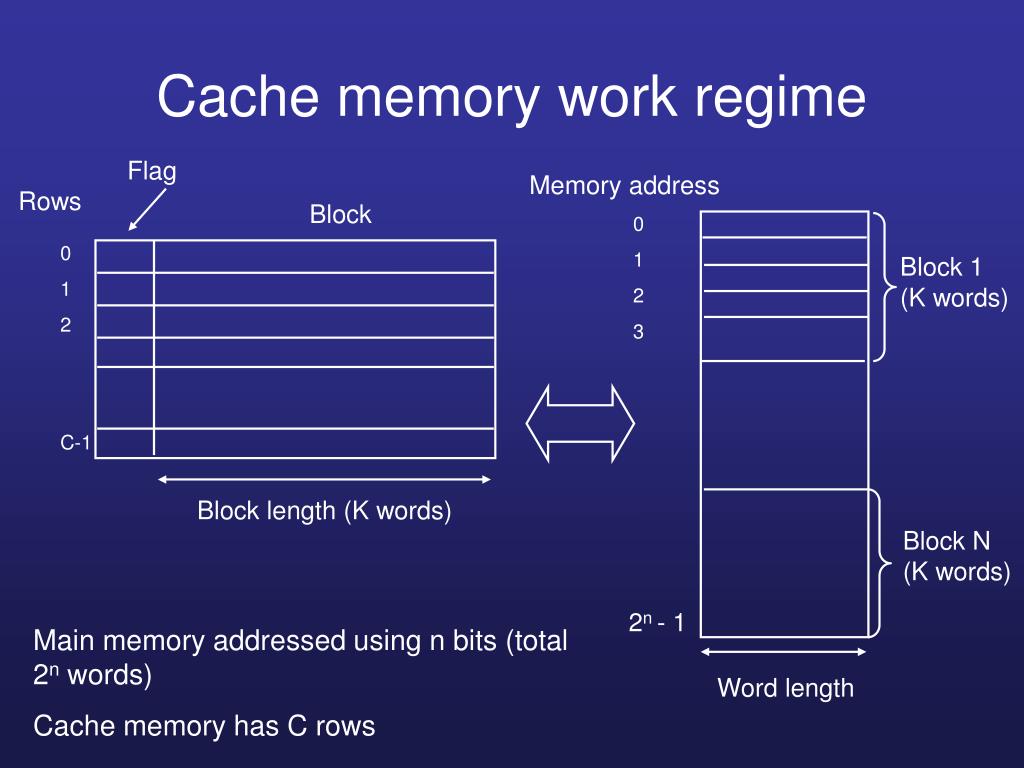

Cache memory work regime

Cache memory work regime

Flag

Memory address

Rows

Block

0

1

2

3

0

1

2

C-1

Block 1 (K words)

Block length (K words)

Block N (K words)

2n - 1

Main memory addressed using n bits (total 2n words)

Cache memory has C rows

Word length

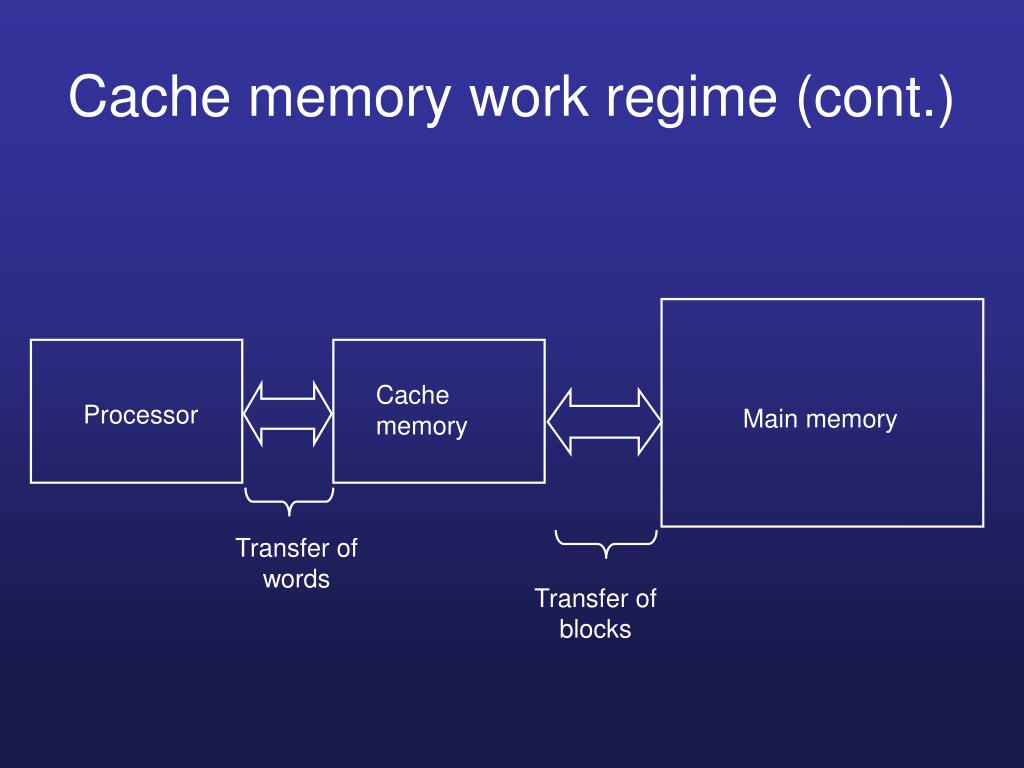

Cache memory work regime cont

Cache memory work regime (cont.)

Cache memory

Processor

Main memory

Transfer of words

Transfer of blocks

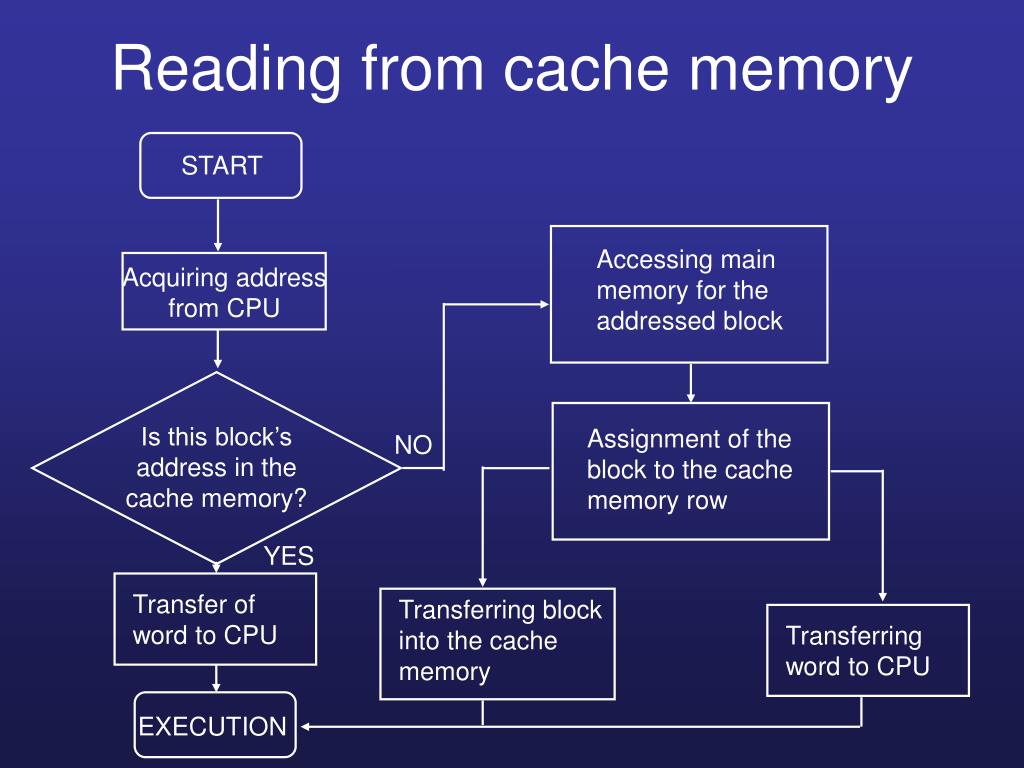

Reading from cache memory

Reading from cache memory

START

Accessing main memory for the addressed block

Acquiring address from CPU

Is this block’s address in the cache memory?

Assignment of the block to the cache memory row

NO

YES

Transfer of word to CPU

Transferring block into the cache memory

Transferring word to CPU

EXECUTION


Details of the cache memory

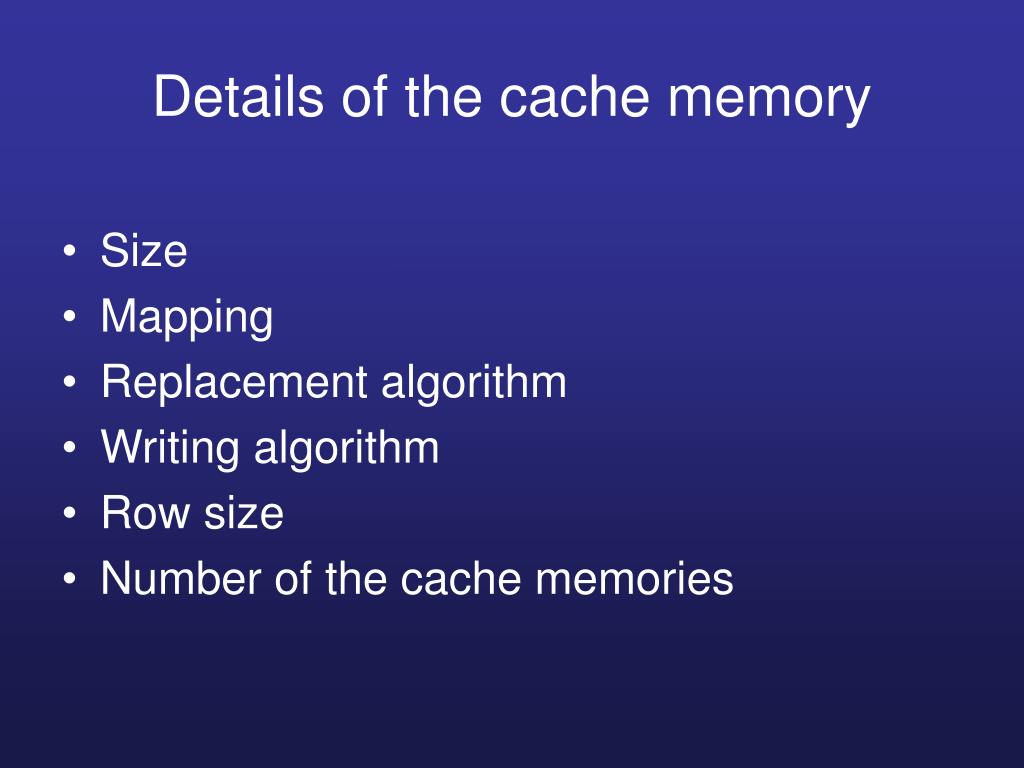

Details of the cache memory

  • Size

  • Mapping

  • Replacement algorithm

  • Writing algorithm

  • Row size

  • Number of the cache memories

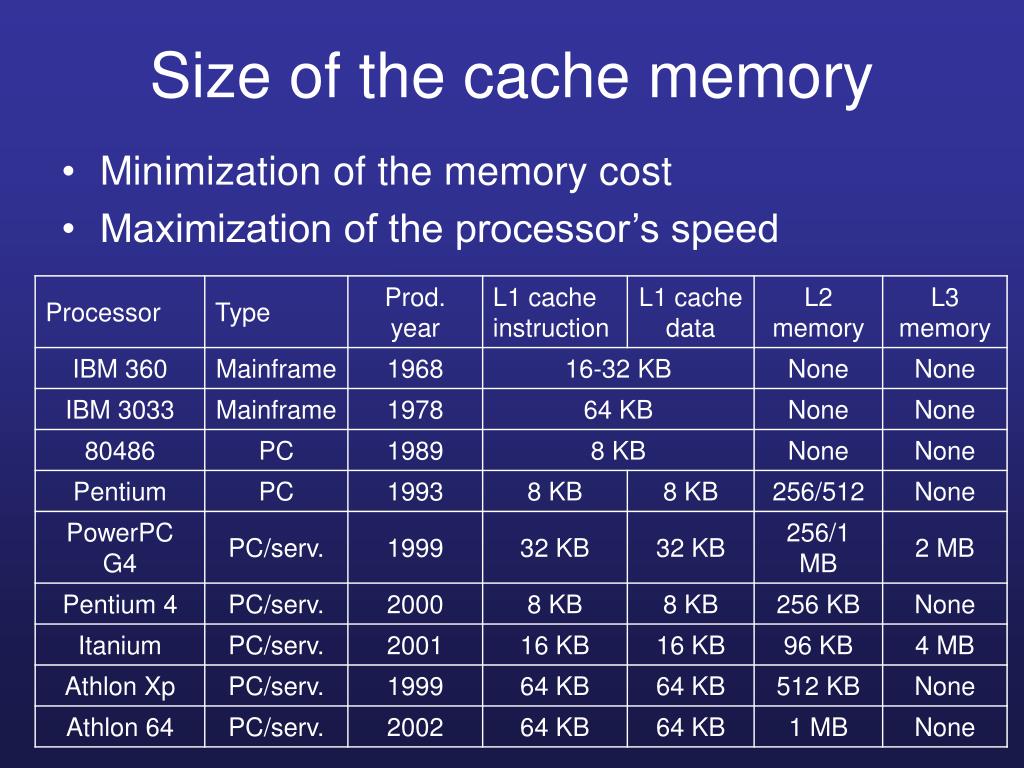

Size of the cache memory

Size of the cache memory

  • Minimization of the memory cost

  • Maximization of the processor’s speed


Mapping function

Mapping function

  • The number of the rows in the cache is smaller than the number of the blocks in the main memory

  • Three methods exist:

    • Direct

    • Associative

    • Set-associative

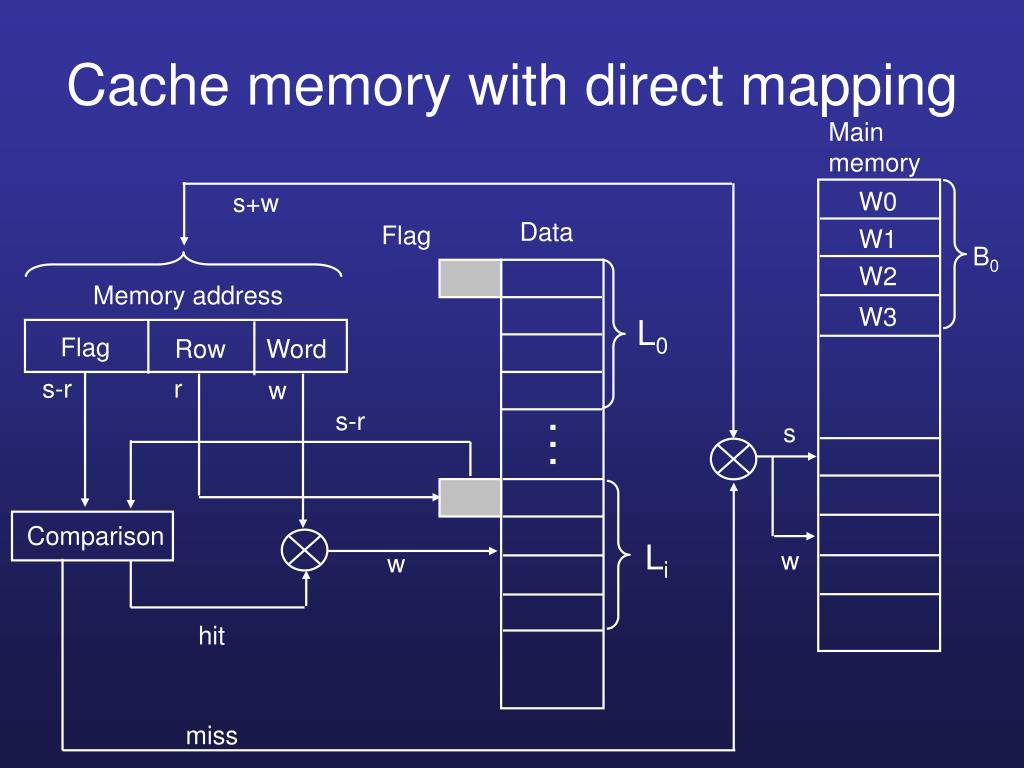

Cache memory with direct mapping

Cache memory with direct mapping

Main memory

W0

s+w

Data

Flag

W1

B0

W2

Memory address

W3

L0

Flag

Row

Word

s-r

r

w

s-r

s

Comparison

Li

w

w

hit

miss


Direct mapping cont

Direct mapping (cont.)

  • i – number of the row in the cache memory

  • j – number of the block in the main memory

  • m – number of rows in the cache memory

    i = j mod m

    Address length: s+w bits

    Number of the addressed units: 2s+w words

    Block size = row size: 2w words

    Number of blocks in the main memory: 2s

    Number of rows in the cache memory: 2r

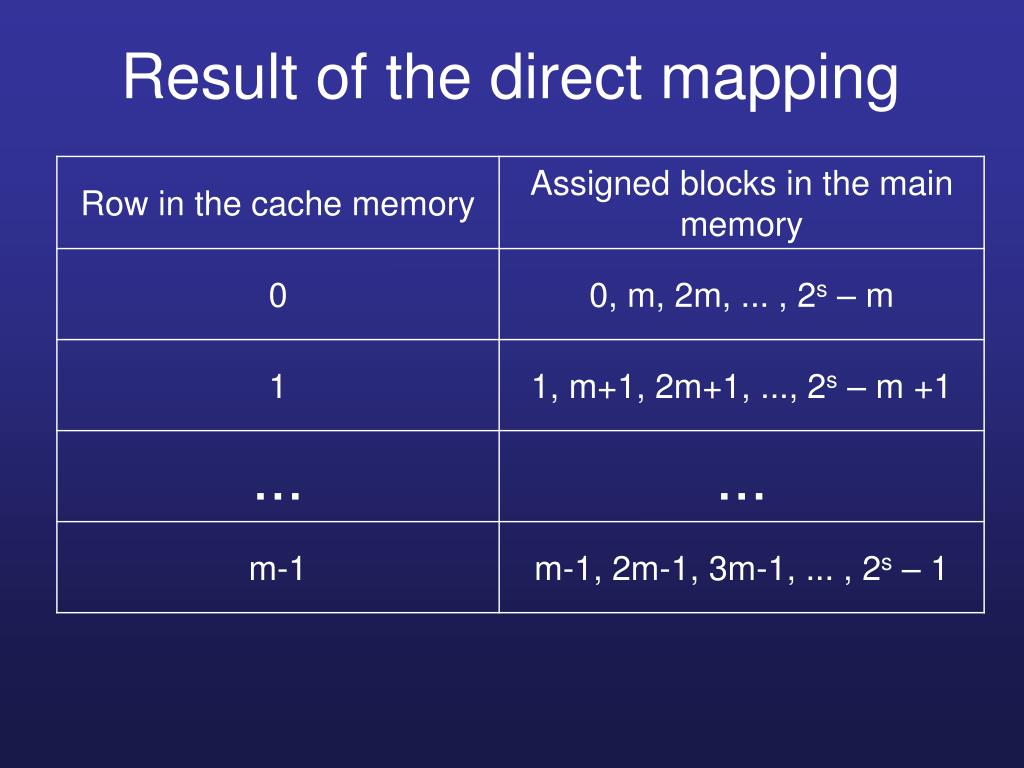

Result of the direct mapping

Result of the direct mapping


Example of the direct mapping

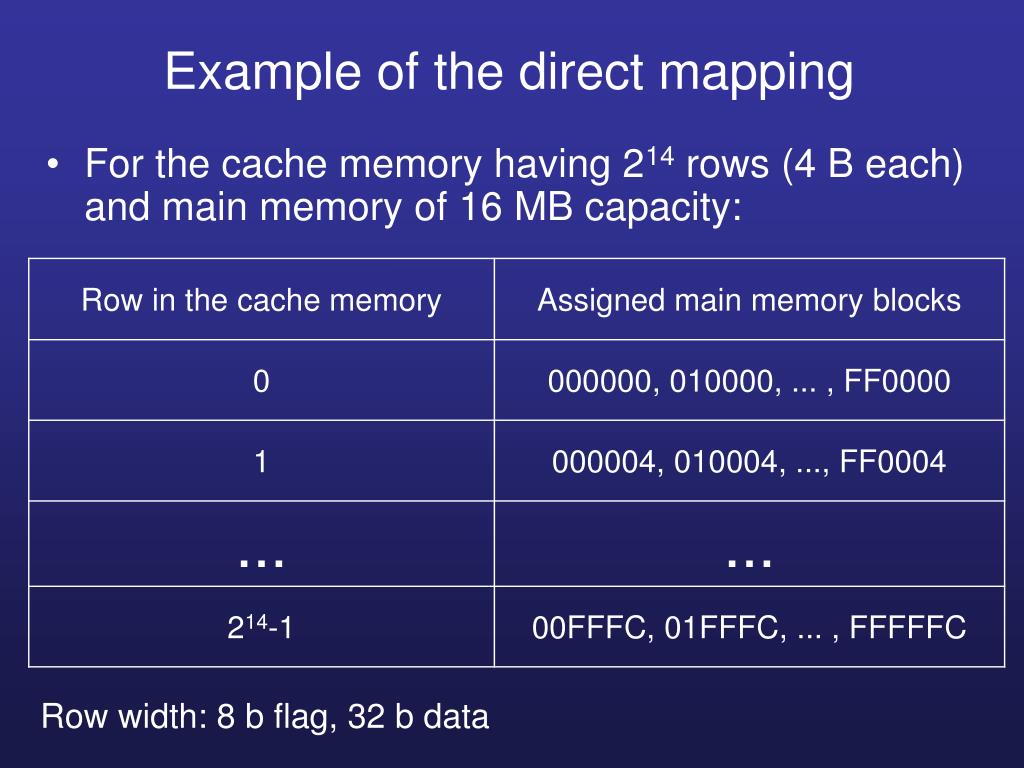

Example of the direct mapping

  • For the cache memory having 214 rows (4 B each) and main memory of 16 MB capacity:

Row width: 8 b flag, 32 b data


Cache memory of associative mapping

Cache memory of associative mapping

Main memory

W0

s+w

Data

Flag

W1

B0

W2

Memory address

W3

L0

Flag

Word

s

s

s

s

w

Comparison

Li

w

w

hit

miss

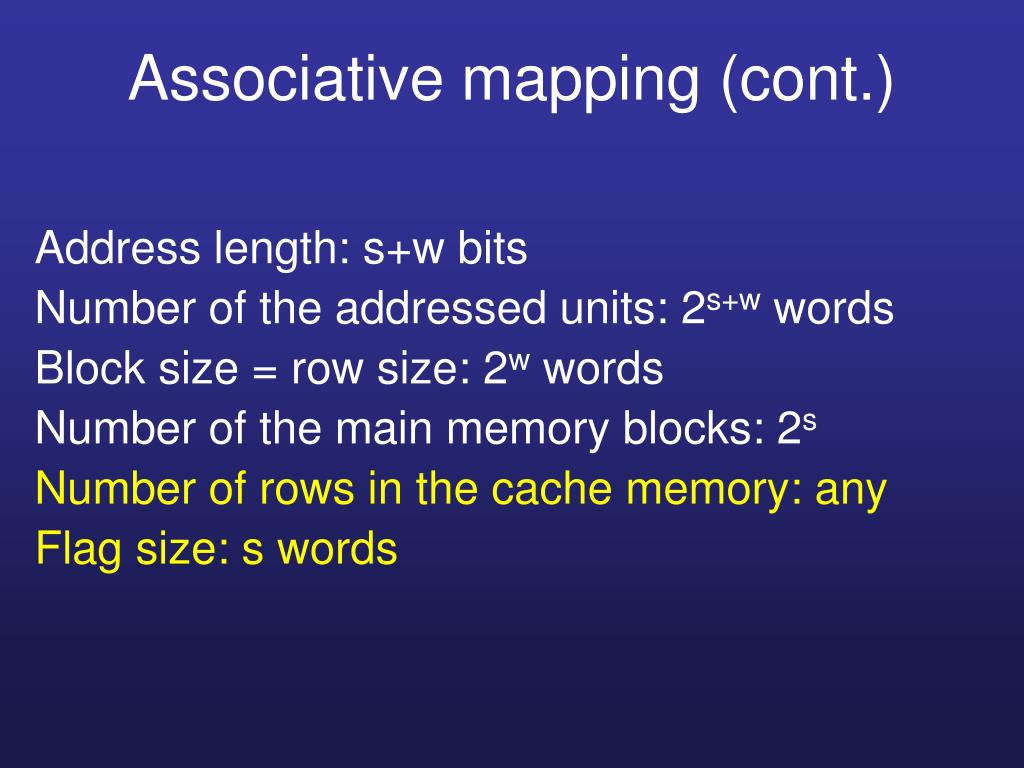

Associative mapping cont

Associative mapping (cont.)

Address length: s+w bits

Number of the addressed units: 2s+w words

Block size = row size: 2w words

Number of the main memory blocks: 2s

Number of rows in the cache memory: any

Flag size: s words


Example of the associative mapping

Example of the associative mapping

Data

Address

000000

000004

12357A

FFFFF4

FFFFF8

FFFFFC

35281987

F235A72C

3982FB1A

Flag Data

000000

3FFFFF

048D5E

35281987

3982FB1A

F235A72C

32 b

22 b

Word (2 b)

Flag (22 b)

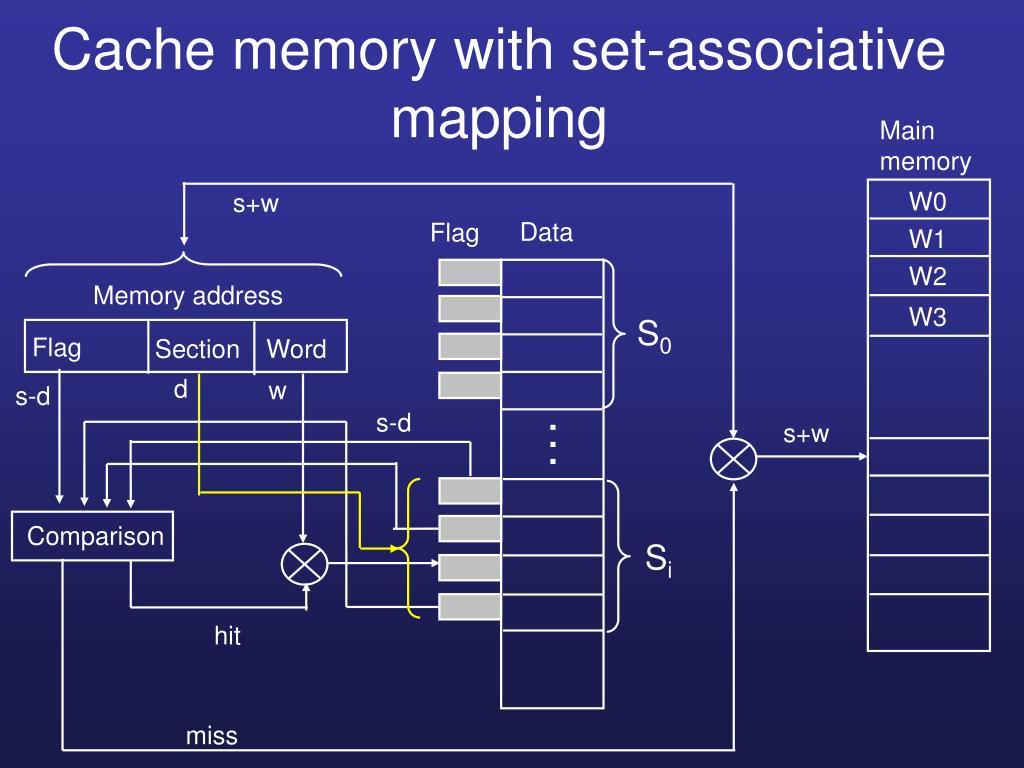

Cache memory with set associative mapping

Cache memory with set-associative mapping

Main memory

W0

s+w

Data

Flag

W1

W2

Memory address

W3

S0

Flag

Section

Word

d

w

s-d

s-d

s+w

Comparison

Si

hit

miss

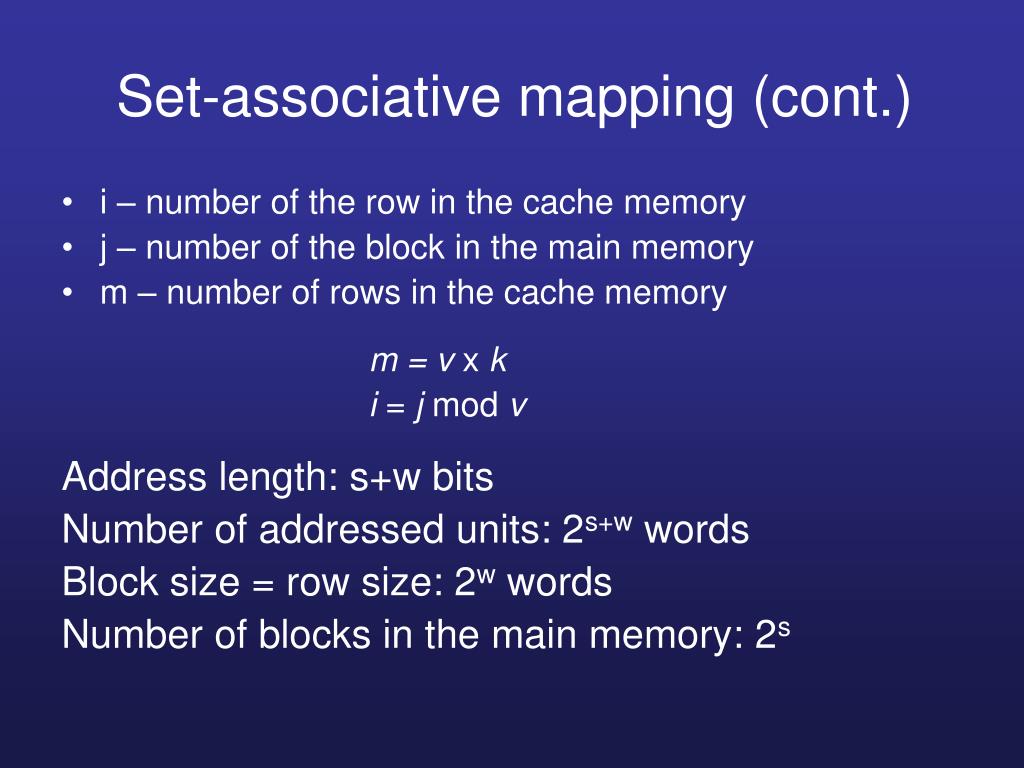

Set associative mapping cont

Set-associative mapping (cont.)

  • i – number of the row in the cache memory

  • j – number of the block in the main memory

  • m – number of rows in the cache memory

    m = v x k

    i = j mod v

    Address length: s+w bits

    Number of addressed units: 2s+w words

    Block size = row size: 2w words

    Number of blocks in the main memory: 2s


Set associative mapping cont1

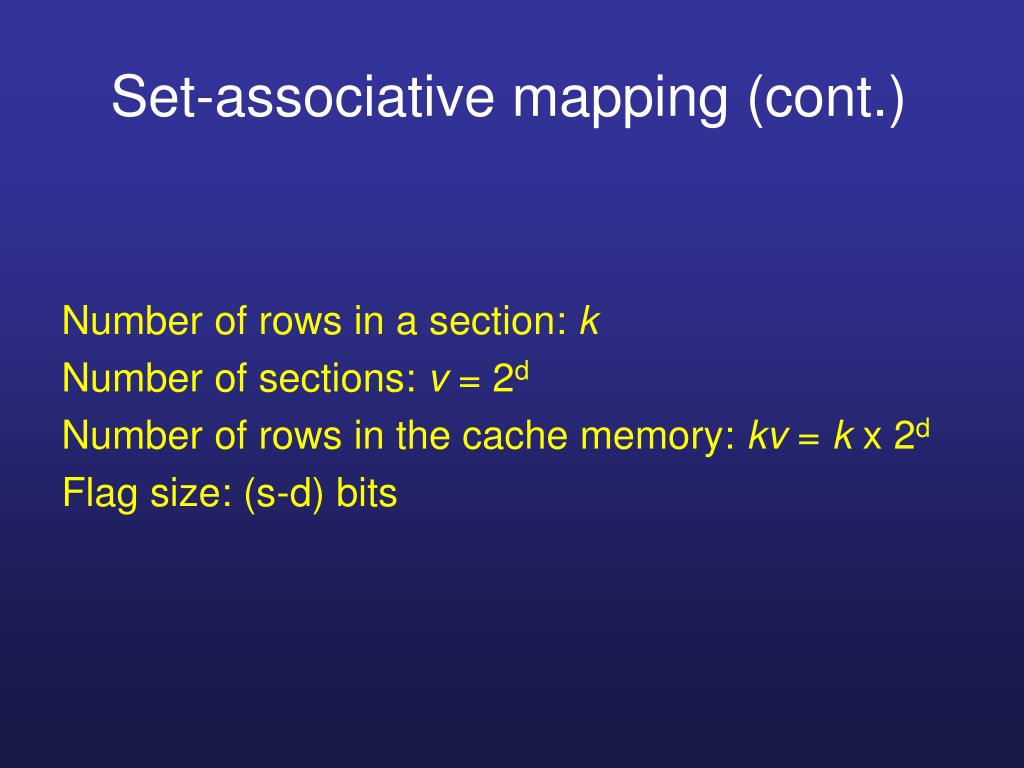

Set-associative mapping (cont.)

Number of rows in a section: k

Number of sections: v = 2d

Number of rows in the cache memory: kv = k x 2d

Flag size: (s-d) bits


Example of the set passociative mapping

Example of the set-passociative mapping

Data

Flag

0000

0004

7FFC

0000

0004

7FFC

000

01A

1FF

35281987

F235A72C

67321342

3982FB1A

Flag Data

01A

F235A72C

000

01A

35281987

67321342

32 b

9 b

32 b

9 b

Słowo (2 b)

Flag (9 b)

Section (13 b)


Algorithms of the cache memory content replacement

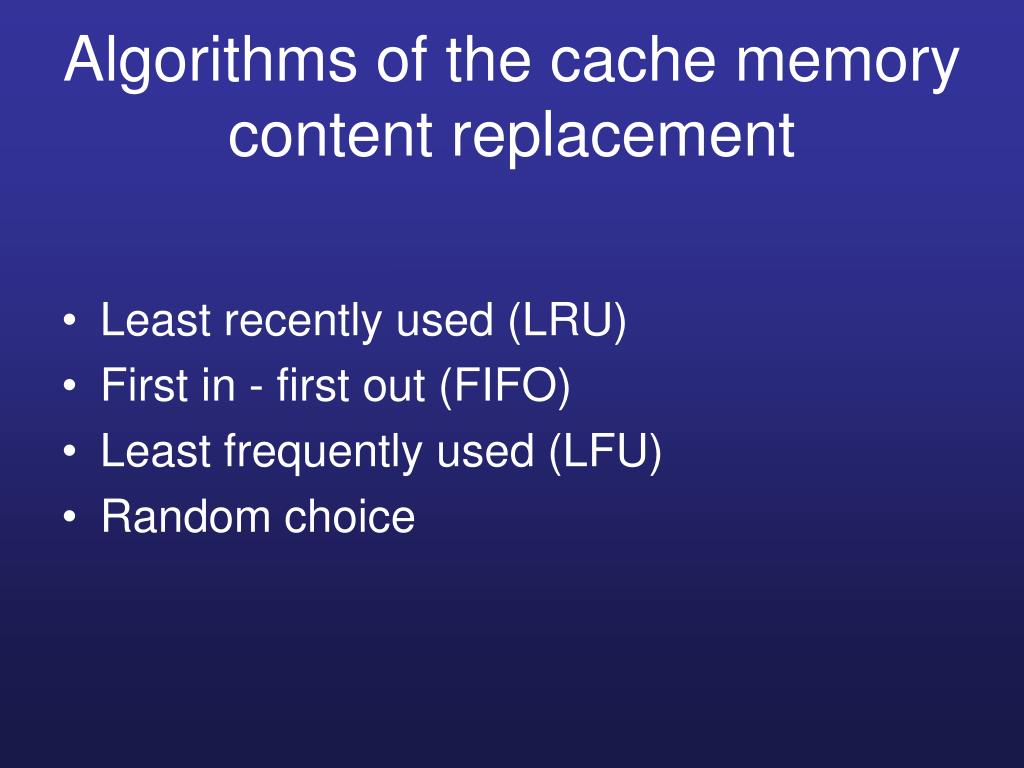

Algorithms of the cache memory content replacement

  • Least recently used (LRU)

  • First in - first out (FIFO)

  • Least frequently used (LFU)

  • Random choice

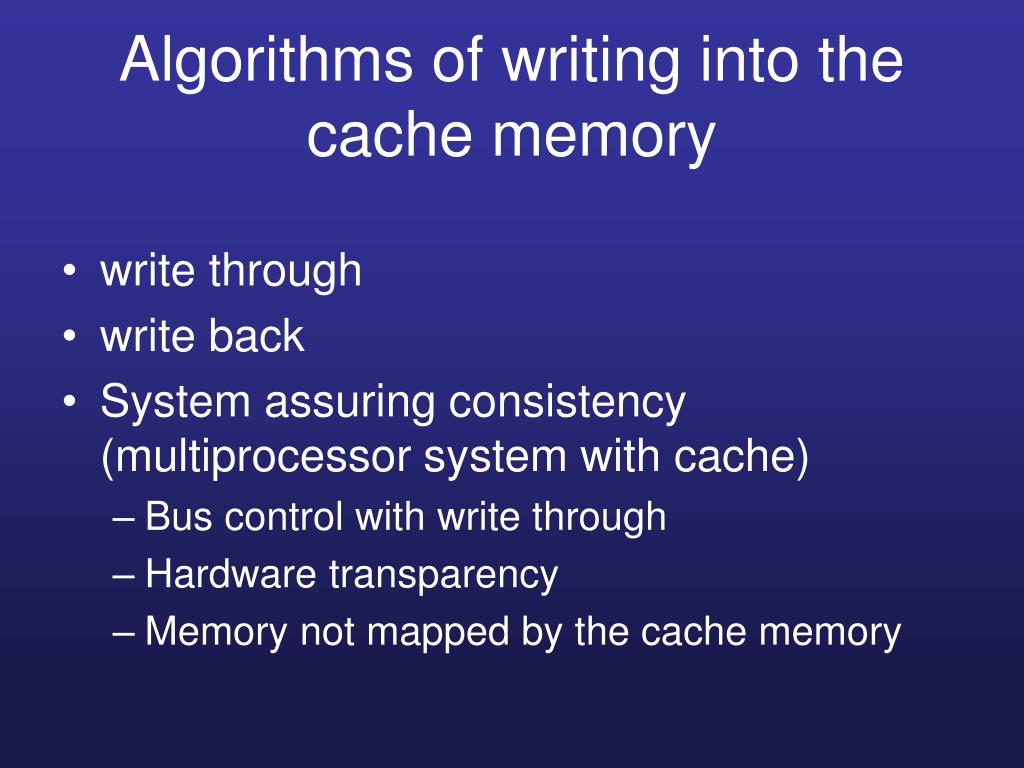

Algorithms of writing into the cache memory

Algorithms of writing into the cache memory

  • write through

  • write back

  • System assuring consistency (multiprocessor system with cache)

    • Bus control with write through

    • Hardware transparency

    • Memory not mapped by the cache memory


Other problems

Other problems

  • Row size and block size

  • Number of the cache memories

    • Memory of the higher level is integrated in one chip with the processor, works with identical frequency

    • Memory of the lower level works with the bus frequency (it is on the mainboard)

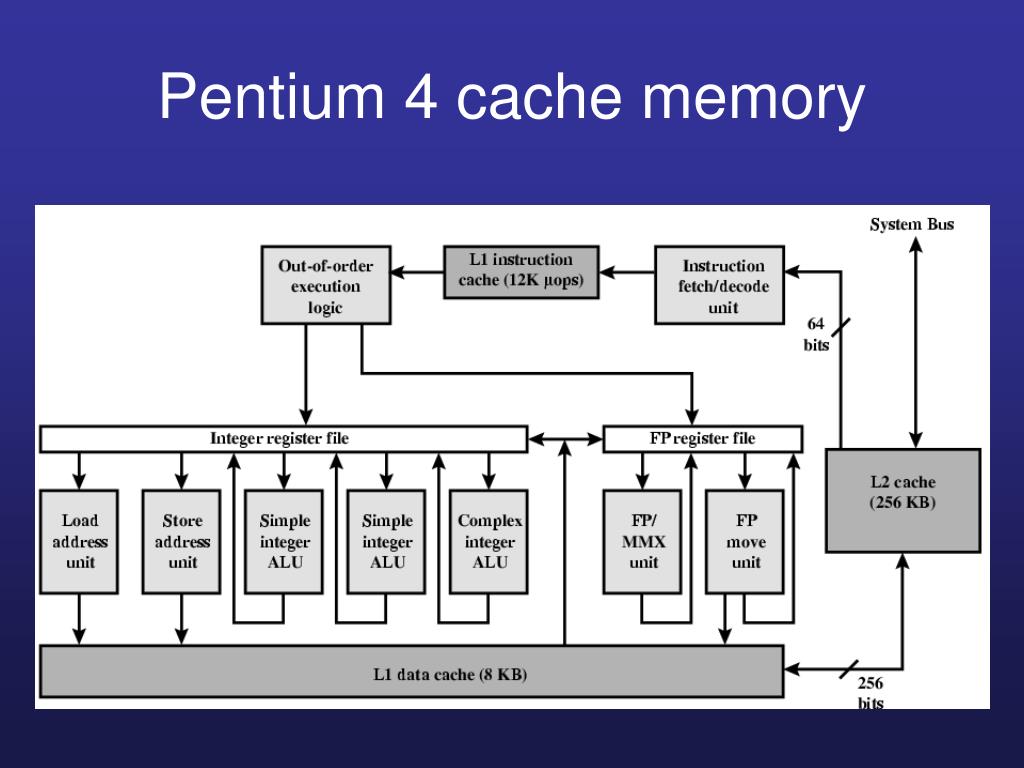

Pentium 4 cache memory

Pentium 4 cache memory


Pentium 4 processor core

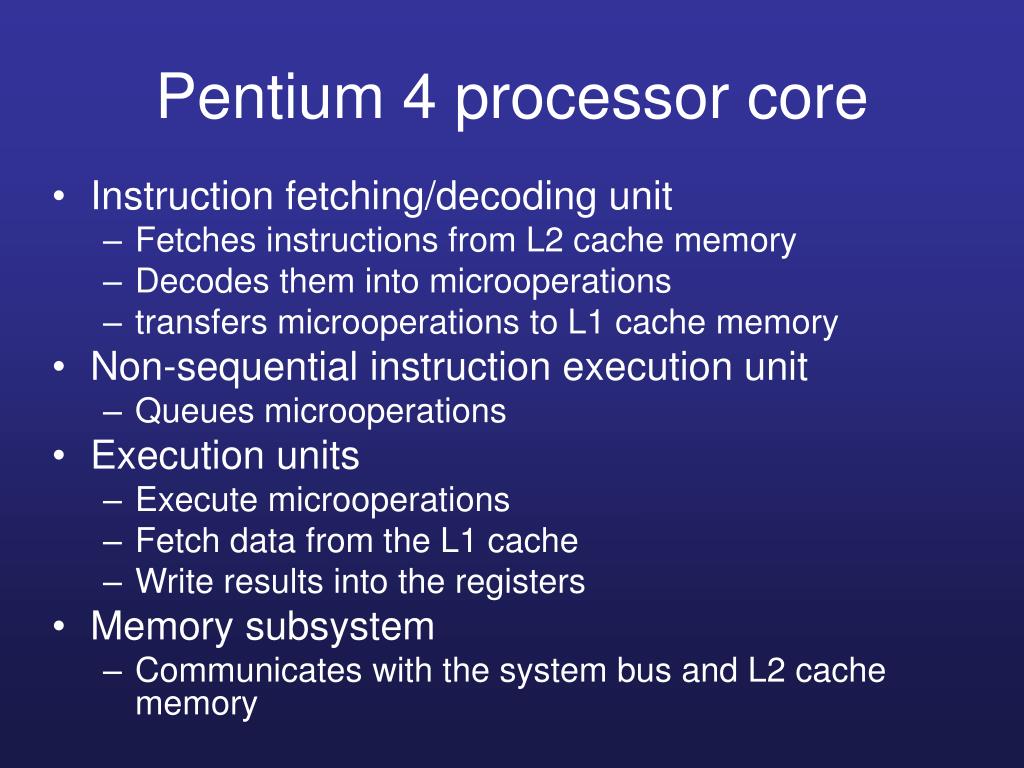

Pentium 4 processor core

  • Instruction fetching/decoding unit

    • Fetches instructions from L2 cache memory

    • Decodes them into microoperations

    • transfers microoperations to L1 cache memory

  • Non-sequential instruction execution unit

    • Queues microoperations

  • Execution units

    • Execute microoperations

    • Fetch data from the L1 cache

    • Write results into the registers

  • Memory subsystem

    • Communicates with the system bus and L2 cache memory


Powerpc cache memory

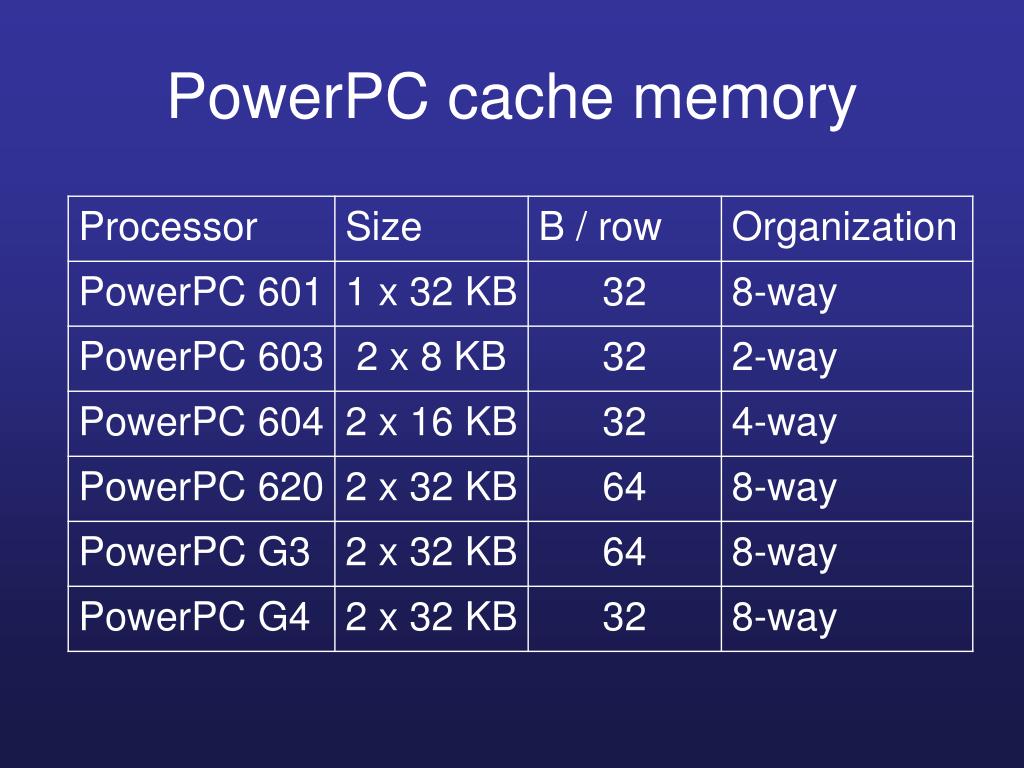

PowerPC cache memory

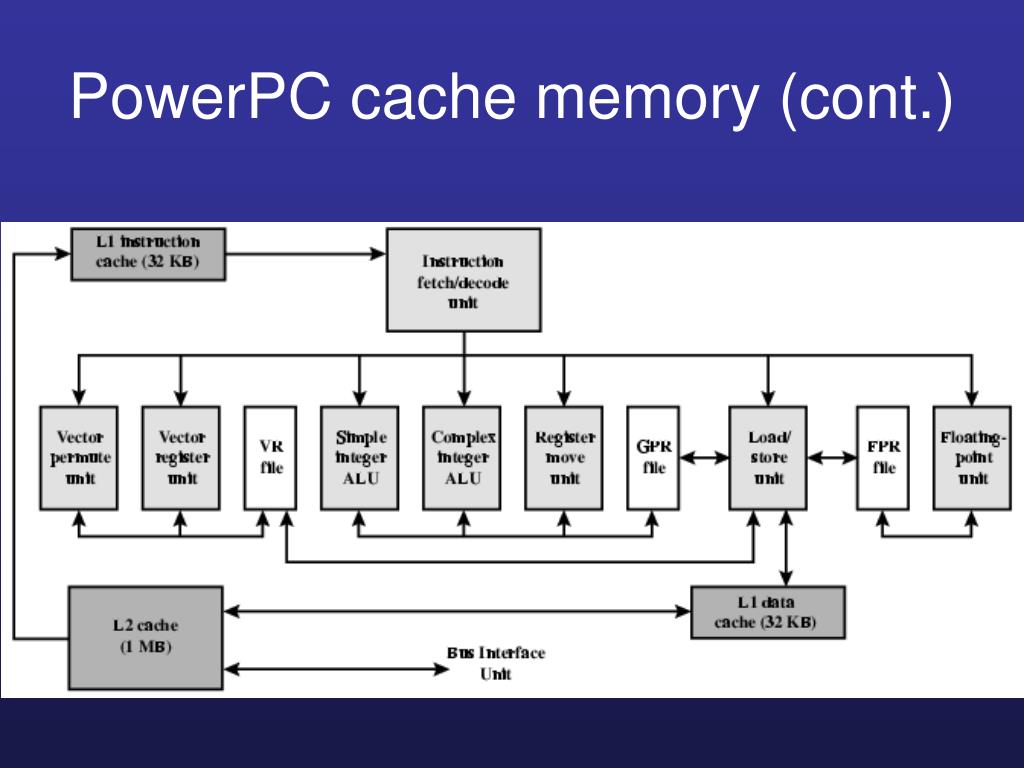

Powerpc cache memory cont

PowerPC cache memory (cont.)
