Chapter 39 The Atomic Nucleus and Radioactivity

Chapter 39 The Atomic Nucleus and Radioactivity. Conceptual Physics Hewitt, 1999 Bloom High School. 39.1 The Atomic Nucleus. Nucleons- particles in the nucleus of an atom Neutrons (n 0 ) & Protons (p + ) Almost equal masses Neutrons are “glue” in a nucleus

Download Presentation

Chapter 39 The Atomic Nucleus and Radioactivity

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Chapter 39The Atomic Nucleus and Radioactivity Conceptual Physics Hewitt, 1999 Bloom High School

  2. 39.1 The Atomic Nucleus • Nucleons- particles in the nucleus of an atom • Neutrons (n0) & Protons (p+) • Almost equal masses • Neutrons are “glue” in a nucleus • Electrical forces- like repels like • p+ repel other p+ in the nucleus • Acts over a distance • Inverse-square law

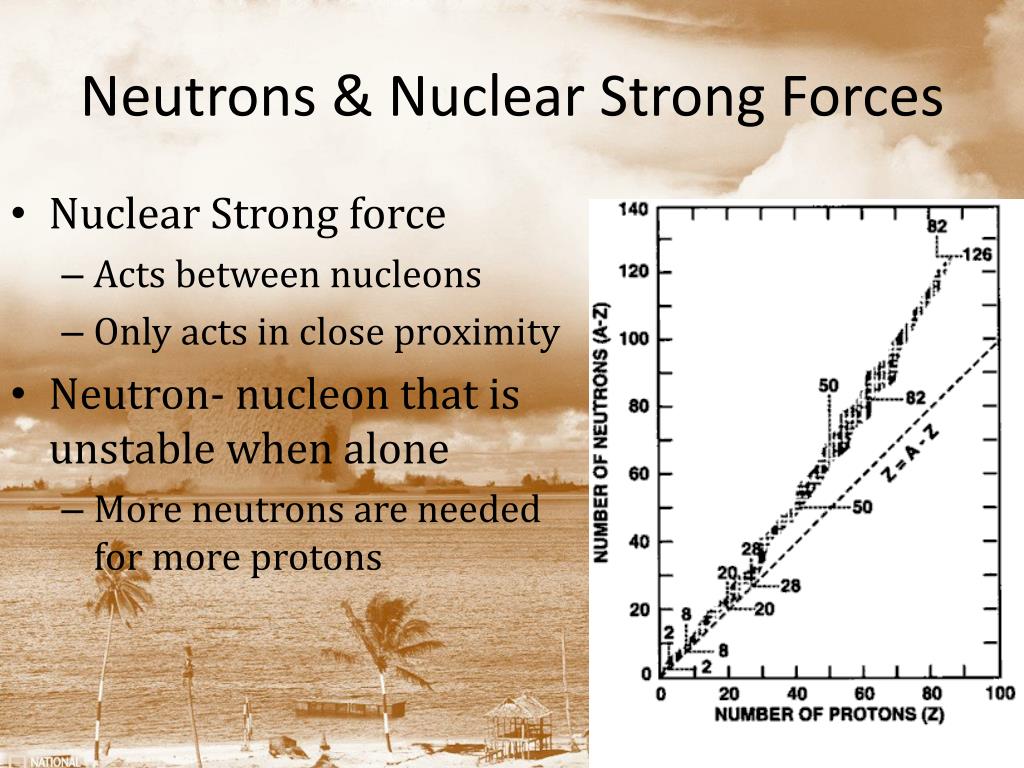

  3. Neutrons & Nuclear Strong Forces • Nuclear Strong force • Acts between nucleons • Only acts in close proximity • Neutron- nucleon that is unstable when alone • More neutrons are needed for more protons

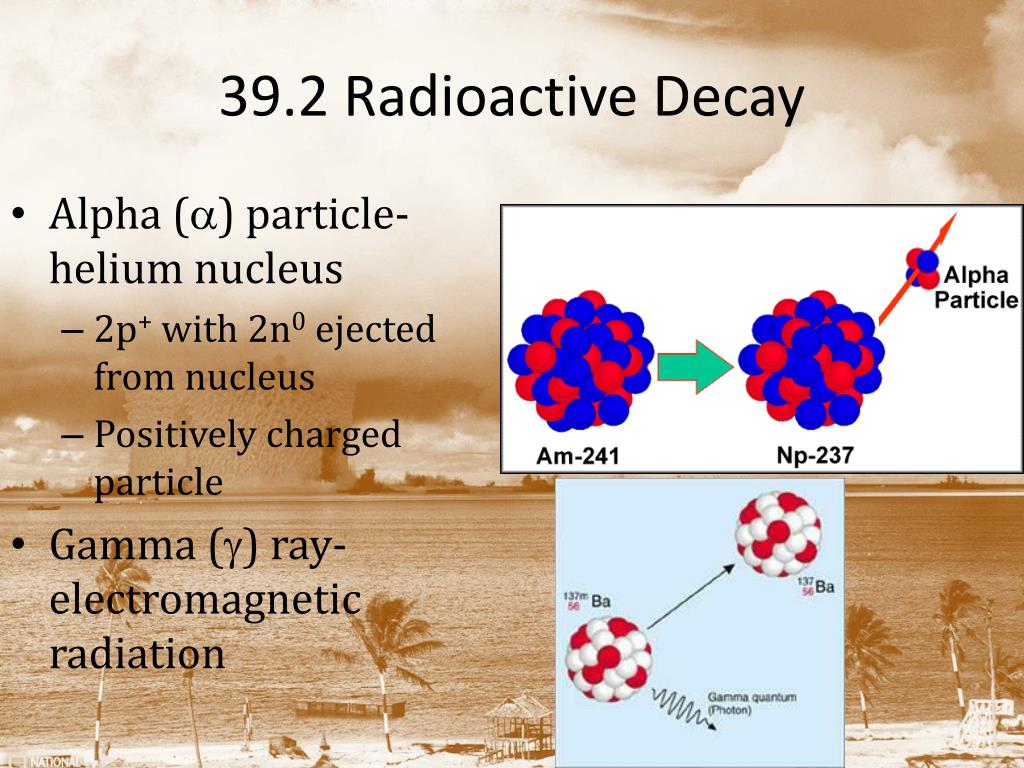

  4. 39.2 Radioactive Decay • Alpha (a) particle- helium nucleus • 2p+ with 2n0 ejected from nucleus • Positively charged particle • Gamma (g) ray- electromagnetic radiation

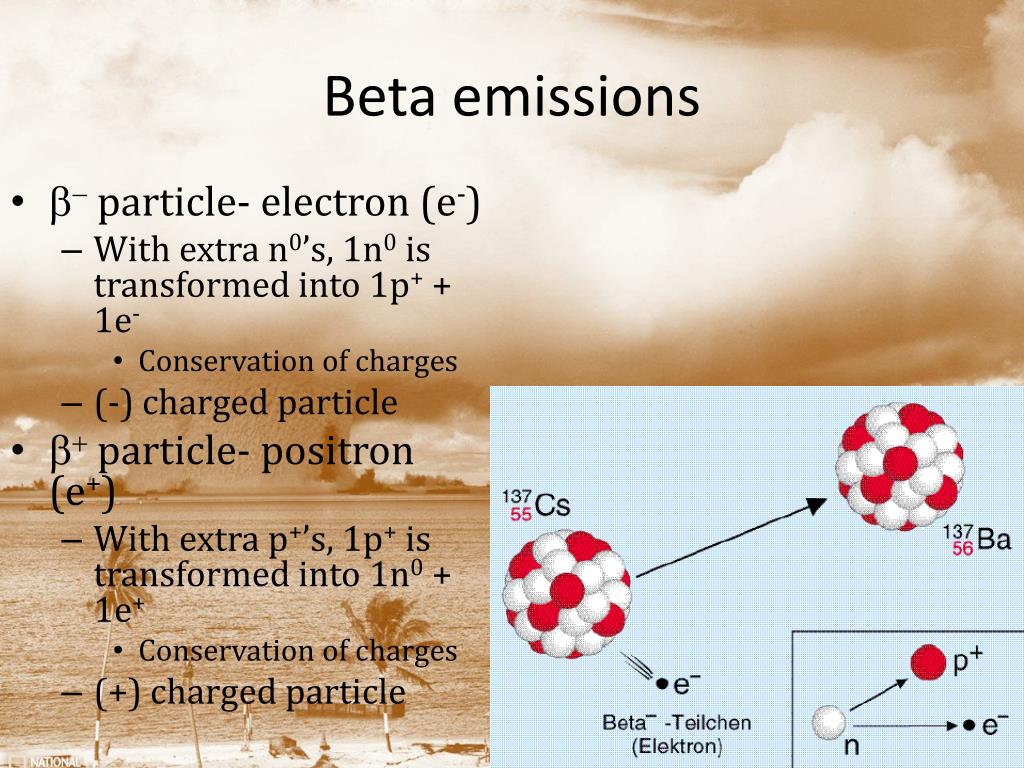

  5. Beta emissions • b- particle- electron (e-) • With extra n0’s, 1n0 is transformed into 1p+ + 1e- • Conservation of charges • (-) charged particle • b+ particle- positron (e+) • With extra p+’s, 1p+ is transformed into 1n0 + 1e+ • Conservation of charges • (+) charged particle

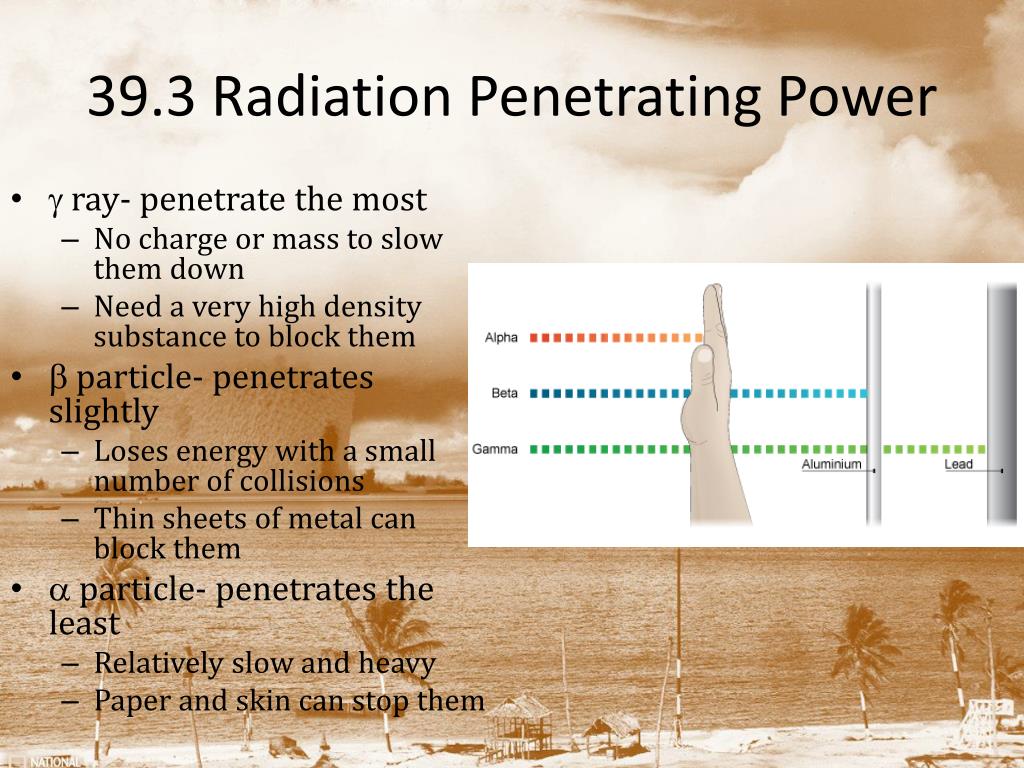

  6. 39.3 Radiation Penetrating Power • g ray- penetrate the most • No charge or mass to slow them down • Need a very high density substance to block them • b particle- penetrates slightly • Loses energy with a small number of collisions • Thin sheets of metal can block them • a particle- penetrates the least • Relatively slow and heavy • Paper and skin can stop them

  7. 39.4 Radioactive Isotopes • Atomic number- equal to the number of p+ • Carbon, 12p+ • Atomic mass number- equal to the number of nucleons • Carbon-24 (99% of all carbon) • Hydrogen-1 • Deuterium-2 (1n0 & 1p+) stable • Tritium- 3 (2n0 & 1p+) radioactive

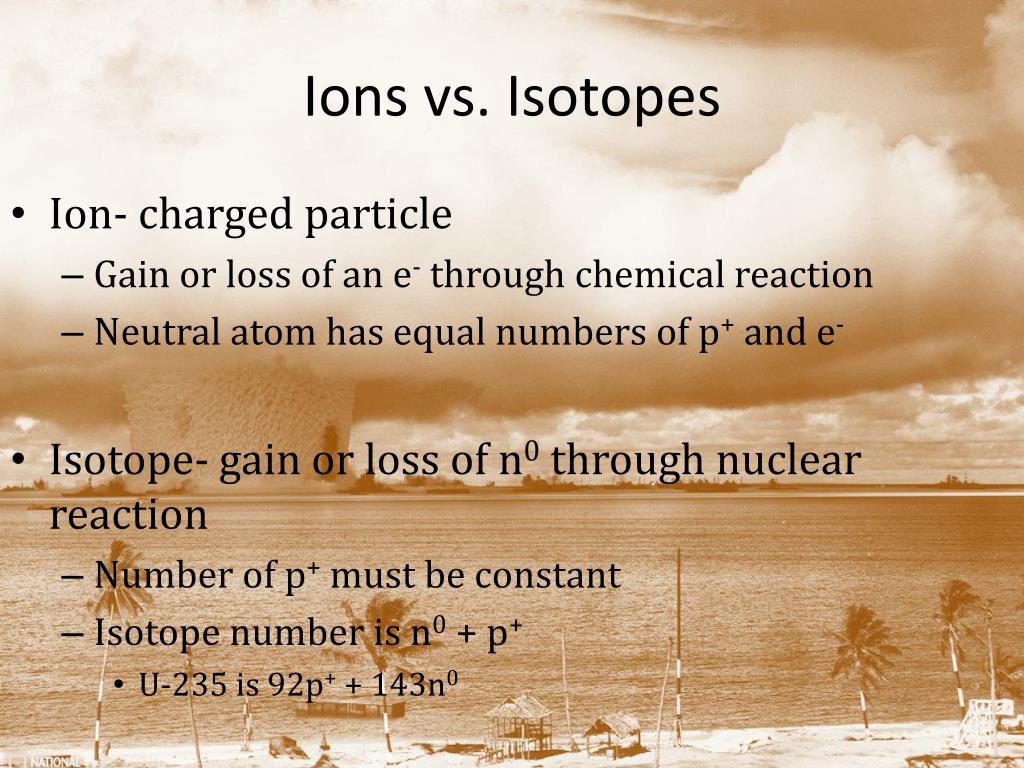

  8. Ions vs. Isotopes • Ion- charged particle • Gain or loss of an e- through chemical reaction • Neutral atom has equal numbers of p+ and e- • Isotope- gain or loss of n0 through nuclear reaction • Number of p+ must be constant • Isotope number is n0 + p+ • U-235 is 92p+ + 143n0

  9. 39.5 Radioactive Half-Life • Half-Life- amount of time for half of the substance to change or decay • If half-life is 1000 years, 50% remains at 1000 years • At 2000 years, ½ of ½ remains (25%)

  10. 39.6 Natural Transmutation of Elements • Transmutation- changing one element into another • Radioactive Decay- can change to another element • a-decay- loss of 2p+ • Atomic number decreases by 2 • Atomic mass decreases by 4 • 238U  234Th + 4He • b-decay- gain of 1p + • Atomic number increases by 1 • Atomic mass unchanged • 234Th  234Pa + 0e- • g-decay- no gain or loss of p + • No change in atomic number or mass • 60Co  60Co + 0g

  11. 39.7 Artificial Transmutation of Elements • Elements can be bombarded to change into other elements • 14N + 4He  17O + 1H • Transuranic element- elements after Uranium • Half-life’s are relatively short, so they are not found in nature

  12. 39.8 Carbon Dating • C-12 very stable (99% of carbon is C-12) • C-14 radioactive • Found in living tissue and is constantly replaced • Ratio of C-12 to C-14 fixed in living tissue • In dead tissue, C-14 is not replaced and decreases over time • Not found in non-living tissue (metals, rocks, etc.)

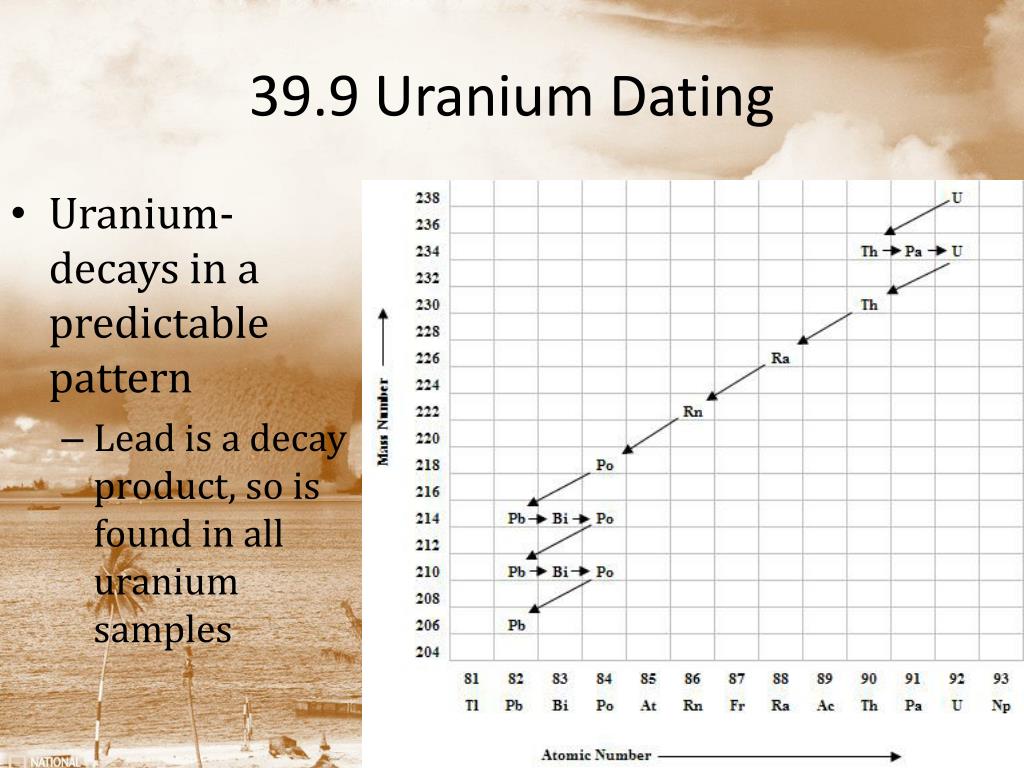

  13. 39.9 Uranium Dating • Uranium- decays in a predictable pattern • Lead is a decay product, so is found in all uranium samples

  14. 39.10 Radioactive Tracers • Radioactive tracer- radioactive isotope used to follow a path • Used in agriculture to determine path of fertilizer and water • Used in medicine to determine metabolic pathway of medicine or blood

  15. 39.11 Radiation and You • Radiation naturally occurs everywhere • Radiation more strong at high altitudes because there is less atmospheric shielding from cosmic radiation
