  1. Forces and Motion

  2. Motion • The process of changing from one position, or place, to another

  3. Position Object’s place or location

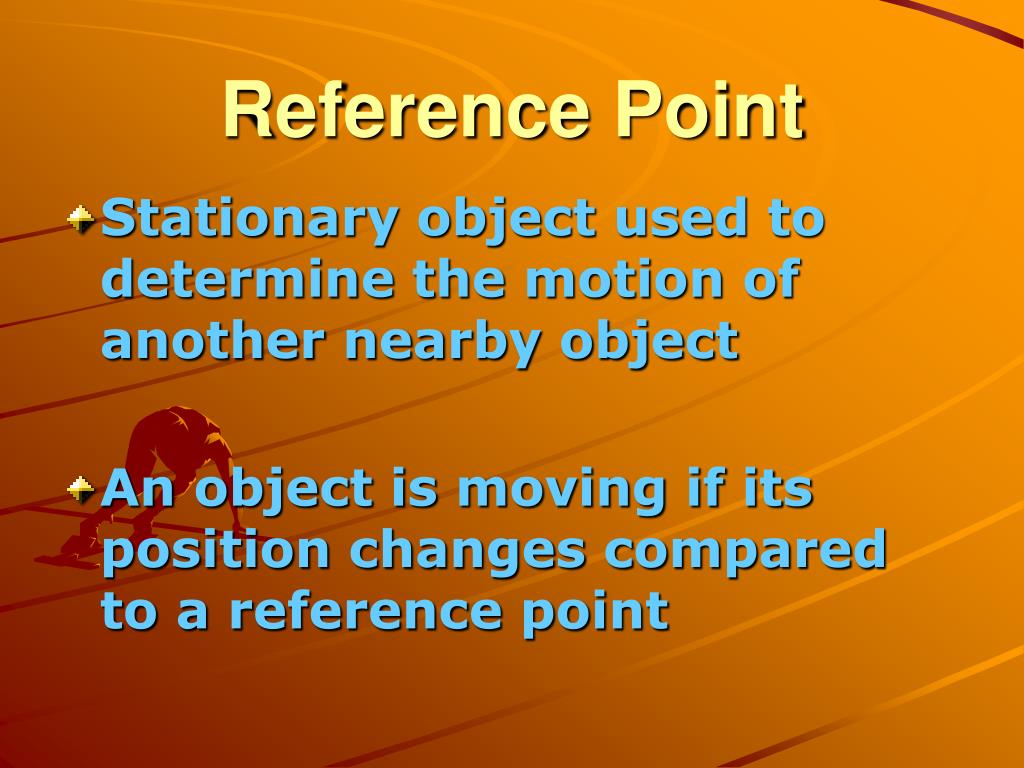

  4. Reference Point • Stationary object used to determine the motion of another nearby object • An object is moving if its position changes compared to a reference point

  5. Distance The measure of how far it is from one point to another.

  6. Speed: The distance an object travels per unit of time

  7. Formula for speed: • Speed = Distance Time

  8. Question: • If a cyclist travels 45 kilometers in 3 hours, what is his speed?

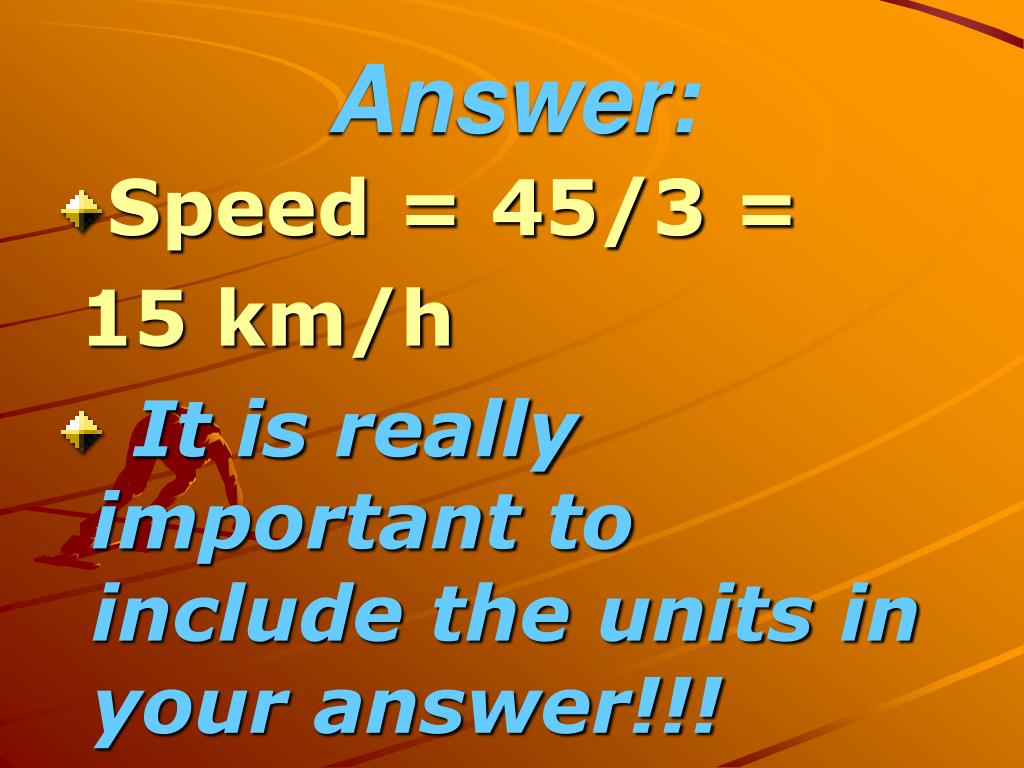

  9. Answer: • Speed = 45/3 = 15 km/h • It is really important to include the units in your answer!!!

  10. F. Y. I. • Knowing the speed at which something travels does not tell you everything about its motion. To describe an object’s motion completely, you need to know the direction of its motion. For example, suppose you hear that a thunderstorm is traveling at a speed of 25 km/h. Should you prepare for the storm? That depends on the direction of the storm’s motion!

  11. Velocity: Speed in a given direction

  12. Symbols for Motion

  13. F. Y. I. • You know the velocity of the storm when you know that it is moving 25 km/h eastward.

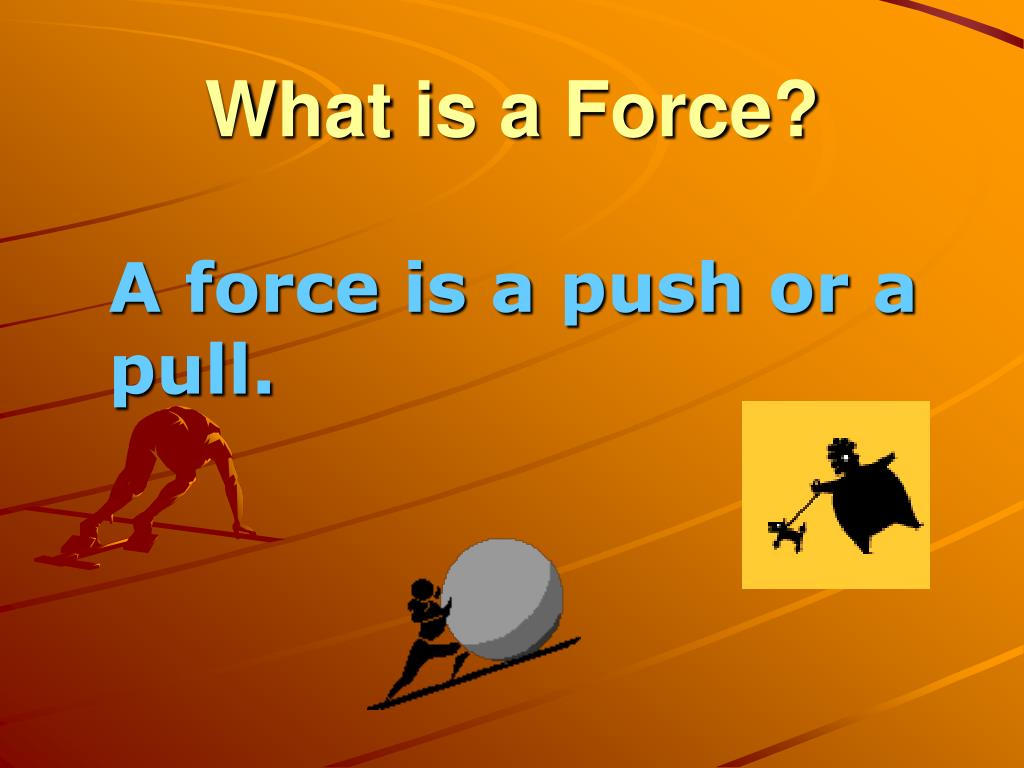

  14. What is a Force? A force is a push or a pull.

  15. Forces can….. • Cause objects to move • Change speed • Change direction

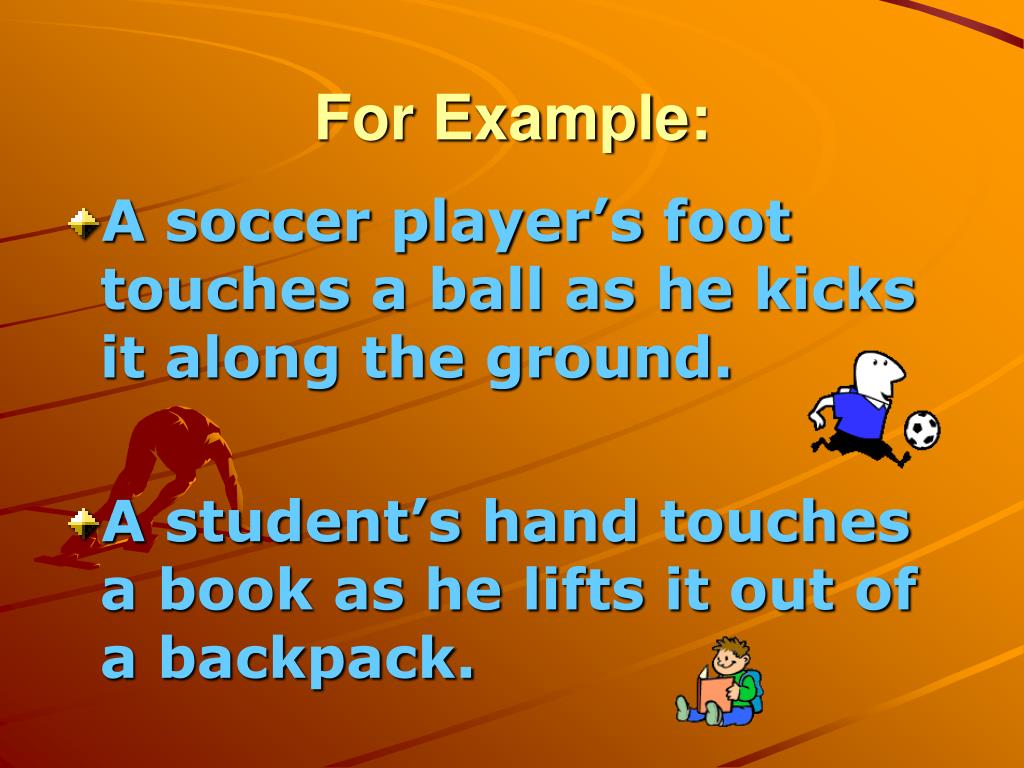

  16. For Example: • A soccer player’s foot touches a ball as he kicks it along the ground. • A student’s hand touches a book as he lifts it out of a backpack.

  17. Two Types of Forces • Balanced Forces • Unbalanced Forces

  18. Balanced Forces • Forces that cancel each other because they are equal in strength and opposite in direction

  19. Examples of Balanced Forces: A ball at rest on a soccer field will not move until it is kicked. A chair will stay in place until it is pushed.

  20. Unbalanced Forces • Forces that do not cancel each other out and result in a change in the speed or direction of the motion of an object.

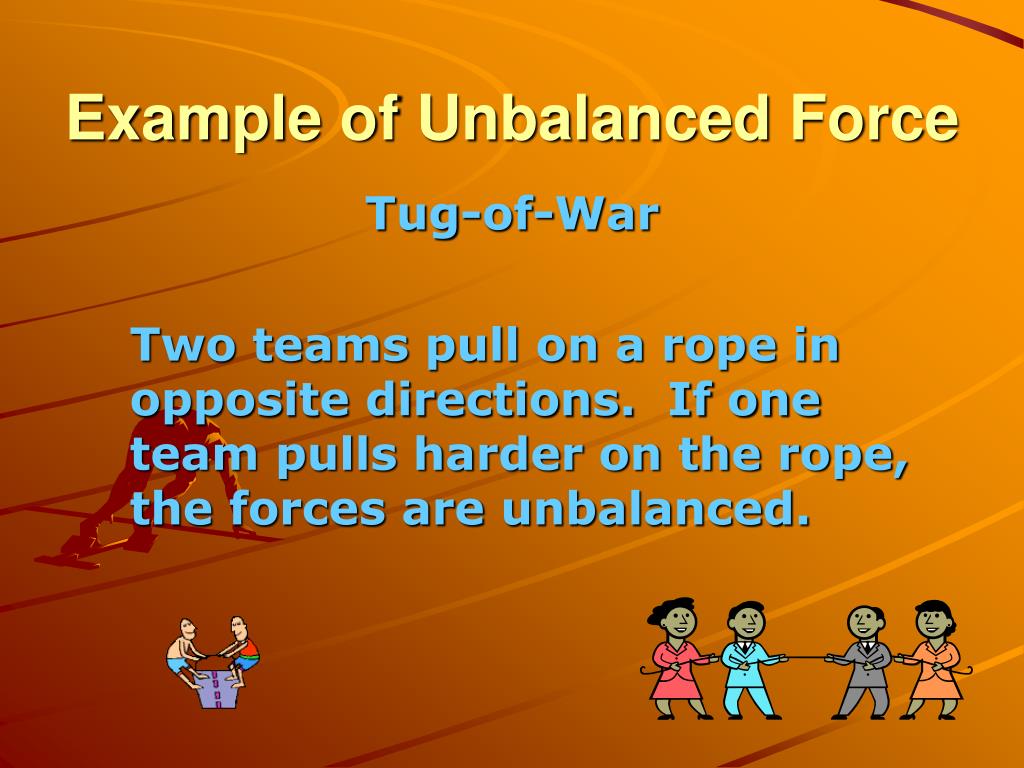

  21. Example of Unbalanced Force Tug-of-War Two teams pull on a rope in opposite directions. If one team pulls harder on the rope, the forces are unbalanced.

  22. Forces Acting – Direct Contact • Friction can slow the motion of an object or keep an object from moving at all. • Without friction, every surface would be more slippery, walking would be impossible and you would not be able to hold a pencil or write on paper.

  23. Forces Acting From a Distance • Magnetic Forces • Electrical Forces • Gravity - A force that pulls objects toward each other

  24. Question: • Would you be surprised if you let go of a pen you were holding and it did not fall?

  25. F. Y. I. • One person who put a great deal of thought into this question was Sir Isaac Newton. He concluded that a force acts to pull objects straight down toward the center of the Earth.

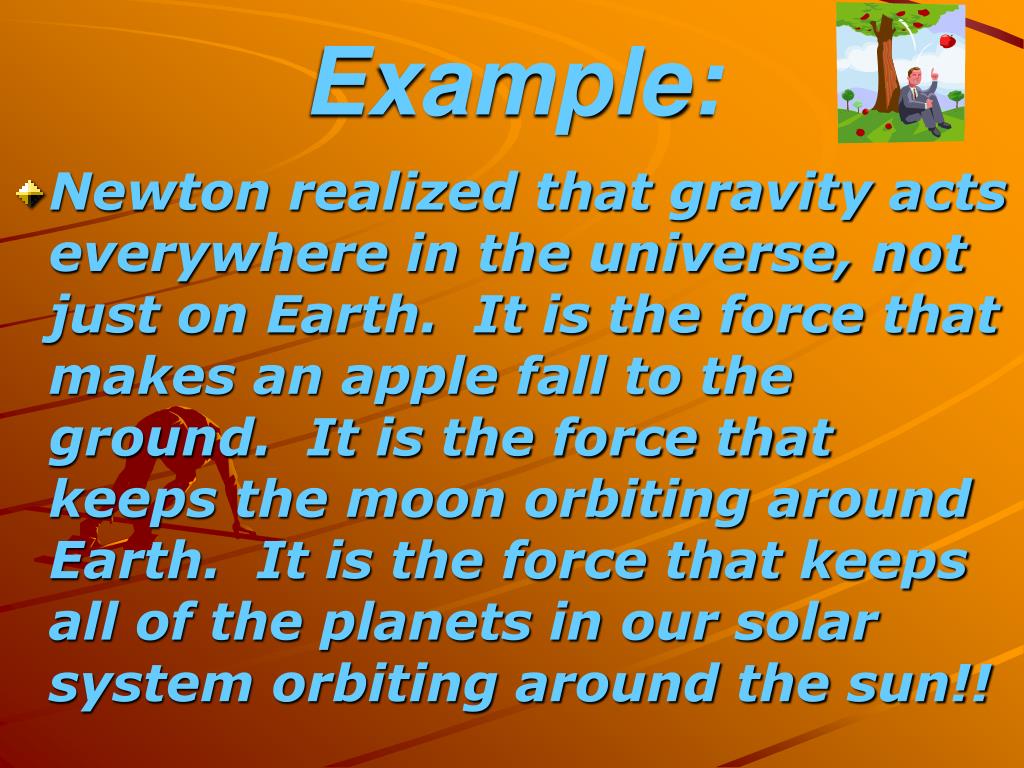

  26. Example: • Newton realized that gravity acts everywhere in the universe, not just on Earth. It is the force that makes an apple fall to the ground. It is the force that keeps the moon orbiting around Earth. It is the force that keeps all of the planets in our solar system orbiting around the sun!!

  27. Momentum: • A characteristic of a moving object that is related to how big the object is and how fast it’s moving

  28. F. Y. I. • The more momentum (the bigger it is and the faster it is moving) a moving object has, the harder it is to stop. For example, you can catch a baseball moving 20 m/s, but you cannot stop a car moving at the 40 m/s. The car has more momentum because it is bigger and faster than the baseball!

  29. Newton’s First Law of Motionor The Law of Inertia An object that is at rest will stay at rest until an unbalanced force acts upon it. For Example: Lurching forward in your seat as the bus you are riding in suddenly slowed down

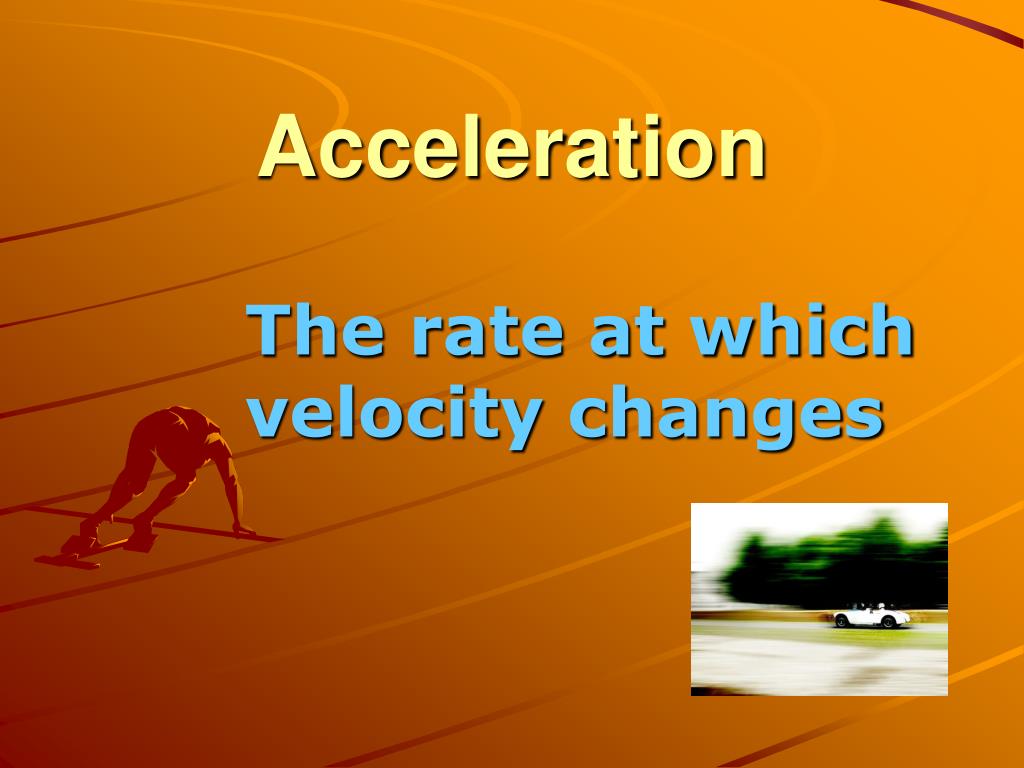

  30. Acceleration The rate at which velocity changes

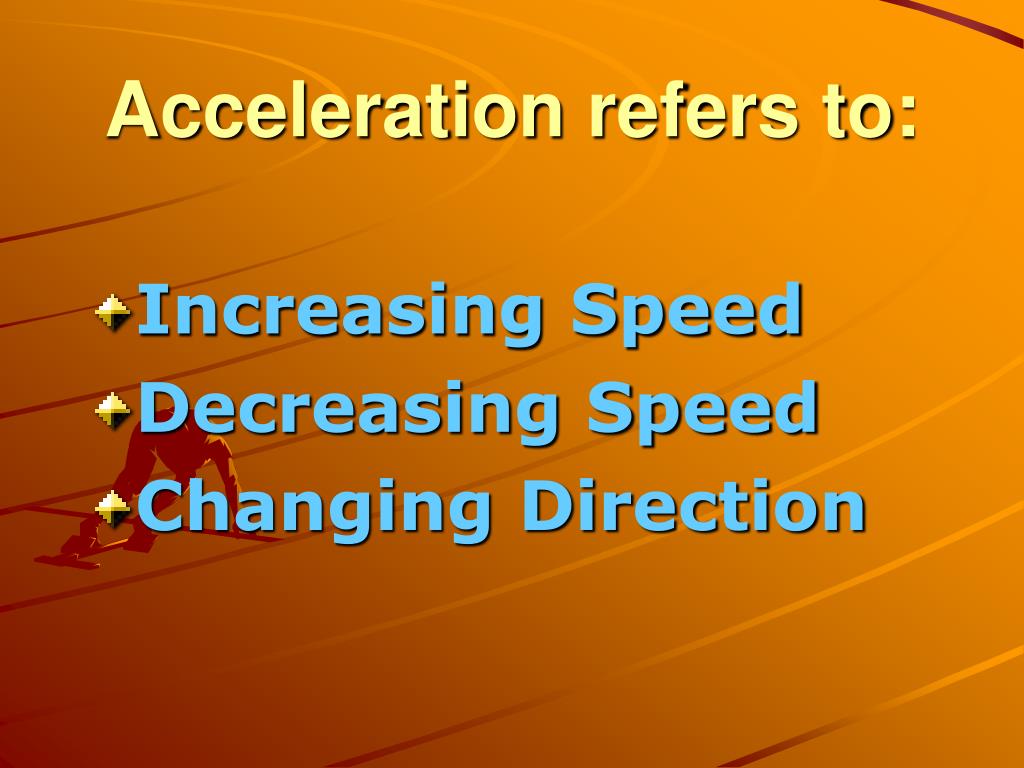

  31. Acceleration refers to: • Increasing Speed • Decreasing Speed • Changing Direction

  32. Newton’s Second Law of Motion • Acceleration is produced when a force acts on a mass. The greater the mass (of the object being accelerated) the greater the amount of force needed (to accelerate the object). • For Example: An empty grocery cart takes less force to push than a full grocery cart. If your empty cart was rolling down a hill, it would take much less force to stop it than a full grocery cart.

  33. Newton’s Third Law of Motion • For every force there is an equal and opposite force. • For example, if you push on a wall, it will push back on you as hard as you are pushing on it.
