Cardiopatiascongenitas cl

Centro Cardiovascular Pediátrico

Clínica Santa María

Santiago Chile

Dr Luis León M.

Dr Stephan Haecker D.

Dr Daniel Pérez I.

www.cardiopatiascongenitas.cl


Cardiopatiascongenitas cl

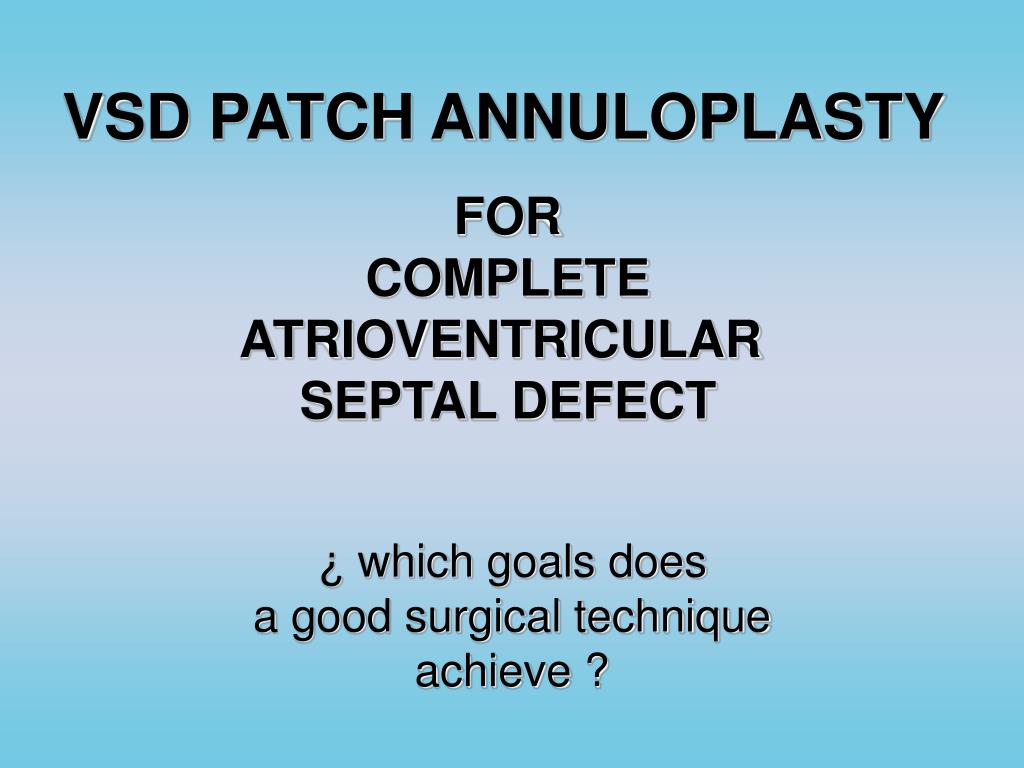

VSD PATCH ANNULOPLASTY

FOR

COMPLETE

ATRIOVENTRICULAR

SEPTAL DEFECT

¿ which goals does

a good surgical technique

achieve ?


Cardiopatiascongenitas cl

CAVSD:

Inlet VSD

Primum ASD

Common AV valve


Cardiopatiascongenitas cl

Type A CAVSD:

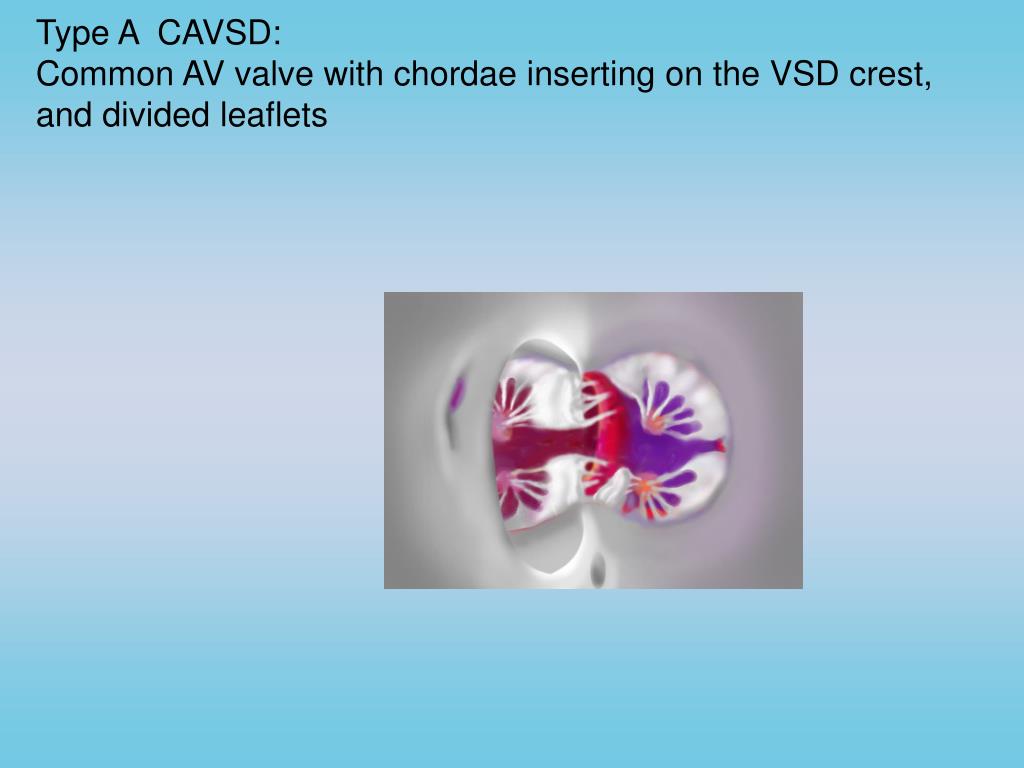

Common AV valve with chordae inserting on the VSD crest,

and divided leaflets


Cardiopatiascongenitas cl

Type C CAVSD:

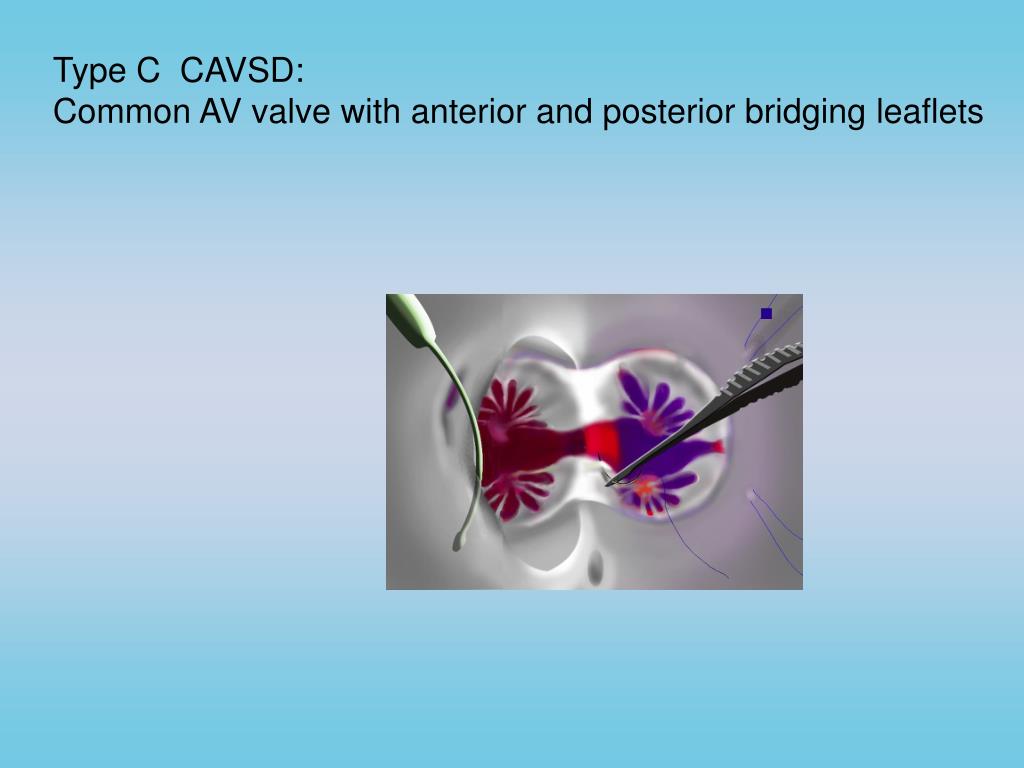

Common AV valve with anterior and posterior bridging leaflets


Cardiopatiascongenitas cl

In type C bridging leaflets are surgically divided


Cardiopatiascongenitas cl

The inlet VSD is occluded with a properly shaped patch


Cardiopatiascongenitas cl

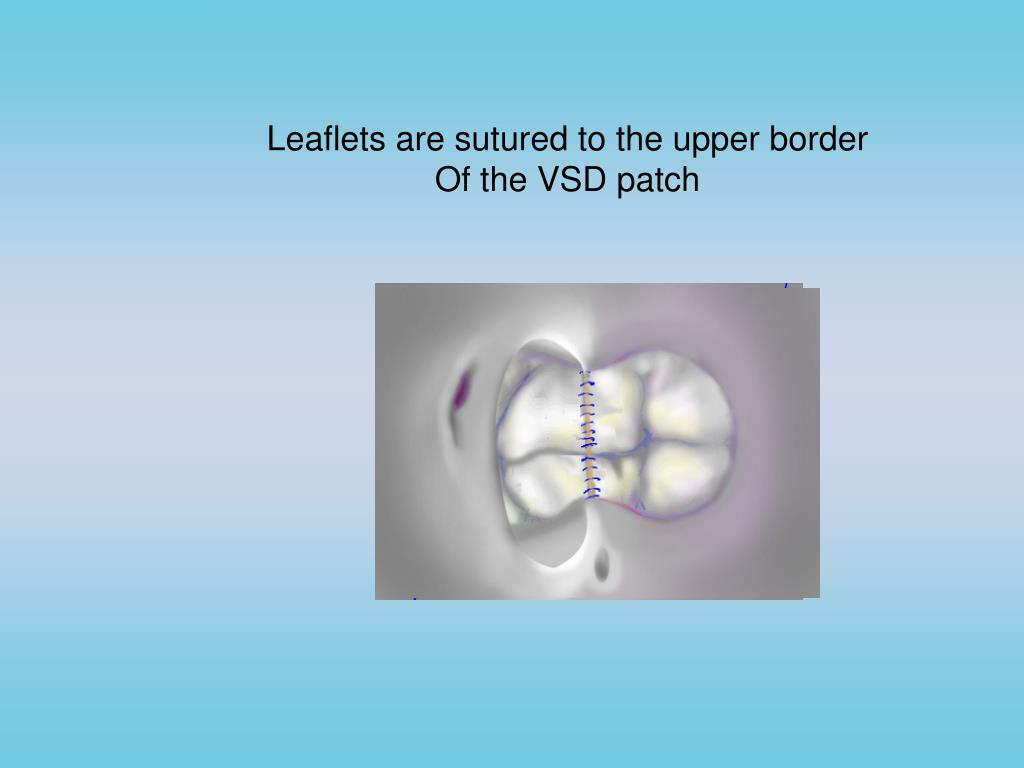

Leaflets are sutured to the upper border

Of the VSD patch


A second patch closes the atrial septal defect

A second patch closes the atrial septal defect


Cardiopatiascongenitas cl

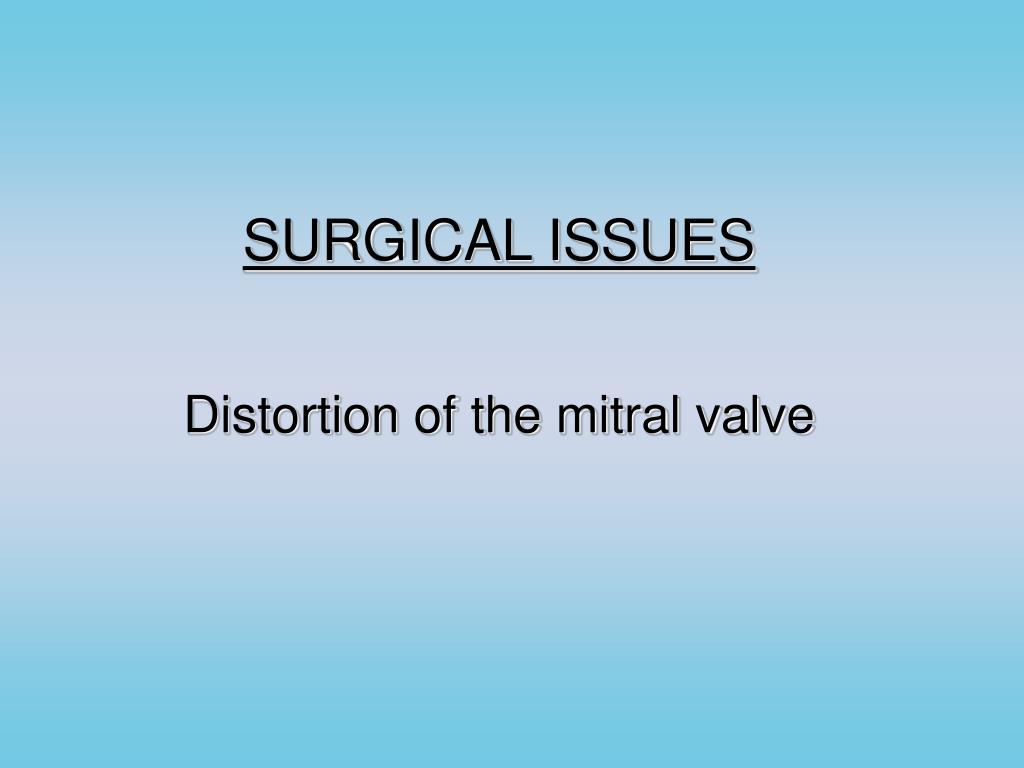

SURGICAL ISSUES

Distortion of the mitral valve


Cardiopatiascongenitas cl

After the VSD is closed the new mitral valve has three leaflets:

a mural leaflet

and two hemi bridging leaflets

Syringe flushing of saline will float these leaflets

to a closed position. This isn´t the same as in

a beating heart, since it is in a cardioplegic state.


Cardiopatiascongenitas cl

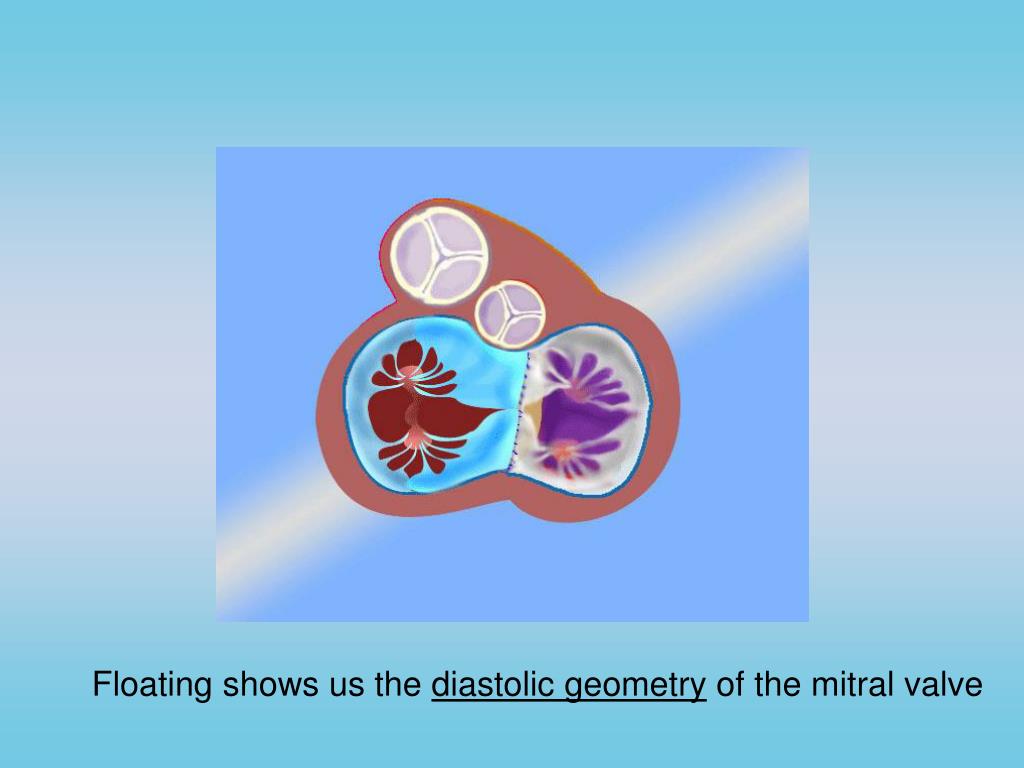

Floating shows us the diastolic geometry of the mitral valve


Cardiopatiascongenitas cl

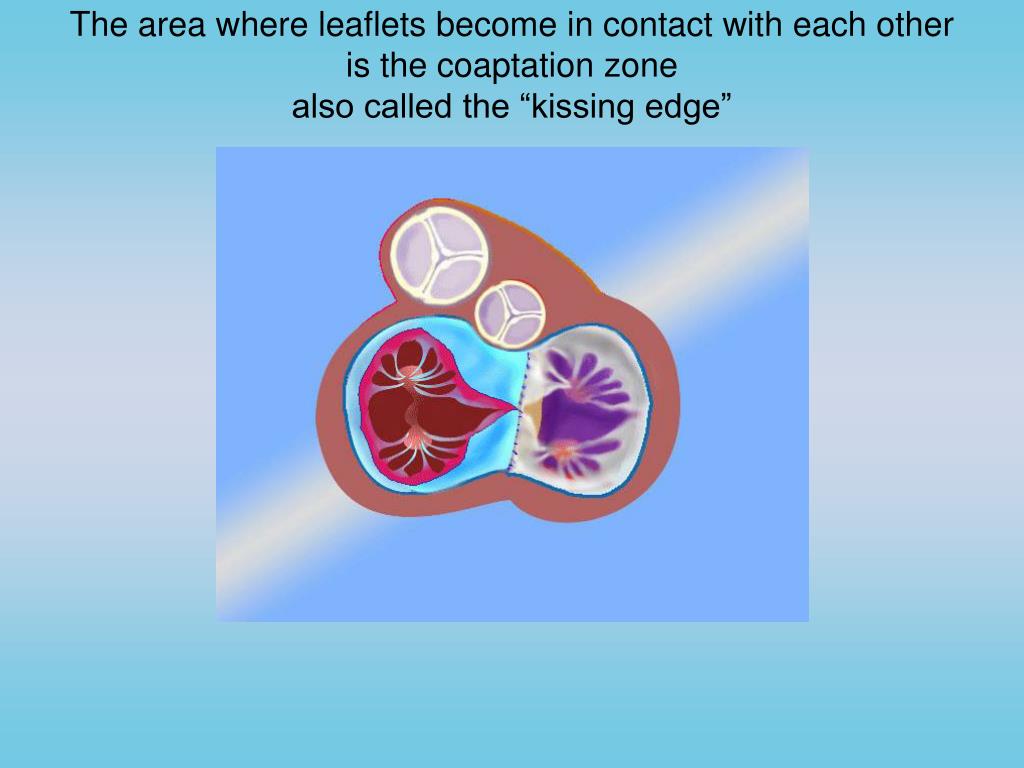

The area where leaflets become in contact with each other

is the coaptation zone

also called the “kissing edge”


Cardiopatiascongenitas cl

Floating leaflets reach into each other and

touch in the coaptation zone, in red

This makes a competent mitral valve


Cardiopatiascongenitas cl

¿ how does surgery alter the mitral valve ?

Suturing the leaflets to the VSD patch uses 2 or 3 mm

of valve tissue


Cardiopatiascongenitas cl

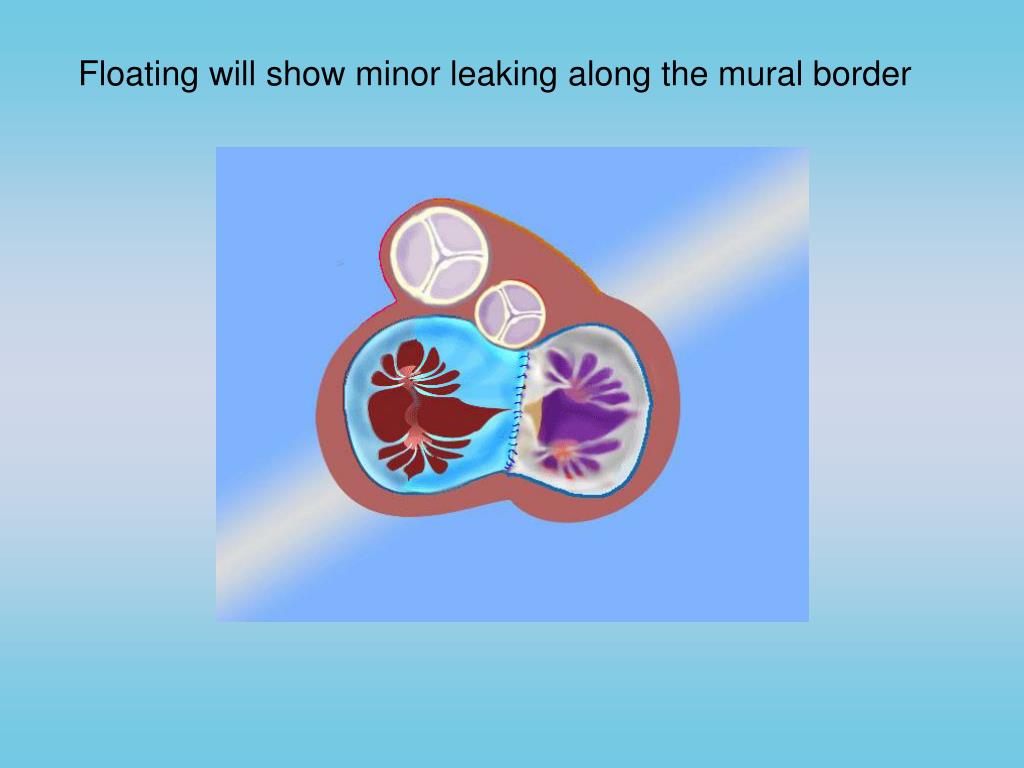

Floating will show minor leaking along the mural border


Cardiopatiascongenitas cl

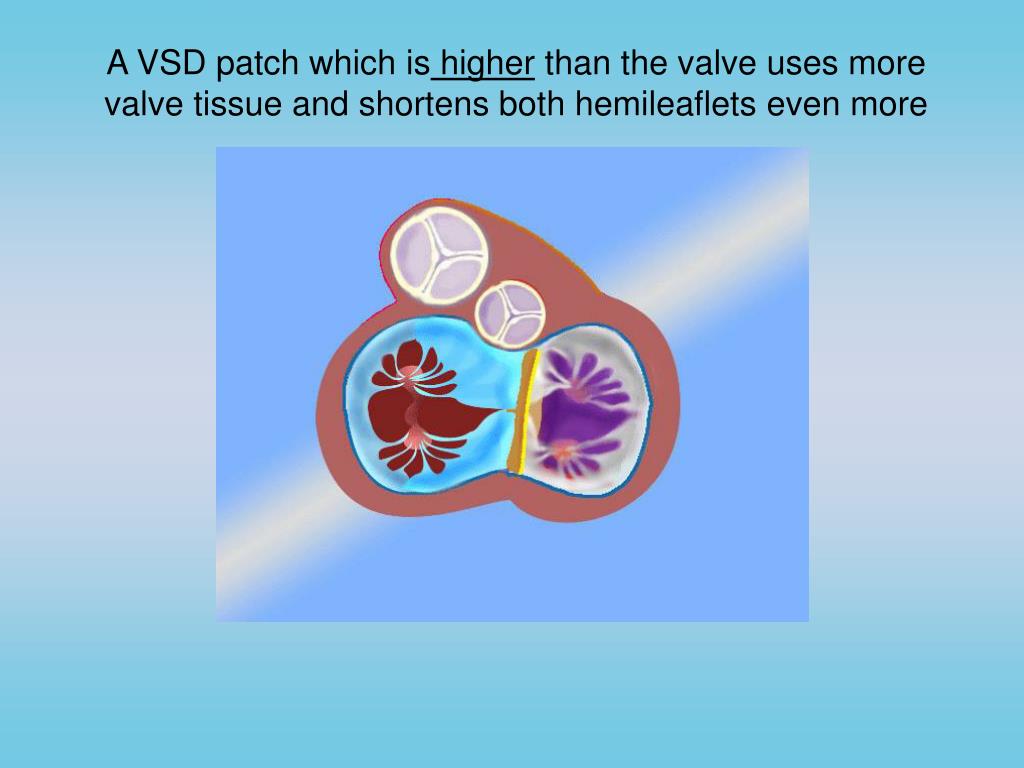

A VSD patch which is higher than the valve uses more

valve tissue and shortens both hemileaflets even more


Cardiopatiascongenitas cl

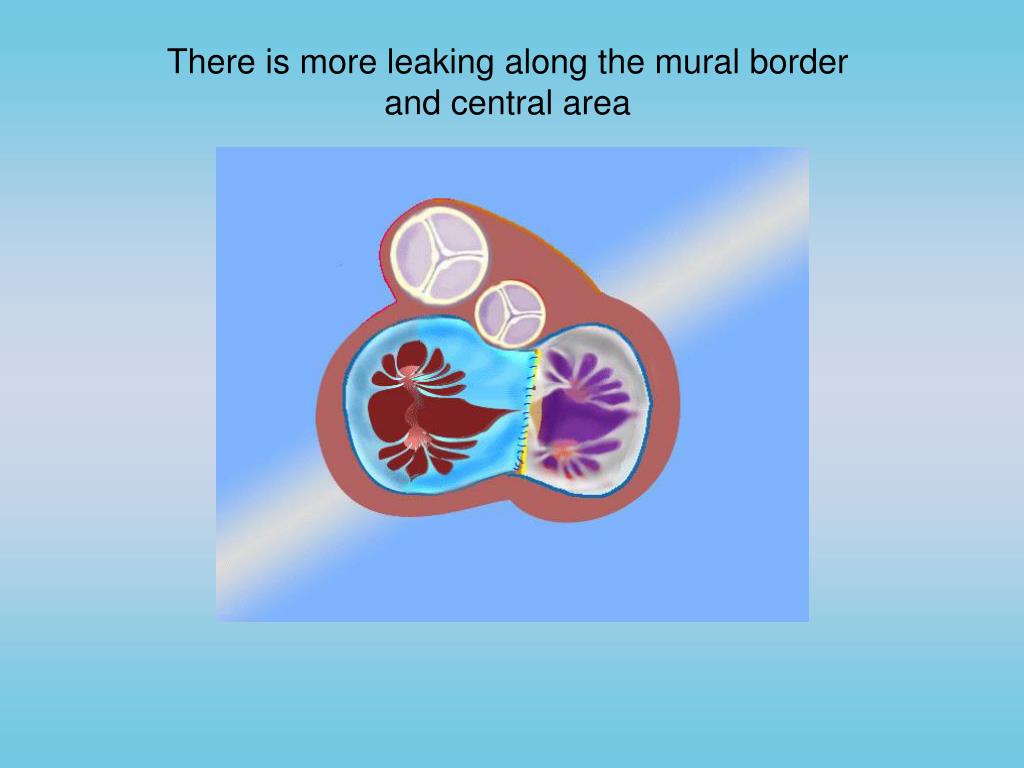

There is more leaking along the mural border

and central area


Cardiopatiascongenitas cl

Again, a high VSD patch tethers the leaflet tissue and

loses the coaptation border as shown


Cardiopatiascongenitas cl

An excessively long VSD patch brings the hemileaflets apart

valve area is larger

hemileaflets lose their coaptation border along the

mitral cleft


Cardiopatiascongenitas cl

Suturing the mitral cleft becomes mandatory


Cardiopatiascongenitas cl

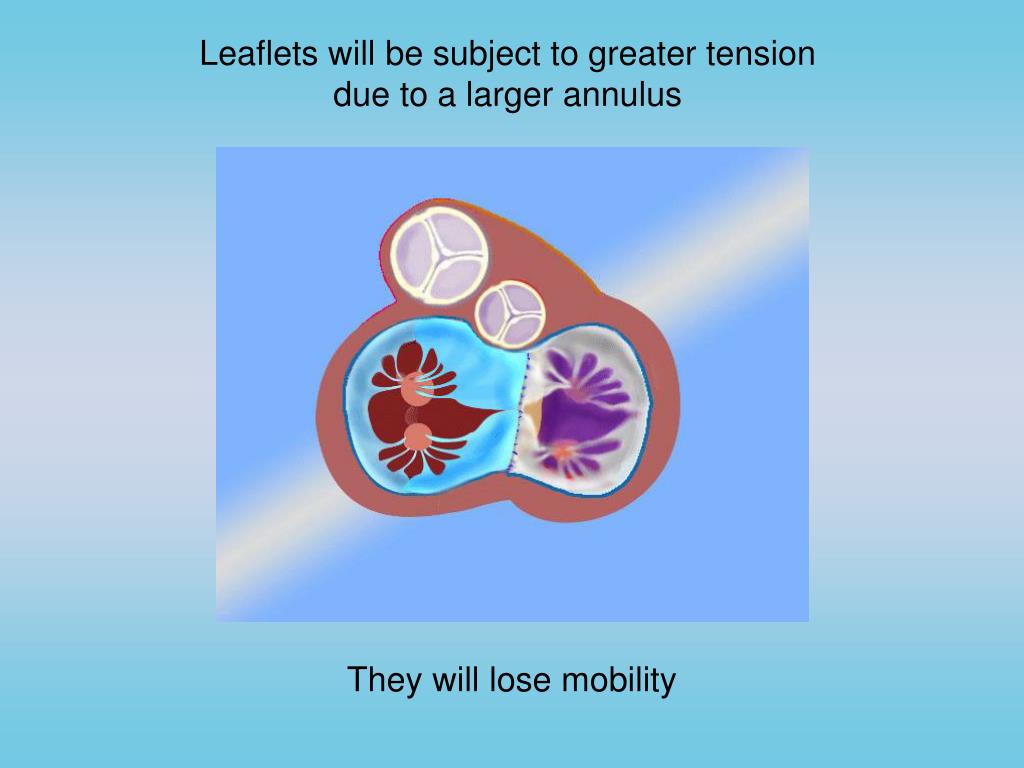

Leaflets will be subject to greater tension

due to a larger annulus

They will lose mobility


Cardiopatiascongenitas cl

and they will cover less area


Cardiopatiascongenitas cl

Again this will result in incompetence due to loss of

coaptation zone


Cardiopatiascongenitas cl

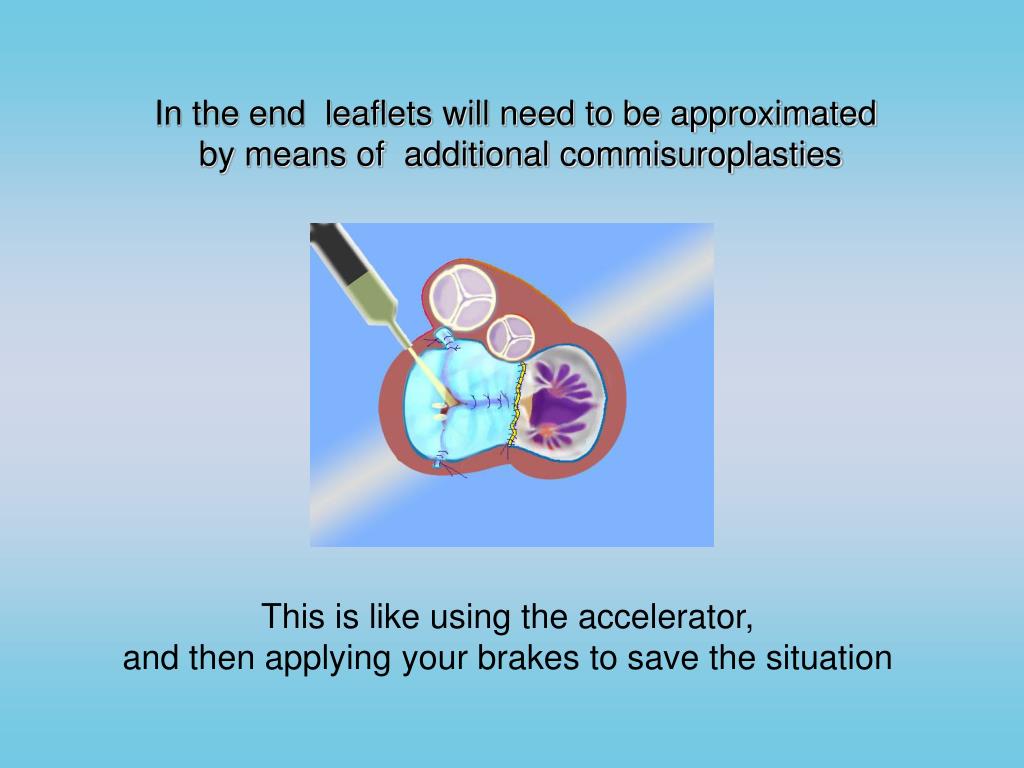

In the end leaflets will need to be approximated

by means of additional commisuroplasties

This is like using the accelerator,

and then applying your brakes to save the situation


Cardiopatiascongenitas cl

SURGICAL ISSUES

Distortion of the coaptation border


Cardiopatiascongenitas cl

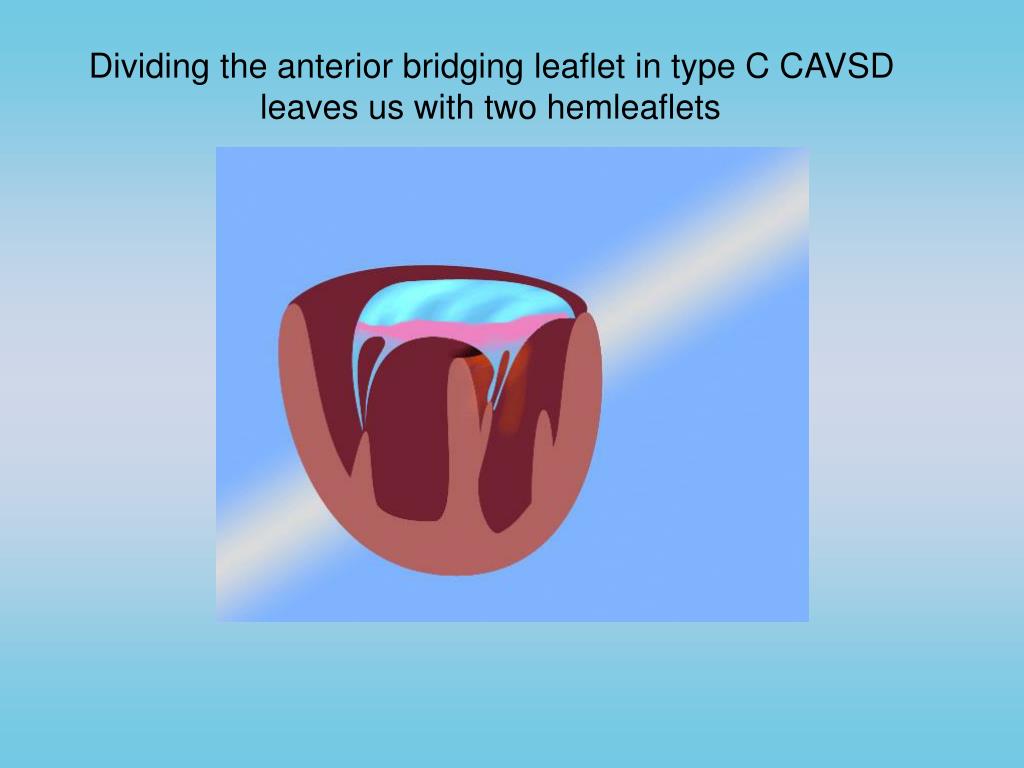

Dividing the anterior bridging leaflet in type C CAVSD

leaves us with two hemleaflets


Cardiopatiascongenitas cl

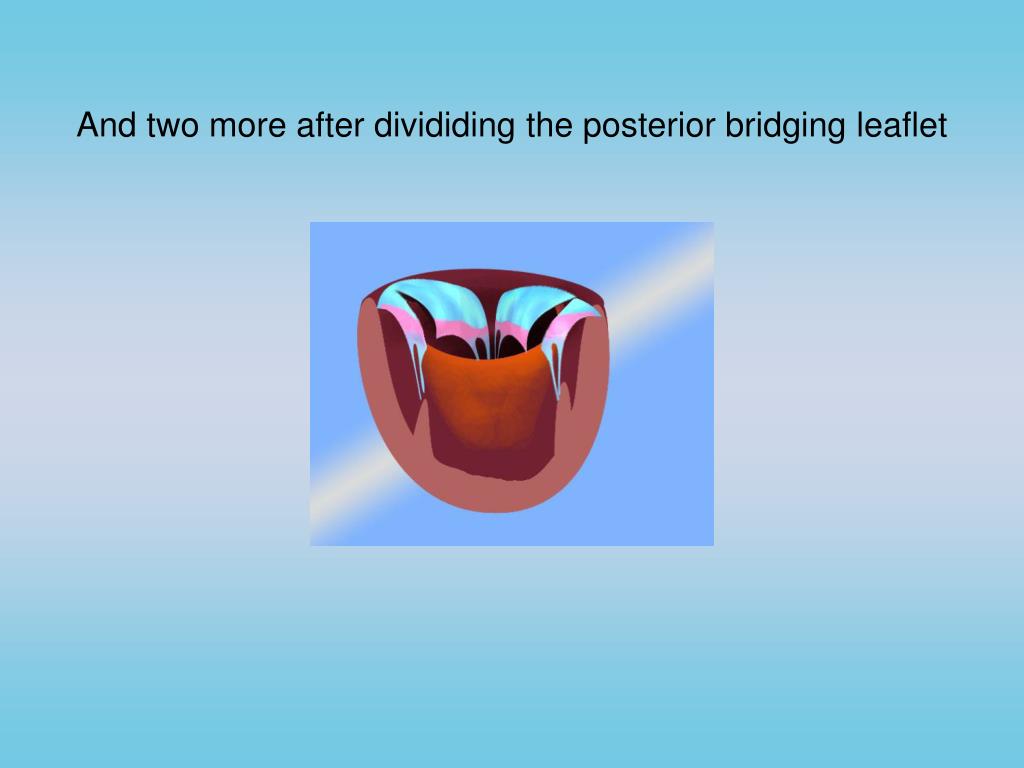

And two more after divididing the posterior bridging leaflet


Cardiopatiascongenitas cl

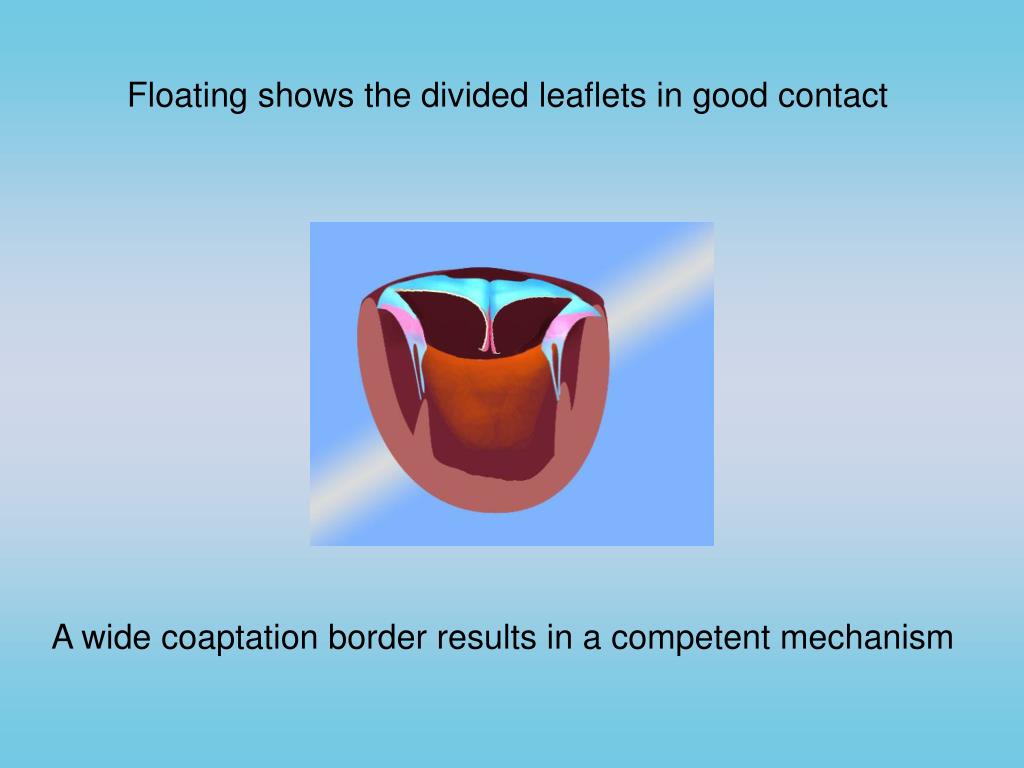

Floating shows the divided leaflets in good contact

A wide coaptation border results in a competent mechanism


Cardiopatiascongenitas cl

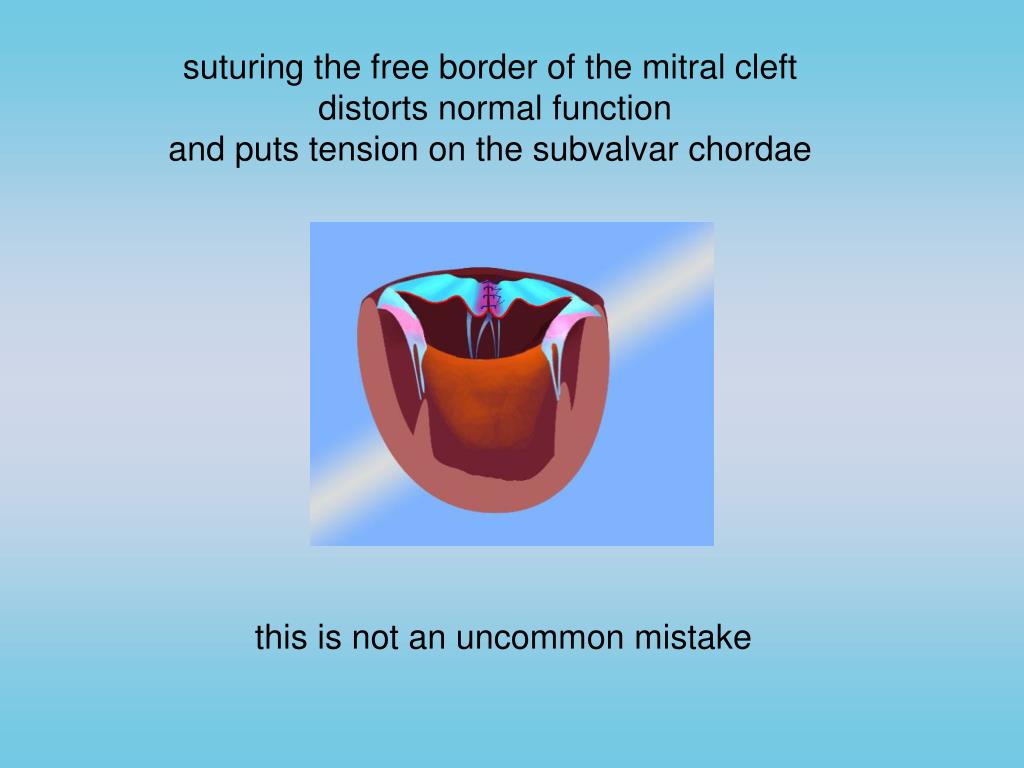

suturing the free border of the mitral cleft

distorts normal function

and puts tension on the subvalvar chordae

this is not an uncommon mistake


Cardiopatiascongenitas cl

CHANGES OCCURRING

IN THE

BEATING HEART


Cardiopatiascongenitas cl

The

Common AV valve in motion


Cardiopatiascongenitas cl

In the normal heart mitral and tricuspid valves have

independent valve rings


Cardiopatiascongenitas cl

During ventricular systole both AV valves will close


Cardiopatiascongenitas cl

Valve rings are dilated in diastole


Cardiopatiascongenitas cl

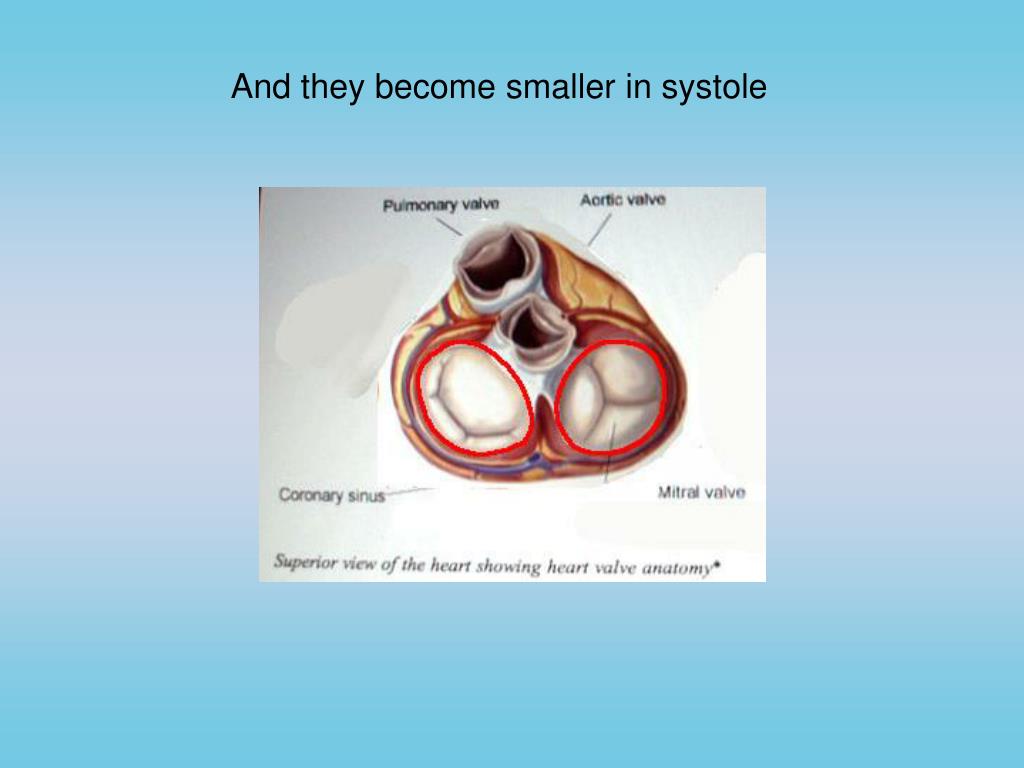

And they become smaller in systole


Cardiopatiascongenitas cl

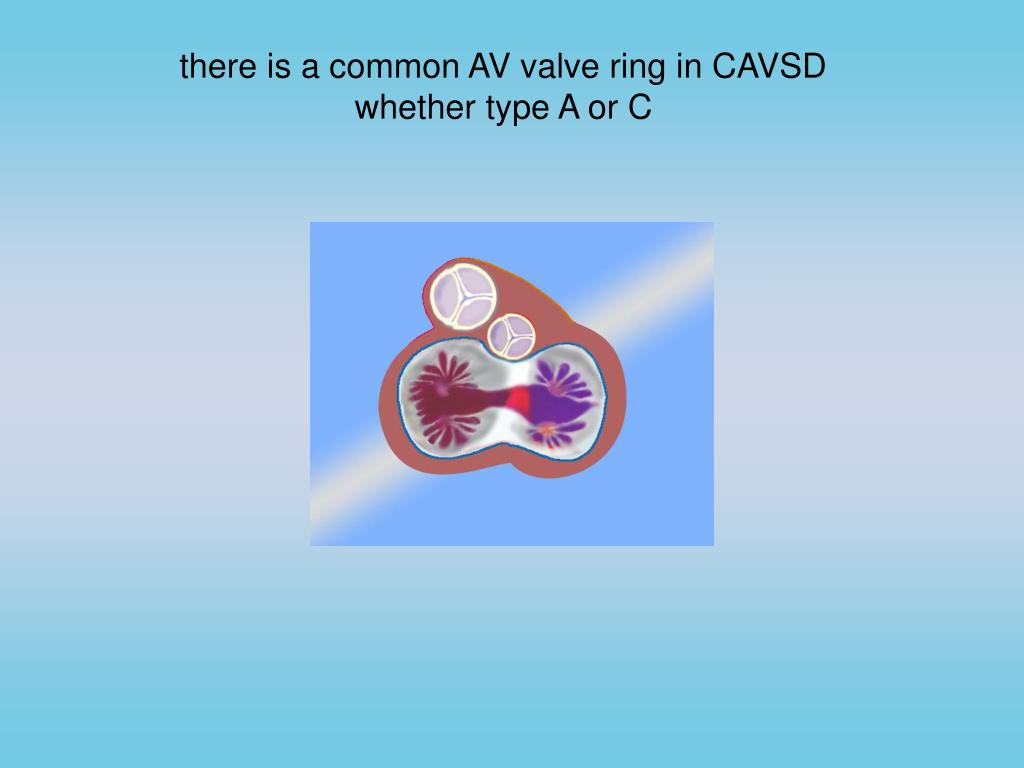

there is a common AV valve ring in CAVSD

whether type A or C


Cardiopatiascongenitas cl

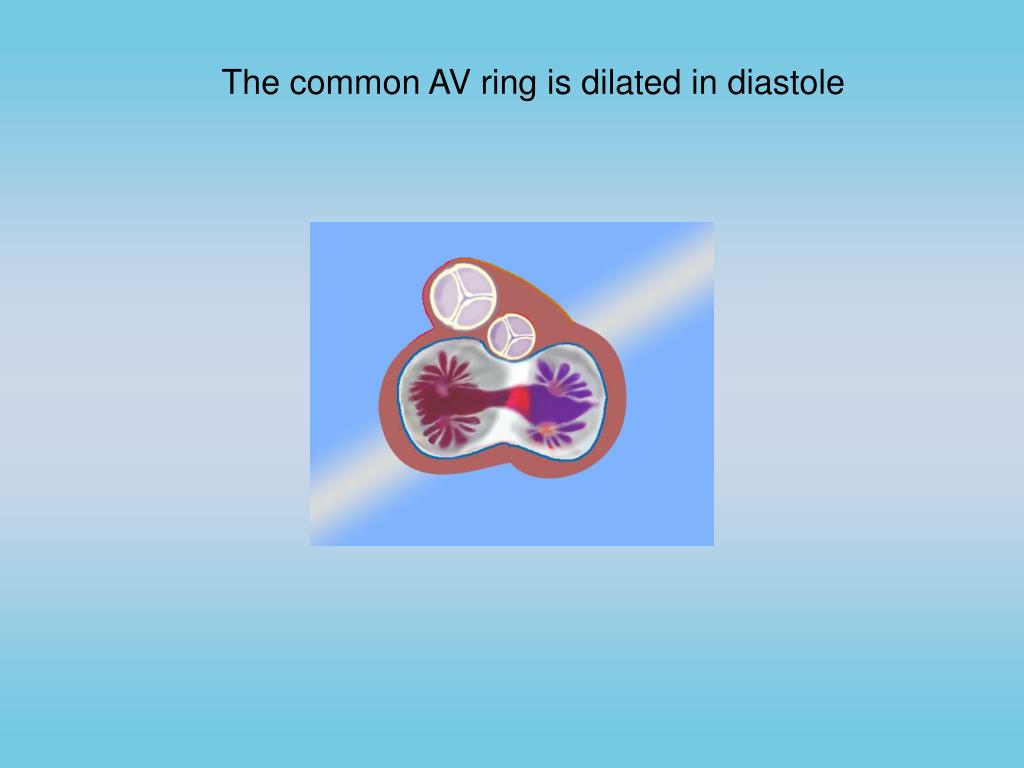

The common AV ring is dilated in diastole


Cardiopatiascongenitas cl

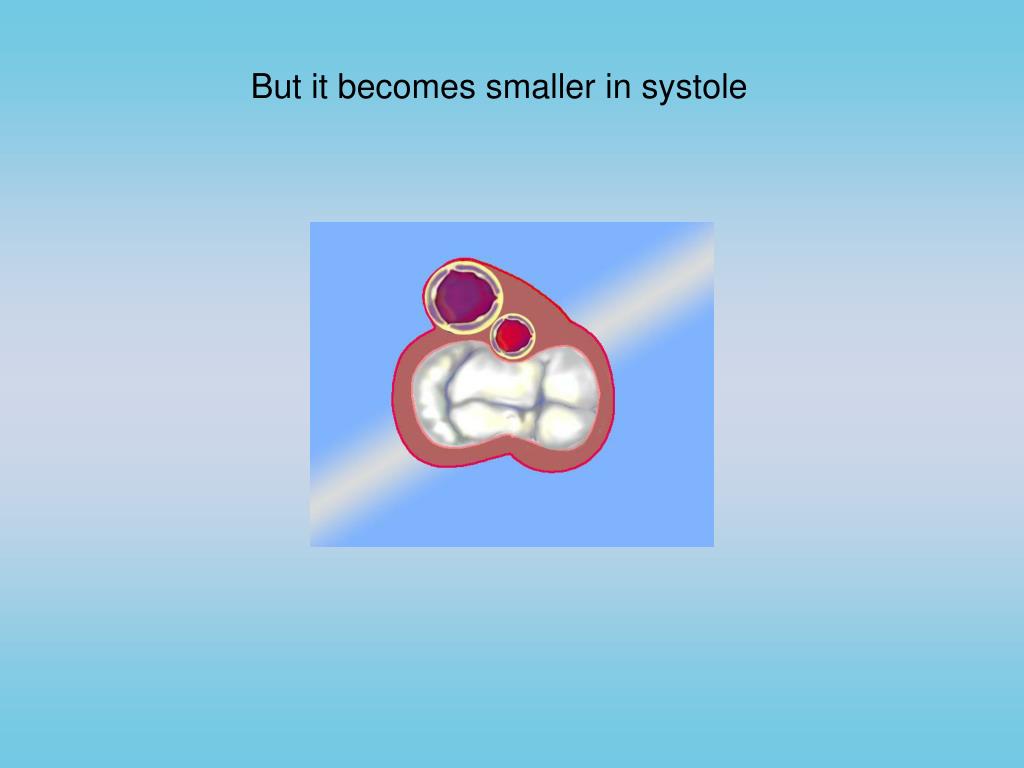

But it becomes smaller in systole


Cardiopatiascongenitas cl

SURGICAL ISSUES

The surgically created mitral ring


Cardiopatiascongenitas cl

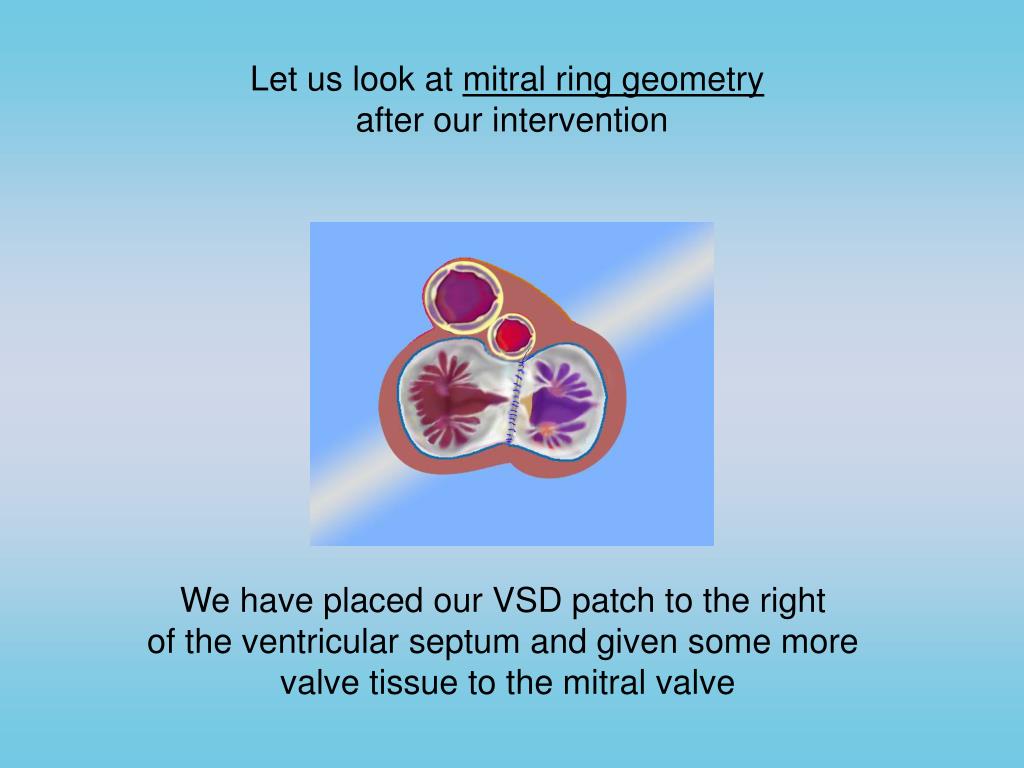

Let us look at mitral ring geometry

after our intervention

We have placed our VSD patch to the right

of the ventricular septum and given some more

valve tissue to the mitral valve


Cardiopatiascongenitas cl

In the cardioplegic heart the patch looks centered

The new mitral ring is outlined in white


Cardiopatiascongenitas cl

¿ what about systole ?

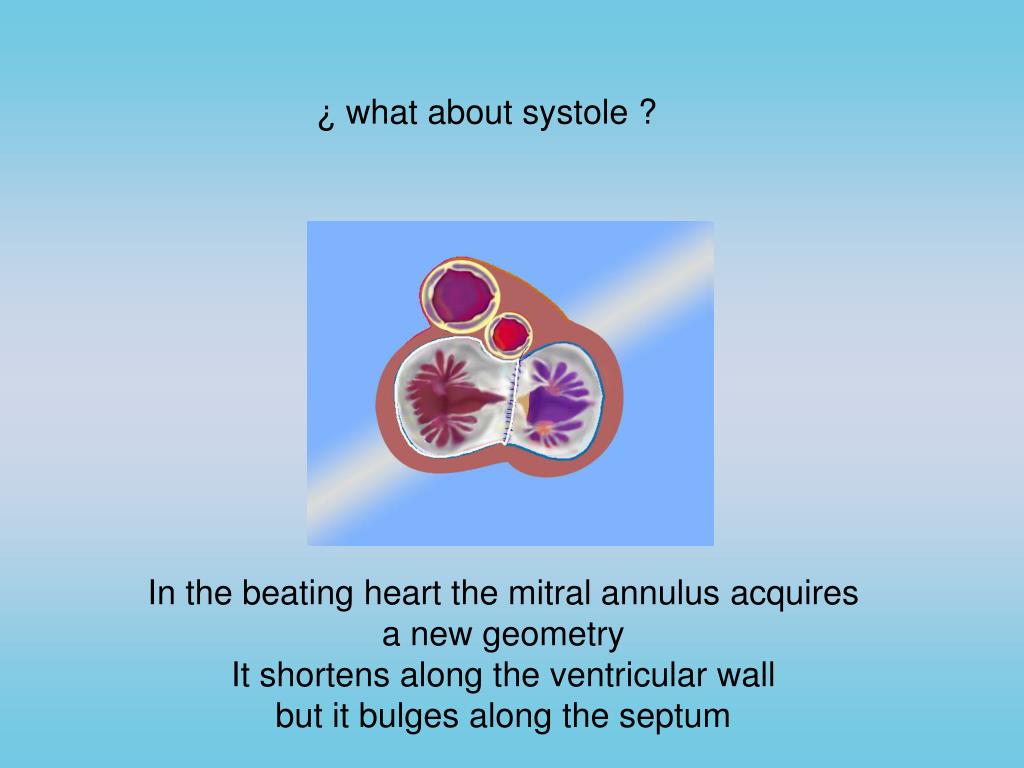

In the beating heart the mitral annulus acquires

a new geometry

It shortens along the ventricular wall

but it bulges along the septum


Cardiopatiascongenitas cl

¿ what have we produced ?

¡ an entirely new mitral ring geometry !


Cardiopatiascongenitas cl

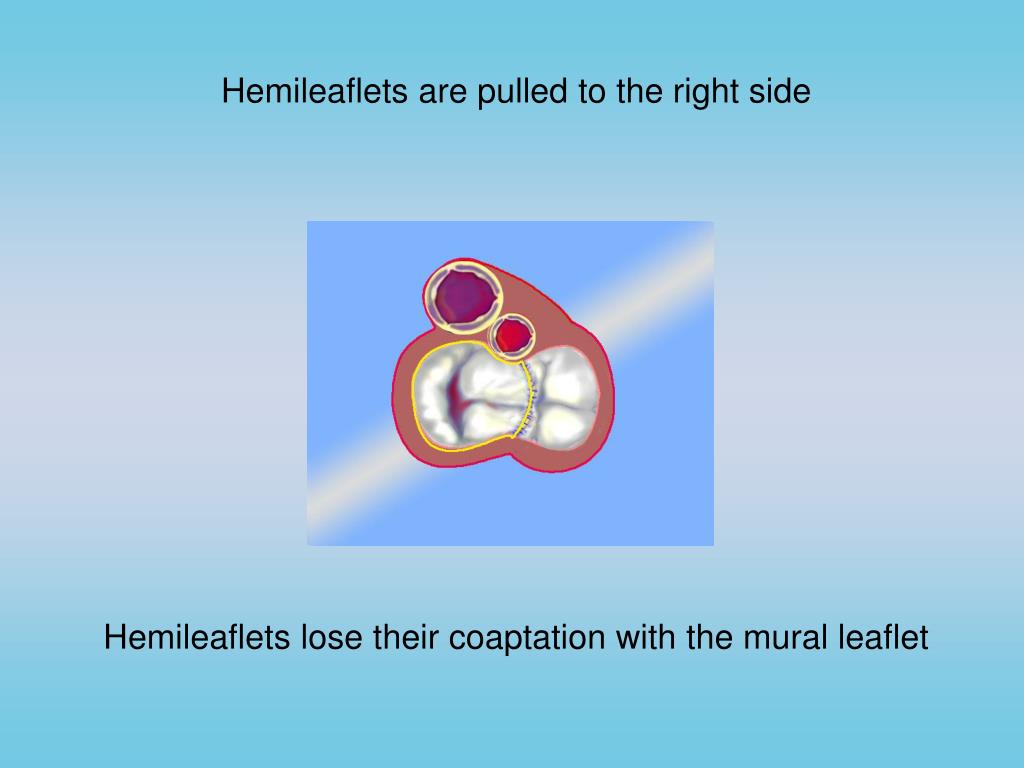

Hemileaflets are pulled to the right side

Hemileaflets lose their coaptation with the mural leaflet


Cardiopatiascongenitas cl

Having said all this:

MY FAVORED

SURGICAL

TECHNIQUE


Cardiopatiascongenitas cl

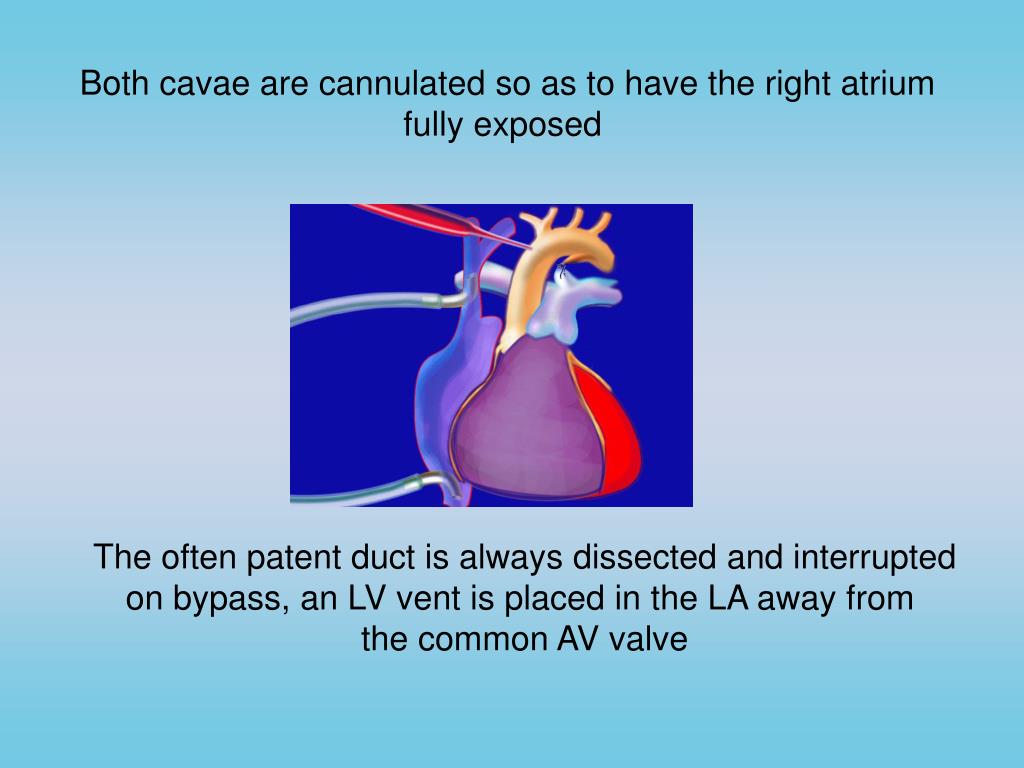

Both cavae are cannulated so as to have the right atrium

fully exposed

The often patent duct is always dissected and interrupted

on bypass, an LV vent is placed in the LA away from

the common AV valve


Cardiopatiascongenitas cl

Step One: asigning valve tissue to mitral and tricuspid valves

the VSD patch will be placed to the right side of the septum,

the valve is floated and a division line is proposed


Cardiopatiascongenitas cl

The kissing points of the anterior and posterior bridging leaflets

are then marked


Cardiopatiascongenitas cl

Step Two: achieving kissing point marks

This is the key issue towards obtaining a perfect mitral valve


Cardiopatiascongenitas cl

marking the kissing points with a closed valve

requires some patience


Cardiopatiascongenitas cl

I float and check my marks

I can pass a second sitch improving on my first one


Cardiopatiascongenitas cl

Fine traction sutures are placed on the tricuspid side


Cardiopatiascongenitas cl

Step Three:

Mitral annuloplasty with the VSD patch

Here the issue is obtaining the:

BEST POSSIBLE GEOMETRY

OF THE

MITRAL RING

DURING SYSTOLE


Cardiopatiascongenitas cl

The kissing points stitch is taken a few milimeters wider

so as to increase the coaptation border

and slightly reduce the valve free border length


Cardiopatiascongenitas cl

The glutaraldehyde fixed pericardial patch is cut

to the right height

and the right length and shape


Cardiopatiascongenitas cl

This is the usual shape


Cardiopatiascongenitas cl

…and now we will proceed to reduce its length

by 25%, that is 2 or 3 milimeters on each side,

but not its height !


Cardiopatiascongenitas cl

Thus reducing the mitral ring in the septum only


Cardiopatiascongenitas cl

Thus reducing the mitral ring in the septum only


Cardiopatiascongenitas cl

a standard patch results in abnormal geometry

of the mitral ring during systole


Cardiopatiascongenitas cl

therefore requiring active annulus reduction in

the usual fashion

¿ does this look familiar to you ?


Cardiopatiascongenitas cl

Septal reduction annuloplasty

with the VSD patch

Achieves the best possible mitral ring geometry

in the beating heart


Cardiopatiascongenitas cl

In 70% of cases floating reveals a perfectly competent

Mitral valve

ASD closure is completed with a second patch

reinforcing the patch/valve suture


Cardiopatiascongenitas cl

Goals achieved:

Keeps it simple

Adequate for small babies

Short operating times

Best postoperative course and survival

Good intermediate term results


Cardiopatiascongenitas cl
