Wavelets on surfaces

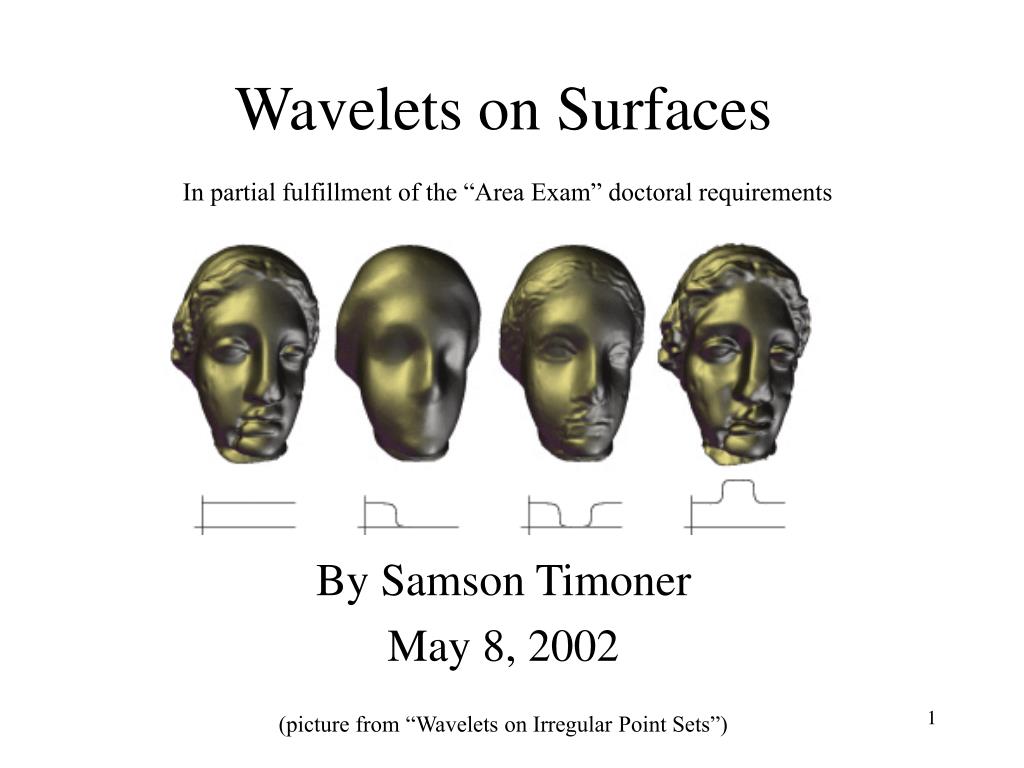

Wavelets on Surfaces

In partial fulfillment of the “Area Exam” doctoral requirements

By Samson Timoner

May 8, 2002

(picture from “Wavelets on Irregular Point Sets”)


Papers

Papers

  • Wavelets on Irregular Point Setsby Daubechies Guskov, Schroder and Sweldens(Trans. R. Soc. 1999)

    • “Spherical Wavelets: Efficiently Representation Functions on the Sphere” by Schroder and Sweldens

    • “The Lifting Scheme: Construction of second generation wavelets” by Sweldens

  • Multiresolution Signal Processing For Meshesby Guskov, Sweldens and Schroder(Siggraph 1999)

  • Multiresolution Hierarchies On Unstructured Triangle Meshes by Kobbelt, Vorsatz, and Seidel (Compu. Geometry: Theory and Applications, 1999)


Outline

Outline

  • Wavelets

    • The Lifting Scheme

    • Extending the Lifting Scheme

    • Application: Wavelets on Spheres

  • Wavelets on Triangulated Surfaces

  • Applications


Wavelets

Wavelets

  • Multi-resolution representation.

  • Basis functions (low pass filter).

  • Detail Coefficients (high pass filter).

  • We have bi-orthogonality between the detail coefficients and the basis-coefficients

    • Vanishing Moments


The lifting scheme

The Lifting Scheme

Split


The lifting scheme1

The Lifting Scheme

Predict


The lifting scheme2

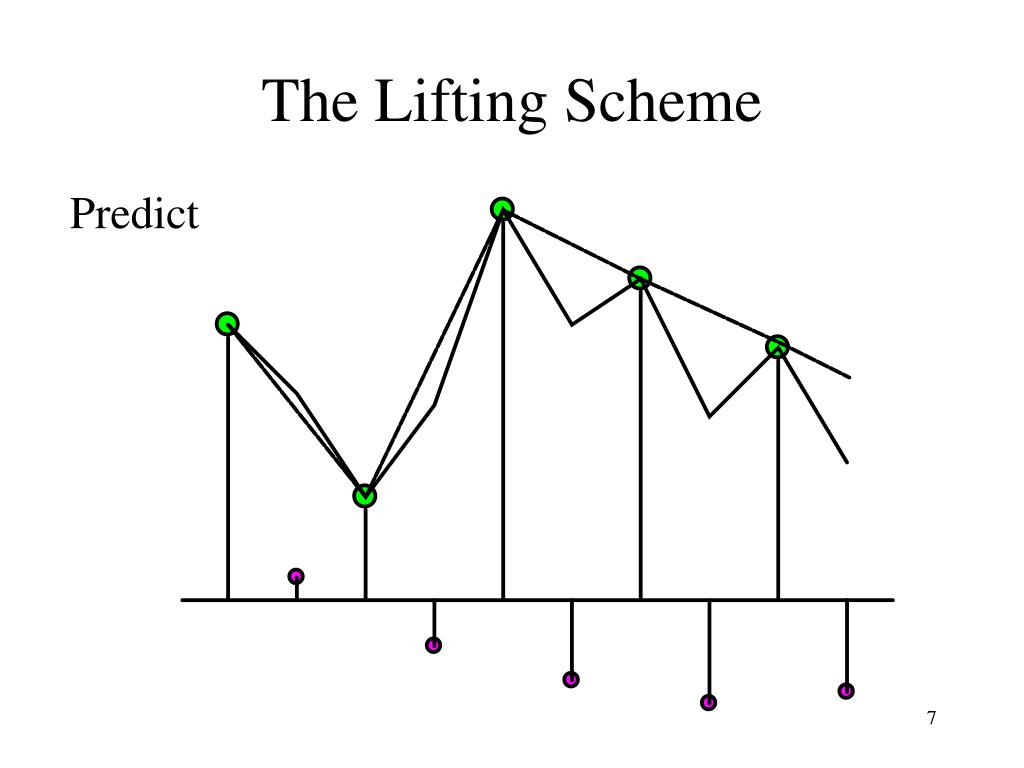

The Lifting Scheme

Predict


The lifting scheme3

The Lifting Scheme

Update

1/8{-1,2,6,2,-1}, ½{-1,2,-1}


The lifting scheme4

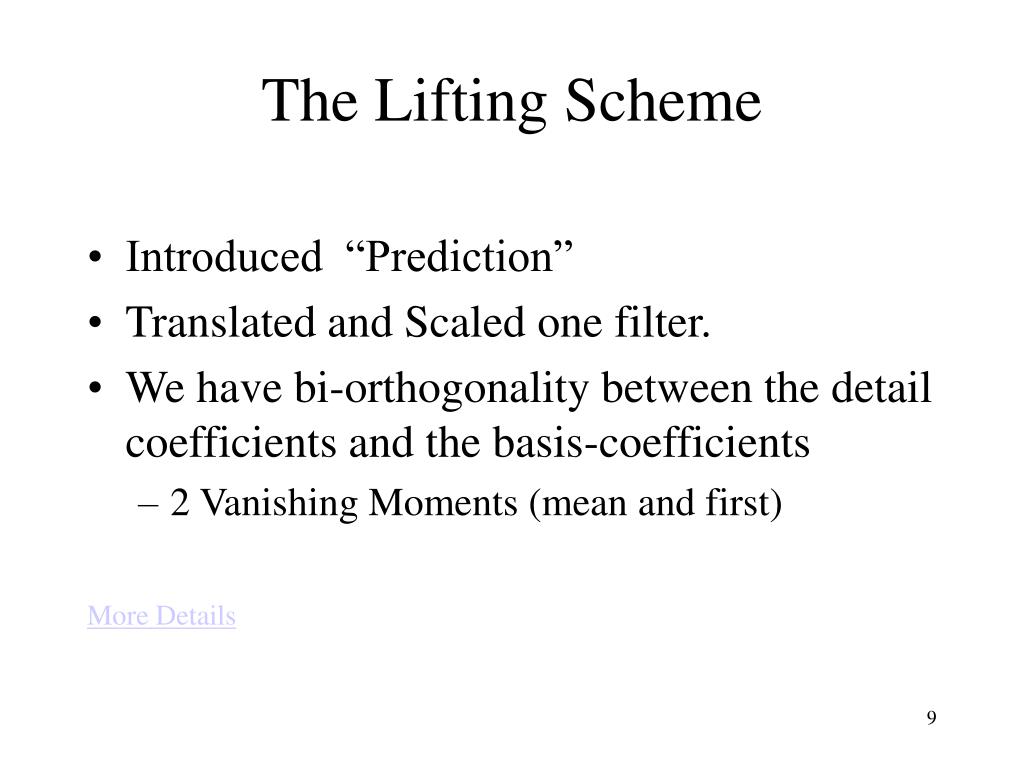

The Lifting Scheme

  • Introduced “Prediction”

  • Translated and Scaled one filter.

  • We have bi-orthogonality between the detail coefficients and the basis-coefficients

    • 2 Vanishing Moments (mean and first)

      More Details


Irregularly sampled points

Irregularly Sampled Points

Split

Predict

Update


Irregularly sampled points1

Irregularly Sampled Points

  • Filters are no longer translations of each other.

  • Detail coefficients indicate different frequencies.

  • Perhaps it is wiser not to select every other point?

  • You can show bi-orthogonality(by vanishing moments).


Wavelets on spheres

Wavelets on Spheres

  • Sub-division on edges

  • Same steps

    • Split

    • Predict

    • Update


Topological earth data

Topological Earth Data

  • Data is not smooth

  • All bases performed equally poorly.

    (picture from “Spherical Wavelets”)

15,000 coefficients 190,000 coefficients


Spherical function brdf

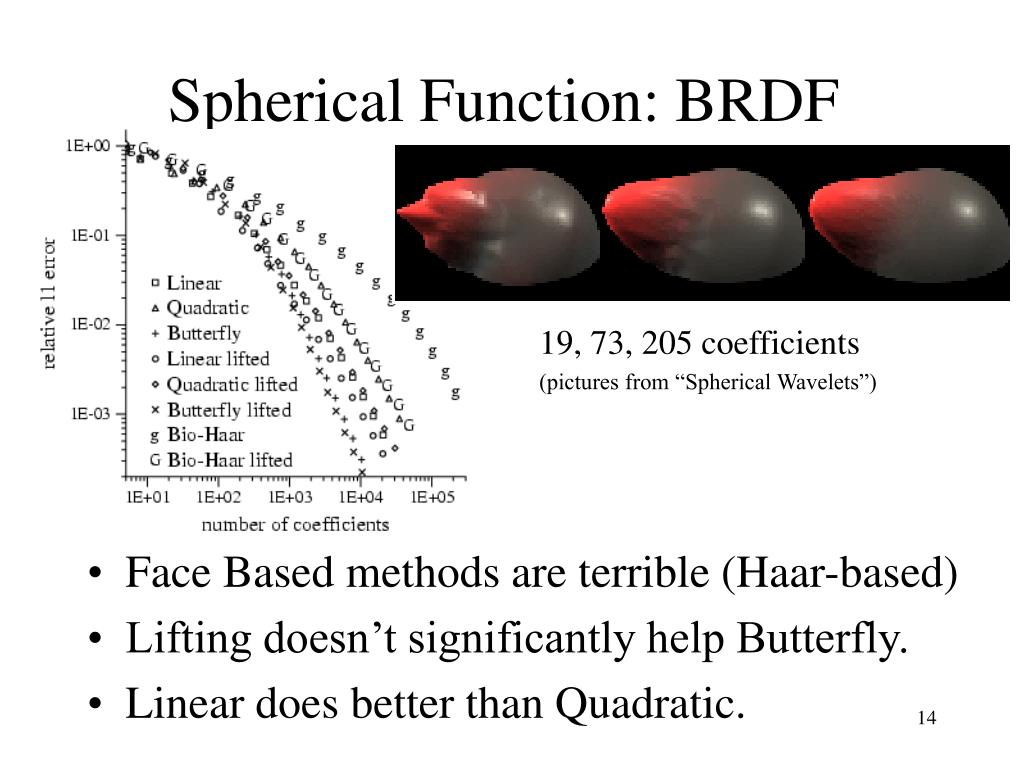

Spherical Function: BRDF

  • Face Based methods are terrible (Haar-based)

  • Lifting doesn’t significantly help Butterfly.

  • Linear does better than Quadratic.

19, 73, 205 coefficients

(pictures from “Spherical Wavelets”)


Up sampling problems

Up-Sampling Problems

  • Smooth interpolating polynomials

    • over-shooting

    • added undulations.

  • Linear interpolation isn’t smooth, but results are more intuitive.

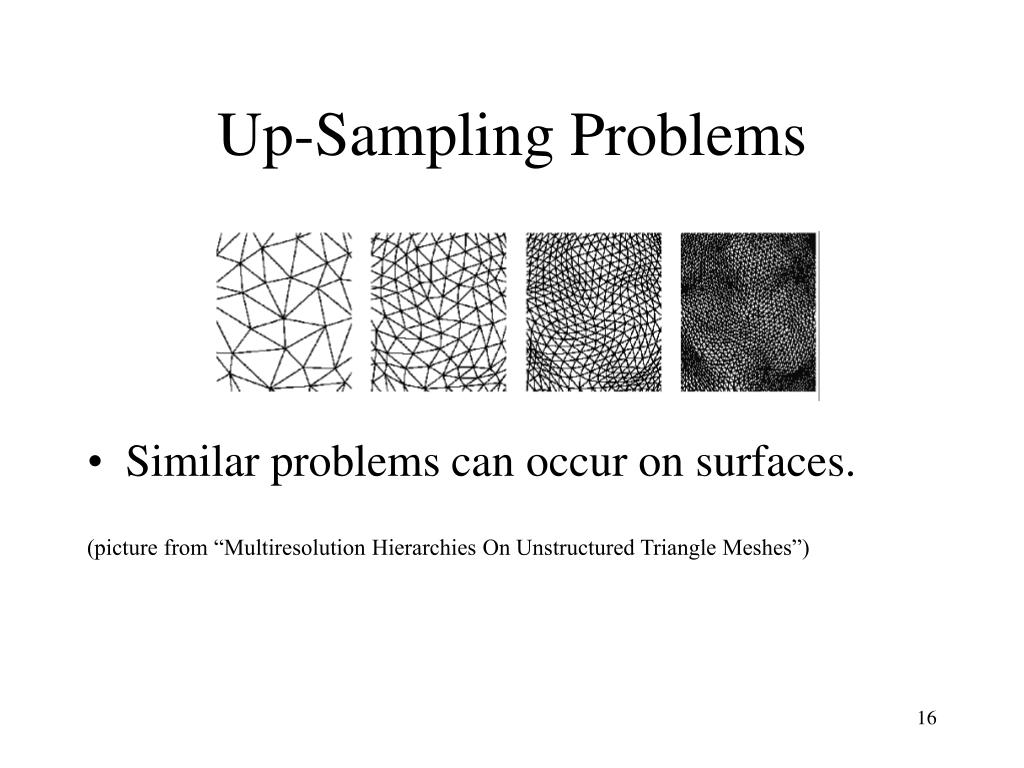

Up sampling problems1

Up-Sampling Problems

  • Similar problems can occur on surfaces.

    (picture from “Multiresolution Hierarchies On Unstructured Triangle Meshes”)

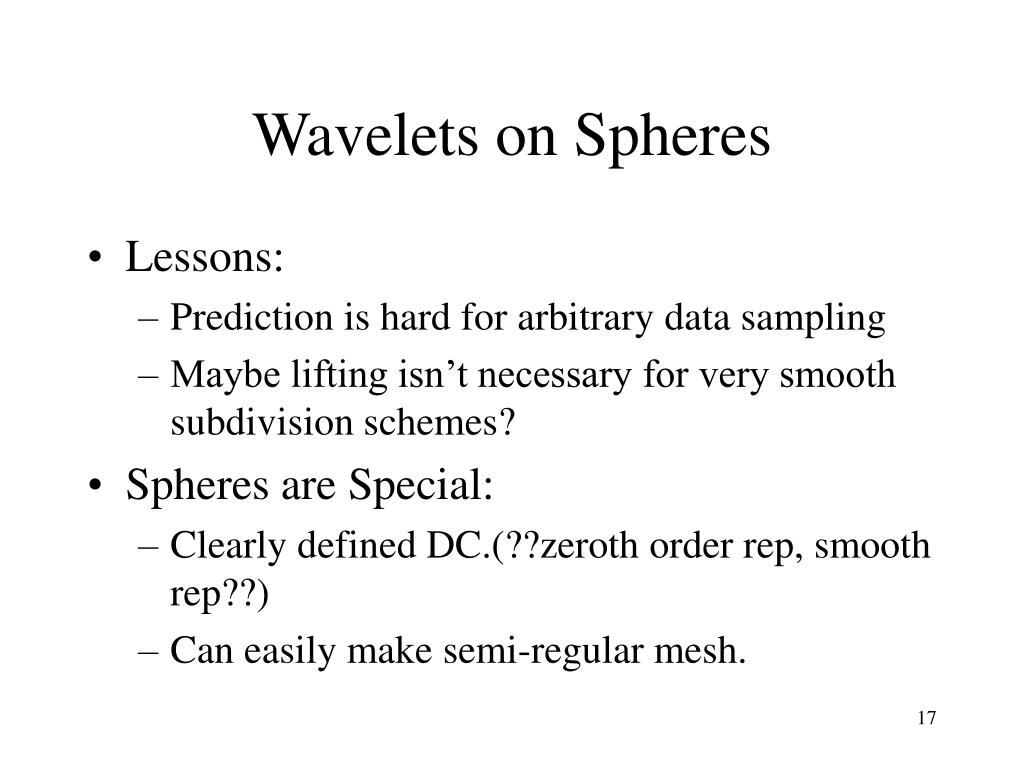

Wavelets on spheres1

Wavelets on Spheres

  • Lessons:

    • Prediction is hard for arbitrary data sampling

    • Maybe lifting isn’t necessary for very smooth subdivision schemes?

  • Spheres are Special:

    • Clearly defined DC.(??zeroth order rep, smooth rep??)

    • Can easily make semi-regular mesh.


Outline1

Outline

  • Wavelets: The Lifting Scheme

  • Wavelets on Triangulated Surfaces

    • Up-sampling problems

  • Applications


Triangulated surfaces

Triangulated Surfaces

  • “It is not clear how to design updates that make the [wavelet] transform numerically stable….” (Wavelets on Irregular Point Sets)

  • It is difficult to design filters which after iteration yield smooth surfaces. (Wim Sweldens in personal communication)

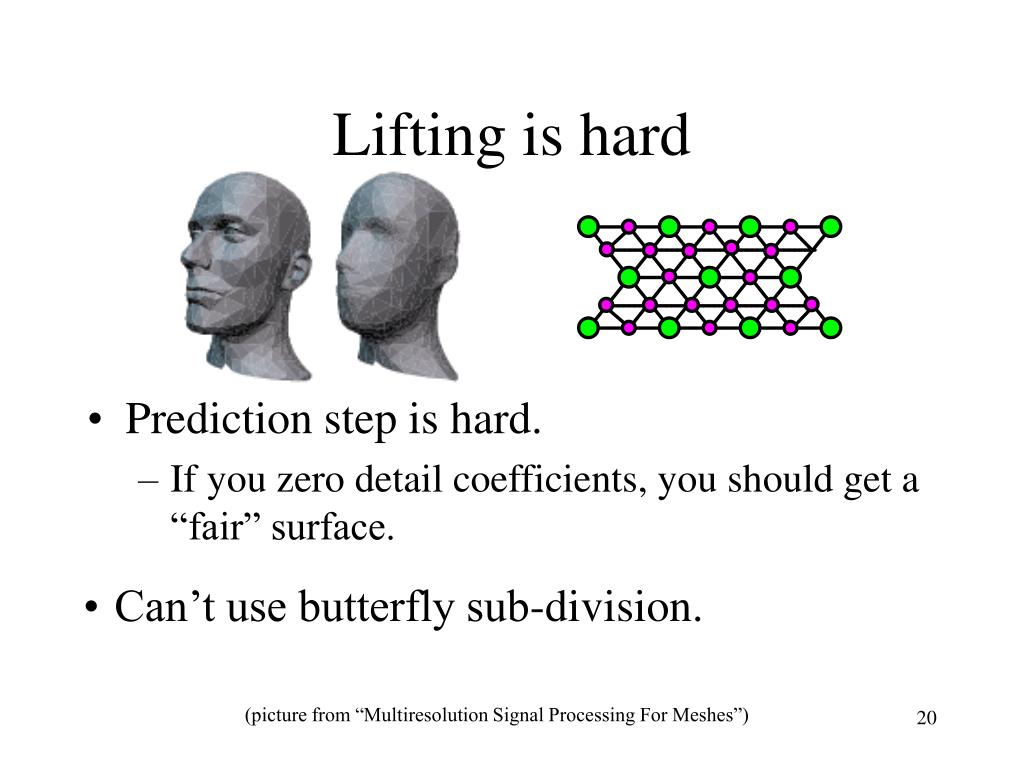

Lifting is hard

Lifting is hard

  • Prediction step is hard.

    • If you zero detail coefficients, you should get a “fair” surface.

  • Can’t use butterfly sub-division.

    • (picture from “Multiresolution Signal Processing For Meshes”)


Guskov et al

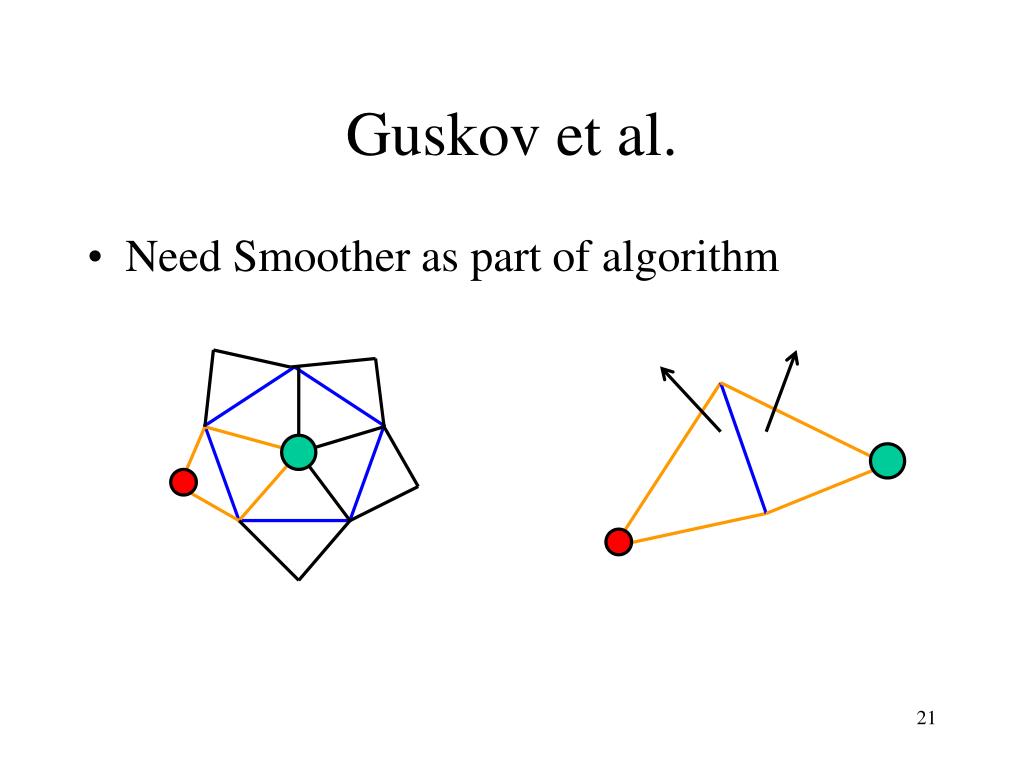

Guskov et al.

  • Need Smoother as part of algorithm


Guskov et al1

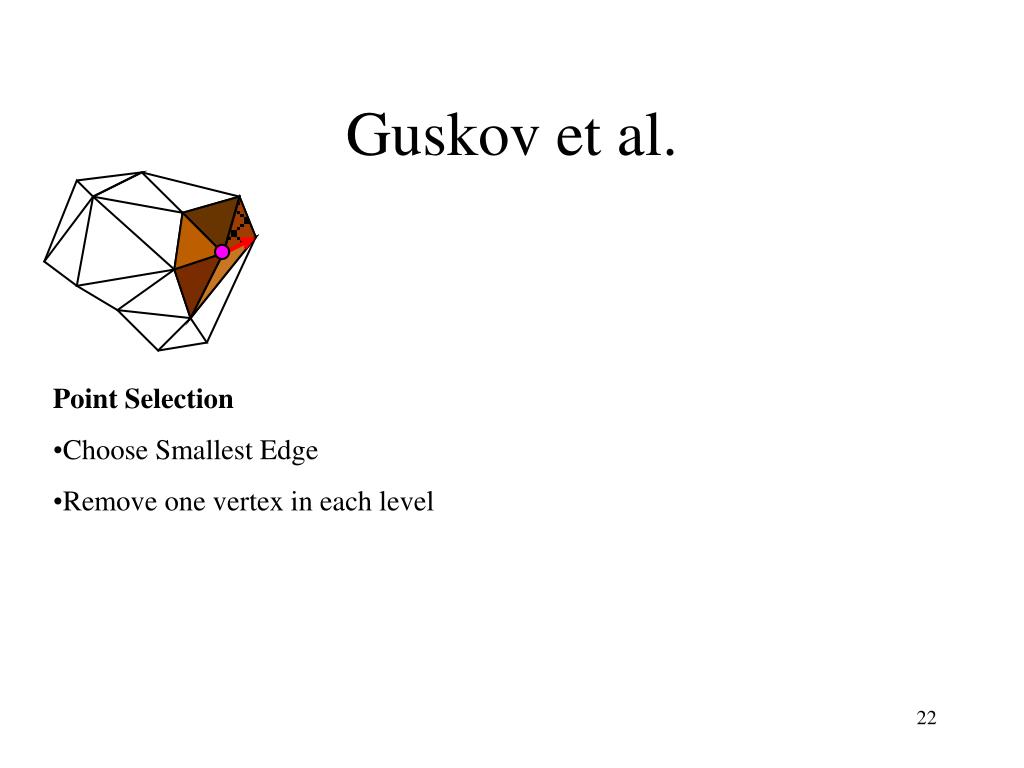

Guskov et al.

  • Point Selection

  • Choose Smallest Edge

  • Remove one vertex in each level


Guskov et al2

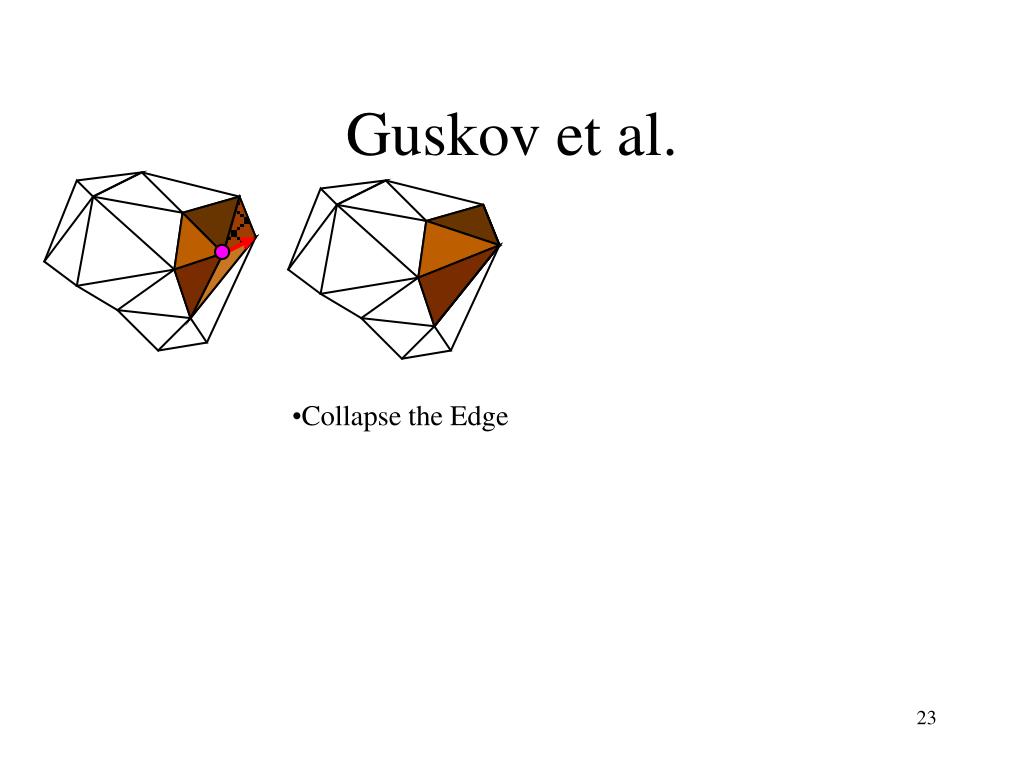

Guskov et al.

  • Collapse the Edge


Guskov et al3

Guskov et al.

  • Prediction

  • Re-introduce the Edge.

  • Minimize Dihedral Angles

  • Detail Vector: Difference vector

  • (tangent plane coordinates)


Guskov et al4

Guskov et al.

Quasi-Update

  • Smooth surrounding

    points (minimize

    dihedral angles)


Guskov et al5

Guskov et al.

  • Rough order of spatial frequencies.

  • Detail coefficients look meaningful.

  • Simple Smoothing: No “overshooting” errors.

  • No Guarantee of vanishing moments.

    • No Guarantee of bi-orthogonality.

      (picture from “Multiresolution Signal Processing For Meshes”)


Guskov et al6

Guskov et al.

  • Editing

(picture from “Multiresolution Signal Processing For Meshes”)


Kobbelt et al

Kobbelt et al.

  • Double Laplacian Smoother (thin plate energy bending minimization).

  • Solving PDE is slow!

  • Instead, solve hierarchically.

    (picture from “Multiresolution Hierarchies On Unstructured Triangle Meshes”)


Kobbelt et al1

Kobbelt et al.

  • Many vertices in each step (smallest edges first)

  • Prediction Step: location to minimize smoothing.

  • Detail: Perpendicular vector to local coordinate system.

  • Update: Smooth surrounding points


Kobbelt et al2

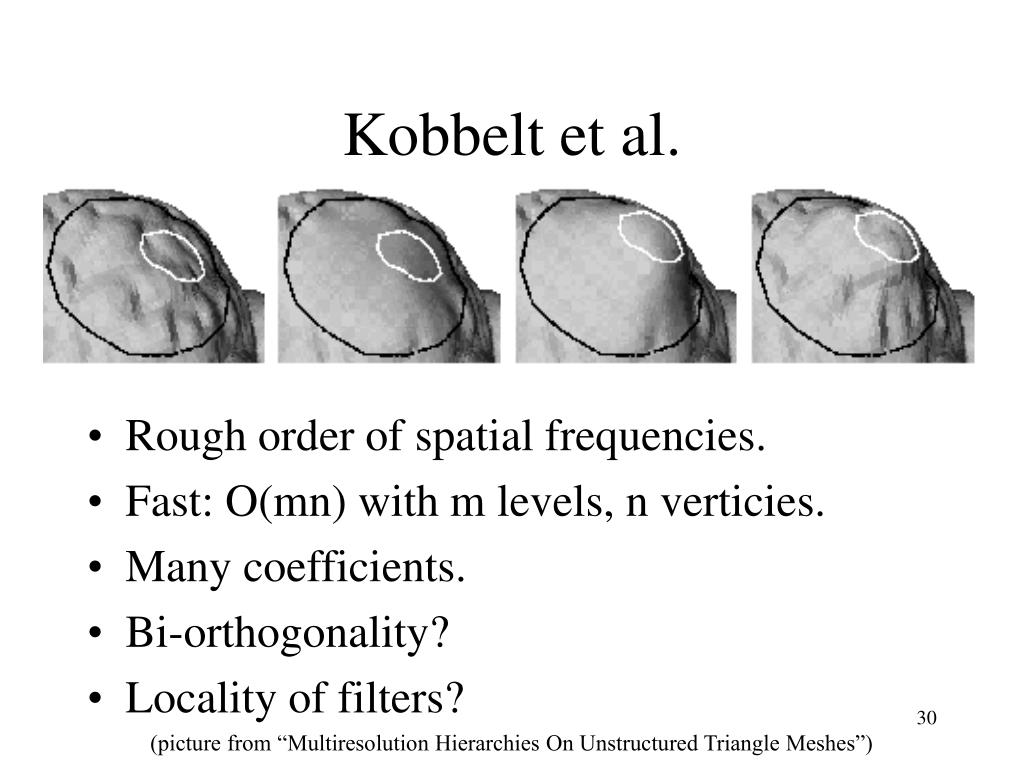

Kobbelt et al.

  • Rough order of spatial frequencies.

  • Fast: O(mn) with m levels, n verticies.

  • Many coefficients.

  • Bi-orthogonality?

  • Locality of filters?

    (picture from “Multiresolution Hierarchies On Unstructured Triangle Meshes”)


Are these wavelets

Are these wavelets?

  • Mathematically: No.

    • Bi-orthogonality

    • Too many coefficients.


Is this representation useful

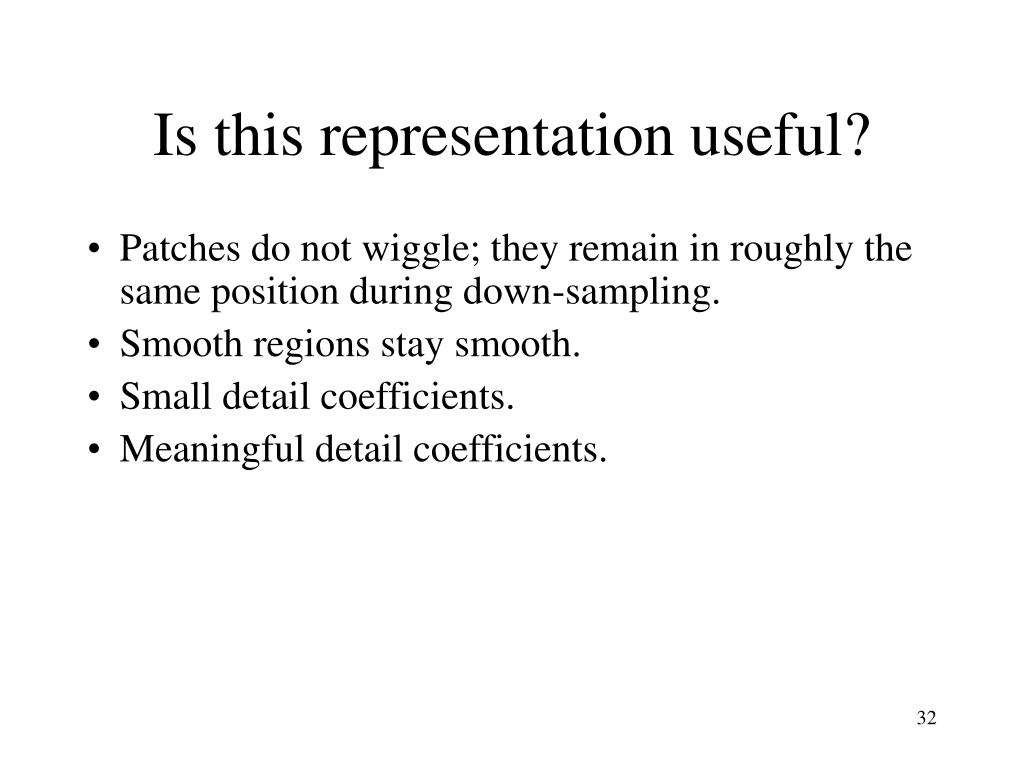

Is this representation useful?

  • Patches do not wiggle; they remain in roughly the same position during down-sampling.

  • Smooth regions stay smooth.

  • Small detail coefficients.

  • Meaningful detail coefficients.


Outline2

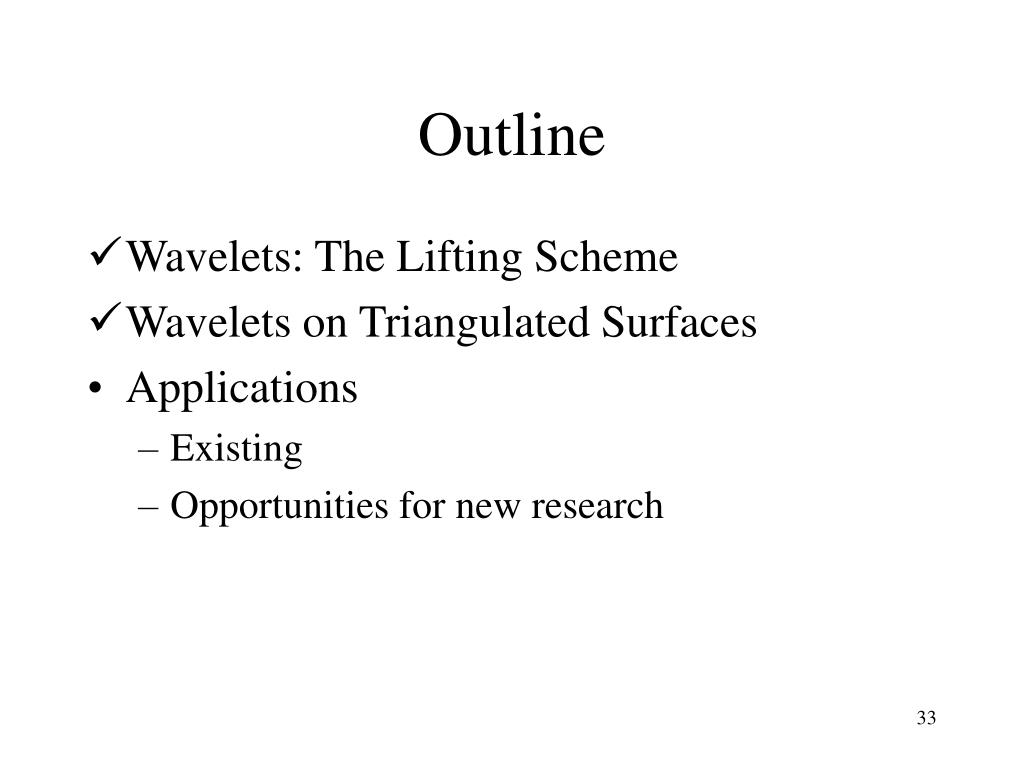

Outline

  • Wavelets: The Lifting Scheme

  • Wavelets on Triangulated Surfaces

  • Applications

    • Existing

    • Opportunities for new research


Editing

Editing

  • Replacing conventional surface editing. (NURBS)

  • (picture from “Multiresolution Signal Processing For Meshes” ,

  • “Multiresolution Hierarchies On Unstructured Triangle Meshes”)


Feature enhancement

Feature Enhancement

  • “For show only.”

  • (picture from “Multiresolution Signal Processing for Meshes”)


Compression

Compression

549 Bytes(54e-4) 1225 Bytes(20e-4) 3037 Bytes(8e-4) 18111 Bytes(1.7e-4) Original

  • (picture from “Normal Mesh Compression”)


Remeshing

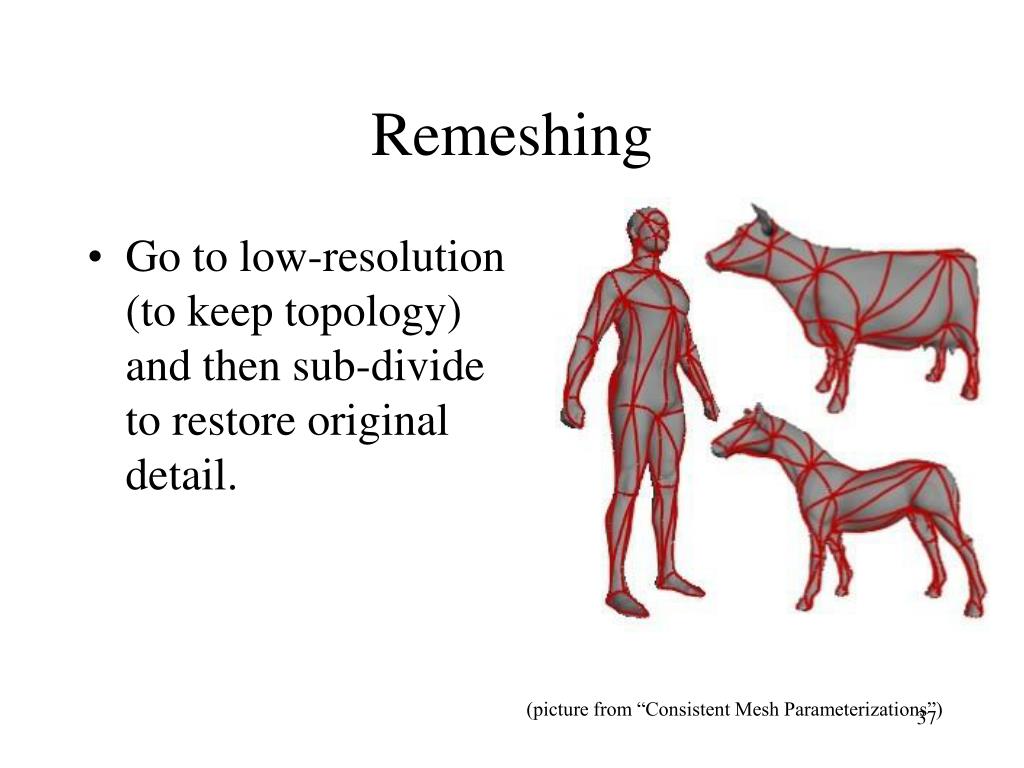

Remeshing

  • Go to low-resolution (to keep topology) and then sub-divide to restore original detail.

  • (picture from “Consistent Mesh Parameterizations”)


An opportunity

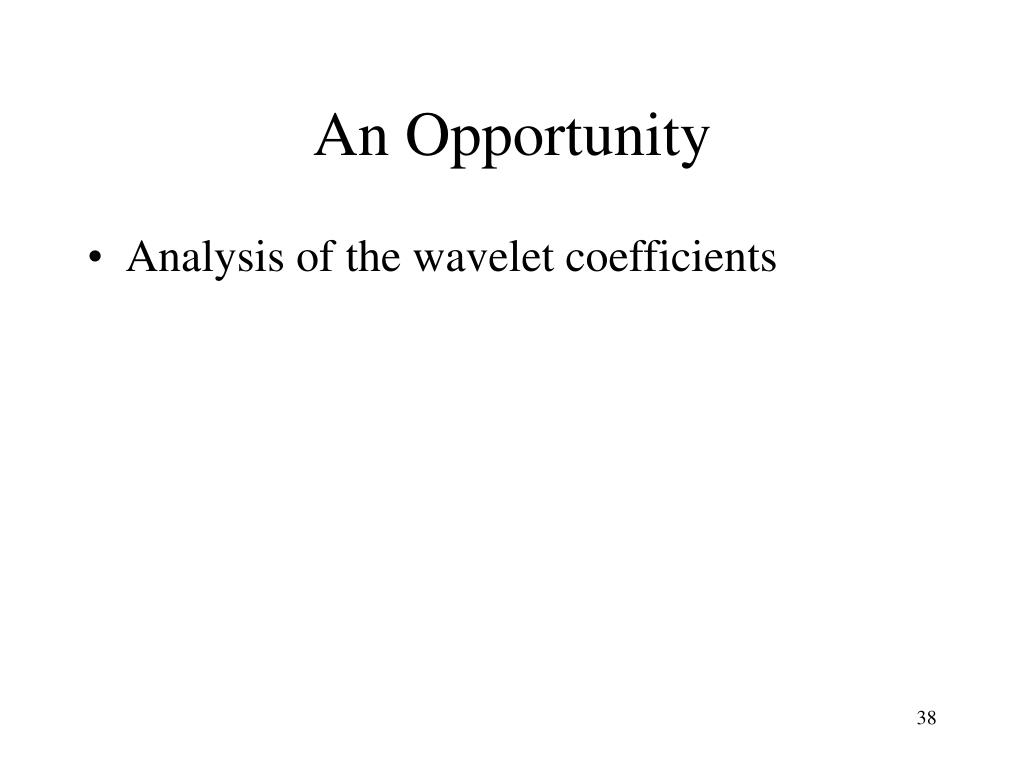

An Opportunity

  • Analysis of the wavelet coefficients


Statistics across meshes

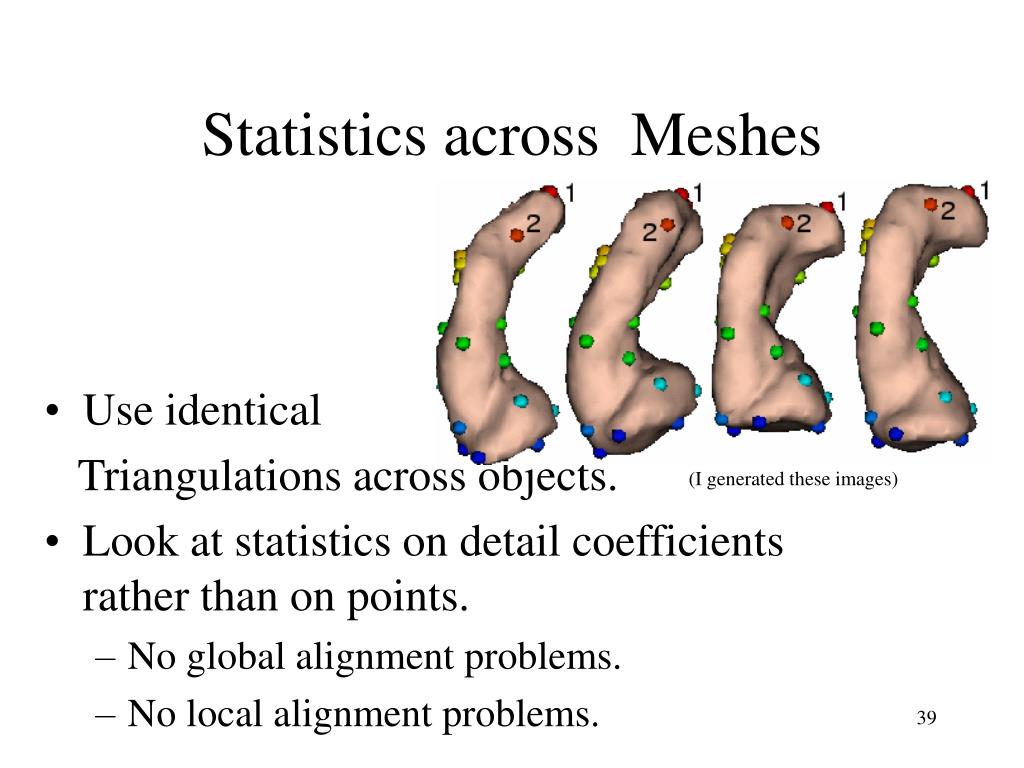

Statistics across Meshes

  • Use identical

    Triangulations across objects.

  • Look at statistics on detail coefficients rather than on points.

    • No global alignment problems.

    • No local alignment problems.

  • (I generated these images)


Feature detection

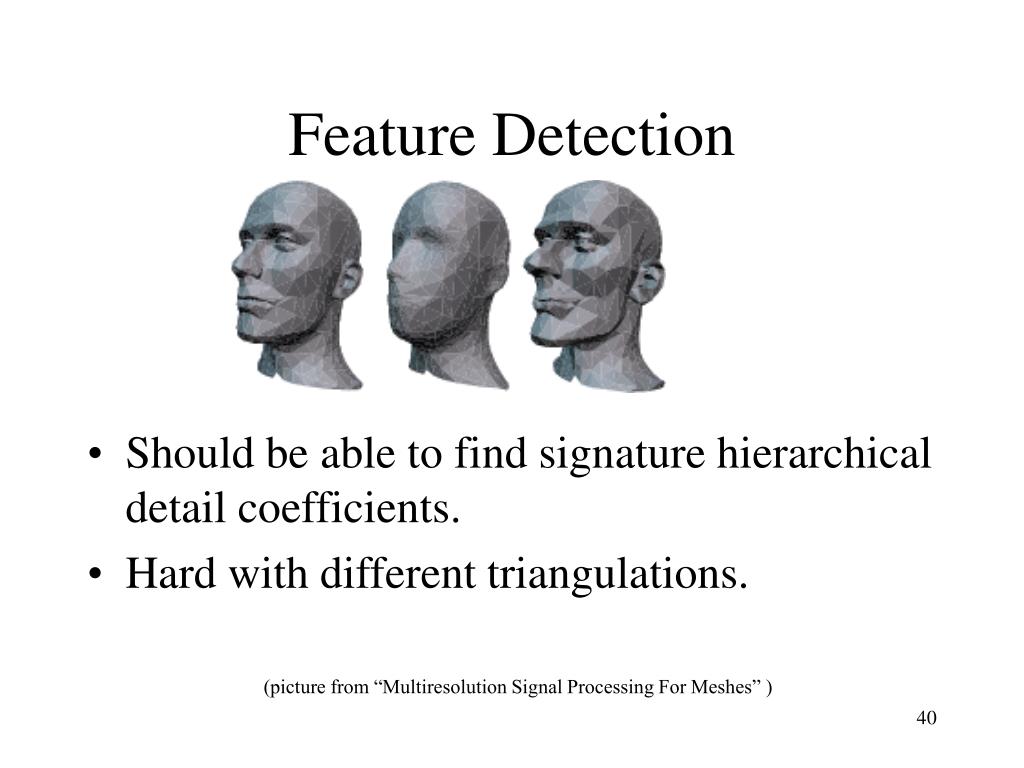

Feature Detection

  • Should be able to find signature hierarchical detail coefficients.

  • Hard with different triangulations.

  • (picture from “Multiresolution Signal Processing For Meshes” )


Acknowledgements

Acknowledgements

  • Professor White for suggesting the topic.

  • Wim Sweldens for responding to my e-mails.

  • Mike Halle and Steve Pieper for providing background information on the graphics community.

    Thank you all for coming today.


The lifting scheme5

The Lifting Scheme

Mathematics

Low Pass Filter: 1/8(-1,2,6,2,-1)

High Pass Filter: ½(-1,2,1)

Back


Solving pdes

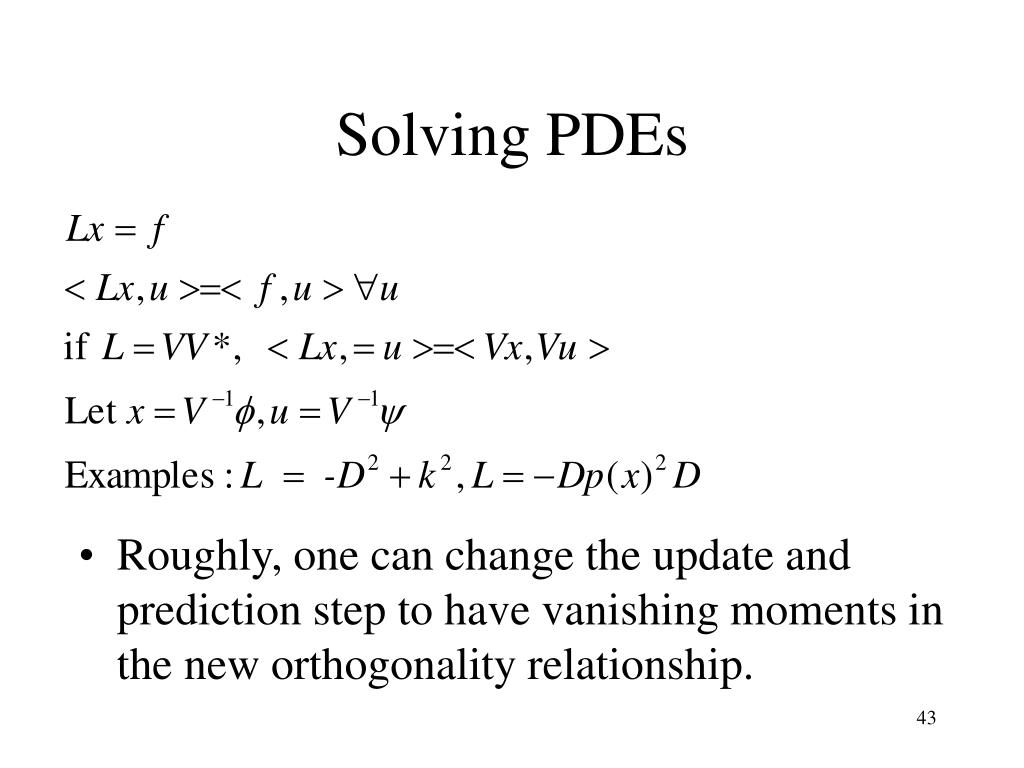

Solving PDEs

  • Roughly, one can change the update and prediction step to have vanishing moments in the new orthogonality relationship.


Guskov et al7

Guskov et al.

  • Remove vertices in smoothest regions first.

  • Half-Edge Collapse to remove one vertex

  • Add vertex in, minimizing “second order difference”.

  • Smooth neighbors using same minimization

  • Detail coefficients are the movements between initial locations and final locations.


Kobbelt et al3

Kobbelt et al.

  • Select a fraction of the vertices.

  • Do half-edge collapses to remove the vertices.

  • Find a local parameterization around each vertex.

  • Add the vertex back in, minimizing the bending energy of the surface (Laplacian).

  • The detail vector is given by the coordinates of the point in the local coordinate system and a perpendicular height.


To do list

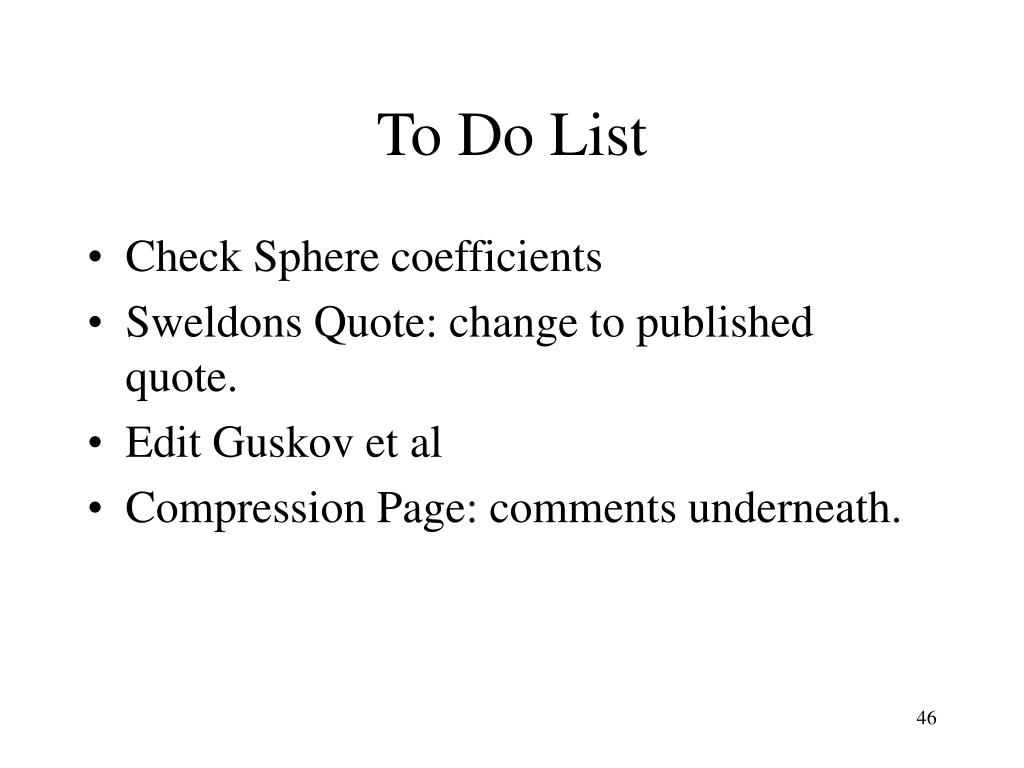

To Do List

  • Check Sphere coefficients

  • Sweldons Quote: change to published quote.

  • Edit Guskov et al

  • Compression Page: comments underneath.
