Ship performance

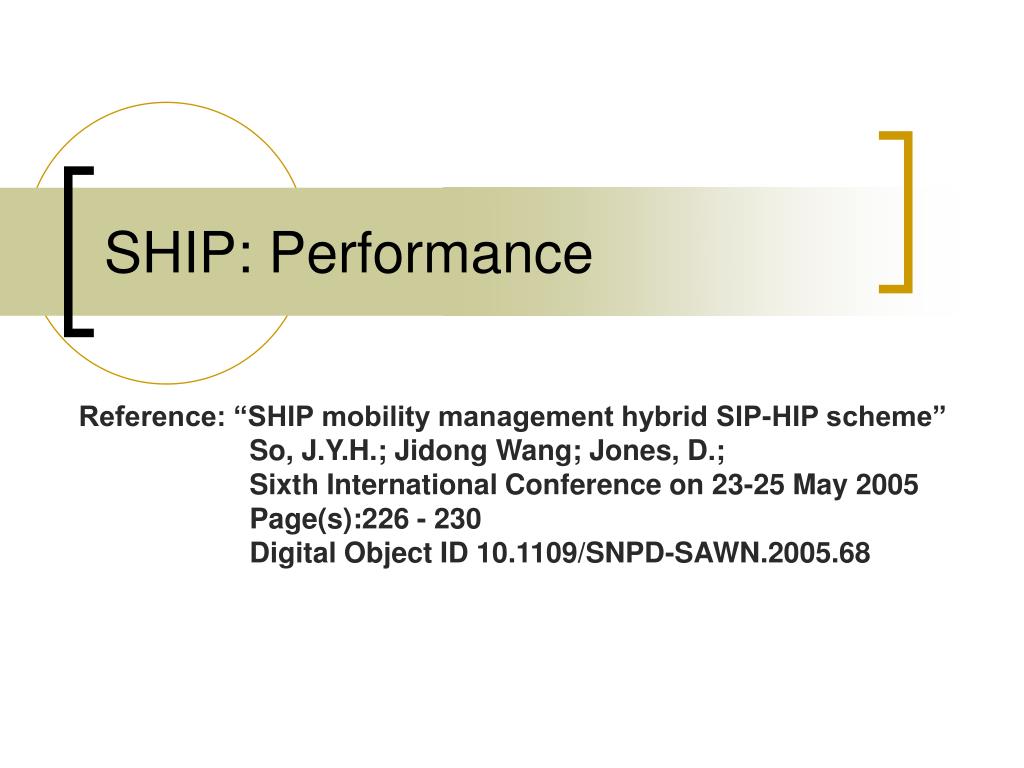

SHIP: Performance

Reference: “SHIP mobility management hybrid SIP-HIP scheme”

So, J.Y.H.; Jidong Wang; Jones, D.;

Sixth International Conference on 23-25 May 2005

Page(s):226 - 230

Digital Object ID 10.1109/SNPD-SAWN.2005.68


Background

Background

  • In the current wireless networks, wireless management can be handled in Data Link Layer or Physical Layer

  • In the 4G wireless networks, handover between different wireless networks can’t be handle by the old method

  • Network Layer and Application Layer are the most suitable layers for the mobility management


Session initiation protocol

Session Initiation Protocol

  • An Application Layer protocol used to create or tear down multimedia session

  • Can perform mobility support that is independent of the underlying wireless technology and network layer element in the Application Layer

  • The best choice for real-time application only


Session initiation protocol cont

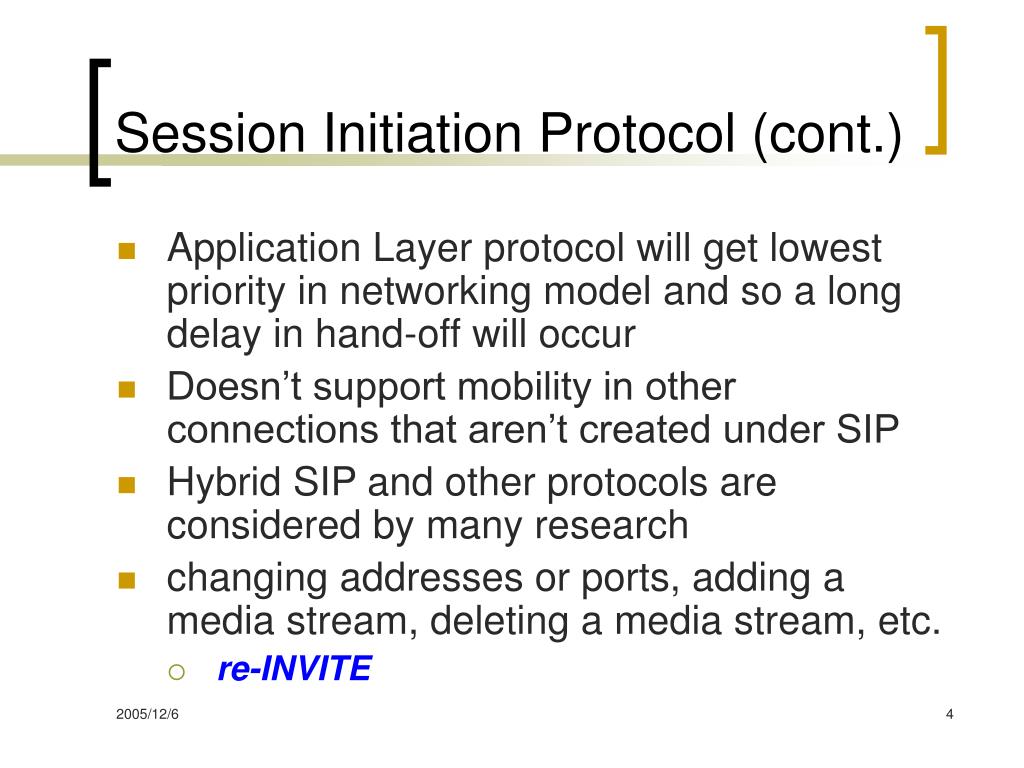

Session Initiation Protocol (cont.)

  • Application Layer protocol will get lowest priority in networking model and so a long delay in hand-off will occur

  • Doesn’t support mobility in other connections that aren’t created under SIP

  • Hybrid SIP and other protocols are considered by many research

  • changing addresses or ports, adding a media stream, deleting a media stream, etc.

    • re-INVITE


Host identify protocol

Host Identify Protocol

  • Introduces a new namespace - Host Identity and a new layer - Host Identity Layer

  • HI (Host Identifier) is represented with a 128-bit long HIT (Host Identity Tag)

  • HI that is a cryptographic key of a public-private key-pair will be used to identify node and endpoint instead of IP addresses


Host identity layer

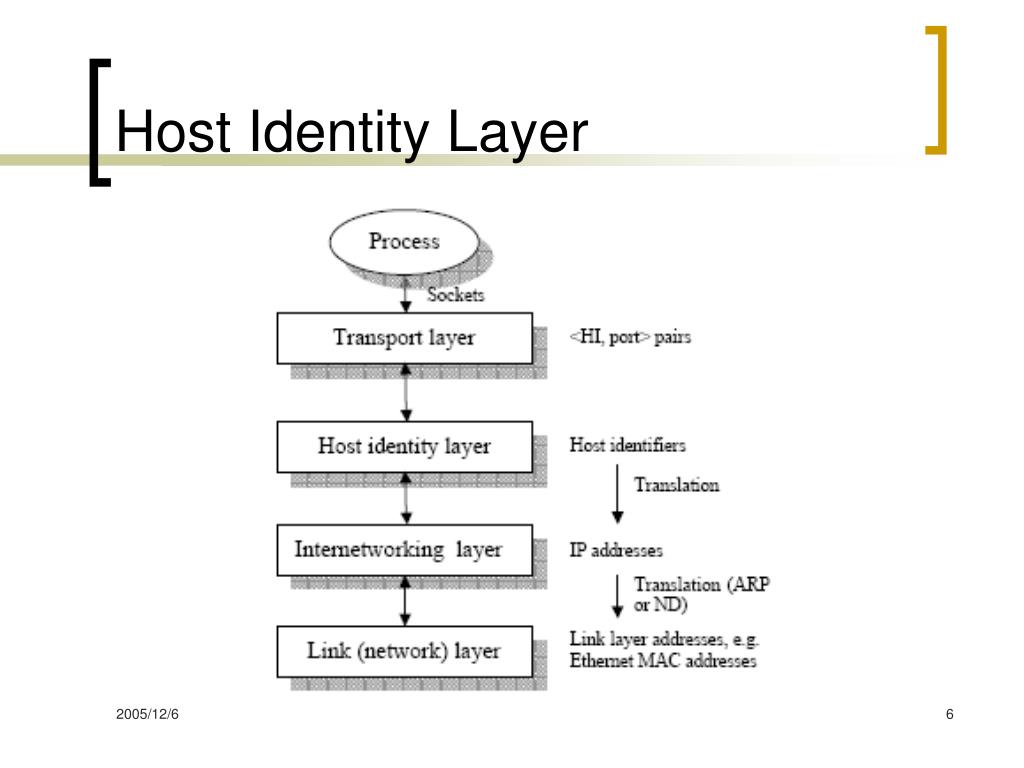

Host Identity Layer


Host identify protocol cont

Host Identify Protocol (cont.)

  • 4-way handshake

  • Diffie-Hellman authenticated key is exchanged during handshake

  • Diffie-Hellman key is used to establish a pair of IPsec ESP (Encapsulated Security Payload) SAs (Security Associations) between hosts


4 way handshake of hip

4-way handshake of HIP

InitiatorResponder

I1: trigger exchange

Select pre-computed R1

R1: puzzle, D-H, key, sig

Check sigRemain stateless

Solve puzzle

I2: solution, D-H, {key}, sig

Compute D-HCheck puzzleCheck sig

R2: sig

Check sigCompute D-H

Security Context established

ESP protected messages


Hip packet structure

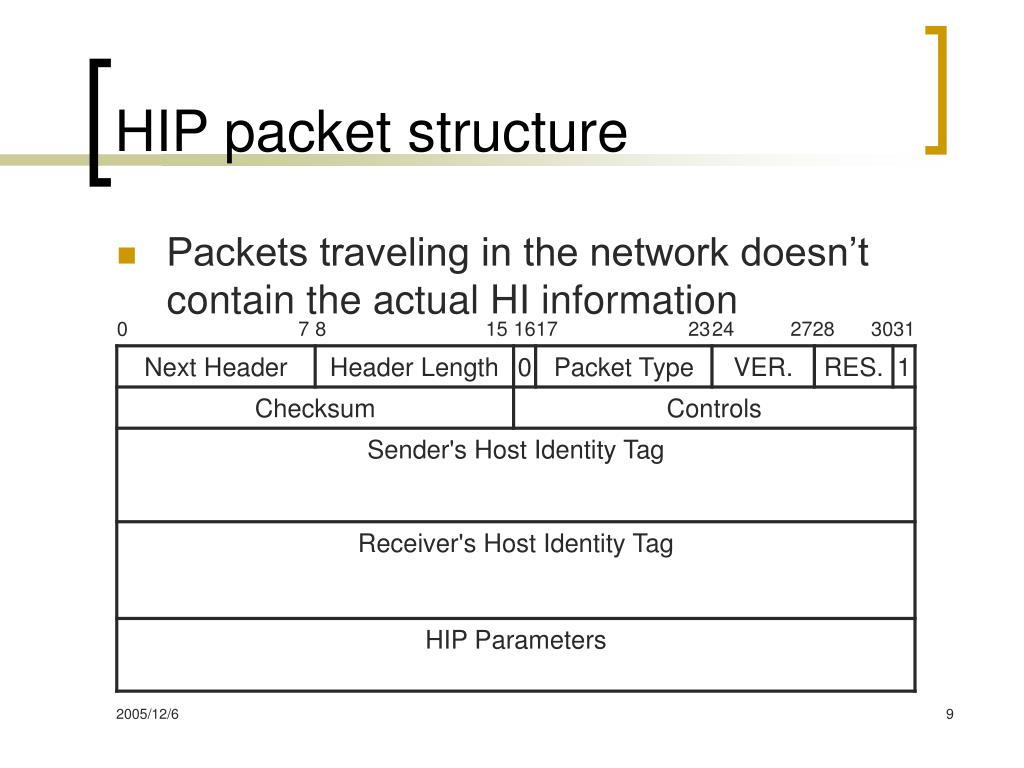

HIP packet structure

  • Packets traveling in the network doesn’t contain the actual HI information


Hip packet structure cont

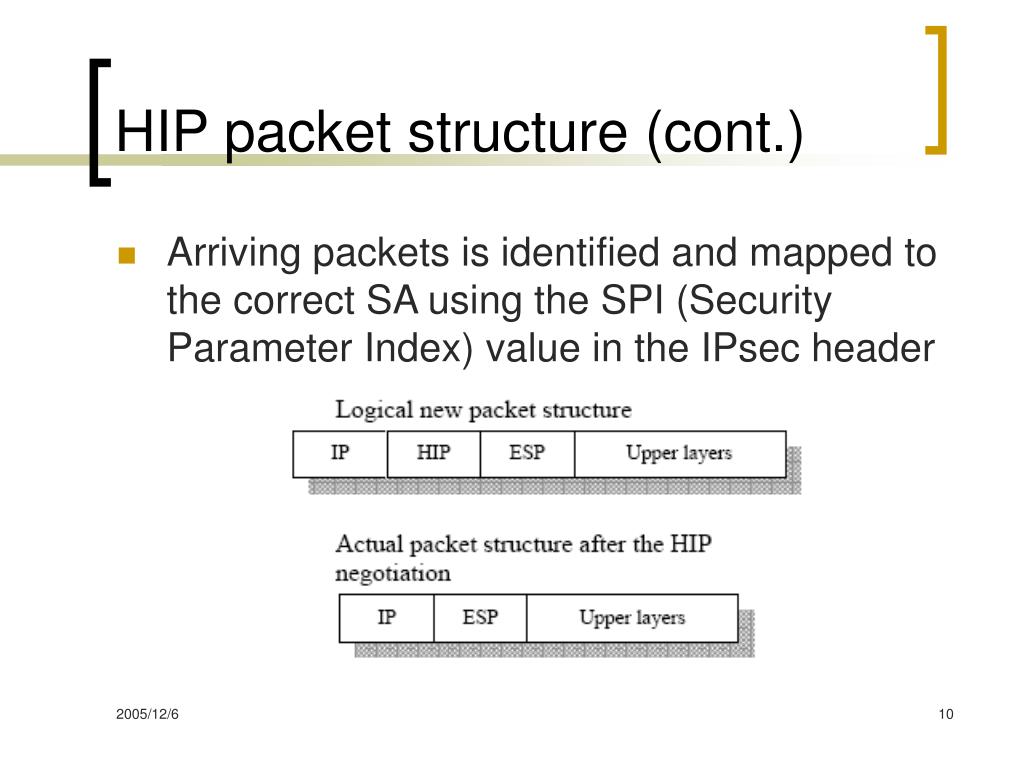

HIP packet structure (cont.)

  • Arriving packets is identified and mapped to the correct SA using the SPI (Security Parameter Index) value in the IPsec header


Hip mobility

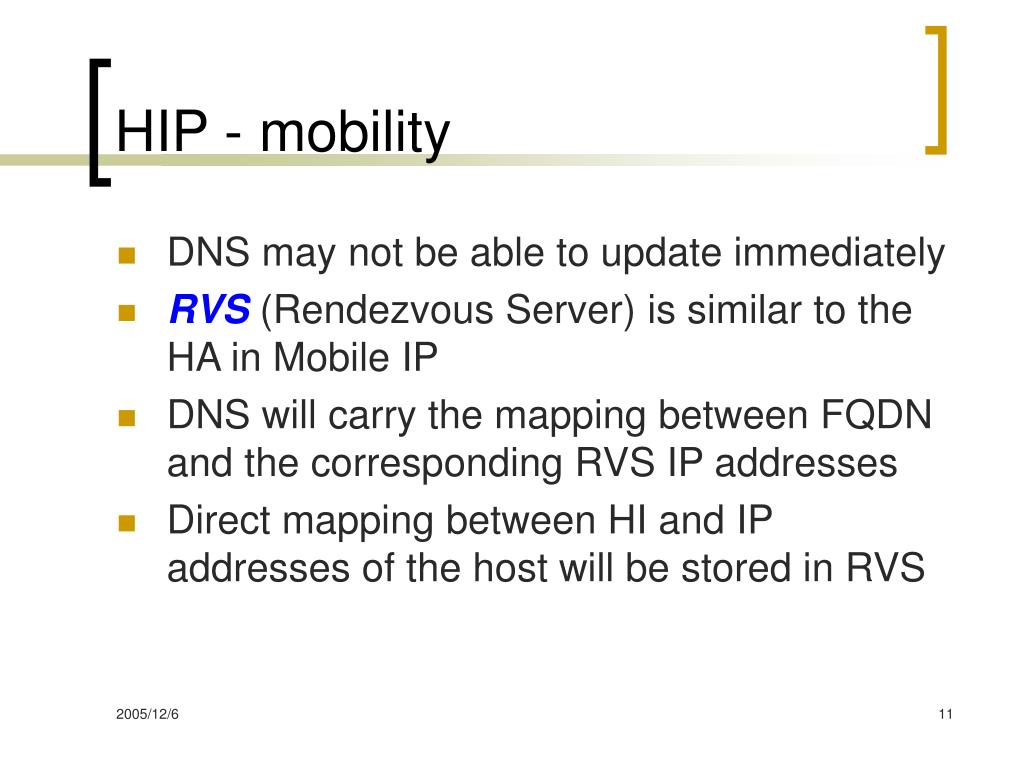

HIP - mobility

  • DNS may not be able to update immediately

  • RVS (Rendezvous Server) is similar to the HA in Mobile IP

  • DNS will carry the mapping between FQDN and the corresponding RVS IP addresses

  • Direct mapping between HI and IP addresses of the host will be stored in RVS


4 way handshake of hip via rvs

4-way handshake of HIP via RVS


Hi ip mapping

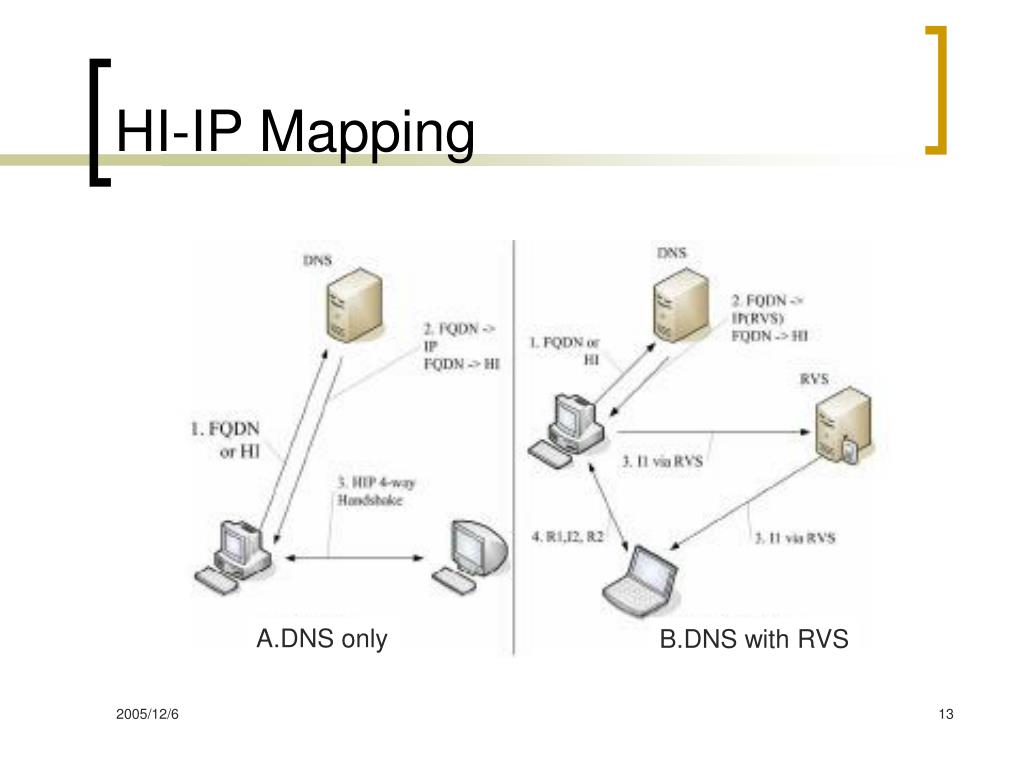

HI-IP Mapping

A.DNS only

B.DNS with RVS


Hip mid session mobility

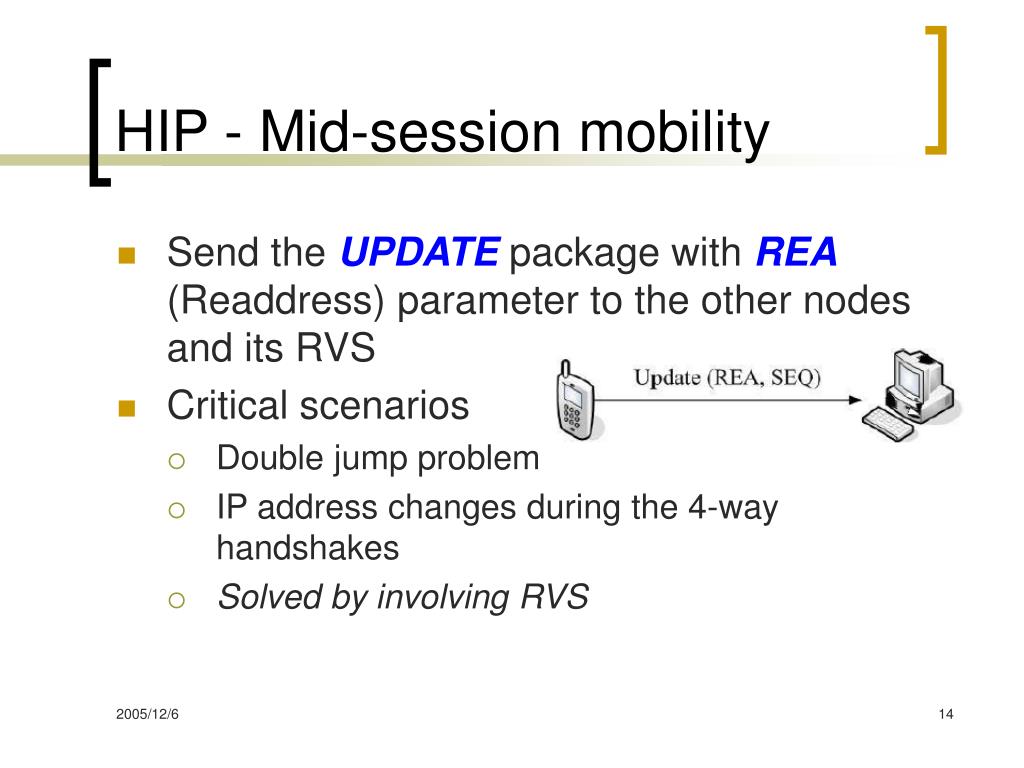

HIP - Mid-session mobility

  • Send the UPDATE package with REA (Readdress) parameter to the other nodes and its RVS

  • Critical scenarios

    • Double jump problem

    • IP address changes during the 4-way handshakes

    • Solved by involving RVS


Ship hybrid sip hip

SHIP (Hybrid SIP-HIP)

  • Pre-session

    • SIP location server will return the HI address instead of an IP address

    • Until the mapping of the SIP, URI and HI address is changed, no updates are required in the SIP location server

  • Mid-session

    • HIP UPDATE package with REA parameter will be sent to the corresponding host

    • SIP doesn’t need to send re-INVITE message


Ship procedures

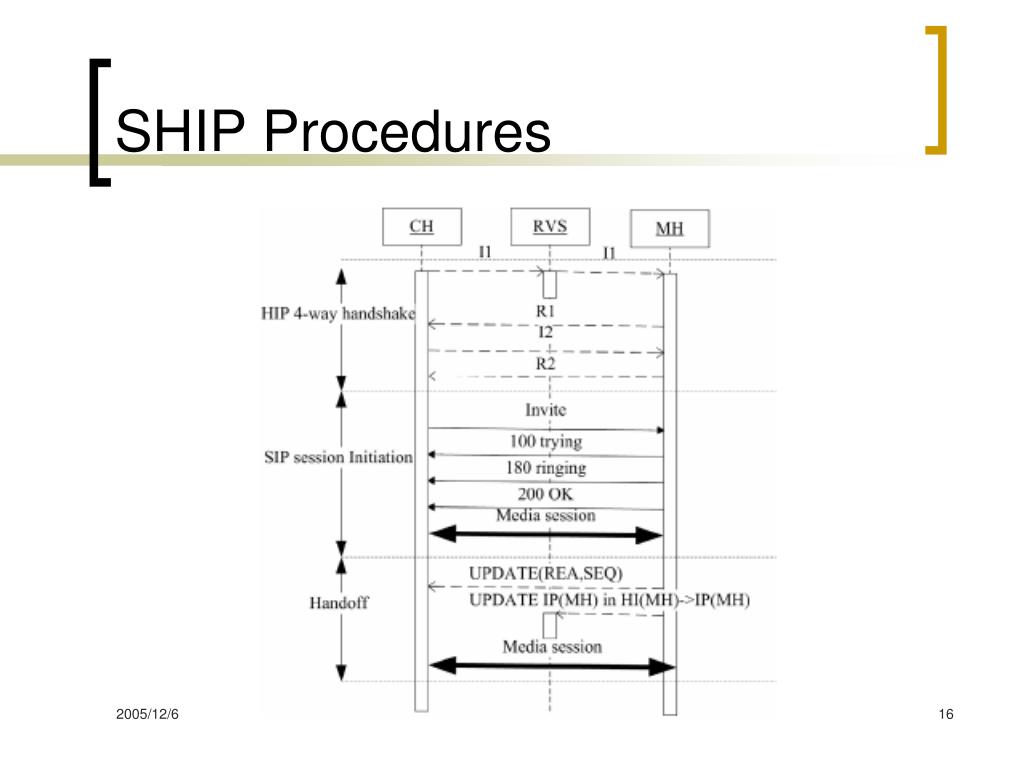

SHIP Procedures


Handoff signaling analysis

Dhandoff = Ddhcp + Dnotice

Dnotice =

Ohandoff =

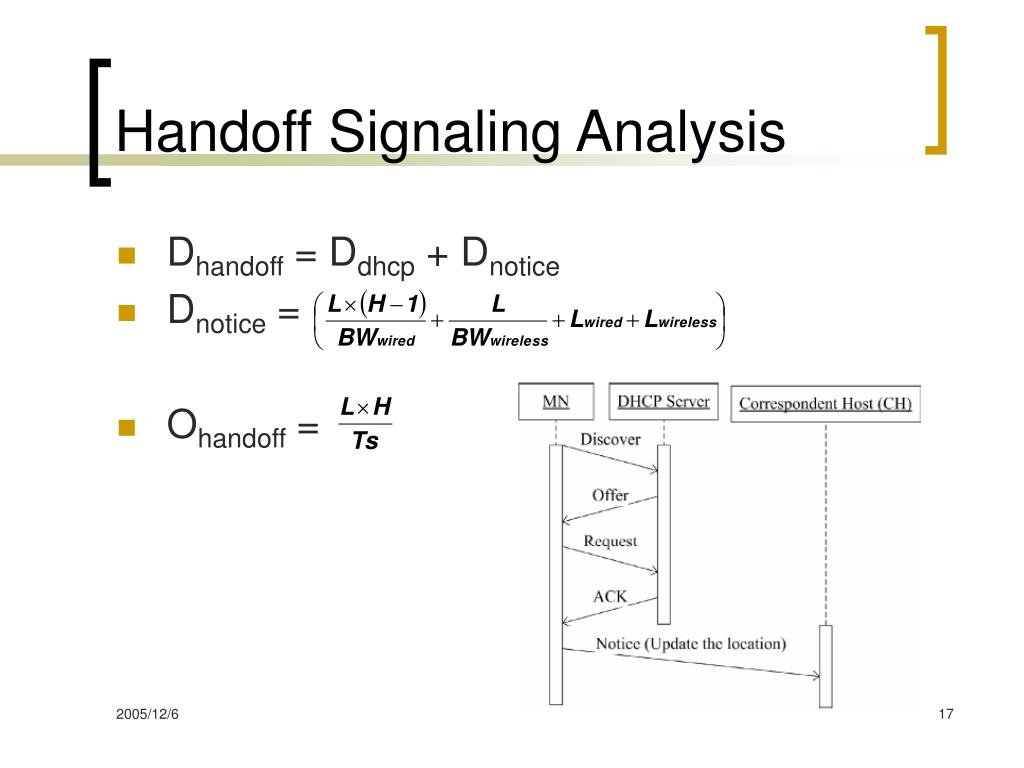

Handoff Signaling Analysis


Handoff signaling parameters

Handoff Signaling Parameters


Handoff signaling delay

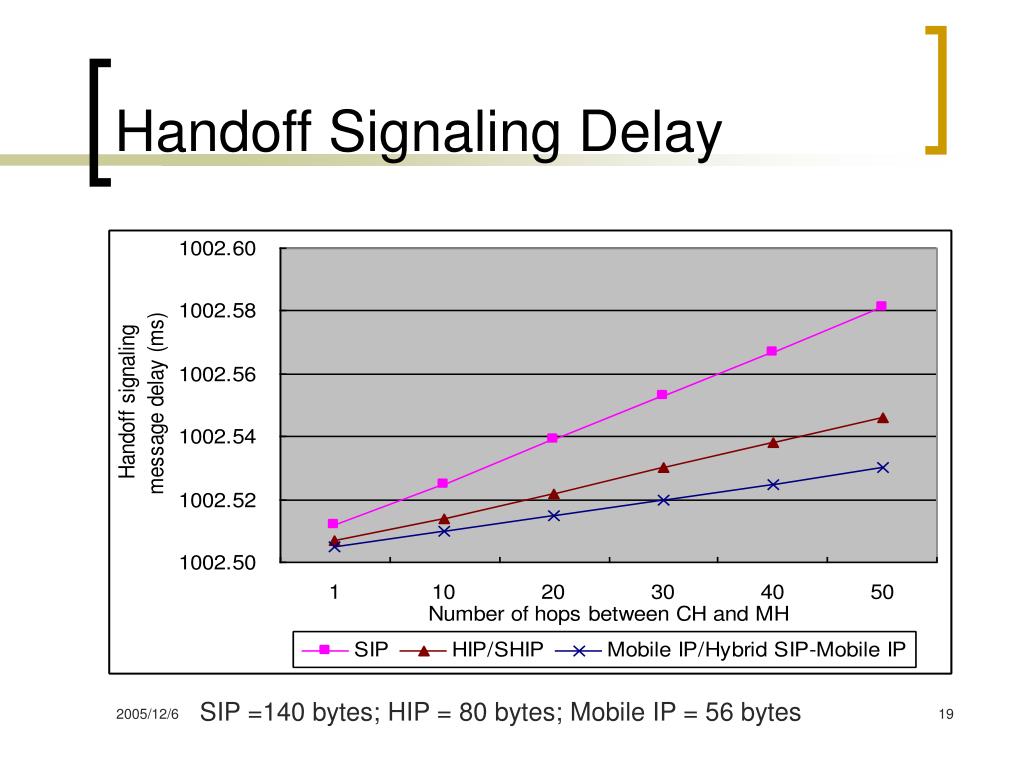

Handoff Signaling Delay

SIP =140 bytes; HIP = 80 bytes; Mobile IP = 56 bytes


Handoff signaling delay cont

Handoff Signaling Delay (cont.)

  • Hybrid SIP-Mobile IP need to use HA to re-direct the packet until the SIP re-INVITE progress is completed

    • Two handoff processes are needed in one handoff

  • Handoff only needs to be processed once in SHIP


Handoff signaling overhead

Handoff Signaling Overhead

H=50


Handoff signaling overhead cont

Handoff Signaling Overhead (cont.)

  • Overhead of hybrid SIP-Mobile IP scheme will be the sum of the Mobile IP and SIP as two handoff processes are needed

  • SHIP has been shown to outperform than hybrid SIP-Mobile IP


Conclusion

Conclusion

  • This paper has proposed SHIP for future IP based wireless networks

  • SHIP avoids the re-INVITE message in SIP and therefore, its signaling message is smaller

  • SHIP also provides multi-homing support, which does not exist in hybrid SIP-Mobile IP


Reference

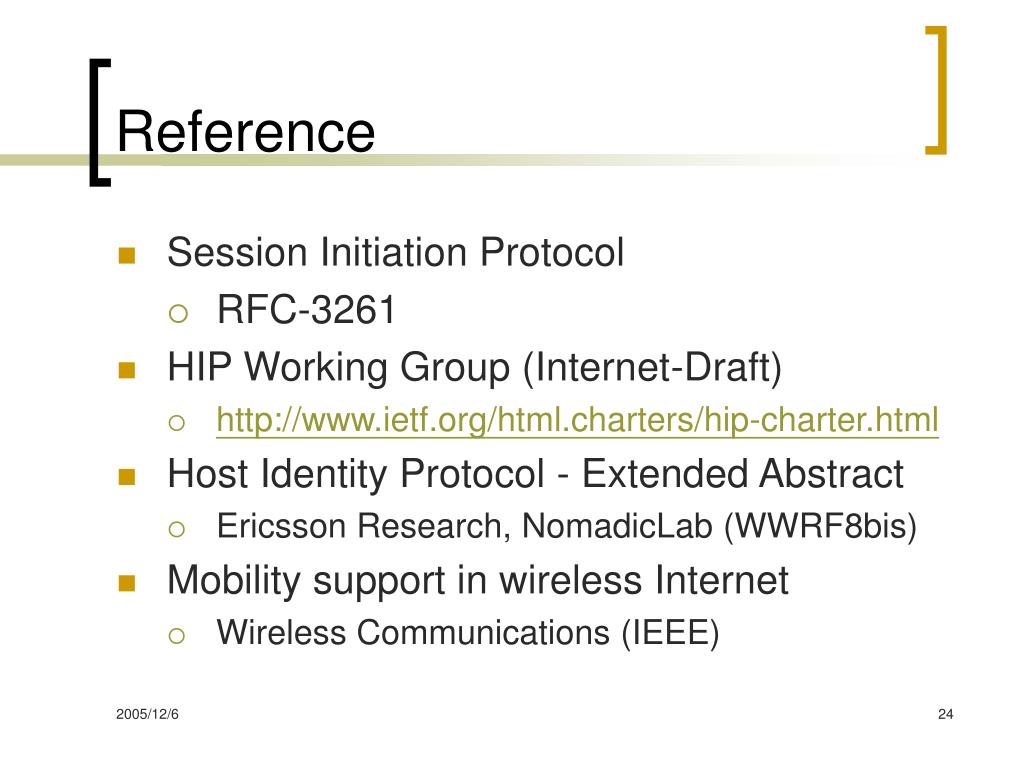

Reference

  • Session Initiation Protocol

    • RFC-3261

  • HIP Working Group (Internet-Draft)

    • http://www.ietf.org/html.charters/hip-charter.html

  • Host Identity Protocol - Extended Abstract

    • Ericsson Research, NomadicLab (WWRF8bis)

  • Mobility support in wireless Internet

    • Wireless Communications (IEEE)
