Zml z family on the web with their uml photos

ZML: Z family on the web with their UML photos

Sun Jing

Supervisor: Dr. Jin Song DONG

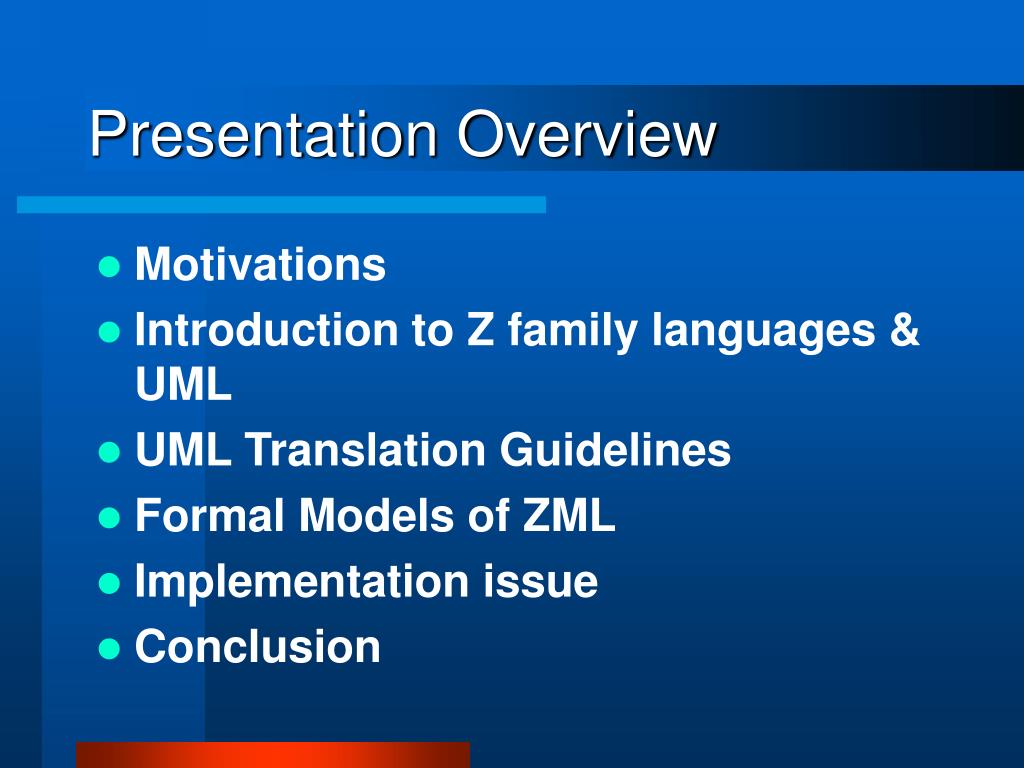

Presentation overview

Presentation Overview

  • Motivations

  • Introduction to Z family languages & UML

  • UML Translation Guidelines

  • Formal Models of ZML

  • Implementation issue

  • Conclusion


Zml z family on the web with their uml photos

Motivations


Precisely and visually capture system requirements

Precisely and Visually capture system requirements

  • Develop a web environment for Z family notations

    • Share design models

    • Hyperlinks among models

    • Advance browsing facilities

  • Develop projection tool for visualizing Object-Z/TCOZ specifications in UML Diagrams

  • Use Object-Z to specify and design the essential functionalities of the ZML environment


Introduction to z family languages uml

Introduction to Z family languages & UML


Zml z family on the web with their uml photos

Z

An state-orient formal specification language based on set theory and predicate logic

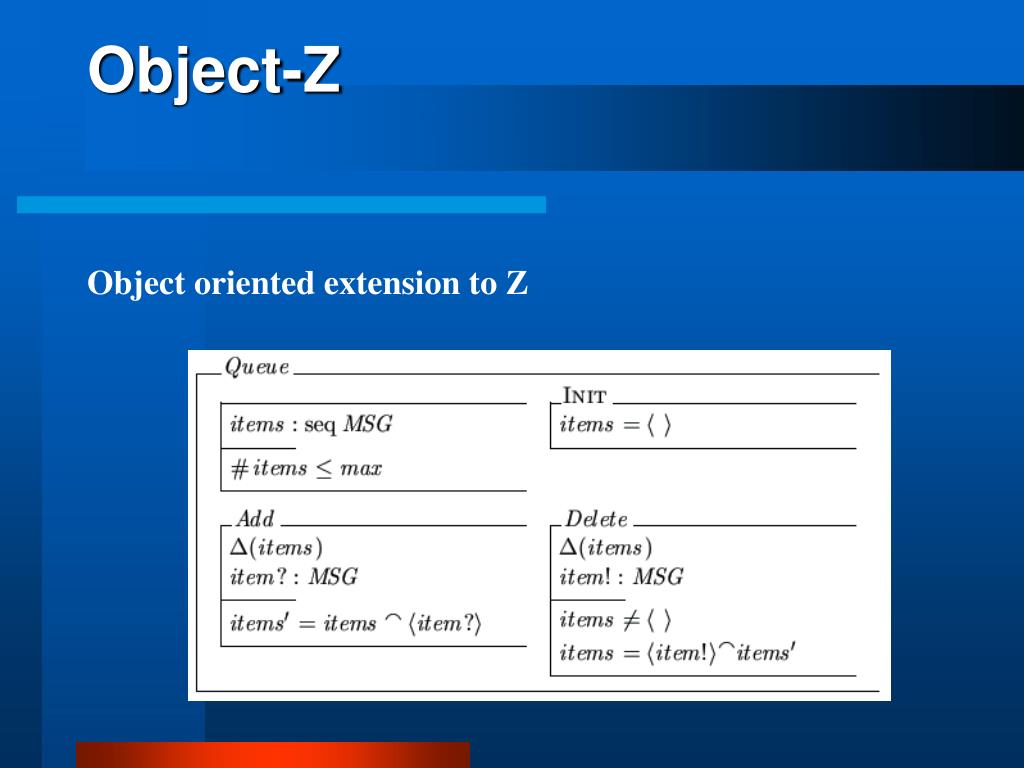

Object z

Object-Z

Object oriented extension to Z


Zml z family on the web with their uml photos

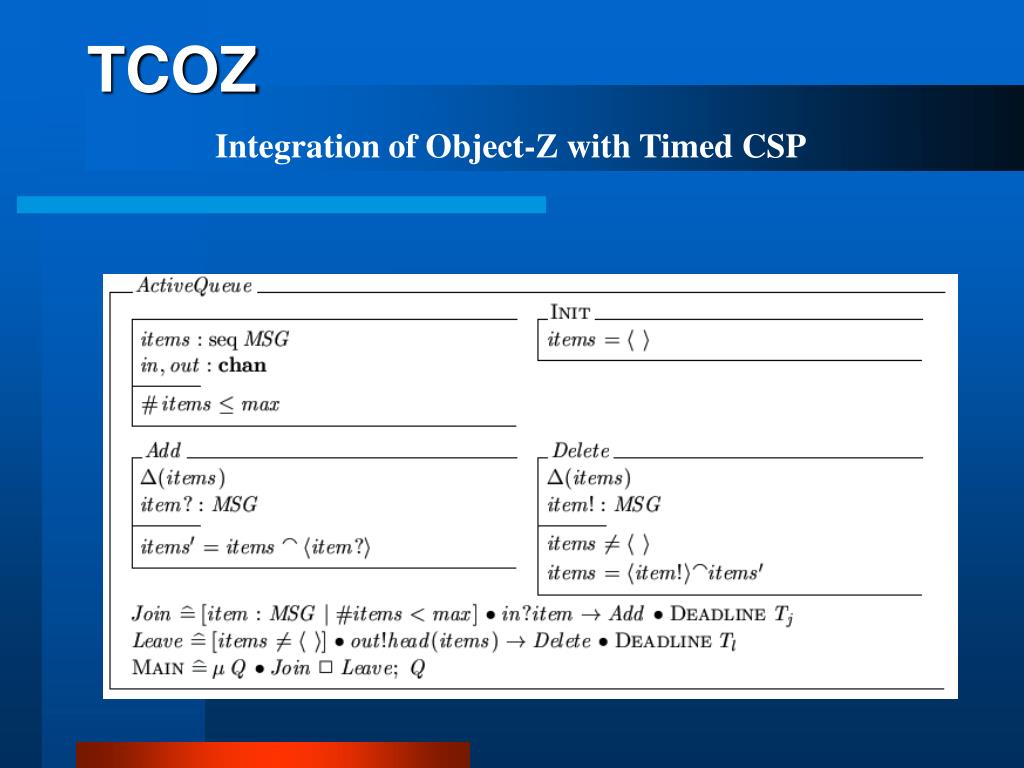

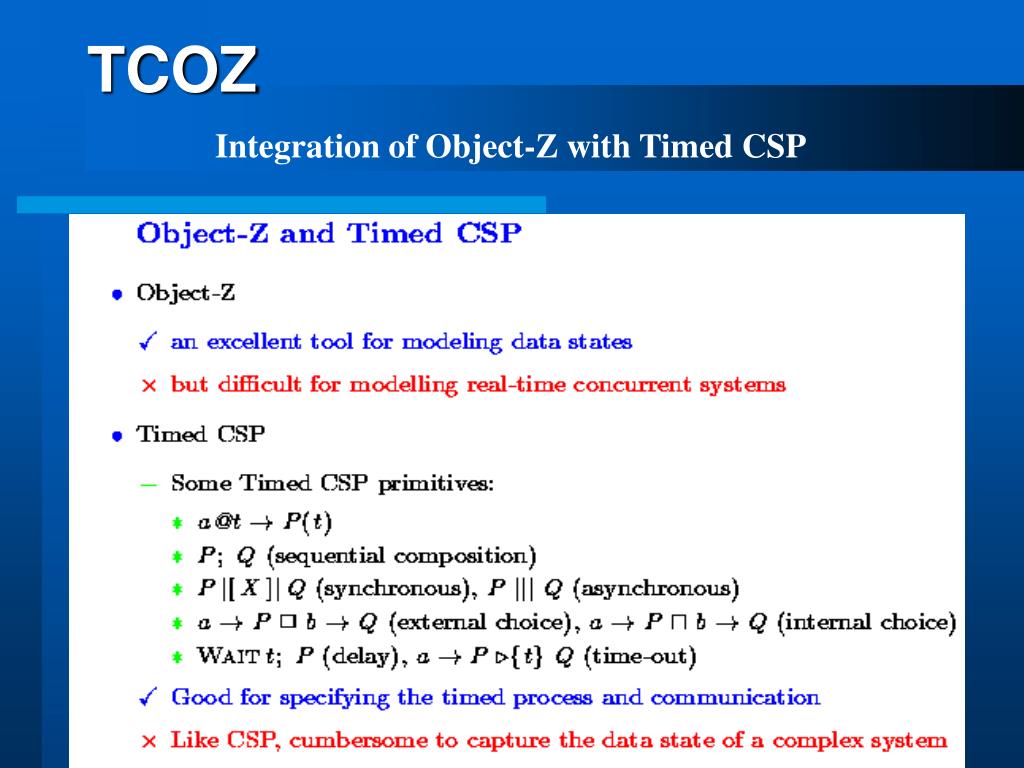

TCOZ

Integration of Object-Z with Timed CSP


Zml z family on the web with their uml photos

TCOZ

Integration of Object-Z with Timed CSP


Zml z family on the web with their uml photos

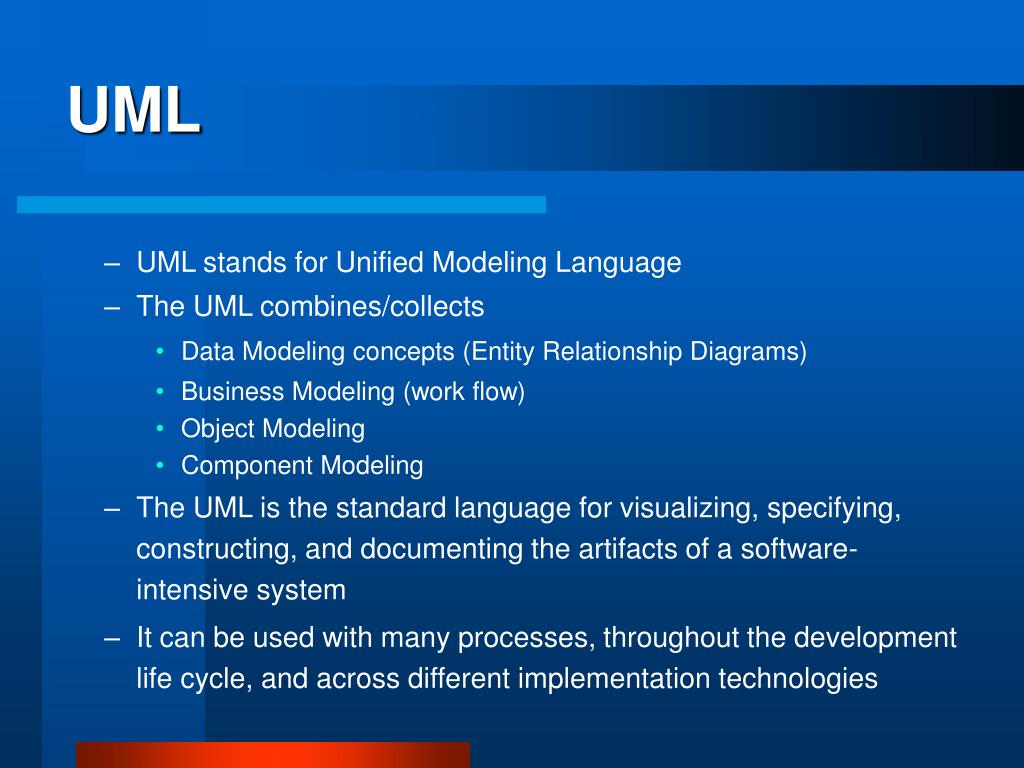

UML

  • UML stands for Unified Modeling Language

  • The UML combines/collects

    • Data Modeling concepts (Entity Relationship Diagrams)

    • Business Modeling (work flow)

    • Object Modeling

    • Component Modeling

  • The UML is the standard language for visualizing, specifying, constructing, and documenting the artifacts of a software-intensive system

  • It can be used with many processes, throughout the development life cycle, and across different implementation technologies


Models views and diagrams

State

Diagrams

State

Diagrams

State

Diagrams

State

Diagrams

State

Diagrams

State

Diagrams

Object

Diagrams

Component

Diagrams

Class

Diagrams

Component

Diagrams

Component

Diagrams

Deployment

Diagrams

Use Case

Diagrams

Use Case

Diagrams

Scenario

Diagrams

Scenario

Diagrams

Use Case

Diagrams

Use Case

Diagrams

Scenario

Diagrams

Scenario

Diagrams

Use Case

Diagrams

Sequence

Diagrams

Statechart

Diagrams

Collaboration

Diagrams

Models, Views, and Diagrams

Models

Activity

Diagrams


Uml translation guidelines

UML Translation Guidelines


Linkage between object z tcoz uml

Linkage between Object-Z/TCOZ &UML

  • Static view

    Class/Class diagram

  • Collaboration view

    Communication /Collaboration diagram

  • Dynamic view

    operation/ statechart diagram


Static view

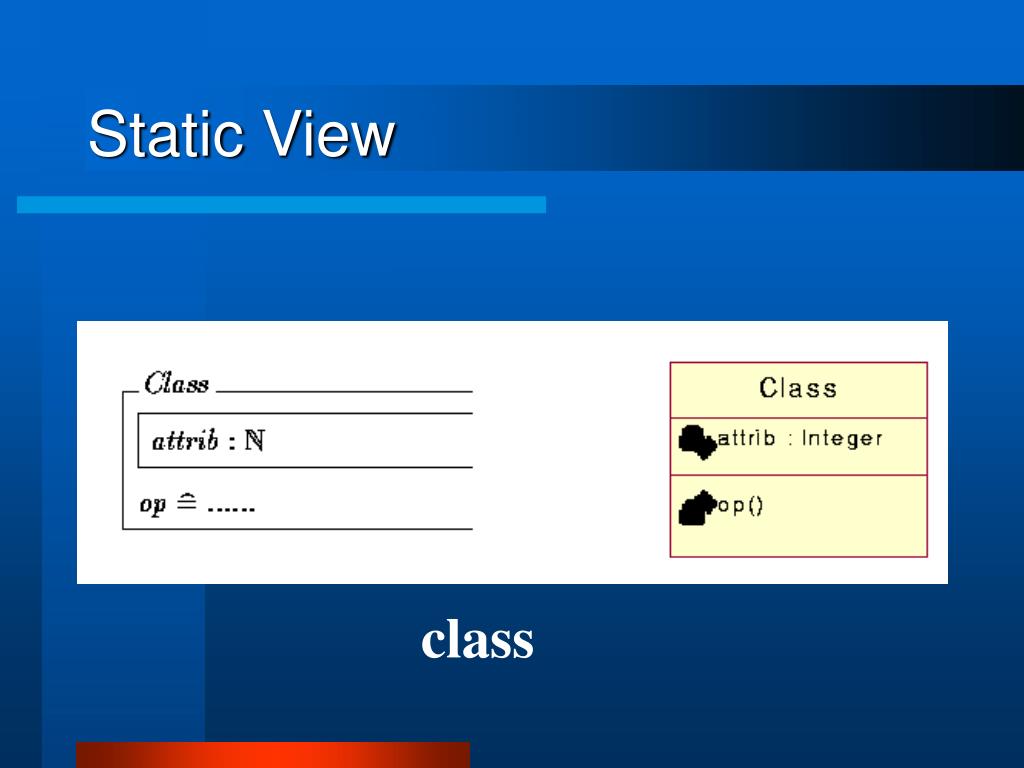

Static View

class


Static view1

Static View

Inheritance

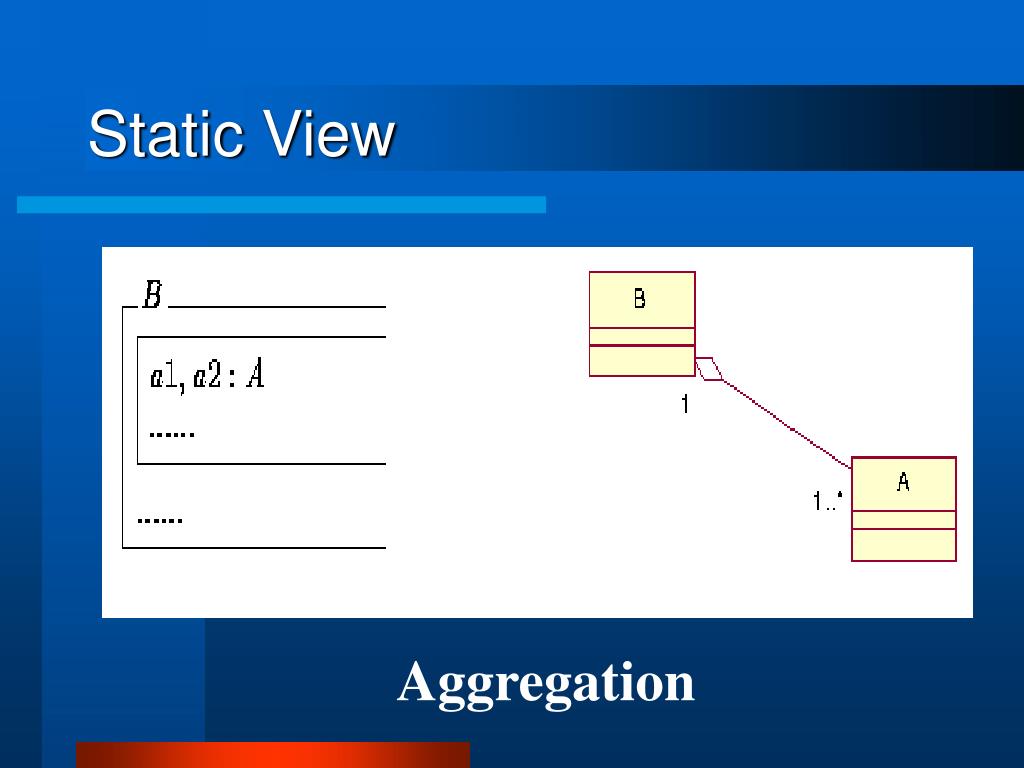

Static view2

Static View

Aggregation


Static view3

Static View

Association


Collaboration view

Collaboration View

Synchronized Communication


Collaboration view1

Collaboration View

Asynchronized Communication

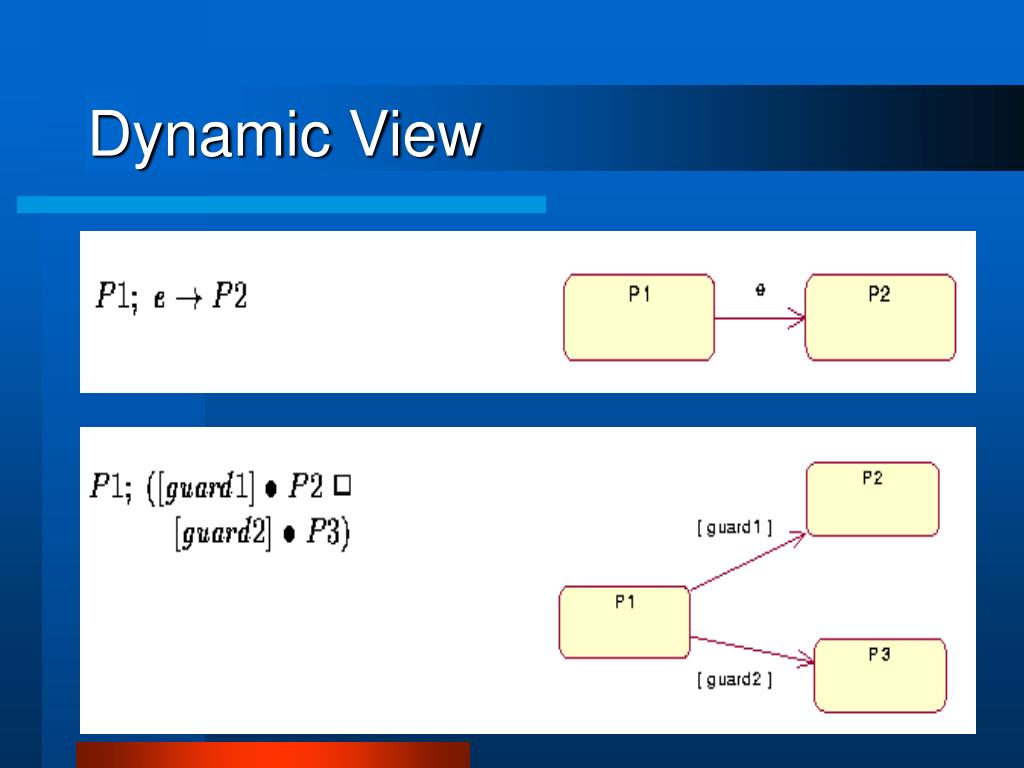

Dynamic view

Dynamic View


Dynamic view1

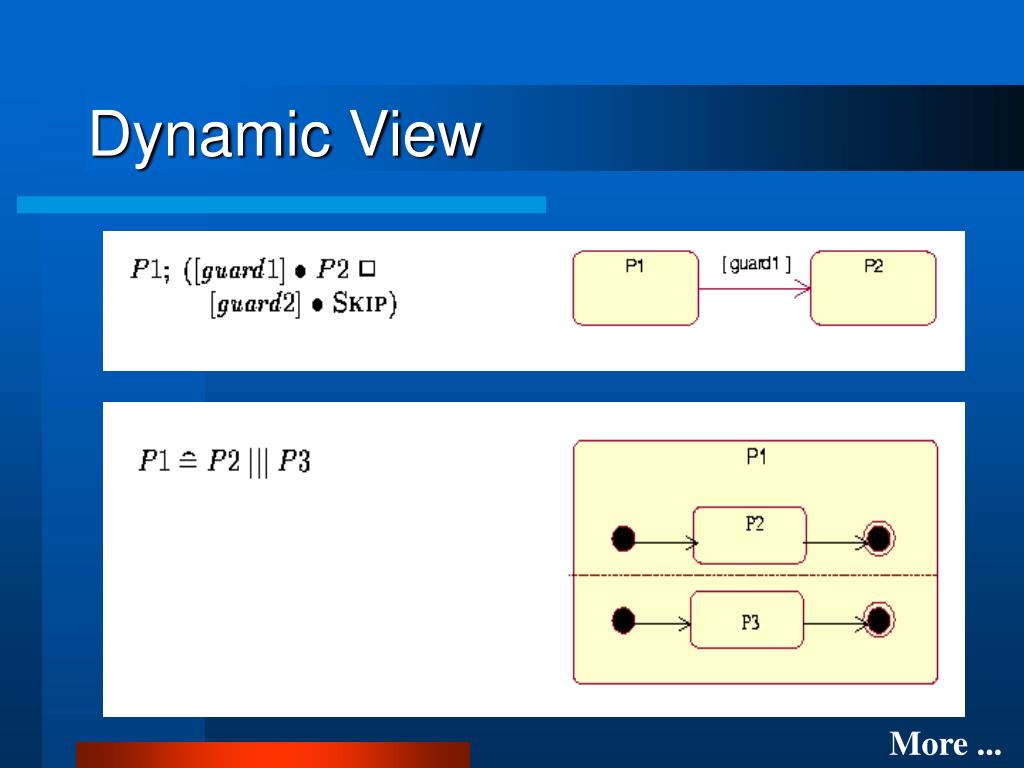

Dynamic View

More ...


Formal model of zml

Formal Model of ZML


Definition hierarchy

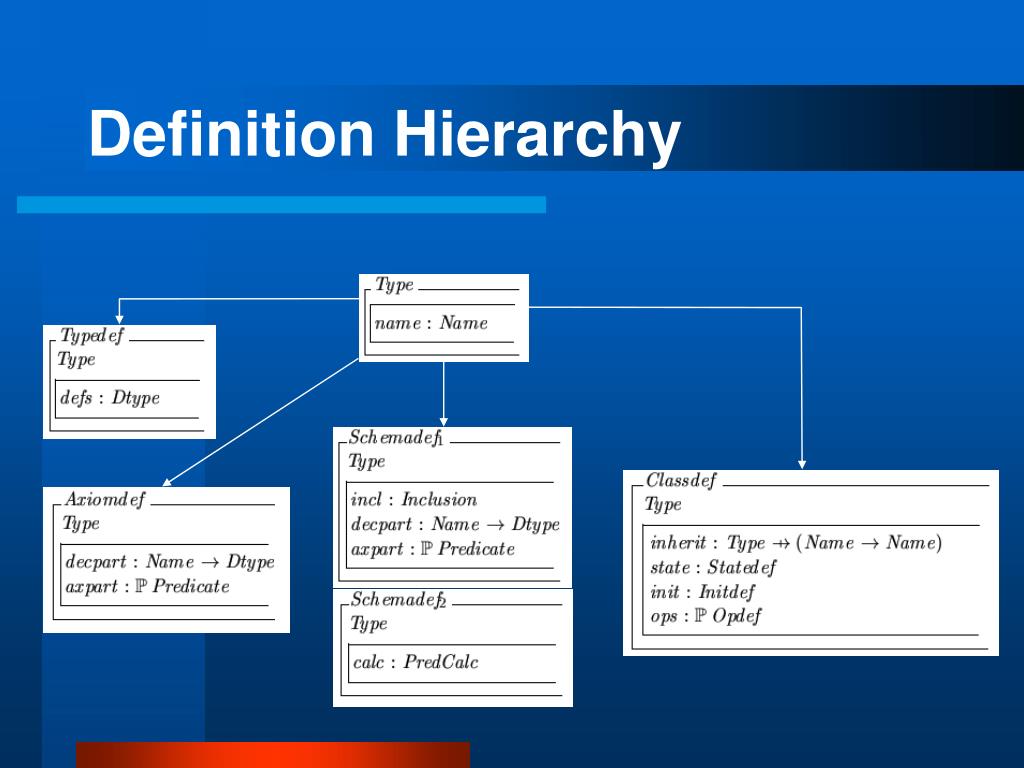

Definition Hierarchy


Web browsing environment

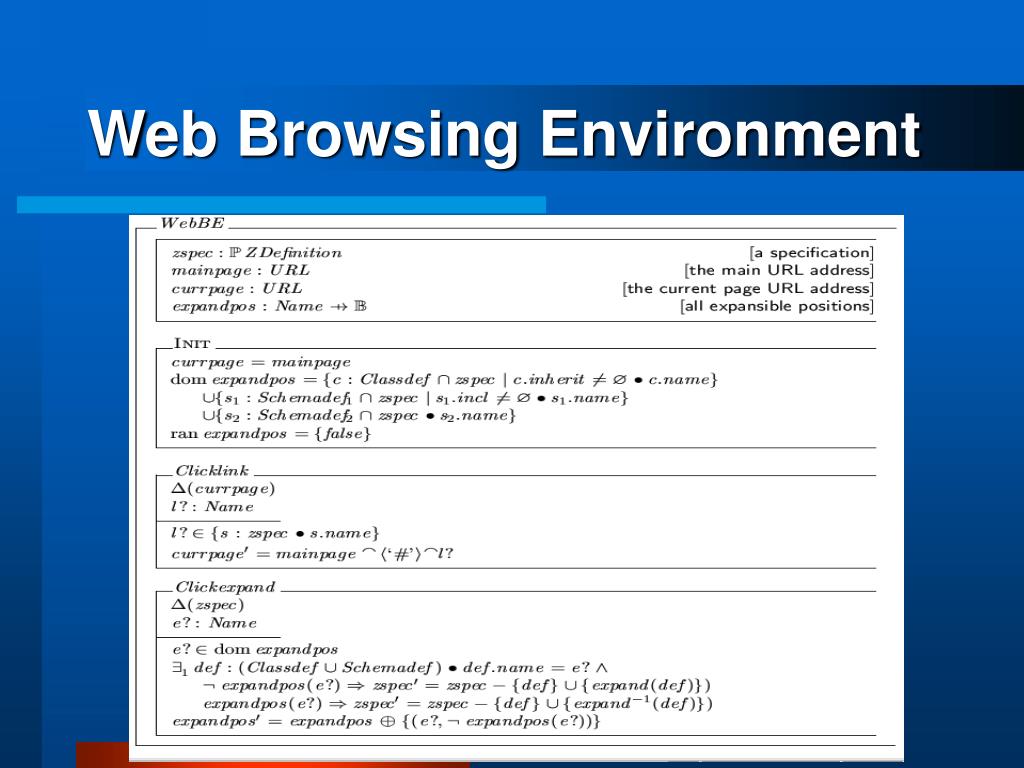

Web Browsing Environment


Projections to uml class diagram

Projections to UML Class Diagram


Implementation issue

Implementation issue


Basic idea

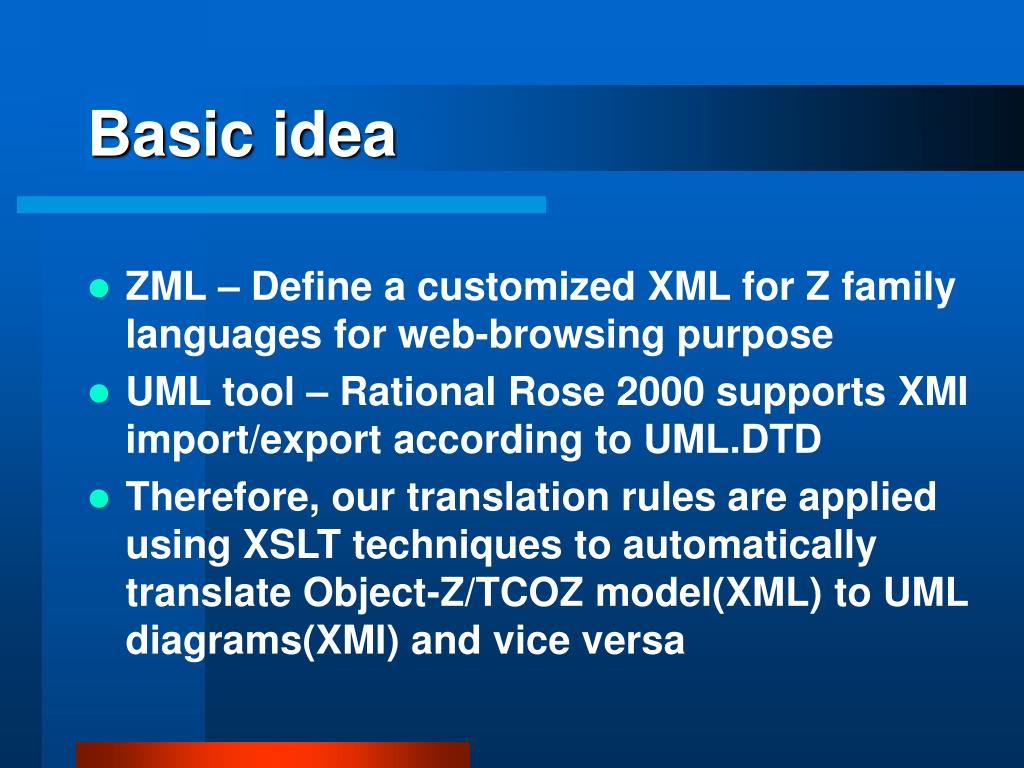

Basic idea

  • ZML – Define a customized XML for Z family languages for web-browsing purpose

  • UML tool – Rational Rose 2000 supports XMI import/export according to UML.DTD

  • Therefore, our translation rules are applied using XSLT techniques to automatically translate Object-Z/TCOZ model(XML) to UML diagrams(XMI) and vice versa


Overall picture

Overall picture


Syntax definition

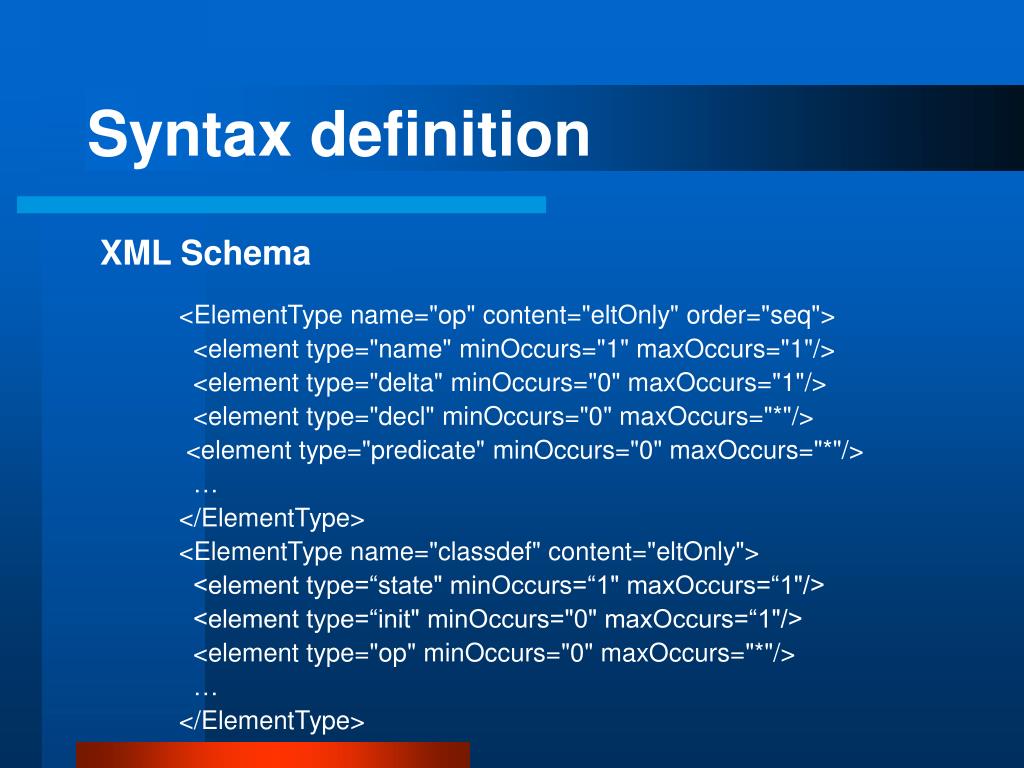

Syntax definition

<ElementType name="op" content="eltOnly" order="seq">

<element type="name" minOccurs="1" maxOccurs="1"/>

<element type="delta" minOccurs="0" maxOccurs="1"/>

<element type="decl" minOccurs="0" maxOccurs="*"/>

<element type="predicate" minOccurs="0" maxOccurs="*"/>

</ElementType>

<ElementType name="classdef" content="eltOnly">

<element type=“state" minOccurs=“1" maxOccurs=“1"/>

<element type=“init" minOccurs="0" maxOccurs=“1"/>

<element type="op" minOccurs="0" maxOccurs="*"/>

</ElementType>

XML Schema


Syntax definition1

Syntax definition

<!ELEMENT Foundation.Core.Class (

Foundation.Core.ModelElement.name,

Foundation.Core.ModelElement.visibility,

Foundation.Core.GeneralizableElement.isRoot,

Foundation.Core.GeneralizableElement.isLeaf,

Foundation.Core.GeneralizableElement.isAbstract,

Foundation.Core.Class.isActive,

XMI.extension*,

Foundation.Core.ModelElement.constraint*,

Foundation.Core.ModelElement.requirement*,

Foundation.Core.ModelElement.provision*,

Foundation.Core.ModelElement.stereotype*,

…>

UML DTD

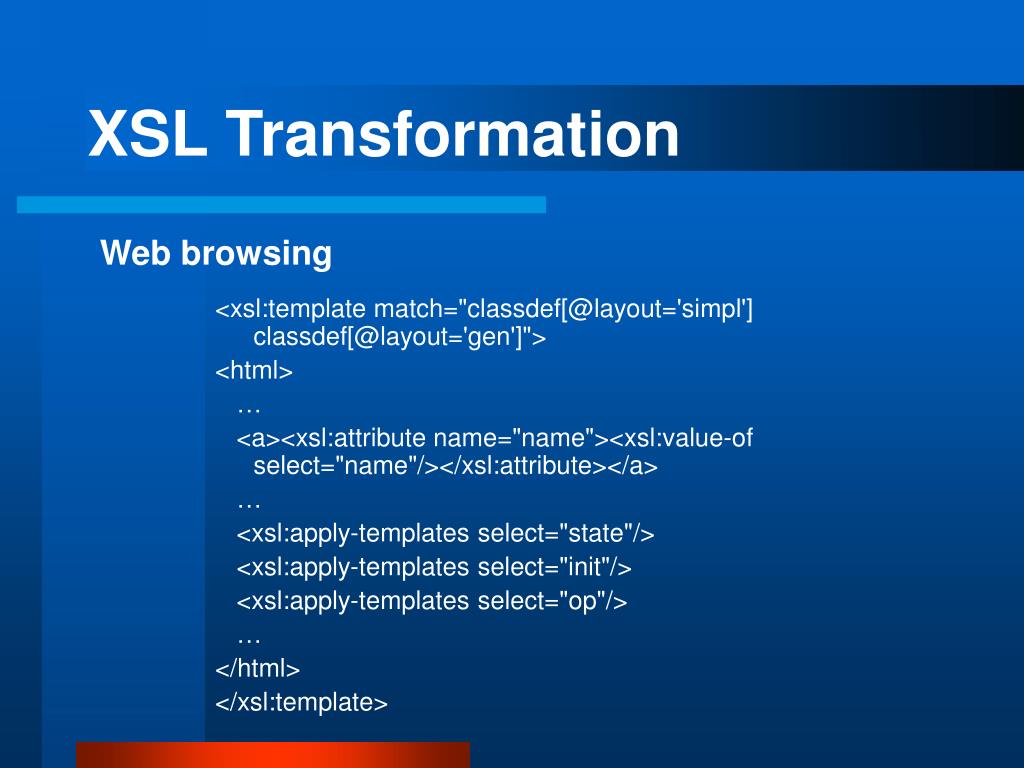

Xsl transformation

XSL Transformation

<xsl:template match="classdef[@layout='simpl'] classdef[@layout='gen']">

<html>

<a><xsl:attribute name="name"><xsl:value-of select="name"/></xsl:attribute></a>

<xsl:apply-templates select="state"/>

<xsl:apply-templates select="init"/>

<xsl:apply-templates select="op"/>

</html>

</xsl:template>

Web browsing

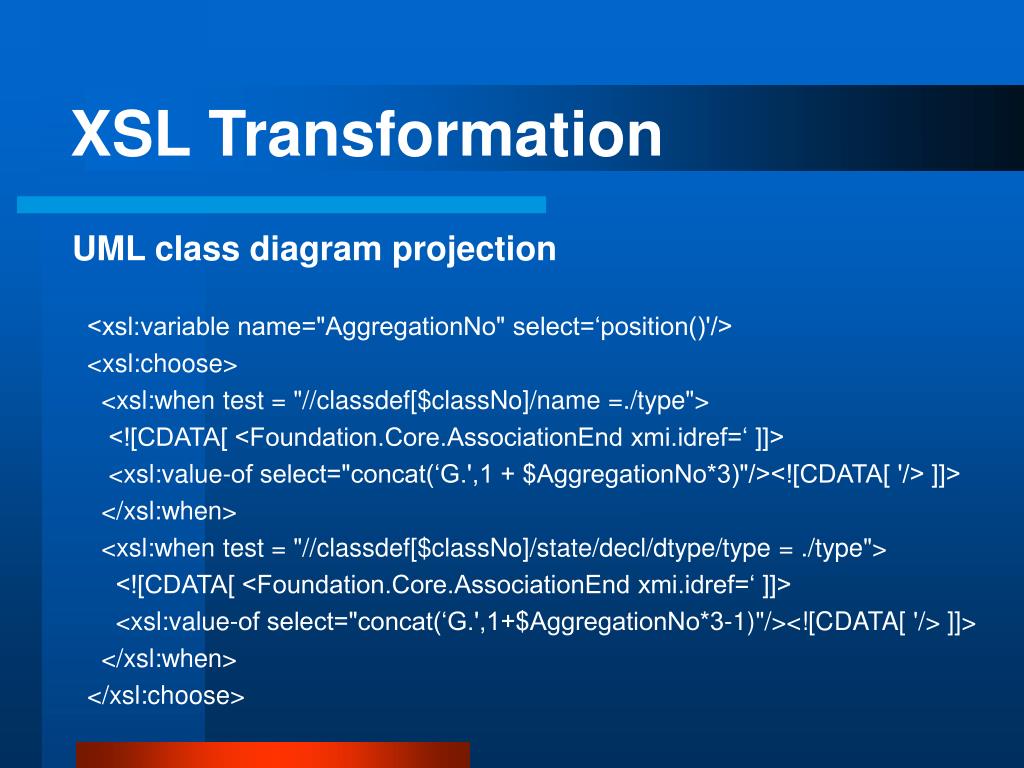

Xsl transformation1

XSL Transformation

UML class diagram projection

<xsl:variable name="AggregationNo" select=‘position()'/>

<xsl:choose>

<xsl:when test = "//classdef[$classNo]/name =./type">

<![CDATA[ <Foundation.Core.AssociationEnd xmi.idref=‘ ]]>

<xsl:value-of select="concat(‘G.',1 + $AggregationNo*3)"/><![CDATA[ '/> ]]>

</xsl:when>

<xsl:when test = "//classdef[$classNo]/state/decl/dtype/type = ./type">

<![CDATA[ <Foundation.Core.AssociationEnd xmi.idref=‘ ]]>

<xsl:value-of select="concat(‘G.',1+$AggregationNo*3-1)"/><![CDATA[ '/> ]]>

</xsl:when>

</xsl:choose>


Case study queue example

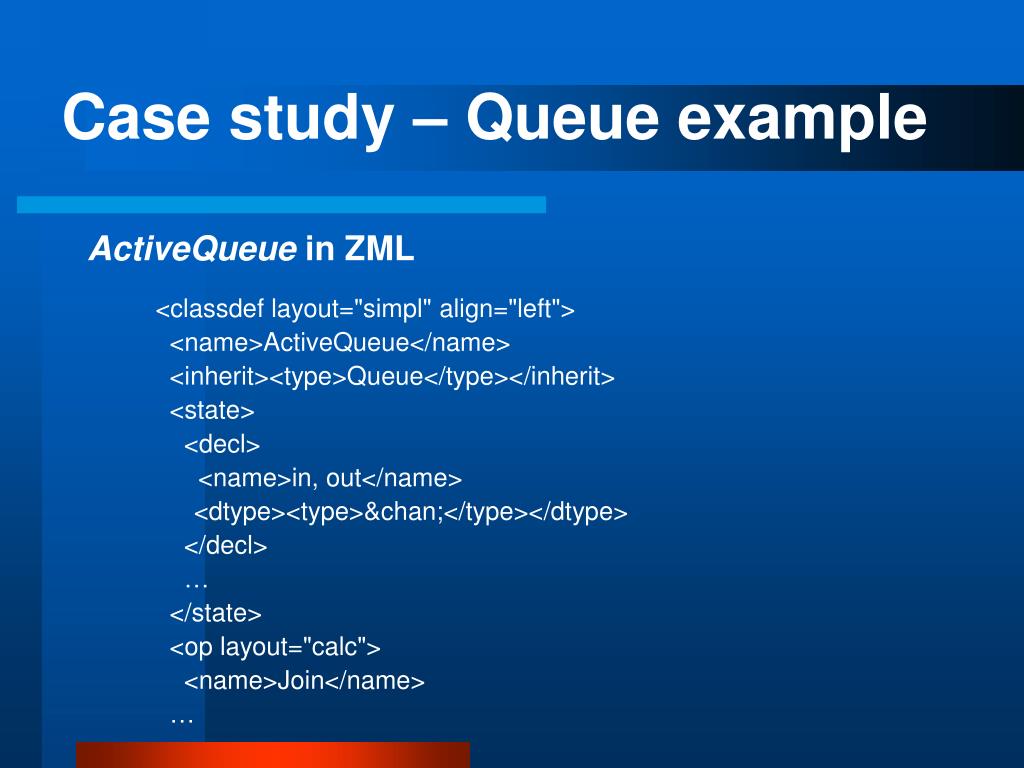

Case study – Queue example

<classdef layout="simpl" align="left">

<name>ActiveQueue</name>

<inherit><type>Queue</type></inherit>

<state>

<decl>

<name>in, out</name>

<dtype><type>&chan;</type></dtype>

</decl>

</state>

<op layout="calc">

<name>Join</name>

ActiveQueue in ZML

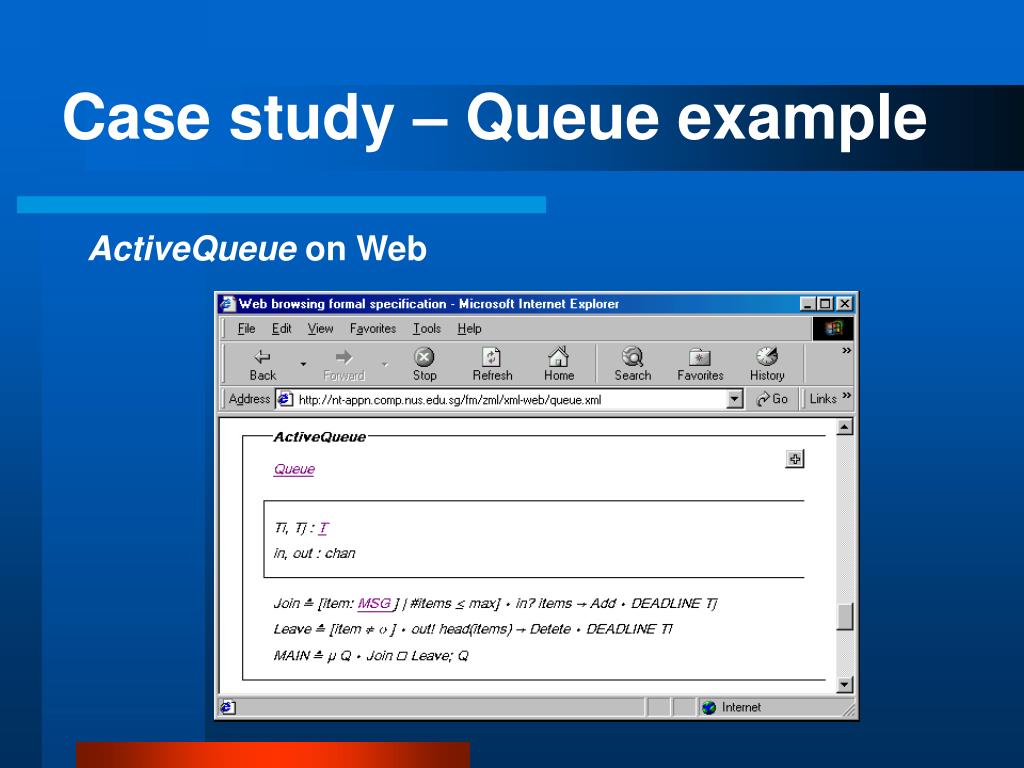

Case study queue example1

Case study – Queue example

ActiveQueue on Web

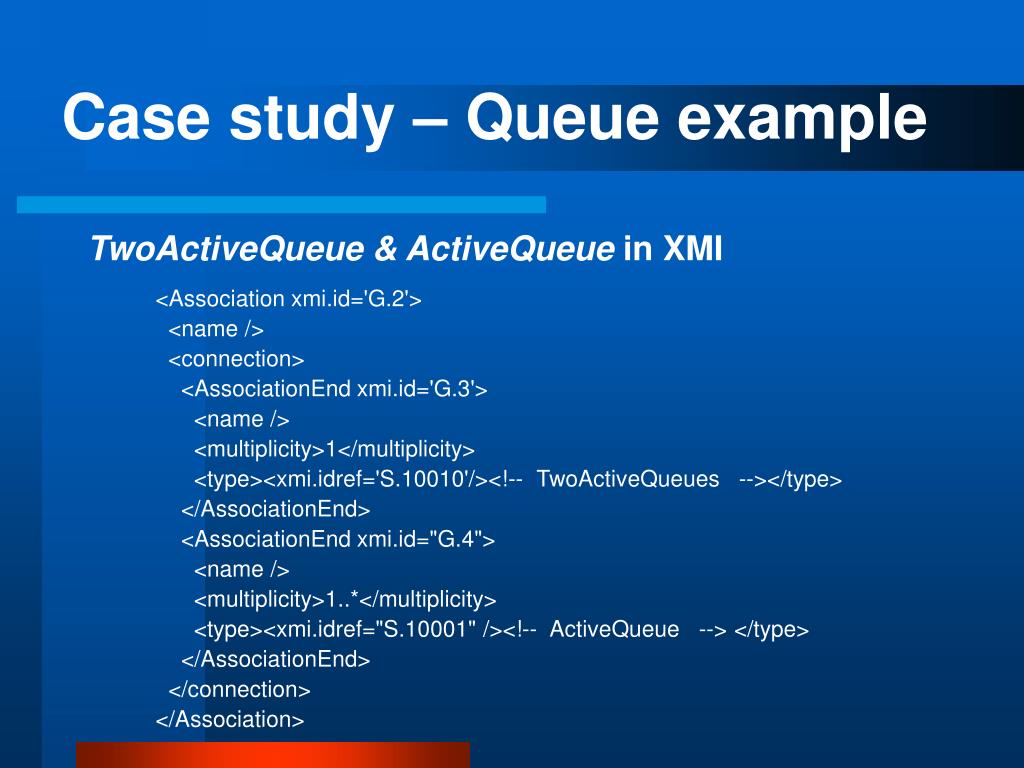

Case study queue example2

Case study – Queue example

<Association xmi.id='G.2'>

<name />

<connection>

<AssociationEnd xmi.id='G.3'>

<name />

<multiplicity>1</multiplicity>

<type><xmi.idref='S.10010'/><!-- TwoActiveQueues --></type>

</AssociationEnd>

<AssociationEnd xmi.id="G.4">

<name />

<multiplicity>1..*</multiplicity>

<type><xmi.idref="S.10001" /><!-- ActiveQueue --> </type>

</AssociationEnd>

</connection>

</Association>

TwoActiveQueue & ActiveQueue in XMI


Case study queue example3

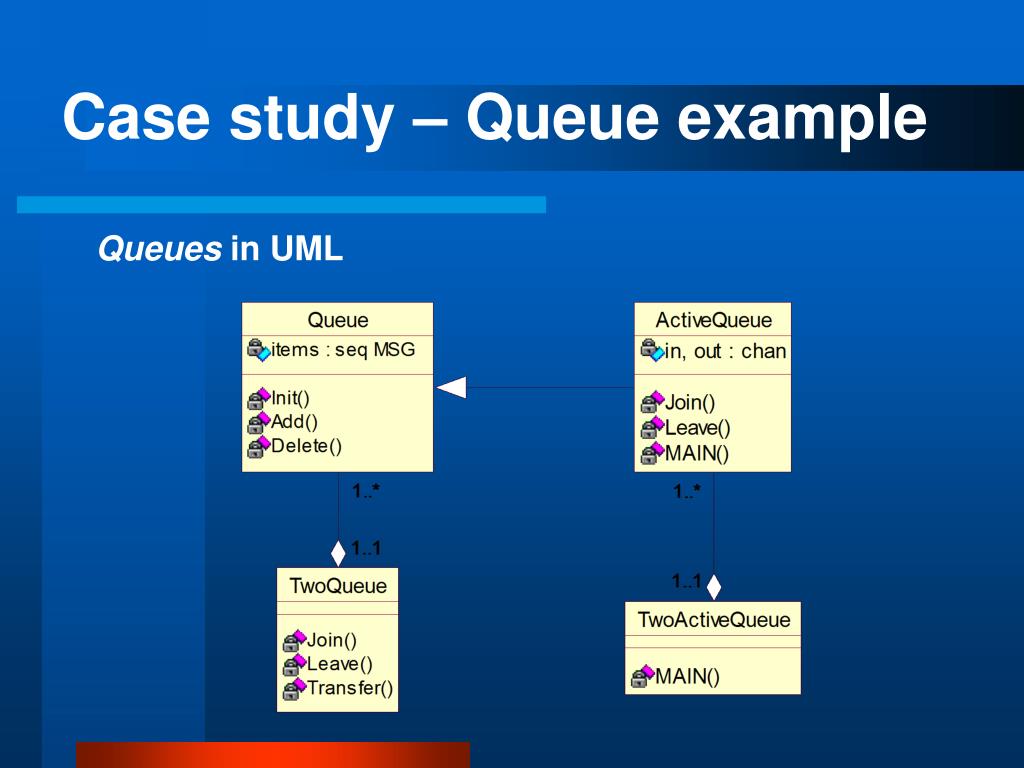

Case study – Queue example

Queues in UML


Conclusions

Conclusions

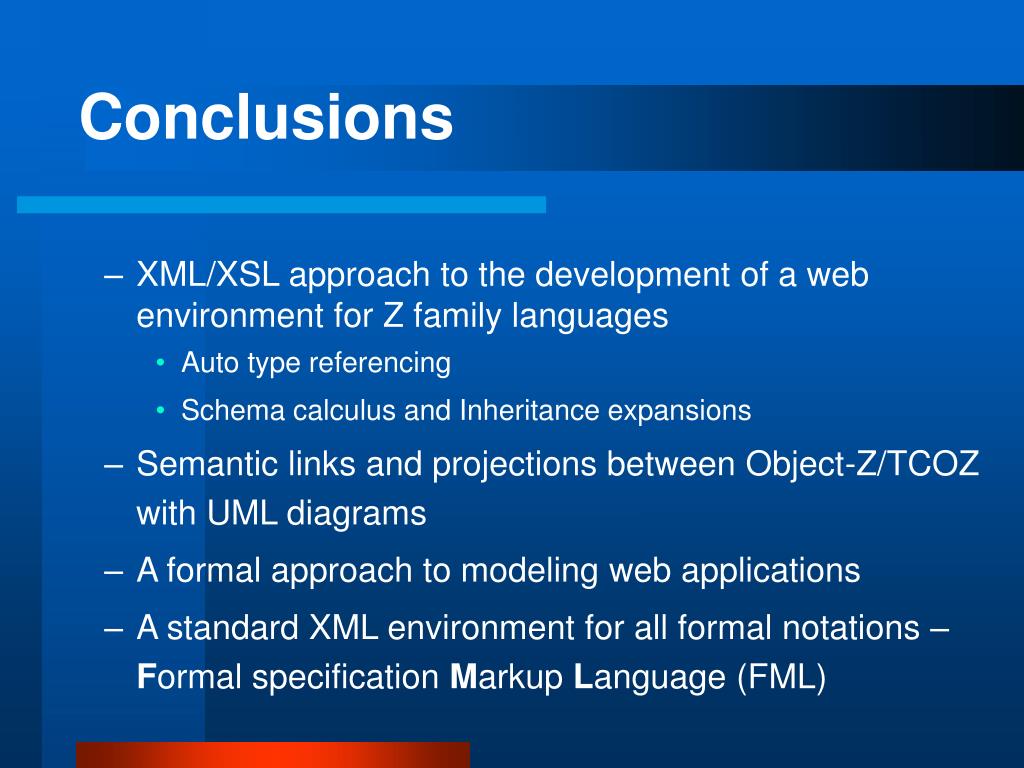

Conclusions1

Conclusions

  • XML/XSL approach to the development of a web environment for Z family languages

    • Auto type referencing

    • Schema calculus and Inheritance expansions

  • Semantic links and projections between Object-Z/TCOZ with UML diagrams

  • A formal approach to modeling web applications

  • A standard XML environment for all formal notations – Formal specification Markup Language (FML)
