Chapter 8

1. Chapter 8 Channel Capacity

2. Channel Capacity Define C = max {I(A; B) : p(a)} = Amount of useful information per bits actually sent = The change in entropy by going through the channel (drop in uncertainty) after receiving before receiving average uncertainty being sent: 8.1

3. Uniform Channel channel probabilities do not change from symbol to symbol I.e. the rows of the probability matrix are permutations of each other. So the following is independent of a: 1 for some b 0 all others Consider no noise: P(b | a) =  W = 0  I(A ; B) = H(B) = H(A) (conforms to intuition only if permutation matrix) All noise implies H(B) = W 8.2

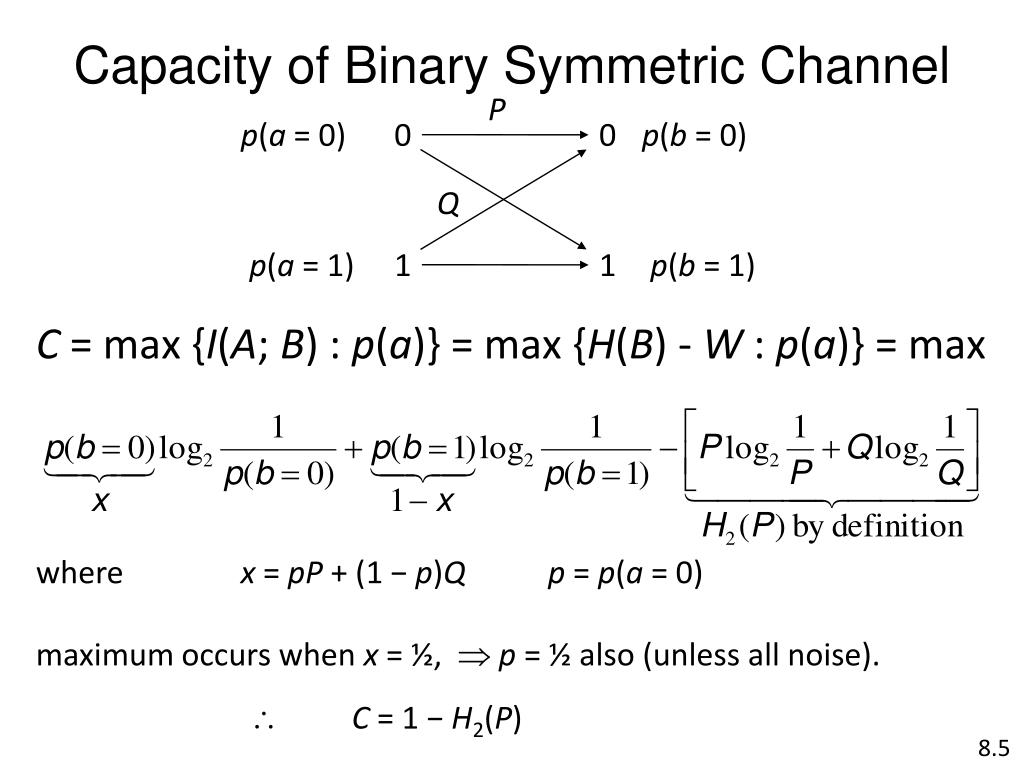

4. Capacity of Binary Symmetric Channel P p(a = 0) 0 0 p(b = 0) Q C = max {I(A; B) : p(a)} = max {H(B) - W : p(a)} = max p(a = 1) 1 1 p(b = 1) where x = pP + (1 − p)Q p = p(a = 0) maximum occurs when x = ½,  p = ½ also (unless all noise).  C = 1 − H2(P) 8.5

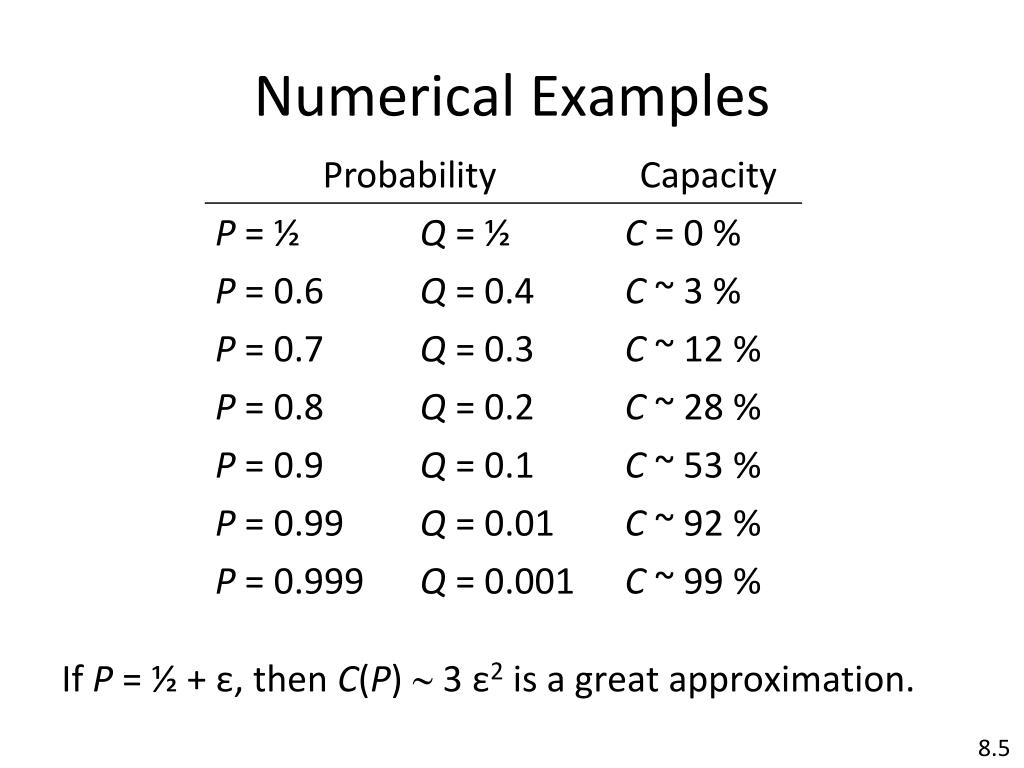

5. Numerical Examples If P = ½ + ε, then C(P)  3 ε2 is a great approximation. 8.5

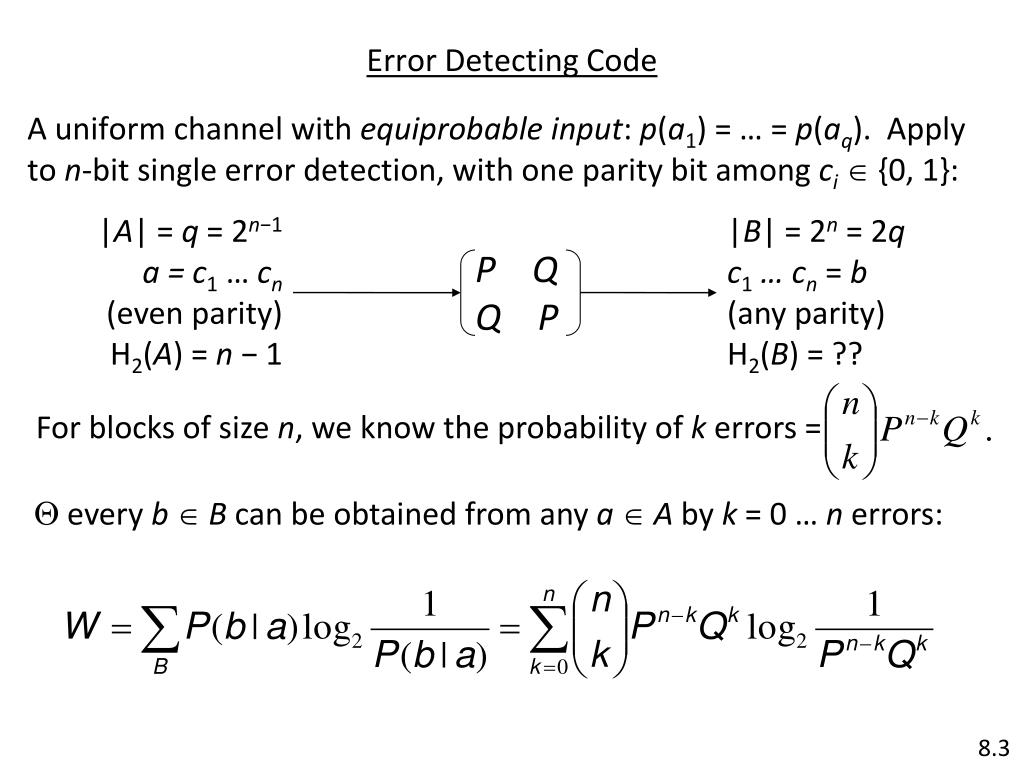

6. |A| = q = 2n−1 a = c1 … cn (even parity) H2(A) = n − 1 |B| = 2n = 2q c1 … cn = b (any parity) H2(B) = ?? Error Detecting Code P Q Q P For blocks of size n, we know the probability of k errors = A uniform channel with equiprobable input: p(a1) = … = p(aq). Apply to n-bit single error detection, with one parity bit among ci {0, 1}:  every b B can be obtained from any a  A by k = 0 … n errors: 8.3

7. || nthterm = 0 || 0thterm = 0 || || 1 1 This is W for one bit n∙ …  |B| = 2n W 8.3

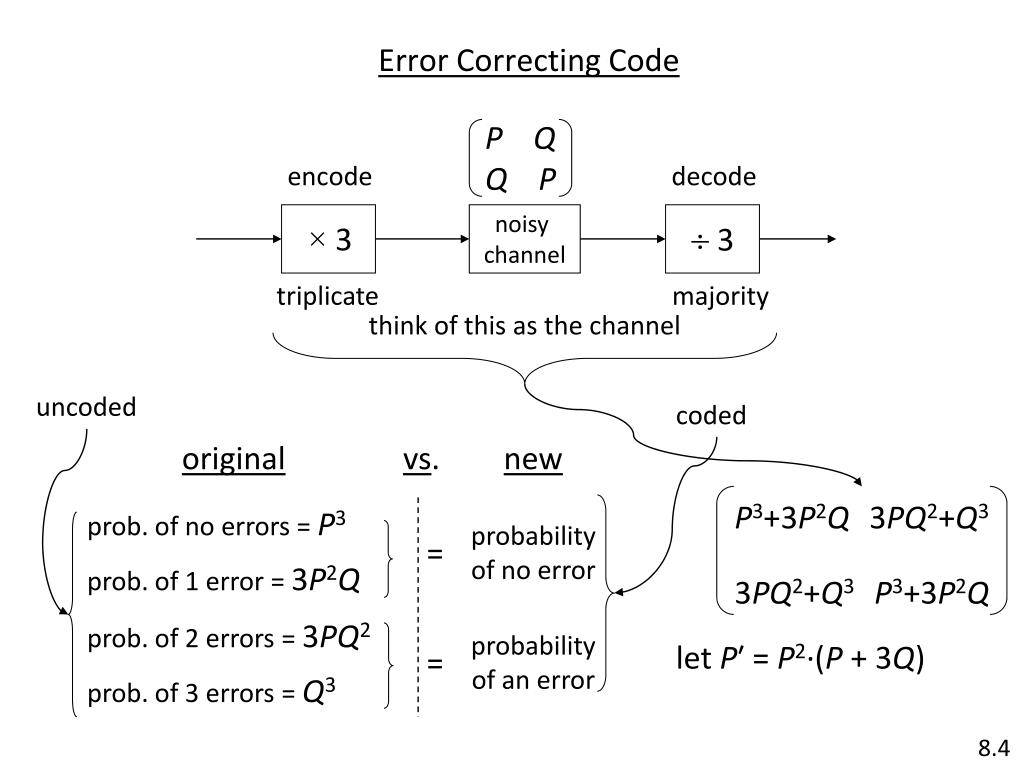

8. think of this as the channel P Q Q P encode decode × 3 noisy channel  3 Error Correcting Code triplicate majority uncoded coded P3+3P2Q3PQ2+Q3 3PQ2+Q3P3+3P2Q let P′ = P2·(P + 3Q) 8.4

9. Shannon’s Theorem will say that as n = 3 → ∞, there are codes that take P′ → 1 while C(P′)/n → C(P). 8.4
