STT-RAM Generator

- Anurag Nigam


Motivation

Challenges in SRAM

High Leakage

Solution

Non-volatile memory

Leakage current

Motivation


Memory technology comparison

Memory Technology Comparison


Stt ram bit cell overview

Hard Ferro magnetic layer

BL

Oxide layer

MTJ

RP

Free Ferro magnetic layer

RAP

WL

SL

STT-RAM bit cell overview

MTJ

  • 1 MTJ

  • 1 access transistor


Bit cell design

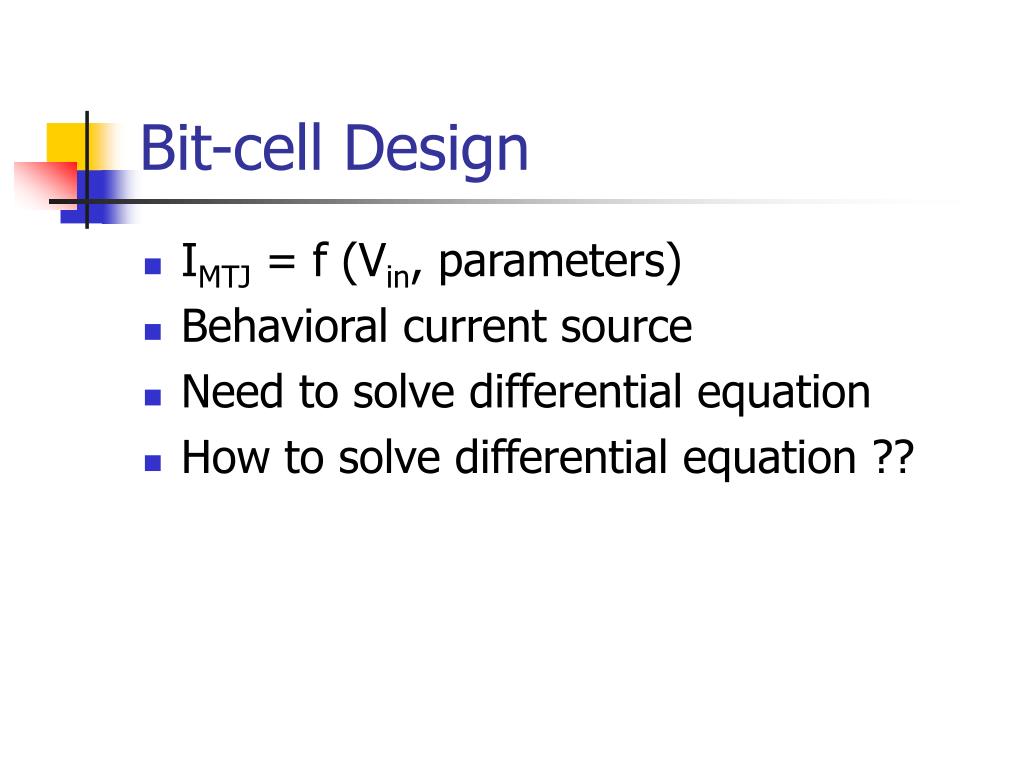

Bit-cell Design

  • IMTJ = f (Vin, parameters)

  • Behavioral current source

  • Need to solve differential equation

  • How to solve differential equation ??


Capacitor current equation

V

I

C

Capacitor current equation

  • I = C dV/dt


Bit cell design1

componentName = isource

I = f(V)

Bit-cell design

  • Editing CDF parameter to create behavioral source

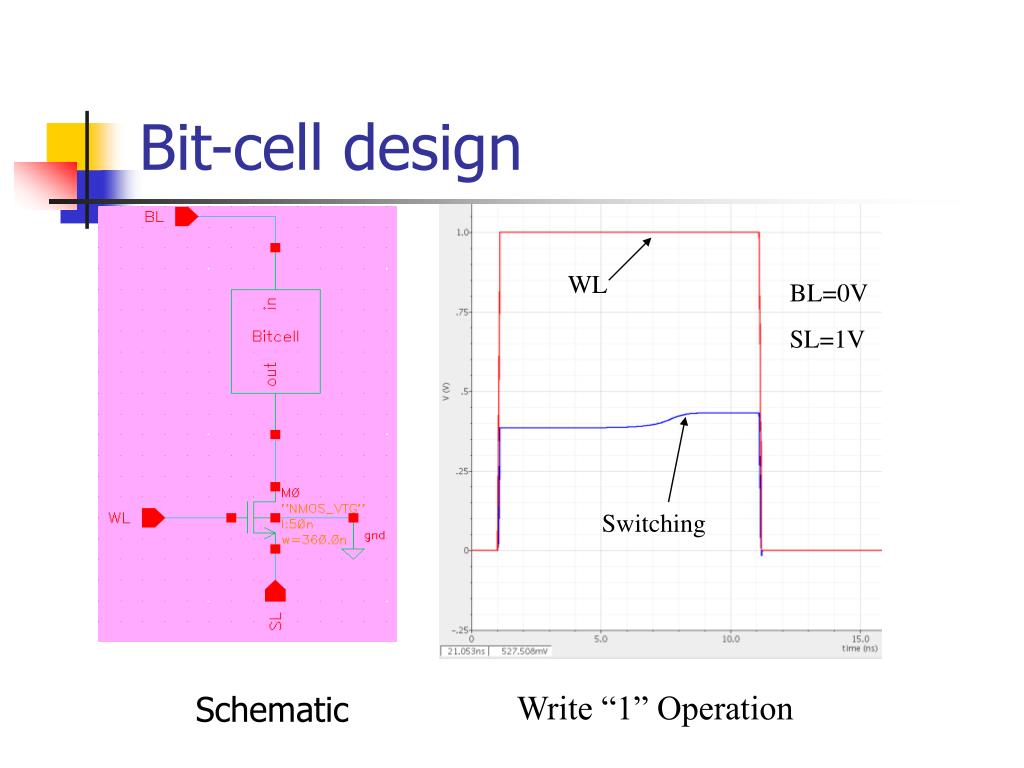

Bit cell design2

WL

BL=0V

SL=1V

Switching

Write “1” Operation

Bit-cell design

Schematic


Memory interface

STT-RAM Macro

Data In

Write Driver

R/W

Data In

CLK

WLen

R/W

Timing Block

Data Out

CLK

ADDR

Memory Array

R’/W

ADDR

CL

WLS

Sensing Block

SAen

Data Out

Memory Interface


Write driver

TBUF

BL

TBUF

SL

Write Driver

  • Write “1”  BL =0 SL=1

  • Write “0”  BL=1 SL=0


Sense amplifier design

Test bit-cell

Sense amplifier design


R v characteristic of mtj

RAP

RP

R-V characteristic of MTJ

  • Two states (RAP and RP)

  • Resistance is a function of voltage


Schematic automation

Schematic automation

  • Leaf-cell schematic creation

    • Bitcells – Manual (using current/voltage sources)

    • Decoders – Skill

    • Sense amp. Timing block, Write driver – Manual

  • Memory array creation

    • 1Kb array - Skill


Schematic automation1

Schematic automation

  • Decoder

    procedure(Create7to128DecoderSchematic(libname,cellname))

  • Write Driver

    procedure(CreateWriteDrSchematic(libname,cellname,C))

  • Memory Array

    procedure(CreateSTTRAMSchematic(libname,cellname,R,C))

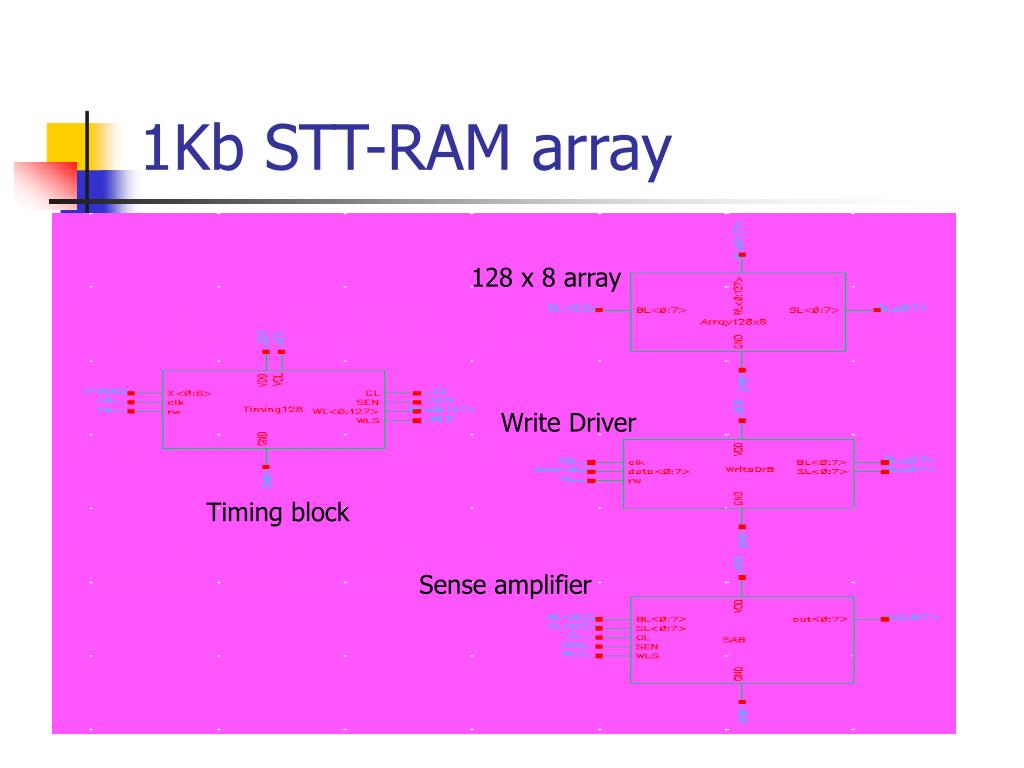

1kb stt ram array

128 x 8 array

Write Driver

Timing block

Sense amplifier

1Kb STT-RAM array

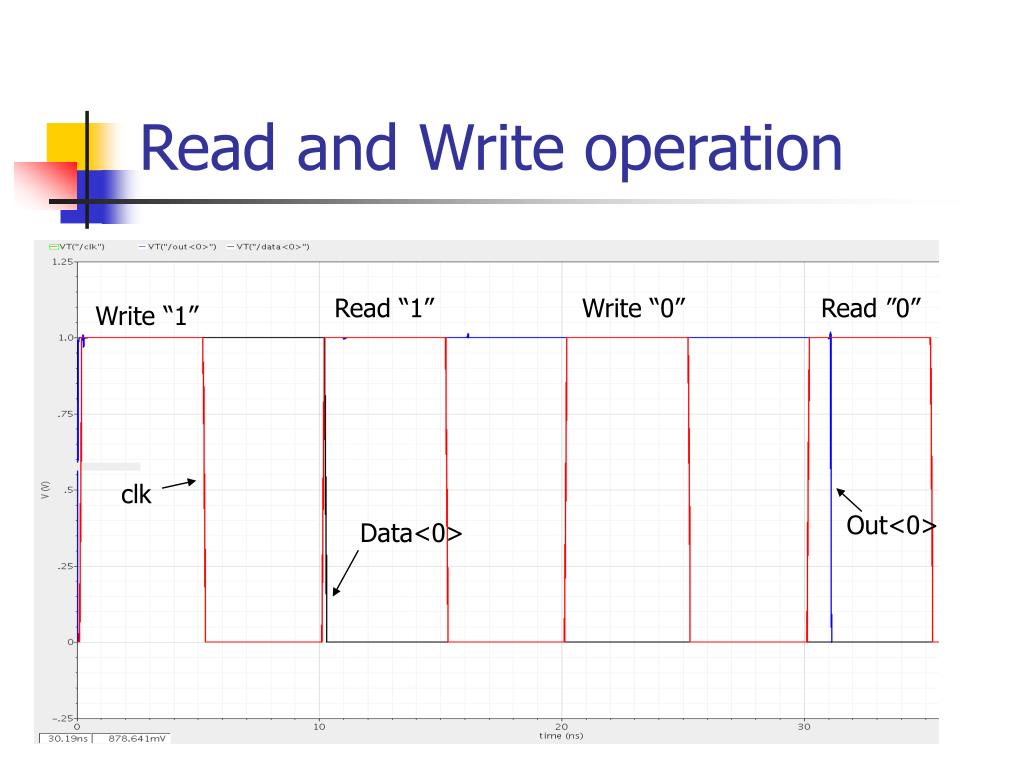

Read and write operation

Read “1”

Write “0”

Read ”0”

Write “1”

clk

Out<0>

Data<0>

Read and Write operation


Deliverables

Deliverables

  • STT-RAM bit-cell SPICE model

  • Skill script to generate complete functional STT-RAM

  • Class-specific work

    • Importing bit-cell model in ADE

    • Skill script development


Stt ram generator

Thanks for your time !
