  1. Electrical Noise Location System Drew Compston Richard Denney Josh Gordon

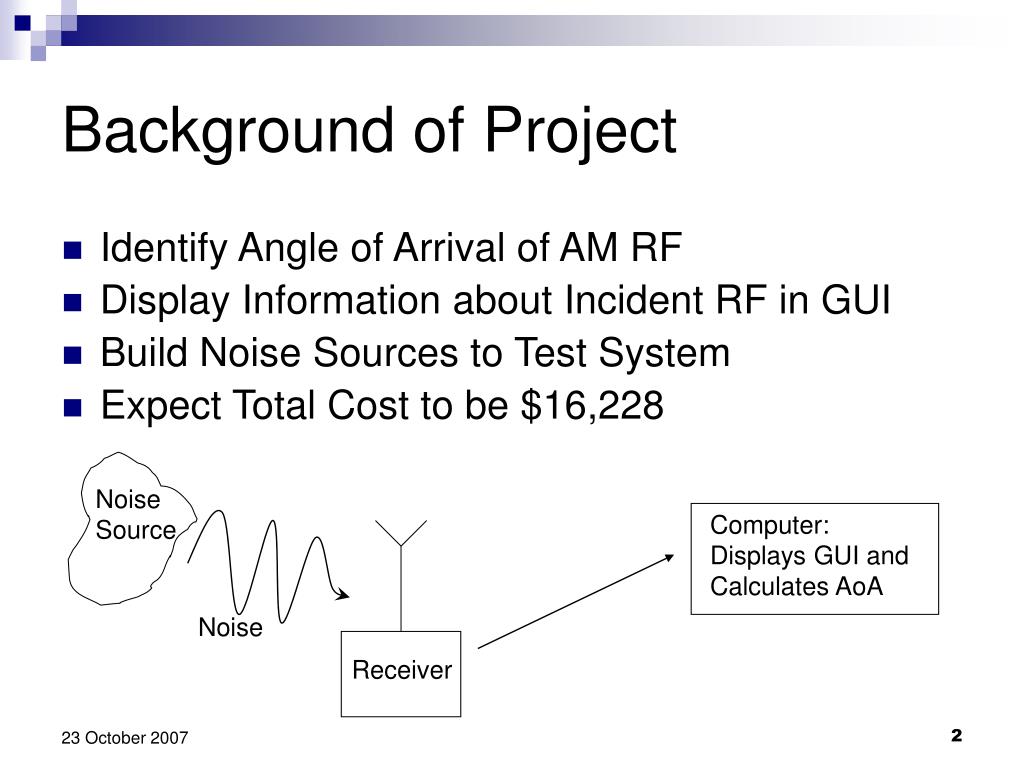

  2. Background of Project • Identify Angle of Arrival of AM RF • Display Information about Incident RF in GUI • Build Noise Sources to Test System • Expect Total Cost to be $16,228 Noise Source Computer: Displays GUI and Calculates AoA Noise Receiver

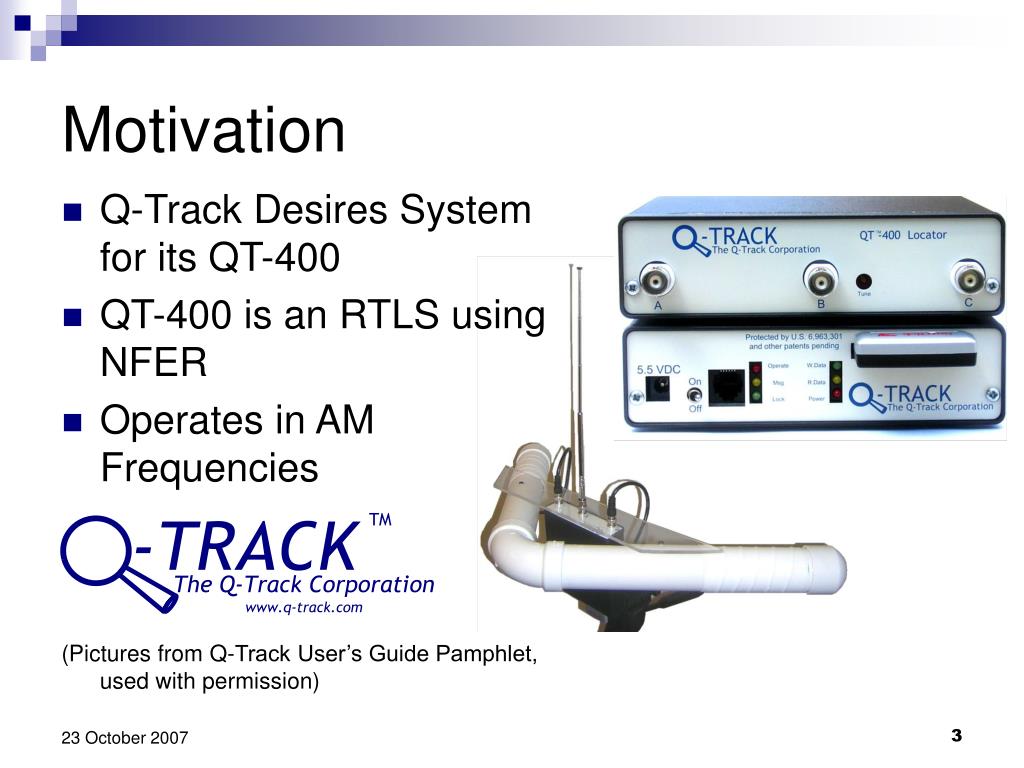

  3. Q-Track Desires System for its QT-400 QT-400 is an RTLS using NFER Operates in AM Frequencies (Pictures from Q-Track User’s Guide Pamphlet, used with permission) Motivation

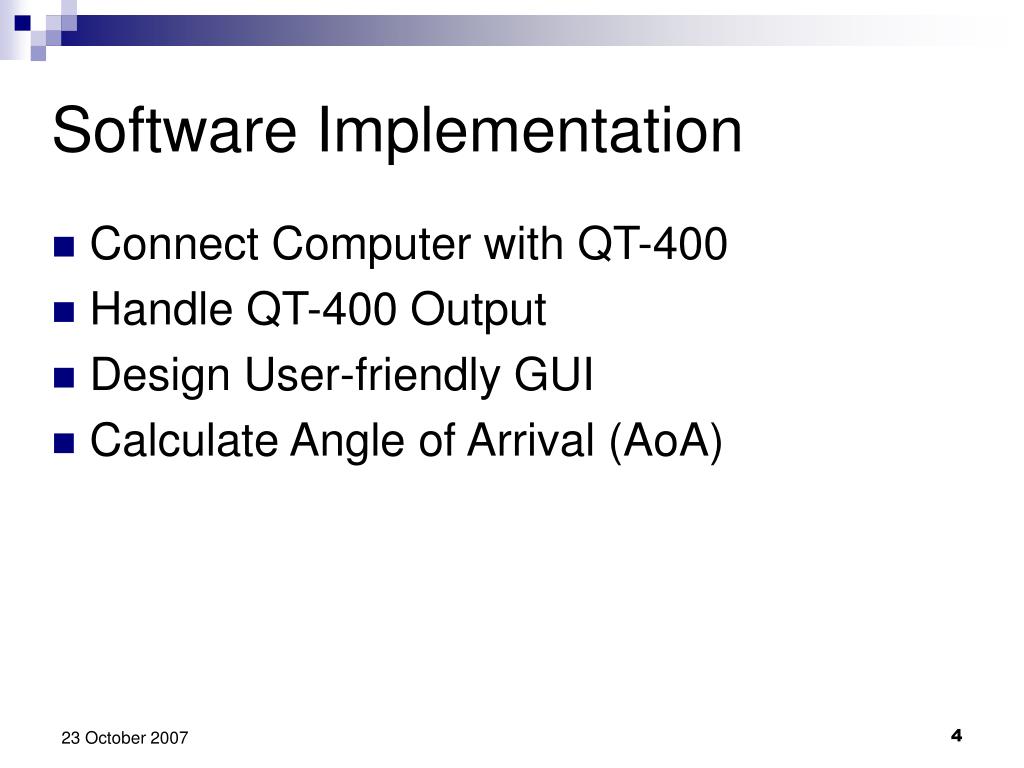

  4. Software Implementation • Connect Computer with QT-400 • Handle QT-400 Output • Design User-friendly GUI • Calculate Angle of Arrival (AoA)

  5. Connecting With Computer • Communicate through 802.11b Wireless Network • Set QT-400 Frequency Remotely • Listen for Broadcast UDP Packets

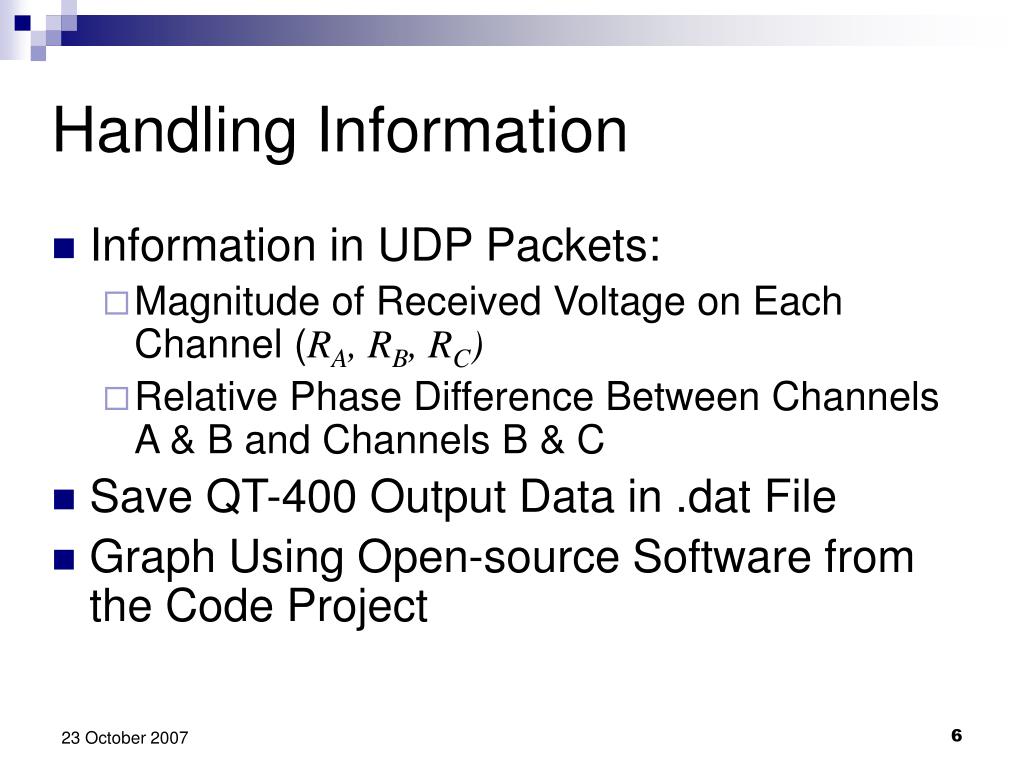

  6. Handling Information • Information in UDP Packets: • Magnitude of Received Voltage on Each Channel (RA, RB, RC) • Relative Phase Difference Between Channels A & B and Channels B & C • Save QT-400 Output Data in .dat File • Graph Using Open-source Software from the Code Project

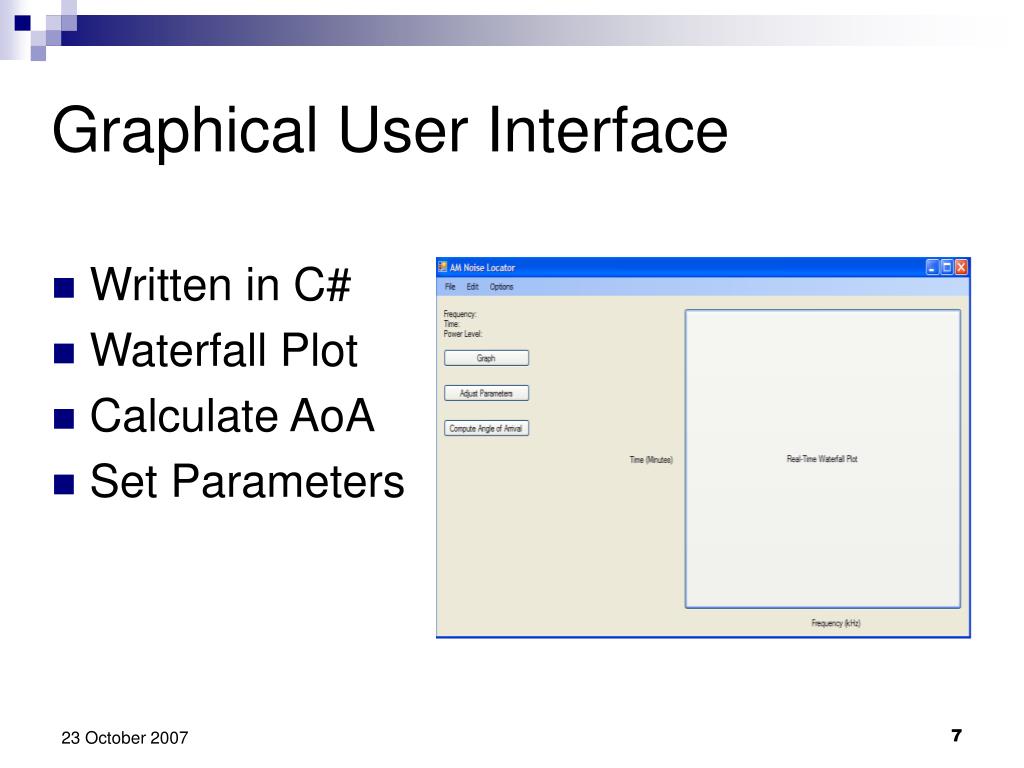

  7. Graphical User Interface • Written in C# • Waterfall Plot • Calculate AoA • Set Parameters

  8. GUI Parameters • QT-400 Frequency • Graph Start, Stop, Step Frequencies • Sweep Time • Graph Refresh Rate

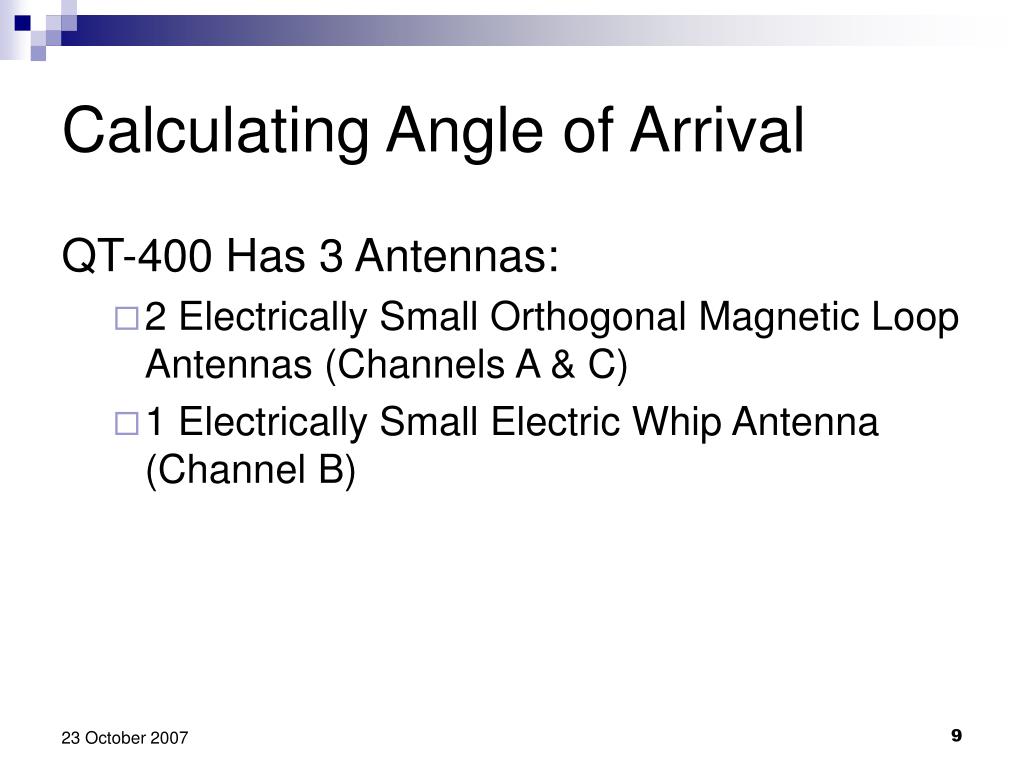

  9. Calculating Angle of Arrival QT-400 Has 3 Antennas: • 2 Electrically Small Orthogonal Magnetic Loop Antennas (Channels A & C) • 1 Electrically Small Electric Whip Antenna (Channel B)

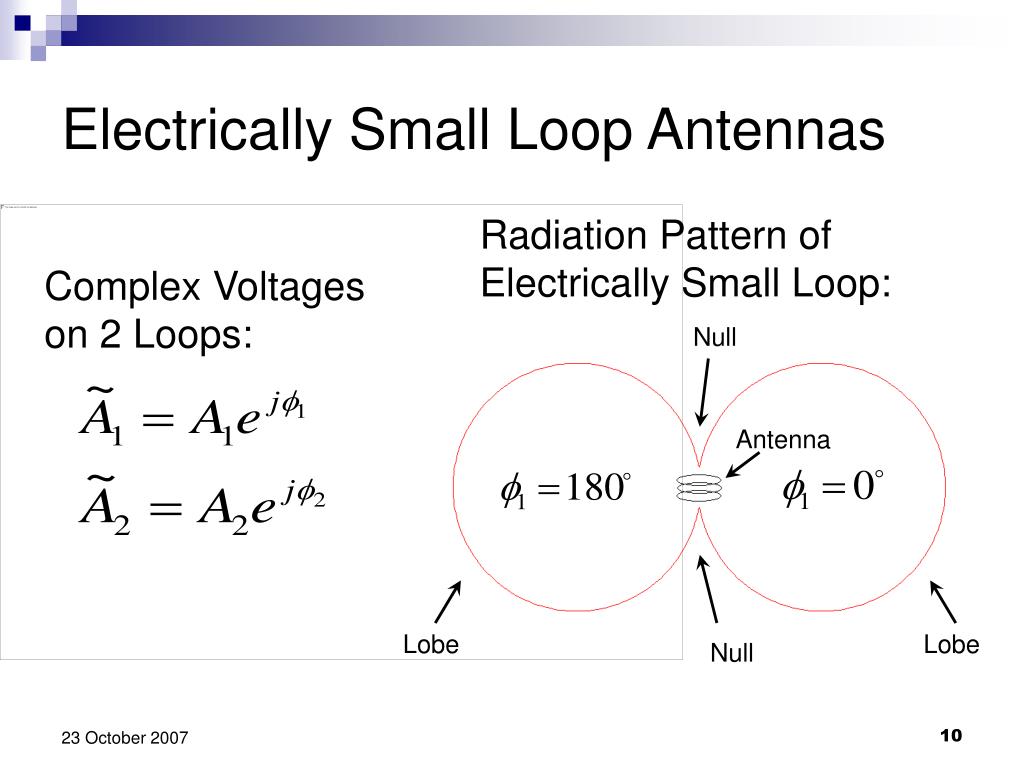

  10. Electrically Small Loop Antennas Radiation Pattern of Electrically Small Loop: Complex Voltages on 2 Loops: Null Antenna Lobe Lobe Null

  11. Virtual Loop Antenna Combine 2 Loops’ Response in Weighted Sum to Create Virtual Loop Oriented in any Direction θ:

  12. Angle of Arrival Algorithm Assume Phase Difference between 2 Loops is either 0° or 180°. Result: Minimize Magnitudes to Obtain Possible AoAs of: Front-Back Ambiguity

  13. Resolving Front-Back Ambiguity • In General: Loop Antenna Has 180° Phase Flip Across Each Lobe • Result: Combining Loop Response with Whip Response Results in Cardiod Pattern • Not Possible with QT-400 Because of Arbitrary, Unknown Phase Offset in Measurements • Test to Determine which Phase Measurements Result in Correct AoA to Use

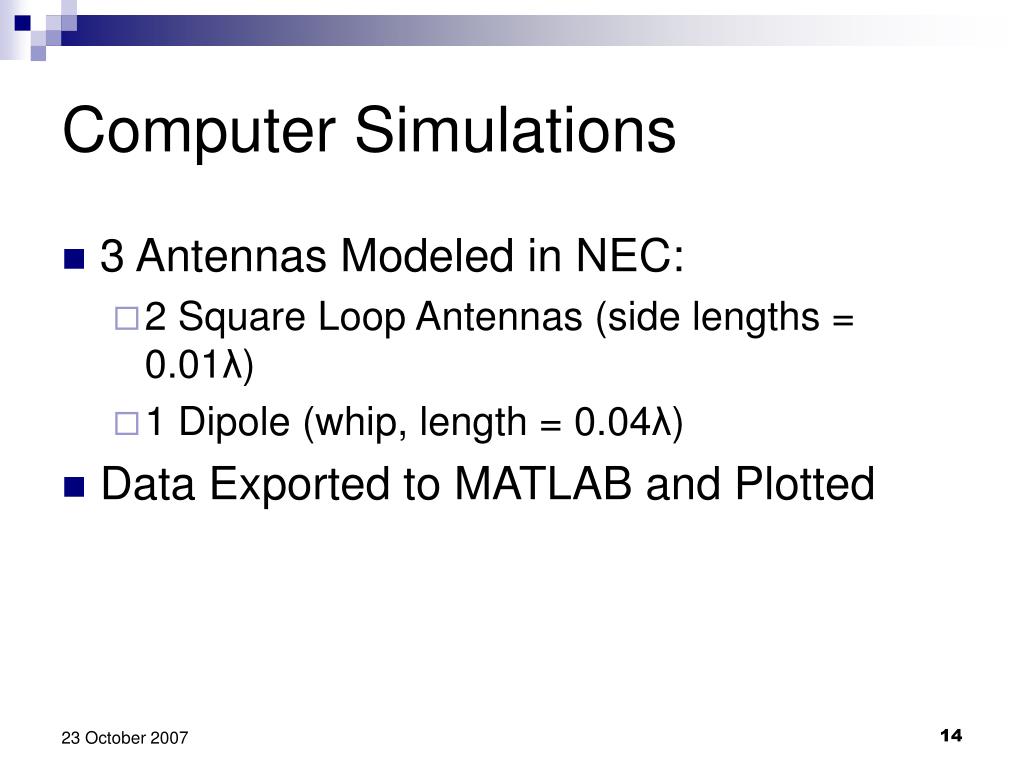

  14. Computer Simulations • 3 Antennas Modeled in NEC: • 2 Square Loop Antennas (side lengths = 0.01λ) • 1 Dipole (whip, length = 0.04λ) • Data Exported to MATLAB and Plotted

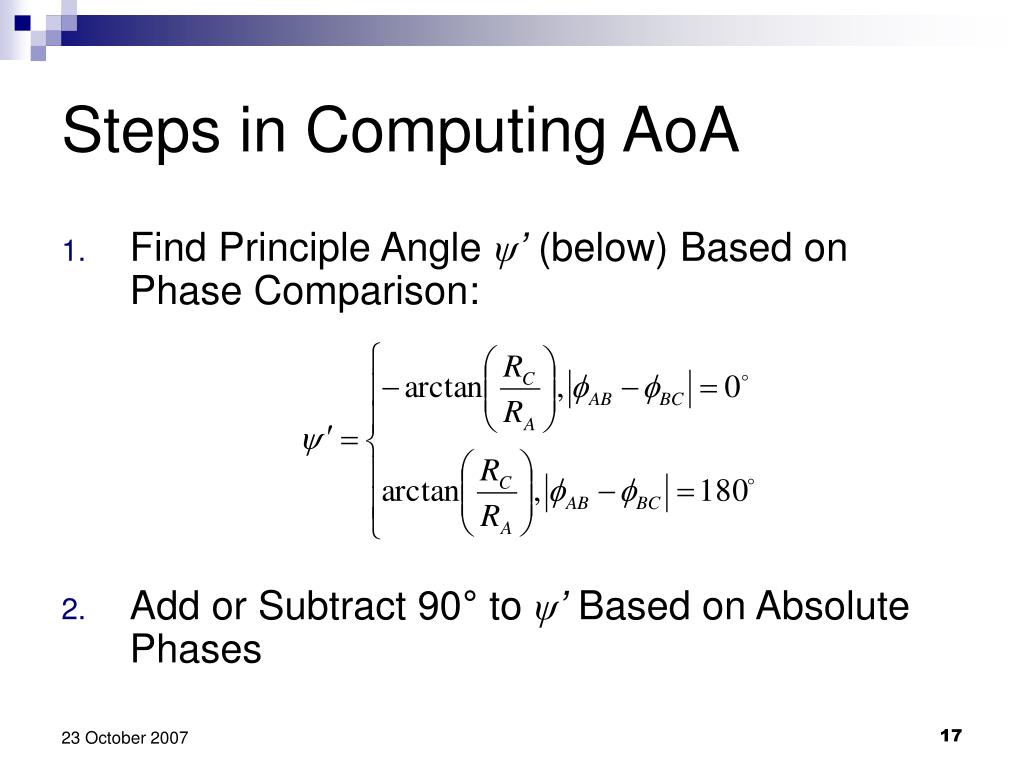

  15. Steps in Computing AoA • Find Principle Angle ψ’ (below) Based on Phase Comparison: • Add or Subtract 90° to ψ’ Based on Absolute Phases

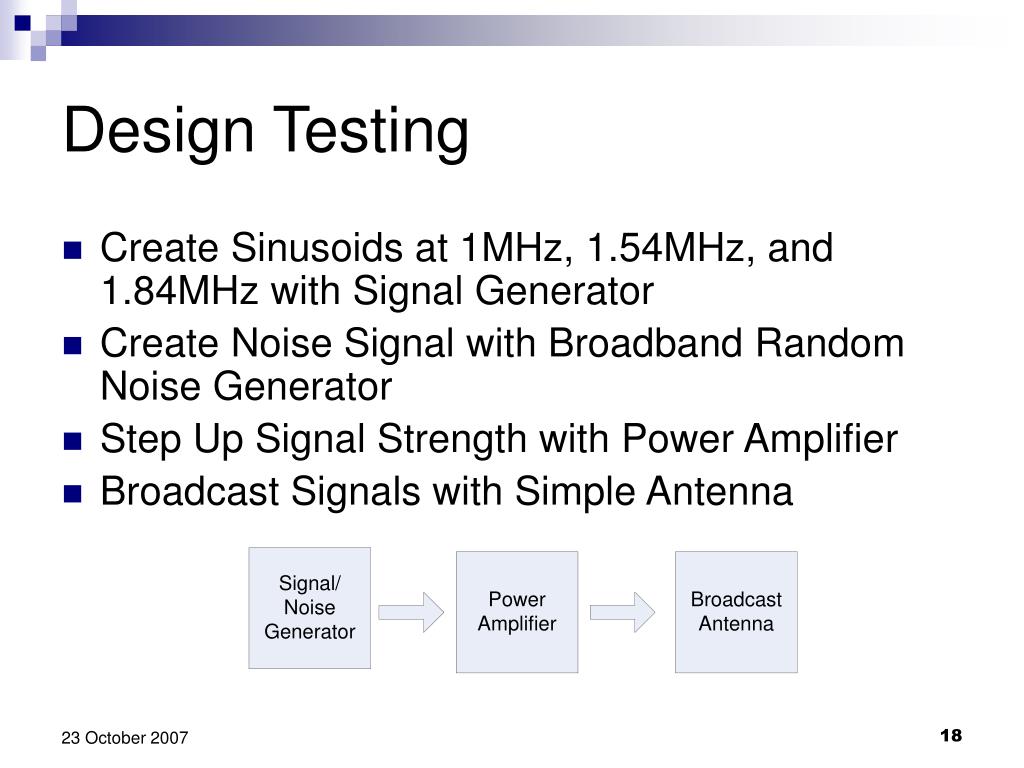

  16. Design Testing • Create Sinusoids at 1MHz, 1.54MHz, and 1.84MHz with Signal Generator • Create Noise Signal with Broadband Random Noise Generator • Step Up Signal Strength with Power Amplifier • Broadcast Signals with Simple Antenna

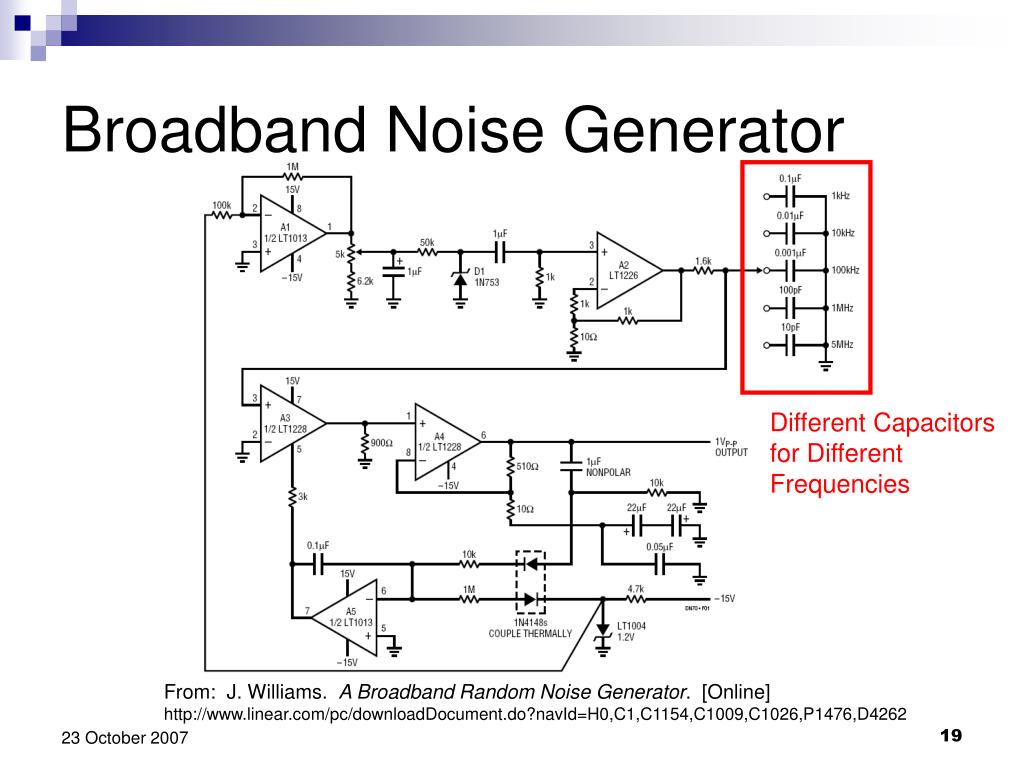

  17. Broadband Noise Generator Different Capacitors for Different Frequencies From: J. Williams. A Broadband Random Noise Generator. [Online] http://www.linear.com/pc/downloadDocument.do?navId=H0,C1,C1154,C1009,C1026,P1476,D4262

  18. Power Amplifier

  19. Cost

  20. Current Status • Unable to Connect to QT-400 • Software • Program Retrieving Data from QT-400 Completed but Untested • Plotting Software Obtained • AoA Algorithm Defined, not yet Implemented in Software • Noise Source Circuit Schematics Finalized, Parts yet to be Ordered

  21. Timeline/Future Work • 11/2 – Test Noise Source in Lab • 11/12 – Fully Functioning GUI and AoA Algorithm • 11/19 – Portable Noise Source Completed • 11/26 – Test Entire System with Noise Sources • 12/7 – Final Design Prototype Completed

  22. Pending Questions • Will Algorithm Work on Broadband Noise Source? • Can We Account for Multiple Noise Sources at the Same Frequency? • Any Others? THANKS FOR YOUR TIME
