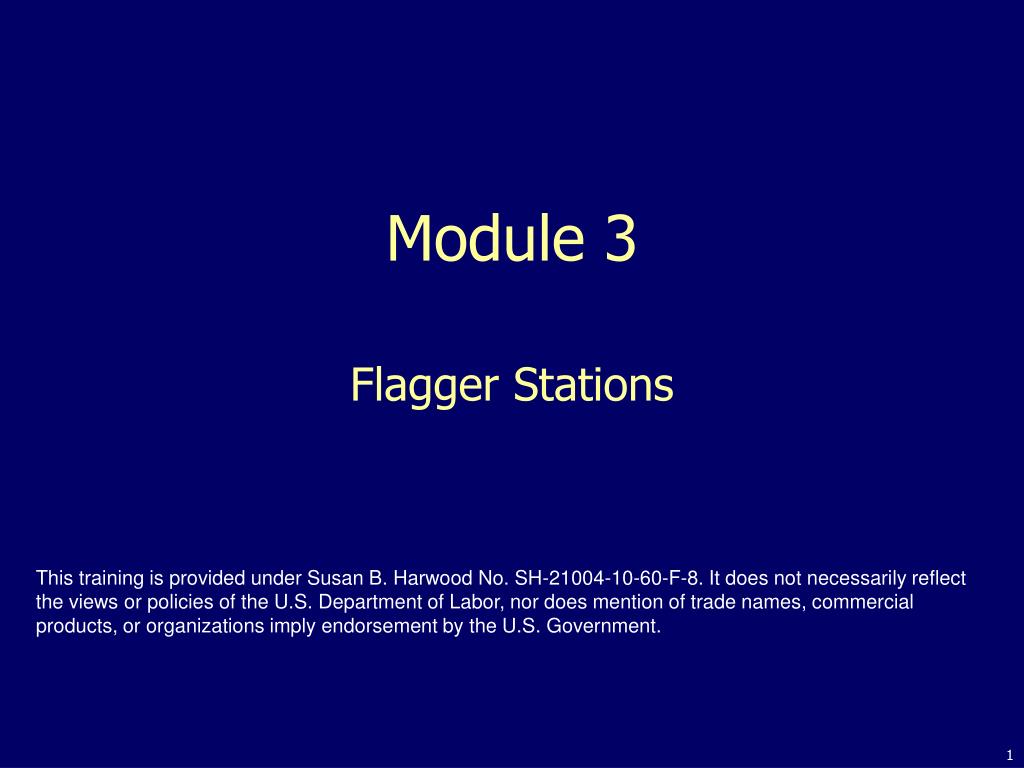

  1. Module 3 Flagger Stations This training is provided under Susan B. Harwood No. SH-21004-10-60-F-8. It does not necessarily reflect the views or policies of the U.S. Department of Labor, nor does mention of trade names, commercial products, or organizations imply endorsement by the U.S. Government.

  2. Flagger Stations

  3. One-Lane, Two-Way Traffic Control • Two flaggers • One flagger • Pilot car • AFAD Property of TMUTCD Reprinted with permission

  4. One-Lane, Two-Way Traffic Control • Two flaggers • One flagger • Pilot car • AFAD

  5. One-Lane, Two-Way Traffic Control • Two flaggers • One flagger • Pilot car • AFAD

  6. One-Lane, Two-Way Traffic Control • Two flaggers • One flagger • Pilot car • AFAD

  7. Work Zone Components for Flagging Operations • Buffer Space • Tapers • Advance Warning

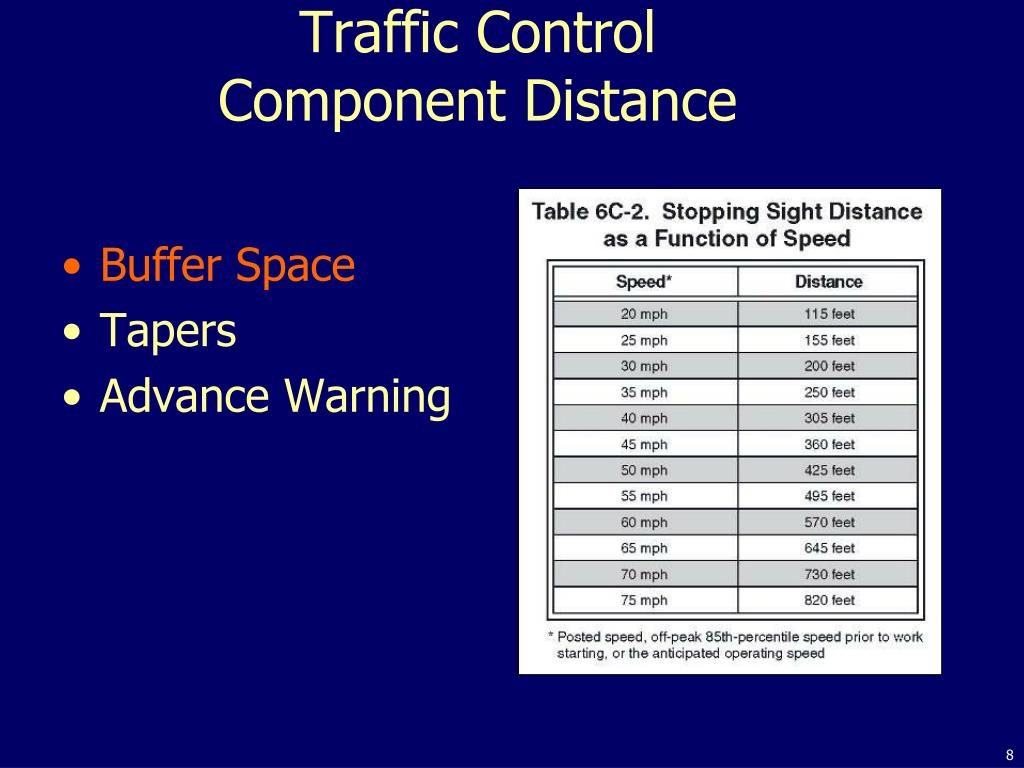

  8. Traffic ControlComponent Distance • Buffer Space • Tapers • Advance Warning

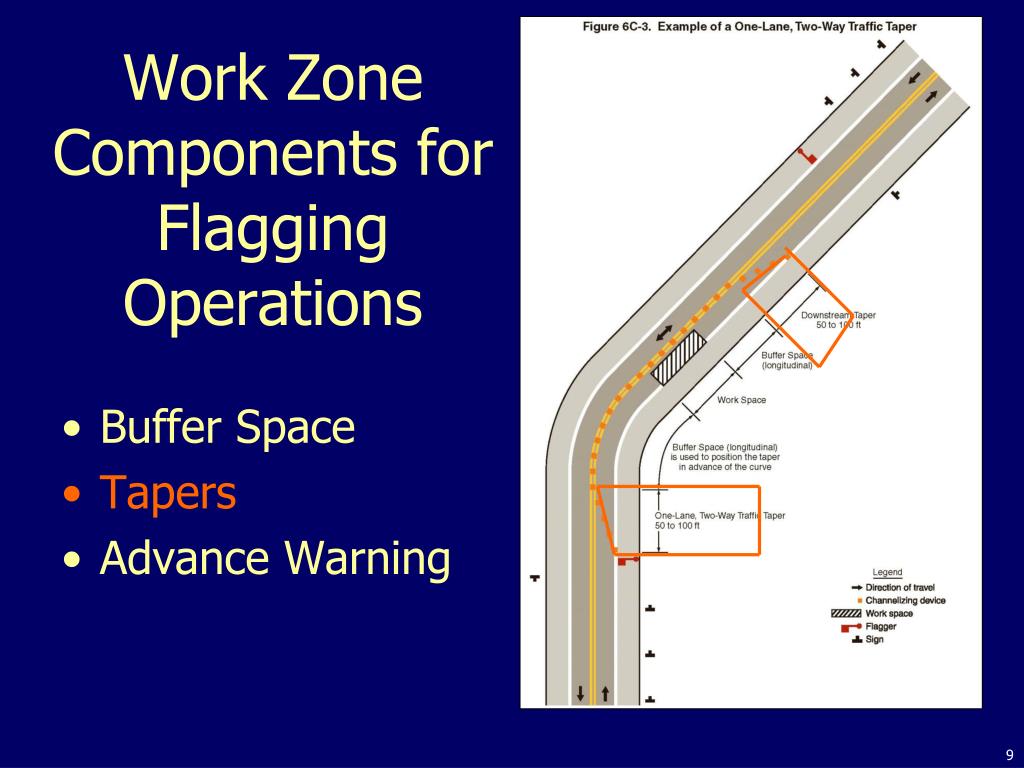

  9. Work Zone Components for Flagging Operations • Buffer Space • Tapers • Advance Warning

  10. Traffic ControlComponent Distance Property of TMUTCD Reprinted with permission

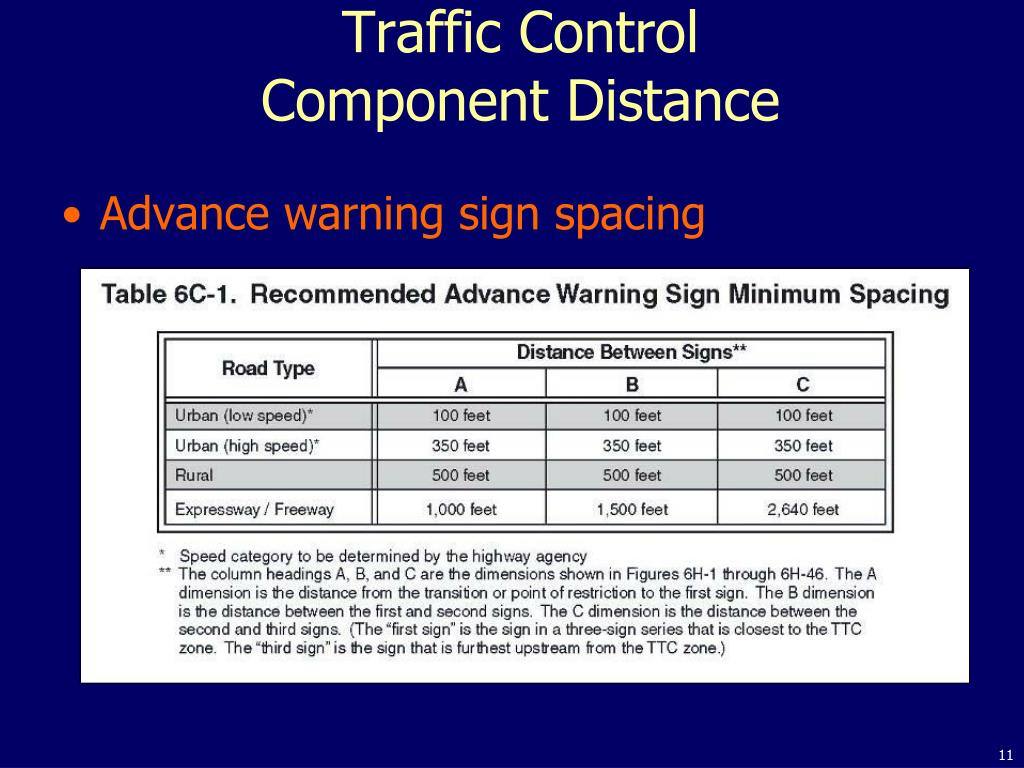

  11. Traffic ControlComponent Distance • Advance warning sign spacing

  12. Work Zone Components for Flagging Operations Work Zone Components for Flagging Operations • Buffer Space • Tapers • Advance Warning

  13. Participant Activity 3.1

  14. Participant Activity 3.1

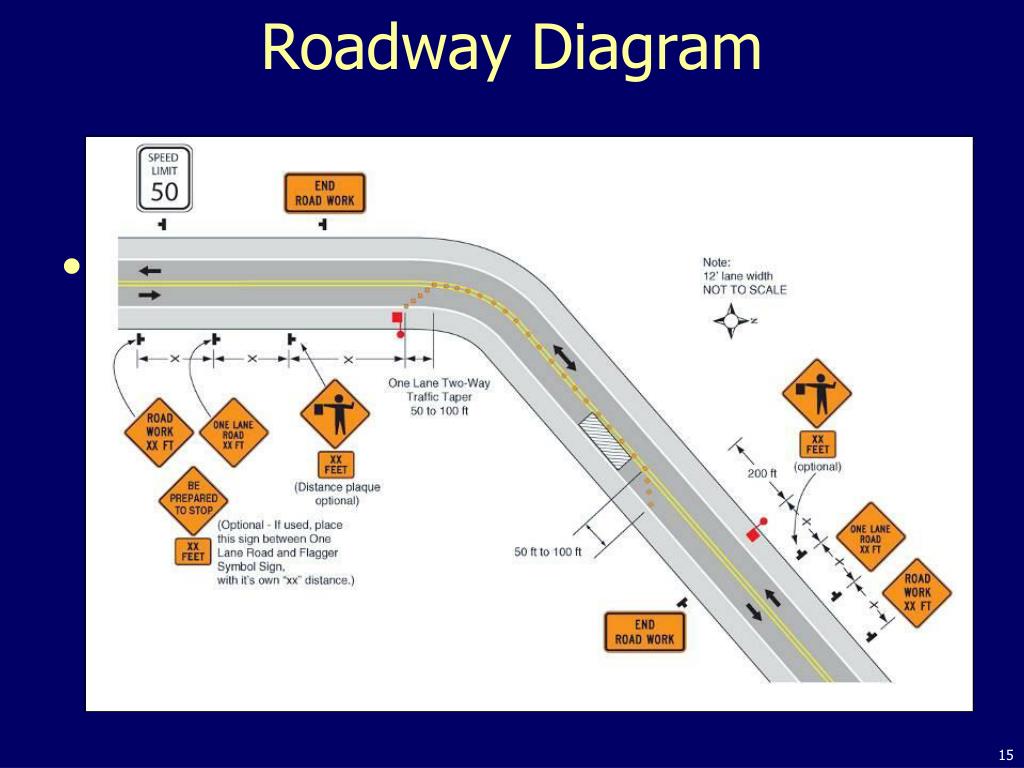

  15. Roadway Diagram • Create a TCP for the scenario provided.
