  1. iCon H600 High-definition network centric visualization

  2. High-definition

  3. iCon H600 Enjoy HDTV video in native resolution 1920 x 1080 pixels

  4. iCon H600 High-definition on a 16:9 canvas for meeting environments

  5. Allowing exciting multi-site collaboration

  6. Specifications

  7. Technical specifications • 3 panel 1.65” LCD • HDTV resolution: 1920 x 1080 • 6000 ANSI lumens • Contrast ratio 800:1 • 2x 300 Watt UHP lamp (1000hours) • Lens shift range • Vertical: -120% /+120% • Horizontal: -100% /+100% (standard –50% to +50%)

  8. Technical specifications • Lens range • QGD 0.86:1 • QFD 2.5:1 • QFD 7.0:1 • QHD 1.4-2.0:1 NEW • QFD 2.0-3.0:1 • QFD 3.4-4.5:1 • QFD 4.5-6.0:1

  9. Tecnical specifications • Input and output connections • Modular design • Swappable inputs • Na trade off between traditional inputs and network centric inputs

  10. Technical specifications • Input and Output connections • QXGA RGBHV board with • RGBHV and common standards • Composite video • S-Video • Component Video • UXGA DVI/D15 • SDI and HD SDI loopthrough QXGA = 4x XGA = 2048x1536

  11. Technical specifications • Input and Output connections • QXGA RGBHV board • UXGA DVI/D15 • SDI and HD SDI loopthrough • Audio board • Standard: • 2x QXGA RGBHV board • 1x UXGA DVI/D15 • DVI out (1920x1080 @60Hz) • RS232 • Wired RC QXGA = 4x XGA = 2048x1536

  12. Technical specifications • Network Centric connections • Dual PCMCIA • 2x USB, 1xPS2 • RS 232 • 2x Ethernet • 1x mic in, line in, line out • D15 monitor out • PCI extension

  13. Technical specifications • iCon server specifications • Intel Pentium 4 2,6GHz • 1 GB DDR RAM • 40 GB HD • Graphical chipset providing native HDTV 1920x1080 • XP PRO license • Barco Server software

  14. Video/Data Video/Data Video/Data Video/Data Picture in Picture possibilities

  15. XGA 1024x768 Video Video Picture in Picture possibilities

  16. SXGA+ 1400x1050 Video Video Picture in Picture possibilities

  17. Easy operation

  18. using Windows XP Easy operation No confusing remotes... Just use mouse and keyboard.

  19. Add up to four external video or data windows

  20. Add up to four external video or data windows

  21. Drag, resize, zoom, freeze source windows

  22. Remove window frame

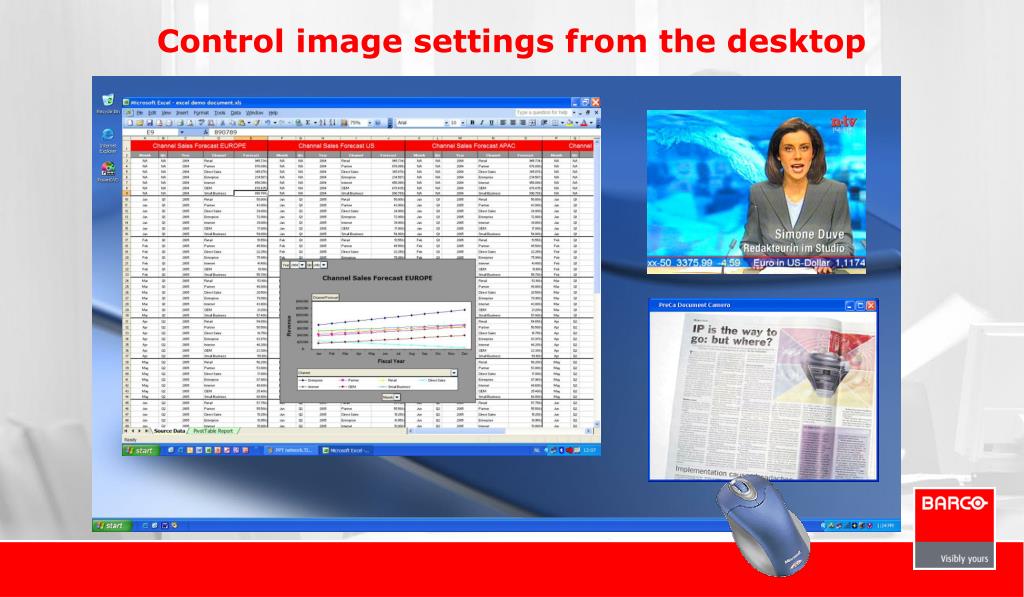

  23. Control image settings from the desktop

  24. Control image settings from the desktop

  25. Add two videoconference windows

  26. Add two videoconference windows

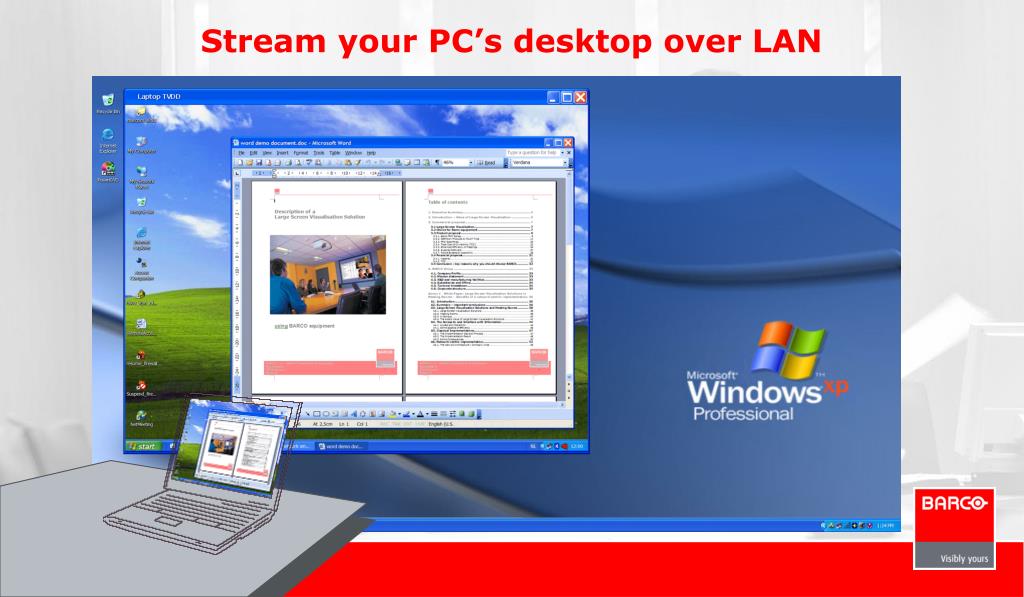

  27. Stream your PC’s desktop over LAN

  28. Stream your PC’s desktop over LAN

  29. Stream your PC’s desktop over LAN

  30. ... and control your PC from the meeting room

  31. Add streaming video

  32. Save and recall any window layout

  33. Increased efficiency

  34. Increased efficiency through multi-windowing Uniting all information on one screen...

  35. Exciting multi-site collaboration Increase business efficiency by eliminating the need for travel ...

  36. Cost-effective centralized fleet management Total control via the network Shutting down...

  37. Flexible integration

  38. Flexible integration into the existing LAN Low cost expandability

  39. Reduced Capital Expenditure • Less cables, less switchers, less peripherals, less remotes, less maintenance, less interventions, less costs • More efficiency, more happy customers, more profits

  40. Lower Operational Expenditure Easy integration & expandability • IP driven solution • SNMP protocol • Open ActiveX support

  41. Lower Total Cost-of-Ownership • Reduced CAPEX • Reduced OPEX Lower TCO

  42. High Return-on-Investment

  43. High Return-on-Investment • Save traveling time & costs through virtual meetings • Real-time shared multi-windowing in high resolution • No connection hassles • Direct, easy access to all sources • Intuitive operation using Windows XP

  44. iCon H600 High-definition network centric visualization
