Chapter 10 sexual reproduction and genetics

Chapter 10: Sexual Reproduction and Genetics

  • Fall 2011

  • Wood


Chapter overview p 268

Chapter Overview (p.268)

  • Big Idea

    • Reproductive cells, which pass on genetic traits from the parents to the child, are produced by the pattern of meiosis.

  • Sections

    • 1) Meiosis

    • 2) Mendellian genetics

    • 3)Gene linkage and polyploidy


Section 1 meiosis

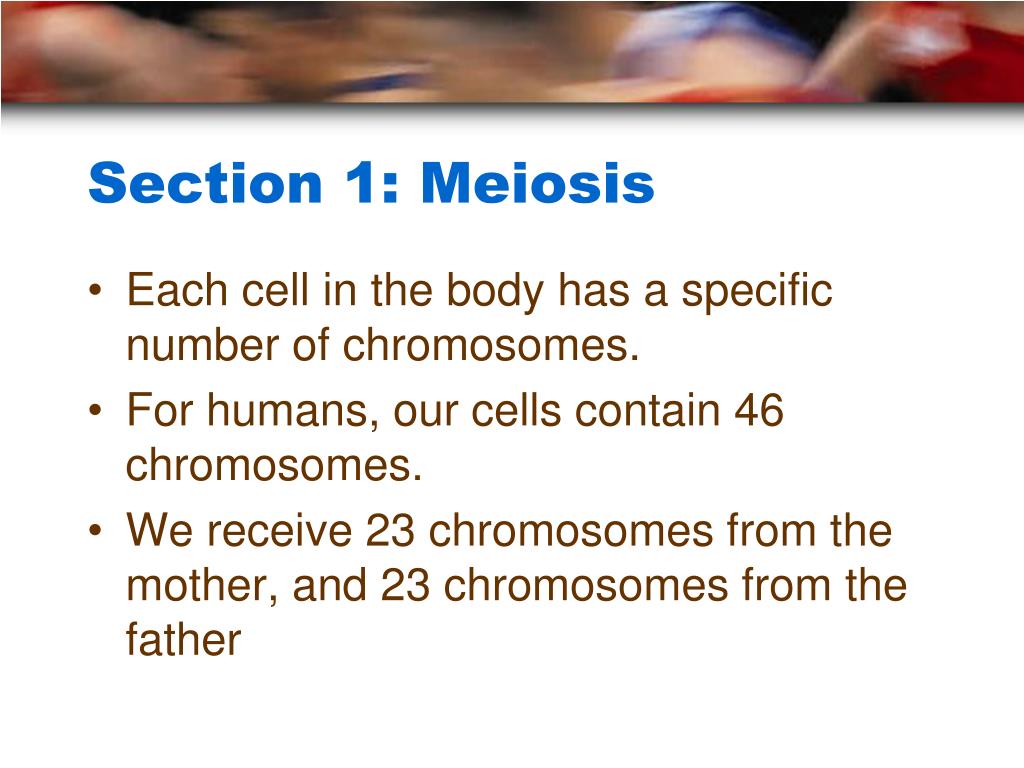

Section 1: Meiosis

  • Each cell in the body has a specific number of chromosomes.

  • For humans, our cells contain 46 chromosomes.

  • We receive 23 chromosomes from the mother, and 23 chromosomes from the father


Human cells

Human Cells

  • Where do our 46 chromosomes come from?

  • Having 2 sets of DNA is called having homologous chromosomes.

    • Same chromosome but carrying different versions of traits.


Chapter 10 sexual reproduction and genetics

  • DadMom


Haploid cells

Haploid Cells

  • A cell that contains one set of chomosomes (n) is considered haploid (half-loid).

    • For humans these cells would only have 23 chromosomes

    • These cells are called gametes


Diploid cells

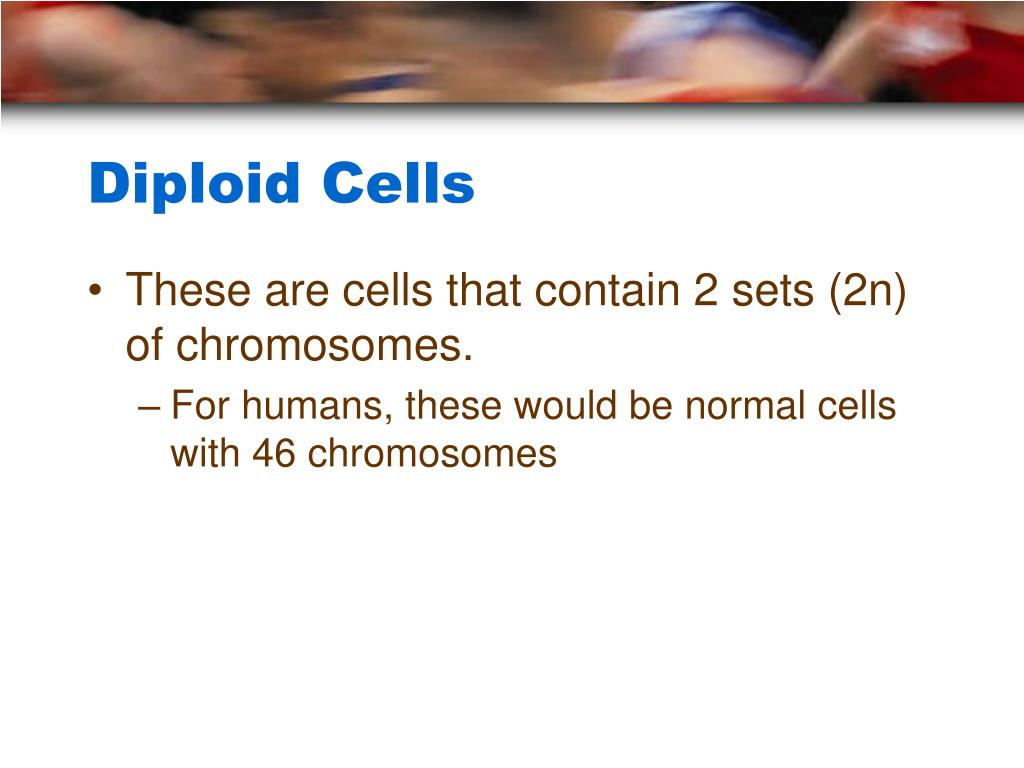

Diploid Cells

  • These are cells that contain 2 sets (2n) of chromosomes.

    • For humans, these would be normal cells with 46 chromosomes


Haploid diploid cycle

Haploid & Diploid Cycle


Gamete formation

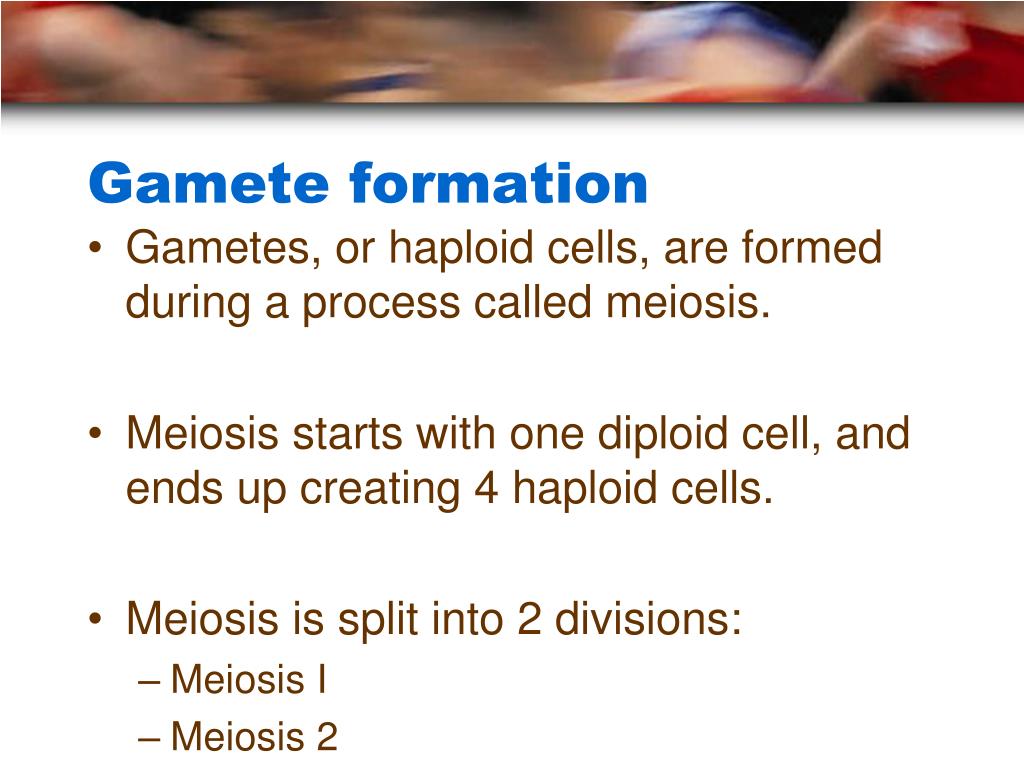

Gamete formation

  • Gametes, or haploid cells, are formed during a process called meiosis.

  • Meiosis starts with one diploid cell, and ends up creating 4 haploid cells.

  • Meiosis is split into 2 divisions:

    • Meiosis I

    • Meiosis 2


Interphase

Interphase

  • These cells still must go through interphase prior to meiosis.

  • This allows the cell to make a copy if the DNA during the S-Phase


Meiosis i

Meiosis I

  • First phase is Prophase I

    • Chromosomes condense

    • Nuclear membrane dissolves


Metaphase i

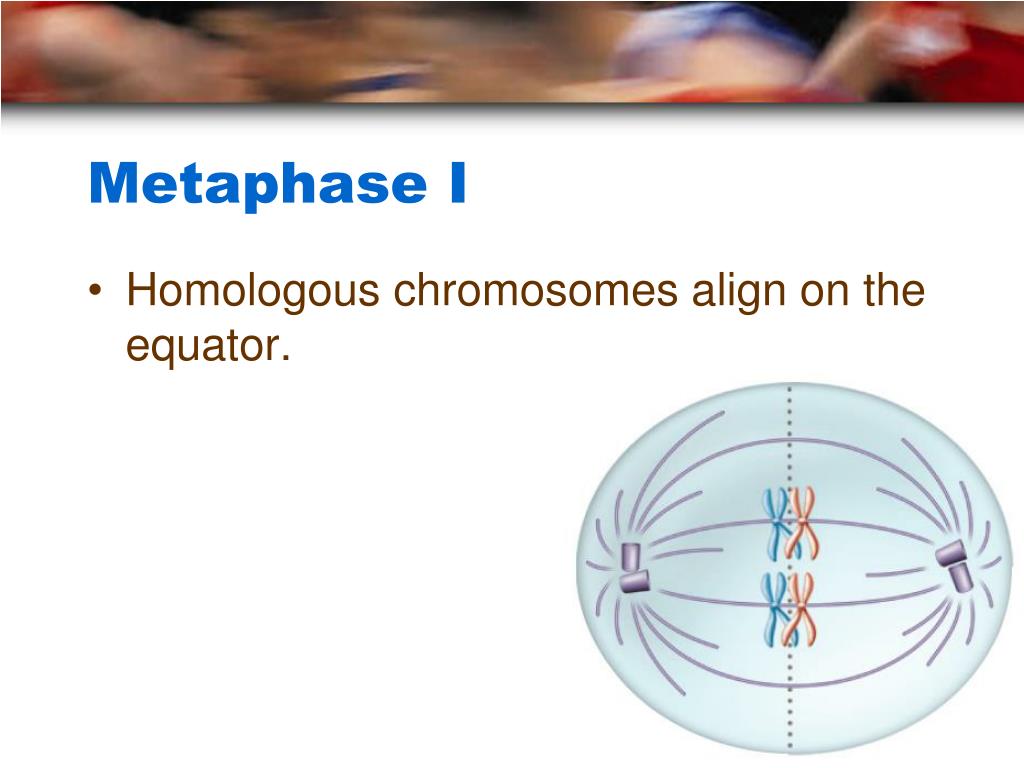

Metaphase I

  • Homologous chromosomes align on the equator.


Anaphase i

Anaphase I

  • Homologous chromosomes separate and move to opposite poles.


Telophase i

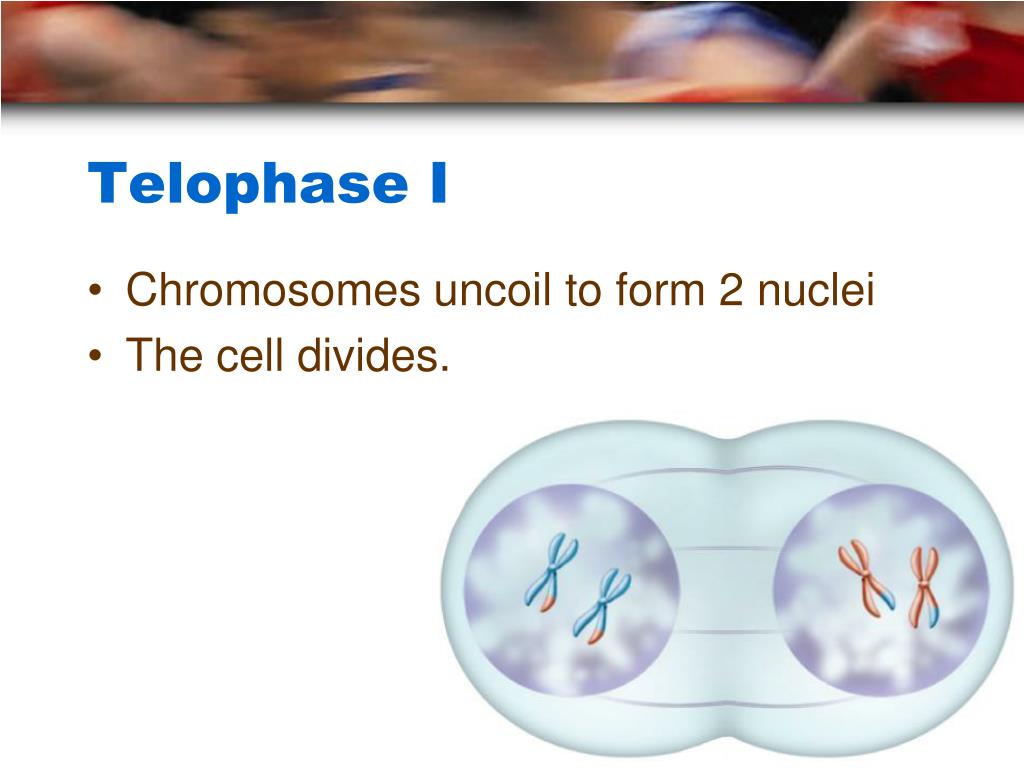

Telophase I

  • Chromosomes uncoil to form 2 nuclei

  • The cell divides.


Meiosis ii

Meiosis II

  • Prophase II

    • Repeat of prophase 1


Metaphase ii

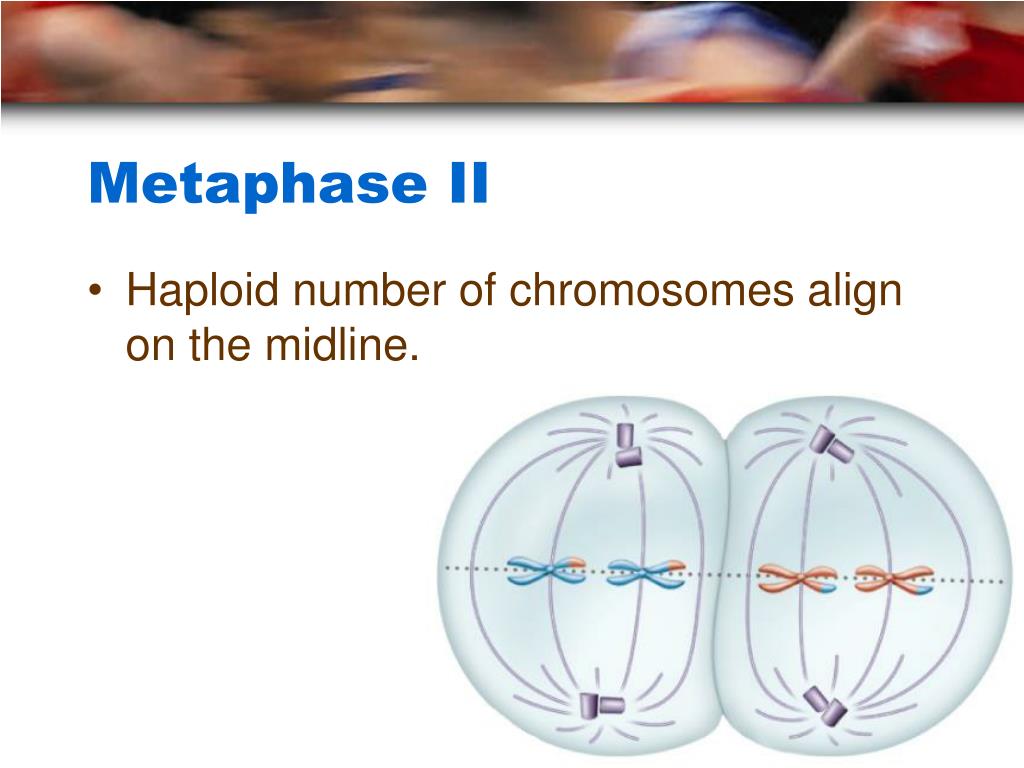

Metaphase II

  • Haploid number of chromosomes align on the midline.


Anaphase ii

Anaphase II

  • Sister chromatids are pulled to opposite poles.


Telophase ii

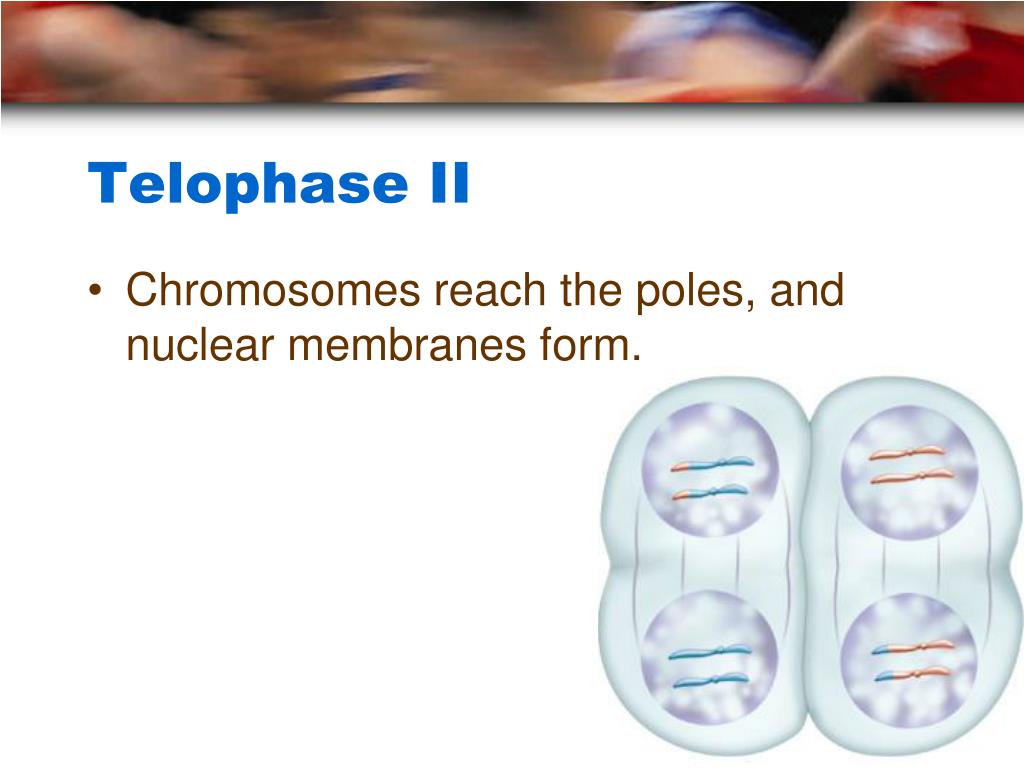

Telophase II

  • Chromosomes reach the poles, and nuclear membranes form.


Cytokinesis ii

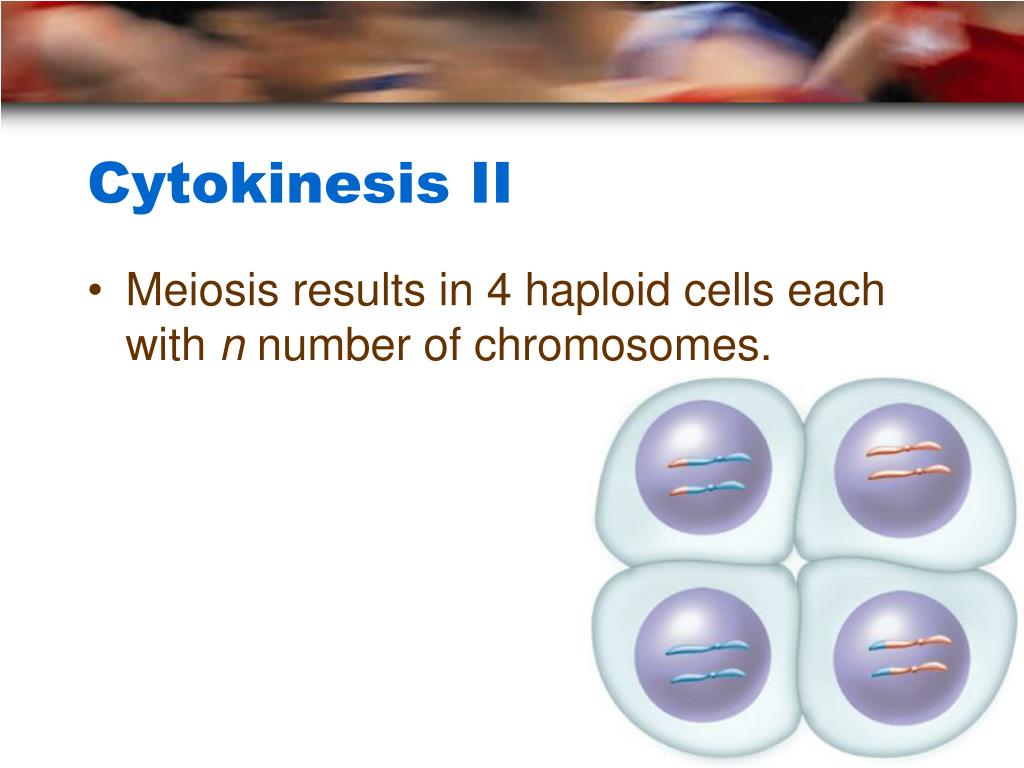

Cytokinesis II

  • Meiosis results in 4 haploid cells each with n number of chromosomes.


Importance of meiosis

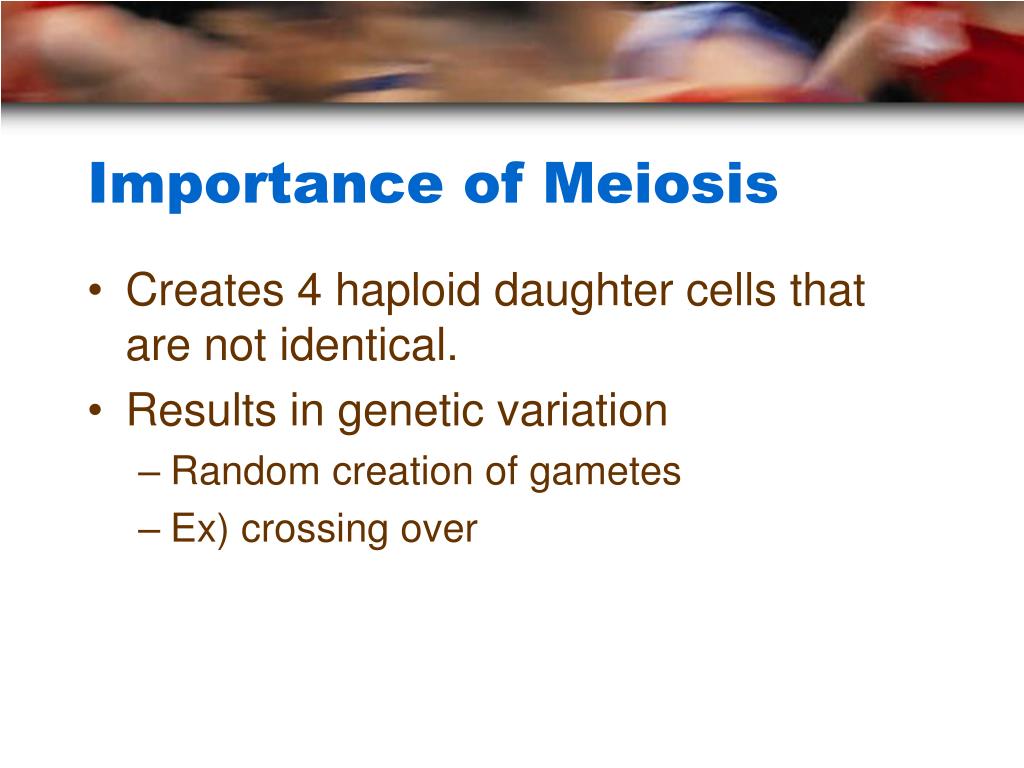

Importance of Meiosis

  • Creates 4 haploid daughter cells that are not identical.

  • Results in genetic variation

    • Random creation of gametes

    • Ex) crossing over


Crossing over

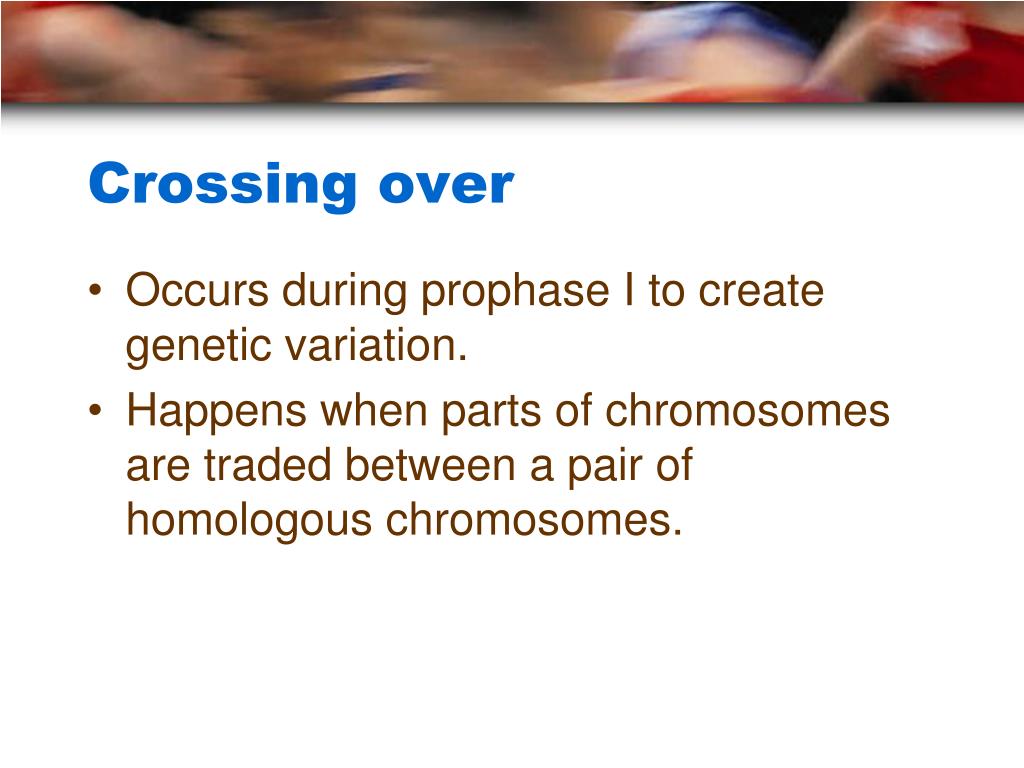

Crossing over

  • Occurs during prophase I to create genetic variation.

  • Happens when parts of chromosomes are traded between a pair of homologous chromosomes.


Section 2 mendellian genetics

Section 2: Mendellian genetics

  • Overview

    • Start of genetics

    • Alleles

    • Dominant and recessive

    • Genotype and phenotype

    • 2 laws of genetics

    • Punnett squares


The start of genetics

The start of genetics

  • In 1866, Greger Mendel published his findings on inheritance.

  • He is now known as the “Father of Genetics”

  • He was an Austrian monk who studied garden pea plants.


Chapter 10 sexual reproduction and genetics

  • Mendel performed cross pollination in pea plants.

  • He then studied these traits about the passing of traits through generations:

    • Seed color, flower color, seed shape or texture, and flower position.


Generations

Generations

  • The parent generation is also known as the “P” generation.


Chapter 10 sexual reproduction and genetics

  • The generation created by the parents is known as the “F1” or first fillial generation.

  • The second generation is called the “F2” or second fillial generation.


Chapter 10 sexual reproduction and genetics

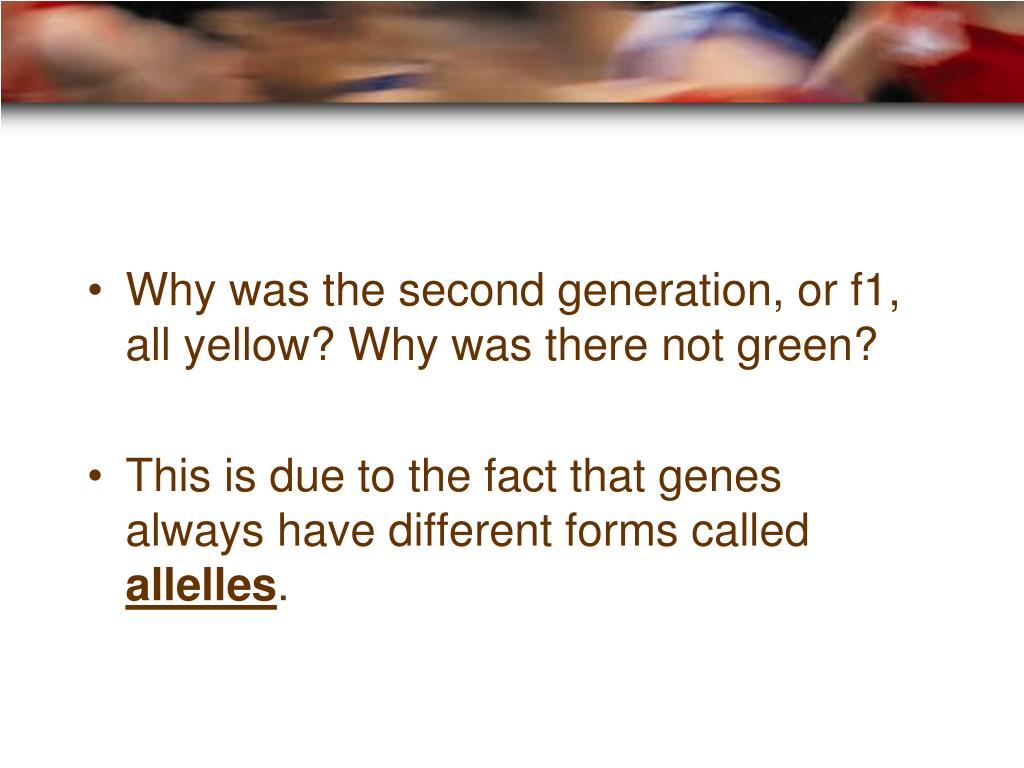

  • Why was the second generation, or f1, all yellow? Why was there not green?

  • This is due to the fact that genes always have different forms called allelles.


Alleles

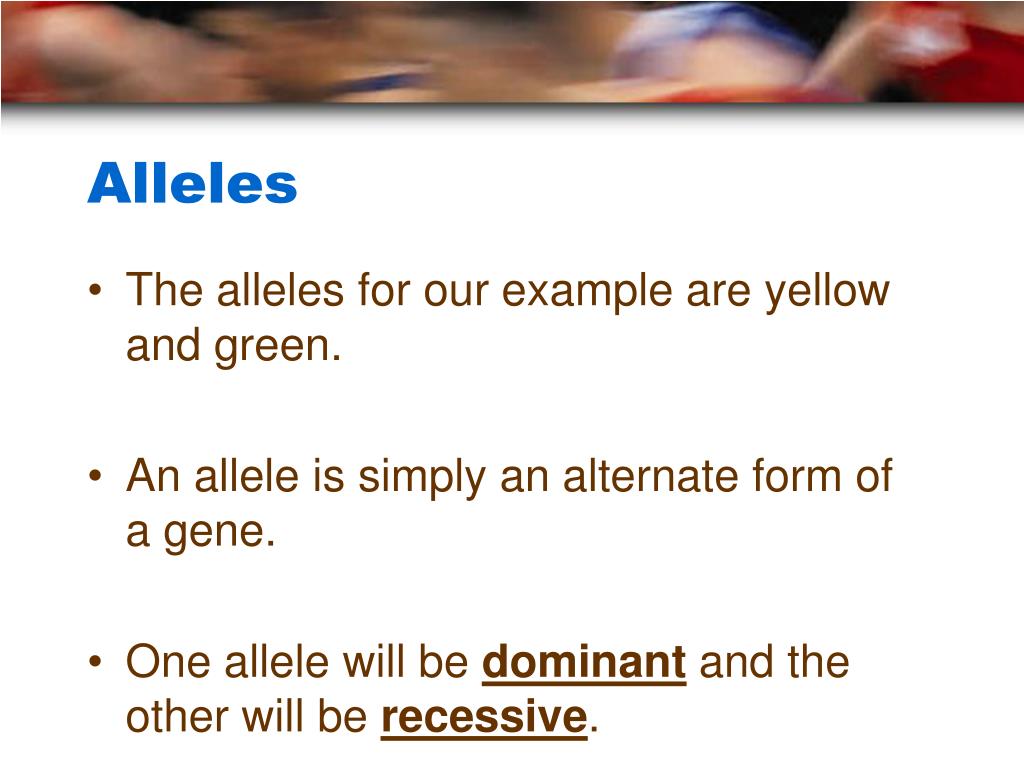

Alleles

  • The alleles for our example are yellow and green.

  • An allele is simply an alternate form of a gene.

  • One allele will be dominant and the other will be recessive.


Chapter 10 sexual reproduction and genetics

  • Where did the green seed come from in the third generation? They were not there in the second generation.

  • Dominant alleles are shown, and recessive alleles are masked.

  • Yellow seeds are dominant over green seeds.


Dominant vs recessive

Dominant vs Recessive

  • Dominant alleles are always shown by a capital letter. Recessive genes are always shown by a lowercase letter.

    • Ex) yyYYYy

      • Green yellow yellow


Homozygous vs heterozygous

Homozygous vs heterozygous

  • An individual can be one of 3 types:

    • Homozygous dominant

    • Heterozygous

    • Homozygous recessive


Genotype vs phenotype

Genotype vs Phenotype

  • A genotype is what genes an individual has.

  • A phenotype is what characteristics are observed.

  • Yyvsyyvs YY


Law of segregation

Law of Segregation

  • States that two alleles for a gene must separate during meiosis.


Law of independent assortment

Law of Independent Assortment

  • This law states that alleles occur in a random distribution.

    • Aka) the genes from one parent do not always stay together.


2 laws of genetics

2 Laws of Genetics

  • Mendel formulated 2 laws for genetics:

    • 1) Law of Segregation

    • 2) Law of Independent Assortment


Punnett squares

Punnett Squares

  • These predict the possible offspring of a cross between two known genotypes.

  • Monohybrid cross


Section 3 gene linkage and polyploidy

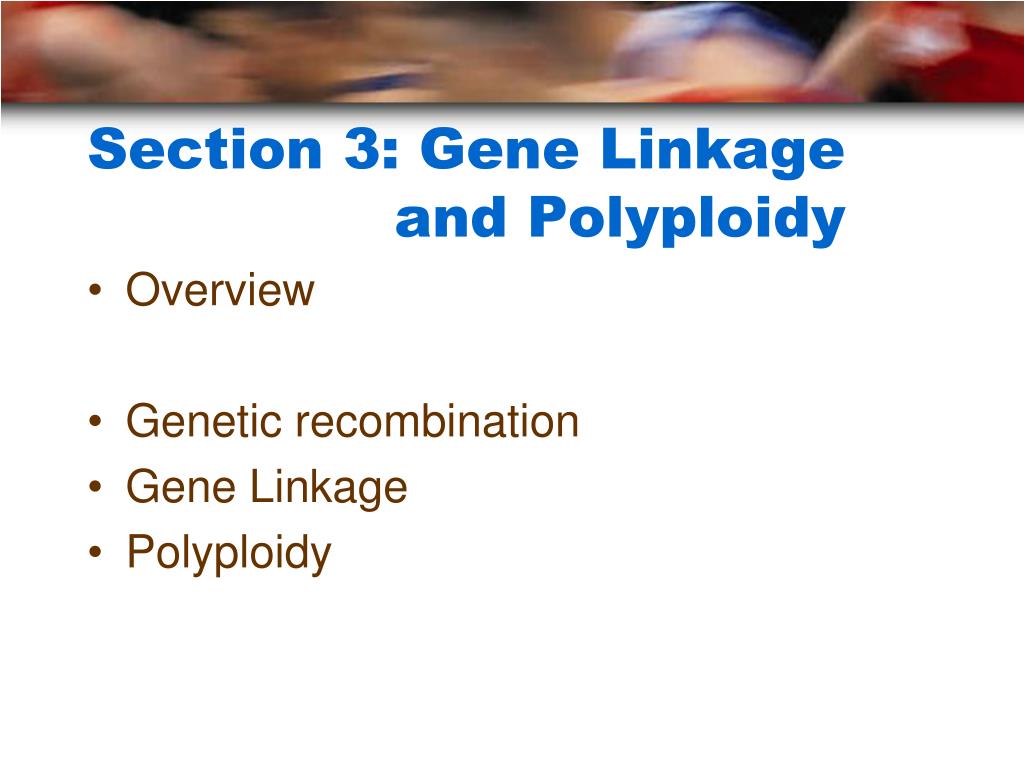

Section 3: Gene Linkageand Polyploidy

  • Overview

  • Genetic recombination

  • Gene Linkage

  • Polyploidy


Genetic recombination

Genetic Recombination

  • The new combination of genes produced by crossing over and independent assortment is called genetic recombination.

  • Human cells have a possible 223 combinations. Combine 2 cells and there are over 70 trillion possibilities.


Gene linkage

Gene Linkage

  • Genes that are located close to one another on a chromosome are said to be linked. This means that they usually travel together during meiosis.


Polyploidy

Polyploidy

  • This is the occurance of one of more extra sets of chromosomes in an organism.

  • Ex) strawberries are 8n, coffee is 4n, and wheat is typically 6n.
