Presentation Transcript


Production operations management l.jpg

Production Operations Management

Process Technology &

Layout

U. Akinc

Bus 241


Various technologies l.jpg

Various Technologies

  • Information Technology

  • Product Technology

  • Process Technology

Bus 241


Reasons for technology l.jpg

Reasons for Technology

Some of the competitive priorities

  • Improved Product and Service Quality

  • Lower Cost

  • Increased Responsiveness to Market

  • Increased Responsiveness to Customer

  • Safety

Bus 241


Barriers to implementation of technology l.jpg

Barriers to Implementation of Technology

  • Difficulty in Financial Justification

  • Lack of Understanding by Management

  • Concern for the Impact of Technology on the Human Resources

traditional ROI based capital budgeting can’t consider non-financial benefits

Resistance to change, having to learn “another way” of doing things

Fear of loss of jobs due to automation

Bus 241

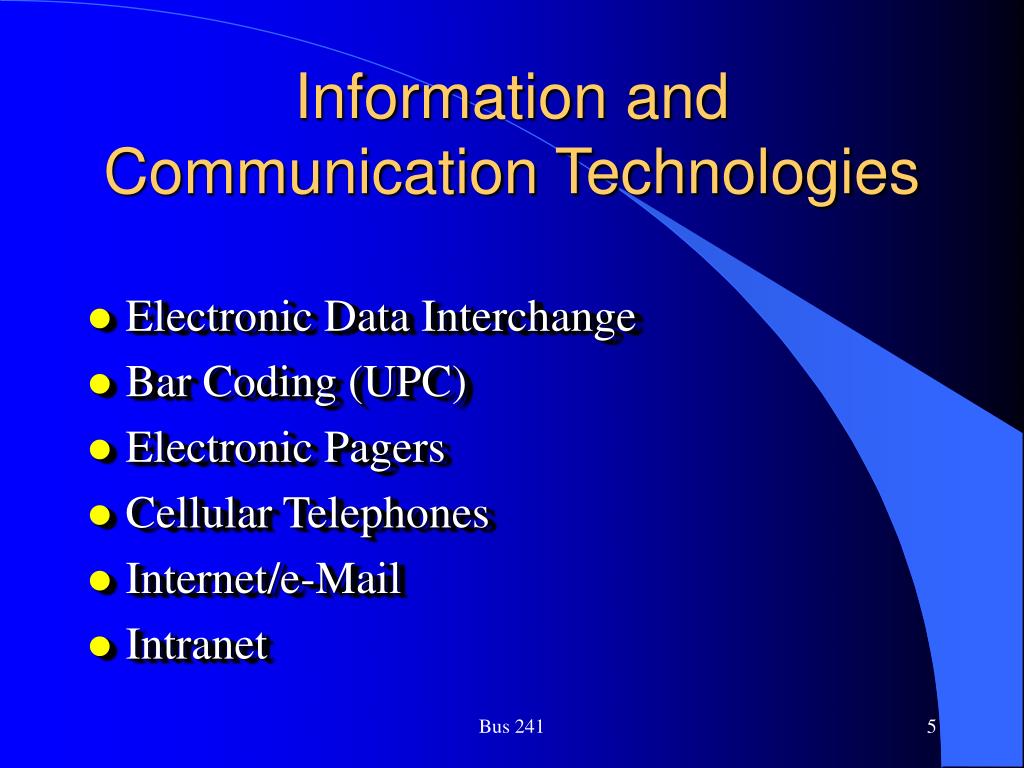

Information and communication technologies l.jpg

Information and Communication Technologies

  • Electronic Data Interchange

  • Bar Coding (UPC)

  • Electronic Pagers

  • Cellular Telephones

  • Internet/e-Mail

  • Intranet

Bus 241


Bar code technology l.jpg

Bar Code Technology

  • Speeds Data Entry

  • Increases Data Accuracy

  • Reduces Material Handling Labor

  • Easily Monitors Labor Efficiency

Bus 241


Process technology l.jpg

Process Technology

  • Technology: Manual, Automated or Mental Processes that are Used to Transform Inputs Into Products and Services

  • Advanced Manufacturing Technology or Automation: Substitution of Machinesfor Human Physical and mental work.

  • Key to usage of automation: Repeatability

A task that is performed in large number of repetitions is more apt to be automated

Bus 241


Automation and operations focus l.jpg

Automation and Operations Focus

Line-Flow = flow-shop

  • Product Focus:

    High Volume Standard Products imply High Degree of Repeatability

    • Automation is natural

  • Process Focus:

    Low Volumes of a wide variety of product and services imply limited repeatability

    • Automation is more challenging

  • In the form of fixed automation

    Bus 241

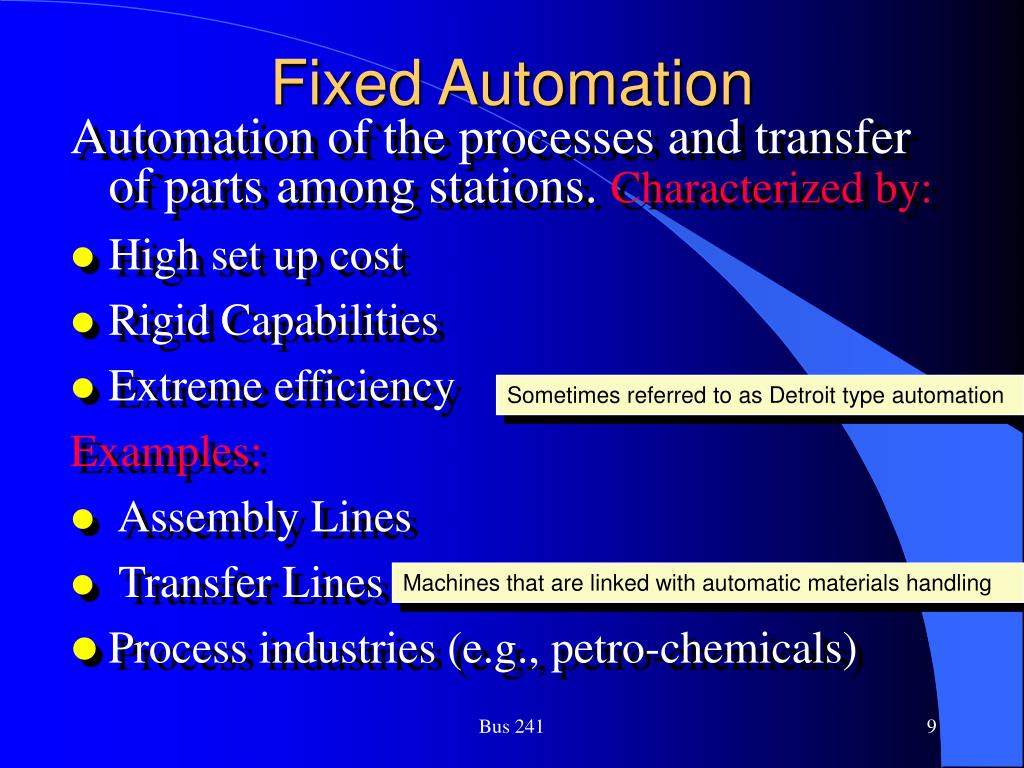

    Fixed automation l.jpg

    Fixed Automation

    Automation of the processes and transfer of parts among stations. Characterized by:

    • High set up cost

    • Rigid Capabilities

    • Extreme efficiency

      Examples:

    • Assembly Lines

    • Transfer Lines

    • Process industries (e.g., petro-chemicals)

    Sometimes referred to as Detroit type automation

    Machines that are linked with automatic materials handling

    Bus 241


    Slide10 l.jpg

    An example of fixed automation: Egg processing

    Bus 241


    Flexible automation l.jpg

    Flexible Automation

    Automatic Processes that can be easily changed from one task to another. Characterized by:

    • Low set up costs

    • A range of capabilities

    • Reasonably Efficient

      Example:

    • Job Shop

    Bus 241

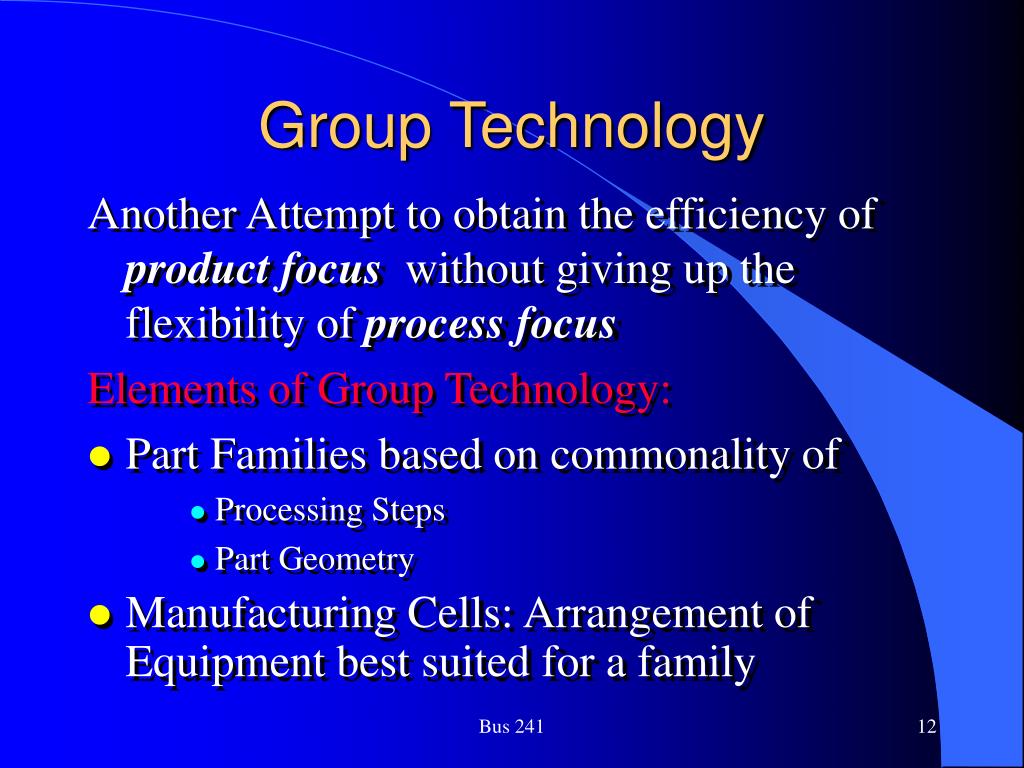

    Group technology l.jpg

    Group Technology

    Another Attempt to obtain the efficiency of product focus without giving up the flexibility of process focus

    Elements of Group Technology:

    • Part Families based on commonality of

      • Processing Steps

      • Part Geometry

  • Manufacturing Cells: Arrangement of Equipment best suited for a family

  • Bus 241


    Computer integrated manufacturing cim l.jpg

    Computer Integrated Manufacturing(CIM)

    Integration of total manufacturing enterprise through the use of integrated systems and data communications coupled with new management philosophy that improve organizational and personnel efficiency. (SME)

    Bus 241


    Slide14 l.jpg

    CIM

    An Umbrella term to encompass the integration of:

    • Product Design/Engineering

    • Process Planning /Development

    • Manufacturing Operations

    • Production/Inventory Control

    Bus 241


    Components of cim l.jpg

    Components of CIM

    • 1. CAD:

      Computer Assisted Design: Use of Computers in interactive engineering drawing, storage and manipulation of existing designs.

    • 2. CAM:

      Computer Assisted Manufacture: Use of Computers to program, direct and control manufacturing equipment in the fabrication of parts.

    Bus 241

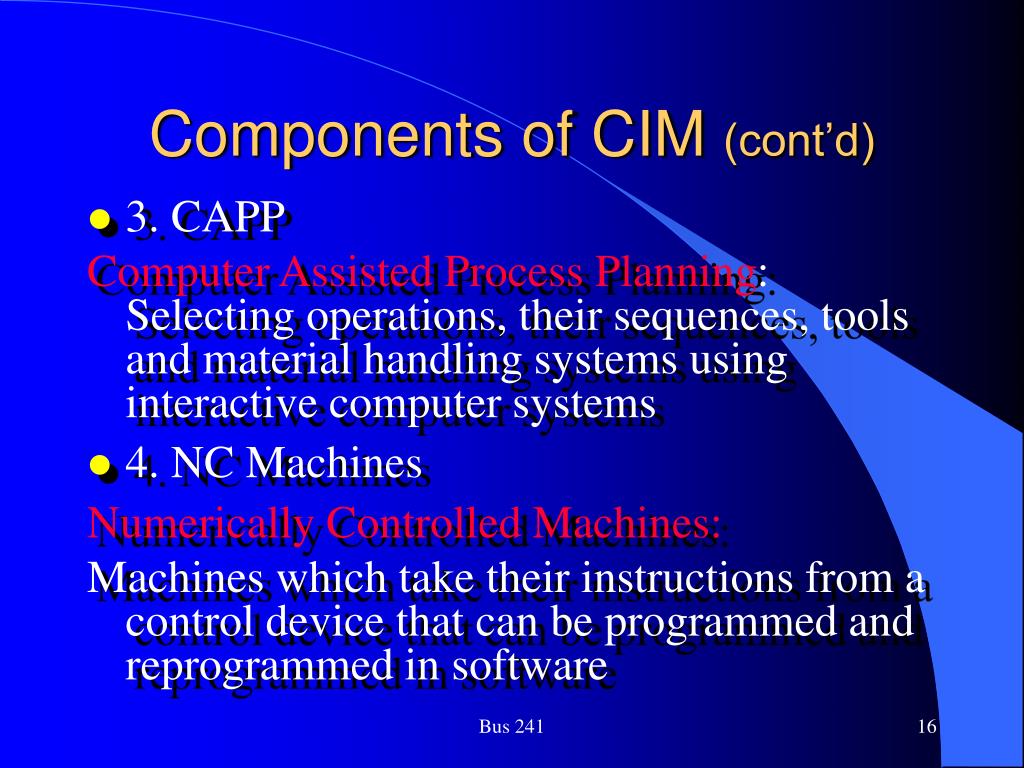

    Components of cim cont d l.jpg

    Components of CIM (cont’d)

    • 3. CAPP

      Computer Assisted Process Planning: Selecting operations, their sequences, tools and material handling systems using interactive computer systems

    • 4. NC Machines

      Numerically Controlled Machines:

      Machines which take their instructions from a control device that can be programmed and reprogrammed in software

    Bus 241


    Components of cim cont d17 l.jpg

    Components of CIM (cont’d)

    • 5.Robotics

      Versatile, programmable devices capable of human like operations.

      • Used Mostly in:

        • Hazardous

        • Repetitive tasks

        • Handling Heavy Parts

      • Such as:

        • Spot welding

        • Inspection

        • Circuit board Assembly

        • Spray Painting

    Bus 241


    Slide18 l.jpg

    A Multi-Axes Robot

    Merlin1

    Bus 241


    Slide19 l.jpg

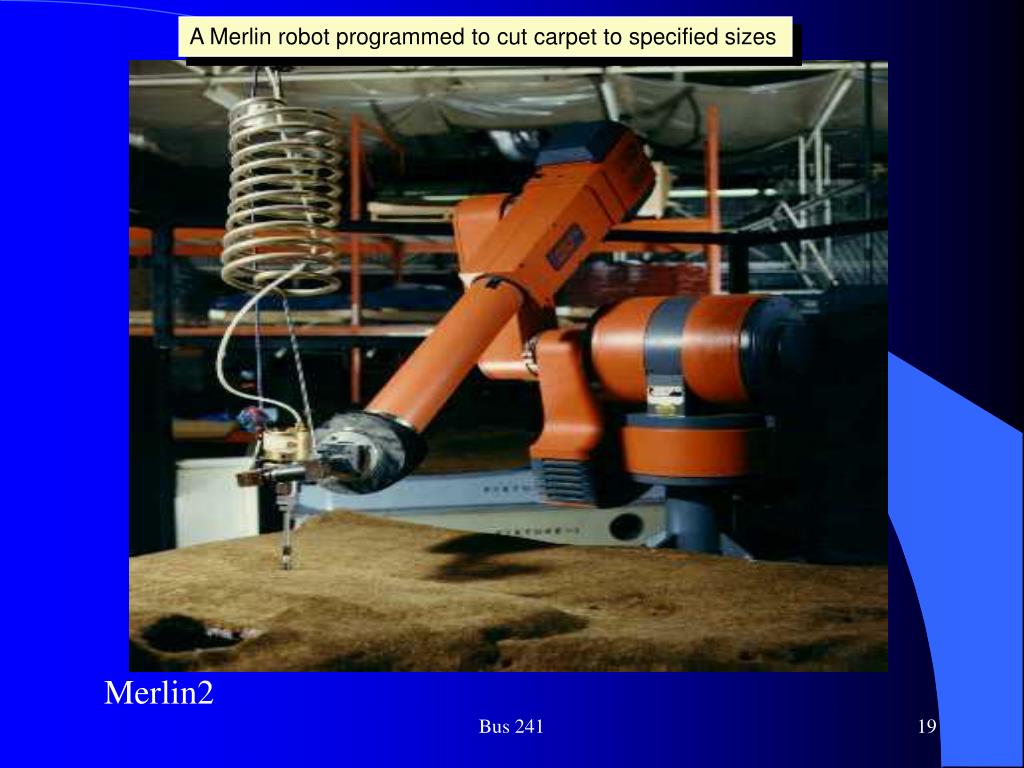

    A Merlin robot programmed to cut carpet to specified sizes

    Merlin2

    Bus 241


    Slide20 l.jpg

    A Merlin Robot spot welding

    Merlin3

    Bus 241


    Slide21 l.jpg

    Anatomy of a Merlin robot (has three degrees of freedom or axes)

    Bus 241


    Slide22 l.jpg

    Gantry Robots work like “Etch-a-sketch”. Movement is on 3 linear axes (x,y,z) as opposed to rotational as in Merlin. This robot is installing the wind shield on a car

    Gantry1

    Bus 241


    Slide23 l.jpg

    Another Gantry robot: cutting cloth

    Gantry2

    Bus 241


    Components of cim cont d24 l.jpg

    Components of CIM (cont’d)

    • 6. AGV

      Automatically Guided Vehicles

    • 7. AS/RS

      Automated Storage and Retrieval Systems

    Please visit the link

    Bus 241


    Slide25 l.jpg

    Automatically Guided vehicle examples

    Bus 241


    Infrastructure of cim l.jpg

    Infrastructure of CIM

    Use of integrated computer software for

    • Production Scheduling

    • Inventory Control

    • Capacity Planning

    • Shop Floor Control

    Bus 241

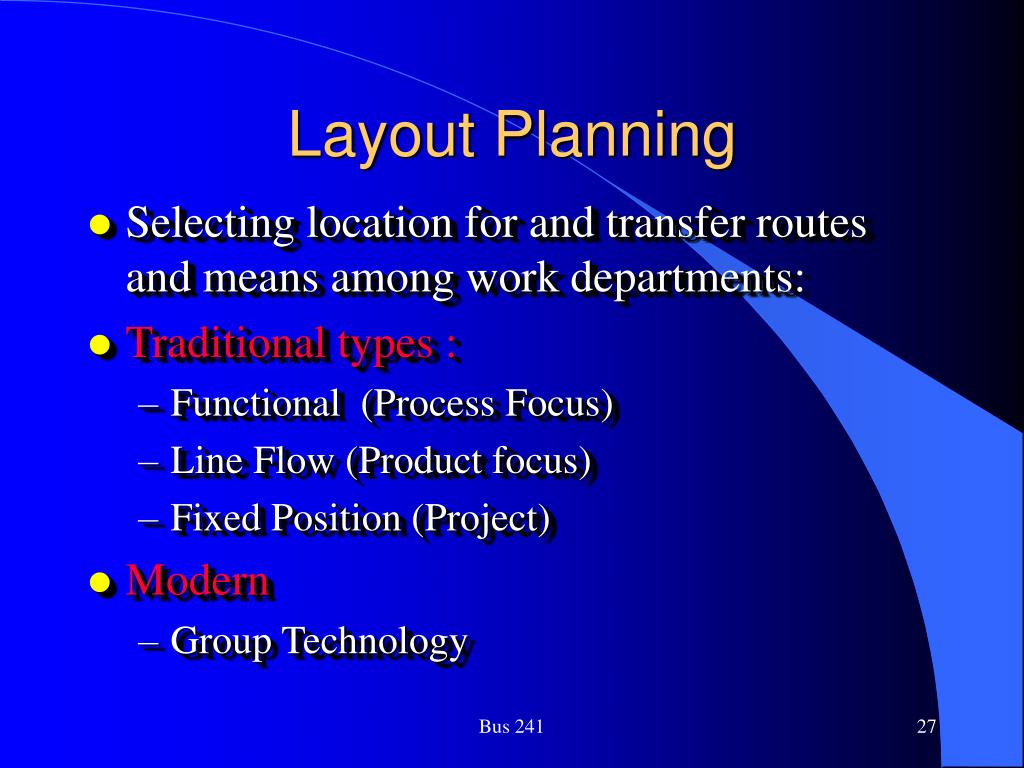

    Layout planning l.jpg

    Layout Planning

    • Selecting location for and transfer routes and means among work departments:

    • Traditional types:

      • Functional (Process Focus)

      • Line Flow (Product focus)

      • Fixed Position (Project)

    • Modern

      • Group Technology

    Bus 241


    Functional layout l.jpg

    Functional Layout

    Most appropriate for process focus

    Turning

    Packing

    Gluing

    Painting

    Sanding

    Planing

    Drilling

    Cutting

    Resources are organized into functional departments

    Bus 241


    Line flow layout l.jpg

    Line Flow Layout

    Most appropriate for Product Focus

    A

    E

    B

    C

    B

    D

    E

    A

    C

    E

    D

    A

    B

    B

    C

    Product flows through processes A-E

    in a sequence dictated by the assembly

    requirements of the product.

    D

    Bus 241


    Slide30 l.jpg

    Manufacturing Cells in

    Group Technology

    Cell A

    Refer back to slide number 12: Group Technology. Here the departments are arranged to produce families of similar parts efficiently

    Cell B

    Planing

    Painting

    Cell C

    Bus 241


    A part family l.jpg

    A Part Family

    Bus 241


    Manufacturing gt cell l.jpg

    Manufacturing (GT) Cell

    Bus 241


    Product process matrix l.jpg

    Product Variety and Volume

    Product Process Matrix

    Many

    Products-

    Low

    Volume

    Several

    Products-

    High

    Volume

    One

    Product-

    Very High

    Volume

    Low

    Volume-

    Unique

    No Flow

    Project

    Identified Process Pattern

    Job Shop

    Jumbled Flow

    Mixed with

    Dominant Flows

    Batch

    Assembly

    Line

    Line Flow

    Continuous

    or Automated

    Continuous

    Process

    Bus 241
