  1. Mining Decision Trees fromData Streams Thanks: Tong Suk Man Ivy HKU

  2. Contents • Introduction: problems in mining data streams • Classification of stream data • VFDT algorithm • Window approach • CVFDT algorithm • Experimental results • Conclusions • Future work

  3. Data Streams • Characteristics • Large volume of ordered data points, possibly infinite • Arrive continuously • Fast changing • Appropriate model for many applications: • Phone call records • Network and security monitoring • Financial applications (stock exchange) • Sensor networks

  4. Problems in Mining Data Streams • Traditional data mining techniques usually require • Entire data set to be present • Random access (or multiple passes) to the data • Much time per data item • Challenges of stream mining • Impractical to store the whole data • Random access is expensive • Simple calculation per data due to time and space constraints

  5. Processing Data Streams: Motivation • A growing number of applications generate streams of data • Performance measurements in network monitoring and traffic management • Call detail records in telecommunications • Transactions in retail chains, ATM operations in banks • Log records generated by Web Servers • Sensor network data • Application characteristics • Massive volumes of data (several terabytes) • Records arrive at a rapid rate • Goal: Mine patterns, process queries and compute statistics on data streams in real-time (from VLDB’02 Tutorial)

  6. Data Streams: Computation Model Synopsis in Memory Data Streams • A data stream is a (massive) sequence of elements:Stream processing requirements • Single pass: Each record is examined at most once • Bounded storage: Limited Memory (M) for storing synopsis • Real-time: Per record processing time (to maintain synopsis) must be low Stream Processing Engine (Approximate) Answer

  7. Network Management Application • Network Management involves monitoring and configuring network hardware and software to ensure smooth operation • Monitor link bandwidth usage, estimate traffic demands • Quickly detect faults, congestion and isolate root cause • Load balancing, improve utilization of network resources Network Operations Center Measurements Alarms Network (from VLDB’02 Tutorial)

  8. IP Network Measurement Data • IP session data (collected using Cisco NetFlow) • AT&T collects 100 GBs of NetFlow data each day! • AT&T collects 100 GB of NetFlow data per day! Source Destination DurationBytes Protocol 10.1.0.2 16.2.3.7 12 20K http 18.6.7.1 12.4.0.3 16 24K http 13.9.4.3 11.6.8.2 15 20K http 15.2.2.9 17.1.2.1 19 40K http 12.4.3.8 14.8.7.4 26 58K http 10.5.1.3 13.0.0.1 27 100K ftp 11.1.0.6 10.3.4.5 32 300K ftp 19.7.1.2 16.5.5.8 18 80K ftp (from VLDB’02 Tutorial)

  9. (from VLDB’02 Tutorial) Network Data Processing • Traffic estimation • How many bytes were sent between a pair of IP addresses? • What fraction network IP addresses are active? • List the top 100 IP addresses in terms of traffic • Traffic analysis • What is the average duration of an IP session? • What is the median of the number of bytes in each IP session? • Fraud detection • List all sessions that transmitted more than 1000 bytes • Identify all sessions whose duration was more than twice the normal • Security/Denial of Service • List all IP addresses that have witnessed a sudden spike in traffic • Identify IP addresses involved in more than 1000 sessions

  10. Data Stream Processing Algorithms • Generally, algorithms compute approximate answers • Difficult to compute answers accurately with limited memory • Approximate answers - Deterministic bounds • Algorithms only compute an approximate answer, but bounds on error • Approximate answers - Probabilistic bounds • Algorithms compute an approximate answer with high probability • With probability at least , the computed answer is within a factor of the actual answer • Single-pass algorithms for processing streams also applicable to (massive) terabyte databases! (from VLDB’02 Tutorial)

  11. Classification of Stream Data • VFDT algorithm • “Mining High-Speed Data Streams”, KDD 2000. Pedro Domingos, Geoff Hulten • CVFDT algorithm (window approach) • “Mining Time-Changing Data Streams”, KDD 2001. Geoff Hulten, Laurie Spencer, Pedro Domingos

  12. Hoeffding Trees

  13. Definitions • A classification problem is defined as: • N is a set of training examples of the form (x, y) • x is a vector of d attributes • y is a discrete class label • Goal: To produce from the examples a model y=f(x) that predict the classes y for future examples x with high accuracy

  14. Age<30? Yes No Car Type= Sports Car? Yes Yes No No Decision Tree Learning • One of the most effective and widely-used classification methods • Induce models in the form of decision trees • Each node contains a test on the attribute • Each branch from a node corresponds to a possible outcome of the test • Each leaf contains a class prediction • A decision tree is learned by recursively replacing leaves by test nodes, starting at the root

  15. Challenges • Classic decision tree learners assume all training data can be simultaneously stored in main memory • Disk-based decision tree learners repeatedly read training data from disk sequentially • Prohibitively expensive when learning complex trees • Goal: design decision tree learners that read each example at most once, and use a small constant time to process it

  16. Key Observation • In order to find the best attribute at a node, it may be sufficient to consider only a small subset of the training examples that pass through that node. • Given a stream of examples, use the first ones to choose the root attribute. • Once the root attribute is chosen, the successive examples are passed down to the corresponding leaves, and used to choose the attribute there, and so on recursively. • Use Hoeffding bound to decide how many examples are enough at each node

  17. Hoeffding Bound • Consider a random variable a whose range is R • Suppose we have n observations of a • Mean: • Hoeffding bound states: With probability 1- , the true mean of a is at least , where

  18. How many examples are enough? • Let G(Xi) be the heuristic measure used to choose test attributes (e.g. Information Gain, Gini Index) • Xa : the attribute with the highest attribute evaluation value after seeing n examples. • Xb : the attribute with the second highest split evaluation function value after seeing n examples. • Given a desired , if after seeing n examples at a node, • Hoeffding bound guarantees the true , with probability 1-. • This node can be split using Xa, the succeeding examples will be passed to the new leaves.

  19. Algorithm • Calculate the information gain for the attributes and determines the best two attributes • Pre-pruning: consider a “null” attribute that consists of not splitting the node • At each node, check for the condition • If condition satisfied, create child nodes based on the test at the node • If not, stream in more examples and perform calculations till condition satisfied

  20. Age<30? Data Stream Yes No Yes Age<30? Yes No Car Type= Sports Car? Yes Data Stream Yes No No

  21. Performance Analysis • p: probability that an example passed through DTto level i will fall into a leaf at that point • The expected disagreement between the tree produced by Hoeffding tree algorithm and that produced using infinite examples at each node is no greater than  /p. • Required memory: O(leaves * attributes * values * classes)

  22. VFDT

  23. VFDT (Very Fast Decision Tree) • A decision-tree learning system based on the Hoeffding tree algorithm • Split on the current best attribute, if the difference is less than a user-specified threshold • Wasteful to decide between identical attributes • Compute G and check for split periodically • Memory management • Memory dominated by sufficient statistics • Deactivate or drop less promising leaves when needed • Bootstrap with traditional learner • Rescan old data when time available

  24. VFDT(2) • Scales better than pure memory-based or pure disk-based learners • Access data sequentially • Use subsampling to potentially require much less than one scan • VFDT is incremental and anytime • New examples can be quickly incorporated as they arrive • A usable model is available after the first few examples and then progressively defined

  25. Experiment Results (VFDT vs. C4.5) • Compared VFDT and C4.5 (Quinlan, 1993) • Same memory limit for both (40 MB) • 100k examples for C4.5 • VFDT settings: δ= 10-7, τ= 5%, nmin=200 • Domains: 2 classes, 100 binary attributes • Fifteen synthetic trees 2.2k – 500k leaves • Noise from 0% to 30%

  26. Experiment Results Accuracy as a function of the number of training examples

  27. Experiment Results Tree size as a function of number of training examples

  28. Mining Time-Changing Data Stream • Most KDD systems, include VFDT, assume training data is a sample drawn from stationary distribution • Most large databases or data streams violate this assumption • Concept Drift: data is generated by a time-changing concept function, e.g. • Seasonal effects • Economic cycles • Goal: • Mining continuously changing data streams • Scale well

  29. Window Approach • Common Approach: when a new example arrives, reapply a traditional learner to a sliding window of w most recent examples • Sensitive to window size • If w is small relative to the concept shift rate, assure the availability of a model reflecting the current concept • Too small w may lead to insufficient examples to learn the concept • If examples arrive at a rapid rate or the concept changes quickly, the computational cost of reapplying a learner may be prohibitively high.

  30. CVFDT

  31. CVFDT • CVFDT (Concept-adapting Very Fast Decision Tree learner) • Extend VFDT • Maintain VFDT’s speed and accuracy • Detect and respond to changes in the example-generating process

  32. Observations • With a time-changing concept, the current splitting attribute of some nodes may not be the best any more. • An outdated subtree may still be better than the best single leaf, particularly if it is near the root. • Grow an alternative subtree with the new best attribute at its root, when the old attribute seems out-of-date. • Periodically use a bunch of samples to evaluate qualities of trees. • Replace the old subtree when the alternate one becomes more accurate.

  33. CVFDT algorithm • Alternate trees for each node in HT start as empty. • Process examples from the stream indefinitely. For each example (x, y), • Pass (x, y) down to a set of leaves using HT and all alternate trees of the nodes (x, y) passes through. • Add (x, y) to the sliding window of examples. • Remove and forget the effect of the oldest examples, if the sliding window overflows. • CVFDTGrow • CheckSplitValidity if f examples seen since last checking of alternate trees. • Return HT.

  34. Pass example down to leaves add example to sliding window Window overflow? Forget oldest example CVFDTGrow f examples since last checking? No Yes CheckSplitValidty CVFDT algorithm: process each example Yes No Read new example

  35. Pass example down to leaves add example to sliding window Yes Window overflow? Forget oldest example No Read new example CVFDTGrow f examples since last checking? No Yes CheckSplitValidty CVFDT algorithm: process each example

  36. CVFDTGrow • For each node reached by the example in HT, • Increment the corresponding statistics at the node. • For each alternate tree Talt of the node, • CVFDTGrow • If enough examples seen at the leaf in HT which the example reaches, • Choose the attribute that has the highest average value of the attribute evaluation measure (information gain or gini index). • If the best attribute is not the “null” attribute, create a node for each possible value of this attribute

  37. Pass example down to leaves add example to sliding window Yes Window overflow? Forget oldest example No Read new example CVFDTGrow f examples since last checking? No Yes CheckSplitValidty CVFDT algorithm: process each example

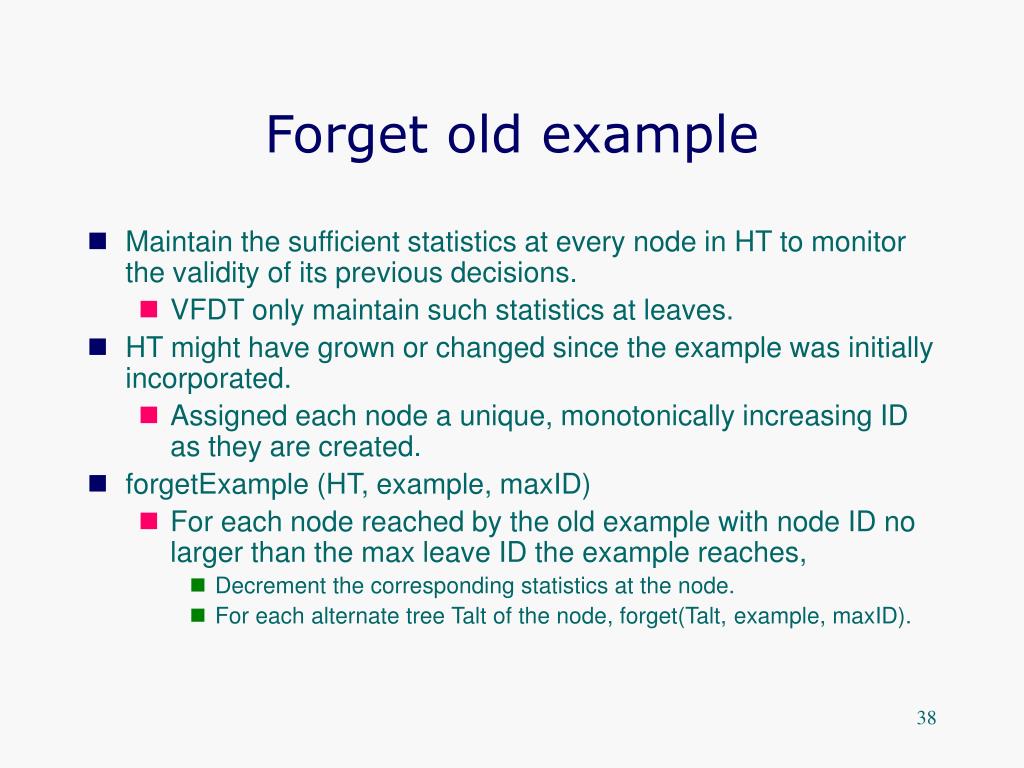

  38. Forget old example • Maintain the sufficient statistics at every node in HT to monitor the validity of its previous decisions. • VFDT only maintain such statistics at leaves. • HT might have grown or changed since the example was initially incorporated. • Assigned each node a unique, monotonically increasing ID as they are created. • forgetExample (HT, example, maxID) • For each node reached by the old example with node ID no larger than the max leave ID the example reaches, • Decrement the corresponding statistics at the node. • For each alternate tree Talt of the node, forget(Talt, example, maxID).

  39. Pass example down to leaves add example to sliding window Yes Window overflow? Forget oldest example No CVFDTGrow f examples since last checking? No Yes CheckSplitValidty CVFDT algorithm: process each example Read new example

  40. CheckSplitValidtiy • Periodically scans the internal nodes of HT. • Start a new alternate tree when a new winning attribute is found. • Tighter criteria to avoid excessive alternate tree creation. • Limit the total number of alternate trees.

  41. Age<30? Yes No Married? Car Type= Sports Car? Yes No Yes Yes No Yes No No Experience <1 year? No Yes No Yes Smoothly adjust to concept drift • Alternate trees are grown the same way HT is. • Periodically each node with non-empty alternate trees enter a testing mode. • M training examples to compare accuracy. • Prune alternate trees with non-increasing accuracy over time. • Replace if an alternate tree is more accurate.

  42. Adjust to concept drift(2) • Dynamically change the window size • Shrink the window when many nodes gets questionable or data rate changes rapidly. • Increase the window size when few nodes are questionable.

  43. Performance • Require memory O(nodes * attributes * attribute values * classes). • Independent of the total number of examples. • Running time O(Lc * attributes * attribute values * number of classes). • Lc : the longest length an example passes through * number of alternate trees. • Model learned by CVFDT vs. the one learned by VFDT-Window: • Similar in accuracy • O(1) vs. O(window size) per new example.

  44. Experiment Results • Compare CVFDT, VFDT, VFDT-Window • 5 million training examples • Concept changed at every 50k examples • Drift Level: average percentage of the test points that changes label at each concept change. • About 8% of test points change label each drift • 100,000 examples in window • 5% noise • Test the model every 10k examples throughout the run, averaged these results.

  45. drift level Experiment Results (CVFDT vs. VFDT) Error rate as a function of number of attributes

  46. Experiment Results (CVFDT vs. VFDT) Tree size as a function of number of attributes

  47. Portion of data set that is labelled -ve Experiment Results (CVFDT vs. VFDT) Error rates of learners as a function of the number of examples seen

  48. Experiment Results (CVFDT vs. VFDT) Error rates as a function of the amount of concept drift

  49. Experiment Results CVFDT’s drift characteristics

  50. Stimulated by running VFDT on W for every 100K examples instead of every example Experiment Results (CVFDT vs. VFDT vs. VFDT-window) Error Rate: • VFDT: 19.4% • CVFDT: 16.3% • VFDT-Window: 15.3% Running Time: • VFDT: 10 minutes • CVFDT: 46 minutes • VFDT-Window: expect 548 days Error rates over time of CVFDT, VFDT, and VFDT-window
