  1. ImAPRSD Inertial Measurement Unit

  2. Team Members (492): Matt Clausman Jesse Griggs Christina McCourt Andy Schulte Shobhit Vaish Project Advisor: Dr. Basart Client: Matt Nelson Team Members (491): Matt Ulrich Luis Garcia Amardeep Jawandha Julian Currie

  3. Project Description Our overall goal is to develop a product that accurately detects movement of the ImAP system. It will measure and record six degrees of movement. The entire ImAP system will be used to collect crop health data.

  4. Problem Statement Currently, the ImAP system does not have a way to store the all the information of it’s movements over long period of time. This data would be extremely useful for post-flight analysis.

  5. System Description The image capturing system will be mounted as a payload attached to a high-altitude weather balloon. This system will be developed to capture images at predetermined waypoints. There is a GPS receiver, a transmitter with a modulator that sends the GPS coordinates to the ground station, an onboard computer for controlling the flight, the horizon detection system, and a camera system that is on a gimbaled platform. After the images are collected, image analysis software is used to extract the image intensities, and make geometric corrections. The final images will be transferred to the plant pathology team who will interpret the images. Data acquired using on-board orientation, light, humidity, pressure, and temperature sensors will be used to better understand atmospheric conditions during the flight

  6. Concept Sketch

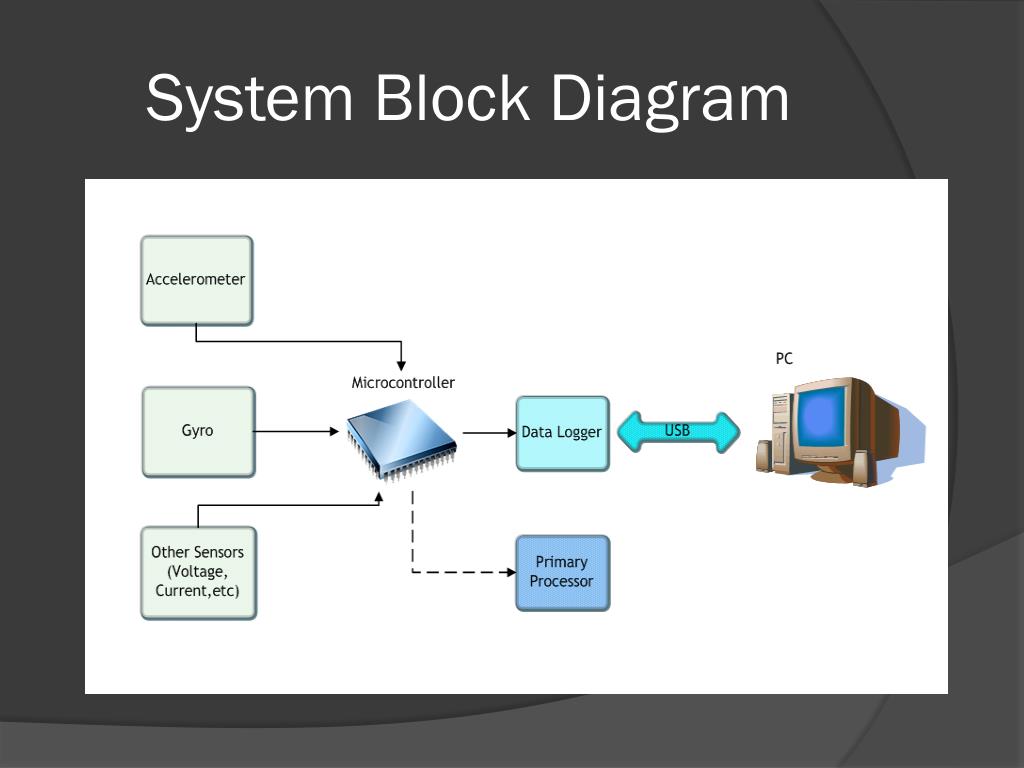

  7. System Block Diagram

  8. User Interface Description The user will launch the ImAP system into the air where it will be anchored to the ground. At that point, the system will be behave independently of the user. After flight, the user can connect the IMU system to a computer and view data via a USB connection.

  9. Functional Requirements • FR01: IMU shall measure balloon oscillation frequency and angular rotation rate to one degree per second. •  FR02: IMU shall measure to 0.01g for each of the three principle axes. • FR03: Data logging system shall be able to log at a 100 Hz rate with 10 bit or greater precision.  • FR04: IMU shall receive power from a 11.1 V nominal lithium-ion battery • FR05: IMU shall function for a minimum of 2 hours using a 4 Amp-hour battery pack • FR06: IMU shall operate over a temperature range of -40˚ C to +85˚ C

  10. Non-Functional Requirements • Microcontroller may monitor current and voltage levels during flight

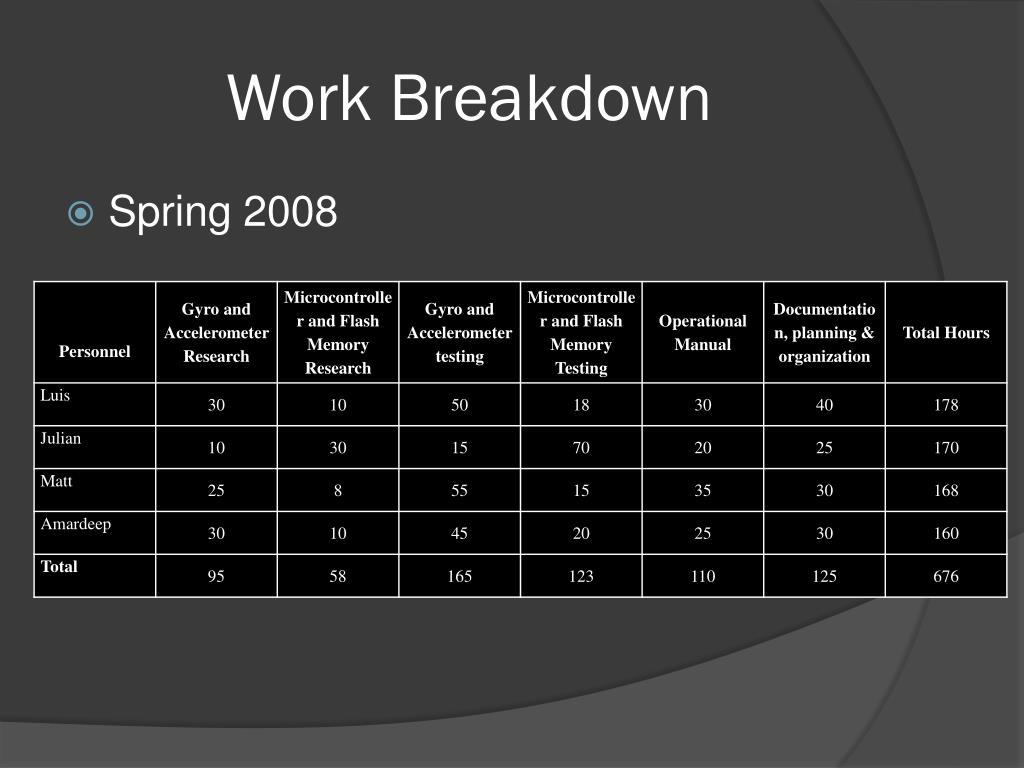

  11. Work Breakdown • Spring 2008

  12. Work Breakdown • Fall 2008

  13. Budget • Spring 2008 • Fall 2008

  14. Spring 2008 Schedule

  15. Fall 2008 Schedule
