  1. Beltana Development

  2. Beltana Overview • Process Control • Continuous Improvement • Summary

  3. Beltana MG1 to 4

  4. Beltana • Located near Singleton. • Started in December 2001. • Set up as Individual Business Units.

  5. Beltana • Total of 21 Million tonnes mined to date. • Total of 70 km of roadway driveage to date.

  6. Beltana Development • Drive 3.0m x 5.4m roadways. • Install 4 x 1.8m roof bolts with mesh @ 1.5m spacings. • Install 2 x 1.2m rib bolts per 1.5m and once depth of cover exceeds 175m 4 x 1.2m rib bolts per 1.5m.

  7. Equipment Used • Single Miner Unit with: • 1 x 12cm12. • 2 x 10SC32 Shuttle cars 16 tonne pay load. • Stamler Breaker Feeder. (1700tph)

  8. Process Control • Beltana is set up as 3 Business Units that stand alone and are aligned to a process. • Development • Longwall • Services

  9. Organizational Chart

  10. DevelopmentLeadership

  11. Process Control • Development team responsible for everything.. • People • Production / Maintenance Strategies • Materials / Spares • Process Improvement • Short term plan • Costs • Rebuilds • Budgets • The Process is not Operations and not Engineering it is Development.

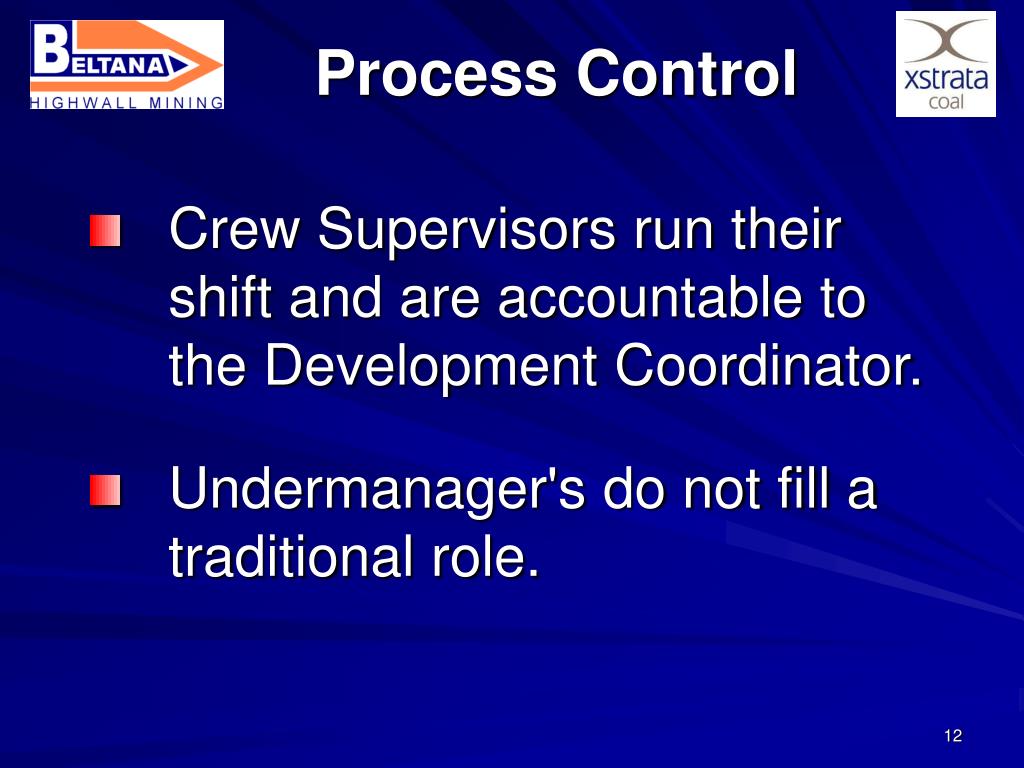

  12. Process Control • Crew Supervisors run their shift and are accountable to the Development Coordinator. • Undermanager's do not fill a traditional role.

  13. Crew Leadership

  14. Process Control • Crew Supervisor’s have 12 men in their crew. • One being a Maintenance Supervisor.

  15. Process Control • Crew’s are responsible and accountable for everything inbye the portal. • Contractors are used for roads and stoppings only.

  16. Process Control • Beltana prides itself for sustainability. • If a key person is out of the system then the process is sustainable. • This is achieved by growing from within.

  17. Continuous Improvement • This is both formal and informal but is looked at as a part of the culture. • You can’t manage what you don’t measure. • This is achieved by planning involving the people, implementing, measuring,reviewing and re-measure.

  18. Continuous Improvement • Shift Start meetings. • Shift reviews. • Weekly Plan / Reviews.

  19. Continuous Improvement • Panel Reviews. • Supervisors meetings. • Hazard / Improvement Process. • Panel Standards / Audits.

  20. Continuous Improvement • Beltana went from 4 to 7 Million tonnes per year. • Development had to develop a process which could maintain a 7 million tonne Longwall. • The following evolved.

  21. 70m 30m Continuous Improvement • 70/30m System Single Miner Unit (12CM30) 4m/hr system.

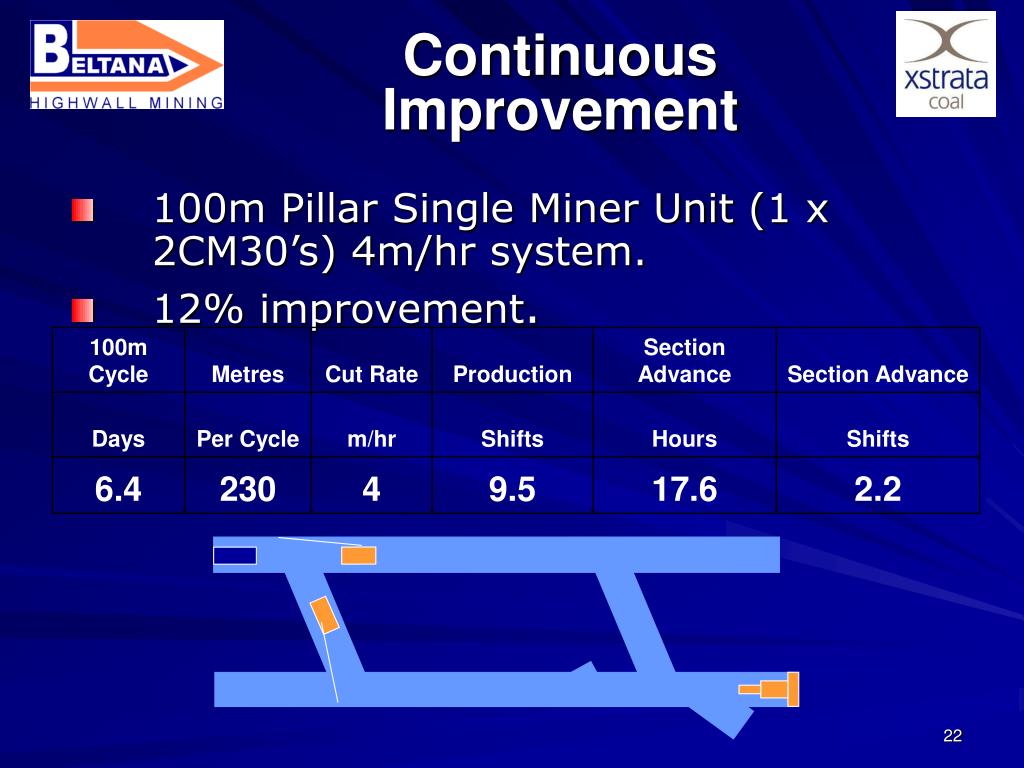

  22. Continuous Improvement • 100m Pillar Single Miner Unit (1 x 2CM30’s) 4m/hr system. • 12% improvement.

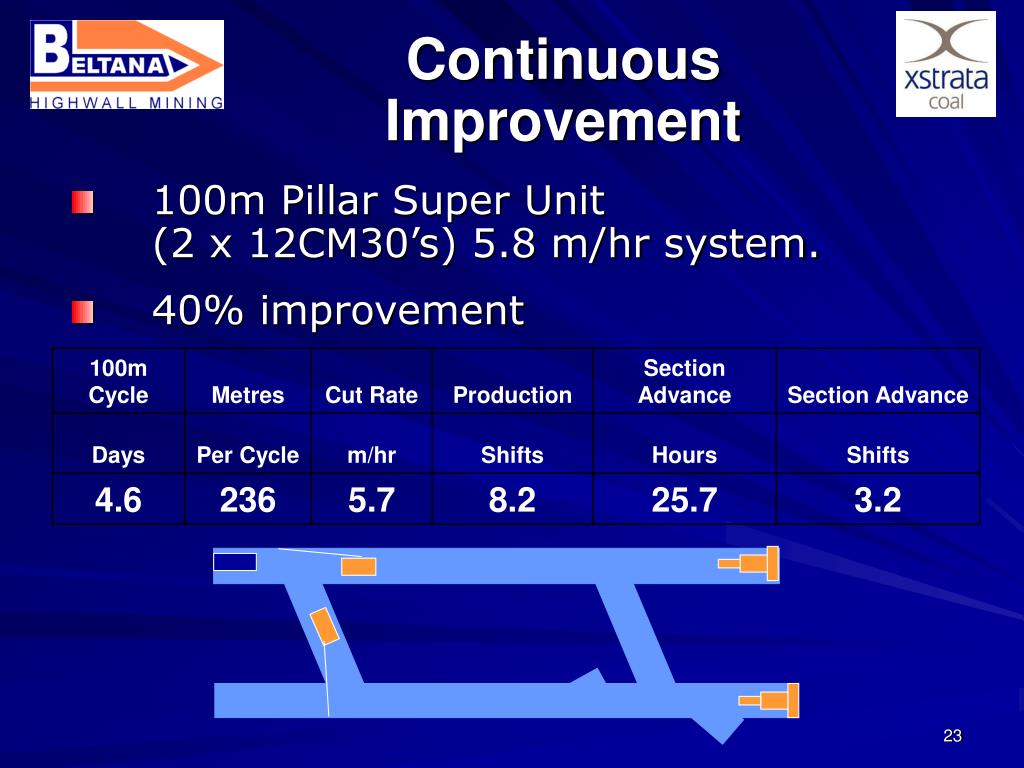

  23. Continuous Improvement • 100m Pillar Super Unit(2 x 12CM30’s) 5.8 m/hr system. • 40% improvement

  24. Continuous Improvement • 100m Pillar Single Miner Unit(1 x 12CM12) 6.5m/hr system. • 24 % improvement. • Total Process Improvement 95%

  25. Continuous Improvement • People and the machines are the success to our process. • Due to the fact that people were involved, they selected and then owned the machines and the process.

  26. Continuous Improvement • Ergonomics was a major consideration in our machine selection process. • The following slides show the final result.

  27. 12CM12

  28. Ergonomics

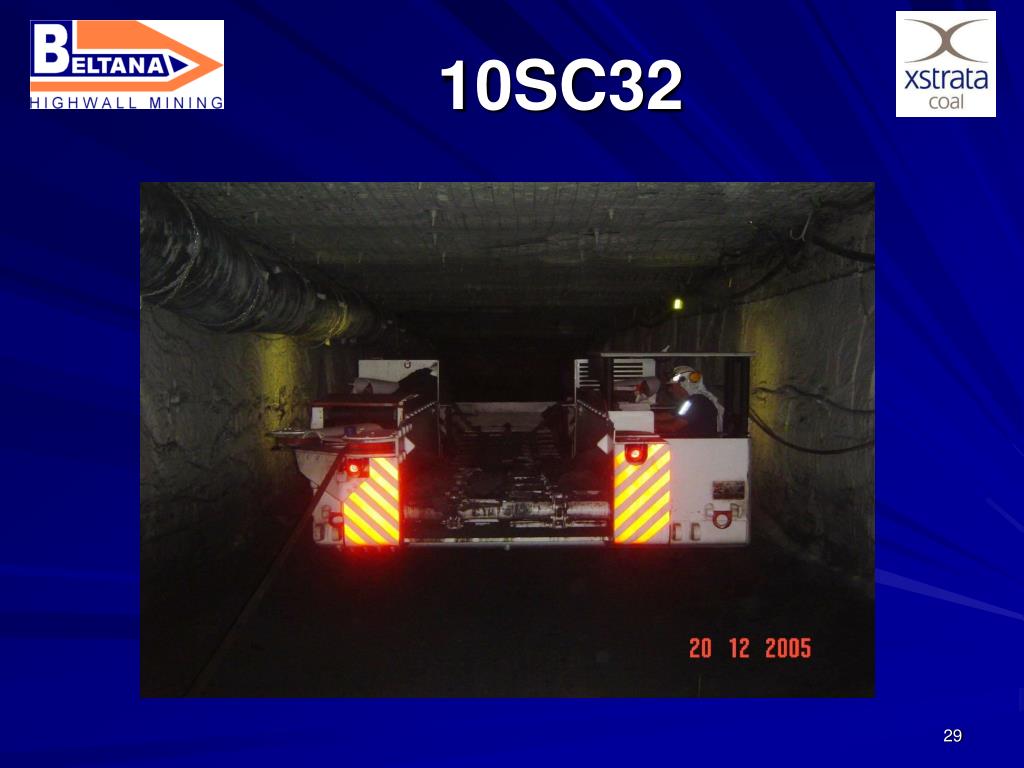

  29. 10SC32

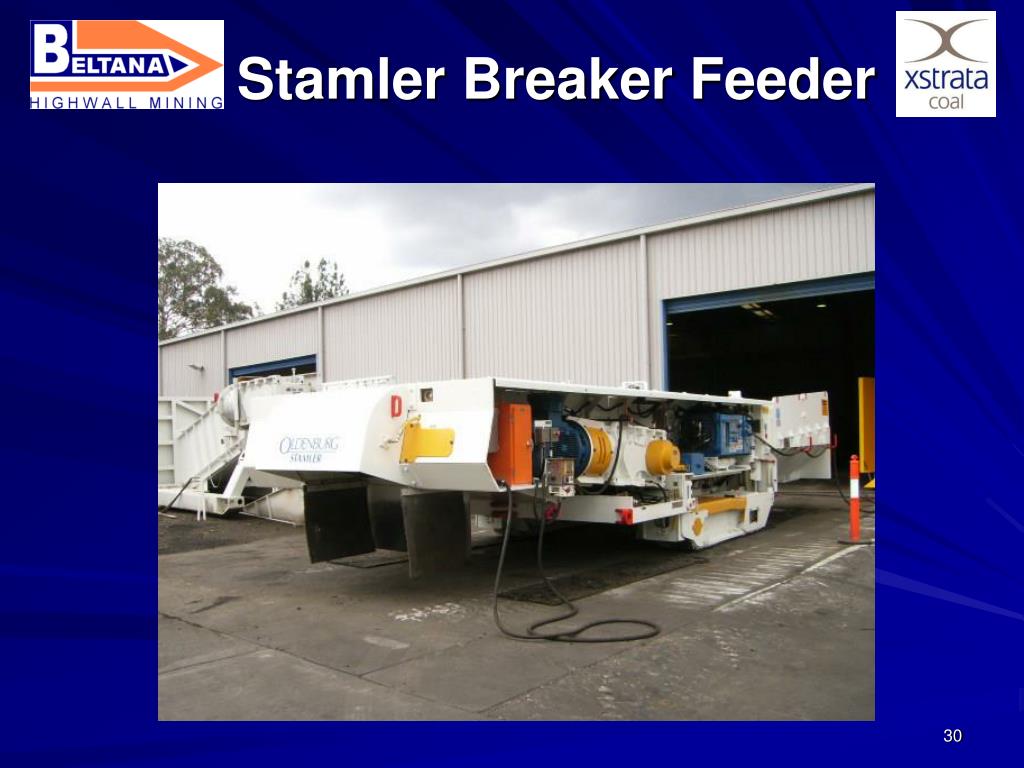

  30. Stamler Breaker Feeder

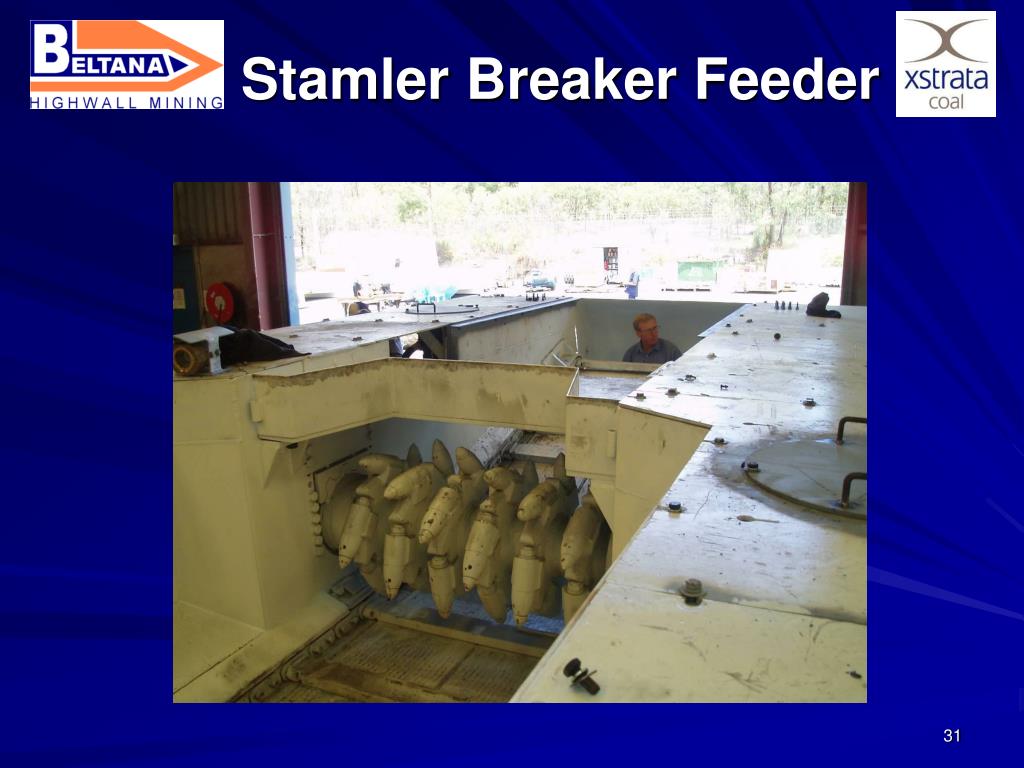

  31. Stamler Breaker Feeder

  32. Summary • Our People are our No.1. asset. • We Control the whole Process. • We are committed to detailed Planning.

  33. Summary • The Process is owned by all stakeholders. • We strive for very high Standards. • High = Safe + ProductiveStandards Place Place

  34. Beltana Single Miner Unit Maintenance 0 Pipe Extension Retics / DCB Section Advance
