Adding NaOH to HCHO 2

added 30.0 mL NaOH 0.00050 mol NaOH xs pH = 11.96. added 35.0 mL NaOH 0.00100 mol NaOH xs pH = 12.22. initial HCHO 2 solution 0.00250 mol HCHO 2 pH = 2.37. added 5.0 mL NaOH 0.00200 mol HCHO 2 pH = 3.14. added 10.0 mL NaOH 0.00150 mol HCHO 2 pH = 3.56. added 25.0 mL NaOH

miles
Download Presentation

Adding NaOH to HCHO 2

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. added 30.0 mL NaOH 0.00050 mol NaOH xs pH = 11.96 added 35.0 mL NaOH 0.00100 mol NaOH xs pH = 12.22 initial HCHO2 solution 0.00250 mol HCHO2 pH = 2.37 added 5.0 mL NaOH 0.00200 mol HCHO2 pH = 3.14 added 10.0 mL NaOH 0.00150 mol HCHO2 pH = 3.56 added 25.0 mL NaOH equivalence point 0.00250 mol CHO2− [CHO2−]init = 0.0500 M [OH−]eq = 1.7 x 10-6 pH = 8.23 Adding NaOH to HCHO2 added 12.5 mL NaOH 0.00125 mol HCHO2 pH = 3.74 = pKa half-neutralization added 40.0 mL NaOH 0.00150 mol NaOH xs pH = 12.36 added 15.0 mL NaOH 0.00100 mol HCHO2 pH = 3.92 added 50.0 mL NaOH 0.00250 mol NaOH xs pH = 12.52 added 20.0 mL NaOH 0.00050 mol HCHO2 pH = 4.34 Tro, Chemistry: A Molecular Approach

  2. Titrating Weak Acid with a Strong Base • the initial pH is that of the weak acid solution • calculate like a weak acid equilibrium problem • e.g., 15.5 and 15.6 • before the equivalence point, the solution becomes a buffer • calculate mol HAinit and mol A−init using reaction stoichiometry • calculate pH with Henderson-Hasselbalch using mol HAinit and mol A−init • half-neutralization pH = pKa Tro, Chemistry: A Molecular Approach

  3. Titrating Weak Acid with a Strong Base • at the equivalence point, the mole HA = mol Base, so the resulting solution has only the conjugate base anion in it before equilibrium is established • mol A− = original mole HA • calculate the volume of added base like Ex 4.8 • [A−]init = mol A−/total liters • calculate like a weak base equilibrium problem • e.g., 15.14 • beyond equivalence point, the OH is in excess • [OH−] = mol MOH xs/total liters • [H3O+][OH−]=1 x 10-14 Tro, Chemistry: A Molecular Approach

  4. Ex 16.7a – A 40.0 mL sample of 0.100 M HNO2 is titrated with 0.200 M KOH. Calculate the volume of KOH at the equivalence point HNO2 + KOH  NO2 + H2O Tro, Chemistry: A Molecular Approach

  5. Ex 16.7b – A 40.0 mL sample of 0.100 M HNO2 is titrated with 0.200 M KOH. Calculate the pH after adding 5.00 mL KOH HNO2 + KOH  NO2 + H2O 0.00100 0.00300 Tro, Chemistry: A Molecular Approach

  6. Ex 16.7b – A 40.0 mL sample of 0.100 M HNO2 is titrated with 0.200 M KOH. Calculate the pH after adding 5.00 mL KOH. HNO2 + H2O  NO2 + H3O+ Table 15.5 Ka = 4.6 x 10-4 Tro, Chemistry: A Molecular Approach

  7. Ex 16.7b – A 40.0 mL sample of 0.100 M HNO2 is titrated with 0.200 M KOH. Calculate the pH at the half-equivalence point HNO2 + KOH  NO2 + H2O at half-equivalence, moles KOH = ½ mole HNO2 0.00200 0.00200 Tro, Chemistry: A Molecular Approach

  8. Ex 16.7b – A 40.0 mL sample of 0.100 M HNO2 is titrated with 0.200 M KOH. Calculate the pH at the half-equivalence point. HNO2 + H2O  NO2 + H3O+ Table 15.5 Ka = 4.6 x 10-4 Tro, Chemistry: A Molecular Approach

  9. Titration Curve of a Weak Base with a Strong Acid Tro, Chemistry: A Molecular Approach

  10. Titration of a Polyprotic Acid • if Ka1 >> Ka2, there will be two equivalence points in the titration • the closer the Ka’s are to each other, the less distinguishable the equivalence points are titration of 25.0 mL of 0.100 M H2SO3 with 0.100 M NaOH Tro, Chemistry: A Molecular Approach

  11. Monitoring pH During a Titration • the general method for monitoring the pH during the course of a titration is to measure the conductivity of the solution due to the [H3O+] • using a probe that specifically measures just H3O+ • the endpoint of the titration is reached at the equivalence point in the titration – at the inflection point of the titration curve • if you just need to know the amount of titrant added to reach the endpoint, we often monitor the titration with anindicator Tro, Chemistry: A Molecular Approach

  12. Monitoring pH During a Titration Tro, Chemistry: A Molecular Approach

  13. Indicators • many dyes change color depending on the pH of the solution • these dyes are weak acids, establishing an equilibrium with the H2O and H3O+ in the solution HInd(aq) + H2O(l) Ind(aq) + H3O+(aq) • the color of the solution depends on the relative concentrations of Ind:HInd • when Ind:HInd ≈ 1, the color will be mix of the colors of Ind and HInd • when Ind:HInd > 10, the color will be mix of the colors of Ind • when Ind:HInd < 0.1, the color will be mix of the colors of HInd Tro, Chemistry: A Molecular Approach

  14. Phenolphthalein

  15. Methyl Red Tro, Chemistry: A Molecular Approach

  16. Monitoring a Titration with an Indicator • for most titrations, the titration curve shows a very large change in pH for very small additions of base near the equivalence point • an indicator can therefore be used to determine the endpoint of the titration if it changes color within the same range as the rapid change in pH • pKa of HInd ≈ pH at equivalence point Tro, Chemistry: A Molecular Approach

  17. Acid-Base Indicators

  18. Solubility Equilibria • all ionic compounds dissolve in water to some degree • however, many compounds have such low solubility in water that we classify them as insoluble • we can apply the concepts of equilibrium to salts dissolving, and use the equilibrium constant for the process to measure relative solubilities in water Tro, Chemistry: A Molecular Approach

  19. Solubility Product • the equilibrium constant for the dissociation of a solid salt into its aqueous ions is called the solubility product, Ksp • for an ionic solid MnXm, the dissociation reaction is: MnXm(s)  nMm+(aq) + mXn−(aq) • the solubility product would be Ksp = [Mm+]n[Xn−]m • for example, the dissociation reaction for PbCl2 is PbCl2(s)  Pb2+(aq) + 2 Cl−(aq) • and its equilibrium constant is Ksp = [Pb2+][Cl−]2 Tro, Chemistry: A Molecular Approach

  20. Tro, Chemistry: A Molecular Approach

  21. Molar Solubility • solubility is the amount of solute that will dissolve in a given amount of solution • at a particular temperature • the molar solubility is the number of moles of solute that will dissolve in a liter of solution • the molarity of the dissolved solute in a saturated solution • for the general reaction MnXm(s)  nMm+(aq) + mXn−(aq) Tro, Chemistry: A Molecular Approach

  22. Ex 16.8 – Calculate the molar solubility of PbCl2 in pure water at 25C PbCl2(s)  Pb2+(aq) + 2 Cl−(aq) Ksp = [Pb2+][Cl−]2 Tro, Chemistry: A Molecular Approach

  23. Ex 16.8 – Calculate the molar solubility of PbCl2 in pure water at 25C Ksp = [Pb2+][Cl−]2 Ksp = (S)(2S)2 Tro, Chemistry: A Molecular Approach

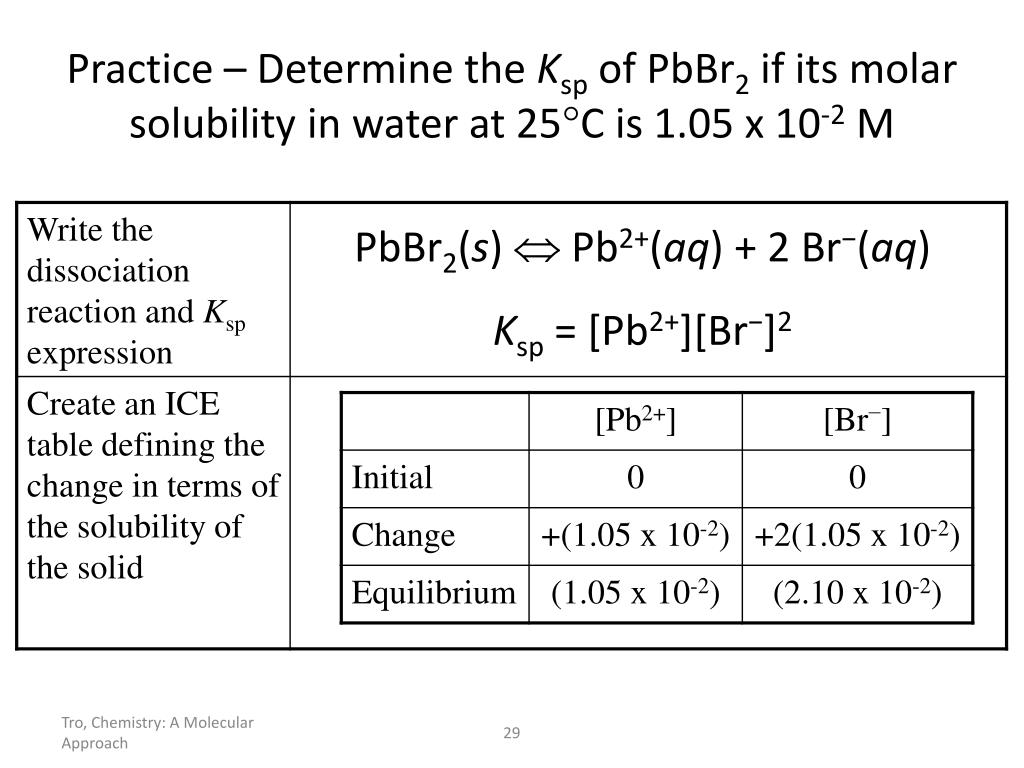

  24. Practice – Determine the Ksp of PbBr2 if its molar solubility in water at 25C is 1.05 x 10-2 M Tro, Chemistry: A Molecular Approach

  25. Practice – Determine the Ksp of PbBr2 if its molar solubility in water at 25C is 1.05 x 10-2 M PbBr2(s)  Pb2+(aq) + 2 Br−(aq) Ksp = [Pb2+][Br−]2 Tro, Chemistry: A Molecular Approach

  26. Practice – Determine the Ksp of PbBr2 if its molar solubility in water at 25C is 1.05 x 10-2 M Ksp = [Pb2+][Br−]2 Ksp = (1.05 x 10-2)(2.10 x 10-2)2 Tro, Chemistry: A Molecular Approach

  27. Ksp and Relative Solubility • molar solubility is related to Ksp • but you cannot always compare solubilities of compounds by comparing their Ksps • in order to compare Ksps, the compounds must have the same dissociation stoichiometry Tro, Chemistry: A Molecular Approach

  28. The Effect of Common Ion on Solubility • addition of a soluble salt that contains one of the ions of the “insoluble” salt, decreases the solubility of the “insoluble” salt • for example, addition of NaCl to the solubility equilibrium of solid PbCl2 decreases the solubility of PbCl2 PbCl2(s)  Pb2+(aq) + 2 Cl−(aq) addition of Cl− shifts the equilibrium to the left Tro, Chemistry: A Molecular Approach

  29. Ex 16.10 – Calculate the molar solubility of CaF2 in 0.100 M NaF at 25C CaF2(s)  Ca2+(aq) + 2 F−(aq) Ksp = [Ca2+][F−]2 Tro, Chemistry: A Molecular Approach

  30. Ex 16.10 – Calculate the molar solubility of CaF2 in 0.100 M NaF at 25C Ksp = [Ca2+][F−]2 Ksp = (S)(0.100 + 2S)2 Ksp = (S)(0.100)2 Tro, Chemistry: A Molecular Approach

  31. The Effect of pH on Solubility • for insoluble ionic hydroxides, the higher the pH, the lower the solubility of the ionic hydroxide • and the lower the pH, the higher the solubility • higher pH = increased [OH−] M(OH)n(s)  Mn+(aq) + nOH−(aq) • for insoluble ionic compounds that contain anions of weak acids, the lower the pH, the higher the solubility M2(CO3)n(s)  2 Mn+(aq) + nCO32−(aq) H3O+(aq) + CO32− (aq)  HCO3− (aq) + H2O(l) Tro, Chemistry: A Molecular Approach

  32. Precipitation • precipitation will occur when the concentrations of the ions exceed the solubility of the ionic compound • if we compare the reaction quotient, Q, for the current solution concentrations to the value of Ksp, we can determine if precipitation will occur • Q = Ksp, the solution is saturated, no precipitation • Q < Ksp, the solution is unsaturated, no precipitation • Q > Ksp, the solution would be above saturation, the salt above saturation will precipitate • some solutions with Q > Ksp will not precipitate unless disturbed – these are called supersaturatedsolutions Tro, Chemistry: A Molecular Approach

  33. a supersaturated solution will precipitate if a seed crystal is added precipitation occurs if Q > Ksp Tro, Chemistry: A Molecular Approach

  34. Selective Precipitation • a solution containing several different cations can often be separated by addition of a reagent that will form an insoluble salt with one of the ions, but not the others • a successful reagent can precipitate with more than one of the cations, as long as their Ksp values are significantly different Tro, Chemistry: A Molecular Approach

  35. Ex 16.13 What is the minimum [OH−] necessary to just begin to precipitate Mg2+ (with [0.059]) from seawater? precipitating may just occur when Q = Ksp Tro, Chemistry: A Molecular Approach

  36. Ex 16.14 What is the [Mg2+] when Ca2+ (with [0.011]) just begins to precipitate from seawater? precipitating Mg2+ begins when [OH−] = 1.9 x 10-6 M Tro, Chemistry: A Molecular Approach

  37. Ex 16.14 What is the [Mg2+] when Ca2+ (with [0.011]) just begins to precipitate from seawater? precipitating Mg2+ begins when [OH−] = 1.9 x 10-6 M precipitating Ca2+ begins when [OH−] = 2.06 x 10-2 M when Ca2+ just begins to precipitate out, the [Mg2+] has dropped from 0.059 M to 4.8 x 10-10 M Tro, Chemistry: A Molecular Approach

  38. Qualitative Analysis • an analytical scheme that utilizes selective precipitation to identify the ions present in a solution is called a qualitative analysisscheme • wet chemistry • a sample containing several ions is subjected to the addition of several precipitating agents • addition of each reagent causes one of the ions present to precipitate out Tro, Chemistry: A Molecular Approach

  39. Qualitative Analysis Tro, Chemistry: A Molecular Approach

  40. Group 1 • group one cations are Ag+, Pb2+, and Hg22+ • all these cations form compounds with Cl− that are insoluble in water • as long as the concentration is large enough • PbCl2 may be borderline • molar solubility of PbCl2 = 1.43 x 10-2 M • precipitated by the addition of HCl Tro, Chemistry: A Molecular Approach

  41. Group 2 • group two cations are Cd2+, Cu2+, Bi3+, Sn4+, As3+, Pb2+, Sb3+, and Hg2+ • all these cations form compounds with HS− and S2− that are insoluble in water at low pH • precipitated by the addition of H2S in HCl

  42. Group 3 • group three cations are Fe2+, Co2+, Zn2+, Mn2+, Ni2+ precipitated as sulfides; as well as Cr3+, Fe3+, and Al3+ precipitated as hydroxides • all these cations form compounds with S2− that are insoluble in water at high pH • precipitated by the addition of H2S in NaOH

  43. Group 4 • group four cations are Mg2+, Ca2+, Ba2+ • all these cations form compounds with PO43− that are insoluble in water at high pH • precipitated by the addition of (NH4)2HPO4 Tro, Chemistry: A Molecular Approach

  44. Group 5 • group five cations are Na+, K+, NH4+ • all these cations form compounds that are soluble in water – they do not precipitate • identified by the color of their flame

  45. Complex Ion Formation • transition metals tend to be good Lewis acids • they often bond to one or more H2O molecules to form a hydrated ion • H2O is the Lewis base, donating electron pairs to form coordinate covalent bonds Ag+(aq) + 2 H2O(l)  Ag(H2O)2+(aq) • ions that form by combining a cation with several anions or neutral molecules are called complex ions • e.g., Ag(H2O)2+ • the attached ions or molecules are called ligands • e.g., H2O Tro, Chemistry: A Molecular Approach

  46. Complex Ion Equilibria • if a ligand is added to a solution that forms a stronger bond than the current ligand, it will replace the current ligand Ag(H2O)2+(aq) + 2 NH3(aq) Ag(NH3)2+(aq) + 2 H2O(l) • generally H2O is not included, since its complex ion is always present in aqueous solution Ag+(aq) + 2 NH3(aq) Ag(NH3)2+(aq) Tro, Chemistry: A Molecular Approach

  47. Formation Constant • the reaction between an ion and ligands to form a complex ion is called a complex ionformation reaction Ag+(aq) + 2 NH3(aq) Ag(NH3)2+(aq) • the equilibrium constant for the formation reaction is called the formation constant, Kf Tro, Chemistry: A Molecular Approach

  48. Formation Constants Tro, Chemistry: A Molecular Approach

  49. Ex 16.15 – 200.0 mL of 1.5 x 10-3 M Cu(NO3)2 is mixed with 250.0 mL of 0.20 M NH3. What is the [Cu2+] at equilibrium? Cu2+(aq) + 4 NH3(aq)  Cu(NH3)22+(aq) Tro, Chemistry: A Molecular Approach
