VPN and NAT

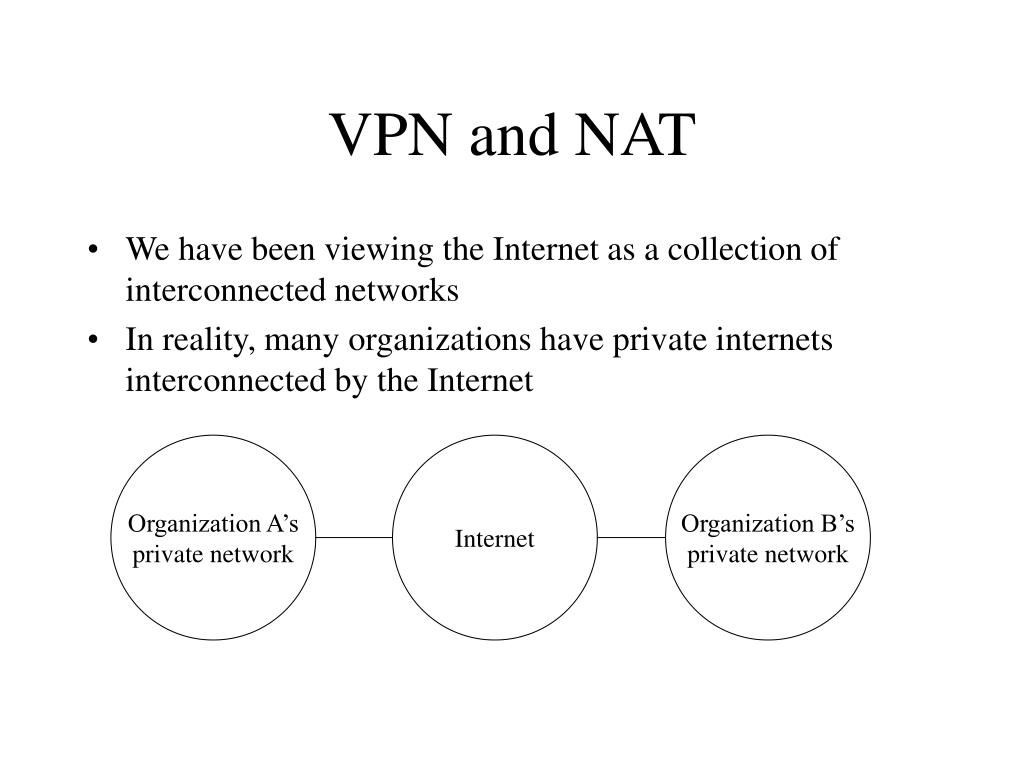

1. Organization A’s private network Organization B’s private network Internet VPN and NAT • We have been viewing the Internet as a collection of interconnected networks • In reality, many organizations have private internets interconnected by the Internet

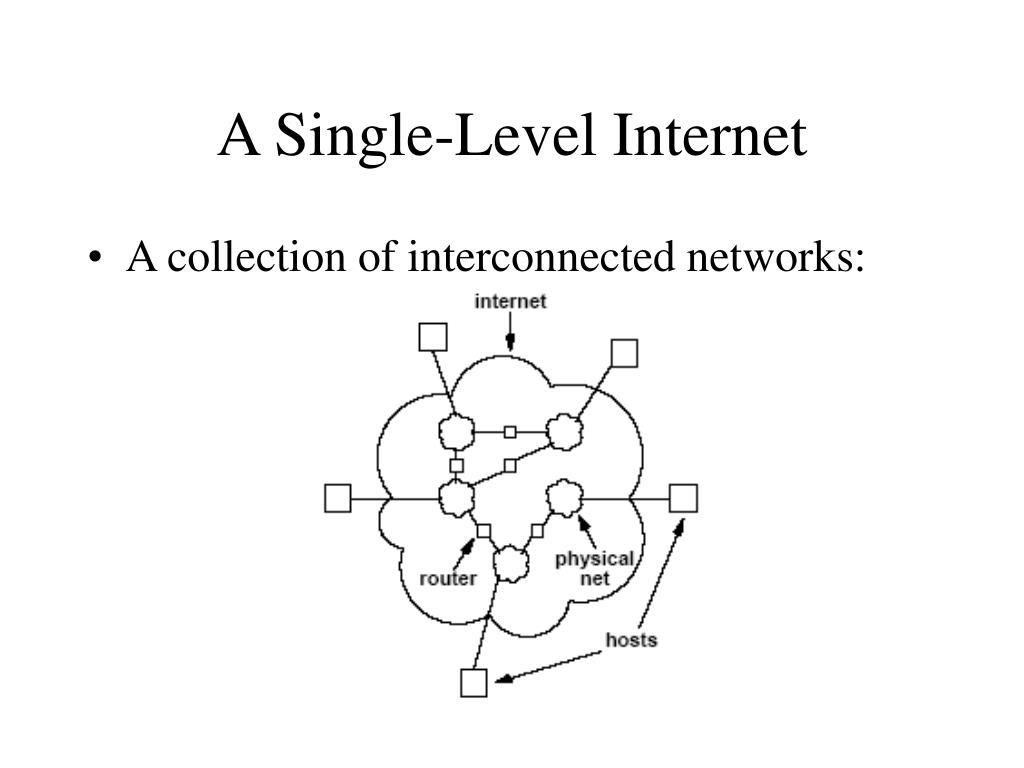

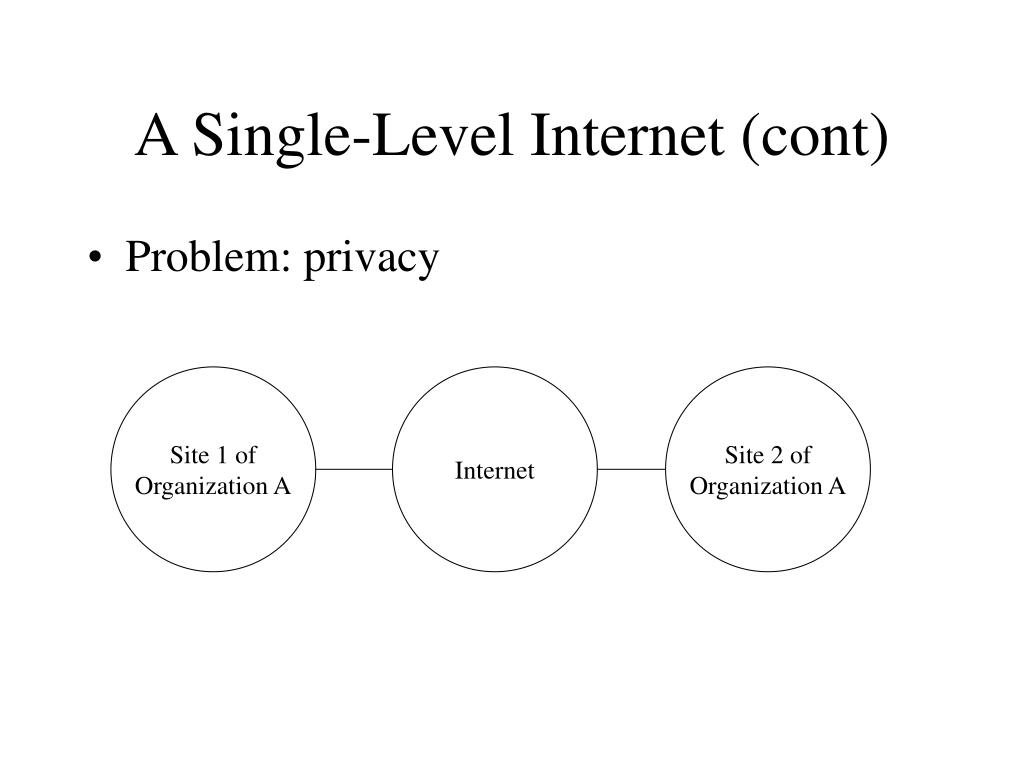

2. A Single-Level Internet • A collection of interconnected networks:

3. Site 1 of Organization A Site 2 of Organization A Internet A Single-Level Internet (cont) • Problem: privacy

4. Organization A’s private network Internet Solution #1 • A private network – an isolated TCP/IP internet separate from the Internet • Can use arbitrary IP addresses (usually private IPs)

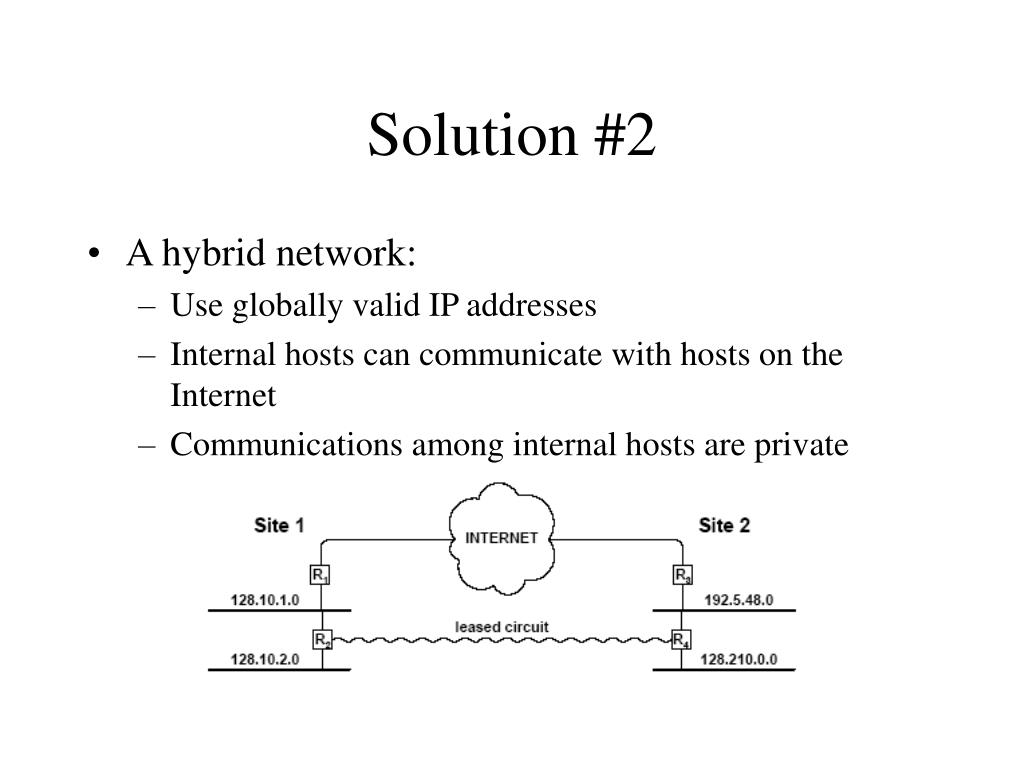

5. Solution #2 • A hybrid network: • Use globally valid IP addresses • Internal hosts can communicate with hosts on the Internet • Communications among internal hosts are private

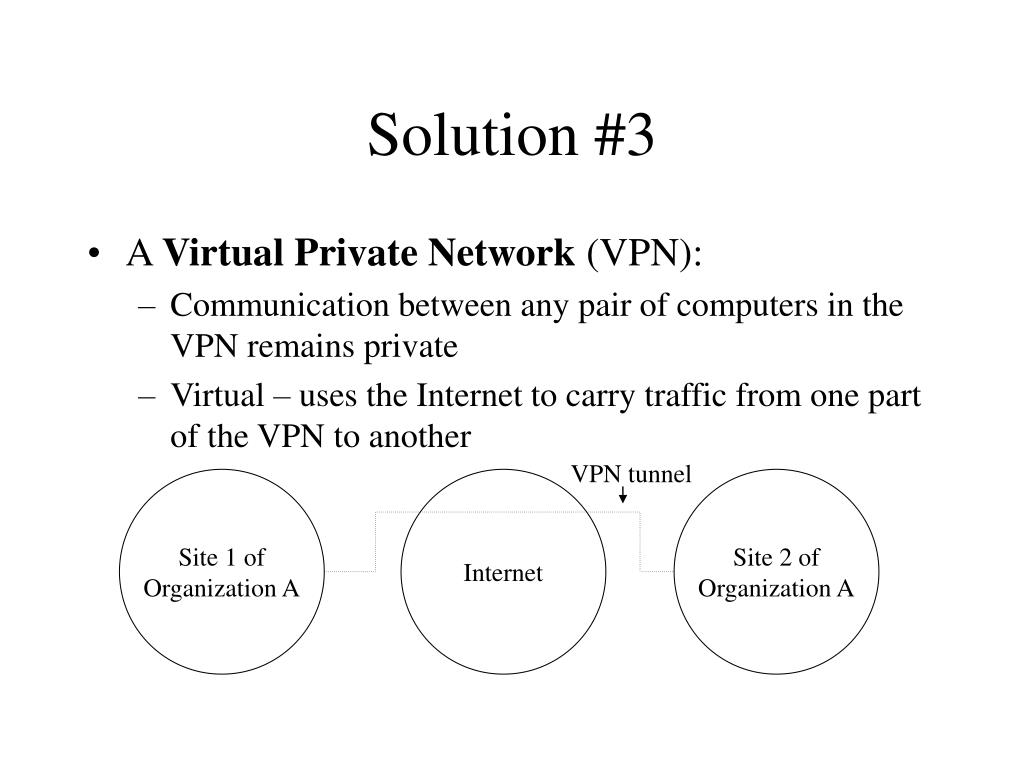

6. Site 1 of Organization A Site 2 of Organization A Internet Solution #3 • A Virtual Private Network (VPN): • Communication between any pair of computers in the VPN remains private • Virtual – uses the Internet to carry traffic from one part of the VPN to another VPN tunnel

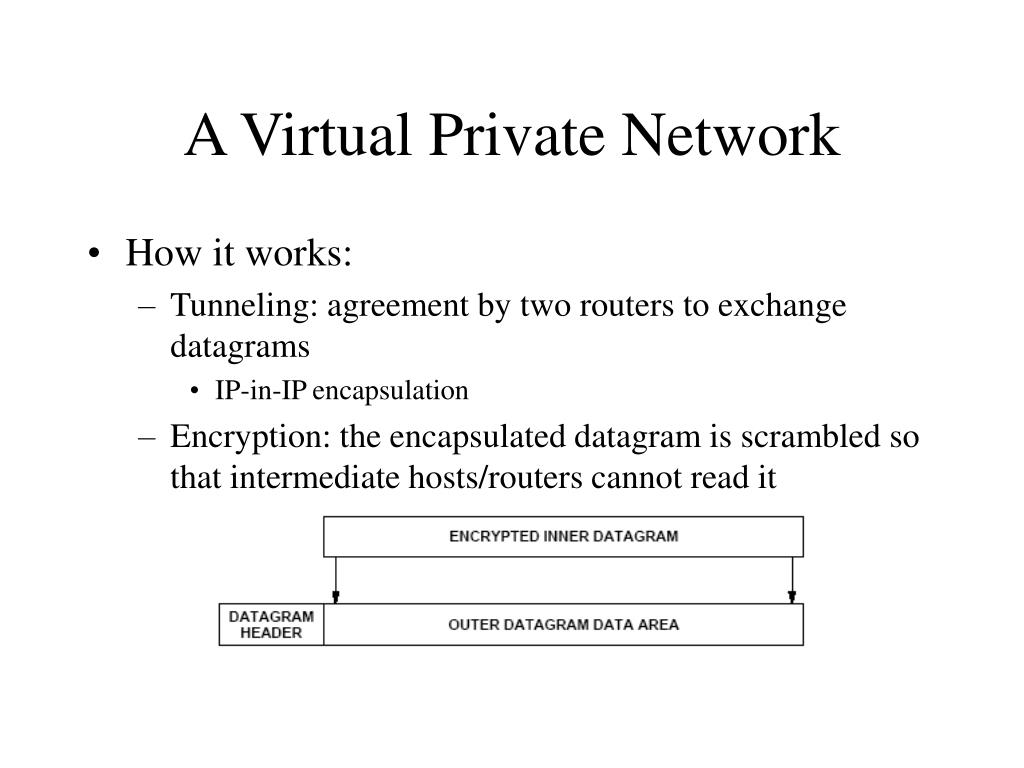

7. A Virtual Private Network • How it works: • Tunneling: agreement by two routers to exchange datagrams • IP-in-IP encapsulation • Encryption: the encapsulated datagram is scrambled so that intermediate hosts/routers cannot read it

8. VPN – Addressing and Routing • A hybrid network • The VPN tunnel replaces the leased circuit

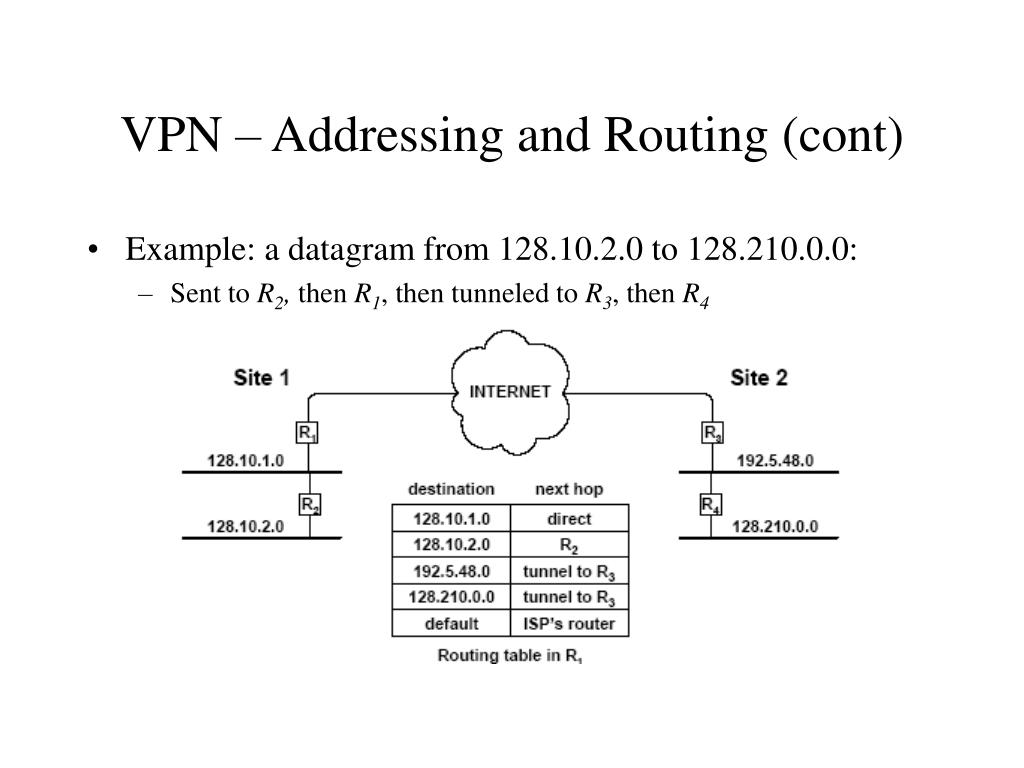

9. VPN – Addressing and Routing (cont) • Example: a datagram from 128.10.2.0 to 128.210.0.0: • Sent to R2, then R1, then tunneled to R3, then R4

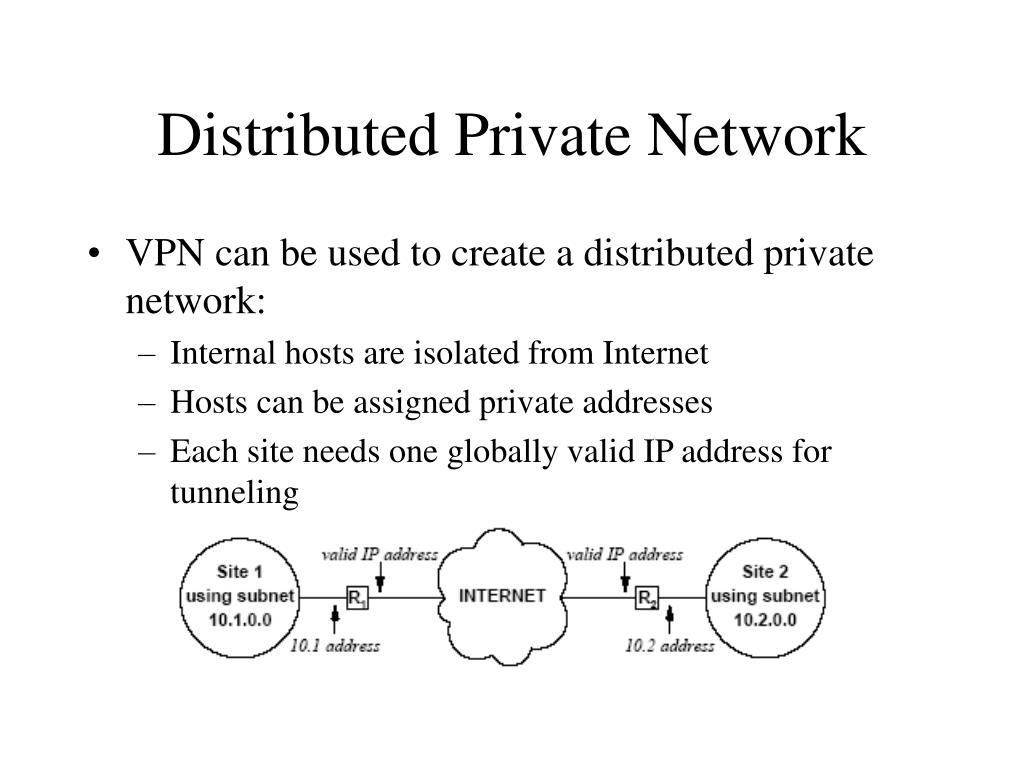

10. Distributed Private Network • VPN can be used to create a distributed private network: • Internal hosts are isolated from Internet • Hosts can be assigned private addresses • Each site needs one globally valid IP address for tunneling

11. Distributed Hybrid Network • Internal hosts can communicate with hosts on the Internet • Communications among internal hosts are private • How to make it work?

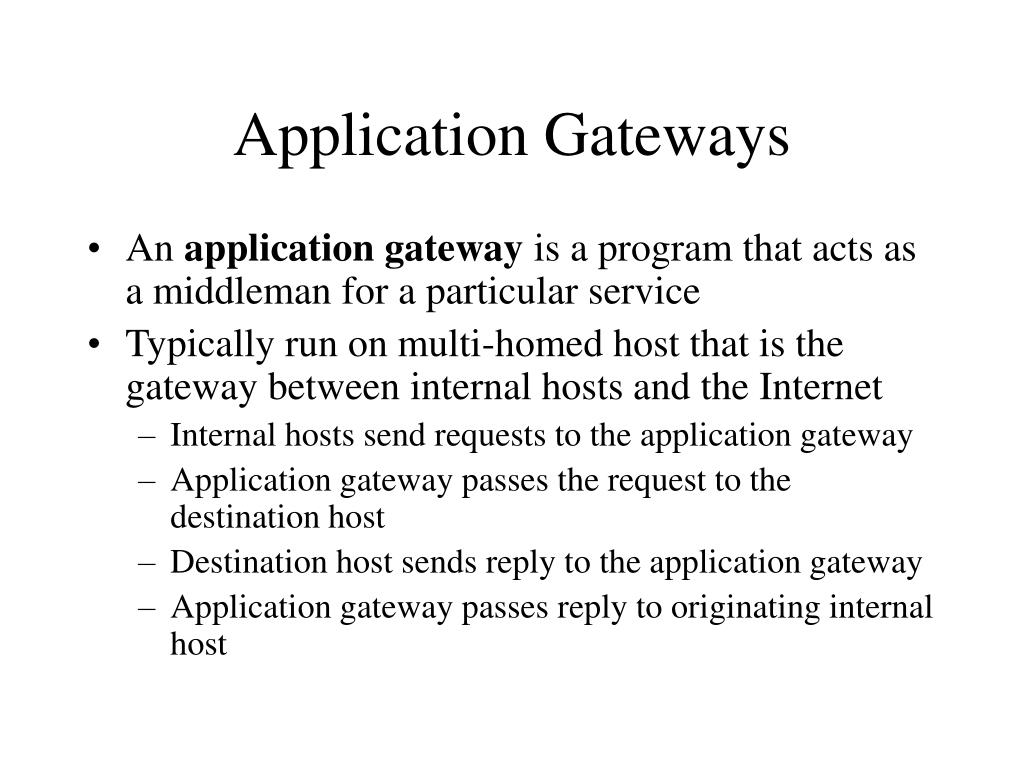

12. Application Gateways • An application gateway is a program that acts as a middleman for a particular service • Typically run on multi-homed host that is the gateway between internal hosts and the Internet • Internal hosts send requests to the application gateway • Application gateway passes the request to the destination host • Destination host sends reply to the application gateway • Application gateway passes reply to originating internal host

13. Application Gateways • Advantage: • Does not require changes to: • The network infrastructure • The addressing scheme • Disadvantage: • Not general: • Each application gateway handles a specific service • A different application gateway program is required for each different service

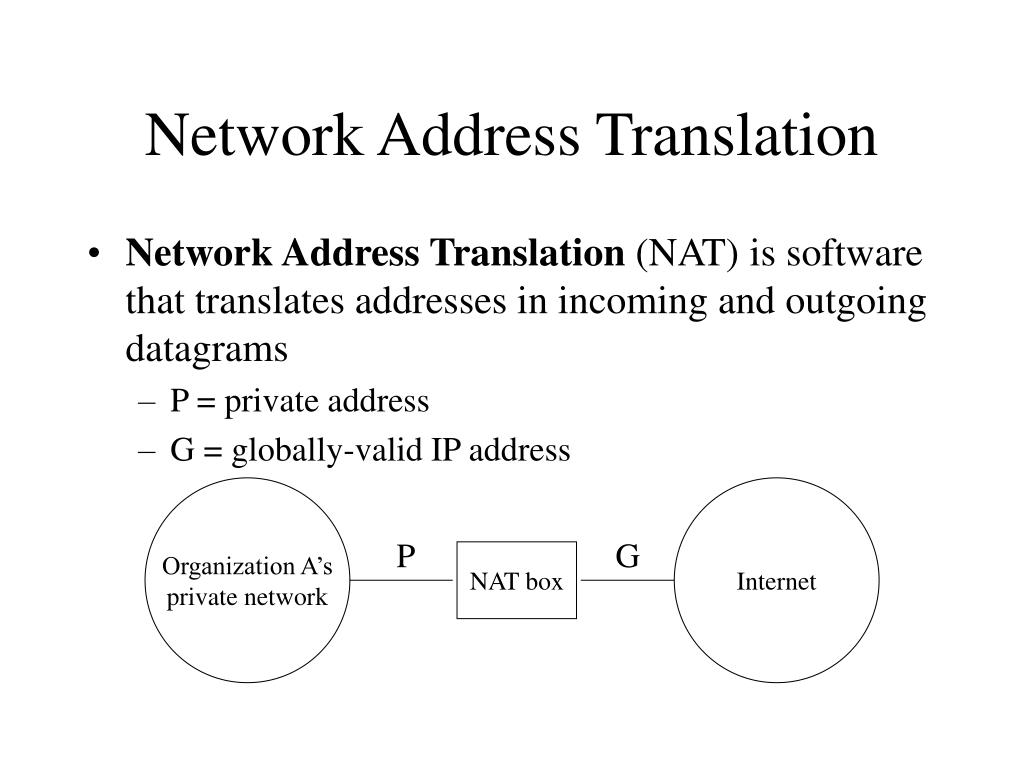

14. P G Organization A’s private network NAT box Internet Network Address Translation • Network Address Translation (NAT) is software that translates addresses in incoming and outgoing datagrams • P = private address • G = globally-valid IP address

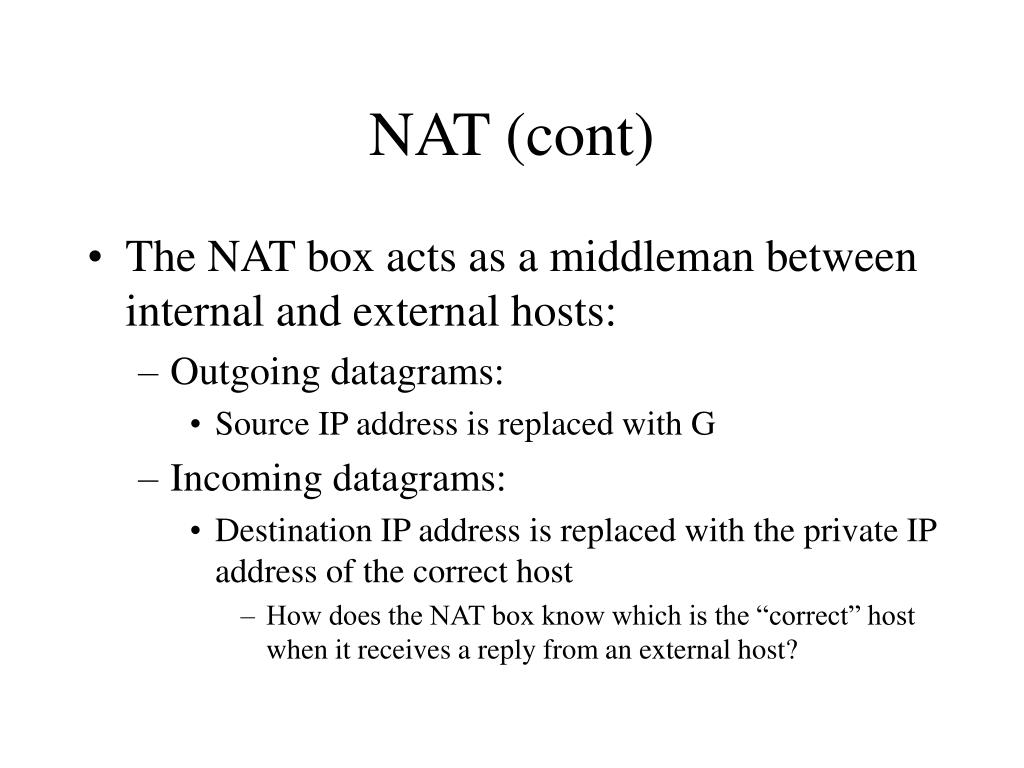

15. NAT (cont) • The NAT box acts as a middleman between internal and external hosts: • Outgoing datagrams: • Source IP address is replaced with G • Incoming datagrams: • Destination IP address is replaced with the private IP address of the correct host • How does the NAT box know which is the “correct” host when it receives a reply from an external host?

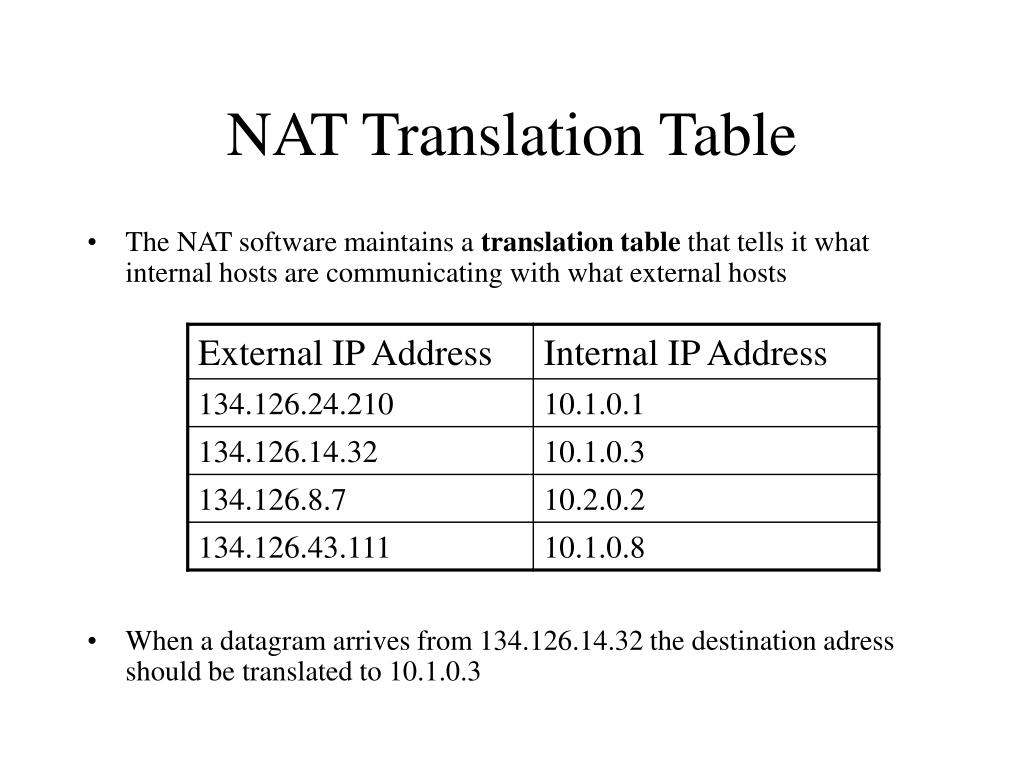

16. NAT Translation Table • The NAT software maintains a translation table that tells it what internal hosts are communicating with what external hosts • When a datagram arrives from 134.126.14.32 the destination adress should be translated to 10.1.0.3

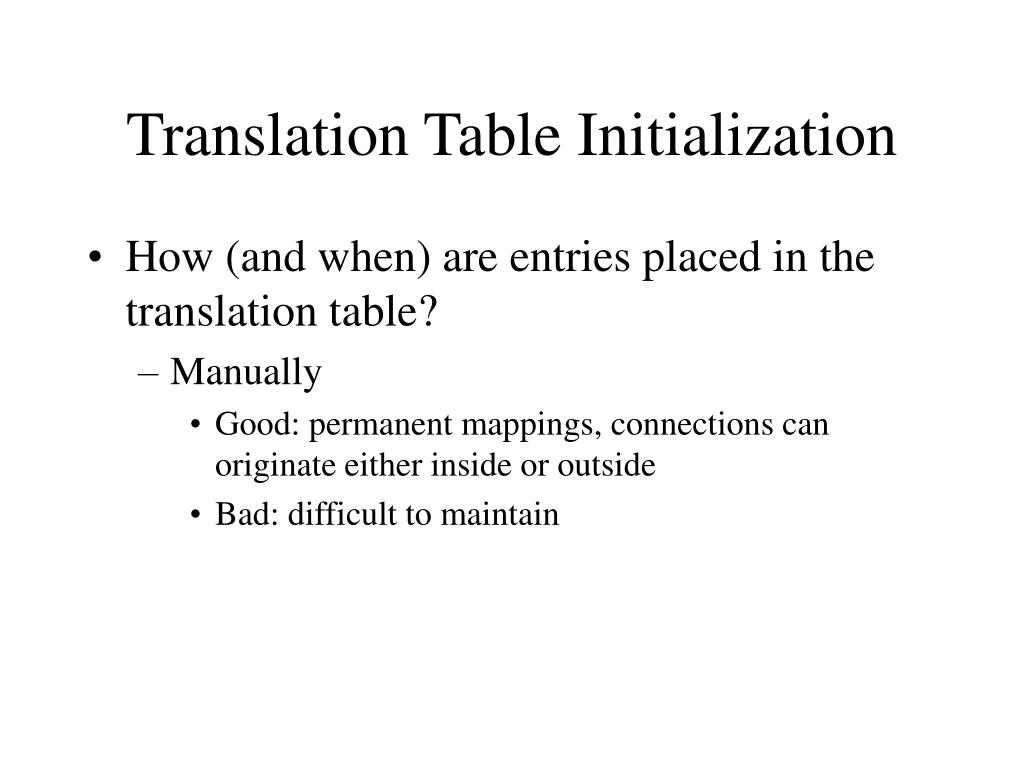

17. Translation Table Initialization • How (and when) are entries placed in the translation table? • Manually • Good: permanent mappings, connections can originate either inside or outside • Bad: difficult to maintain

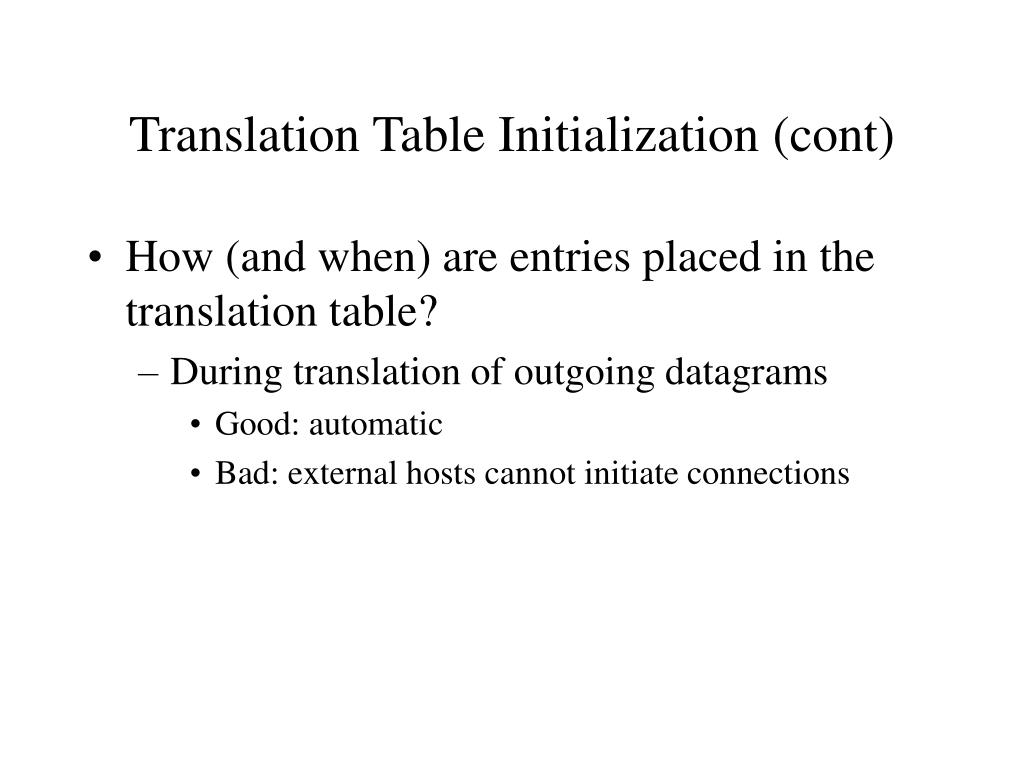

18. Translation Table Initialization (cont) • How (and when) are entries placed in the translation table? • During translation of outgoing datagrams • Good: automatic • Bad: external hosts cannot initiate connections

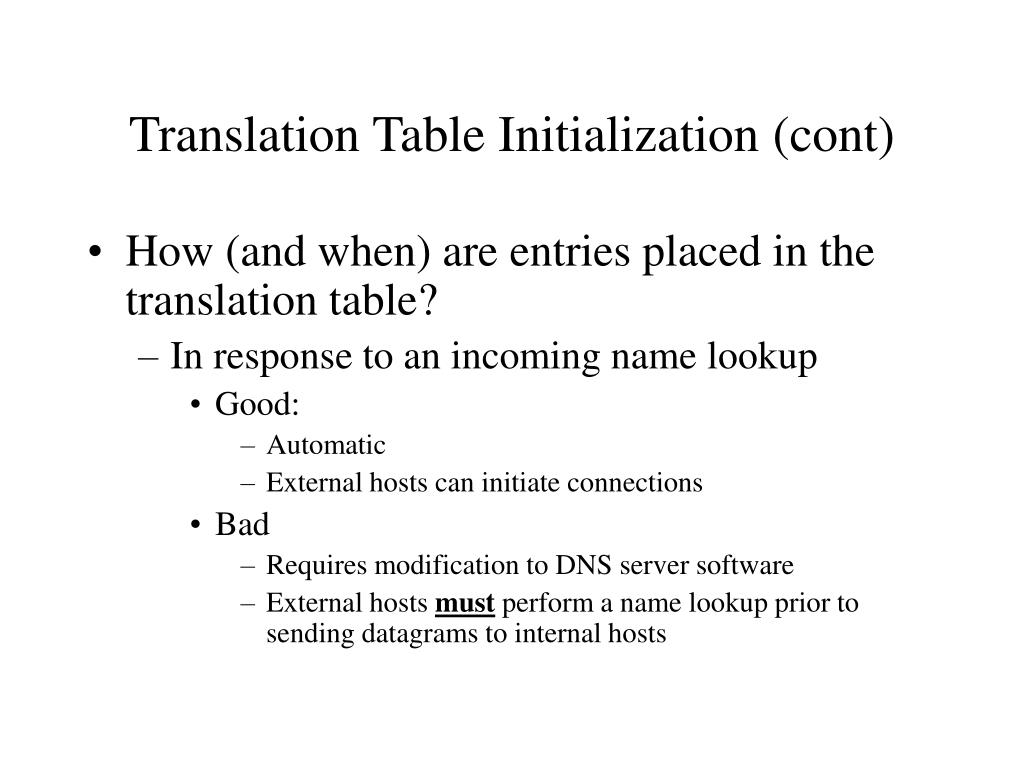

19. Translation Table Initialization (cont) • How (and when) are entries placed in the translation table? • In response to an incoming name lookup • Good: • Automatic • External hosts can initiate connections • Bad • Requires modification to DNS server software • External hosts must perform a name lookup prior to sending datagrams to internal hosts

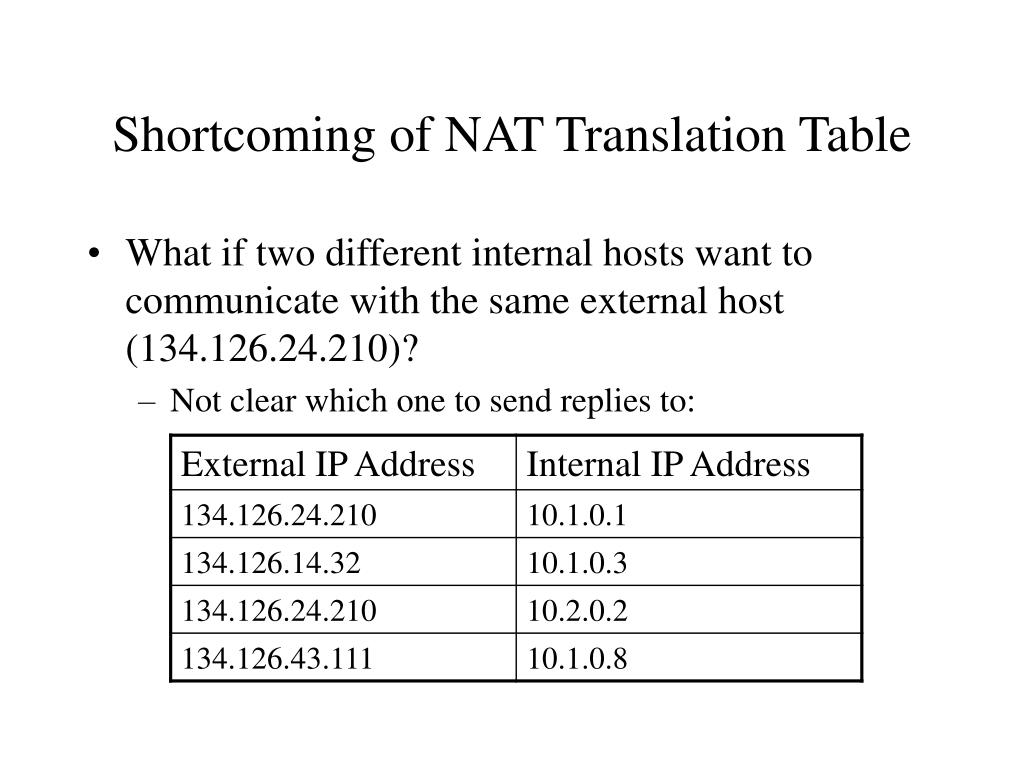

20. Shortcoming of NAT Translation Table • What if two different internal hosts want to communicate with the same external host (134.126.24.210)? • Not clear which one to send replies to:

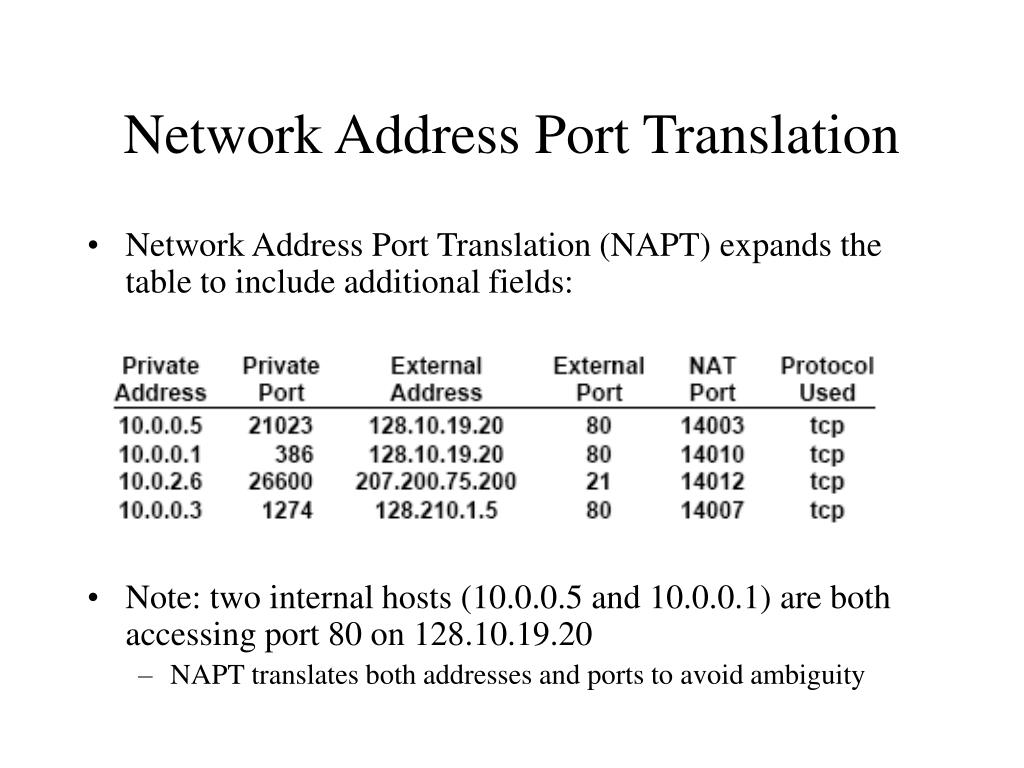

21. Network Address Port Translation • Network Address Port Translation (NAPT) expands the table to include additional fields: • Note: two internal hosts (10.0.0.5 and 10.0.0.1) are both accessing port 80 on 128.10.19.20 • NAPT translates both addresses and ports to avoid ambiguity

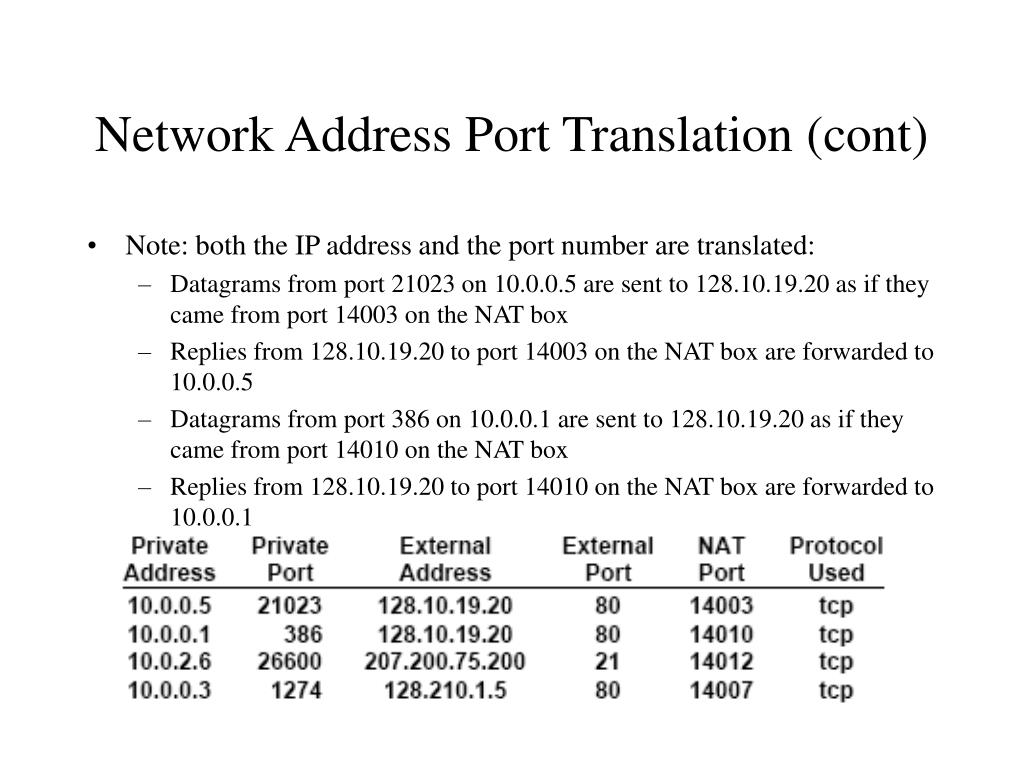

22. Network Address Port Translation (cont) • Note: both the IP address and the port number are translated: • Datagrams from port 21023 on 10.0.0.5 are sent to 128.10.19.20 as if they came from port 14003 on the NAT box • Replies from 128.10.19.20 to port 14003 on the NAT box are forwarded to 10.0.0.5 • Datagrams from port 386 on 10.0.0.1 are sent to 128.10.19.20 as if they came from port 14010 on the NAT box • Replies from 128.10.19.20 to port 14010 on the NAT box are forwarded to 10.0.0.1

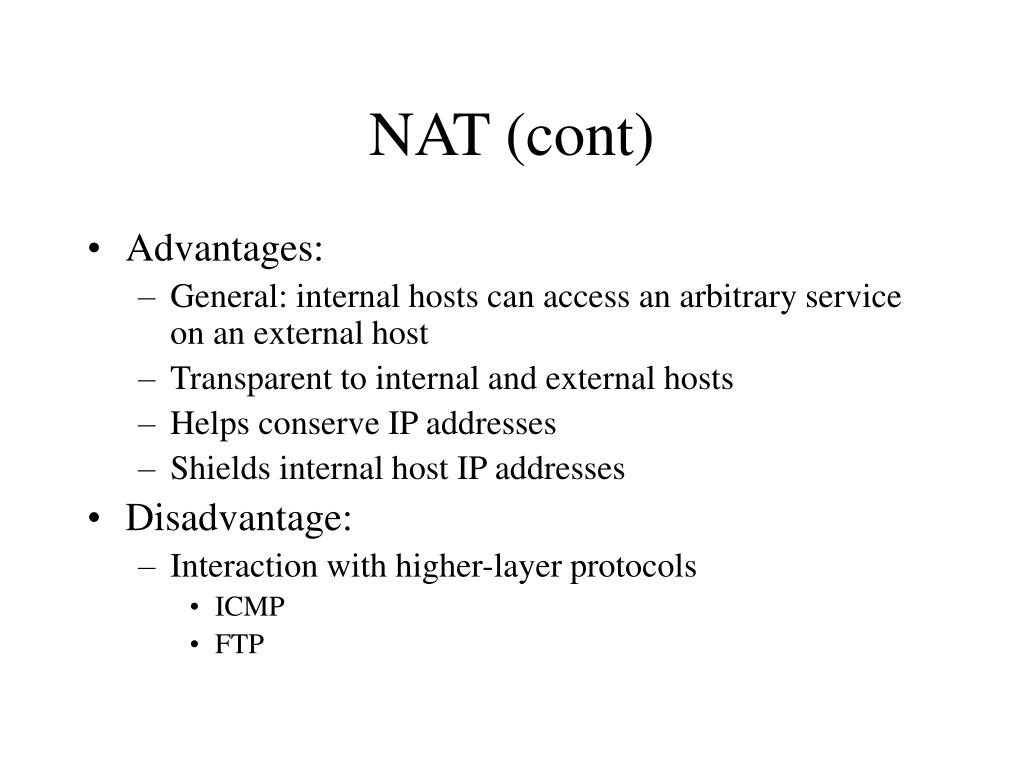

23. NAT (cont) • Advantages: • General: internal hosts can access an arbitrary service on an external host • Transparent to internal and external hosts • Helps conserve IP addresses • Shields internal host IP addresses • Disadvantage: • Interaction with higher-layer protocols • ICMP • FTP
