  1. A Comparison of Burst Gravitational Wave Detection Algorithms for LIGO Amber L. Stuver Center for Gravitational Wave Physics Penn State University

  2. Overview • Burst Data Analysis Algorithms • Strongest False Alarm Events • Do the algorithms see the data in the same way? • Simulated Signal Performance • How do the algorithms differ with different signals? • Population Performance • What is the relative performance of each algorithm given a population? • Conclusions A. Stuver - CGWP, Penn State

  3. Data Analysis Algorithms (ETG) • BlockNormal • searches data for statistical “change points” and divides the data into blocks of data with consistent mean and variance. A block is reported if it differs by a significant amount from the statistics of the larger data set. • SLOPE • finds the best-fit straight line through intervals of the timeseries and if the slope is sufficiently improbable, the interval is reported • Q Pipeline • a multi-resolution time-frequency search for excess power. The data are projected onto bases that are logarithmically spaced in frequency and Q, and linearly in time and the most significant set of non-overlapping tiles are reported A. Stuver - CGWP, Penn State

  4. Strongest False Alarm Events • If each ETG “looks” at the data in a fundamentally equivalent way, then they should identify the same strongest false events. • Strongest defined as the largest magnitude of whatever quantity each ETG identifies • Data set is a subset of LIGO science data (S3) without any signal injections and assumed to be noise only A. Stuver - CGWP, Penn State

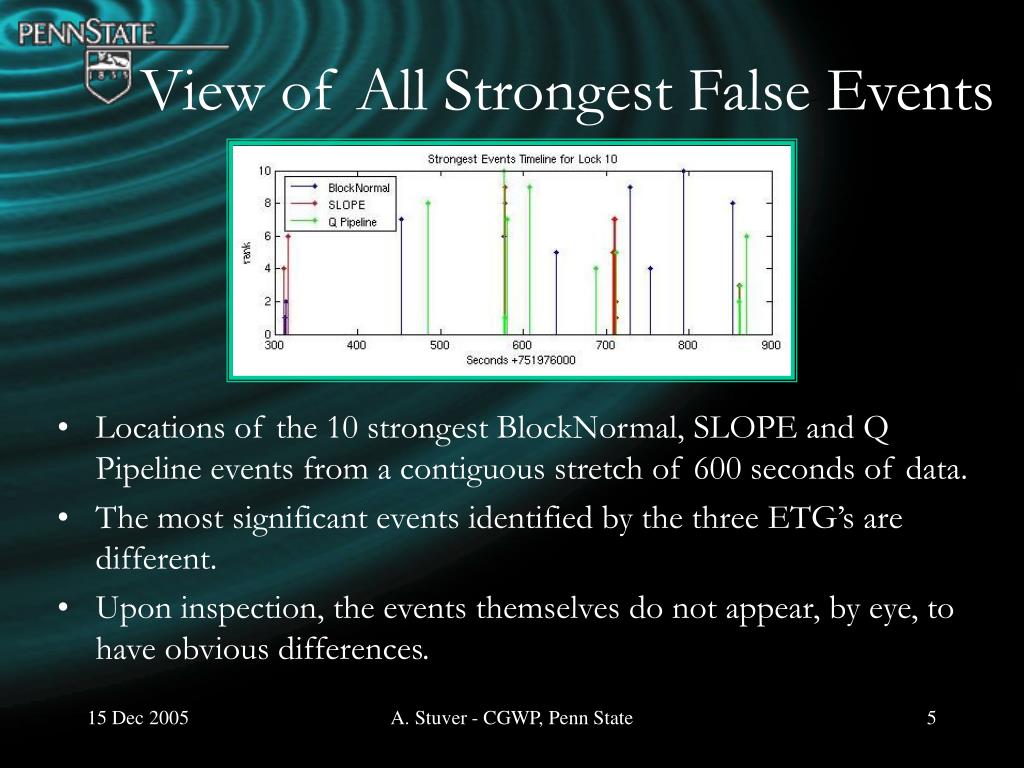

  5. View of All Strongest False Events • Locations of the 10 strongest BlockNormal, SLOPE and Q Pipeline events from a contiguous stretch of 600 seconds of data. • The most significant events identified by the three ETG’s are different. • Upon inspection, the events themselves do not appear, by eye, to have obvious differences. A. Stuver - CGWP, Penn State

  6. Events All ETGs “Saw” • Of the events that all 3 ETGs identify, do they rank the strength in the same way? • If the ETGs are equivalent on this level, a scatter plot of the rank of an event in one ETG to the rank in other will cluster along the diagonal… • They don’t. A. Stuver - CGWP, Penn State

  7. SLOPE & BlockNormal SLOPE BlockNormal A. Stuver - CGWP, Penn State

  8. Q Pipeline & SLOPE Q Pipeline SLOPE A. Stuver - CGWP, Penn State

  9. Q Pipeline & BlockNormal Q Pipeline BlockNormal A. Stuver - CGWP, Penn State

  10. Simulated Signal Performance • ETGs are not fundamentally equivalent and signal properties that ETG was sensitive to was not initially obvious • What, then, are the signal properties that each ETG favor? • To determine specific signal sensitivities: • Simulate signals of different lengths and amplitudes and inject into a white noise background (zero mean and unit variance) A. Stuver - CGWP, Penn State

  11. Amplitude for 50% Detection White Noise & Sine- Gaussians BlockNormal Black Hole Ringdown A. Stuver - CGWP, Penn State

  12. Amplitude for 50% Detection 64 Hz SLOPE White Noise 16 Hz A. Stuver - CGWP, Penn State

  13. Population Performance • Convolve the detection efficiency surface with a population • The integral of this gives a measure of an ETG’s performance WRT a population A. Stuver - CGWP, Penn State

  14. Measured Population Performances • BlockNormal has fairly consistent performance over different signal types. • While SLOPE’s performance can be higher, it is not as reliable. A. Stuver - CGWP, Penn State * Population values are normalized to this

  15. Conclusions • BlockNormal, SLOPE and Q Pipeline do not detect the same strongest events. • Among the events that are coincident, the significance of the event, as identified by the ETG’s, is uncorrelated. • There are signal properties that distinguish the preferences of each ETG. • SLOPE has a strong frequency dependence while BlockNormal favors impulsive events. • The overall shape of the detection fraction surface is meaningful for describing an ETG’s performance. • BlockNormal has a consistent performance over different signal types while SLOPE varies depending on the signal frequency. A. Stuver - CGWP, Penn State
