  1. © RoadBlade Malaysia 2008

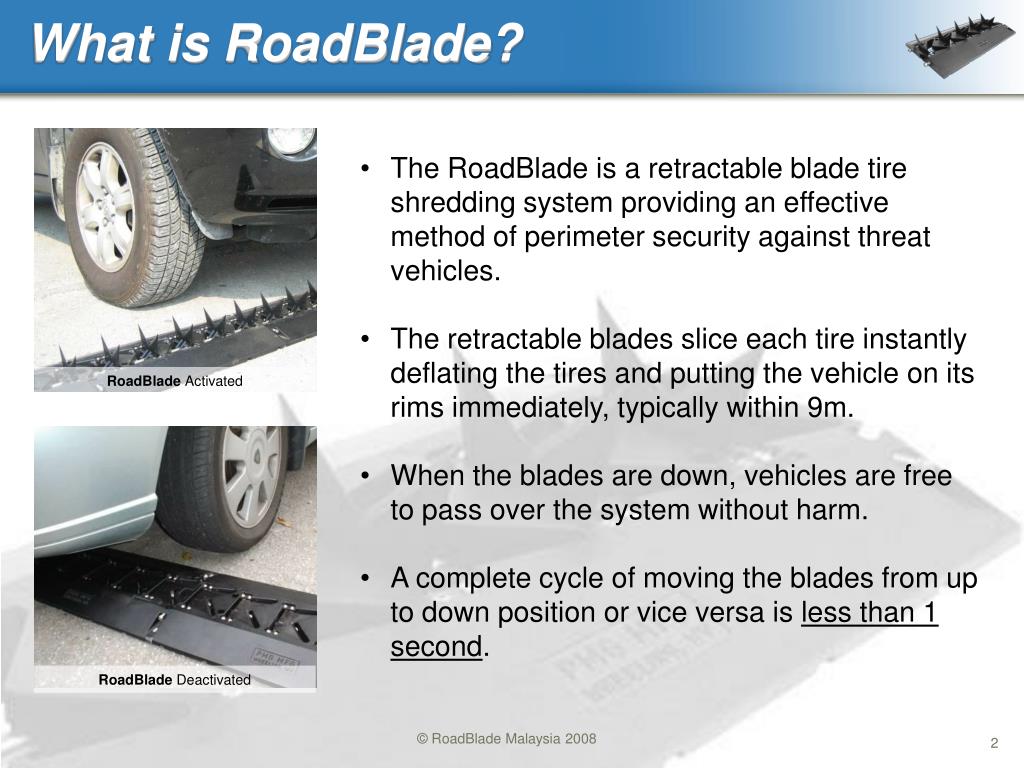

  2. What is RoadBlade? • The RoadBlade is a retractable blade tire shredding system providing an effective method of perimeter security against threat vehicles. • The retractable blades slice each tire instantly deflating the tires and putting the vehicle on its rims immediately, typically within 9m. • When the blades are down, vehicles are free to pass over the system without harm. • A complete cycle of moving the blades from up to down position or vice versa is less than 1 second. RoadBlade Activated RoadBlade Deactivated

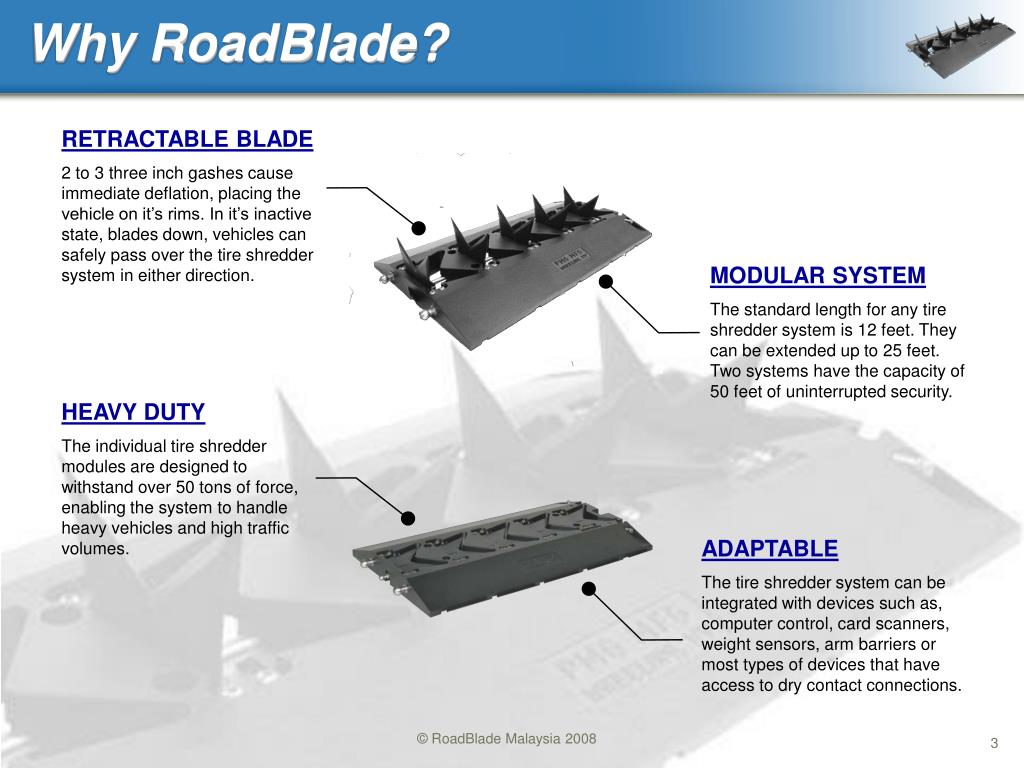

  3. RETRACTABLE BLADE 2 to 3 three inch gashes cause immediate deflation, placing the vehicle on it’s rims. In it’s inactive state, blades down, vehicles can safely pass over the tire shredder system in either direction. MODULAR SYSTEM The standard length for any tire shredder system is 12 feet. They can be extended up to 25 feet. Two systems have the capacity of 50 feet of uninterrupted security. HEAVY DUTY The individual tire shredder modules are designed to withstand over 50 tons of force, enabling the system to handle heavy vehicles and high traffic volumes. ADAPTABLE The tire shredder system can be integrated with devices such as, computer control, card scanners, weight sensors, arm barriers or most types of devices that have access to dry contact connections. Why RoadBlade?

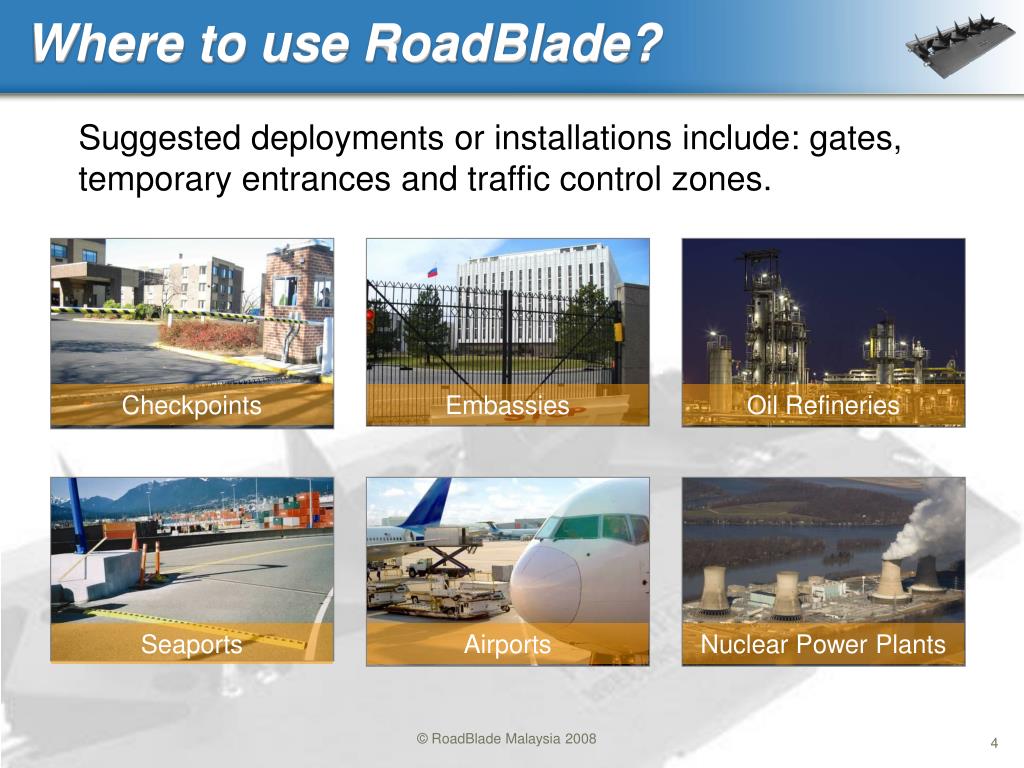

  4. Checkpoints Embassies Oil Refineries Seaports Airports Nuclear Power Plants Where to use RoadBlade? Suggested deployments or installations include: gates, temporary entrances and traffic control zones.

  5. How RoadBlade works? • When the blades are in the active (up) position, vehicles coming in either direction are at risk for having their tires deflated. • This allows you to completely shut down any traffic control zone where the tire shredding system is deployed. • While the blades are inactive (down) vehicles can safely pass over the RoadBlade without any damage to the tire. • Should a vehicle pass over the RoadBlade tire shredder while the system is active, its tires will deflate from the 3-4 gashes caused by the blades slicing them. • A vehicle is on its rims immediately.

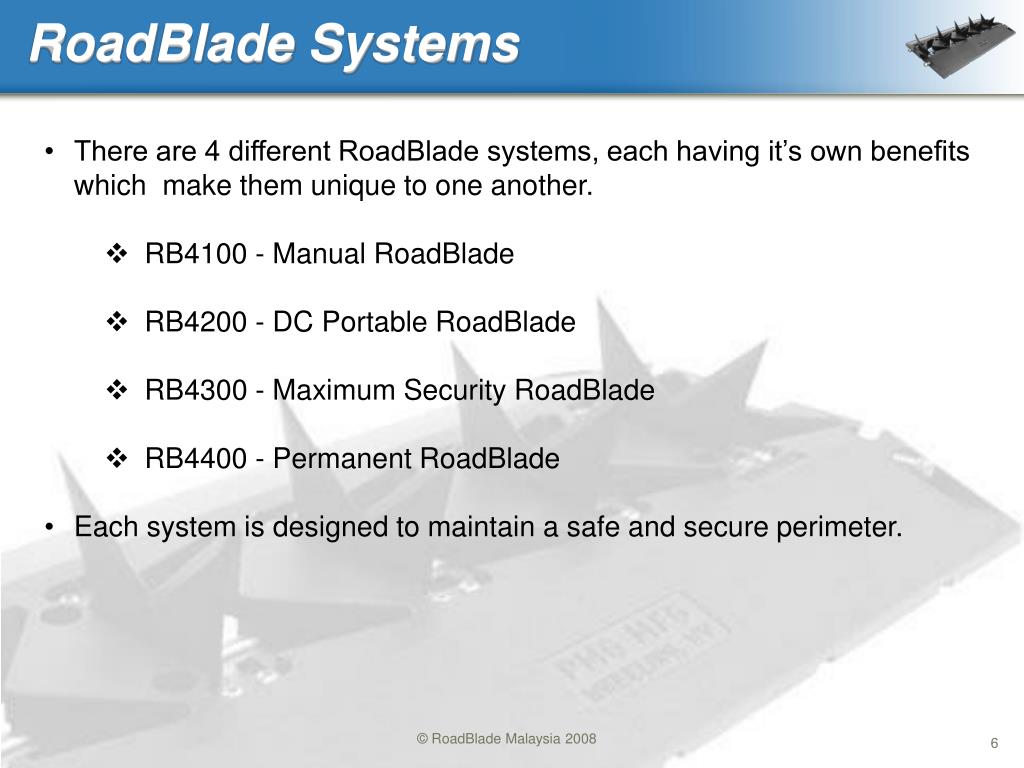

  6. RoadBlade Systems • There are 4 different RoadBlade systems, each having it’s own benefits which make them unique to one another. • RB4100 - Manual RoadBlade • RB4200 - DC Portable RoadBlade • RB4300 - Maximum Security RoadBlade • RB4400 - Permanent RoadBlade • Each system is designed to maintain a safe and secure perimeter.

  7. RB4100 – Manual RoadBlade RB4100 Package Includes: 1 - Manual control box (RB1032) 7 - 20 Inch modules - Surface mount (RB1001) 2 - Mil-Standard portable cases (RB1033) “Ideal for those requiring additional security only when the security threat is high or when the security location may frequently change.”

  8. RB4200 – DC Portable RoadBlade RB4200 Package Includes: 1 - Control box (RB1020) 1 - Wireless remote control (RB1011) 1 - Portable power supply (RB1010) 1 - AC neoprene power cable (RB1039) 1 - DC neoprene power cable (RB1040) 1 - Pendant control (RB1017) 7 - 20 Inch modules - Surface mount (RB1001) 2 - Mil-Standard portable cases (RB1033) “Intended for temporary or short-term permanent deployments both on a base or in the field, when an electronic system with remote controls is required.”

  9. RB4300 – Maximum Security RoadBlade RB4300 Package Includes: 1 - AC neoprene power cable (RB1039) 1 - DC neoprene power cable (RB1040) 1 - Daisy chain cable (RB1036) 1 - Portable power supply (RB1010) 1 - Remote logic box (RB1035) 1 - Actuator box (RB1021) 1 - Pendant control (RB1017) 1 - Power connection cable (RB1042) 1 - Control connection cable (RB1043) 7 - 20 Inch modules - Surface mount (RB1001) 4 - Mil-Standard portable cases (RB1033) “A complete package that includes everything you need to use in both portable or permanent applications. It is ideal for facilities that are planning changes to their access roads or will frequently change the location of the system.”

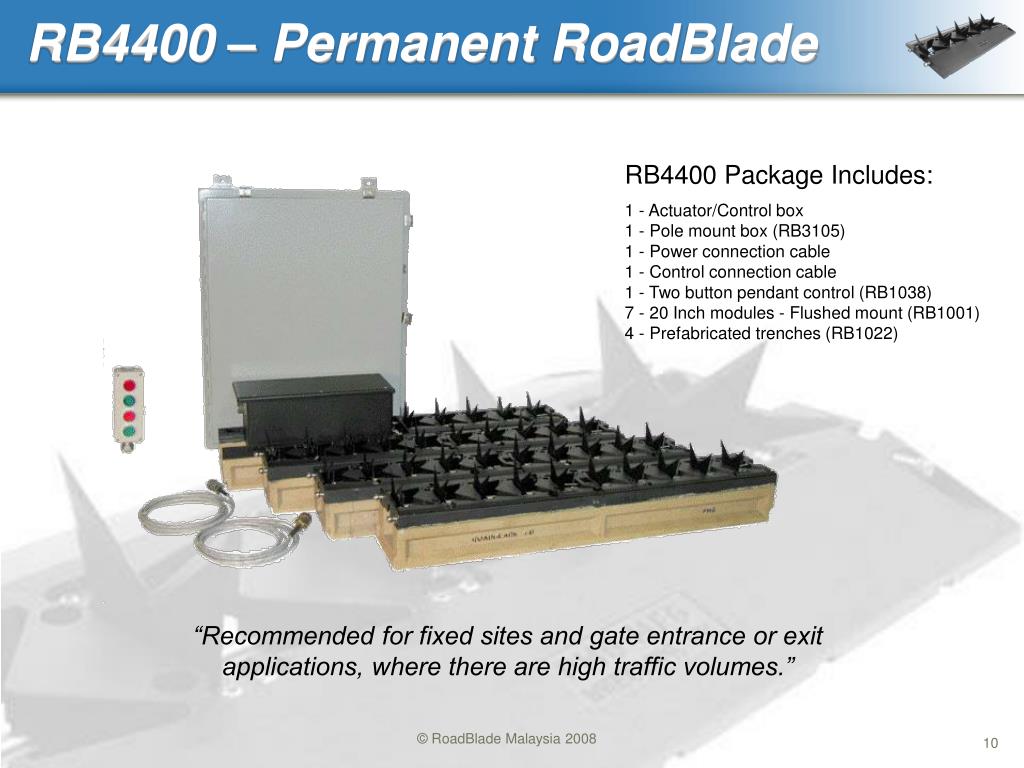

  10. RB4400 – Permanent RoadBlade RB4400 Package Includes: 1 - Actuator/Control box 1 - Pole mount box (RB3105) 1 - Power connection cable 1 - Control connection cable 1 - Two button pendant control (RB1038) 7 - 20 Inch modules - Flushed mount (RB1001) 4 - Prefabricated trenches (RB1022) “Recommended for fixed sites and gate entrance or exit applications, where there are high traffic volumes.”

  11. RoadBladeSpecifications

  12. Surface Mount Module

  13. Flushed Mount Module

  14. Contact Sales & Sole Distributor: Gugusan Tegap Sdn. Bhd. No. 1-1, Jalan 3/109E Desa Business Park, Off Jalan Klang Lama 58100 Kuala Lumpur, Malaysia. Tel: +603-79804678 / +603-79804484 Fax: +603-79805422 Email: ggt@streamyx.com General Enquiries/Technical: RoadBlade (M) Sdn. Bhd. Email: contact@roadblade.com.my Web: www.roadblade.com.my
