Presentation Transcript

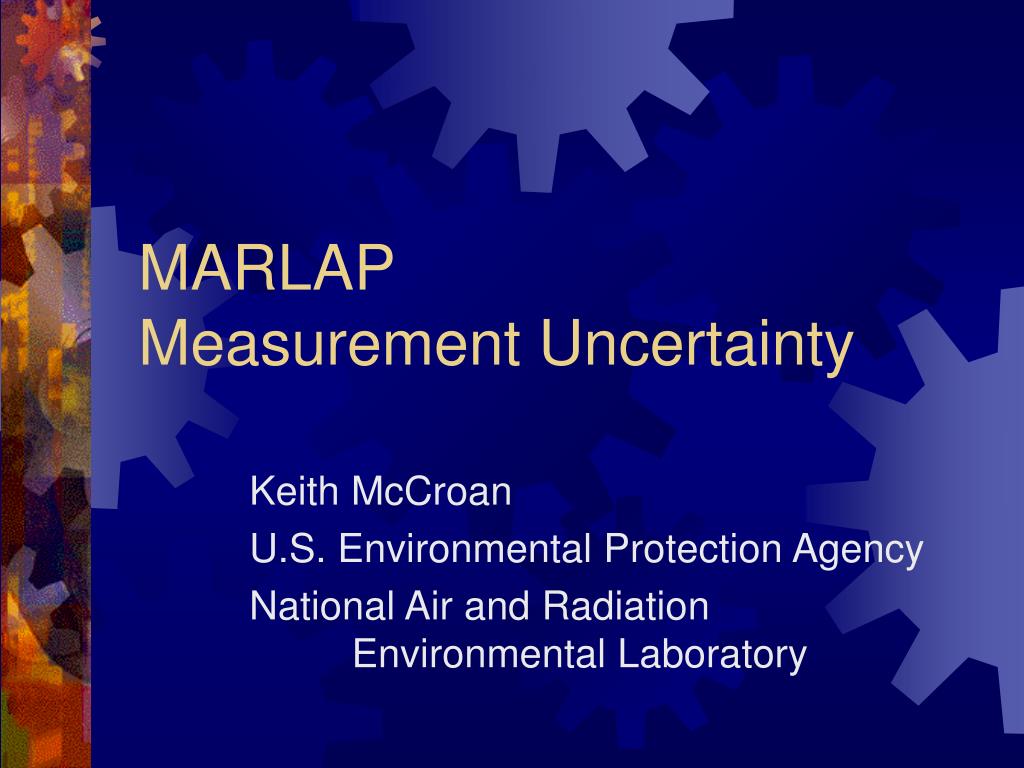

Marlap measurement uncertainty l.jpg

MARLAPMeasurement Uncertainty

Keith McCroan

U.S. Environmental Protection Agency

National Air and Radiation Environmental Laboratory


Topics covered l.jpg
Topics Covered

  • Brief overview of concepts and terms of probability and statistics

  • Measurement uncertainty

  • Detection and quantification limits

  • Miscellaneous


Target audience s l.jpg
Target Audience(s)

  • Project planners and managers

  • Radiochemists and technicians

  • Computer programmers

  • Data validators and assessors

  • Metrologists?


Measurement uncertainty l.jpg
Measurement Uncertainty

  • MARLAP endorses the Guide to the Expression of Uncertainty in Measurement (ISO-GUM).

    • International guidance – years of development and review by seven international organizations

    • Strongly recommended by NIST

    • Best way to ensure consistency among labs in the U.S. and the rest of the world


Measurement model l.jpg
Measurement Model

  • Define the measurand – the quantity subject to measurement

  • Determine a mathematical model, with input quantities, X1,X2,…,XN, and (at least) one output quantity,Y.

  • The values determined for the input quantities are called input estimates and are denoted by x1,x2,…,xN.

  • The value calculated for the output quantity is called the output estimate and denoted by y.


Standard uncertainty l.jpg
Standard Uncertainty

  • The standard uncertainty of a measured value is the uncertainty expressed as an estimated standard deviation – i.e., the one-sigma uncertainty.

  • The standard uncertainty of an input estimate, xi, is denoted by u(xi).

  • The standard uncertainty of the output estimate, y, determined by uncertainty propagation, is called the combined standard uncertainty, and is denoted by uc(y).


Type a evaluation l.jpg
Type A Evaluation

  • Statistical evaluation of uncertainty involving a series of observations

  • Always has an associated number of degrees of freedom

  • Examples include simple averages and least-squares estimates

  • Not “random uncertainty”


Type b evaluation l.jpg
Type B Evaluation

  • Any evaluation that is not a Type A evaluation is a Type B evaluation.

  • Not “systematic uncertainty”

  • Examples:

    • Calculating Poisson counting uncertainty (error) as the square root of the observed count

    • Using professional judgment combined with assumed rectangular or triangular distributions

    • Obtaining standard uncertainties in any manner from standard certificates or reference books


Covariance l.jpg
Covariance

  • Correlations among input estimates affect the combined standard uncertainty of the output estimate.

  • The estimated covariance of two input estimates, xi and xj, is denoted by u(xi,xj).

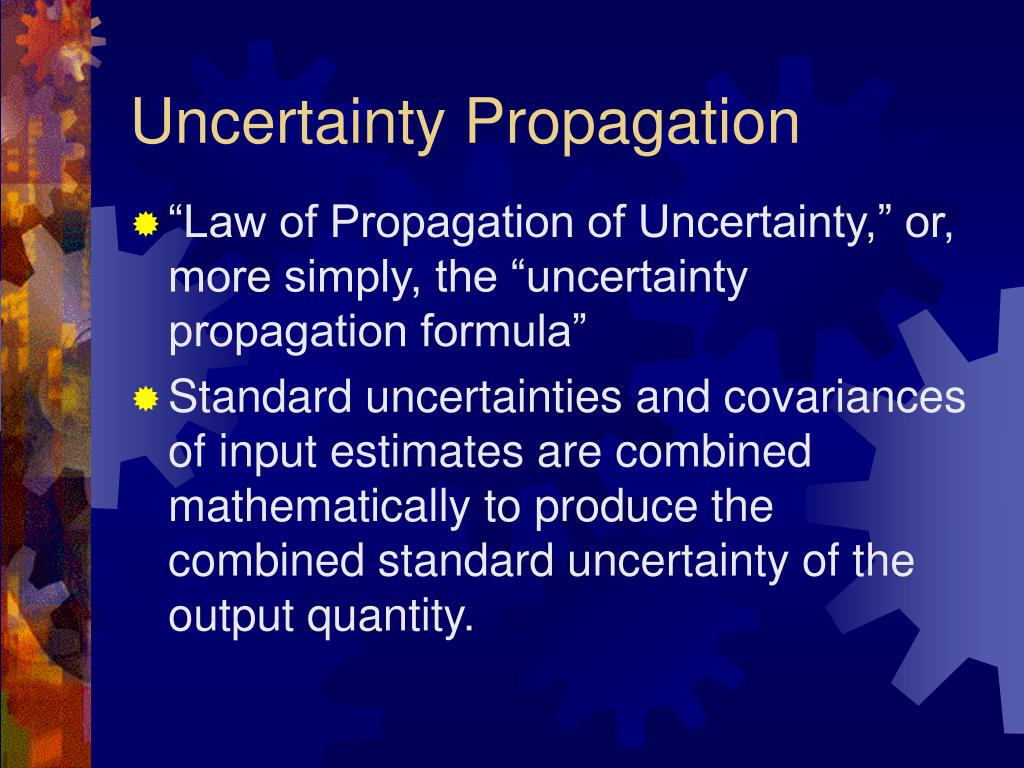

Uncertainty propagation l.jpg
Uncertainty Propagation

  • “Law of Propagation of Uncertainty,” or, more simply, the “uncertainty propagation formula”

  • Standard uncertainties and covariances of input estimates are combined mathematically to produce the combined standard uncertainty of the output quantity.


Expanded uncertainty l.jpg
Expanded Uncertainty

  • Multiply the combined standard uncertainty, uc(y), by a number k, called the coverage factor to obtain the expanded uncertainty, U.

  • The probability (or one’s degree of belief) that the interval y +- U will contain the value of the measurand is called either the coverage probability or the level of confidence.

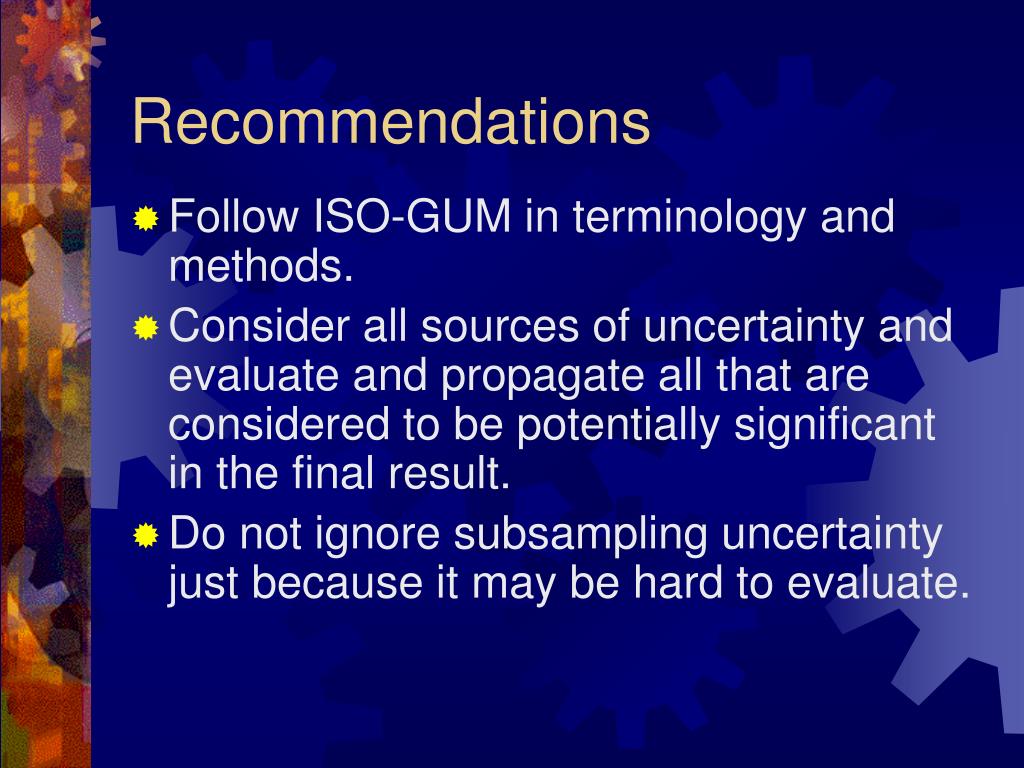

Recommendations l.jpg
Recommendations

  • Follow ISO-GUM in terminology and methods.

  • Consider all sources of uncertainty and evaluate and propagate all that are considered to be potentially significant in the final result.

  • Do not ignore subsampling uncertainty just because it may be hard to evaluate.


Recommendations continued l.jpg
Recommendations- Continued

  • Report all results – even if zero or negative

  • Report either the combined standard uncertainty or the expanded uncertainty.

  • Explain the uncertainty – in particular state the coverage factor for an expanded uncertainty.

  • Round the reported uncertainty to either 1 or 2 figures (suggest 2) and round the result to match.


Detection and quantification l.jpg
Detection and Quantification

  • There are several standards on the subject of detection limits.

  • MARLAP tries to follow the principles that are common to all.

  • We follow IUPAC (more or less) for quantification limits.


Detection l.jpg
Detection

  • A detection decision is based on the critical value (critical level, decision level) of the response variable (e.g., instrument signal, either gross or net).

  • The minimum detectable concentration (MDC) is the smallest (true) analyte concentration that ensures a specified high probability of detection.

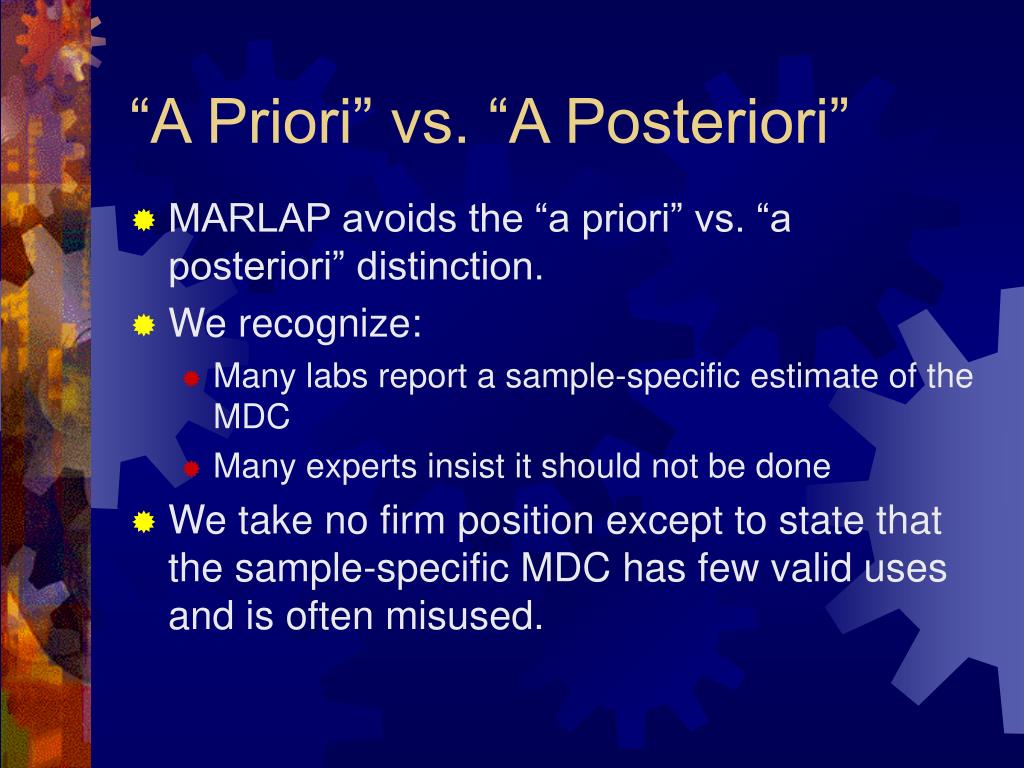

A priori vs a posteriori l.jpg
“A Priori” vs. “A Posteriori”

  • MARLAP avoids the “a priori” vs. “a posteriori” distinction.

  • We recognize:

    • Many labs report a sample-specific estimate of the MDC

    • Many experts insist it should not be done

  • We take no firm position except to state that the sample-specific MDC has few valid uses and is often misused.


Misuse of the mdc l.jpg
Misuse of the MDC

  • MARLAP states that no version of the MDC should be used in deciding whether an analyte is present in a laboratory sample.

  • The MDC cannot be determined unless the detection criterion has already been specified.

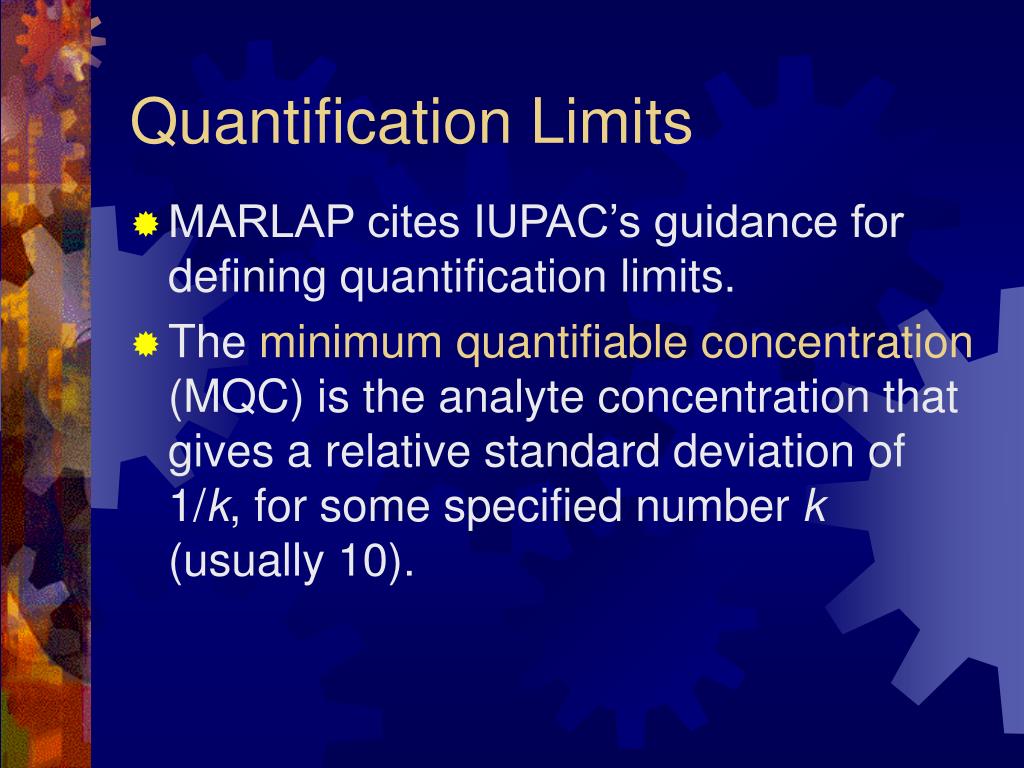

Quantification limits l.jpg
Quantification Limits

  • MARLAP cites IUPAC’s guidance for defining quantification limits.

  • The minimum quantifiable concentration (MQC) is the analyte concentration that gives a relative standard deviation of 1/k, for some specified number k (usually 10).

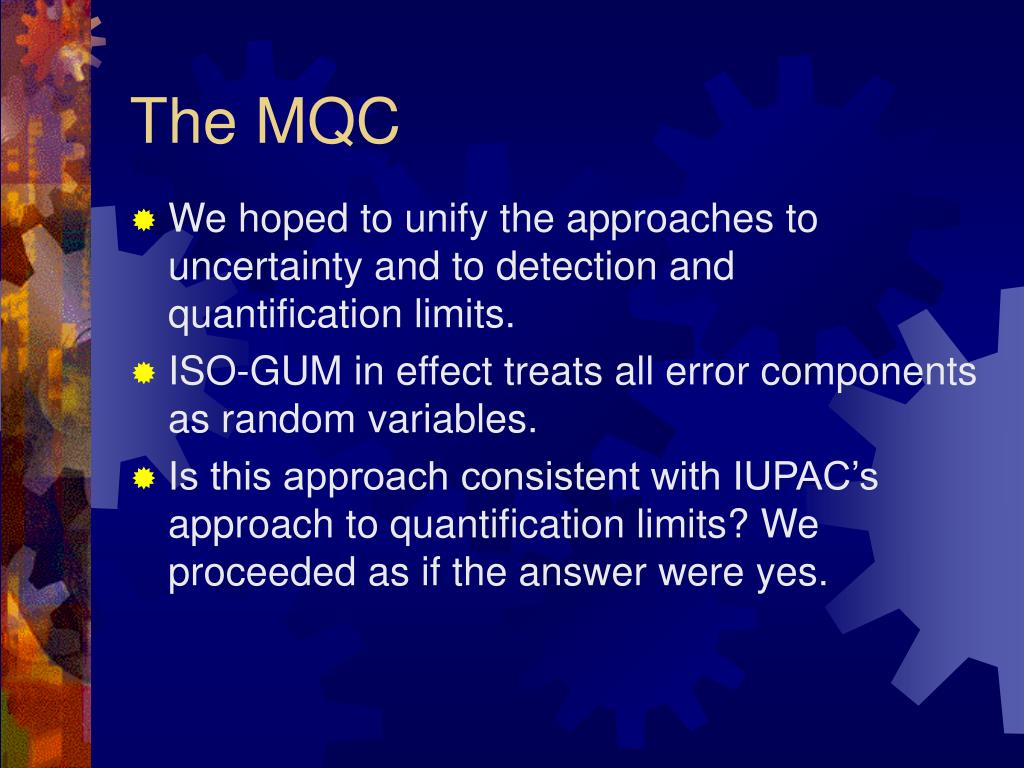

The mqc l.jpg
The MQC

  • We hoped to unify the approaches to uncertainty and to detection and quantification limits.

  • ISO-GUM in effect treats all error components as random variables.

  • Is this approach consistent with IUPAC’s approach to quantification limits? We proceeded as if the answer were yes.


The mqc continued l.jpg
The MQC - Continued

  • MARLAP’s MQC is based on an overall standard deviation that represents all sources of measurement error – not just “random errors.”

  • This standard deviation differs from the combined standard uncertainty, a random variable whose value changes with each measurement.


Use of the mqc l.jpg
Use of the MQC

  • The MQC is almost unknown among radiochemists but should be a useful performance characteristic.

  • The MDC is well-known and is sometimes used for purposes that would be better served by the MQC.

  • E.g., choosing a procedure to measure Ra-226 in soil.


Other topics l.jpg
Other Topics

  • Effects of nonlinearity on uncertainty propagation

  • Laboratory subsampling – based on Pierre Gy’s sampling theory

  • Tests for normality

  • Example calculations


Other topics continued l.jpg
Other Topics - Continued

  • Detection decisions based on low-background Poisson counting or few degrees of freedom

  • Expressions for the critical net count in the pure Poisson case

    • Well-known (so-called “Currie’s equation”)

    • Not so well-known (Nicholson, Stapleton)


Concerns questions l.jpg
Concerns & Questions

  • Overkill?

  • Is anything important missing?

    • E.g., a table of “typical” uncertainties

    • More real-world examples of good uncertainty evaluation

  • How can the examples be improved?

  • Contradictory standards on detection limits
