Presentation Transcript


Cpsc441 l.jpg

CPSC441

Computer Communication


What this course is about l.jpg

What this Course is About?

  • Provide an introduction to modern telecommunications and computer networks, including information about :

    • the physical characteristics of current transmission media

    • layered protocol hierarchies commonly used for the organization of modern networks

    • standards and protocols for several of these layers.


Topics l.jpg

Topics

  • INTRODUCTION

  • PHYSICAL LAYER

  • DATA LINK LAYER

  • NETWORK LAYER

  • TRANSPORT LAYER

  • APPLICATION LAYER

  • TCP/IP SECURITY


Topics4 l.jpg

Topics

  • INTRODUCTION

    • HISTORY

    • TYPES OF NETWORKS: LAN, WAN

    • TYPES OF NETWORKS: Client - Server, Peer to Peer

    • THEORETICAL NETWORK: OSI model, TCP/IP model

    • EXAMPLES OF NETWORKS, SERVICES

  • PHYSICAL LAYER

  • DATA LINK LAYER

  • NETWORK LAYER

  • TRANSPORT LAYER

  • APPLICATION LAYER

  • TCP/IP SECURITY


  • Topics5 l.jpg

    Topics

    • INTRODUCTION

    • PHYSICAL LAYER

      • SOME PHYSICS

      • TRANSMISSION MEDIA, MODULATION

      • TELEPHONE SYSTEM, MODEMS

      • BASEBAND, BROADBAND TRANSMISSION

      • ATM TRANSMISSION

  • DATA LINK LAYER

  • NETWORK LAYER

  • TRANSPORT LAYER

  • APPLICATION LAYER

  • TCP/IP SECURITY


  • Topics6 l.jpg

    Topics

    • INTRODUCTION

    • PHYSICAL LAYER

    • DATA LINK LAYER

      • FRAMES, FRAME MANAGEMENT

      • ERROR CHECKING

      • DATA LINK PROTOCOLS

      • EXAMPLES: ETHERNET, TOKEN RING, others

  • NETWORK LAYER

  • TRANSPORT LAYER

  • APPLICATION LAYER

  • TCP/IP SECURITY


  • Topics7 l.jpg

    Topics

    • INTRODUCTION

    • PHYSICAL LAYER

    • DATA LINK LAYER

    • NETWORK LAYER

      • ROUTING, ROUTING PROTOCOLS

      • IP ADDRESSING, SUBNETS, NETMASK

  • TRANSPORT LAYER

  • APPLICATION LAYER

  • TCP/IP SECURITY


  • Topics8 l.jpg

    Topics

    • INTRODUCTION

    • PHYSICAL LAYER

    • DATA LINK LAYER

    • NETWORK LAYER

    • TRANSPORT LAYER

      • TCP, UDP protocols

      • SOCKET PROGRAMMING

  • APPLICATION LAYER

  • TCP/IP SECURITY


  • Topics9 l.jpg

    Topics

    • INTRODUCTION

    • PHYSICAL LAYER

    • DATA LINK LAYER

    • NETWORK LAYER

    • TRANSPORT LAYER

    • APPLICATION LAYER

      • Domain Name Service (DNS)

      • BASIC INTERNET SERVICES

  • TCP/IP SECURITY


  • Topics10 l.jpg

    Topics

    • INTRODUCTION

    • PHYSICAL LAYER

    • DATA LINK LAYER

    • NETWORK LAYER

    • TRANSPORT LAYER

    • APPLICATION LAYER

    • TCP/IP SECURITY

      • INTRO TO CRYPTOGRAPHY

      • Secure Socket Layer (SSL)

      • FIREWALLS


    Quotes l.jpg

    Quotes

    • Computers in the future may weigh no more than 1.5 tons

    • “I think there is a world market for maybe five computers.” Thomas Watson Chairman of IBM 1943

    • “There is no reason anyone would want a computer in their home” Ken Olson president DEC 1977

    • “640K ought to be enough for anybody” Bill Gates 1981


    History of data communications l.jpg

    History of Data Communications

    • Communications industry was already established at the beginning of the computer era.

    • First type of data communication was terminals attached to mainframes via modems and telephone lines.


    History of data communications13 l.jpg

    History of Data Communications

    • Development of Semi-Automatic Business Research Environment (SABRE)

    • Development of Packet Distribution Network (PDN), allowed Advanced Research Projects Agency (ARPA) to develop ARPANET.


    History of data communications14 l.jpg

    History of Data Communications

    • Development of other Proprietary Computer Networks (works on one manufacturers equipment)

      • Systems Network Architecture (SNA) developed by IBM

      • Decnet Developed by Digital

      • Telnet developed by General Telephone and Electronics (GTE)


    Historical events l.jpg

    Historical Events

    • 1948 first commercial computer installed UNIVAC I

    • 1958 first U.S. communication satellite

    • 1964 SABRE airline reservation system packet switching network (purposed by RAND)

    • 1969 ARPANET first packet switching network begins operation


    Historical events16 l.jpg

    Historical Events

    • 1971 first computer chip

      • 4 bit, 2,300 transistors

    • 1972 Ethernet specifications formulated

    • 1974 IBM introduces SNA

    • 1975 Altair 8800 first commercial microcomputer sold as kit


    Historical events17 l.jpg

    Historical Events

    • 1975 Paul Alan / Bill Gates wrote a BASIC language interpreter for the Altair, they formed Microsoft

    • 1976 Woznaik and Jobs built Apple I and formed Apple Computer Company

    • 1979 VisiCalc first commercial spread sheet introduced


    Historical events18 l.jpg

    Historical Events

    • 1981 IBM introduced IBM PC one floppy

    • 1983 TCP/IP becomes the official protocol on ARPANET

    • 1984 Apple introduced GUI with Apple Macintosh

    • 1986 PC Convertible (first laptop (luggable))


    Historical events19 l.jpg

    Historical Events

    • 1988 OS/2 shipped by IBM first multitasking operating system for PC 1989 Intel releases 486

    • 1989 Microsoft releases Windows 3.0 1991

    • 1989 NSF replaces ARPANET as internet backbone

    • 1991 WWW invented by CERN physicist Tim Berners-Lee


    Historical events20 l.jpg

    Historical Events

    • 1992 Mosaic release first GUI web browser

    • 1995 Netscape goes from startup to $2.9 billion in one year

    • 2000 .com melt down


    Data communications l.jpg

    Data Communications

    Data Communications

    Terminal to Computer

    Computer to Computer

    Local Area Networks

    Wide Area Networks

    Peer to Peer

    Client Server


    Pc as an information tool l.jpg

    PC as an Information tool

    • Local Area Network (LAN)

      • number of computers connected together

      • usually a small geographical area

        • office, floor, classroom

      • share resources (software, hardware)


    Pc as an information tool23 l.jpg

    PC as an Information Tool

    • Wide Area Network (WAN)

      • connection of LANs

      • connected by wire, microwave, satellite


    Resource sharing l.jpg

    Resource Sharing

    • Sharing of Information

      • Types

        • Mission critical data

        • Frequently used data (form letters)

        • Policy / procedure manuals

      • Who needs what access

        • update

        • read only


    Information sharing l.jpg

    Information Sharing

    • What information is vital to your organization

    • What information do you need to keep consistent, or restricted, or in one place for everyone to access

    • Consider how a network (centralized control) would help


    Hardware sharing l.jpg

    Hardware Sharing

    • Allows sharing of devices such as:

      • Printers

      • Fax modems

      • Scanners

      • Disk drives

      • CD ROM's

      • Tape Backup units

      • Plotters


    Software sharing l.jpg

    Software Sharing

    • Software need not be installed on every computer

    • One install, one central location for updates

    • Consistent configuration

    • Grant or deny access to a program


    Software sharing28 l.jpg

    Software Sharing

    • License considerations

      • single user

      • license per user

      • site license

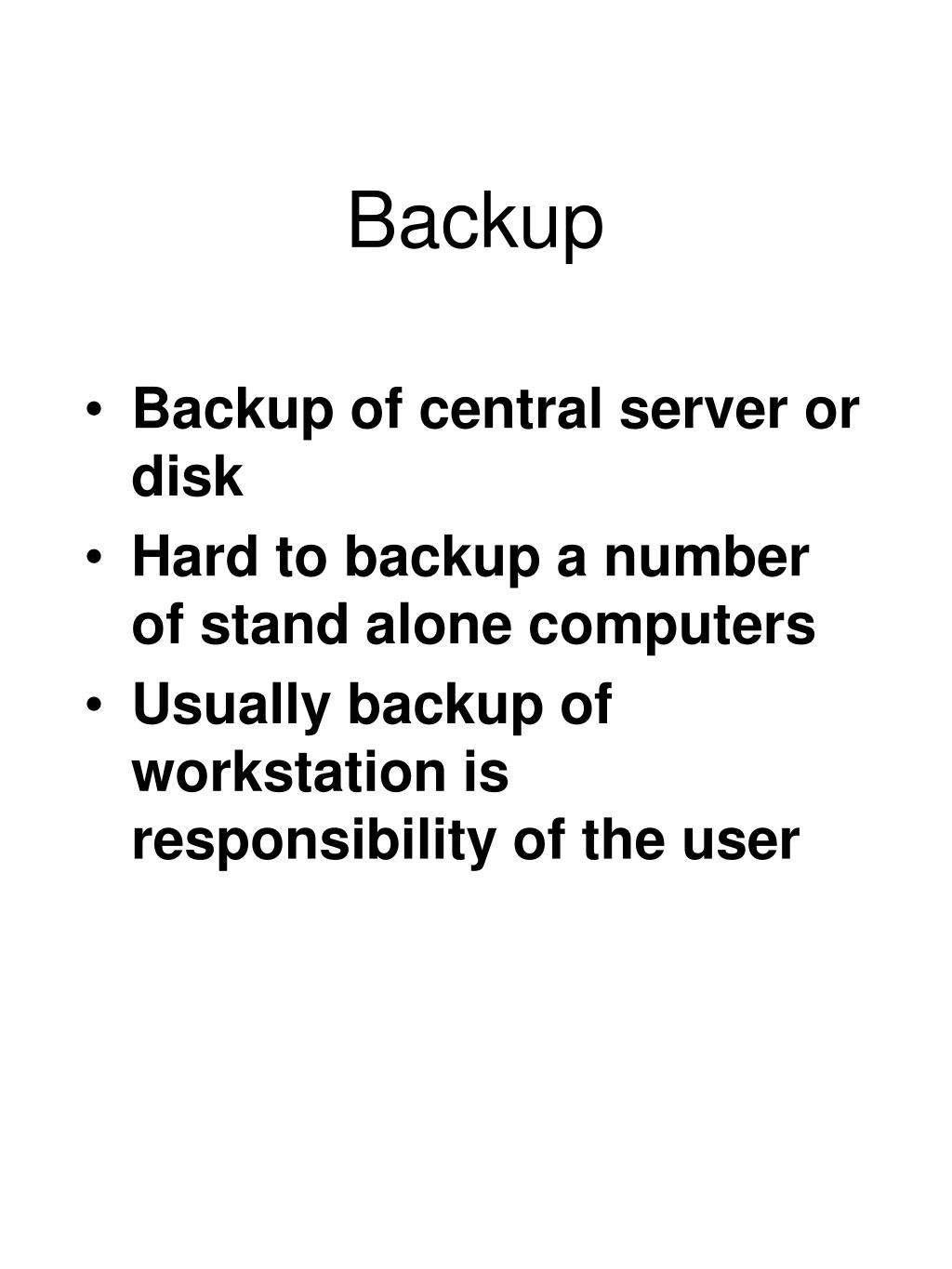

    Backup l.jpg

    Backup

    • Backup of central server or disk

    • Hard to backup a number of stand alone computers

    • Usually backup of workstation is responsibility of the user


    Computer roles in a network l.jpg

    Computer Roles in a Network

    • Clients

      • use network resources

      • provide no resources to the network

      • run their own operating system

    • Servers

      • provide resources to the network

    • Peers

      • use and provide services


    Operating systems l.jpg

    Operating systems

    • Server

      • Novel NetWare

      • Windows NT

    • Client

      • Windows 2000

      • DOS

      • OS/2

    • Peer

      • Windows 2000

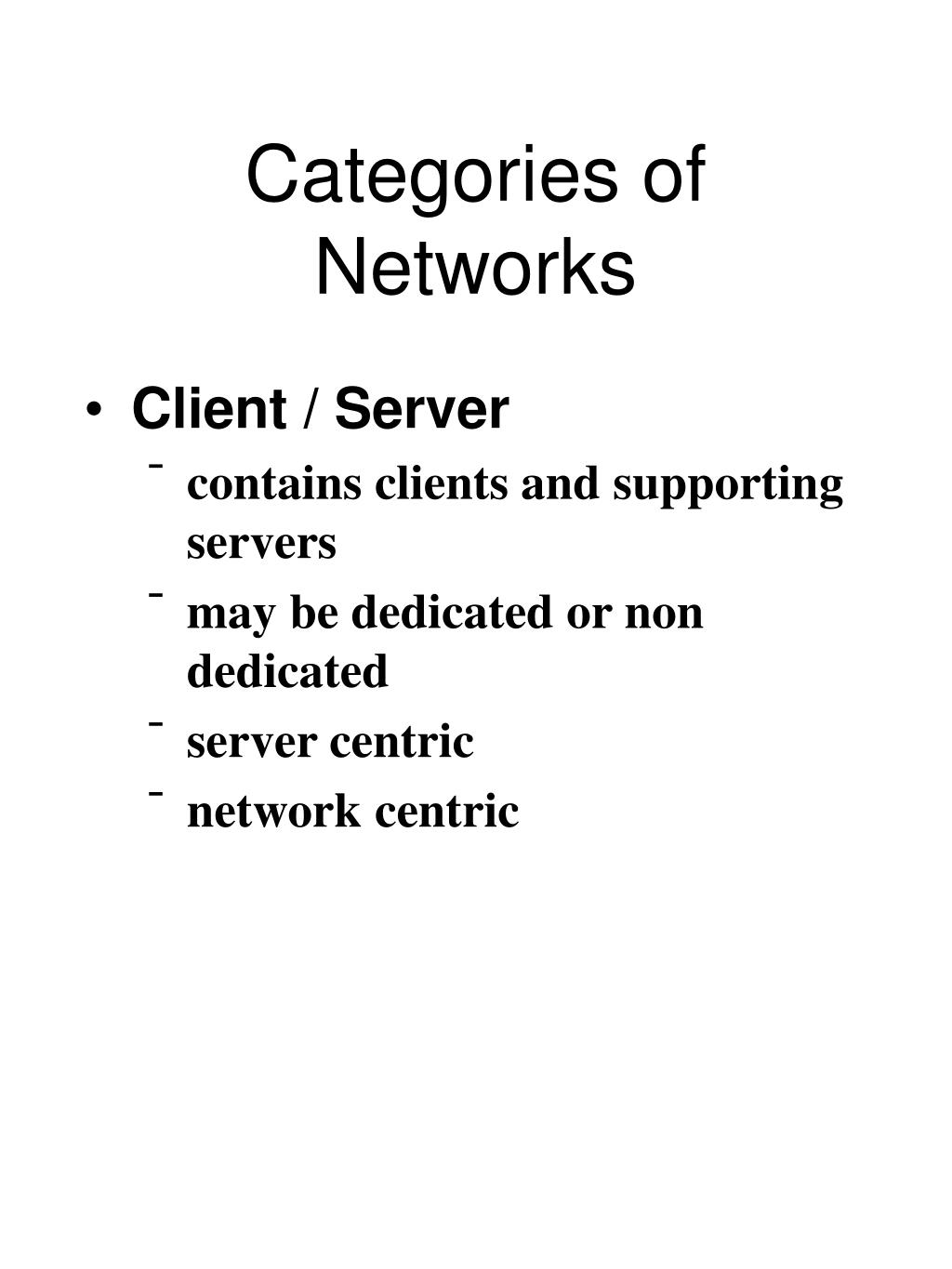

    Categories of networks l.jpg

    Categories of Networks

    • Client / Server

      • contains clients and supporting servers

      • may be dedicated or non dedicated

      • server centric

      • network centric


    Categories of networks33 l.jpg

    Categories of Networks

    • Peer to Peer

      • network of computers sharing resources with no dedicated server


    Server based networks l.jpg

    Server Based Networks

    • Advantages

      • Strong central security

      • Central file storage (backup, data organization)

      • Share hardware and software

      • Optimize dedicated servers for special purpose

      • Less intrusive security (network centric)

      • manages shared resources

      • manages users


    Server based networks35 l.jpg

    Server Based Networks

    • Disadvantages

      • Expensive hardware

      • Expensive software

      • Dedicated network administrator

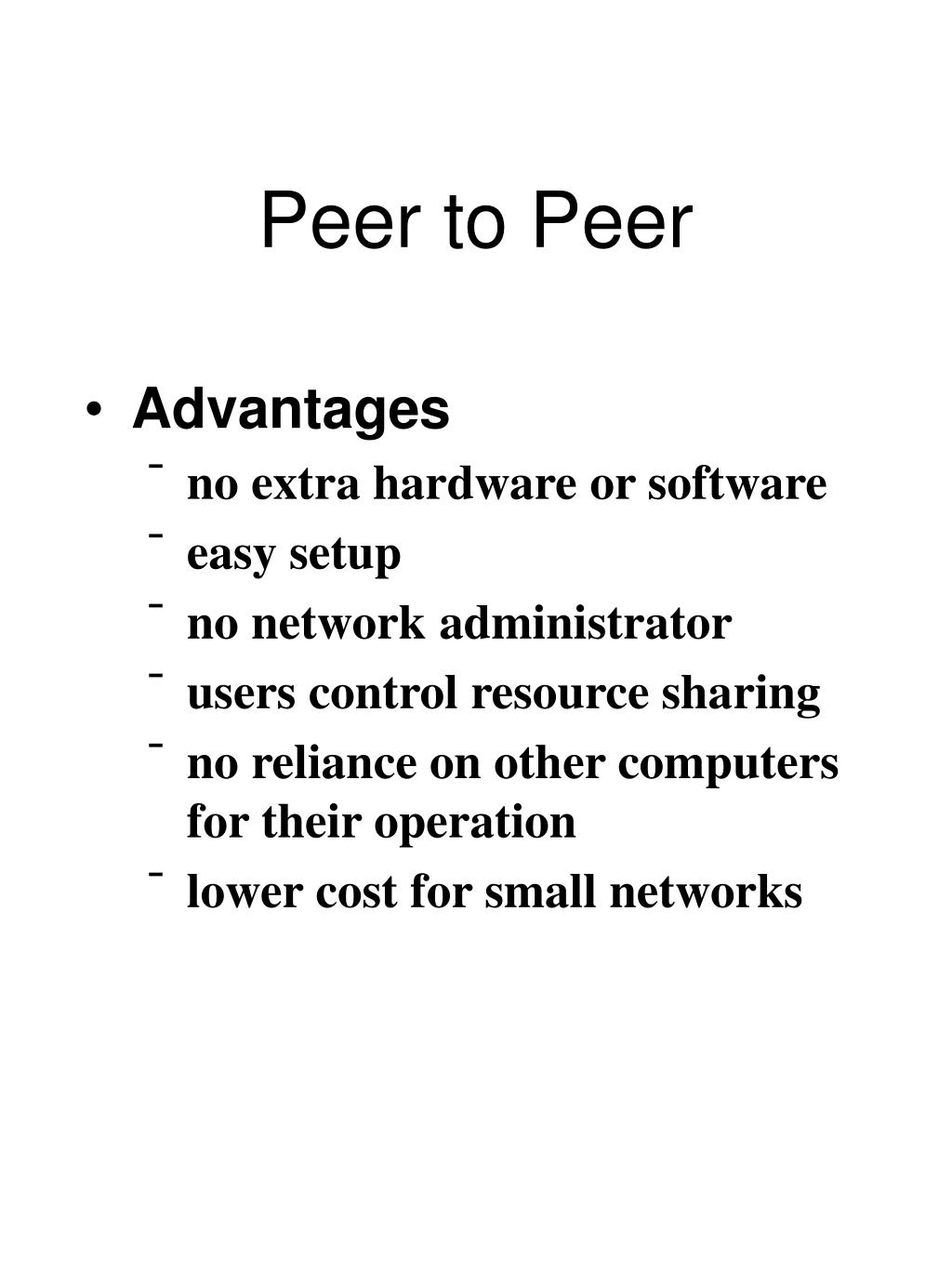

    Peer to peer l.jpg

    Peer to Peer

    • Advantages

      • no extra hardware or software

      • easy setup

      • no network administrator

      • users control resource sharing

      • no reliance on other computers for their operation

      • lower cost for small networks


    Peer to peer37 l.jpg

    Peer to Peer

    • Disadvantages

      • additional load on computers because of resource sharing

      • smaller networks

      • lack of central organization, harder to find data

      • no central point of storage (backup)

      • user administer their network

      • weak security

      • no central management


    Peer security server security l.jpg

    Peer Security /Server Security

    • Peer to Peer

      • less secure than client server

      • security is controlled by access to a share directory (password)

      • each resource requires a separate password

      • cannot distinguish between users

    • Client / Server

      • network logins

      • permissions granted to users for files / resources


    Home network applications 2 l.jpg

    Home Network Applications (2)

    • In peer-to-peer system there are no fixed clients and servers.


    Selecting the network type l.jpg

    Selecting the Network type

    • Cost

    • Expertise

    • Security issues

    • Number of work stations

    • Types of applications


    Types of servers l.jpg

    Types of servers

    • Servers can designed for a specialized purpose

      • file servers

      • print servers

      • Application servers

      • Message servers

      • database servers

      • Web servers

    • One server (hardware / software) may perform one or more functions


    File servers l.jpg

    File Servers

    • Offer services that allow users to share files

    • Typical operating systems

      • Novel NetWare, Windows NT

    • Services include

      • file transfer

      • file storage and data migration

      • file update synchronization

      • file archiving


    File servers file transfer l.jpg

    File ServersFile Transfer

    • The ability to transfer files from one computer to another

    • Need for security (who has what access to which files)

    • Historical done by sneaker net


    File servers file storage and data migration l.jpg

    File ServersFile Storage and Data Migration

    • Vast amounts of data is stored (exabytes)

    • Must be able to efficiently manage the storage of this data

    • Categories of file storage

      • Online storage

      • Offline storage


    File storage online l.jpg

    File StorageOnline

    • Online storage consists mostly of hard drives

    • Online information is immediately available


    File storage offline l.jpg

    File StorageOffline

    • Offline storage include media such as tape, optical disk

    • High capacity, low price

    • Not immediately available

    • Need for operator intervention

    • Best for rarely used data (backup)

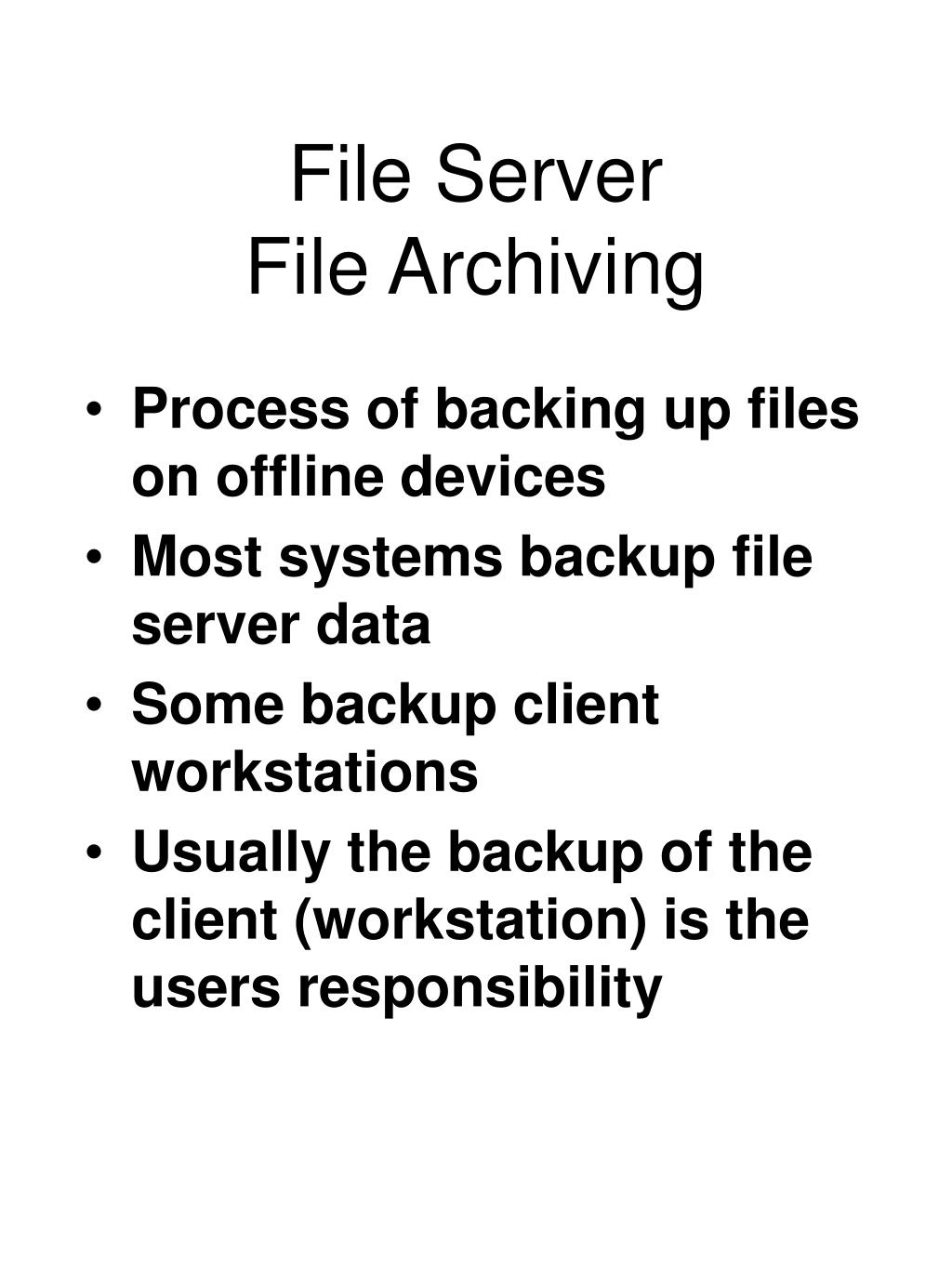

    File server file archiving l.jpg

    File ServerFile Archiving

    • Process of backing up files on offline devices

    • Most systems backup file server data

    • Some backup client workstations

    • Usually the backup of the client (workstation) is the users responsibility


    Print servers l.jpg

    Print Servers

    • Manages and controls printing on the network

      • allows users to share printers

      • place printers where convenient

      • better workstation performance by using high speed data transfer, print queues and spooling

      • ability to send and receive faxes directly from the work station


    Application servers l.jpg

    Application Servers

    • Allow sharing of extra computing of expensive software applications that reside on a shared computer


    Message servers l.jpg

    Message Servers

    • Message services coordinate interactions between users, documents and applications

    • Interactions may be graphics, audio, video, etc.

    • Types of message services

      • Electronic mail

      • Workgroup applications

      • Object oriented

      • Directory services


    Database servers l.jpg

    Database Servers

    • Allows relatively weak clients to access powerful database capabilities

    • Usually runs in a client server model

    • Client runs interface

    • Server runs database operations such as

      • managing the database

      • processing queries


    Network topology l.jpg

    Network Topology

    • The way in which connections between devices in a network is called the topology


    Network topology bus l.jpg

    Network Topology Bus

    4

    1

    2

    3

    5

    • Components connected together by one or more wires

    • Passive topology no active electronics

    • Messages sent by one node are received by all

    • Only the node to which the message is addressed accepts the message


    Network topology bus54 l.jpg

    Network TopologyBus

    • Only one node can transmit at one time

    • A bus topology must be terminated

    • An unterminated bus will cause the signal to echo back (ringing)

    1

    2

    3

    4

    5


    Network topology bus55 l.jpg

    Network TopologyBus

    • Advantages

      • Simple, reliable in small networks

      • Easy to use

      • Requires least amount of cable

      • Easy to extend

      • Can be extended by using a repeater


    Network topology bus56 l.jpg

    Network TopologyBus

    • Disadvantages

      • Degrades with heavy traffic

      • Each connector weakens the signal

      • Difficult to troubleshoot


    Network topology star l.jpg

    Network TopologyStar

    • Cables run from central hub to each computer

    • Each node communicates with central hub

    • Central hub can resend message to all nodes (broadcast star)

    • Central hub can resend only to destination node (switched star)


    Network topology star58 l.jpg

    Network TopologyStar

    • Active hubs regenerate the signal

    • Active hubs and switches require power

    • Passive hubs such as wiring panels or punch down blocks act as a connection point

    • Some hubs allow more than on type of cable


    Network topology star59 l.jpg

    Network TopologyStar

    • Advantages

      • Easy to modify

      • Easy to diagnose

      • Single computer failure does not affect the rest of the network

      • Use multiple types of cables


    Network topology star60 l.jpg

    Network TopologyStar

    • Disadvantages

      • Central hub is a single point of failure

      • More costly


    Network topology ring l.jpg

    Network TopologyRing

    • Each computer is connected to the next in line the last computer is connected to the first

    • Most use token passing

    • Only the node with the token can send a message


    Network topology ring62 l.jpg

    Network TopologyRing

    • Advantages

      • Equal access to the network

      • Still functions under heavy load

    • Disadvantages

      • Failure of one computer could cause of the failure of the ring

      • Difficult to troubleshoot

      • Adding or removing a node disrupts the network

      • Usually more expensive


    Network topology mesh networks l.jpg

    Network TopologyMesh Networks

    • Advantages

      • Fault tolerant

      • Easy to troubleshoot

    • Disadvantages

      • Cost


    Slide64 l.jpg

    Failure of one computer could cause of the failure of the network avoided using Logical/Physical Topologies

    1

    2

    3

    4

    5

    Physical Bus  errors

    Logical Bus

    Physical Star  OK

    1

    2

    3

    4

    5


    Slide65 l.jpg

    Failure of one computer could cause of the failure of the network avoided using Logical/Physical Topologies

    1

    5

    4

    Physical Ring  errors

    2

    3

    1

    5

    Logical Ring

    Physical Star  OK

    2

    4

    3


    What goes wrong in the network l.jpg

    What Goes Wrong in the Network?

    • Bit-level errors (electrical interference)

    • Packet-level errors (congestion)

    • Link and node failures

    • Messages are delayed

    • Messages are deliver out-of-order

    • Third parties eavesdrop


    Network software protocol hierarchies l.jpg

    Network SoftwareProtocol Hierarchies


    Protocol hierarchies l.jpg

    Protocol Hierarchies

    • Example information flow supporting virtual communication in layer 5.


    Connection oriented and connectionless services l.jpg

    Connection-Oriented and Connectionless Services

    • Six different types of service.


    Services to protocols relationship l.jpg

    Services to Protocols Relationship


    Osi model l.jpg

    OSI Model

    • The International Organization for Standardization (ISO) began developing the Open Systems Interconnection (OSI) model in 1977

    • It is now the most accepted standard for network modeling


    Osi model72 l.jpg

    OSI Model

    • Defines rules that apply to the following issues

      • how network devices contact each other

      • how network devices communicate with each other

      • who has the right to transmit data

      • are transmissions received correctly and by the right node


    Osi model73 l.jpg

    OSI Model

    • Defines rules that apply to the following issues

      • how physical media are arranged and connected

      • ensure that network devices maintain a proper rate of data flow

      • how bits are represented on the network media


    Osi model74 l.jpg

    OSI Model

    • Not implemented but many models very close (SNA)

    • OSI model divides tasks into seven layers

    • Layers are software and hardware standards


    Osi model75 l.jpg

    OSI Model

    • The seven layers

      • Physical

      • Data link

      • Network

      • Transport

      • Session

      • Presentation

      • Application


    Osi model76 l.jpg

    OSI Model

    • Protocol Stack

      • a group of protocols each communicating with it's neighbour

      • Layer N receives information from layer N-1 and provides information to layer N+1

      • for computers to communicate with each other both must be running the same protocol stack


    Osi model77 l.jpg

    OSI Model

    • Protocol stack

      • each layer creates / uses information used by / created by it's peer protocol

      • computers may be running different operating system but running the same protocol stack

        • ie Mac running TCP/IP communicating with DOS running TCP/IP

      • A computer may run more than one protocol stack at the same time


    Osi model78 l.jpg

    OSI Model


    Peer level communication l.jpg

    Peer Level Communication

    • Message sent from one application to another application on different hosts

      • travels down the layers of the sending machine

      • each layer adds a header to be used by it's corresponding peer level

      • bottom layer (physical) sends the message to the receiving machine


    Peer level communication80 l.jpg

    Peer level Communication

    • Sending Message (continued)

      • received on receiving side

      • passed up through each layer

      • each layer reads the corresponding header


    Peer level communication81 l.jpg

    Peer Level Communication


    Osi model 7 protocol layers l.jpg

    OSI Model: 7 Protocol Layers

    • Physical  how to transmit bits

    • Data link  how to transmit frames

    • Network  how to route packets to the node

    • Transport  how to send packets to the application

    • Session  manage connections

    • Presentation  encode/decode msgs, security

    • Application  everything else!


    Physical layer l.jpg

    Physical Layer

    • Physical is responsible for sending bits from one computer to another

    • Is not concerned with the meaning of the bits

    • Defines electrical details (what represents a 0 or 1)

    • Mechanical connections shape and number of connector


    Physical layer84 l.jpg

    Physical Layer

    • What signals are sent on which pins

    • Devices at the physical layer

      • Simple Hubs (passive and active)

      • Couplers , T connectors, terminators, cables, and cabling, repeaters

      • Transceivers on the (NIC)

      • Repeaters, multiplexers


    Physical layer85 l.jpg

    Physical Layer

    • The following are addressed at the physical layer

      • Network connections

        • multipoint, point to point

      • Physical topologies

        • bus, star, or ring

      • Analog / digital signaling

      • Bit synchronization

      • Baseband / Broadband

      • Multiplexing


    Data link layer l.jpg

    Data Link Layer

    • Provides for error free transfer of FRAMES over a single link from one device to another

    • Link

      • the circuit established between two adjacent nodes, with no intervening nodes

    • Path

      • a group of links that allows a message to move from origin to destination


    Links and paths l.jpg

    Links and paths


    Data link layer88 l.jpg

    Data Link Layer

    • Adds Cyclic Redundancy Check (CRC) to detect damaged frames

    • Adds control information

      • frame type

      • segmentation details

    • Detects when a frame is lost and asks for retransmission


    Data link layer89 l.jpg

    Data Link Layer

    • Broadcast networks

      • all devices on the LAN receive the data transmission

    • Point to Point

      • only the destination computer receives the message

    • Uses physical address (NIC ID)


    Data link layer90 l.jpg

    Data Link Layer

    • Split into two sublayers

      • Media Access Control (MAC)

        • Controls how devices share the same media

      • Logical Link Control (LLC)

        • establishing and maintaining links between communicating devices

          • synchronization

          • flow control

          • error checking


    Data link layer91 l.jpg

    Data Link Layer

    • Devices

      • Bridges

      • intelligent hubs

      • NICs


    Network layer l.jpg

    Network Layer

    • Makes routing decisions for devices that are farther than one link away

    • Translates logical address into physical address

    • Routers work at the network layer

    • Example: IP addressing


    Transport layer l.jpg

    Transport Layer

    • Responsible for process to process (end to end) delivery of messages

    • Breaks messages into segments

    • Can be Connection-type or Connection-less. Example: TCP or UDP


    Session layer l.jpg

    Session Layer

    • Allows applications on different computers to share a connection

    • Provides for checkpoints (if a connection is lost only the required info is resent

    • Dialog control who can transmit


    Presentation layer l.jpg

    Presentation Layer

    • Handles the format of the data

      • protocol conversion

      • data translation (ASCII)

      • Compression

      • Encryption


    Application layer l.jpg

    Application Layer

    • Provides services to support user applications such as

      • FTP (file transfer)

      • TELNET (remote login)

      • SMTP (simple mail transfer protocol ) e-mail


    Osi model97 l.jpg

    OSI Model


    Slide98 l.jpg

    A

    Subnet 2

    Subnet 1

    B

    Subnet 4

    Gateway

    Subnet 3

    Subnet 2

    Router

    Node

    Subnet 1


    Slide99 l.jpg

    Node

    Application

    AP

    Creates a new end point; allocates table space for it within the transport layer

    Socket

    interface

    Identification of application (port #)

    Transport

    Identifies the node

    Network

    Data Link

    Frames

    NA

    NIC card; identified by NIC card address


    Slide100 l.jpg

    Node 0

    Node 1

    AP0

    AP1

    Buffer 

    hello

    Buffer 

    Socket

    interface

    Socket

    interface

    Transport

    Transport

    Network

    Network

    Data Link

    Data Link

    NA0

    NA1


    Slide101 l.jpg

    Node 0

    Node 1

    AP0

    AP1

    hello

    Buffer 

    Buffer 

    hello

    Socket

    interface

    Socket

    interface

    Transport

    Transport

    Network

    Network

    Data Link

    Data Link

    NA0

    NA1


    Slide102 l.jpg

    Node 0

    Node 1

    AP0

    AP1

    Buffer 

    hello

    Buffer 

    Socket

    interface

    Socket

    interface

    Transport

    AP1

    AP0

    hello

    Transport

    Network

    Network

    Data Link

    Data Link

    NA0

    NA1


    Slide103 l.jpg

    Node 0

    Node 1

    AP0

    AP1

    Buffer 

    hello

    Buffer 

    Socket

    interface

    Socket

    interface

    Transport

    Transport

    Node 1

    Node 0

    Network

    Network

    AP1

    AP0

    hello

    Data Link

    Data Link

    NA0

    NA1


    Slide104 l.jpg

    Node 0

    Node 1

    AP0

    AP1

    Buffer 

    hello

    Buffer 

    Socket

    interface

    Socket

    interface

    Transport

    Transport

    Network

    Network

    Data Link

    Node 1

    Node 0

    Data Link

    AP1

    AP0

    hello

    NA0

    NA1

    Is Node 1 in my subnet?

    YES


    Slide105 l.jpg

    Node 0

    Node 1

    AP1

    AP0

    Buffer 

    hello

    Buffer 

    Socket

    interface

    Socket

    interface

    Transport

    Transport

    Network

    Network

    Data Link

    NA1

    NA0

    Node 0

    Node 1

    Data Link

    AP1

    AP0

    hello

    NA0

    NA1


    Slide106 l.jpg

    Node 0

    Node 1

    AP0

    AP1

    Buffer 

    hello

    hello

    Buffer 

    Socket

    interface

    Socket

    interface

    Transport

    Transport

    Network

    Network

    Data Link

    Data Link

    NA0

    NA1

    NA1

    NA0

    Node 1

    Node 0

    AP1

    AP0

    hello


    Slide107 l.jpg

    Node 0

    Node 1

    AP1

    AP0

    hello

    Buffer 

    Buffer 

    Socket

    interface

    Socket

    interface

    Transport

    Transport

    Network

    Network

    Data Link

    Node X

    Node 0

    Data Link

    AP1

    AP0

    hello

    NA0

    Is Node X in my subnet?

    NA1

    NO

    Call ROUTER


    Slide108 l.jpg

    Backbone

    Routing Tables

    Router

    Routing tables

    Subnet 30

    Node X

    Router

    Node 0

    Node 1

    NAR0

    Subnet 20

    NAR0

    NA0

    Node X

    Node 0

    AP1

    AP0

    hello


    Slide109 l.jpg

    Gateway

    Backbone

    Router

    Routing Tables

    Subnet 30

    Router

    Node 0

    Node 1

    Subnet 20


    Reference models l.jpg

    Reference Models


    Reference models tcp ip l.jpg

    Reference ModelsTCP / IP

    • Protocols and networks in the TCP/IP model initially.


    Slide112 l.jpg

    TCP/IP Model  The Internet Layer

    Packet-switching network based on a connectionless internetwork layer

    Permit hosts to inject packets, independent travel to destination

    Official packet format and protocol: IP (Internet Protocol)

    IP packets delivered where they are supposed to go


    Slide113 l.jpg

    TCP/IP Model  The Transport Layer

    Allows peers on the source and destination hosts to carry on a conversation.

    Protocols: TCP and UDP

    TCP (Transmission Control Protocol)  reliable, connection-oriented, error-free byte stream delivering; handles flow control

    UDP (User Datagram Protocol)  unreliable, connectionless; No TCP’s flow control; applications where prompt delivery more important than accurate delivery (speech, video, …)


    Slide114 l.jpg

    IEEE

    • Institute of Electrical and Electronic Engineers defined standards relating to the physical cabling and data transmission relating to the physical and Data Link layers

    • 802.x standards


    Example networks l.jpg

    Example Networks

    • The Internet

    • Connection-Oriented Networks: X.25, Frame Relay, and ATM

    • Ethernet

    • Wireless LANs: 802:11


    Architecture of the internet l.jpg

    Architecture of the Internet

    • Overview of the Internet.


    Atm virtual circuits l.jpg

    ATM Virtual Circuits


    Atm virtual circuits 2 l.jpg

    ATM Virtual Circuits (2)

    • An ATM cell.


    The atm reference model l.jpg

    The ATM Reference Model

    • The ATM reference model.


    The atm reference model120 l.jpg

    The ATM Reference Model


    Ethernet l.jpg

    Ethernet


    Wireless lans l.jpg

    Wireless LANs

    • (a) Wireless networking with a base station.

    • (b) Ad hoc networking.


    Wireless lans 2 l.jpg

    Wireless LANs (2)


    Wireless lans 3 l.jpg

    Wireless LANs (3)


  • Login
