The Ohio State University

Department of Horticulture and Crop Science

H&CS 521 Greenhouse Crop Production

Light


Slide2 l.jpg

LIGHT!!!


Characteristics of light as they relate to growing plants l.jpg

Characteristics of Light as They Relate to Growing Plants

  • Quantity (Intensity)

    • photosynthesis

  • Quality (Wavelength - Color)

    • photomorphogenesis

  • Duration

    • photoperiodism


What is light l.jpg

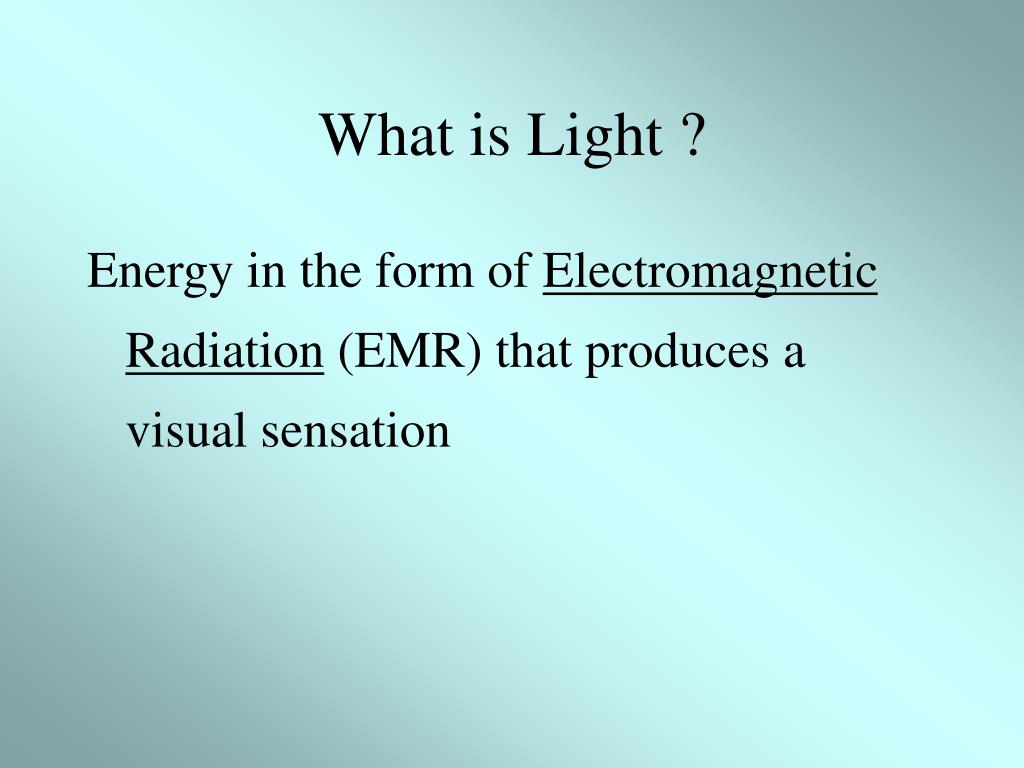

What is Light ?

Energy in the form of Electromagnetic Radiation (EMR) that produces a visual sensation


The dual nature of light l.jpg

The “Dual Nature” of Light

  • Particle

    • light behaving like a “package” of energy

    • PHOTONS - a particle of light

      • important for plants. Photons are what the plant “sees” (senses)

    • QUANTA- “packet” or amount of energy contained in a photon


The dual nature of light6 l.jpg

The “Dual Nature” of Light

  • Wave

    • EMR can have very short wavelengths  very long wavelengths

    • Energy is inversely proportional to wavelength

    • Shorter wavelength = higher energy


Relationship between energy and wavelength l.jpg

Relationship between Energy and Wavelength ()


Slide8 l.jpg

Photosynthetic & Visible Light

Far-red


How is light emr generated l.jpg

How is Light (EMR) Generated?

Everything with a temperature above absolute zero (-273C) is emitting EMR

  • The amount of energy emitted depends on the temperature

  • Increase in temperature = increase in total energy emitted

  • Stephan-Boltzman Law


Temperature vs wavelength l.jpg

Temperature vs. Wavelength ()

  • Temperature is inversely proportional to wavelength

  • Wein’s Law: peak  (wavelength) of EMR from an object is inversely proportional to temperature

     can control color of light by controlling temperature of an object.


Pigments and light absorption l.jpg

Pigments and Light Absorption

Objects absorb specific wavelengths

Pigments are the chemicals in an object that absorb specific wavelengths, giving that object its characteristic

COLOR


Biological pigments l.jpg

Light Reflected

Green

Yellow Orange

Yellow Orange

Black

Red

Biological Pigments


Measuring light quantity l.jpg

Measuring Light Quantity

  • Photometric Method

  • Radiometric Method

  • Quantum Method


Photometric method l.jpg

Photometric Method

  • Based on the sensitivity of the human eye to detect electromagnetic radiation

  • Very subjective

  • Standard Unit = 1 foot candle (ftc)

  • Amount of light given off from 1 candle at a distance of 1 foot


Light absorption human eye vs leaf l.jpg

Light Absorption Human Eye vs. Leaf

Eyesight is not the best way to judge of the photosynthetic capability of a light source because the ability to detect colors by our eyes is the opposite of leaf absorption of colors for photosynthesis.


Radiometric method l.jpg

Radiometric Method

  • Measures electromagnetic radiation in terms of total energy

  • Standard Unit = W/m2

  • Disadvantage

    • wavelength is irrelevant


Quantum method l.jpg

Quantum Method

  • Measure of Photosynthetic Photon Flux (PPF) (400-700nm)

  • Not measuring all  of entire spectrum, it is measuring the amount of photosynthetic light

  • Standard Unit = mol = (6.02 x 1023) photons

    = mol = (6.02 x 1017) photons

  • Best way to measure light in the greenhouse because plants are “counting” photons that they absorb.


Light intensity l.jpg

Light Intensity

Intensity Directly Effects:

1. Photosynthesis

  • plants are photon “counters”- photosynthetic yield is directly related to photons absorbed

    CO2 + H2O + Light Energy  (CH2O) + O2

    2. Height (stem growth)

    3. Development (flowering)


What limits light availability l.jpg

What Limits Light Availability?

  • Time of Year (season)*

  • Latitude

  • Time of Day

  • Cloud cover (reduces availability 3-6x)

    *Also determines length of day which influences light availability

Sun angle is influenced by these factors and sun angle determines light availability


Angle of light and intensity l.jpg

Angle of Light and Intensity

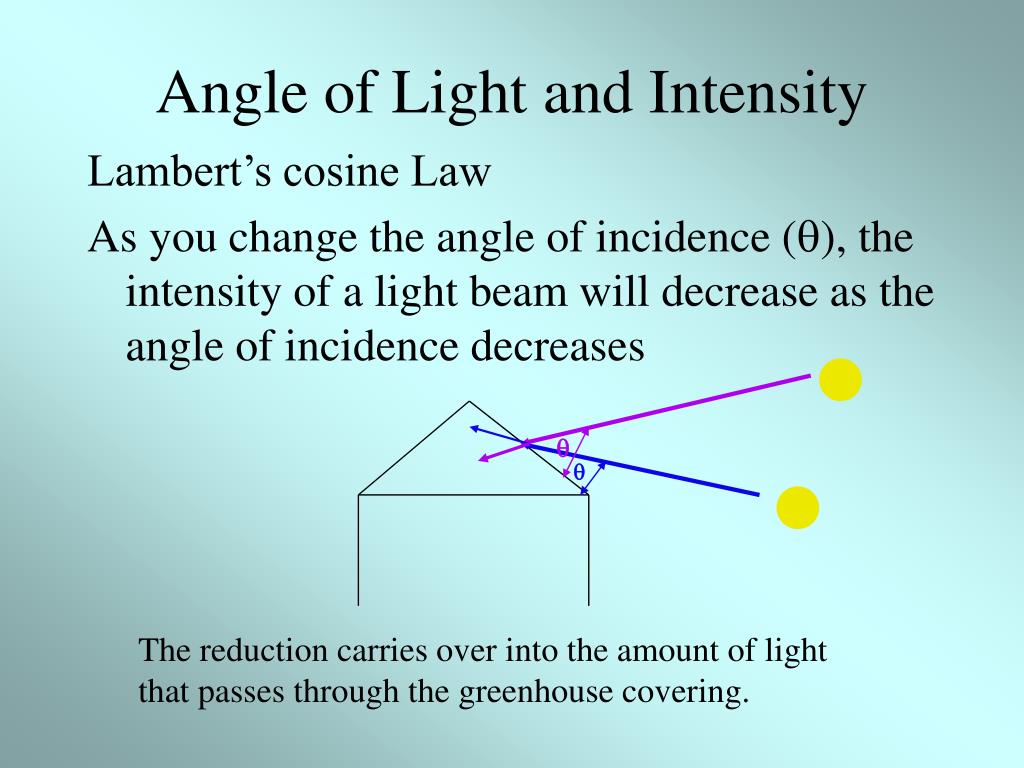

Lambert’s cosine Law

As you change the angle of incidence (), the intensity of a light beam will decrease as the angle of incidence decreases

The reduction carries over into the amount of light that passes through the greenhouse covering.


Angle of incidence l.jpg

Angle of Incidence

90o is the angle at which transmission intensity occurs

As the angle of the sun hitting the greenhouse roof increases to 90o, light transmission into the greenhouse increases.

In general, the higher the sun is in the sky, the greater the transmission into the greenouse.

Low sun angle in the winter along with short days dramatically reduce light levels in the greenhouse during that time of the year.


Time of year l.jpg

Time of Year


Cloud cover l.jpg

Cloud Cover


Slide24 l.jpg

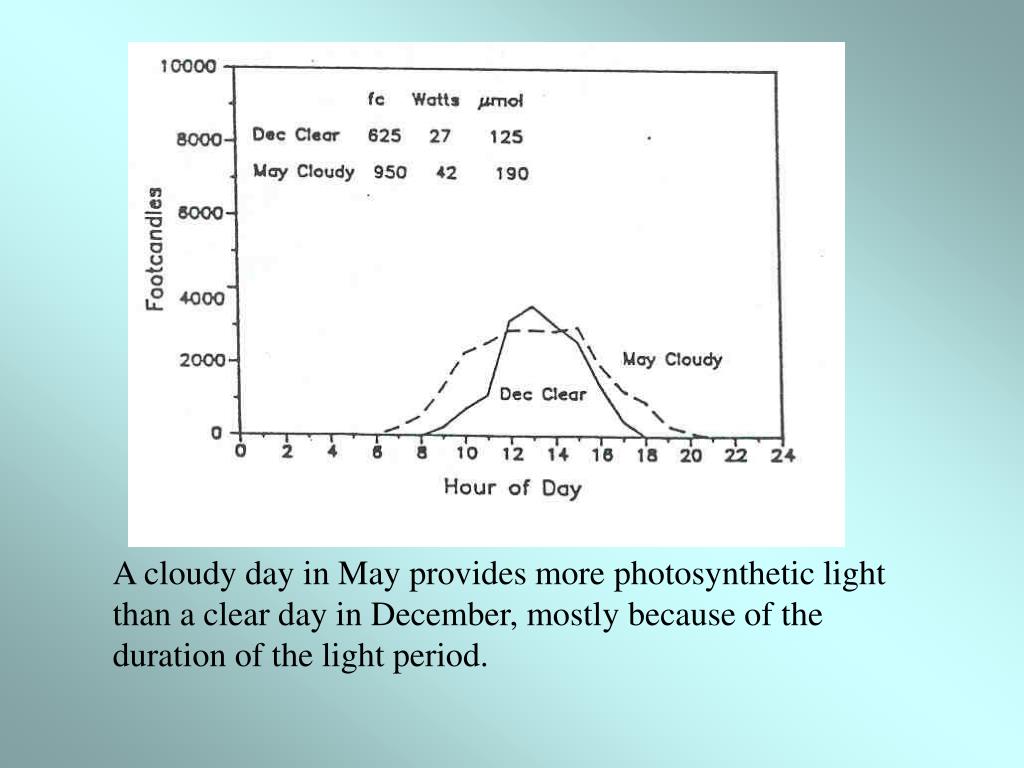

A cloudy day in May provides more photosynthetic light than a clear day in December, mostly because of the duration of the light period.


Plant physiology under low light intensity l.jpg

Plant Physiology Under Low Light Intensity

1. Longer internodes, increased stem elongation

2. Leaves have larger surface area

3. Thinner leaves and stems

4. Thinner cuticle

5. One layer of palisade cells

All are adaptations to maximize photosynthesis


Sun vs shade leaf l.jpg

Sun vs. Shade Leaf

Sun

Shade


Slide27 l.jpg

Guess which plants haven’t seen the light yet.

Notice that both Easter lilies are flowering.


Light quality l.jpg

Light Quality

  • Controls Photomorphogenesis (plant development and form)

  • Mediated by phytochrome (protein pigment)

    • red light absorbing form (Pr)

    • FR light absorbing form (Pfr)

    • Forms are photoinconvertible, depending on the which type of light is absorbed


Light quality29 l.jpg

Light Quality

RED

Pr

Pfr

FR

  • both forms induce plant responses

  • response depends on which form is dominant


Slide30 l.jpg

Hard to know that FR is present

Humans cannot sense it


Slide31 l.jpg

FR

FR box has 5X more energy than R box

Red


Plant growth response to low r fr r fr generally 1 1 l.jpg

Plant Growth Response to Low R:FR (R<FR generally < 1:1)

Low R:FR can result from increase in FR or reduction in Red and is indicated by:

1. Elongated internodes (stretching)

2. Reduced lateral branching

3. Elongated petioles

4. Larger, thinner leaf blades

5. Smaller total leaf area (due to lower numbers of leaves

6. Reduced chlorophyll synthesis


Plant growth response to high r fr r fr generally 1 1 l.jpg

Plant Growth Response to High R:FR (R>FR (generally > 1:1))

High R:FR can result from reduction in FR or increase in Red and is indicated by

1. Reduced internode length

2. Increased lateral branching

3. Shorter petioles

4. Thicker, smaller leaves

4. Greater total leaf area

5. Increased leaf chlorophyll (darker green)


Slide34 l.jpg

R:FR is >1:1

Reduced internode length (short stems)

Increased lateral branching

Shorter petioles

Thicker, smaller leaves

Greater total leaf area

Green (increased chlorophyll)

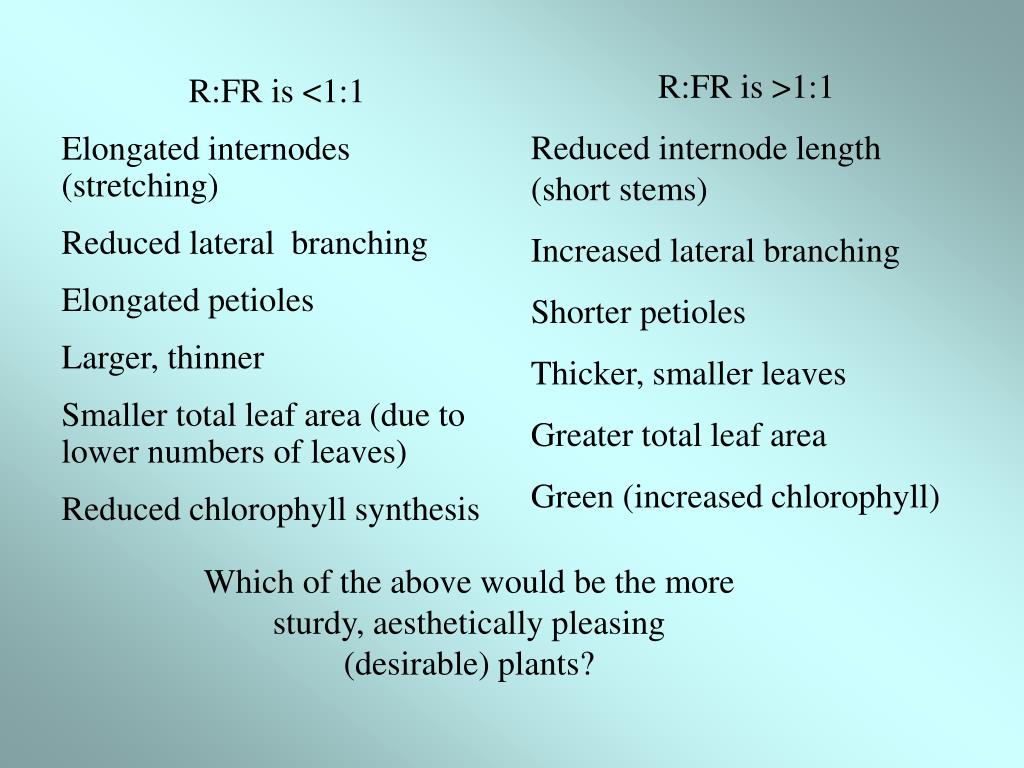

R:FR is <1:1

Elongated internodes (stretching)

Reduced lateral branching

Elongated petioles

Larger, thinner

Smaller total leaf area (due to lower numbers of leaves)

Reduced chlorophyll synthesis

Which of the above would be the more sturdy, aesthetically pleasing (desirable) plants?


Slide35 l.jpg

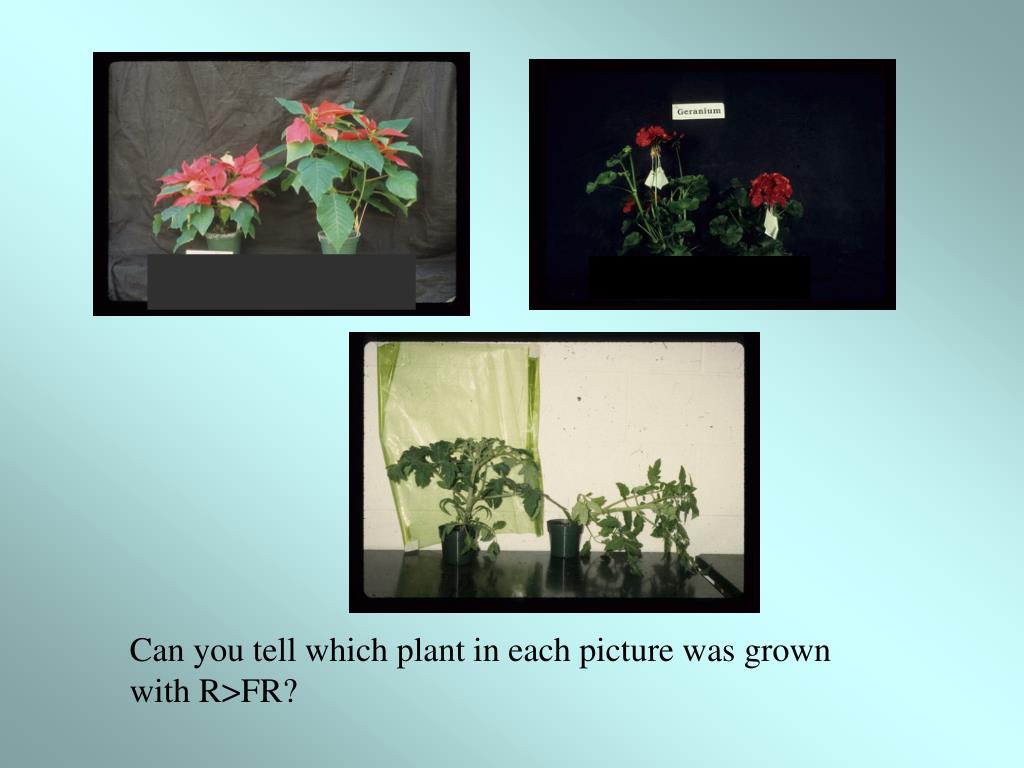

Can you tell which plant in each picture was grown with R>FR?


Shade avoidance response l.jpg

Shade Avoidance Response

  • Leaves strongly absorb red and blue light

  • The closer plants are to a neighboring plant:

    • less red light available for absorption

    • still have nearly all FR light present because of FR is transmitted and reflected but not absorbed


Shade avoidance response37 l.jpg

Shade Avoidance Response

  • Phytochrome responds to the quality of light within the canopy of crowded plants

  • Mechanism by which plants can tell how close neighboring plants are and out-compete for available space


Slide38 l.jpg

In dense canopies the dominant form of phytochrome is Pr (meaning it has absorbed FR)

Pr form elicits shade avoidance response


Effects of leaves on light reflection absorption and transmission l.jpg

Effects of Leaves on Light Reflection, Absorption, and Transmission


Slide40 l.jpg

Other Phytochrome Responses


End of day response l.jpg

End of Day Response


End of day response42 l.jpg

End of Day Response

  • Plant response to the changes in the ratio of Red/FR light

  • As day progresses, greater chance of scattering light in atmosphere because of lower sun angle

  • Shorter  have greater probability of scattering

  • At end of day, lowest Red/FR ratio for the day

    • red light scattered much more than FR


End of day eod response l.jpg

End of Day (EOD) Response


Slide44 l.jpg

EOD - important in timing of

photoperiodic flowering


Photoperiodism duration of the light period l.jpg

PhotoperiodismDuration of the Light Period

As a result of seasonal changes in daylength, plants have evolved systems to ensure viability of seeds:

- protection before winter

- coincide with the rainy/ dry seasons

Photoperiodism - plant ability to detect and respond to day length


Photoperiodic response l.jpg

Photoperiodic Response

  • Short Day Plant (SDP) - flower when the day length is less than the Critical Day Length

  • Long Day Plant (LDP)- flower when the day length is greater than the Critical Day Length

  • Day Neutral- flower without respect to day length


Photoperiodic response47 l.jpg

Photoperiodic Response


Photoperiodic regulation l.jpg

Photoperiodic Regulation

Plants actually measuring NIGHT length

That means that during short day periods of the year by interrupting or splitting a long night with a relatively short photoperiod the plant perceives a short night and long day effect even though the natural day length has not changed


Classes of photoperiodic plants l.jpg

Classes of Photoperiodic Plants

  • Obligate - plant that must absolutely meet the day length requirement to flower

  • Facultative - plant that will flower under most photoperiods but will flower most readily when the photoperiodic requirement is met

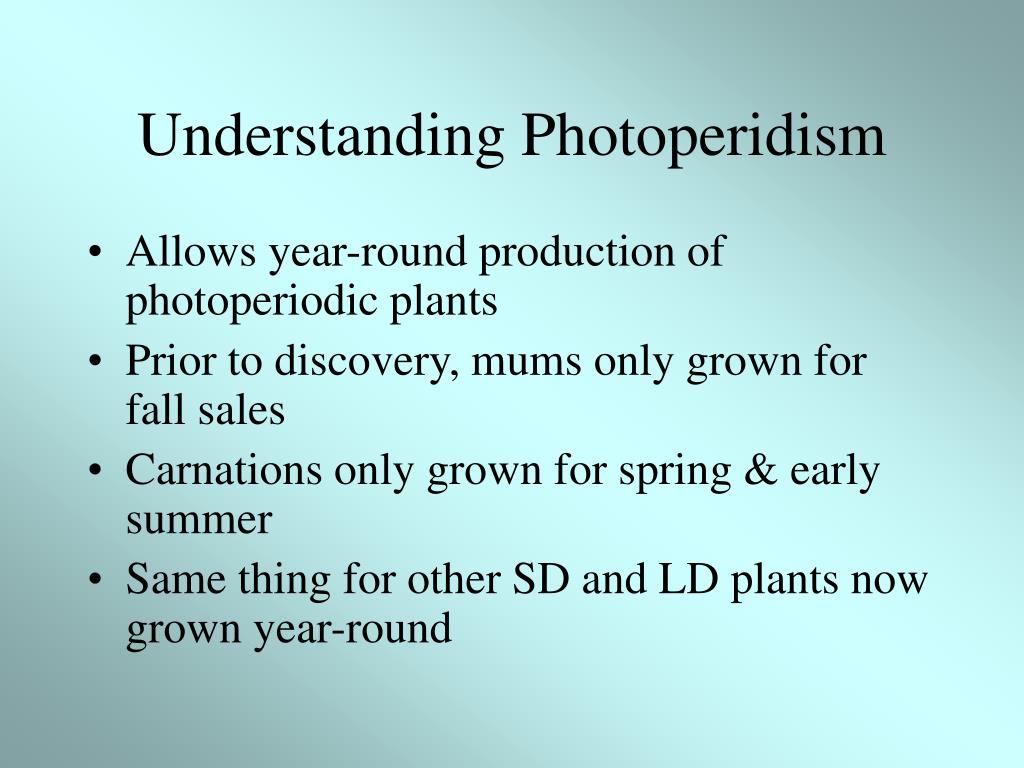

Understanding photoperidism l.jpg

Understanding Photoperidism

  • Allows year-round production of photoperiodic plants

  • Prior to discovery, mums only grown for fall sales

  • Carnations only grown for spring & early summer

  • Same thing for other SD and LD plants now grown year-round


Temperature interaction l.jpg

Temperature Interaction

Critical Daylength is Often Temperature Dependent

  • SDP - as temp. increases, CDL decreases (requires shorter days than normal)

    • Mums

    • Poinsettias

  • LDP - as temp. decreases, CDL decreases (days don’t have to be as long as normal)

    • Fuchsia

    • Spinach


  • Slide52 l.jpg

    Note: the concept of short/long day is not limited to 12 hrs. day/night.

    The critical dark period for a short day plant may only be 8 hrs. (16 hrs.light), but if it does not flower when the night is any shorter than that, it is still a short day plant, even though it flowers when the day length is 16 hrs.


    Light manipulation to control plant growth in the greenhouse l.jpg

    Light Manipulation to Control Plant Growth in the Greenhouse


    Characteristics of light l.jpg

    Characteristics of Light

    • Quantity (Intensity)

      • Photosynthesis

    • Duration

      • Photoperiodism

    • Quality (λ)

      • Photomorphogenesis


    Maximizing light intensity depends on l.jpg

    Maximizing Light Intensity:Depends On:

    • Greenhouse Design

    • Construction Materials Used

    • Plant Spacing

    • Other objects absorbing/reflecting light


    Greenhouse orientation direction the ridge runs l.jpg

    East-West

    More light interception

    More permanent shadows

    More snow blown off roof by wind (<40° N or S)

    North-South

    Less light interception

    Less permanent shadows

    Better natural ventilation (<40° N or S)

    Greenhouse Orientation(direction the ridge runs)


    Orientation bottom line 40 latitude l.jpg

    Orientation Bottom line: 40° latitude

    Higher latitudes…

    Single-ridged → East-West

    Multi-ridged → North-South


    Incidence angle of light l.jpg

    Incidence Angle of Light

    • If light strikes roof at 90°, then have maximum light transmission

    • If light strikes roof not at 90°, then less light transmitted


    Using roof angle to maximize light interception l.jpg

    Using Roof Angle to Maximize Light Interception

    • Winter months in Columbus, OH (~40°N), sun at low angle

    • For light to strike at 90°, then roof angle would have to be >60°


    Greenhouse dimensions and roof slope l.jpg

    Greenhouse Dimensions and Roof Slope


    Common roof angles l.jpg

    Width < 25 ft

    32°

    Width > 25 ft

    26 °

    Common Roof Angles


    Light transmission is affected by glazing materials and the maintenance of them l.jpg

    Light transmission is affected by glazing materials and the maintenance of them

    • Glazing Material (% light transmission)

      • Glass (low iron) (93%)

      • Exolite (double acrylic) (92%)

      • Lexan (double polycarbonate) = (78%)

    • Cleaning glazing material

      • Several times a year (usually rainfall will do this)

      • Remove shading compound by mid-October


    Slide63 l.jpg

    Light transmission is affected by superstructure and its maintenance

    • Superstructure

      • ↑ superstructure, ↑ shading

      • Heavy glazing requires more superstructure

      • Frame 10-12%, sash bars 5-7% reductions

      • Supplemental lighting fixtures can shade

    • Superstructure clean and painted

      • Aluminum = reflective

      • Wood - painted white and kept clean


    Slide64 l.jpg

    LOTS of superstructure but it is white and clean so lots of reflection too.


    Remove objects that shade l.jpg

    Remove objects that shade

    • Adequate plant spacing

      • Reduces shade avoidance response

      • Don’t overdo with the numbers of hanging baskets

    • Objects close to greenhouse (trees, buildings, etc)

      • Distance away = 2 x Height of object


    Slide66 l.jpg

    Greenhouse shadows can be a serious problem, especially if they don’t move during the day


    Reducing light intensity l.jpg

    Reducing Light Intensity

    • Why shade?

      • Low light plants don’t like high light

      • Reduce temperature

      • Have reached light saturation point

    • Shading methods

      • Shade cloth

      • Shading compounds


    Slide68 l.jpg

    Internal and external shade systems


    Slide69 l.jpg

    Automated shade system


    Slide70 l.jpg

    Shade cloth Shading compounds

    Advantages: Easily applied or Reduces air temps more

    removedeffectively

    Known %

    Disadvantages: Not as effective More or less permanent

    at reducing(difficult to remove)

    air temps

    Have to use specially

    formulated compounds

    for both application and removal.

    Application not uniform


    Typical light intensities for different purposes l.jpg

    Typical Light Intensities for Different Purposes

    * Photosynthesis is a reciprocal process. Low intensity can be overcome by longer exposure.


    Manipulating photoperiod l.jpg

    Manipulating Photoperiod

    • Control flowering stage of your crop

    • Vegetative vs. Reproductive

      • Artificial short days

        • Black cloth

      • Artificial long days

        • Daylength extension

        • Night breaks


    Artificial short days l.jpg

    Artificial Short days

    • Pull black cloth

      • Opaque material blocks all light

      • SDP induced to flower

      • Reflective to reduce heat delay

      • Can be automated

      • Can ‘double’ as thermal blanket to hold in heat on cold nights


    Artificial long days l.jpg

    Artificial Long Days

    • Daylength extension

      • Induce LDP to flower

      • Light (FR containing) for 3-6 hrs at end of day

      • Low intensity (1-3 mmol/m2/s, 7-10 fc)

    • Night Breaks

      • Prevent SDP from flowering

      • 2-4 hrs of low light during dark period

      • Want little FR in light


    Manipulating r fr l.jpg

    Manipulating R:FR

    • Minimize shade avoidance response

    • Remove excess vegetation from plants to prevent self-shading (e.g. geraniums)

    • Prevent shading from other plants

      • Minimize # of hanging baskets over plants

      • Proper pot spacing

        • Space visible between plants at least until plants are nearly ready to ship


    Bench cover and pot spacing symbols multi lingual l.jpg

    Bench Cover and Pot-spacing Symbols (multi-lingual)


    Other alternatives l.jpg

    Other alternatives

    • Spectral filters

      • Pigments in plastic film that absorb FR and increase R:FR

      • Not all problems worked out yet

    • Biotechnology

      • More phytochrome so plants “see” more red light

      • Compact, darker green, more branching


    Slide78 l.jpg

    Effects of FR-absorbing filters on stem elongation

    Darker color of filter indicates increasing

    FR-absorbance


    Supplemental lighting for photosynthesis l.jpg

    Supplemental Lighting for Photosynthesis

    • Law of Reciprocity

      • 500 mmol/m2/s for 1 hour = 100 mmol/m2/s for 5 hours

    • Use this law to your advantage, run relatively low intensity for several hours

      • Increasing intensity by adding additional fixtures can be too expensive and cause too much shading


    Types of supplemental light sources l.jpg

    Types of Supplemental Light Sources

    • Incandescent

    • Fluorescent

    • High Intensity Discharge (HID)

      • Metal Halide

      • Mercury vapor

      • Low pressure sodium

      • High pressure sodium


    Considerations for lighting choice l.jpg

    Cost

    Fixture

    Installation

    Energy consumption

    Ease of Installation

    Spectral characteristics (λ)

    Type of crop

    Power (wattage)

    Heat released

    Efficiency

    Amount of electrical energy converted to light energy

    Life Expectancy

    Output Loss

    Weight of fixture

    Considerations for Lighting Choice


    Incandescent l.jpg

    Incandescent

    • Easily installed

    • Low efficiency

    • Low intensity

    • Large amount of heat given off

    • Spectrum contains far-red (R:FR > 1:1)

    • OK for photoperiodic control

      • Daylength extension

      • Night break


    Fluorescent l.jpg

    Fluorescent

    • More efficient than incandescent

    • Low intensity

    • Less heat generated than incandescents

    • No far-red but some UV

    • Good for growth chambers, coolers, and photoperiod (night break) use

    • More complicated to install (ballast) than incandescent

    • Different phosphors change spectrum


    How well does fluorescent spectrum match plant needs l.jpg

    How well does fluorescent spectrum match plant needs?


    High intensity discharge hid metal halide l.jpg

    High Intensity Discharge (HID) Metal Halide

    Best for photosynthetic light


    Metal halide spectrum l.jpg

    Metal Halide Spectrum


    Low pressure sodium lps hid lamps l.jpg

    Cheap

    Most light in narrow band around 589nm

    Bad for plants!!!!

    Low-Pressure Sodium (LPS) HID lamps


    High pressure sodium hps l.jpg

    High Pressure Sodium (HPS)

    • Popular in US greenhouses

    • Like LPS, peak λ at 589nm but wider spectrum

    • Contain very little FR


    Common hid light fixtures found in greenhouses l.jpg

    Common HID Light Fixtures Found in Greenhouses


    Slide90 l.jpg

    HID’s providing supplemental light for photosynthesis during low light conditions


    Slide91 l.jpg

    Representative spectra for sunlight and artificial light sources


    Uses for light sources l.jpg

    Uses for Light Sources

    • Night break

      Fluorescent > Incandescent > HID

    • Daylength Extension for Photosynthesis

      HID Incandescent Fluorescent

    • Supplemental Light Intensity for Photosynthesis

      HID > Fluorescent* Incandescent

      * Best source of photosynthetic light in germination rooms and coolers


  • Login
