Presentation Transcript

Slide1 l.jpg

A Research Style Biochemistry Lab: Collaborating on

the Integration of Research and Teaching at Two Institutions

Gregory W. Muth

Department of Chemistry

St. Olaf College

Joe Chihade

Department of Chemistry

Carleton College

Slide2 l.jpg


1828 synthesis of urea

1833 isolation of amylase

1896 fermentation using yeast extracts

1903 general acceptance of the term “biochemistry”

1962 ACS publication of Biochemistry

1998 ASC biochemistry requirement

Interdisciplinary aspects:


Cell biology




Molecular biology




Slide3 l.jpg

Curricular goals:

  • Explore fundamental biochemistry techniques

  • Teach experimental design and data interpretation

  • Expose chemistry students to interdisciplinary pedagogy

  • Make connections between molecular structure and function

  • Reinforce concepts from lecture

Slide4 l.jpg

Research focus:

  • Hypothesis driven

  • Continuity

  • Open-ended

Biochemistry Research

  • Explorations into the functional or structural properties

  • of isolated biological molecules under

  • controlled conditions

Slide5 l.jpg

Design implementation:

Activated methyl cycle and methionine biosynthesis

  • Defects in methionine pathway

    • elevated homocysteine

    • increased ROS

    • arteriosclerosis

Cystathionine-b-Lyase (CBL)

(E. coli)

Steegborn, C., et al., Kinetics and inhibition of recombinant human cystathionine gamma-lyase – Toward the rational control of transsulfuration. Journal of Biological Chemistry, 1999. 274(18): p. 12675-12684.

Slide6 l.jpg

Cystathionine-b-Lyase (CBL)

Uren, J. R. (1987). "Cystathionine Beta-Lyase From Escherichia-Coli." Methods In Enzymology143: 483-486.

Slide7 l.jpg

Design implementation:

  • Colorimetric assay for product formation

  • Commercially available substrates

  • Complex reaction mechanism

  • Crystal structure

Slide8 l.jpg

Cystathionine-b-Lyase (CBL)

pyridoxal 5’-phosphate

  • Complex reaction mechanism

  • Crystal structure

Clausen, T., R. Huber, et al. (1996). "Crystal structure of the pyridoxal-5'-phosphate dependent cystathionine beta-lyase from Escherichia coli at 1.83 angstrom." Journal of Molecular Biology262(2): 202-224.

Slide9 l.jpg

The Process

1) Each student group generates a hypothesis

  • analysis of reaction mechanism and enzyme active site

“I think the hydroxyl group on tyrosine 111

stabilizes substrate binding”

Slide10 l.jpg

The Process:

2) Each group designs a mutant to test their hypothesis

Slide11 l.jpg

Mutagenesis with additional silent mutation


acc aac acc gcc tat gaa ccg agt cag gat

T N T A Y111 E P S Q D

CBL protein


mutant CBL

T N T A F111 E P S Q D

mutant DNA

acc aac acc gcc ttt gaa cct agt cag gat

second change introduces or removes a restriction site,

no change in protein sequence – silent mutant

Slide12 l.jpg

Advantages of silent mutation

  • Use of bioinformatics software (EMBOSS)

  • Review genetic code (proteinDNA)

  • Predict outcome of restriction digests (NEB cutter 2.0)

  • Avoid the “black box” of DNA sequencing

  • Students empowered to “order” DNA oligomer

  • and restriction enzyme

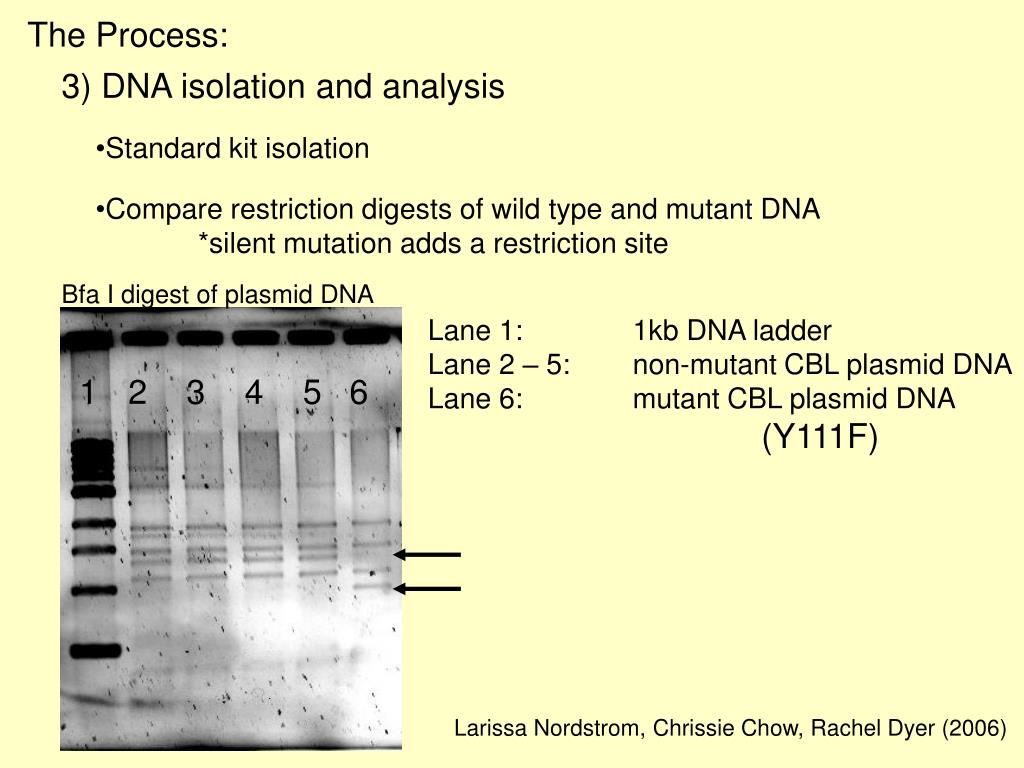

Slide13 l.jpg







The Process:

3) DNA isolation and analysis

  • Standard kit isolation

  • Compare restriction digests of wild type and mutant DNA

  • *silent mutation adds a restriction site

Bfa I digest of plasmid DNA

Lane 1: 1kb DNA ladder

Lane 2 – 5: non-mutant CBL plasmid DNA

Lane 6:mutant CBL plasmid DNA


Larissa Nordstrom, Chrissie Chow, Rachel Dyer (2006)

Slide14 l.jpg

The Process:

4) Protein expression, isolation and analysis

Affinity chromatography

Bradford assay


Slide15 l.jpg

The Process:

5) Enzyme kinetics (functional analysis)

  • Three substrates

  • Wild-type and mutant enzyme

  • Different pH buffers

Experimental Design:

measure d[P]


[S] = ???

Km = [S] at ½ Vmax (Km values from literature)

[E] = ???

[S] >> [E]

determined through trial and error

Slide16 l.jpg


Group 1

Group 2



Km = 94 mM

kcat = 82 sec-1

Km = 54 mM

kcat = 58 sec-1



Km = 28 mM

kcat = 0.81 sec-1

Km = 30 mM

kcat = 0.038 sec-1

Slide17 l.jpg

The Process:

6) Each group shares results in a final presentation or report

  • Revisit hypothesis

“I think the hydroxyl group on tyrosine 111

stabilizes substrate binding”

  • Evaluate calculations

70 fold change in kcat , minimal change in Km

  • Conclude

The placement of Y111 within the active site (distant from PLP) along with the kinetic data suggest that the Y111 hydroxyl helps position the substrate in an

optimal orientation for the chemical reaction

Slide18 l.jpg

Lessons learned

Units, units, units!!!!

Never underestimate the difficulty of a simple calculation

Perspective – how much is reasonable?

when is a change significant?

Always provide a standard template for reporting results

There is a bridge across the river

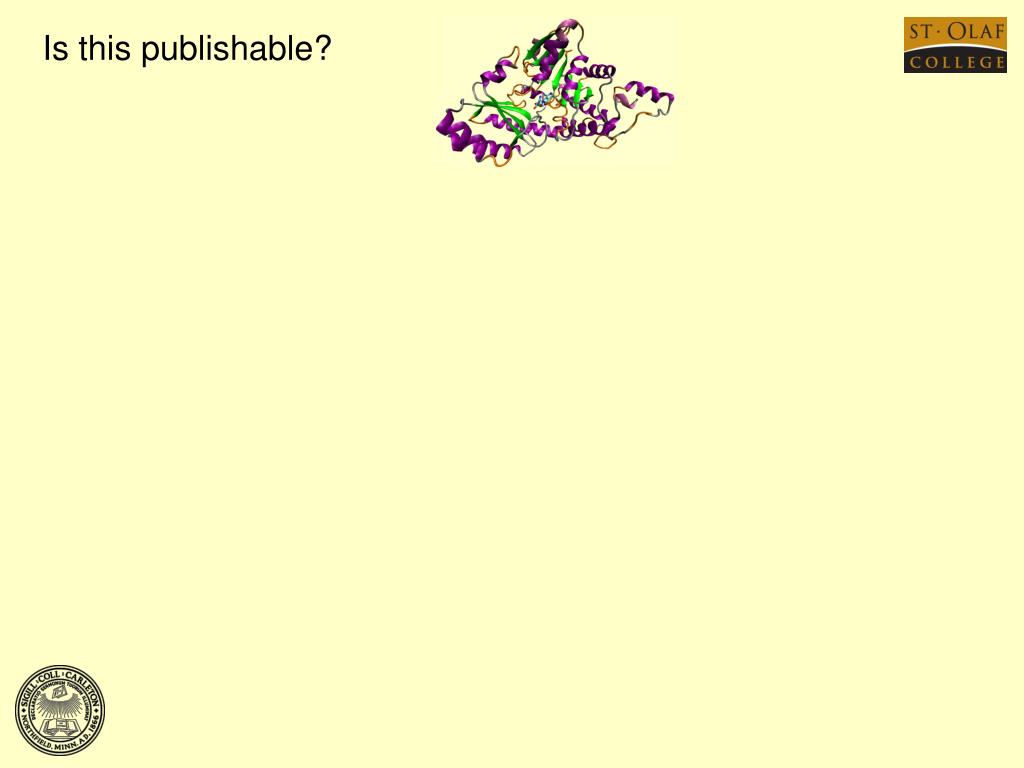

Slide19 l.jpg

Is this publishable?

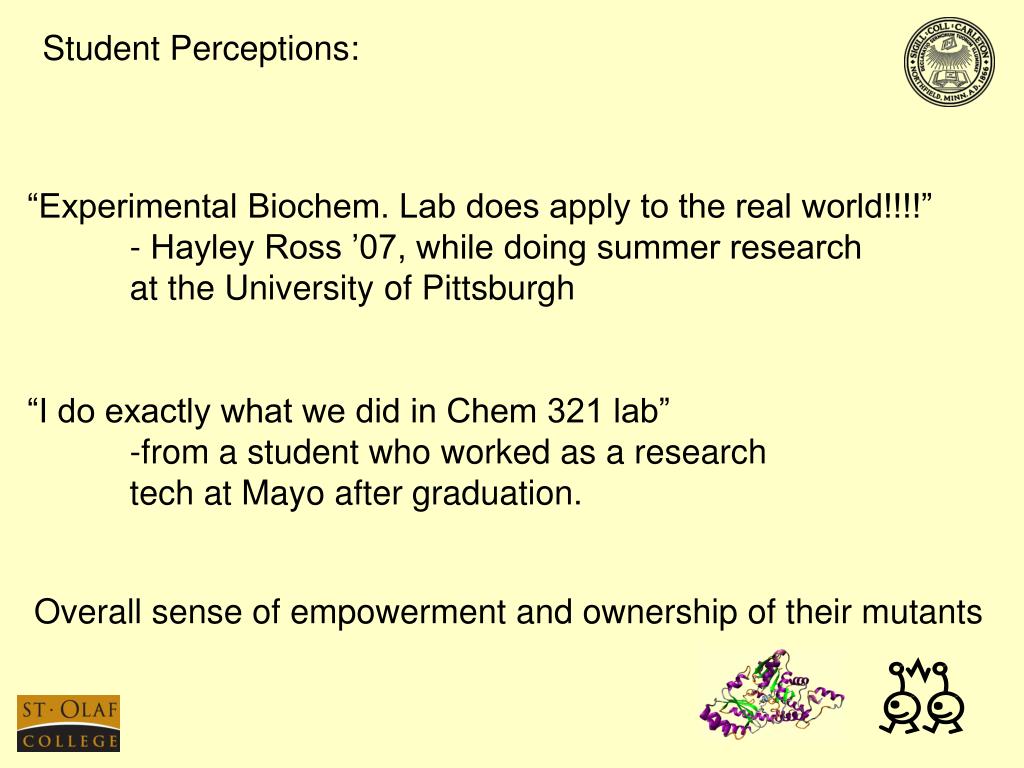

Slide20 l.jpg

Student Perceptions:

“Experimental Biochem. Lab does apply to the real world!!!!”

- Hayley Ross ’07, while doing summer research

at the University of Pittsburgh

“I do exactly what we did in Chem 321 lab”

-from a student who worked as a research

tech at Mayo after graduation.

Overall sense of empowerment and ownership of their mutants

Slide21 l.jpg


Carleton College, Department of Chemistry

St. Olaf College, Faculty and Students

Fall 05-06

Brennan Decker

Kiyomi Goto

Mike Kuprian

Colin Reily

Hayley Ross

Chris Torstenson

Spring 05-06

Nisar Baig

Chrissie Chow

Rachel Dyer

Christine Gille

Liz Johnson

Matt Majerus

Brandon Moriarty

Larissa Nordstrom

Fall 06-07

Andrew Bodger

Colette Cave

Tyler Drake

Sultan Mirzoyev

James Morrison

Pat Nelson

Paul Nichol

Katherine Oyster

Ryan Ritzer
