Convection Temperature Device - CTD 450


Convection temperature device ctd 450

g t

w

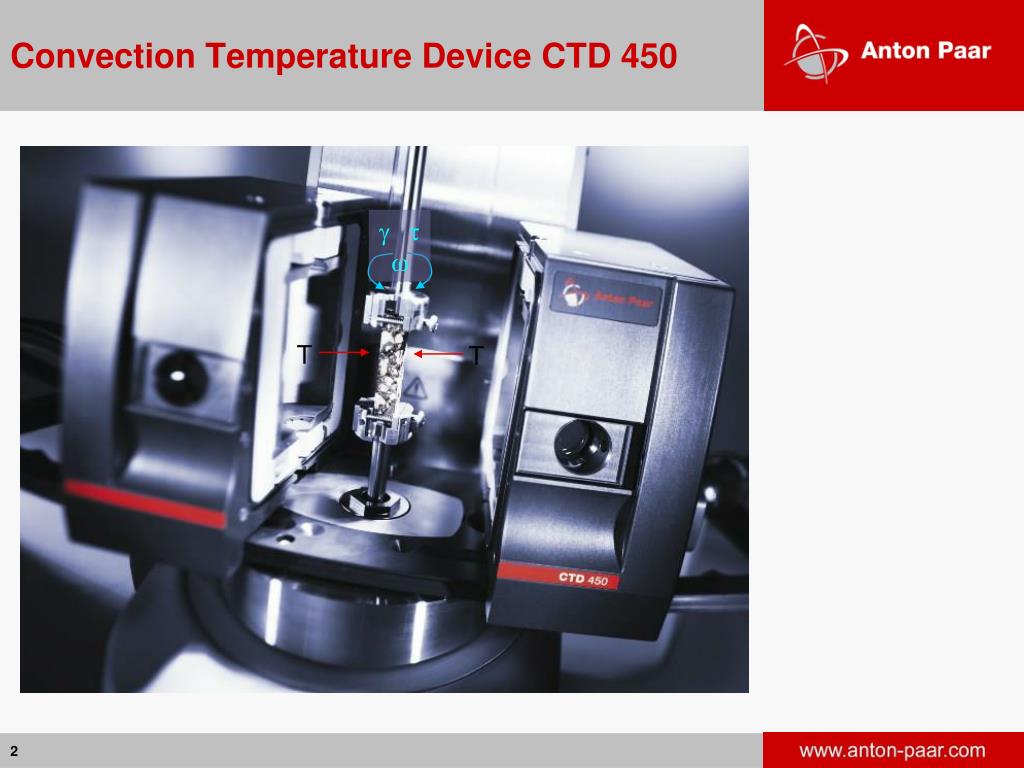

Convection Temperature Device CTD 450

T

T


Convection temperature device ctd 4501

502

102

302

52

Convection Temperature Device - CTD 450

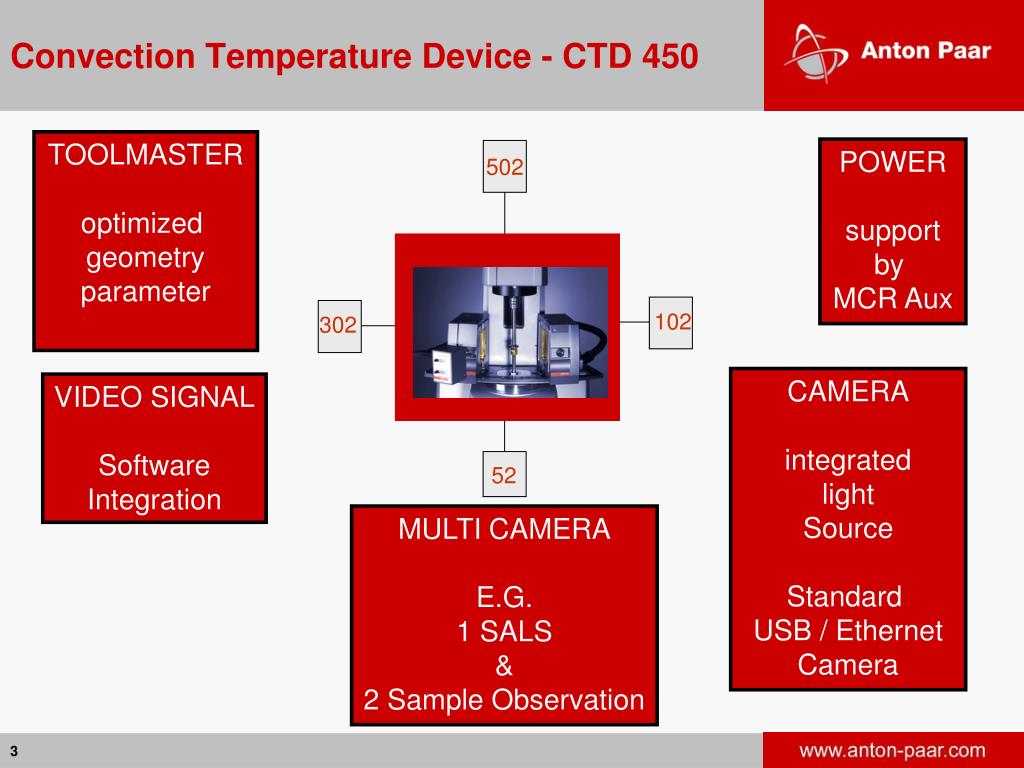

TOOLMASTER

optimized

geometry

parameter

POWER

support

by

MCR Aux

CAMERA

integrated

light

Source

Standard USB / Ethernet

Camera

VIDEO SIGNAL

Software

Integration

MULTI CAMERA

E.G.

1 SALS

&

2 Sample Observation


502

102

CTD 450

52

302

Convection Temperature Device - CTD 450

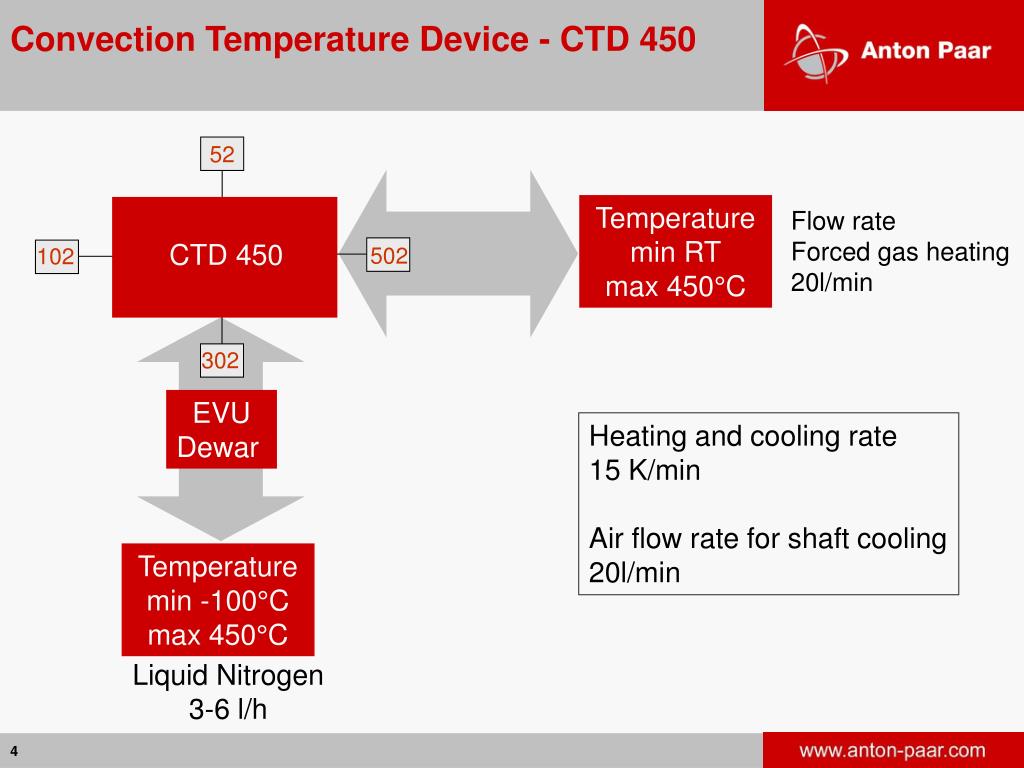

Temperature

min RT

max 450°C

Flow rate

Forced gas heating

20l/min

EVU

Dewar

Heating and cooling rate

15 K/min

Air flow rate for shaft cooling

20l/min

Temperature

min -100°C

max 450°C

  • Liquid Nitrogen

  • 3-6 l/h


Convection temperature device ctd 4502
Convection Temperature Device - CTD 450

102

302

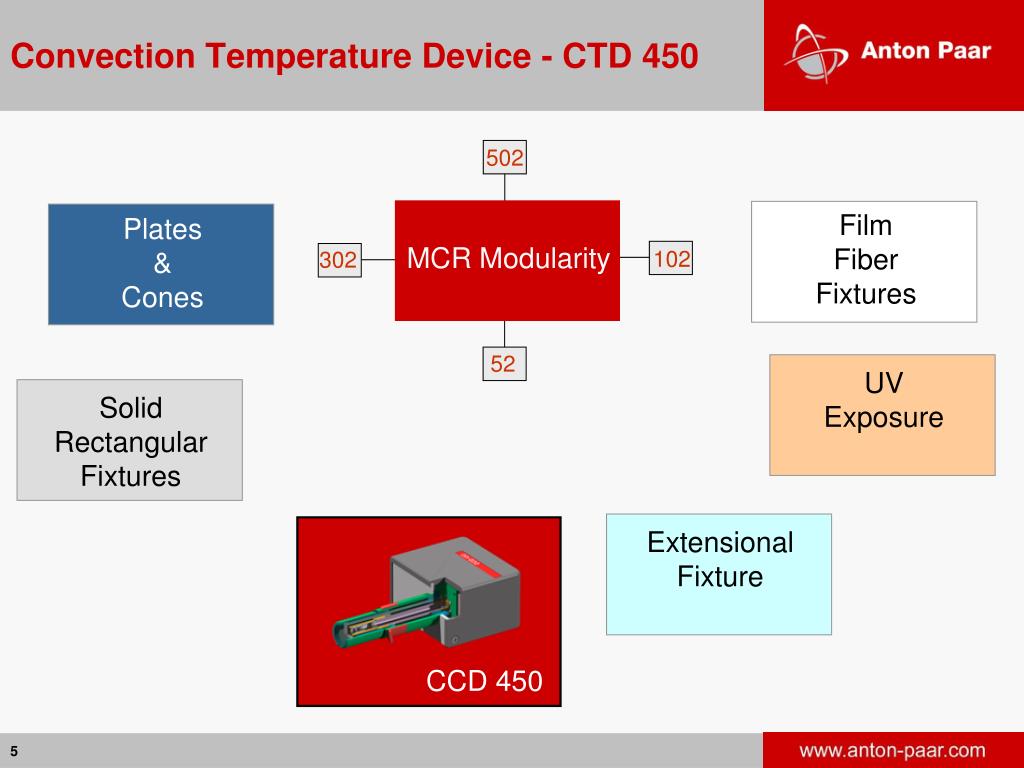

MCR Modularity

502

52

Film

Fiber

Fixtures

Plates

&

Cones

Solid

Rectangular

Fixtures

Extensional

Fixture

UV

Exposure

CCD 450


Convection temperature device ctd 4503
Convection Temperature Device - CTD 450

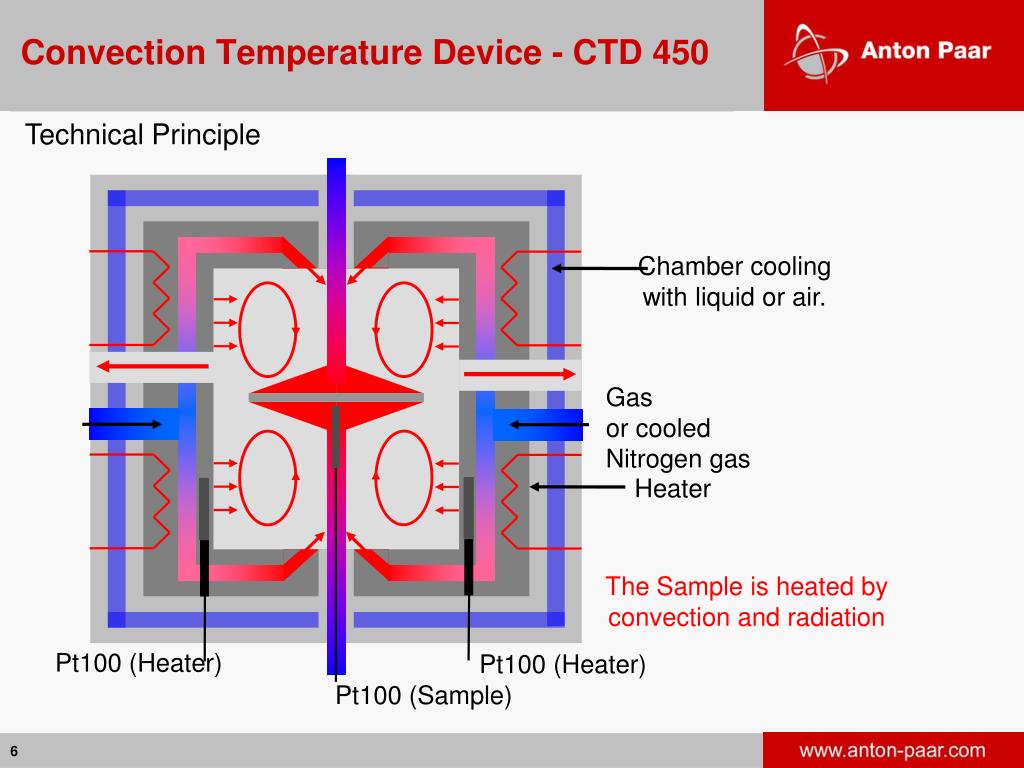

Technical Principle

Chamber cooling

with liquid or air.

Gas

or cooled

Nitrogen gas

Heater

The Sample is heated by

convection and radiation

Pt100 (Heater)

Pt100 (Heater)

Pt100 (Sample)



Convection temperature device ctd 4505
Convection Temperature Device - CTD 450

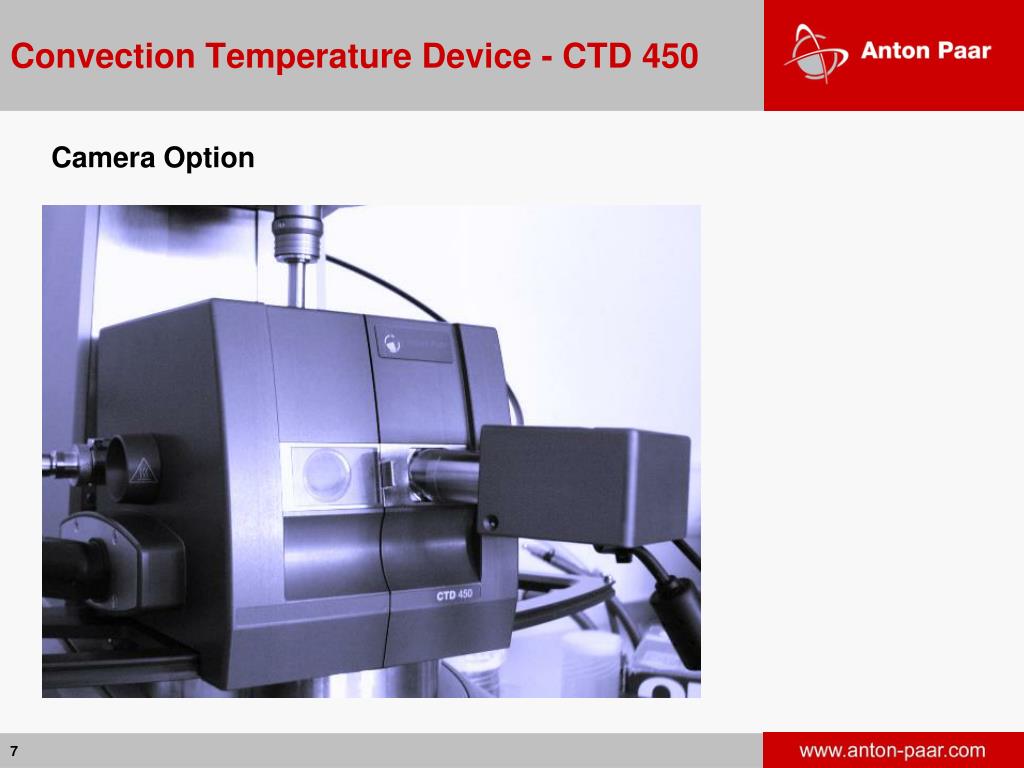

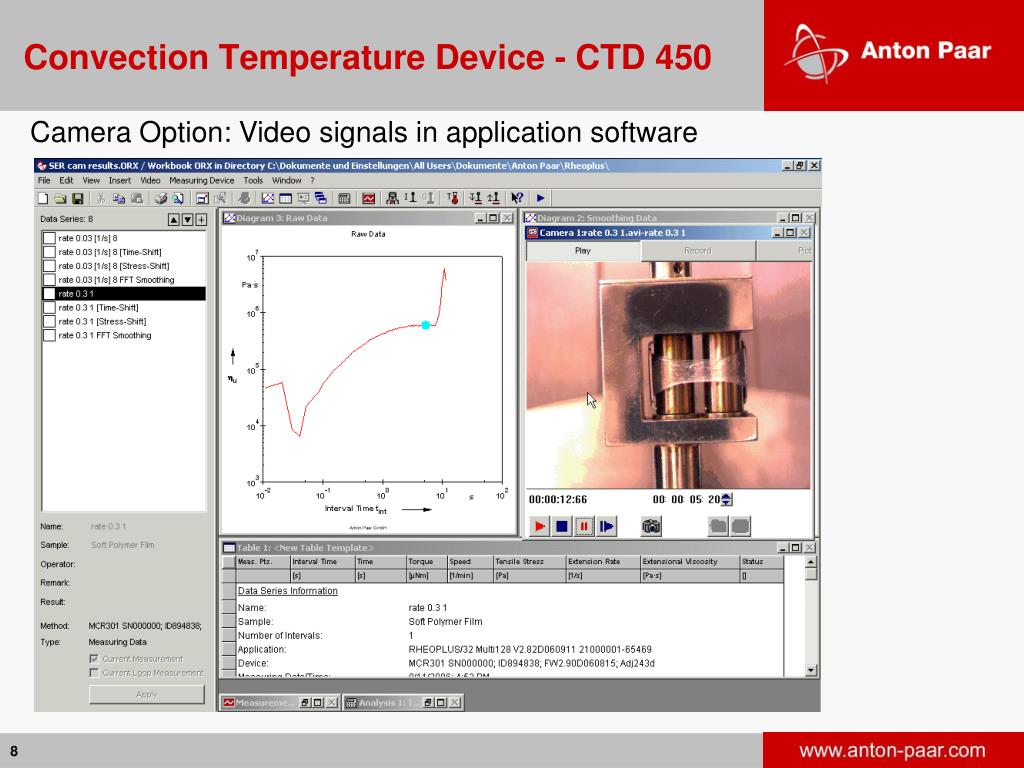

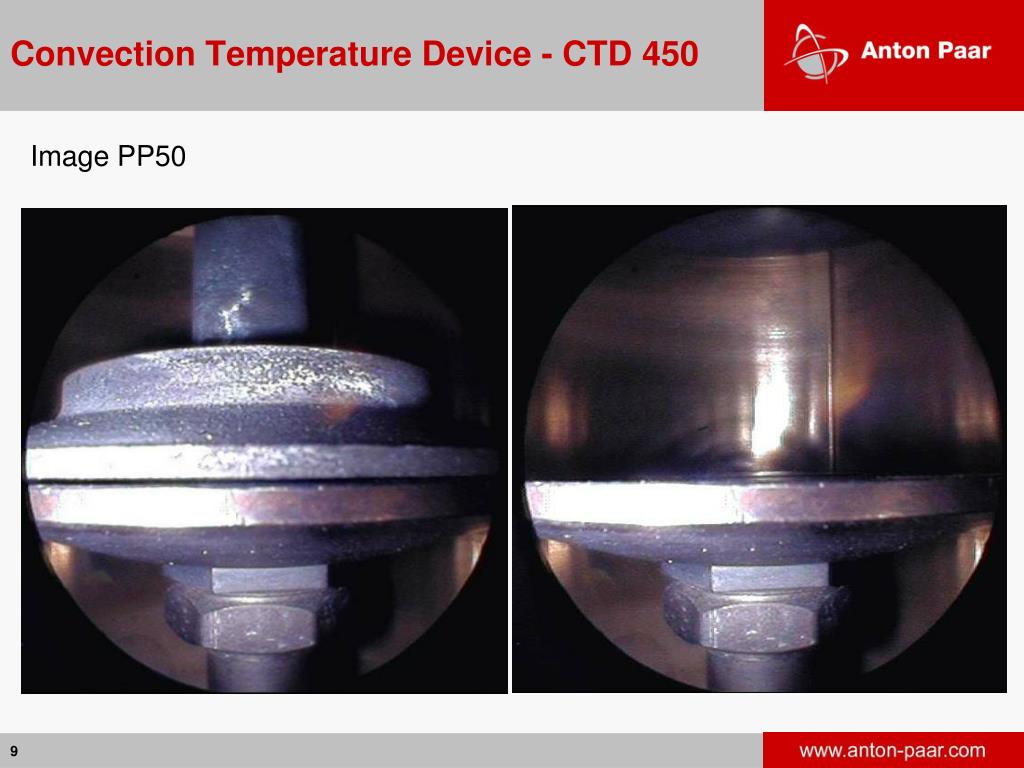

Camera Option: Video signals in application software



Measuring plates for ctd450
Measuring plates for CTD450

3

4

2

5

1

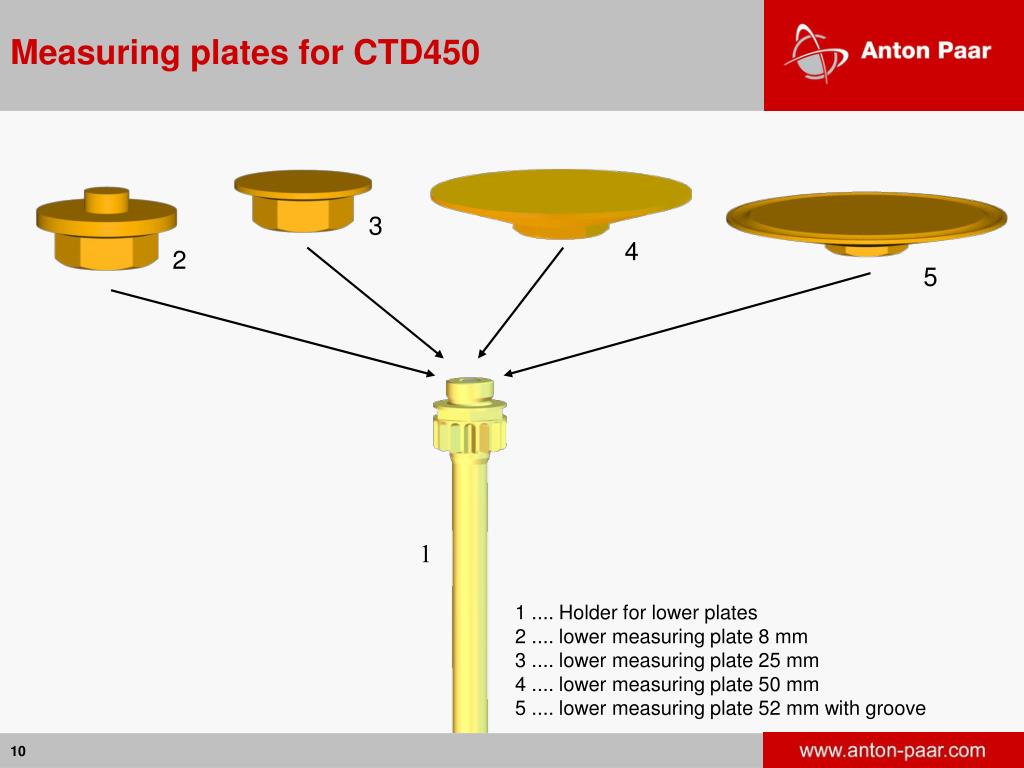

1 .... Holder for lower plates

2 .... lower measuring plate 8 mm

3 .... lower measuring plate 25 mm

4 .... lower measuring plate 50 mm

5 .... lower measuring plate 52 mm with groove


Disposable plate systems for ctd450
Disposable plate systems for CTD450

4

6

3

2

2

5

1

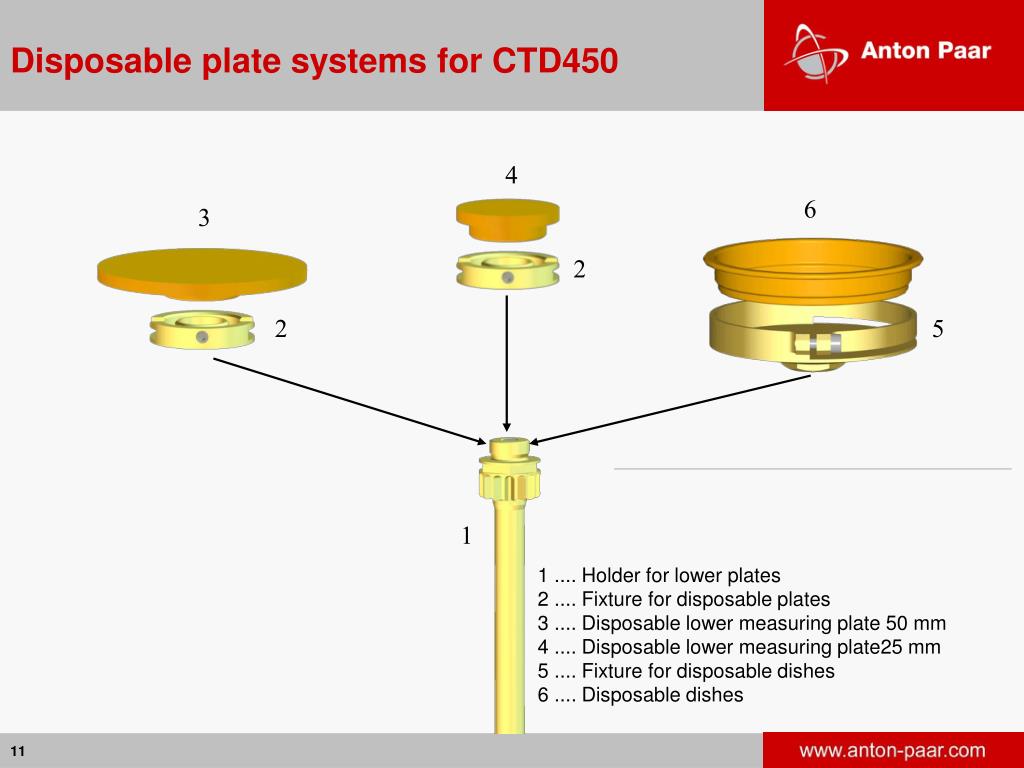

1 .... Holder for lower plates

2 .... Fixture for disposable plates

3 .... Disposable lower measuring plate 50 mm

4 .... Disposable lower measuring plate25 mm

5 .... Fixture for disposable dishes

6 .... Disposable dishes
