Single Displacement

Single Displacement. A reaction where an element and compound react Forms a new element and a new compound Ex: Mg + 2 HCl  MgCl 2 + H 2 The element reacting will generally displace the element of the same type of element from the compound. Three Types of Single Displacements.

mikasi
Download Presentation

Single Displacement

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Single Displacement

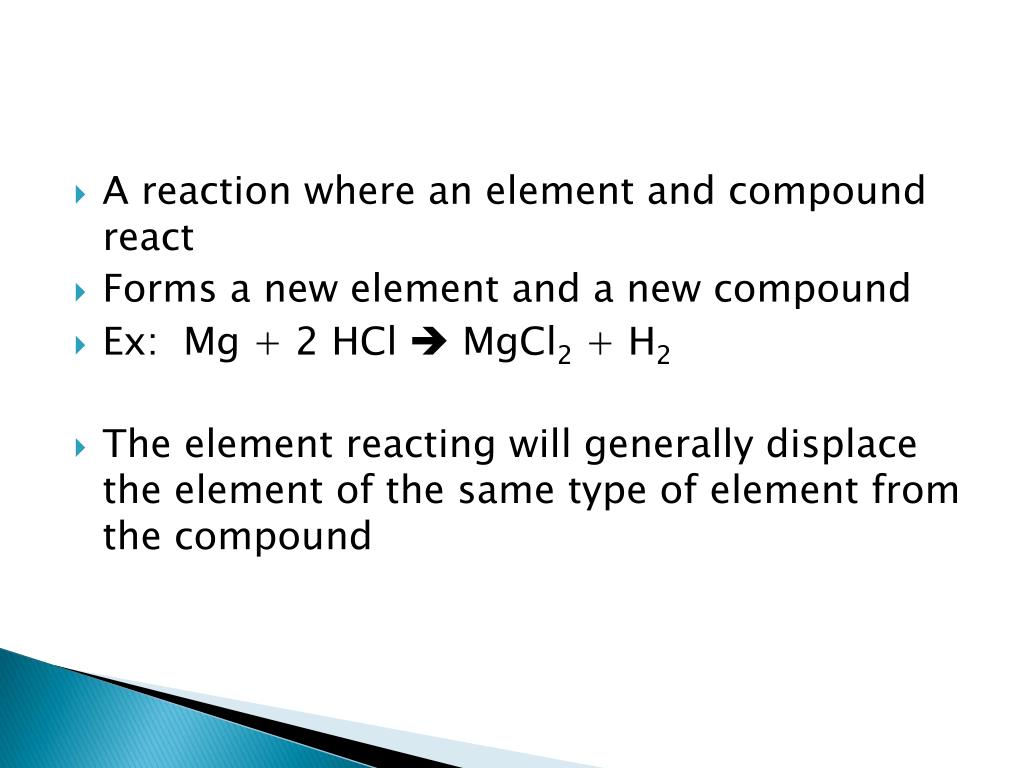

  2. A reaction where an element and compound react • Forms a new element and a new compound • Ex: Mg + 2 HCl  MgCl2 + H2 • The element reacting will generally displace the element of the same type of element from the compound

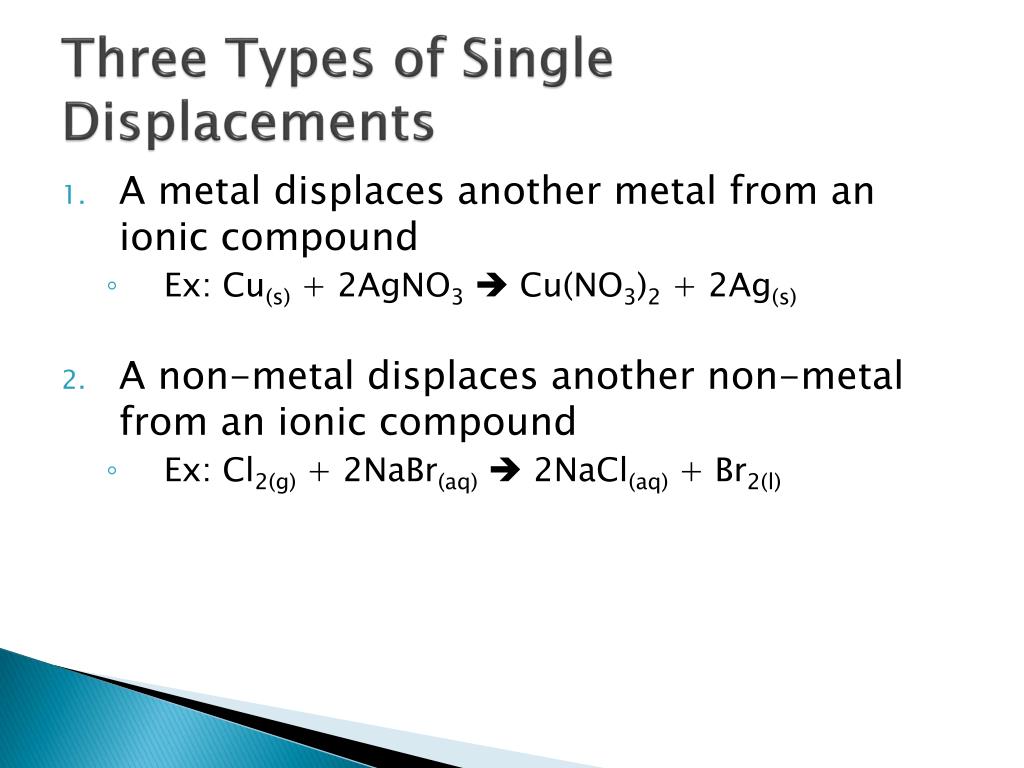

  3. Three Types of Single Displacements • A metal displaces another metal from an ionic compound • Ex: Cu(s) + 2AgNO3 Cu(NO3)2 + 2Ag(s) • A non-metal displaces another non-metal from an ionic compound • Ex: Cl2(g) + 2NaBr(aq) 2NaCl(aq) + Br2(l)

  4. 3. A metal displacing hydrogen from water • Most metals are able to displace H from H2O • If this happens, it created H2 gas and a basic solution • Ex: 2 Na + 2 H2O  2 NaOH + H2

  5. In order to predict IF a reaction will occur, use the Activity Series • This is a list of what is more reactive than what • More specifically, it is a list of what tends to lose electrons easily or not at all • Note – hydrogen is part of this series because it can donate electrons like a metal

  6. If the metal is above the metal in the compound, the reaction will occur • If the metal is below the metal in the compound, the reaction will not proceed spontaneously

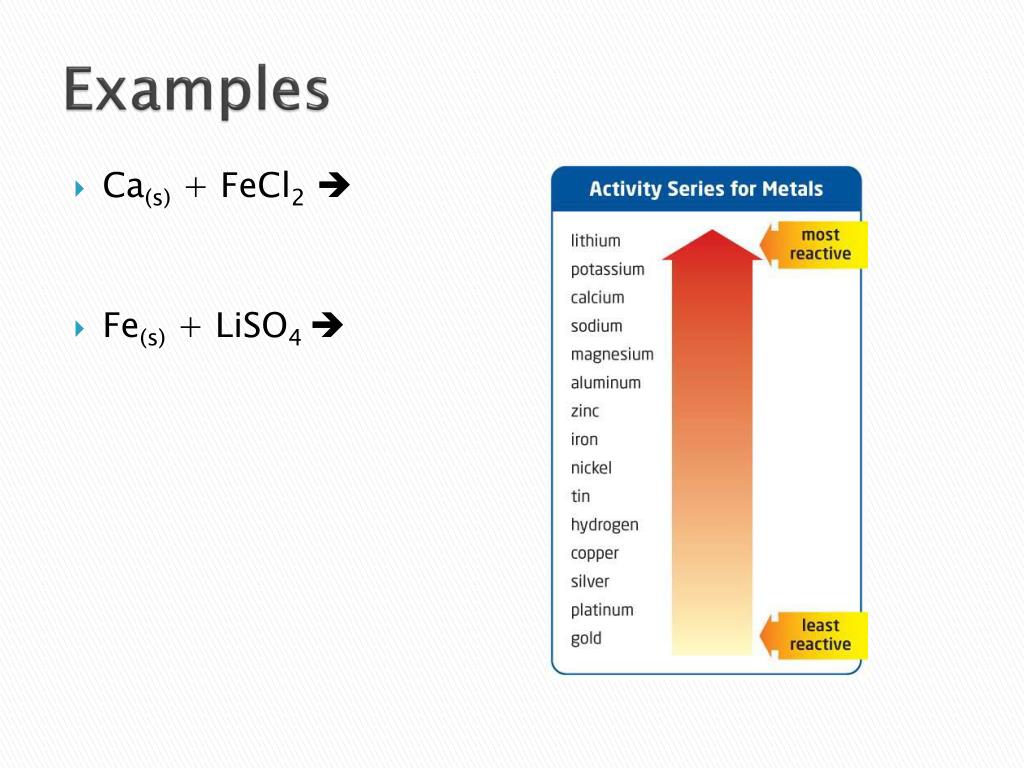

  7. Examples • Ca(s) + FeCl2 • Fe(s) + LiSO4 

  8. There is a separate list for non-metals

  9. Applications of the Activity Series • Choosing Metals for pipes and construction • Modern houses use copper in pipes (resistant to corrosion) compared to older pipes that have steel pipes with zinc and iron (more reactive) • Thermite Reaction: • Used in welding • Fe2O3(s) + 2Al(s)  Al2O3(s) + 2Fe(l)

  10. http://group.chem.iastate.edu/Greenbowe/sections/projectfolder/flashfiles/redox/home.htmlhttp://group.chem.iastate.edu/Greenbowe/sections/projectfolder/flashfiles/redox/home.html

  11. P. 131 # 22, 23
