  1. Chapter 07&08 & 09 & 10

  2. PHOTONIC-CRYSTAL OPTICS • 下几页列出重要的概念,需掌握

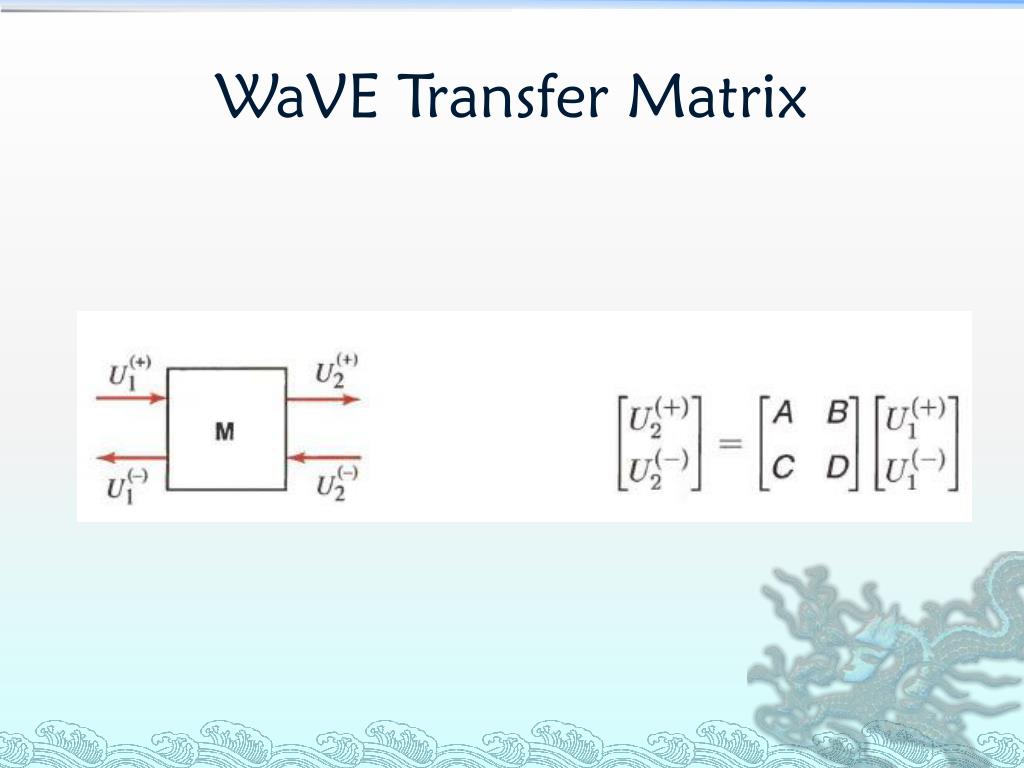

  3. WaVETransfer Matrix

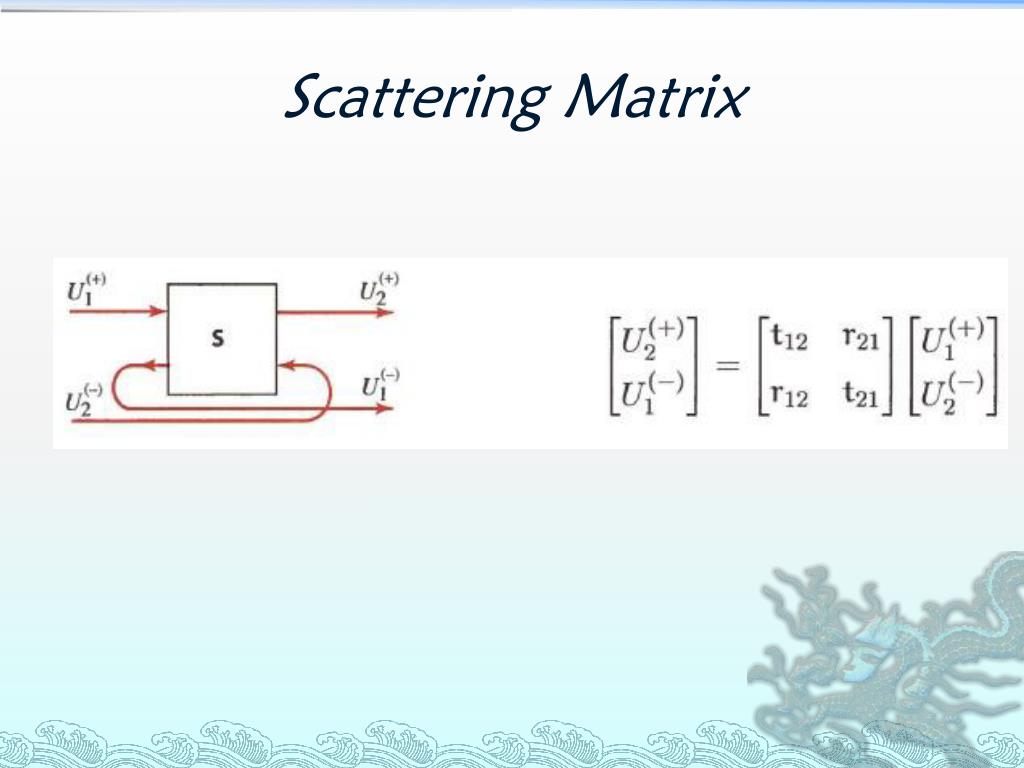

  4. Scattering Matrix

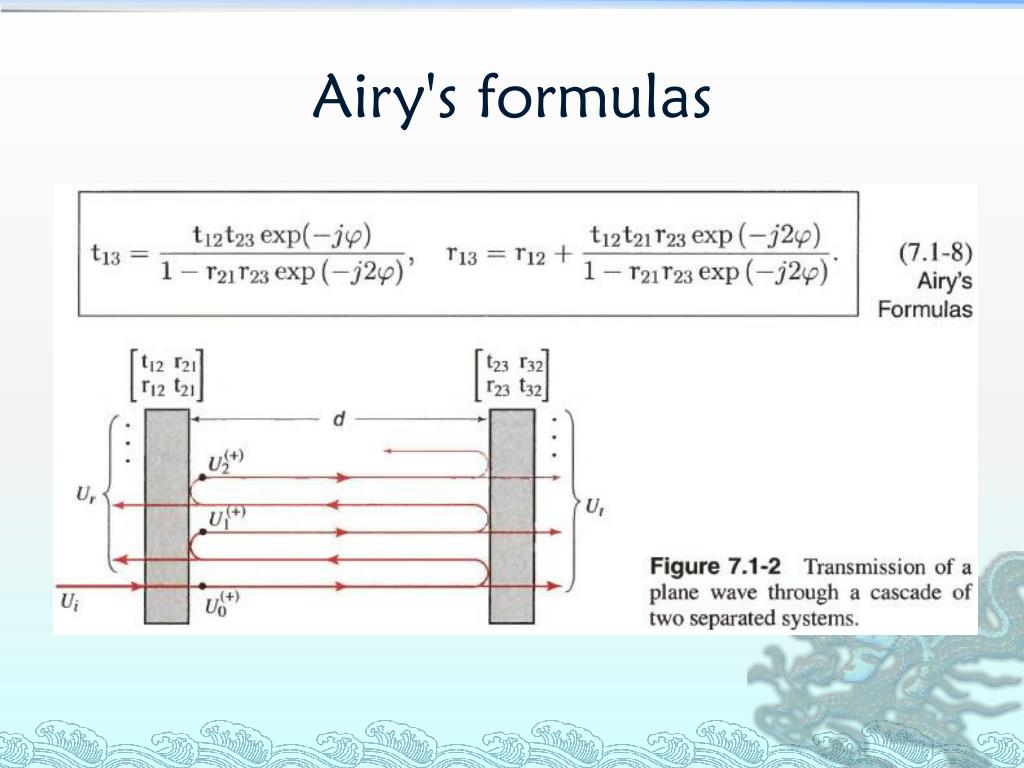

  5. Airy's formulas

  6. Fabry-Perot Etalon

  7. Bragg Grating

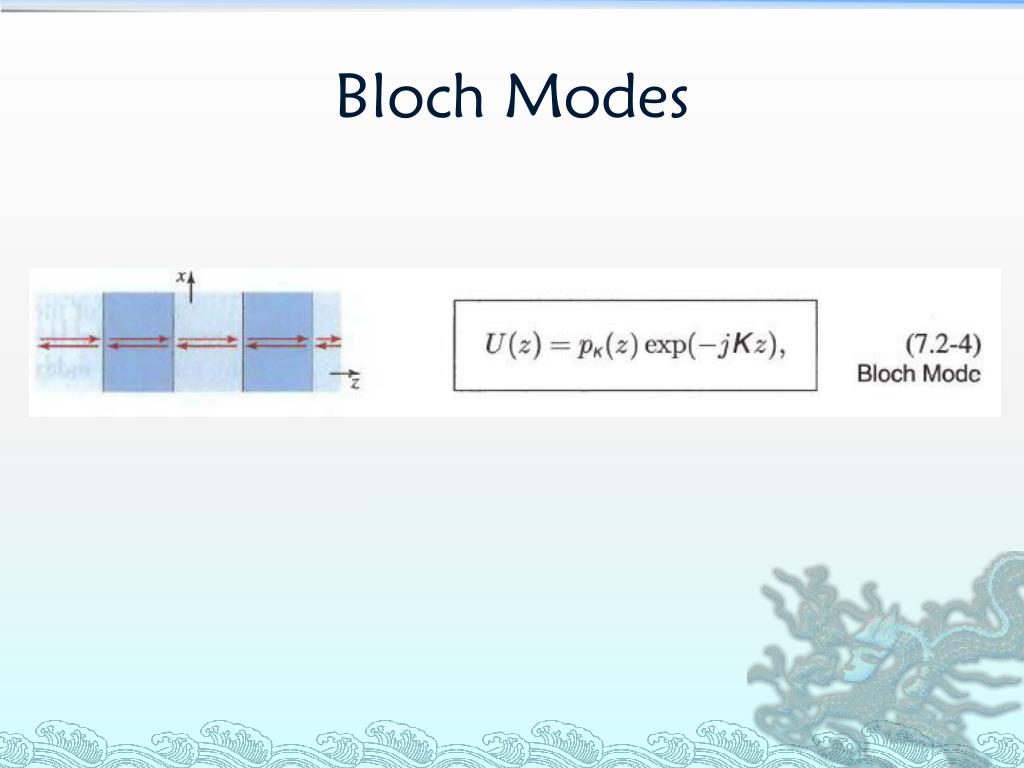

  8. Bloch Modes

  9. Chapter 8

  10. Comments…why?...

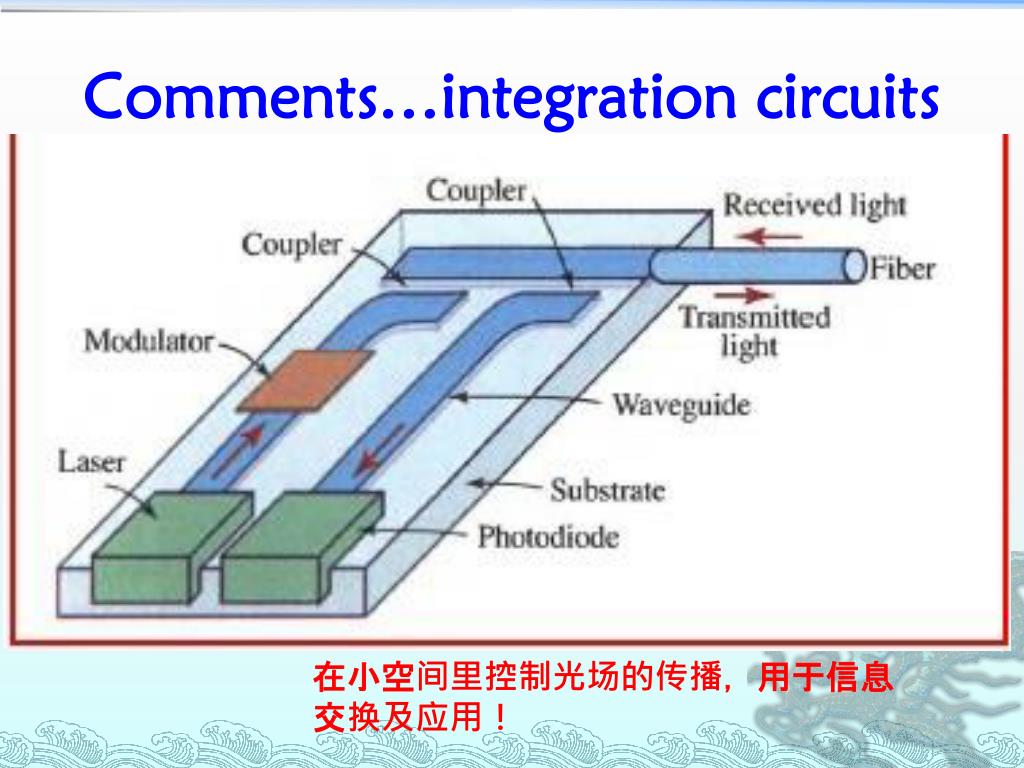

  11. Comments…integration circuits 在小空间里控制光场的传播,用于信息交换及应用!

  12. Photonic Crystals Metamaterials 尺寸更小,亚波长,<200nm • From a similar consideration

  13. Planar-Mirror Waveguides

  14. Firstly, from ray optics… • Reflection by mirrors • Correct in microwave frequency

  15. Why?... At microwave • Perfect electric conductor (PEC) • ε = ― • n= j • |r|=1 • Phase change: 0 or π (半波损) • 0: 边界场强极大 • π: 边界场强为零

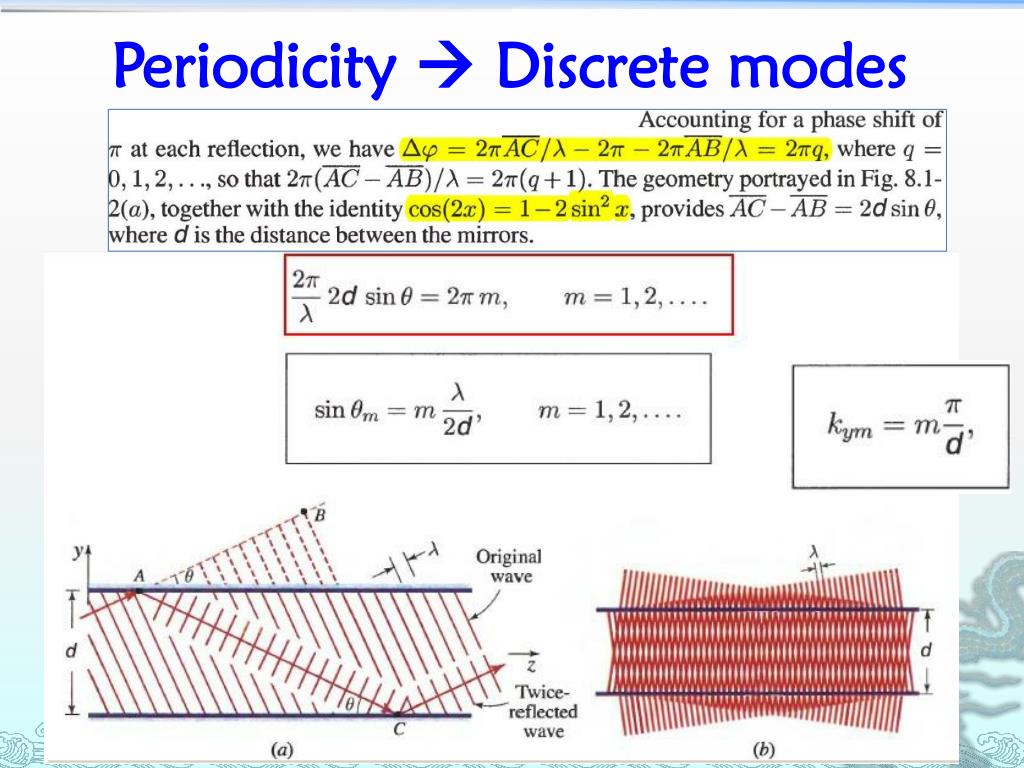

  16. Periodicity  Discrete modes

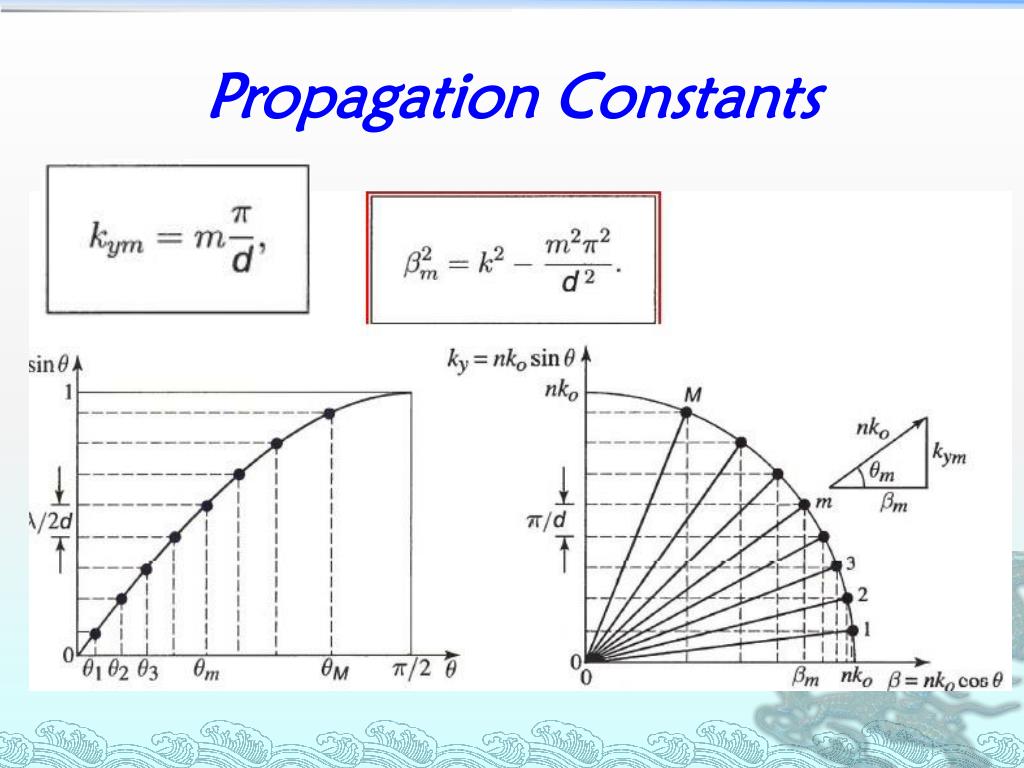

  17. Propagation Constants

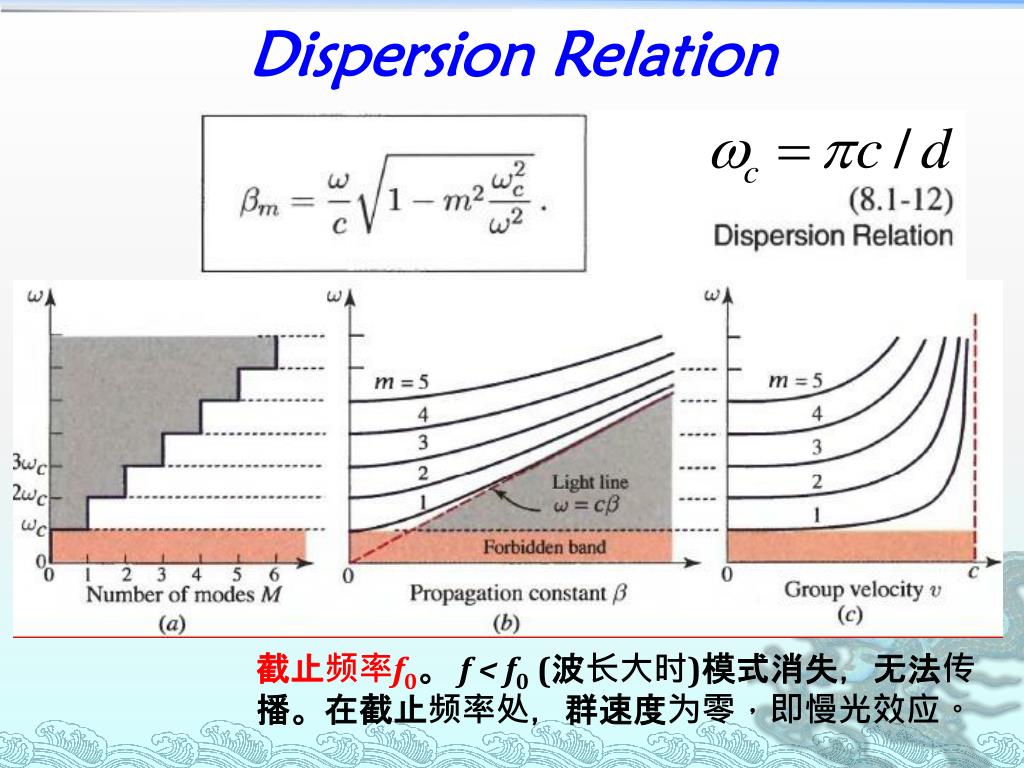

  18. Dispersion Relation 截止频率f0。f <f0 (波长大时)模式消失,无法传播。在截止频率处,群速度为零,即慢光效应。

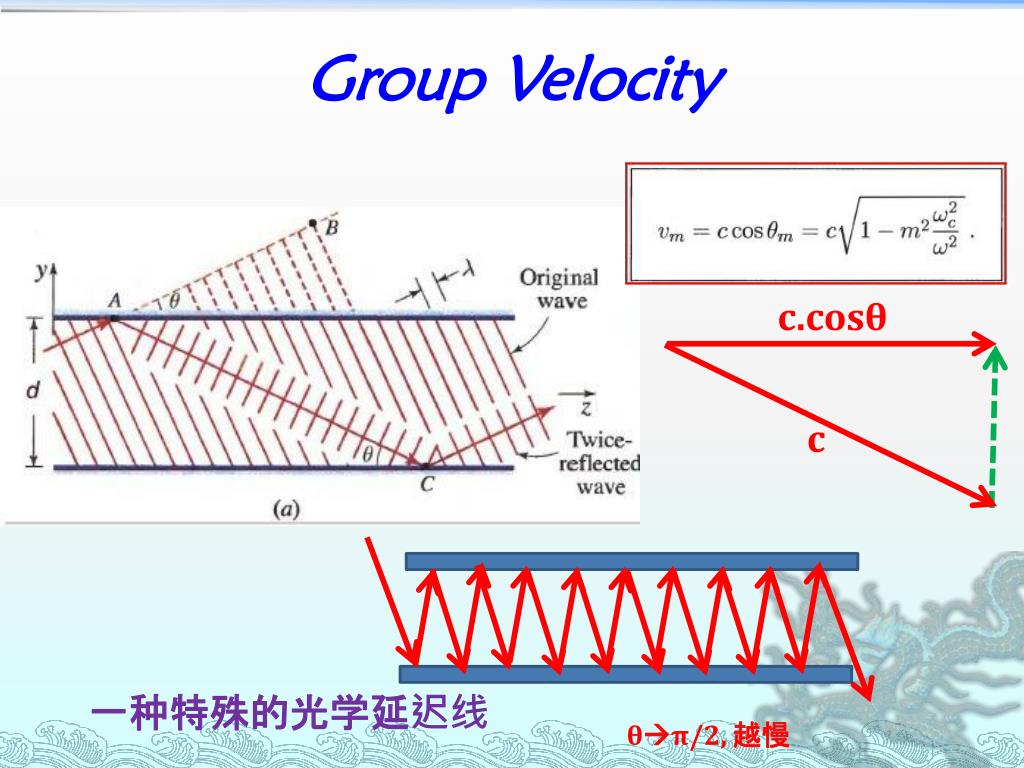

  19. Group Velocity c.cosθ c 一种特殊的光学延迟线 θπ/2, 越慢

  20. Field Distributions 正交归一本征模式

  21. Multimode Fields

  22. Comments • m=1,2,3… • How about m=0? • Infinite field amplitude, not allowed • Cutoff size: d>dc=/2 But coaxial PEC waveguide supports m=0 TEM mode, which in non-cutoff!

  23. PLANAR DIELECTRIC WAVEGUIDES

  24. Comparing to Section 1 No longer PEC boundary conditions • With field outside the core • With non-zero/pi reflection phase Now Electromagnetic optics

  25. Phase condition

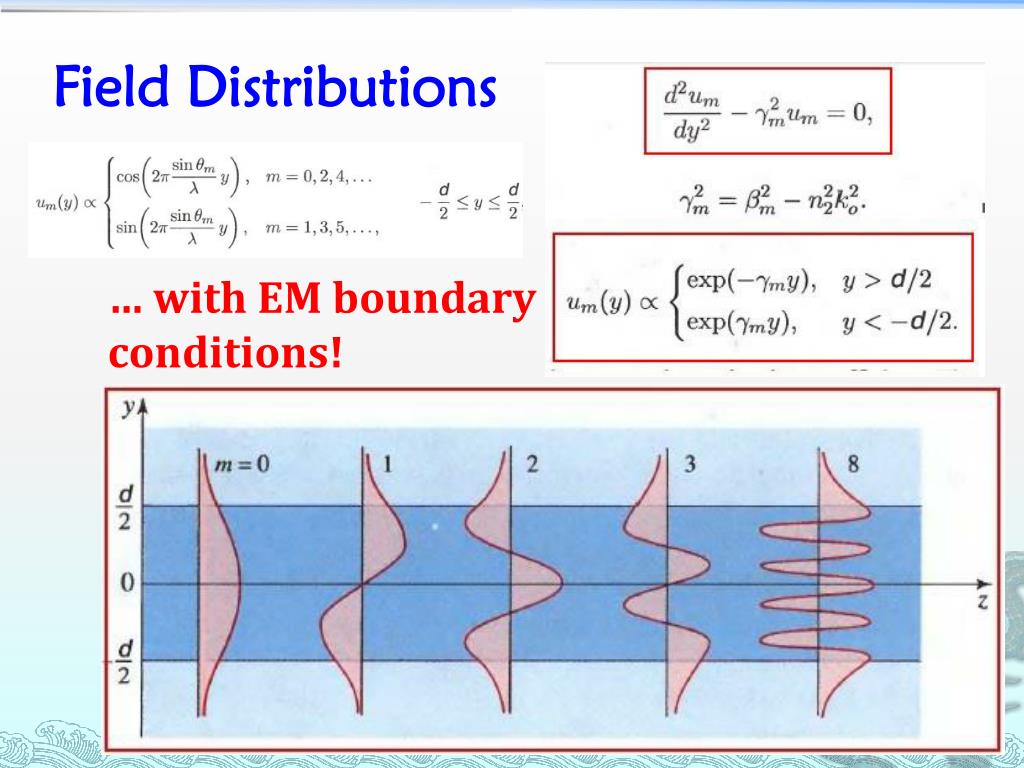

  26. Field Distributions … with EM boundary conditions!

  27. Dispersion Relation

  28. Dispersion…

  29. Group Velocity Goos-Hänchenshift 当相位为常数时,v=c.cosθ

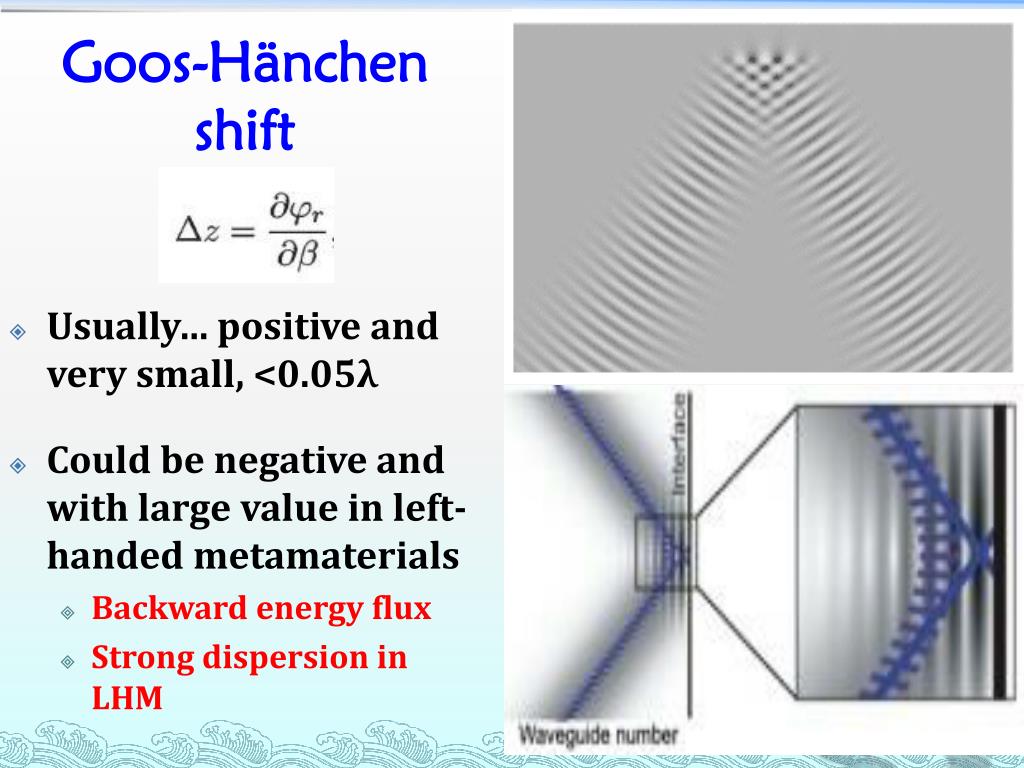

  30. Goos-Hänchen shift • Usually… positive and very small, <0.05λ • Could be negative and with large value in left-handed metamaterials • Backward energy flux • Strong dispersion in LHM

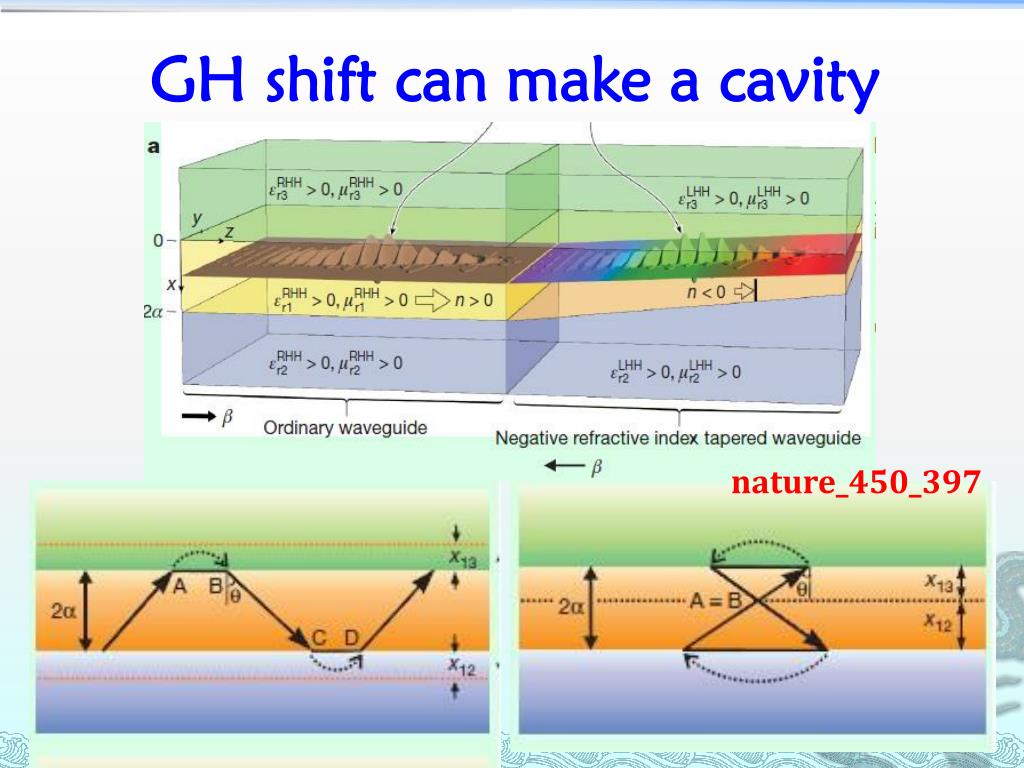

  31. GH shift can make a cavity nature_450_397

  32. Two-Dimensional Waveguides

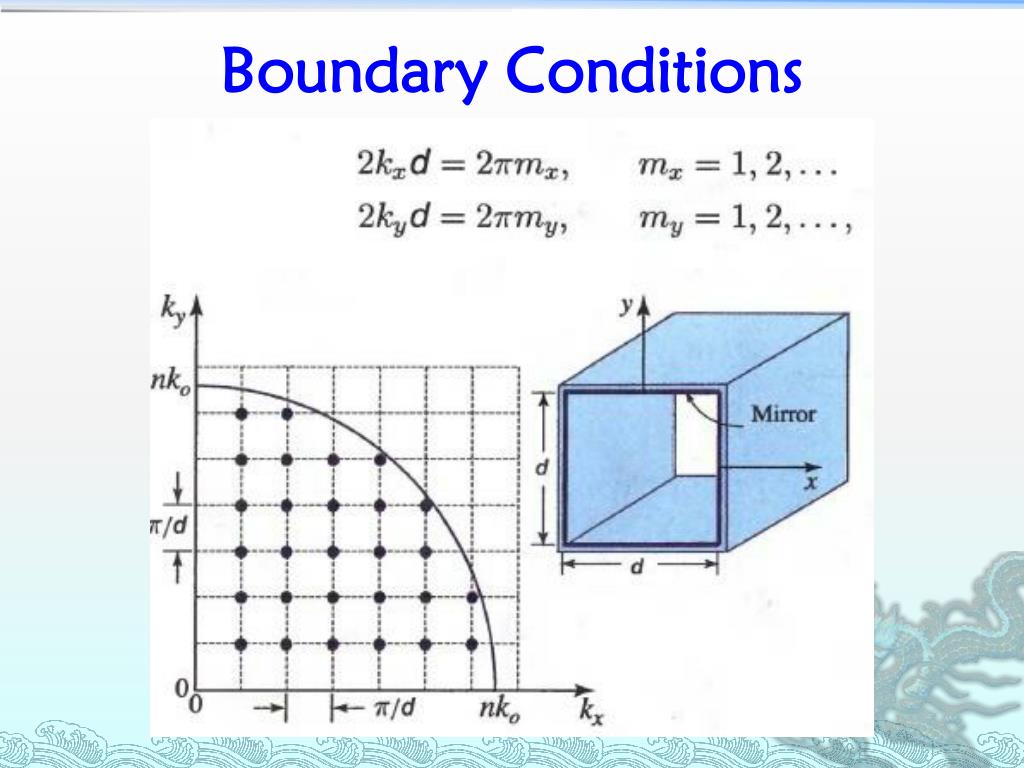

  33. Boundary Conditions

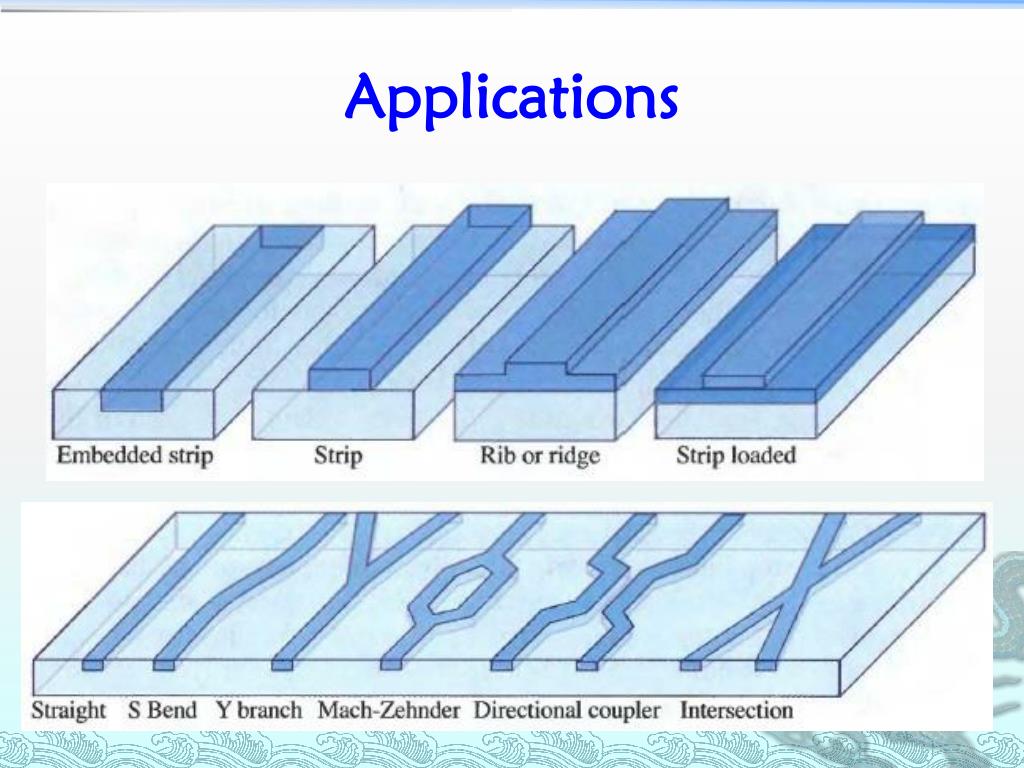

  34. Applications

  35. Optical Coupling in waveguides

  36. Input Couplers 尽可能大的交叠积分

  37. End-Fire configuration

  38. Prism & Grating Side Couplers To match the wavevectorm…

  39. Fibers 圆柱对称二维光波导,选择性阅读

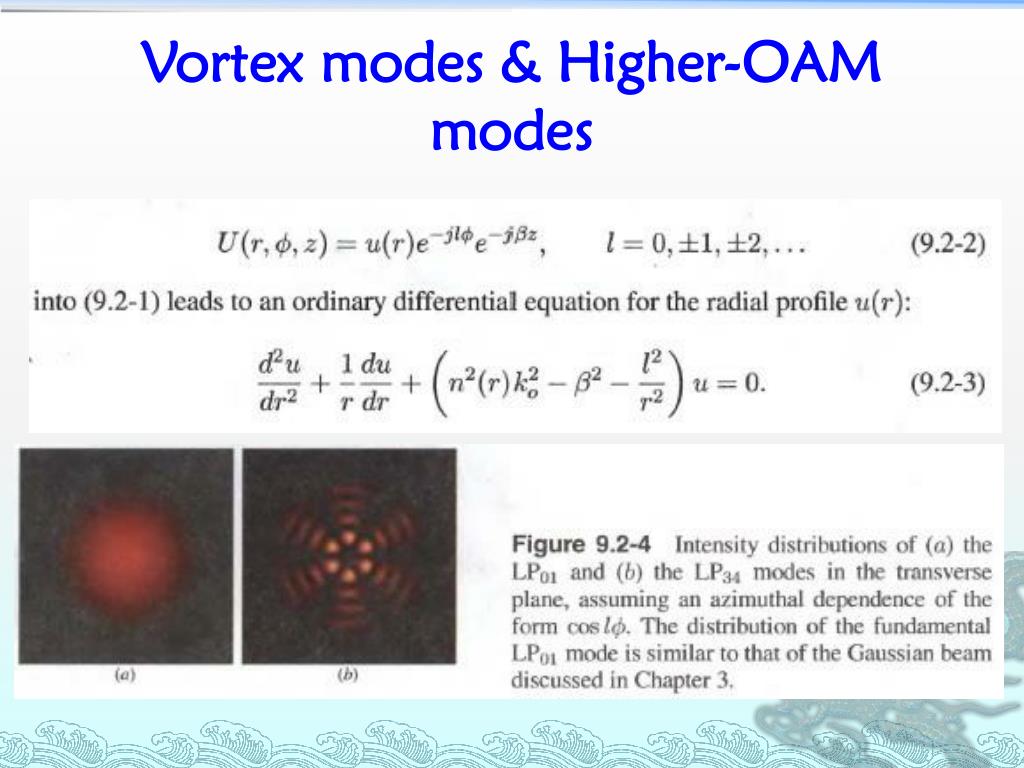

  40. Vortex modes & Higher-OAM modes

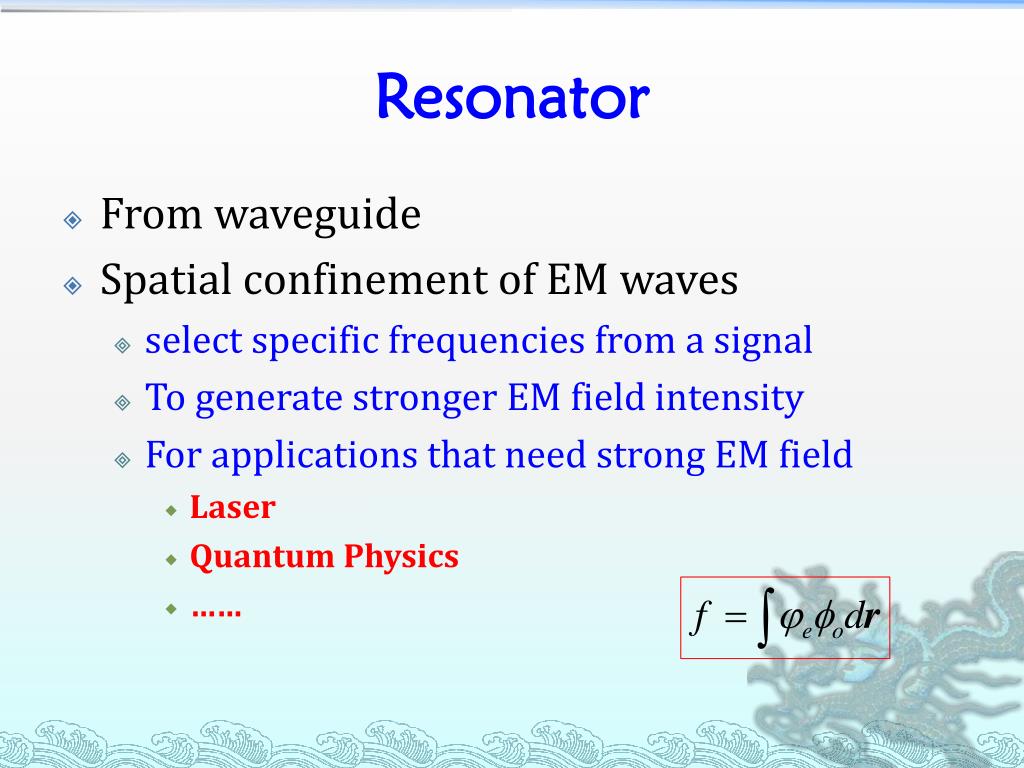

  41. Resonator • From waveguide • Spatial confinement of EM waves • select specific frequencies from a signal • To generate stronger EM field intensity • For applications that need strong EM field • Laser • Quantum Physics • ……

  42. Examples

  43. Planar-Mirror Resonators

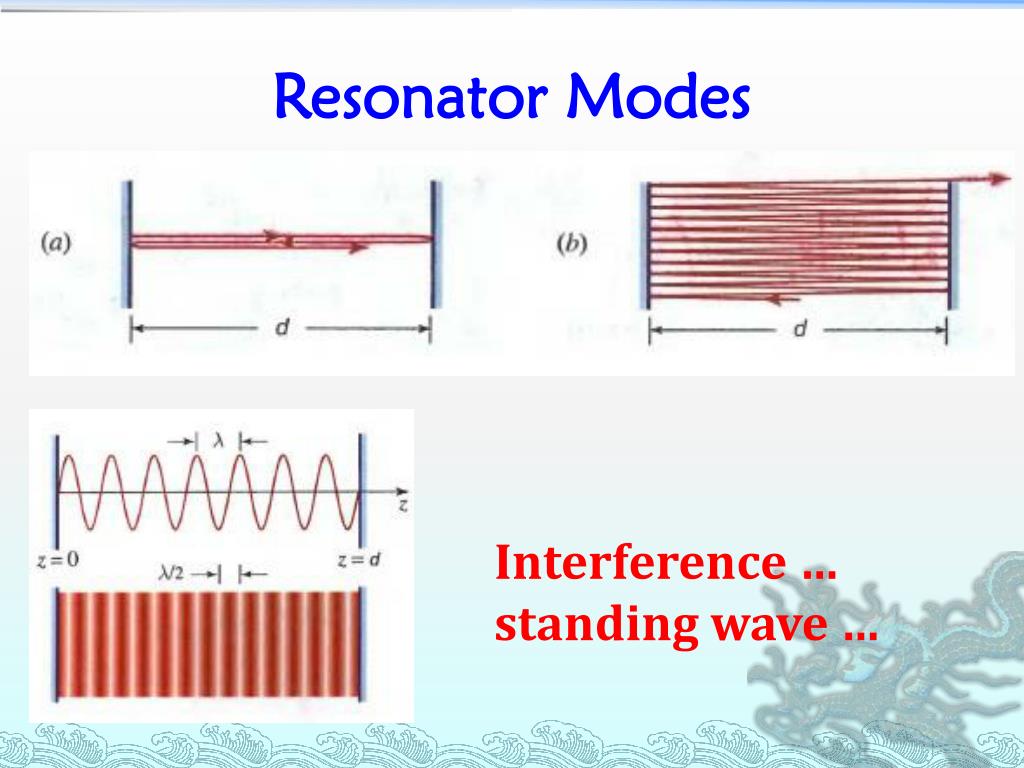

  44. Resonator Modes Interference … standing wave …

  45. Similar to 1D waveguides … Smaller d  larger vf (uncertainty principle)

  46. As Traveling waves Multiple interference…

  47. Traveling-Wave Resonator 驻波的缺点:场强分布不均匀,例如E~cos(kz)。 Traveling wave? 场强均匀分布,优点: 例如可以充分利用增益介质等。
