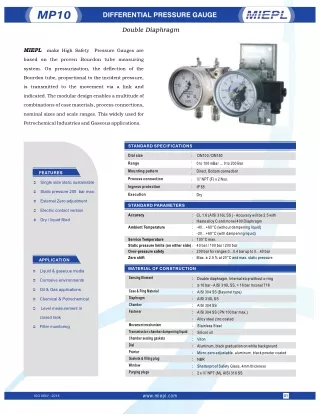

1. MP10 DIFFERENTIAL PRESSURE GAUGE Double Diaphragm MIEPL make High Safety Pressure Gauges are based on the proven Bourdon tube measuring system. On pressurization, the deection of the Bourdon tube, proportional to the incident pressure, is transmitted to the movement via a link and indicated. The modular design enables a multitude of combinations of case materials, process connections, nominal sizes and scale ranges. This widely used for Petrochemical Industries and Gaseous applications. STANDARD SPECIFICATIONS Dial size Range Mounting pattern Process connection Ingress protection Execution : : : : : : DN100 / DN150 0 to 100 mBar … 0 to 200 Bar Direct, Bottom connection ¼" NPT (F) x 2 Nos. IP 65 Dry FEATURES Single side static sustainable Ü Static pressure 200 bar max. Ü : External Zero adjustment Ü STANDARD PARAMETERS Electric contact version Ü Accuracy : : : : : : : : CL 1.6 (AISI 316L SS ) - Accuracy will be 2.5 with Hastealloy C and monel 400 Diaphragm -40…+60°C (without dampening liquid) -20…+60°C (with dampening liquid) 100°C max. 40 bar / 100 bar / 200 bar 200 bar for ranges 0...0.4 bar up to 0...40 bar Max. ± 2.5 % at 20°C and max. static pressure Dry / liquid filled Ü Ambient Temperature Service Temperature Static pressure limits (on either side) Over-pressure safety Zero shift APPLICATION MATERIAL OF CONSTRUCTION Liquid & gaseous media Ü Sensing Element : : : : : : : : : : : : : : : Double diaphragm, Internal stop without o-ring ≤ 16 bar - AISI 316L SS, > 16 bar Inconel 718 AISI 304 SS (Bayonet type) AISI 316L SS AISI 304 SS AISI 304 SS ( PN 100 bar max.) Alloy steel zinc coated Stainless Steel Silicon oil Viton Aluminum, black graduation on white background Micro-zero adjustable, aluminum, black powder coated NBR Shatterproof Safety Glass, 4mm thickness 2 x ¼” NPT (M), AISI 316 SS Corrosive environments Ü Oil & Gas applications Case & Ring Material Diaphragm Chamber Fastener Ü Chemical & Petrochemical Ü Level measurement in Ü closed tank Movement mechanism Transmission chamber dampening liquid Chamber sealing gaskets Dial Pointer Gaskets & filling plug Window Purging plugs Filter monitoring Ü www.miepl.com 01 ISO 9001 : 2015

2. MP10 DIFFERENTIAL PRESSURE GAUGE STAND. SPEC. : DAMPENING LIQUID FILLED, GLYCERIN OR SILICON OIL REFERENCE Accuracy Window Dampening liquid CL 2.5 Shatterproof safety glass Glycerin 99.7% / Silicon oil 47V50 : : : EN 837-3 Ü TEMPERATURE EFFECT Please refer clause no 9.3 of EN 837-1 DRAWING DIMENSIONAL DRAWING Type - 1A DN 100 100 160 160 Range mbar ≤160 250 ≤160 250 P (PN40/100) 140 100 140 100 nipple connection (option) ØP (PN 200) - 100 - 100 51 51 51 51 B Zero adjustment (with filled case and/or electrical contact and diaphragm seals) 100 100 160 160 D1 1/4" NPT-F (standard) Type 1C DIMENSIONAL DRAWING external zero adjustment All dimensions are in mm. www.miepl.com 02 ISO 9001 : 2015

3. MP10 DRAWING DIFFERENTIAL PRESSURE GAUGE Back ange surface mounting DIMENSIONAL DRAWING 2” pipe bracket Panel Mounting (*) DIMENSIONAL DRAWING DN100 DN160 Panel Panel ring M5 x 10 Lugs case ring The assembly consist of: Panel ring 4 screws M5 (*) Panel Cut-out : 105 mm for DN100 & 165 mm for DN160 Type 1D DIMENSIONAL DRAWING external zero adjustment All dimensions are in mm. ISO 9001 : 2015 www.miepl.com 03

4. MP10 DIFFERENTIAL PRESSURE GAUGE ORDERING CODE MP10 - D XXX - - 1A 2NF IP2 E1 040 - - - - D 100 mm 1. DIAL SIZE F 150 mm XXX Refer “Range Table” 2. RANGE Direct, Bottom connection 1A Wall/Surface/Projection mounting, Bottom connection 1B 3. MOUNTING PATTERN 1C 2" Pipe/Yoke mounting, Bottom connection PATTERN 1D Panel/Front ange mounting, Bottom Connection ¼" NPT (F) x 2 Nos. 2NF 3/8" BSP (M) x 2 Nos. 3BM 4BM ½" BSP (M) x 2 Nos. 4. PROCESS CONNECTION 4MM M20 X 1.5 mm (M) x 2 Nos. 4NM ½" NPT (M) x 2 Nos. Other thread size and standards available on request.¹ * Male threads through adaptors 5. INGRESS PROCESS IP2 IP 65 E1 Dry 6. EXECUTION E2 Dry but llable 40 bar 040 7. STATIC PRESSURE 100 bar 100 200 bar 200 Monel diaphragm SS tag plate Food grade oil lled chamber NF WF CM PROTECTION Hastelloy C-276 diaphragm Custom designed dial 5 - point calibration certicate SA WR CO Maximum reading pointer Dial tag marking Material test certicate 3.1 SC WT FW External zero adjustment 8. OTHER OPTIONS Material test certicate 2.2 SM FZ (Standard for lled versions) Monel chambers Tested to NACE standards SN MN Hastelloy C-276 chambers Certicate of Oxygen service SO MO COMPATIBLE ACCESSORIES Diaphragm seal 5 Valve Manifolds 3 Valve manifolds MP10 D XXX 1A 2NF - - - - - IP2 - E1 - 040 Ordering Example : Notes : 1. . For other connections, please contact factory. www.miepl.com 04 ISO 9001 : 2015 MILLENNIUM INSTRUMENTS LIMITED Tel : +91- 11- 220 143 25 / 27, Email : mil@miepl.com
